一维理想器件的电势分布问题
研究背景
最近两三个月，本人在断断续续地学习一维MOS器件的数值模拟仿真 (仅Poisson方程)，主要细节见
https://www.cnblogs.com/ghzhan/articles/17031958.html
https://www.cnblogs.com/ghzhan/articles/17368238.html
https://www.cnblogs.com/ghzhan/articles/17372907.html

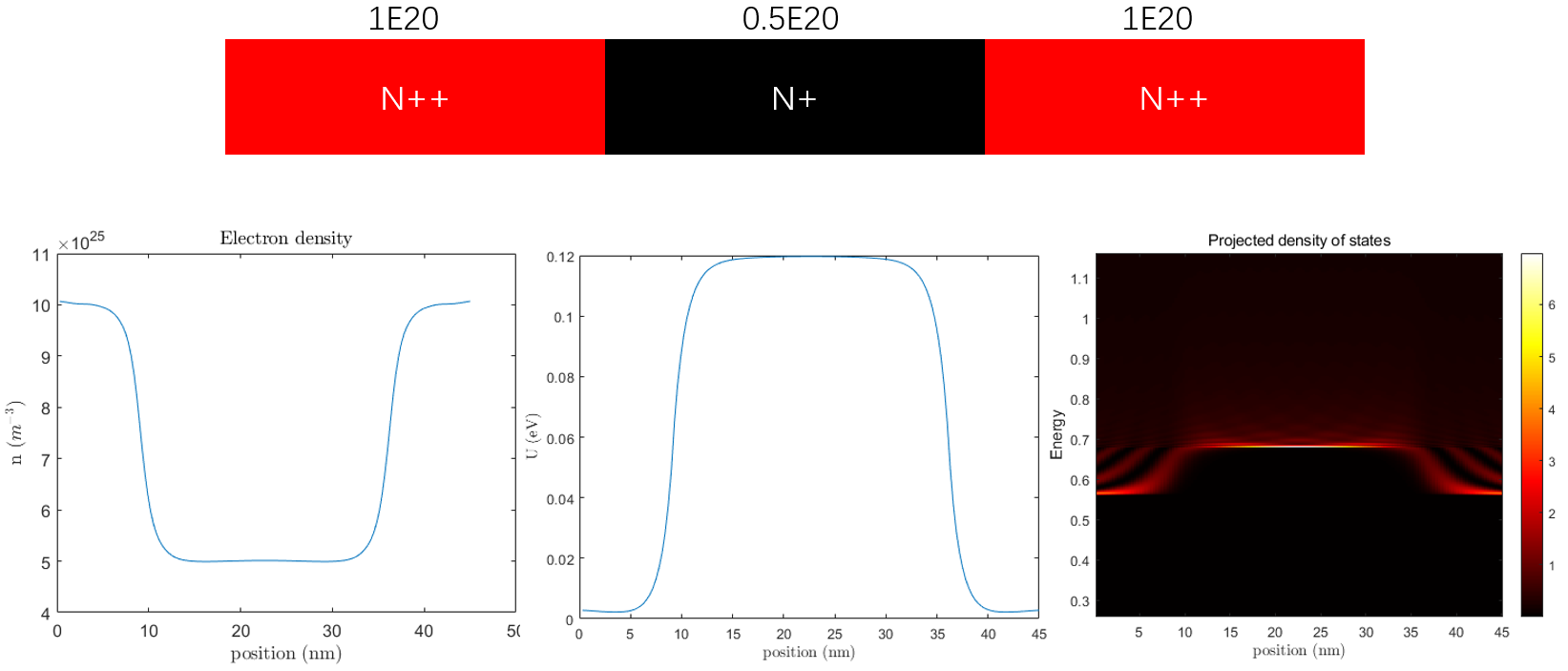

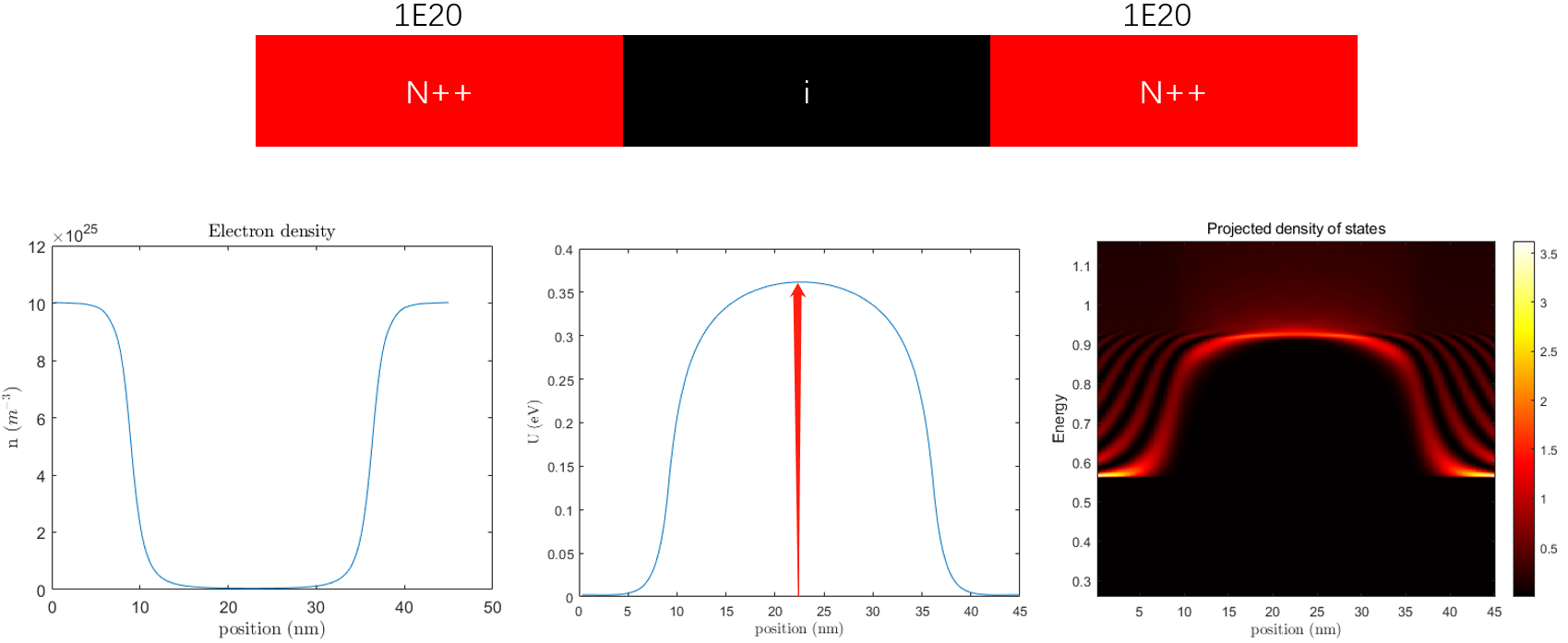

当下图器件区域掺杂浓度分别为 1E20 - 5E19 - 1E20 时，器件电势分布和PLDOS如下图所示

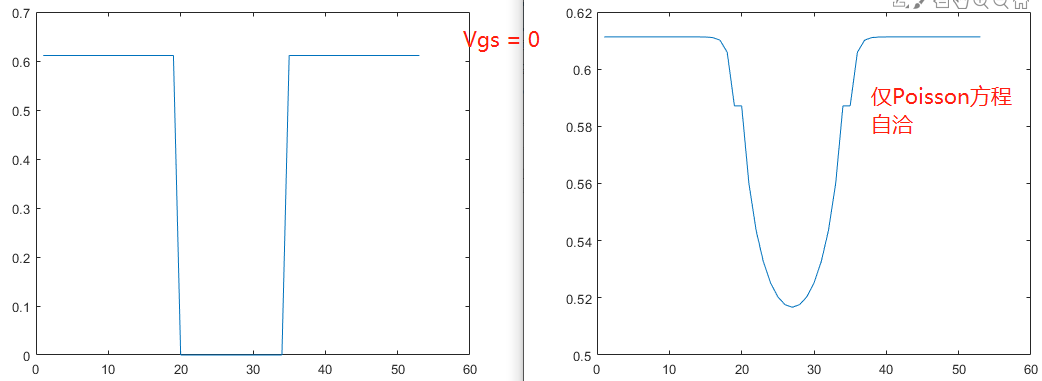

我将试着器件中间区域的掺杂浓度设为 0，即本征浓度时，得到器件电势分布如图所示，
研究问题

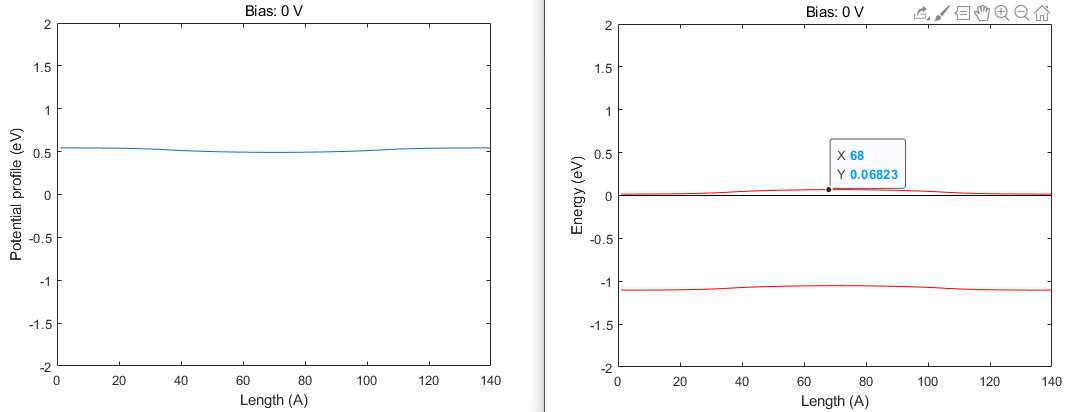

最开始碰到这个问题，我尝试用不同的方法去检验我自己的逻辑是否自洽，便用了最简单的PN结去测试，测试的结果如下
接着(....过了n天)，我用比较成熟的程序例如 Sentaurus/GTS 去搭建这样的器件模型测试, 尝试着找到它们的联系, 最后也失败了，因为我没有搭建好这样的一维理想器件模型，直接是用的官方例子给的2D MOSFET, 这些器件都加了栅极Gate的模型(这个在仿真细节处理上很关键，后面我再讲).
接着(....又过了n天)，我翻遍了github，找到一位韩国学者很早之前做的项目 (NEGF_DGMOS)[1]，运行了他们的MATLAB源代码, 才渐渐地明白了...
我的核心问题是，器件中间是本征区域，为啥不是正好 Eg/2?
GTS 结果

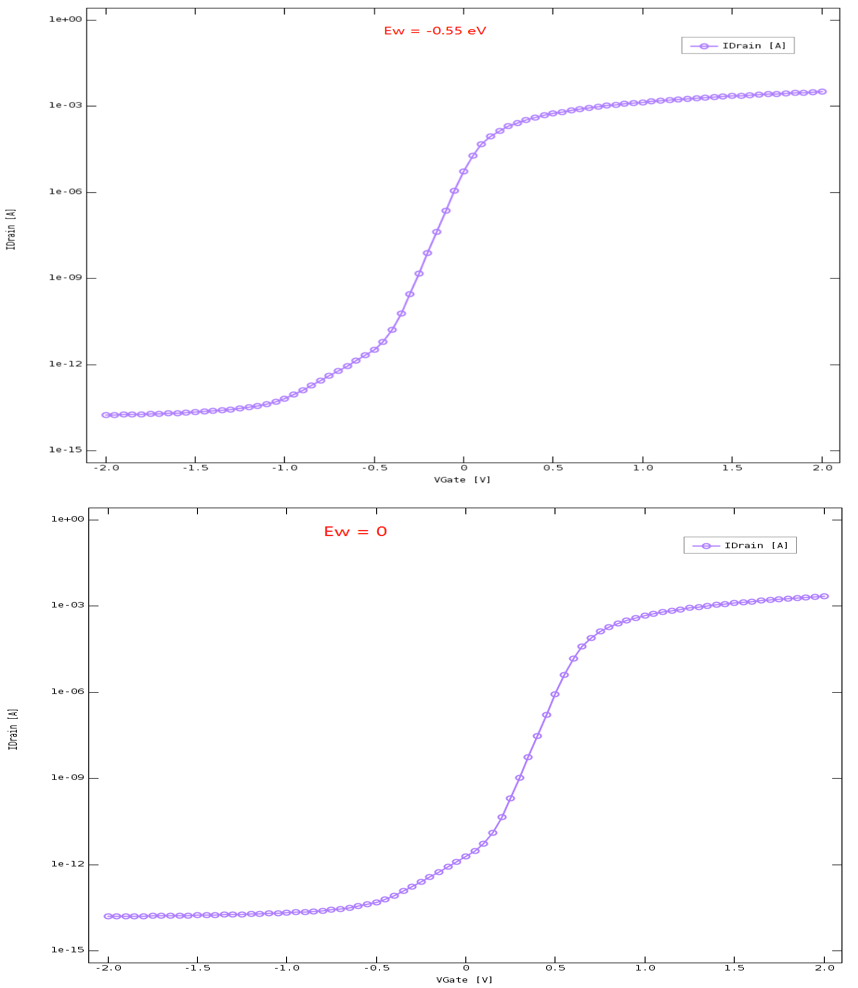

采用官方给出的二维N型MOSFET例子，Ew (与栅极功函数有关)分别设置 -0.55和 0 eV， 计算器件转移曲线
下面再来分析器件的电势分布, 先将栅极电压和源漏电压均设为 0 V.

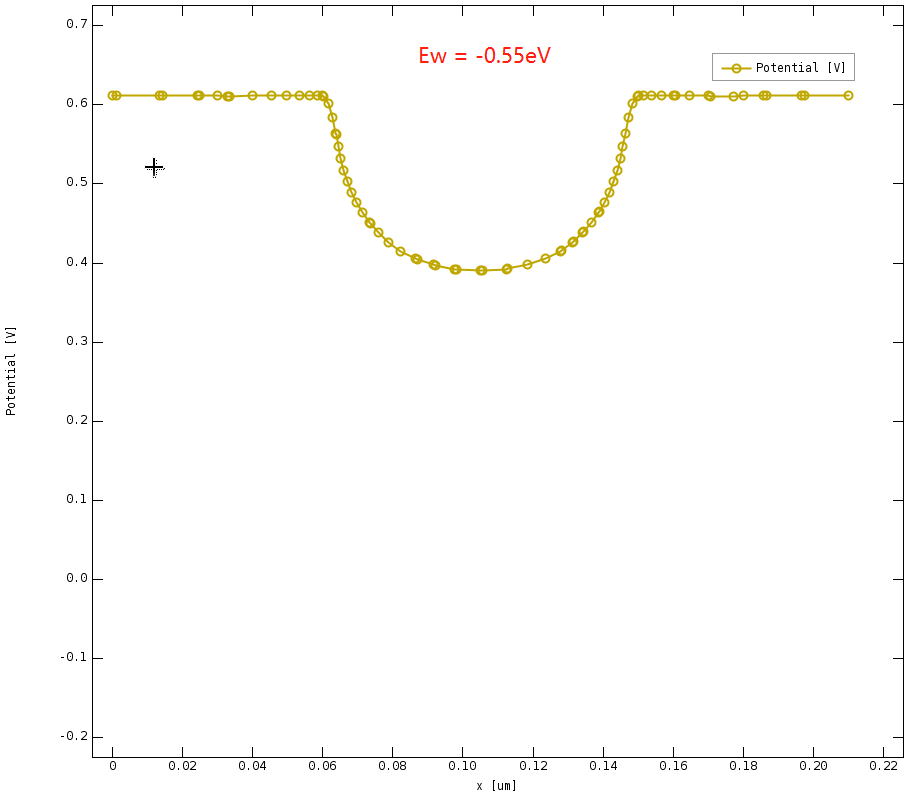

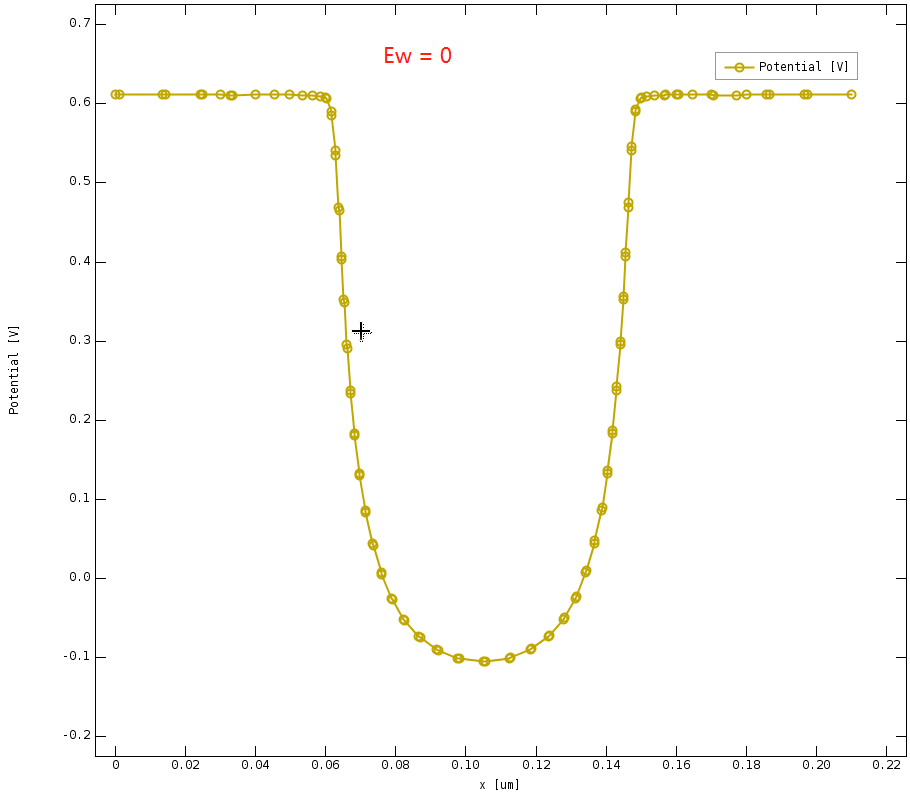

当 Ew = -0.55 eV 时， 器件中央的电势分布为
NEGF_DGMOS
NEGF_DGMOS 是二维 Double Gate 器件的NEGF仿真.
逐句地分析栅极电势部分源码. 因为对于器件模型数值计算，得必须设置好边界条件，栅极电势通常是采用第一类边界条件。
点击查看代码
%% bias
Vg_bias = 0.1; % Vgs [V]
% 陛加 - workfunction: 4.1 eV
% 角府能 - electron affinity: 4.05 eV, bandgap: 1.11 eV
% barrier height = 4.1 - (4.05 + 1.11/2) = -0.505 eV -> 0.505 V
Vg_barrier = 0.505; % [V]
Vgs = Vg_barrier + Vg_bias; % 霸捞飘

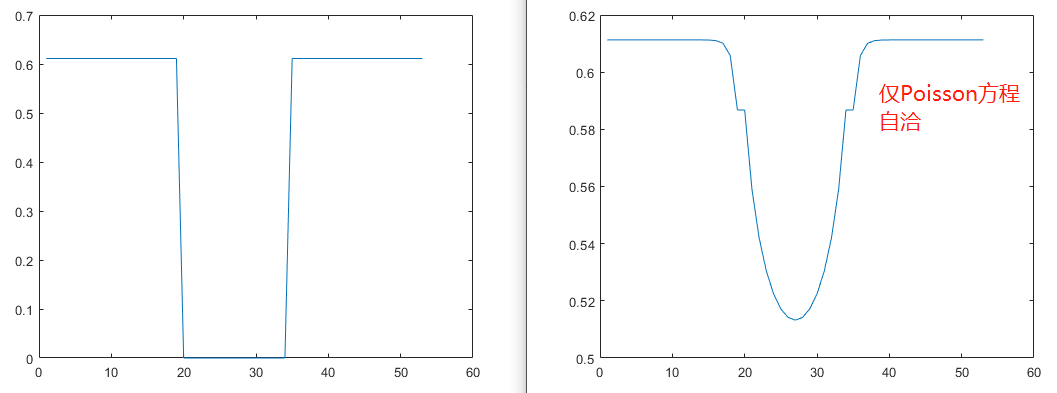

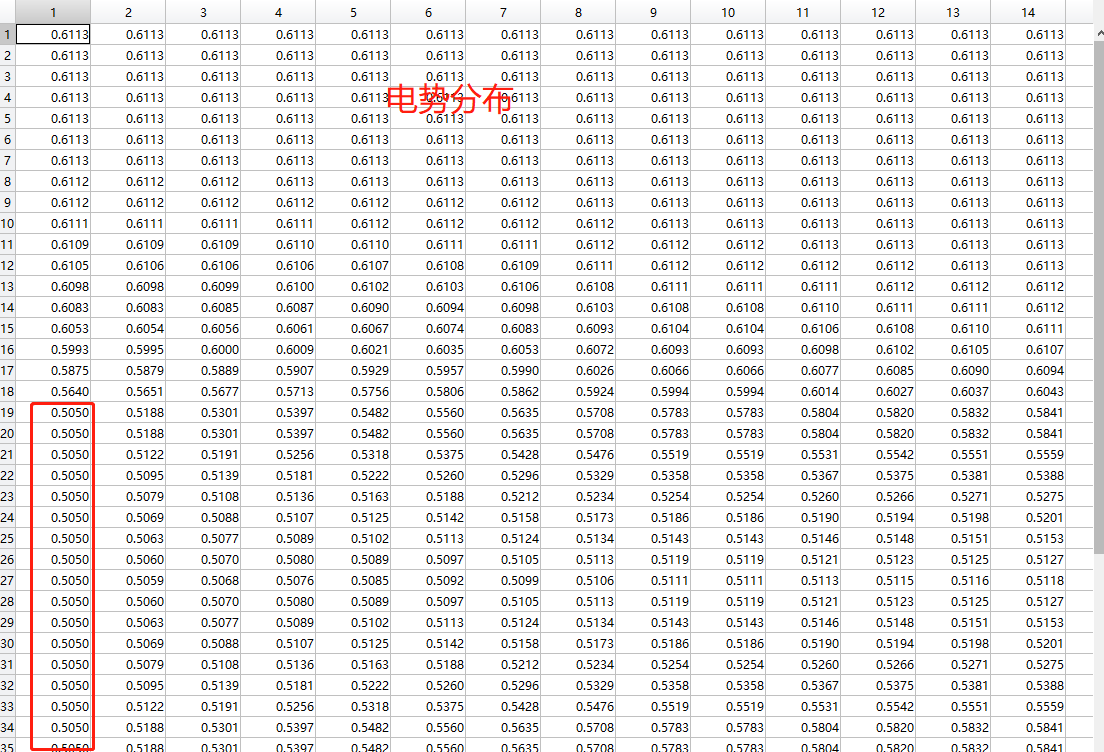

当设置 Vg_bias 为 0 时，栅极电势为 Vgs = 0.505 V, 切线在二维器件中央, 第一步Poisson方程初始化得到的电势分布为

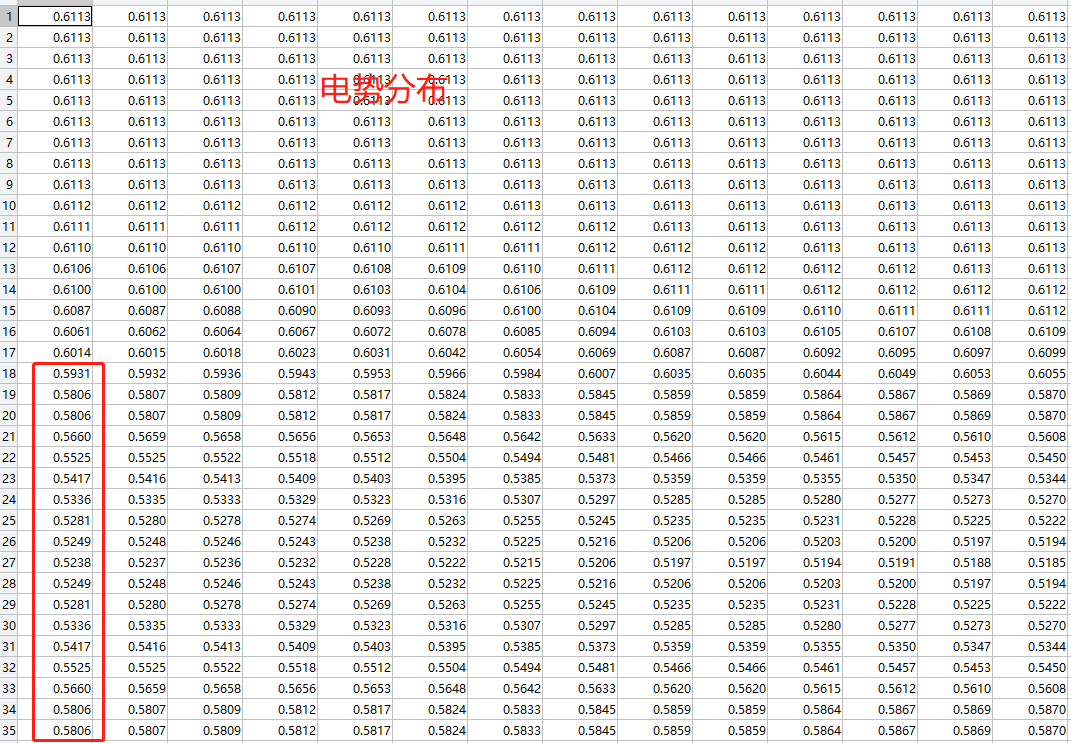

再根据NEGF方程计算电子密度，对电势进行迭代收敛，得到最终的电势分布为:

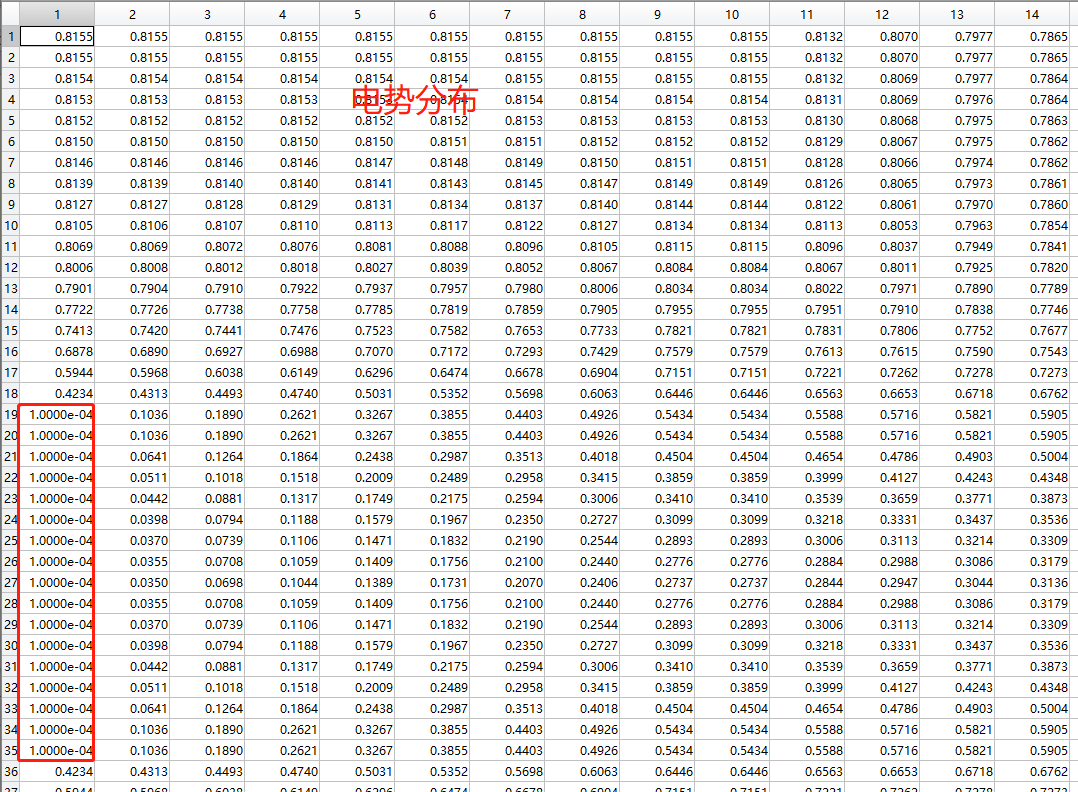

于是，我们再来设置 Vgs = 0, 初始化得到的电势为

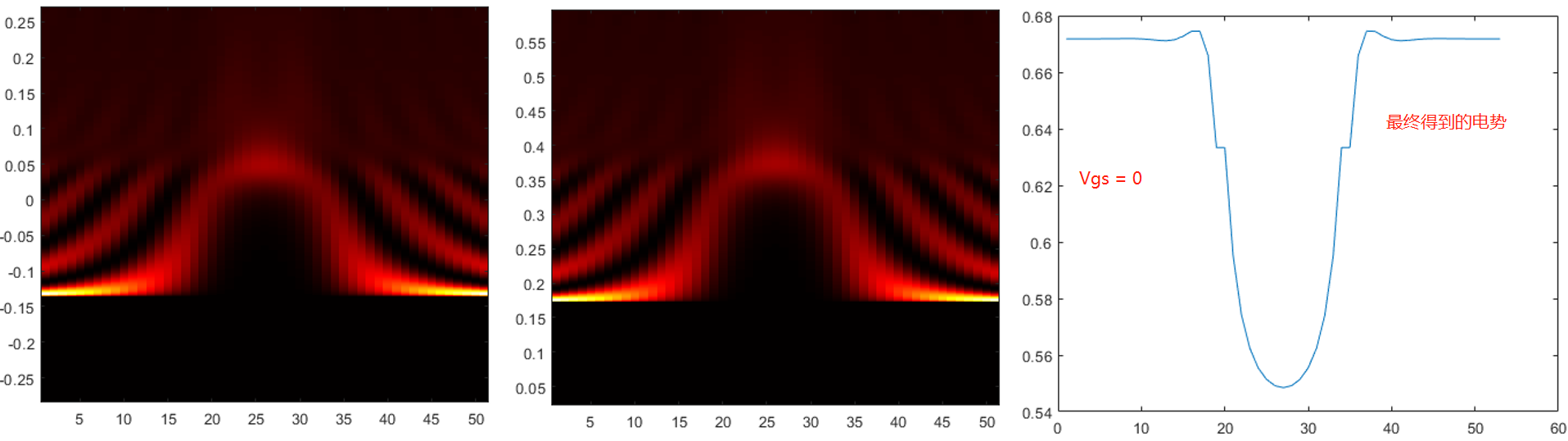

最终的电势分布为:

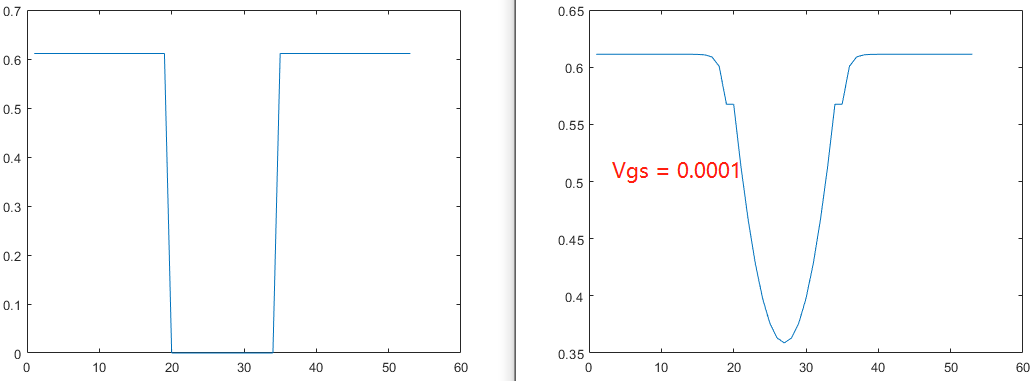

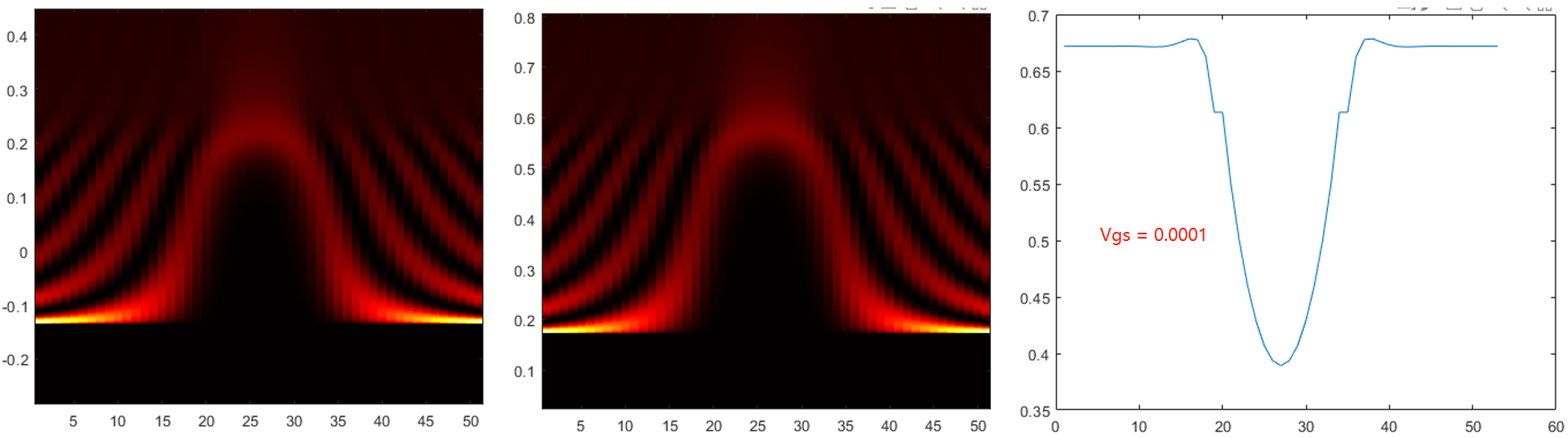

为了验证 Vgs = 0 V 在边界数值上不起作用, 我们不妨再设置 Vgs = 0.0001 V 来测试, 因为该栅压下的电势分布应该和 0V 接近. 第一步初始化得到的电势为
电势具体数值为:
可以发现，栅极电势被限定为 0.0001 V. 这与 Vgs = 0 V的情况截然不同.
通过NEGF-Poisson方程自洽收敛，可以得到最终的电势分布为:
通过上述这个二维例子，能较好地解答我们之前的问题. 因为对于一维理想MOS器件，不存在栅极区域，即等同于该二维器件 Vgs = 0V的情况(没有栅极边界限制)，二者本质上是一样的。根据 DGMOS 的数值仿真结果，其源漏与本征沟道区域电势差也不是 Eg/2, 这与一维理想器件仿真得到的电势分布趋势一致.
总结

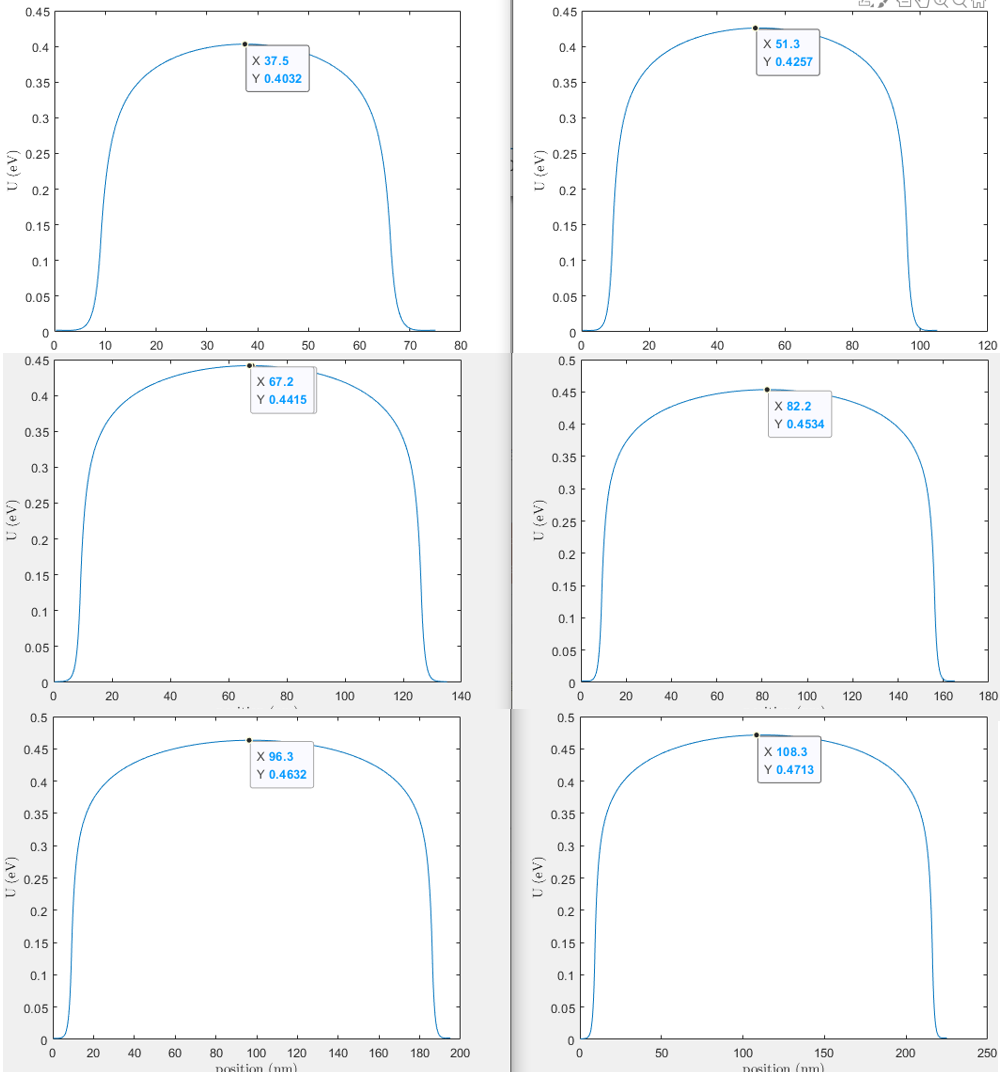

对于一维理想器件模型，由于没有栅极边界条件，其电势分布需要通过Poisson方程自洽求得，重掺源漏与本征沟道电势差值并不是所谓的 Eg/2. 不过理论上，当本征沟道区域足够长时，其差值应该接近 Eg/2. 如下图:
综上可知, 通过栅控(例如金属功函数,氧化层厚度,介电常数等)来调节器件内部的电势分布，从而实现所需要的功能.
