6轴机械臂D-H法建模

博客地址：https://www.cnblogs.com/zylyehuo/

参考链接：机器人工程师进阶之路（二）6轴机械臂D-H法建模

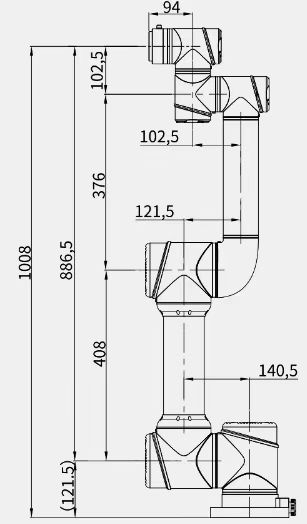

机械臂尺寸图

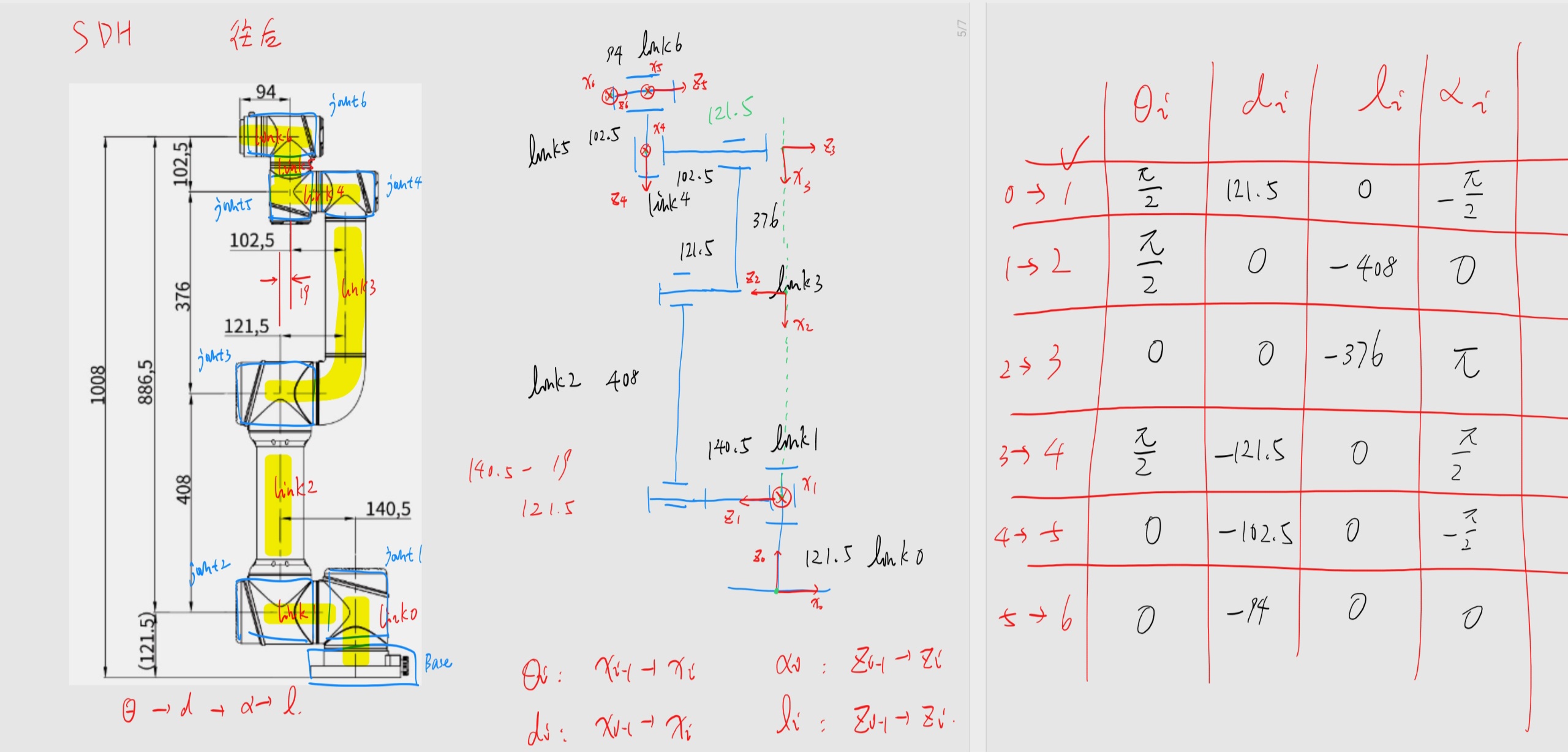

Standard-DH

clc; clear; close all;

% ========== 定义DH参数 ==========
% 关节变量（θ），初始都为0，d、a、α按典型六轴结构设定
% 单位为毫米和弧度
d1 = 0.1215
d2 = 0
d3 = 0
d4 = -0.1215
d5 = -0.1025
d6 = -0.094

theta1 = pi/2
theta2 = pi/2
theta3 = 0
theta4 = pi/2
theta5 = 0
theta6 = 0

a1 = 0
a2 = -0.408
a3 = -0.376
a4 = 0
a5 = 0
a6 = 0

alpha1 = -pi/2
alpha2 = 0
alpha3 = pi
alpha4 = pi/2
alpha5 = -pi/2
alpha6 = 0

L(1)= Link([theta1, d1, a1, alpha1],  'standard')
L(2)= Link([theta2, d2, a2, alpha2, 0, pi/2],  'standard')
L(3)= Link([theta3, d3, a3, alpha3],  'standard')
L(4)= Link([theta4, d4, a4, alpha4, 0, pi/2],  'standard')
L(5)= Link([theta5, d5, a5, alpha5],  'standard')
L(6)= Link([theta6, d6, a6, alpha6],  'standard')
% ========== 连接连杆为一个机器人 ==========
robot =SerialLink(L,'name','AUBO-C5')

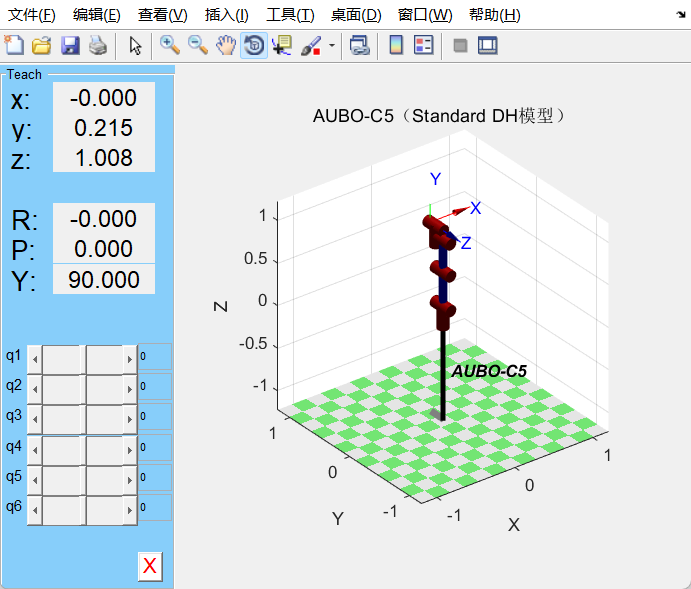

title('AUBO-C5（Standard DH模型）');
T = robot.fkine([0 0 0 0 0 0]);
robot.plot([0 0 0 0 0 0]);

% 启动交互式示教器
robot.teach();

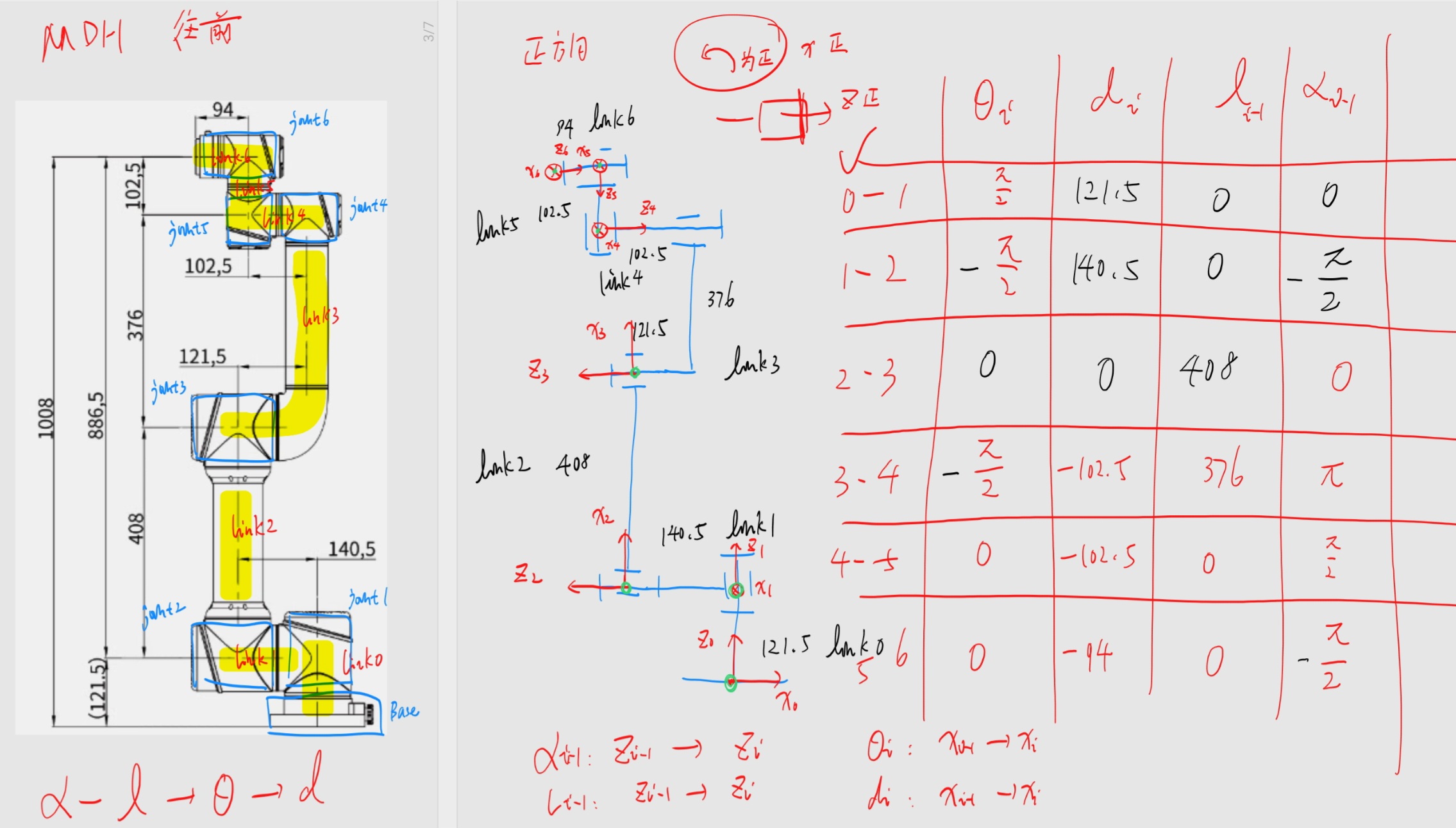

Modified-DH

clc; clear; close all;

% ========== 定义DH参数 ==========
% 关节变量（θ），初始都为0，d、a、α按典型六轴结构设定
% 单位为毫米和弧度
d1 = 0.1215
d2 = 0.1405
d3 = 0
d4 = -0.1025
d5 = -0.1025
d6 = -0.094

theta1 = pi/2
theta2 = -pi/2
theta3 = 0
theta4 = -pi/2
theta5 = 0
theta6 = 0

a0 = 0
a1 = 0
a2 = 0.408
a3 = 0.376
a4 = 0
a5 = 0

alpha0 = 0
alpha1 = -pi/2
alpha2 = 0
alpha3 = pi
alpha4 = pi/2
alpha5 = -pi/2

L(1)=Link([theta1, d1, a0, alpha0],  'modified')
L(2)=Link([theta2, d2, a1, alpha1, 0, -pi/2],  'modified')
L(3)=Link([theta3, d3, a2, alpha2],  'modified')
L(4)=Link([theta4, d4, a3, alpha3, 0, -pi/2],  'modified')
L(5)=Link([theta5, d5, a4, alpha4],  'modified')
L(6)=Link([theta6, d6, a5, alpha5],  'modified')
% ========== 连接连杆为一个机器人 ==========
robot = SerialLink(L,'name','AUBO-C5')
title("AUBO-C5（Modified DH模型）")
T = robot.fkine([0 0 0 0 0 0])
robot.plot([0 0 0 0 0 0])
% ========== 启动交互式示教器 ==========
robot.teach();
