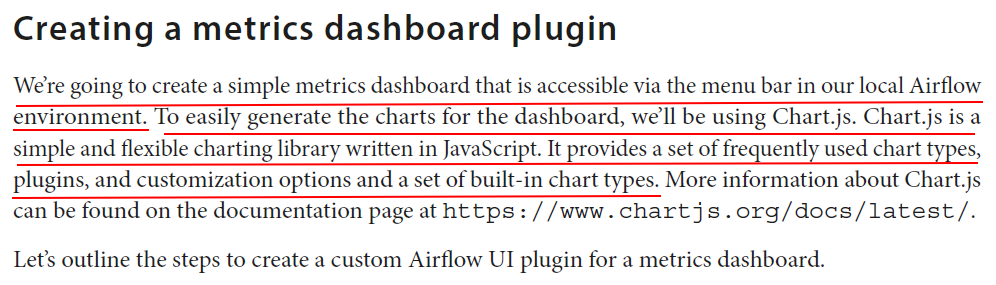

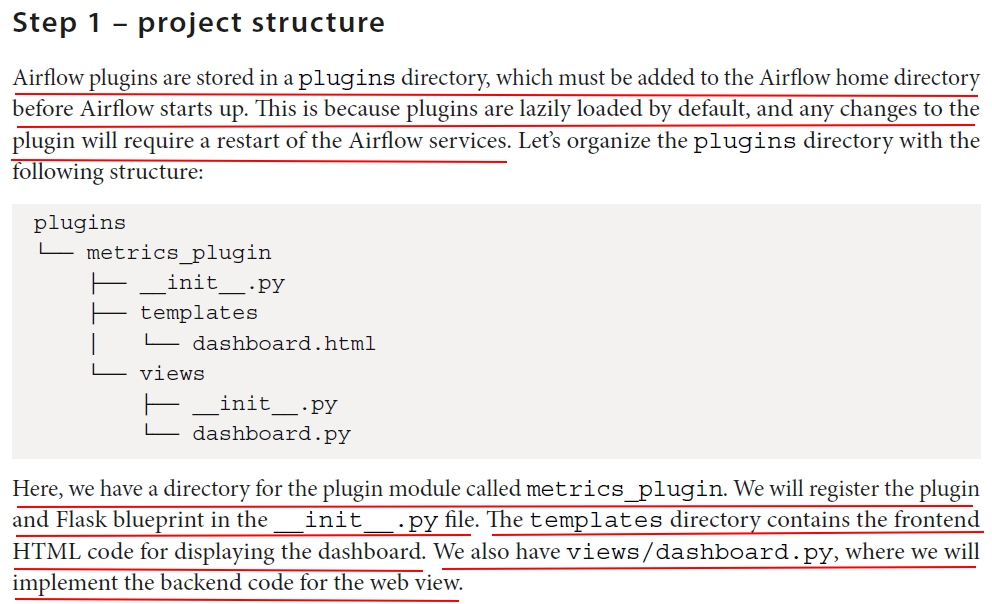

Airflow - Study Notes 6

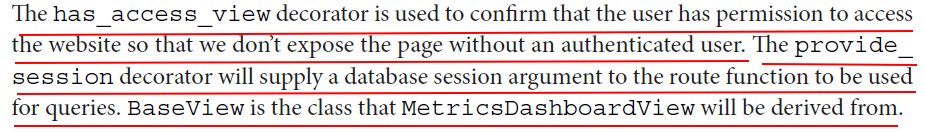

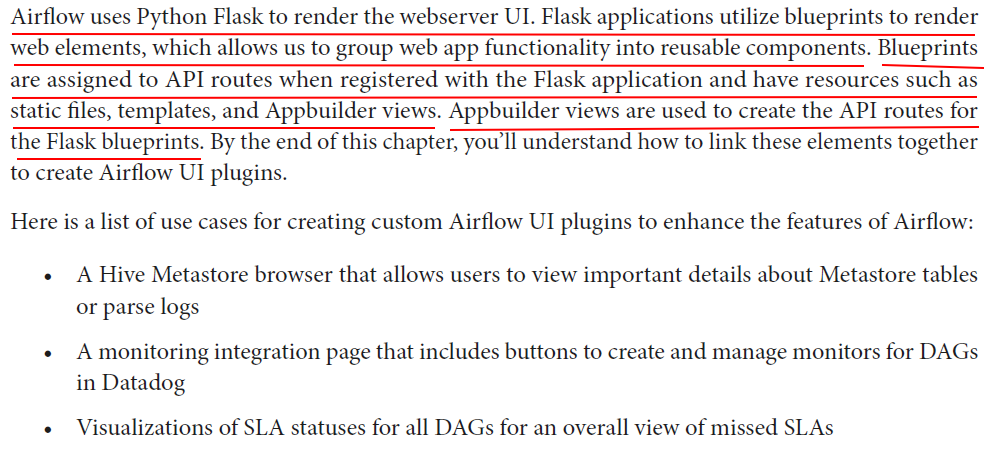

1. First, we will set up the imports that are required for the dashboard view:

from __future__ import annotations
from typing import TYPE_CHECKING
from airflow.auth.managers.models.resource_details import AccessView
from airflow.utils.session import NEW_SESSION, provide_session
from airflow.www.auth import has_access_view
from flask_appbuilder import BaseView, expose
from sqlalchemy import text

if TYPE_CHECKING:
    from sqlalchemy.orm import Session

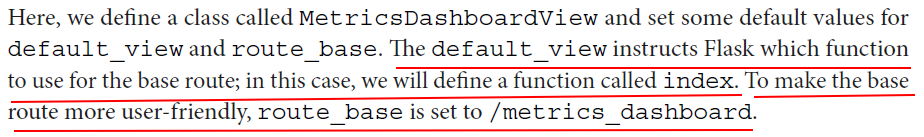

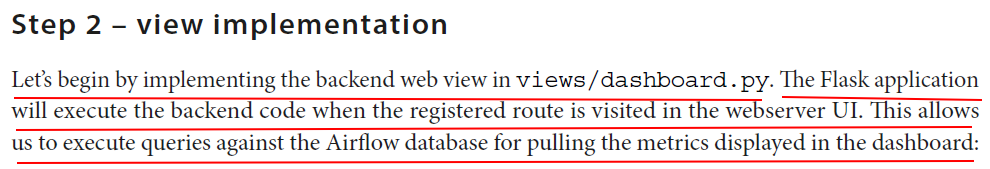

2. Let’s set up the MetricsDashboardView class to define the route for the web view:

class MetricsDashboardView(BaseView):
    """A Flask-AppBuilder View for a metrics dashboard"""
    default_view = "index"
    route_base = "/metrics_dashboard"



3. Finally, the index function will execute the queries we need to run against the Airflow database to provide our metrics:

from __future__ import annotations
from typing import TYPE_CHECKING
from airflow.auth.managers.models.resource_details import AccessView
from airflow.utils.session import NEW_SESSION, provide_session
from airflow.www.auth import has_access_view
from flask_appbuilder import BaseView, expose
from sqlalchemy import text


if TYPE_CHECKING:
    from sqlalchemy.orm import Session


class MetricsDashboardView(BaseView):
    """A Flask-AppBuilder View for a metrics dashboard"""

    default_view = "index"
    route_base = "/metrics_dashboard"


    @provide_session
    @expose("/")
    @has_access_view(AccessView.PLUGINS)
    def index(self, session: Session = NEW_SESSION):
        """Create dashboard view"""

        def interval(n: int):
            return f"now() - interval '{n} days'"

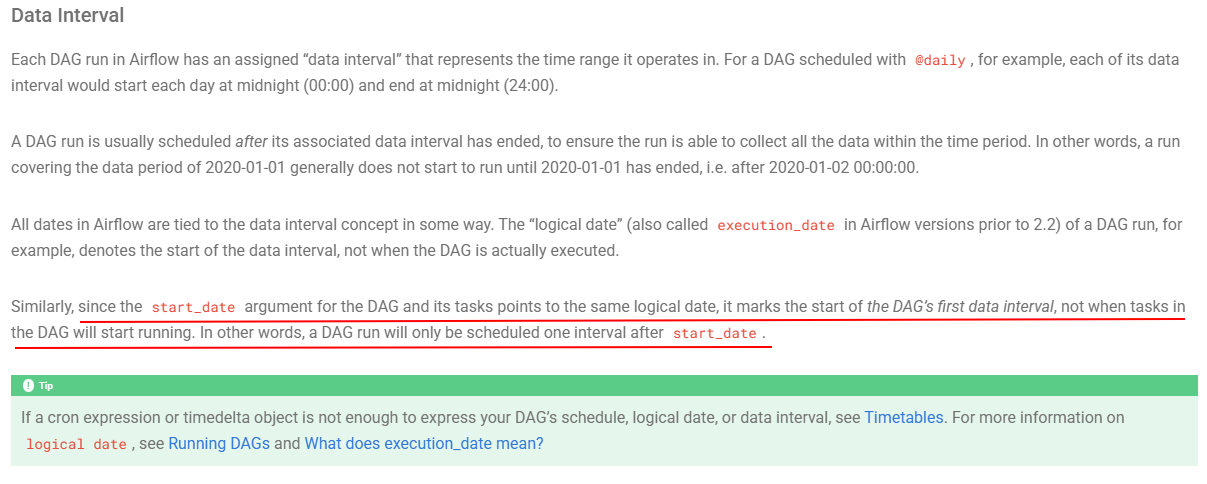

        dag_run_query = text(
            f"""
            SELECT
                dr.dag_id,
                SUM(CASE WHEN dr.state = 'success' AND dr.start_date > {interval(1)} THEN 1 ELSE 0 END) AS "1_day_success",
                SUM(CASE WHEN dr.state = 'failed' AND dr.start_date > {interval(1)} THEN 1 ELSE 0 END) AS "1_day_failed",
                SUM(CASE WHEN dr.state = 'success' AND dr.start_date > {interval(7)} THEN 1 ELSE 0 END) AS "7_days_success",
                SUM(CASE WHEN dr.state = 'failed' AND dr.start_date > {interval(7)} THEN 1 ELSE 0 END) AS "7_days_failed",
                SUM(CASE WHEN dr.state = 'success' AND dr.start_date > {interval(30)} THEN 1 ELSE 0 END) AS "30_days_success",
                SUM(CASE WHEN dr.state = 'failed' AND dr.start_date > {interval(30)} THEN 1 ELSE 0 END) AS "30_days_failed"
            FROM dag_run AS dr
            JOIN dag AS d ON dr.dag_id = d.dag_id
            WHERE d.is_paused != true
            GROUP BY dr.dag_id
            """
        )

        dag_run_stats = [dict(result) for result in session.execute(dag_run_query)]

        return self.render_template(
            "dashboard.html",
            title="Metrics Dashboard",
            dag_run_stats=dag_run_stats,
        )

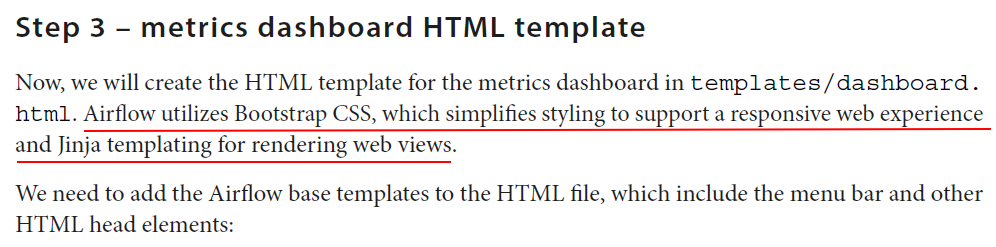

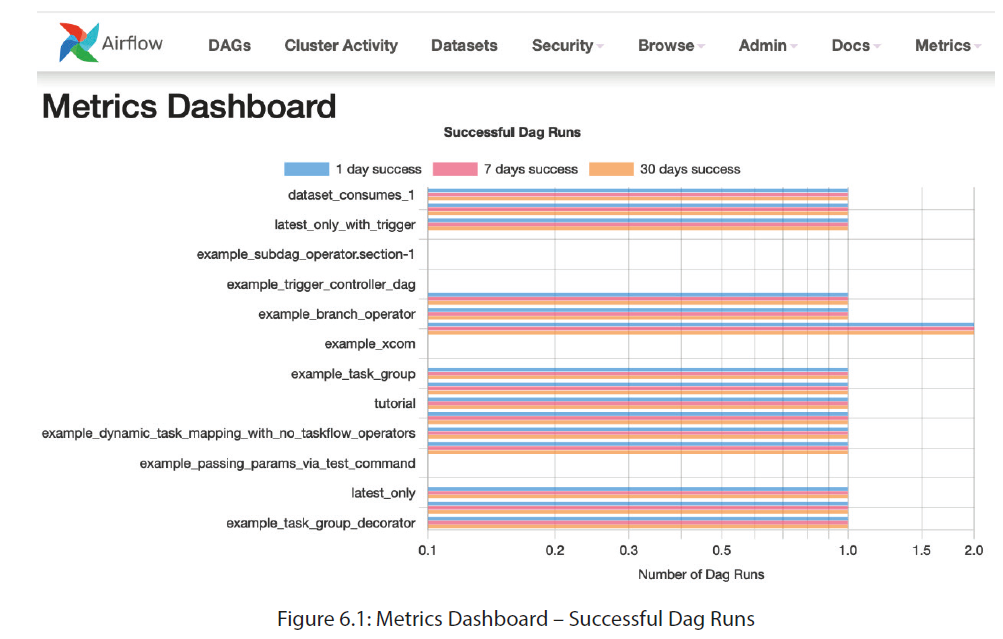

{% extends base_template %}

{% block title %}
    {{ title }}
{% endblock %}

{% block head_meta %}
    {{ super() }}
{% endblock %}

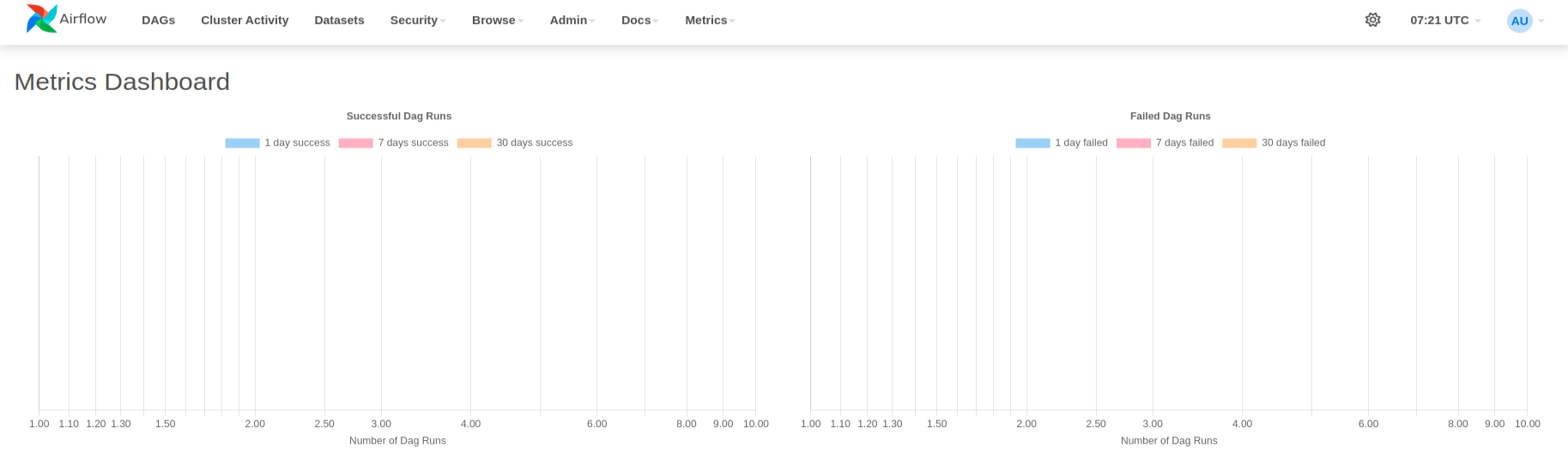

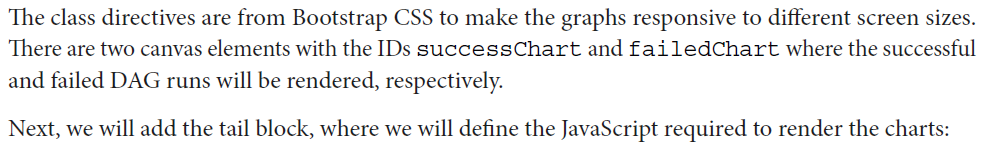

Now we need to define the content block where the charts will be displayed. The HTML required for the content block is very simple since we will be rendering the charts with JavaScript:

{% block content %}
<h2>{{ title }}</h2>
<div class="container-fluid">
    <div class="row">
        <div class="col-lg-6 col-md-12">
            <canvas id="successChart"></canvas>
        </div>
        <div class="col-lg-6 col-md-12">
            <canvas id="failedChart"></canvas>
        </div>
    </div>
</div>
{% endblock %}

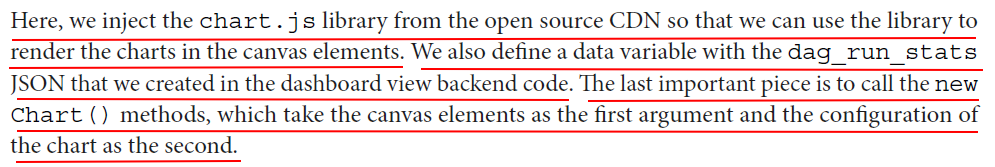

{% block tail %}
{{ super() }}
<script src="https://cdn.jsdelivr.net/npm/chart.js"></script>
<script>
  const data = {{ dag_run_stats | tojson }};
  new Chart(
      document.getElementById('successChart'),
      {
        type: 'bar',
        title: "Successful Dag Runs",
        data: {
          labels: data.map(row => row.dag_id),
          datasets: [
            {
              label: "1 day success",
              data: data.map(row => row["1_day_success"])
            },
            {
              label: "7 days success",
              data: data.map(row => row["7_days_success"])
            },
            {
              label: "30 days success",
              data: data.map(row => row["30_days_success"])
            }
          ]
        },
        options: {
          responsive: true,
          indexAxis: 'y',
          scales: {
            x: {
              type: 'logarithmic',
              display: true,
              title: {
                display: true,
                text: "Number of Dag Runs"
              }
            }
          },
          plugins: {
            title: {
              display: true,
              text: "Successful Dag Runs"
            }
          }
        }
      }
  );
  new Chart(
    document.getElementById('failedChart'),
    {
      type: 'bar',
      data: {
        labels: data.map(row => row.dag_id),
        datasets: [
          {
            label: "1 day failed",
            data: data.map(row => row["1_day_failed"])
          },
          {
            label: "7 days failed",
            data: data.map(row => row["7_days_failed"])
          },
          {
            label: "30 days failed",
            data: data.map(row => row["30_days_failed"])
          }
        ]
      },
      options: {
        responsive: true,
        indexAxis: "y",
        scales: {
          x: {
            type: "logarithmic",
            display: true,
            title: {
              display: true,
              text: "Number of Dag Runs"
            }
          }
        },
        plugins: {
          title: {
            display: true,
            text: "Failed Dag Runs"
          }
        }
      }
    }
  );
</script>
{% endblock %}

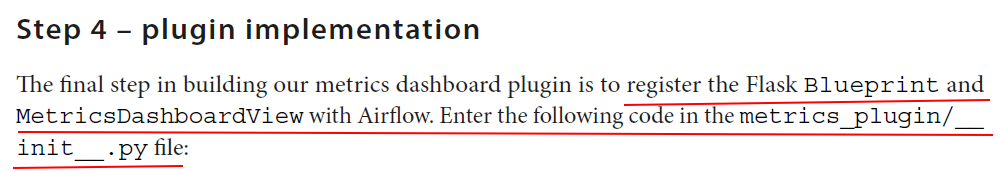

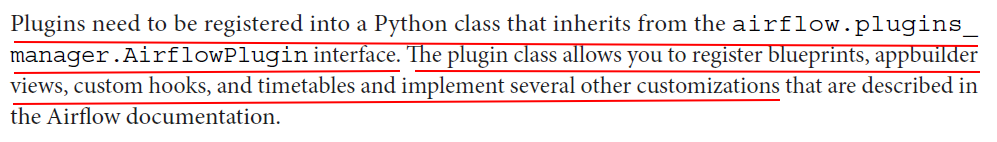

from __future__ import annotations
from airflow.plugins_manager import AirflowPlugin
from flask import Blueprint
from plugins.metrics_plugin.views.dashboard import MetricsDashboardView

# Creating a flask blueprint
metrics_blueprint = Blueprint(
    "Metrics",
    __name__,
    template_folder="templates",
    static_folder="static",
    static_url_path="/static",
)


class MetricsPlugin(AirflowPlugin):
    """Defining the plugin class"""

    name = "Metrics Dashboard Plugin"
    flask_blueprints = [metrics_blueprint]
    appbuilder_views = [
        {"name": "Dashboard", "category": "Metrics", "view": MetricsDashboardView()}
    ]

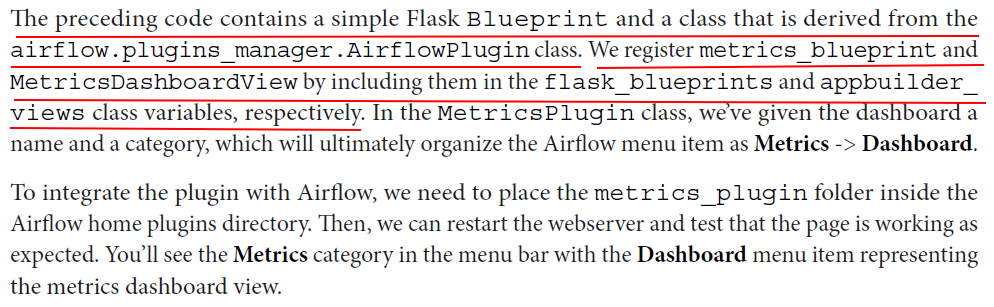

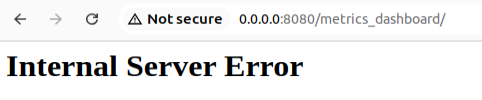

Error messages:

webserver  | return connection._execute_clauseelement(
webserver  | ^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
webserver  | File "/home/frank/venvs/my_airflow_project/.venv/lib/python3.12/site-packages/sqlalchemy/engine/base.py", line 1577, in _execute_clauseelement
webserver  | ret = self._execute_context(
webserver  | ^^^^^^^^^^^^^^^^^^^^^^
webserver  | File "/home/frank/venvs/my_airflow_project/.venv/lib/python3.12/site-packages/sqlalchemy/engine/base.py", line 1953, in _execute_context
webserver  | self._handle_dbapi_exception(
webserver  | File "/home/frank/venvs/my_airflow_project/.venv/lib/python3.12/site-packages/sqlalchemy/engine/base.py", line 2134, in _handle_dbapi_exception
webserver  | util.raise_(
webserver  | File "/home/frank/venvs/my_airflow_project/.venv/lib/python3.12/site-packages/sqlalchemy/util/compat.py", line 211, in raise_
webserver  | raise exception
webserver  | File "/home/frank/venvs/my_airflow_project/.venv/lib/python3.12/site-packages/sqlalchemy/engine/base.py", line 1910, in _execute_context
webserver  | self.dialect.do_execute(
webserver  | File "/home/frank/venvs/my_airflow_project/.venv/lib/python3.12/site-packages/sqlalchemy/engine/default.py", line 736, in do_execute
webserver  | cursor.execute(statement, parameters)
webserver  | sqlalchemy.exc.OperationalError: (sqlite3.OperationalError) near "'1 days'": syntax error
webserver  | [SQL:
webserver  | SELECT
webserver  | dr.dag_id,
webserver  | SUM(CASE WHEN dr.state = 'success' AND dr.start_date > now() - interval '1 days' THEN 1 ELSE 0 END) AS "1_day_success",
webserver  | SUM(CASE WHEN dr.state = 'failed' AND dr.start_date > now() - interval '1 days' THEN 1 ELSE 0 END) AS "1_day_failed",
webserver  | SUM(CASE WHEN dr.state = 'success' AND dr.start_date > now() - interval '7 days' THEN 1 ELSE 0 END) AS "7_days_success",
webserver  | SUM(CASE WHEN dr.state = 'failed' AND dr.start_date > now() - interval '7 days' THEN 1 ELSE 0 END) AS "7_days_failed",
webserver  | SUM(CASE WHEN dr.state = 'success' AND dr.start_date > now() - interval '30 days' THEN 1 ELSE 0 END) AS "30_days_success",
webserver  | SUM(CASE WHEN dr.state = 'failed' AND dr.start_date > now() - interval '30 days' THEN 1 ELSE 0 END) AS "30_days_failed"
webserver  | FROM dag_run AS dr
webserver  | JOIN dag AS d ON dr.dag_id = d.dag_id
webserver  | WHERE d.is_paused != true
webserver  | GROUP BY dr.dag_id
webserver  | ]
webserver  | (Background on this error at: https://sqlalche.me/e/14/e3q8)

This is becuase the query was written with PostgreSQL syntax (dr.start_date > now() - interval '1 days'), but the default metadata database of Airflow is SQLite.

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

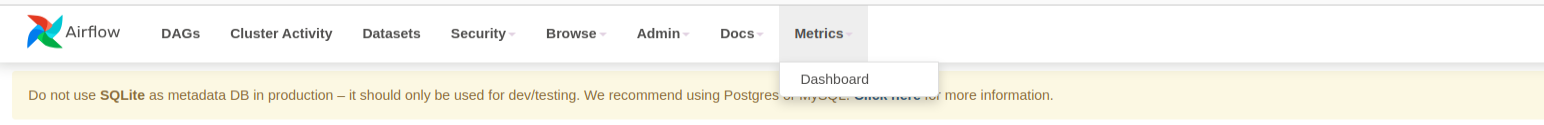

For Airflow's metadata database, the default engine is SQLite. This is because, by default, Airflow uses SQLite for local development or testing environments, unless explicitly configured to use another database backend like PostgreSQL or MySQL.

In the case of Airflow, if you don't specify a connection string in the airflow.cfg file, Airflow will use SQLite as the default.

The relevant setting is in the sql_alchemy_conn configuration key in airflow.cfg. If no database connection is configured, Airflow will fall back to the default SQLite engine, and the connection string will look something like:

sql_alchemy_conn = sqlite:////path/to/airflow.db

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------



To fix it, change the interval function using SQLite syntax as below:

        def interval(n: int):
            return f"datetime('now', '-{n} days')"
