PostgreSQL patroni 高可用 2：patroni 安装

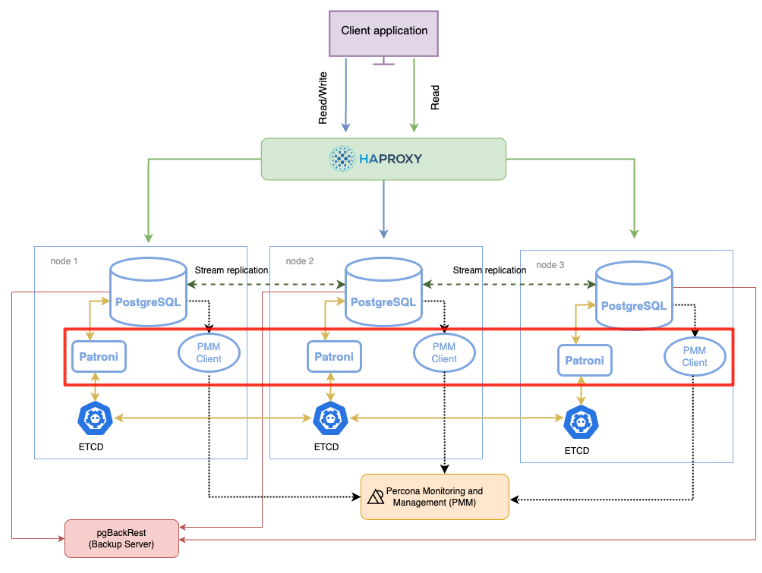

PostgreSQL ptroni的高可用架构图如下所示，本文完成如下架构图中红色标记内的patroni安装和配置。

图片来源于：https://docs.percona.com/postgresql/12/solutions/high-availability.html#architecture-layout

1，服务器环境

Ubuntu08：192.168.152.115
Ubuntu09：192.168.152.116
Ubuntu10：192.168.152.117


2，patroni依赖包安装

patroni是一个python开发的中间件，需要依赖python3环境以及python库
Patroni[etcd] 表示Patroni 使用 etcd 作为分布式配置存储 (DCS)。

apt update
apt install -y libpq-dev python3-dev gcc
pip3 install -U pip setuptools wheel importlib_metadata
pip3 install -U psycopg2
pip3 install -U psycopg2-binary
pip3 install -U patroni[etcd]
安装目录
root@ubuntu08:/usr/local# whereis patroni
patroni: /usr/local/bin/patroni



3，创建patroni目录

mkdir /usr/local/pgsql16/patroni
该目录一定要授权给postgres用户，因为patroni是用postgres用户运行的，否则会导致后续无权限写入
chown -R postgres:postgres /usr/local/pgsql16/patroni
chmod 700 -R /usr/local/pgsql16/patroni



4，编译patroni配置文件patroni.yml

1，本地初已安装的PostgreSQL服务需手动停止，并且移除数据文件目录，
2，patroni启动会自动初始化数据库，以及创建postgres用户，其中以patroni.yml参数文件中指定的参数为准。
3，etcd3节点，一定要指定etcd3，默认是etcd2，默认情况会报错
4，scope: pg_cluster_wy_prod，PostgreSQL实例的cluster_name参数，集群中所有节点的cluster_name都会设置为该名字
     namespace: /service/ ，etcd的前缀名字，类似一个命名空间的名字
5，patroni.yml是靠空格缩进的，而不是tab键，整个参数文件中，任何一行，如果多一个或者少一个空格，都会导致无法启动，这一点非常逆天，该死的yml配置，希望早日放弃这种逆天的配置格式。
  笔者在这里卡了很久，而且实际测试中看，patroni.yml并不支持中文备注，如下配置文件中的中文注释仅供参考，搭建环境是需移除


参考如下配置文件，patroni启动的时候，会以如下文件为模板，将相关配置项写入ectd数据库中，同时会初始化一个数据库。


需要注意的是：
在etcd的搭建过程中，etcd的配置文件中，是定义了集群内所有成员的，也即如下
ETCD_INITIAL_CLUSTER="etcd01=http://192.168.152.115:2380,etcd02=http://192.168.152.116:2380,etcd03=http://192.168.152.117:2380"，但是在patroni的配置文件，中并没有指定PostgreSQL的主从信息，为什么patroni启动后，从节点会自动从主节点复制数据？

Patroni 节点启动时流程如下：
1，Patroni节点启动后，向DCS（这里是 etcd）注册自己的信息（名字、角色、状态）。
2，Patroni 查询 DCS，看当前集群有没有 leader（primary）。
  如果已有 leader → 本节点会自动配置成 replica，并从 leader 获取数据。
  如果没有 leader → 通过选举，本节点可能成为新的 leader。


Ubuntu08上的patroni配置文件，位置：/usr/local/pgsql16/patroni
scope: pg_cluster_wy_prod
namespace: /service/
name: ubuntu08

restapi:
  listen: 192.168.152.115:8008
  connect_address: 192.168.152.115:8008

# 这里一定要是etcd3
etcd3:
  host: 192.168.152.115:2379

log:
  level: INFO
  traceback_level: ERROR
  dir: /usr/local/pgsql16/patroni/
  file_num: 10
  file_size: 104857600


bootstrap:
  dcs:
    ttl: 30
    loop_wait: 10
    retry_timeout: 10
    maximum_lag_on_failover: 1048576
    max_timelines_history: 0
    master_start_timeout: 300
    master_stop_timeout: 0
    synchronous_mode: false
    postgresql:
      use_pg_rewind: true
      pg_hba:
      - host replication repl_user 0.0.0.0/0 md5
      - host all all 0.0.0.0/0 md5
      use_slots: true
      parameters:
        wal_level: hot_standby
        hot_standby: "on"
        max_connections: 100
        max_worker_processes: 8
        wal_keep_segments: 8
        max_wal_senders: 10
        max_replication_slots: 10
        max_prepared_transactions: 0
        max_locks_per_transaction: 64
        wal_log_hints: "on"
        track_commit_timestamp: "off"
        archive_mode: "on"
        archive_timeout: 1800s
        archive_command: test ! -f /usr/local/pgsql16/pg_wal_arch/%f && cp %p /usr/local/pgsql16/pg_wal_arch/%f

        log_destination: stderr
        logging_collector: "on"
        log_directory: "log"
        log_filename: "postgresql-%Y-%m-%d_%H%M%S.log"
        log_file_mode: "0600"
        log_rotation_age: "1d"
        log_min_duration_statement: 1
        log_autovacuum_min_duration: 0
        log_checkpoints: "on"
        log_connections: "on"
        log_disconnections: "on"
        log_hostname: "on"
        log_line_prefix: "%m [%p] user:%u,db:%d,app:%a,host:%h "
        log_lock_waits: "on"
        log_recovery_conflict_waits: "on"
        log_statement: "ddl"
        log_replication_commands: "on"
        log_temp_files: 1
        log_timezone: "Asia/Shanghai"

  # some desired options for 'initdb'
  initdb:  # Note: It needs to be a list (some options need values, others are switches)
  - encoding: UTF8
  - data-checksums


postgresql:
  listen: 192.168.152.115:9000
  connect_address: 192.168.152.115:9000
  data_dir: /usr/local/pgsql16/pg9000/data
  bin_dir: /usr/local/pgsql16/server/bin
  #config_dir:
  pgpass: /home/postgres/.pgpass
  # 用户名和密码可以自定义
  authentication:
    replication:
      username: repl_user
      password: repl_user_123456
    superuser:
      username: postgres
      password: postgres_pwd
    rewind:  # Has no effect on postgres 10 and lower
      username: rewind_user
      password: rewind_pwd
  parameters:
    unix_socket_directories: '..'  # parent directory of data_dir


tags:
    # failover_priority: 1
    # sync_priority: 1
    noloadbalance: false
    clonefrom: false
    nostream: false




Ubuntu09上的patroni配置文件，位置：/usr/local/pgsql16/patroni

Ubuntu09上的patroni配置文件
scope: pg_cluster_wy_prod
namespace: /service/
name: ubuntu09

restapi:
  listen: 192.168.152.116:8008
  connect_address: 192.168.152.116:8008

etcd3:
  host: 192.168.152.116:2379

log:
  level: INFO
  traceback_level: ERROR
  dir: /usr/local/pgsql16/patroni/
  file_num: 10
  file_size: 104857600


bootstrap:
  dcs:
    ttl: 30
    loop_wait: 10
    retry_timeout: 10
    maximum_lag_on_failover: 1048576
    max_timelines_history: 0
    master_start_timeout: 300
    master_stop_timeout: 0
    synchronous_mode: false
    postgresql:
      use_pg_rewind: true
      pg_hba:
      - host replication repl_user 0.0.0.0/0 md5
      - host all all 0.0.0.0/0 md5
      use_slots: true
      parameters:
        wal_level: hot_standby
        hot_standby: "on"
        max_connections: 100
        max_worker_processes: 8
        wal_keep_segments: 8
        max_wal_senders: 10
        max_replication_slots: 10
        max_prepared_transactions: 0
        max_locks_per_transaction: 64
        wal_log_hints: "on"
        track_commit_timestamp: "off"
        archive_mode: "on"
        archive_timeout: 1800s
        archive_command: test ! -f /usr/local/pgsql16/pg_wal_arch/%f && cp %p /usr/local/pgsql16/pg_wal_arch/%f
        log_destination: stderr
        logging_collector: "on"
        log_directory: "log"
        log_filename: "postgresql-%Y-%m-%d_%H%M%S.log"
        log_file_mode: "0600"
        log_rotation_age: "1d"
        log_min_duration_statement: 1
        log_autovacuum_min_duration: 0
        log_checkpoints: "on"
        log_connections: "on"
        log_disconnections: "on"
        log_hostname: "on"
        log_line_prefix: "%m [%p] user:%u,db:%d,app:%a,host:%h "
        log_lock_waits: "on"
        log_recovery_conflict_waits: "on"
        log_statement: "ddl"
        log_replication_commands: "on"
        log_temp_files: 1
        log_timezone: "Asia/Shanghai"

  # some desired options for 'initdb'
  initdb:  # Note: It needs to be a list (some options need values, others are switches)
  - encoding: UTF8
  - data-checksums


postgresql:
  listen: 192.168.152.116:9000
  connect_address: 192.168.152.116:9000
  data_dir: /usr/local/pgsql16/pg9000/data
  bin_dir: /usr/local/pgsql16/server/bin
  #config_dir:
  pgpass: /home/postgres/.pgpass
  authentication:
    replication:
      username: repl_user
      password: repl_user_123456
    superuser:
      username: postgres
      password: postgres_pwd
    rewind:  # Has no effect on postgres 10 and lower
      username: rewind_user
      password: rewind_user_pwd
  parameters:
    unix_socket_directories: '..'  # parent directory of data_dir


tags:
    # failover_priority: 1
    # sync_priority: 1
    noloadbalance: false
    clonefrom: false
    nostream: false



Ubuntu10上的patroni配置文件，位置：/usr/local/pgsql16/patroni

Ubuntu10上的patroni配置文件
scope: pg_cluster_wy_prod
namespace: /service/
name: ubuntu10

restapi:
  listen: 192.168.152.117:8008
  connect_address: 192.168.152.117:8008

etcd3:
  host: 192.168.152.117:2379

log:
  level: INFO
  traceback_level: ERROR
  dir: /usr/local/pgsql16/patroni/
  file_num: 10
  file_size: 104857600


bootstrap:
  dcs:
    ttl: 30
    loop_wait: 10
    retry_timeout: 10
    maximum_lag_on_failover: 1048576
    max_timelines_history: 0
    master_start_timeout: 300
    master_stop_timeout: 0
    synchronous_mode: false
    postgresql:
      use_pg_rewind: true
      pg_hba:
      - host replication repl_user 0.0.0.0/0 md5
      - host all all 0.0.0.0/0 md5
      use_slots: true
      parameters:
        wal_level: hot_standby
        hot_standby: "on"
        max_connections: 100
        max_worker_processes: 8
        wal_keep_segments: 8
        max_wal_senders: 10
        max_replication_slots: 10
        max_prepared_transactions: 0
        max_locks_per_transaction: 64
        wal_log_hints: "on"
        track_commit_timestamp: "off"
        archive_mode: "on"
        archive_timeout: 1800s
        archive_command: test ! -f /usr/local/pgsql16/pg_wal_arch/%f && cp %p /usr/local/pgsql16/pg_wal_arch/%f
        log_destination: stderr
        logging_collector: "on"
        log_directory: "log"
        log_filename: "postgresql-%Y-%m-%d_%H%M%S.log"
        log_file_mode: "0600"
        log_rotation_age: "1d"
        log_min_duration_statement: 1
        log_autovacuum_min_duration: 0
        log_checkpoints: "on"
        log_connections: "on"
        log_disconnections: "on"
        log_hostname: "on"
        log_line_prefix: "%m [%p] user:%u,db:%d,app:%a,host:%h "
        log_lock_waits: "on"
        log_recovery_conflict_waits: "on"
        log_statement: "ddl"
        log_replication_commands: "on"
        log_temp_files: 1
        log_timezone: "Asia/Shanghai"

  # some desired options for 'initdb'
  initdb:  # Note: It needs to be a list (some options need values, others are switches)
  - encoding: UTF8
  - data-checksums


postgresql:
  listen: 192.168.152.117:9000
  connect_address: 192.168.152.117:9000
  data_dir: /usr/local/pgsql16/pg9000/data
  bin_dir: /usr/local/pgsql16/server/bin
  #config_dir:
  pgpass: /home/postgres/.pgpass
  authentication:
    replication:
      username: repl_user
      password: repl_user_123456
    superuser:
      username: postgres
      password: postgres_pwd
    rewind:  # Has no effect on postgres 10 and lower
      username: rewind_user
      password: rewind_user_pwd
  parameters:
    unix_socket_directories: '..'  # parent directory of data_dir


tags:
    # failover_priority: 1
    # sync_priority: 1
    noloadbalance: false
    clonefrom: false
    nostream: false



4.1 相关参数

scope: pg_cluster_wy_prod

1，该参数会注册到etcd的key中
2，在patroni的配置中，可以在这里体现出来
  scope: 参数为pg_cluster_wy_prod
  namespace:参数为 /service/
root@ubuntu08:/usr/local# etcdctl get /service --prefix --keys-only
{"level":"warn","ts":"2025-09-22T16:47:36.675953+0800","caller":"flags/flag.go:94","msg":"unrecognized environment variable","environment-variable":"ETCDCTL_API=3"}
/service/pg_cluster_wy_prod/config
/service/pg_cluster_wy_prod/history
/service/pg_cluster_wy_prod/initialize
/service/pg_cluster_wy_prod/leader
/service/pg_cluster_wy_prod/members/ubuntu08
/service/pg_cluster_wy_prod/members/ubuntu09
/service/pg_cluster_wy_prod/members/ubuntu10
/service/pg_cluster_wy_prod/status



5，编辑patroni systemctl服务文件

patroni的systemctl 启动文件，各个节点都一样

[Unit]
Description=patroni
After=network.target remote-fs.target nss-lookup.target etcd.service #一定要等到etcd启动之后再启动patroni
Requires=etcd.service

[Service]
Type=forking
User=postgres
Group=postgres
Environment="PGHOME=/usr/local/pgsql16/server"
Environment="PGDATA=/usr/local/pgsql16/pg9000/data"
Environment="PGPORT=9000"
Environment="LD_LIBRARY_PATH=/usr/local/pgsql16/server/lib"
Environment="PATH=/usr/local/pgsql16/server/bin:/usr/local/bin"
ExecStart=/bin/bash -c "patroni /usr/local/pgsql16/patroni/patroni.yml >> /usr/local/pgsql16/patroni/patroni.log 2>&1 &"
ExecReload=/bin/kill -s HUP $MAINPID
ExecStop=/usr/bin/killall patroni
KillMode=process
TimeoutSec=30
Restart=no

[Install]
WantedBy=multi-user.target



6，启动partoni

设置自动启动，并启动服务，检查集群状态，patronictl -c /usr/local/pgsql16/patroni/patroni.yml list

systemctl daemon-reload
systemctl start patroni
systemctl enable patroni

root@ubuntu08:/usr/local# patronictl -c /usr/local/pgsql16/patroni/patroni.yml list
+ Cluster: pg_cluster_wy_prod (7552796412810163150) +-----------+
| Member   | Host           | Role   | State   | TL | Lag in MB |
+----------+----------------+--------+---------+----+-----------+
| ubuntu08 | 127.0.0.1:9000 | Leader | running |  1 |           |
+----------+----------------+--------+---------+----+-----------+
root@ubuntu08:/usr/local#
root@ubuntu08:/usr/local# systemctl status patroni
● patroni.service - patroni
     Loaded: loaded (/etc/systemd/system/patroni.service; enabled; vendor preset: enabled)
     Active: active (running) since Mon 2025-09-22 14:27:29 CST; 42min ago
   Main PID: 623548 (patroni)
      Tasks: 13 (limit: 4550)
     Memory: 95.6M
     CGroup: /system.slice/patroni.service
             ├─623548 /usr/bin/python3 /usr/local/bin/patroni /usr/local/pgsql16/patroni/patroni.yml
             ├─623575 /usr/local/pgsql16/server/bin/postgres -D /usr/local/pgsql16/pg9000/data --config-file=/usr/local/pgsql16/pg9000/data/postgresql.conf --listen_addresses=127.0.0.1 --port=9000 --cluster>
             ├─623577 postgres: pg_cluster_wy_prod: checkpointer
             ├─623578 postgres: pg_cluster_wy_prod: background writer
             ├─623580 postgres: pg_cluster_wy_prod: walwriter
             ├─623581 postgres: pg_cluster_wy_prod: autovacuum launcher
             ├─623583 postgres: pg_cluster_wy_prod: logical replication launcher
             └─623588 postgres: pg_cluster_wy_prod: postgres postgres 127.0.0.1(48710) idle

Sep 22 14:27:29 ubuntu08 systemd[1]: Starting patroni...
Sep 22 14:27:29 ubuntu08 systemd[1]: Started patroni.




--查看patroni集群状态
root@ubuntu08:/usr/local# patronictl -c /usr/local/pgsql16/patroni/patroni.yml list
+ Cluster: pg_cluster_wy_prod (7552796412810163150) +-----------+
| Member   | Host           | Role   | State   | TL | Lag in MB |
+----------+----------------+--------+---------+----+-----------+
| ubuntu08 | 127.0.0.1:9000 | Leader | running |  1 |           |
+----------+----------------+--------+---------+----+-----------+
root@ubuntu08:/usr/local#
root@ubuntu08:/usr/local#

patroni环境变量配置，这样不需要patronictl 每次都加上-c /usr/local/pgsql16/patroni/patroni.yml 来指定配置文件

为了方便日常操作，添加以下内容到/etc/profile中

vi /etc/profile
export PATRONICTL_CONFIG_FILE=/home/postgres/patroni/patroni.yml

source /etc/profile



7，patroni环境下修改PostgreSQL配置文件

这部分非常非常非常重要，很容易误解，笔者在这里花了一个多小时的时间，来测试各种场景。

方法1 patronictl edit-config

patronictl -c /usr/local/pgsql16/patroni/patroni.yml edit-config，该命令会以nano编辑器的方式打开patroni.yml配置文件，修改后:
1，edit-config的方式修改配置，不是修改patroni.yml这个物理配置文件自身，而是操作etcd数据库的方式，将数据写入ectd数据库，在任何一个节点都可以修改，并且会同步至其他节点
2，如果参数有误或者格式不对，保存的时候（Ctrl + O → Enter → Ctrl + X）会直接报错
3，如果正常保存，不会重写patroni.yml这个物理文件自身，也就是说即便修改成功，这个文件也不会变
4，修改后该参数不会自动更新或保存在postgresql.auto.conf配置文件中
5，如果正常保存，会自动重写pg数据库实例目录下的patroni.dynamic.json文件

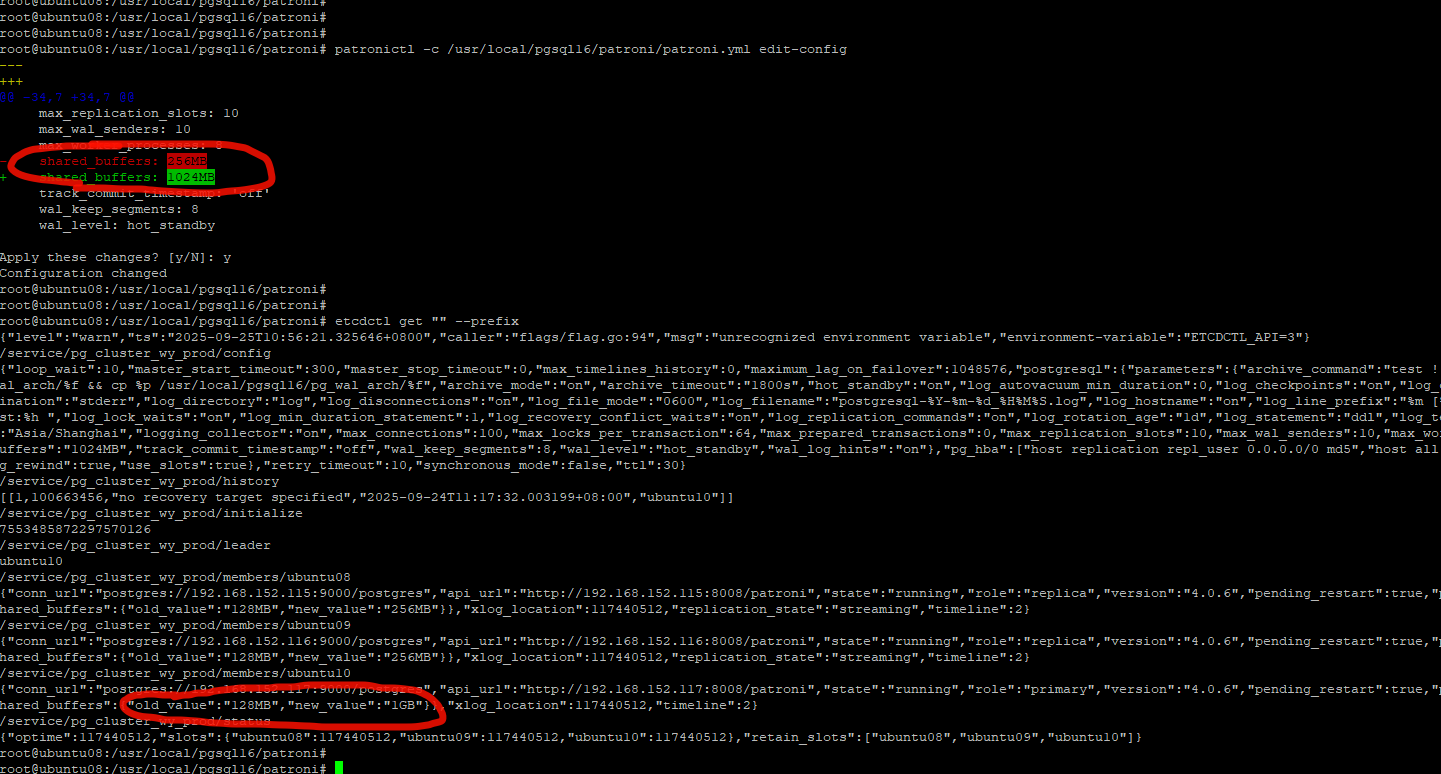

6，如果正常保存，会保存在ectd数据库中，如下修改"shared_buffers"，   "old_value"始终是默认值，而不是字面意思上修改前的值  我擦我试了好几次才发现这个规律
    "shared_buffers": {
            "old_value": "128MB",
            "new_value": "1GB"
        }
7，修改后的参数会下发到所有的PostgreSQL实例，其他PostgreSQL实例下，同样会自动重写patroni.dynamic.json文件
8，patroni的日志中，会自动记录修改参数的日志：Changed shared_buffers from '128MB' to '512MB' (restart might be required)

关于修改参数的patronictl edit-config， 语法上是patronictl 指定一个配置文件修改，修改后实际上修改的etcd的中的记录，然后etcd中的new_value记录的会分发到etcd的所有节点，但是其old_value并不是修改前的值，而是默认值，我一直以为搞错了，试了三次才发现是这个规律 。


方法2 ALTER SYSTEM SET 命令

通过ALTER SYSTEM SET parameter='***'的方式修改
这种方式修改后，
1，可以再任意节点执行修改
2，执行成功后，会将参数保存在postgresql.auto.conf配置文件中，
3，这种方式的修改，只会对当前节点生效，*不会*同步至其他节点
“方法2”修改的参数会优先于“方式1”修改的加载，也就是说postgresql.auto.conf优先级会高于patroni.dynamic.json
--在从节点上执行
SHOW listen_addresses;
listen_addresses|
----------------+
192.168.152.115 |
--查看当前work_mem
show work_mem;
work_mem|
--------+
4MB     |
--修改work_mem
ALTER SYSTEM SET work_mem TO '8MB';
SELECT pg_reload_conf();

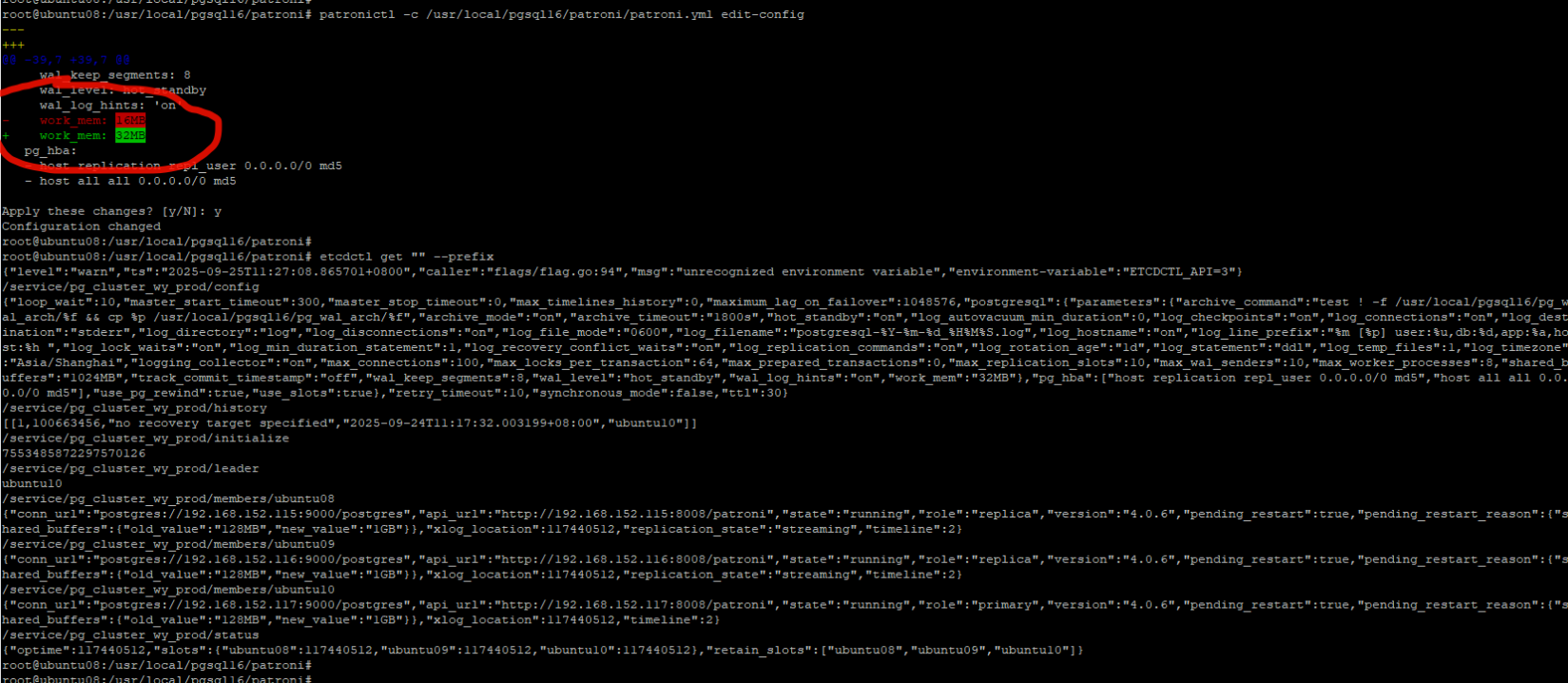

通过patronictl edit-config来修改PostgreSQL的参数，遇到以下一个问题，原本修改记录是记录在etcd中的（再次说了edit-config的方式修改配置，不是修改patroni.yml这个物理配置文件自身，而是操作etcd数据库），但是work_mem参数的修改就不会记录在ectd中，还是有缓存？

work_mem参数的新增或者修改不会记录类似修改前后的值？




posted on 2025-09-26 14:33  MSSQL123  阅读(150)  评论(0)    收藏  举报
