UE4中PhysX BroadPhase(碰撞检测的粗略阶段)

PhysX的BroadPhase(碰撞检测的粗略阶段),具体是用AABB(轴向包围盒)来做碰撞检测

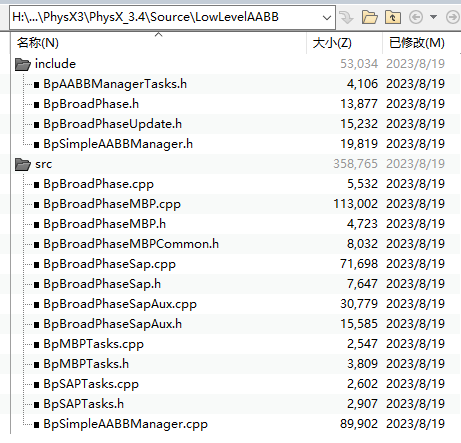

具体算法有两种:SAP(Single Pruning Box,单个剪枝盒)和MBP(Multi Pruning Box,多个剪枝盒)



SAP(Single Pruning Box,单个剪枝盒)

当场景中有大量的物体(大世界有百万级别)时,即使它们已按AABB的三个轴向xyz做了排序,一个动态物体在移动过程与它们进行AABB判断也是一个很耗时操作

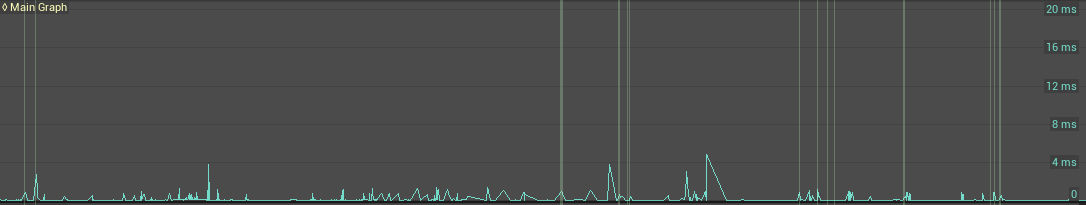

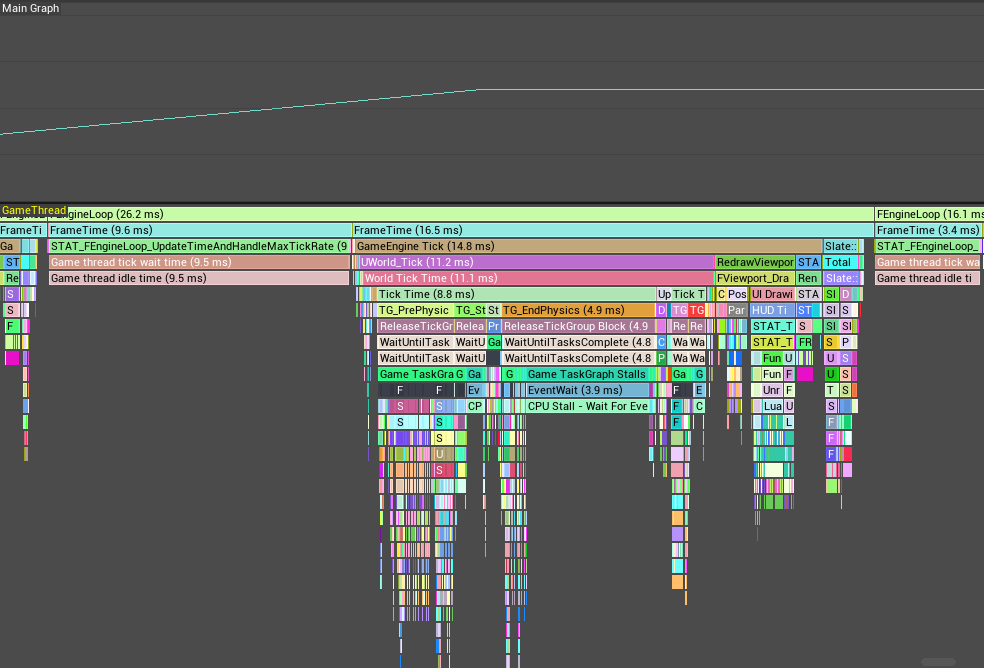

TG_EndPhysics的卡顿与BpSAP.UpdateWork直接相关





MBP(Multi Pruning Box,多个剪枝盒)

为了解决与物体判断AABB的次数,可以使用MBP来将整个场景划分成多个块,这样动态物体只用与当前所在块中的物体进行AABB判断,大大减少BroadPhase(碰撞检测的粗略阶段)的耗时



全局Default Broadphase Settings

注1:勾上Use MBPOn Client,并设置MBPBounds和MBPNum Subdivs的数值

注2:MBPBounds的Min、Max缺省为0,表示区域为整个场景

注3:MBPNum Subdivs为2,即将MBPBounds划分成2x2,一共4个块



该配置会保存在DefaultEngine.ini中

[/Script/Engine.PhysicsSettings]

DefaultBroadphaseSettings=(bUseMBPOnClient=True,bUseMBPOnServer=False,bUseMBPOuterBounds=False,MBPBounds=(Min=(X=0.000000,Y=0.000000,Z=0.000000),Max=(X=0.000000,Y=0.000000,Z=0.000000),IsValid=0),MBPOuterBounds=(Min=(X=0.000000,Y=0.000000,Z=0.000000),Max=(X=0.000000,Y=0.000000,Z=0.000000),IsValid=0),MBPNumSubdivs=2)



在地图中可以覆写全局Default Broadphase Settings



具体代码详见:UnrealEngine\Engine\Source\Runtime\Engine\Private\PhysicsEngine\PhysScene_PhysX.cpp

void FPhysScene_PhysX::InitPhysScene(const AWorldSettings* Settings)



相关CVar变量

p.ForceMbpClient Forces all created scenes to use MBP on client builds
p.ForceMbpServer Forces all created scenes to use MBP on server builds
p.ForceNoKKPairs Disables kinematic-kinematic pairs. This is required when using APEX destruction to correctly generate chunk pairs - when not using destruction this speeds up the broadphase by early rejecting KK pairs.
p.ForceNoKSPairs Disables kinematic-static pairs. This makes converting from static to dynamic a little slower - but provides better broadphase performance because we early reject those pairs.
p.OverrideMbpNumSubdivisionsClient Override for number of subdivisions to perform when building MBP regions on a client, note regions are only generated when a scene is created - this will not update the scene if it's already running (0 = No override, 1>16 - Override number)
p.OverrideMbpNumSubdivisionsServer Override for number of subdivisions to perform when building MBP regions on a server, note regions are only generated when a scene is created - this will not update the scene if it's already running (0 = No override, 1>16 - Override number)



参考

Dive Into PhysX Broad Phase In UE4
