UE4渲染资源创建与销毁

使用的是4.26.1版本引擎

G:\svn\UnrealEngine\Engine\Binaries\Win64\UE4Editor-Win64-Debug.exe G:\svn\MyTest1\MyTest1.uproject PhysxTestMap -game -nothreading -forceRHIBypass -Windowed ResX=800 ResY=600





Texture2D

D3D11下Texture2D的用法

ID3D11ShaderResourceView*   g_pTexture1 = NULL;
ID3D11ShaderResourceView*   g_pTexture2 = NULL;
ID3D11SamplerState*         g_pSampLinear = NULL;
// PCF sampler state for shadow mapping
ID3D11SamplerState*         g_pPCFSamplerState = NULL;

// Create Shader Resouce View (Texture2D)
WCHAR str[MAX_PATH];
V_RETURN( DXUTFindDXSDKMediaFileCch( str, MAX_PATH, L"..\\Media\\Bokeh1.dds" ) );
V_RETURN( D3DX11CreateShaderResourceViewFromFile( g_pDevice, str, NULL, NULL, &g_pTexture1, NULL ) ); // ID3D11Device* g_pDevice;
V_RETURN( DXUTFindDXSDKMediaFileCch( str, MAX_PATH, L"..\\Media\\Bokeh2.dds" ) );
V_RETURN( D3DX11CreateShaderResourceViewFromFile( g_pDevice, str, NULL, NULL, &g_pTexture2, NULL ) ); // ID3D11Device* g_pDevice;

// Set Shader Resources
ID3D11ShaderResourceView* arrViews[2] = { g_pTexture1, g_pTexture2};
pd3dImmediateContext->PSSetShaderResources(0, 2, arrViews);// ID3D11DeviceContext* pd3dImmediateContext

// --------------------------------------------------------------

// Create sampler
D3D11_SAMPLER_DESC samDesc;
ZeroMemory( &samDesc, sizeof(samDesc) );
samDesc.Filter = D3D11_FILTER_MIN_MAG_MIP_LINEAR;
samDesc.AddressU = samDesc.AddressV = samDesc.AddressW = D3D11_TEXTURE_ADDRESS_WRAP;
samDesc.MaxAnisotropy = 1;
samDesc.ComparisonFunc = D3D11_COMPARISON_ALWAYS;
samDesc.MaxLOD = D3D11_FLOAT32_MAX;
V_RETURN( pd3dDevice->CreateSamplerState( &samDesc, &g_pSampLinear ) );

// Create the PCF sampler state
D3D11_SAMPLER_DESC samDesc2;
ZeroMemory( &samDesc2, sizeof(samDesc2) );
samDesc2.Filter = D3D11_FILTER_COMPARISON_MIN_MAG_MIP_LINEAR;
samDesc2.AddressU = samDesc2.AddressV = samDesc2.AddressW = D3D11_TEXTURE_ADDRESS_CLAMP;
samDesc2.MaxAnisotropy = 1;
samDesc2.ComparisonFunc = D3D11_COMPARISON_LESS_EQUAL;
samDesc2.MaxLOD = D3D11_FLOAT32_MAX;
V_RETURN( g_pDevice->CreateSamplerState( &samDesc2, &g_pPCFSamplerState ) );

// Set render resources
pd3dImmediateContext->PSSetSamplers( 0, 1, &g_pSampLinear ); // ID3D11DeviceContext* pd3dImmediateContext

// Set the shadowmapping PCF sampler
pd3dImmediateContext->PSSetSamplers( 2, 1, &g_pPCFSamplerState ); // ID3D11DeviceContext* pd3dImmediateContext



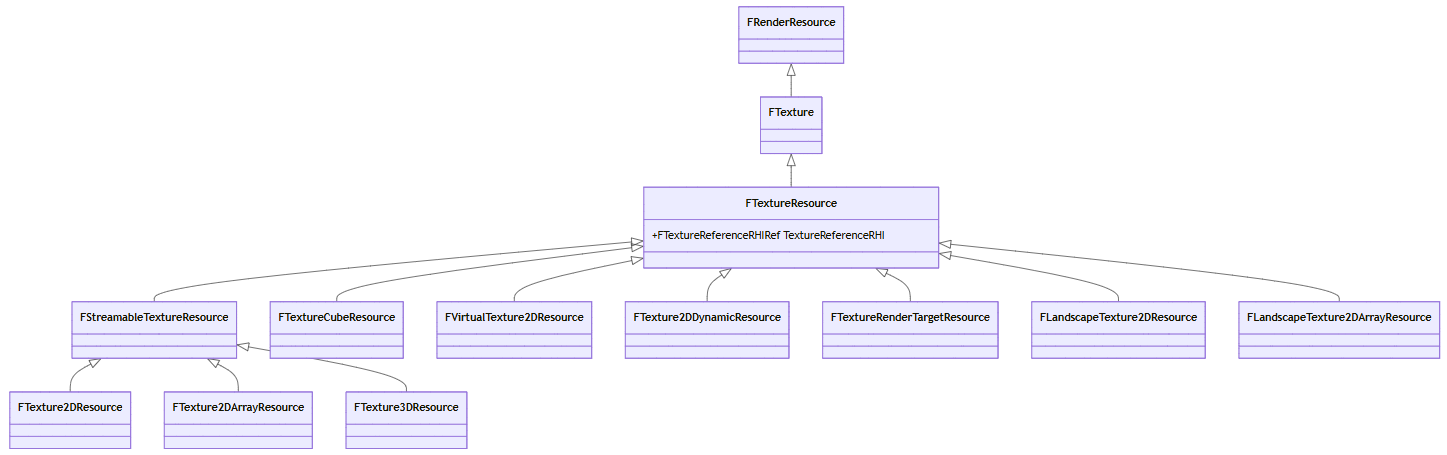

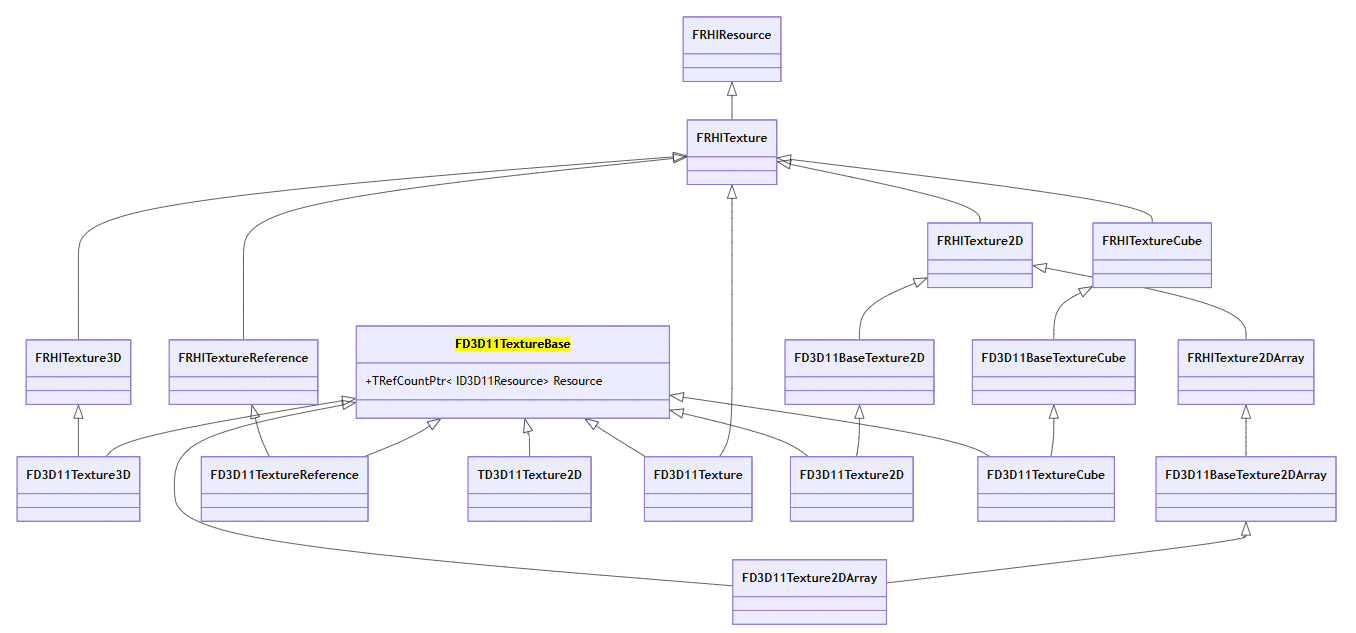

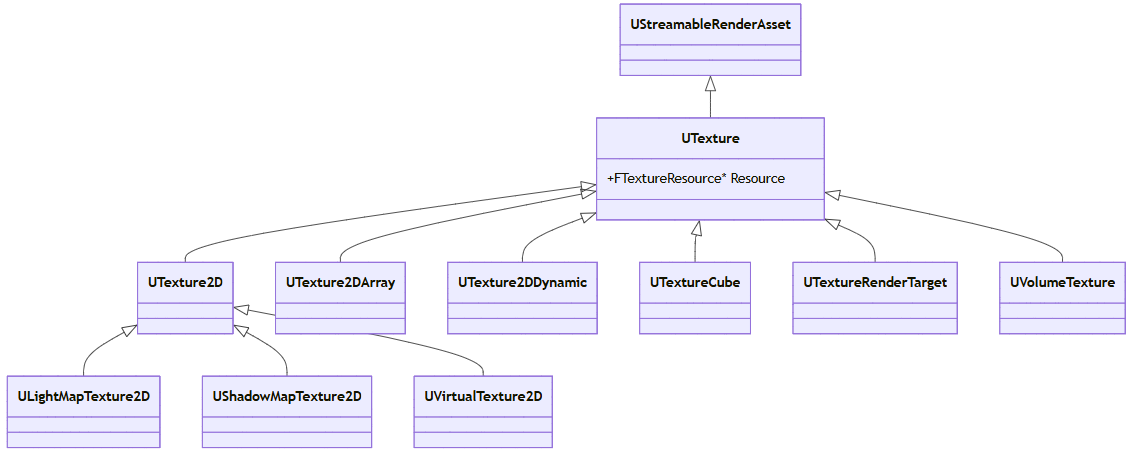

创建

TD3D11Texture2D<FD3D11BaseTexture2D>::TD3D11Texture2D<FD3D11BaseTexture2D>(FD3D11DynamicRHI *,ID3D11Texture2D *,ID3D11ShaderResourceView *,bool,int,const TArray<TRefCountPtr<ID3D11RenderTargetView>,TSizedDefaultAllocator<32> > &,TRefCountPtr<ID3D11DepthStencilView> *,unsigned int,unsigned int,unsigned int,unsigned int,unsigned int,EPixelFormat,bool,ETextureCreateFlags,bool,const FClearValueBinding &) D3D11Resources.h:378
FD3D11DynamicRHI::CreateD3D11Texture2D<FD3D11BaseTexture2D>(unsigned int,unsigned int,unsigned int,bool,bool,unsigned char,unsigned int,unsigned int,ETextureCreateFlags,FRHIResourceCreateInfo &) D3D11Texture.cpp:1019  // 会创建ShaderResourceView
FD3D11DynamicRHI::RHICreateTexture2D(unsigned int,unsigned int,unsigned char,unsigned int,unsigned int,ETextureCreateFlags,ERHIAccess,FRHIResourceCreateInfo &) D3D11Texture.cpp:1223
FD3D11DynamicRHI::RHICreateTexture2D_RenderThread(FRHICommandListImmediate &,unsigned int,unsigned int,unsigned char,unsigned int,unsigned int,ETextureCreateFlags,ERHIAccess,FRHIResourceCreateInfo &) D3D11Texture.cpp:1237
FTexture2DResource::CreateTexture() Texture2DResource.cpp:87
FStreamableTextureResource::InitRHI() StreamableTextureResource.cpp:172
FRenderResource::InitResource() RenderResource.cpp:102
EnqueueUniqueRenderCommand<`BeginInitResource'::`2'::InitCommandName,<lambda_b5723c02a85a82cd772e604c4f4548bf> >(<lambda_b5723c02a85a82cd772e604c4f4548bf> &&) RenderingThread.h:244
BeginInitResource(FRenderResource *) RenderResource.cpp:155
UTexture::UpdateResource() Texture.cpp:165
UTexture2D::UpdateResource() Texture2D.cpp:440
UTexture::PostLoad() Texture.cpp:434
UTexture2D::PostLoad() Texture2D.cpp:377
UObject::ConditionalPostLoad() Obj.cpp:1082
EndLoad(FUObjectSerializeContext *) UObjectGlobals.cpp:1647
<lambda_331d34f2fc994df37d1cf9ee9119237a>::operator()() UObjectGlobals.cpp:1255
LoadPackageInternal(UPackage *,const wchar_t *,unsigned int,FLinkerLoad *,FArchive *,const FLinkerInstancingContext *) UObjectGlobals.cpp:1360
LoadPackage(UPackage *,const wchar_t *,unsigned int,FArchive *,const FLinkerInstancingContext *) UObjectGlobals.cpp:1458
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:12865
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UGameInstance::StartGameInstance() GameInstance.cpp:580
UGameEngine::Start() GameEngine.cpp:1166
FEngineLoop::Init() LaunchEngineLoop.cpp:3989
EngineInit() Launch.cpp:52
GuardedMain(const wchar_t *) Launch.cpp:153
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff7ff657a2a
__scrt_common_main_seh() 0x00007ff7ff657a09
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



BeginDestroy销毁

FTexture::ReleaseRHI() RenderResource.h:423
FStreamableTextureResource::ReleaseRHI() StreamableTextureResource.cpp:193
FRenderResource::ReleaseResource() RenderResource.cpp:119
EnqueueUniqueRenderCommand<`BeginReleaseResource'::`2'::ReleaseCommandName,<lambda_aec70190632b98f970ea922a5c9418a4> >(<lambda_aec70190632b98f970ea922a5c9418a4> &&) RenderingThread.h:244
BeginReleaseResource(FRenderResource *) RenderResource.cpp:246
UTexture::BeginFinalReleaseResource() Texture.cpp:445
UTexture::BeginDestroy() Texture.cpp:463
UTexture2D::BeginDestroy() Texture2D.cpp:459
UObject::ConditionalBeginDestroy() Obj.cpp:963
UnhashUnreachableObjects(bool,float) GarbageCollection.cpp:2105
CollectGarbageInternal(EObjectFlags,bool) GarbageCollection.cpp:2043
CollectGarbage(EObjectFlags,bool) GarbageCollection.cpp:2150
UEngine::TrimMemory() UnrealEngine.cpp:13138
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:12771
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UEngine::TickWorldTravel(FWorldContext &,float) UnrealEngine.cpp:12501
UGameEngine::Tick(float,bool) GameEngine.cpp:1783
FEngineLoop::Tick() LaunchEngineLoop.cpp:4830
EngineTick() Launch.cpp:62
GuardedMain(const wchar_t *) Launch.cpp:171
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff7b1fe7a1a
__scrt_common_main_seh() 0x00007ff7b1fe79f9
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



FinishDestroy销毁

FTexture2DResource::~FTexture2DResource() Texture2DResource.cpp:52
FTexture2DResource::`scalar deleting destructor'(unsigned int) 0x00007fffd8a2d798
UTexture::FinishDestroy() Texture.cpp:490
UObject::ConditionalFinishDestroy() Obj.cpp:1020
IncrementalDestroyGarbage(bool,float) GarbageCollection.cpp:1570
IncrementalPurgeGarbage(bool,float) GarbageCollection.cpp:1495
CollectGarbageInternal(EObjectFlags,bool) GarbageCollection.cpp:2054
CollectGarbage(EObjectFlags,bool) GarbageCollection.cpp:2150
UEngine::TrimMemory() UnrealEngine.cpp:13138
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:12771
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UEngine::TickWorldTravel(FWorldContext &,float) UnrealEngine.cpp:12501
UGameEngine::Tick(float,bool) GameEngine.cpp:1783
FEngineLoop::Tick() LaunchEngineLoop.cpp:4830
EngineTick() Launch.cpp:62
GuardedMain(const wchar_t *) Launch.cpp:171
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff6ebf47a2a
__scrt_common_main_seh() 0x00007ff6ebf47a09
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



FTexture2DRHIRef TextureTargetRHI的销毁，都是直接调用SafeRelease()将自己置空

TextureTargetRHI.SafeRelease();



RenderTarget

D3D11下RenderTarget的用法

HRESULT TextureRender::InitResource(ID3D11Device* device, int texWidth, int texHeight, bool generateMips)
{
    // 防止重复初始化造成内存泄漏
    m_pOutputTextureSRV.Reset();  // ComPtr<ID3D11ShaderResourceView> m_pOutputTextureSRV   RenderToTexture的Texture的SRV
    m_pOutputTextureRTV.Reset();  // ComPtr<ID3D11RenderTargetView> m_pOutputTextureRTV     RenderToTexture的RenderTargetView
    m_pOutputTextureDSV.Reset();  // ComPtr<ID3D11DepthStencilView> m_pOutputTextureDSV     RenderToTexture的DepthStencilView
    m_pCacheRTV.Reset();  // ComPtr<ID3D11RenderTargetView> m_pCacheRTV  保存RenderToTexture之前的RenderTargetView
    m_pCacheDSV.Reset();  // ComPtr<ID3D11DepthStencilView> m_pCacheDSV  保存RenderToTexture之前的DepthStencilView

    m_GenerateMips = generateMips; // bool m_GenerateMips
    HRESULT hr;

    // ******************
    // 1. 创建纹理
    //

    ComPtr<ID3D11Texture2D> texture;
    D3D11_TEXTURE2D_DESC texDesc;

    texDesc.Width = texWidth;
    texDesc.Height = texHeight;
    texDesc.MipLevels = (m_GenerateMips ? 0 : 1);    // 0为完整mipmap链
    texDesc.ArraySize = 1;
    texDesc.SampleDesc.Count = 1;
    texDesc.SampleDesc.Quality = 0;
    texDesc.Format = DXGI_FORMAT_R8G8B8A8_UNORM;
    texDesc.Usage = D3D11_USAGE_DEFAULT;
    texDesc.BindFlags = D3D11_BIND_RENDER_TARGET | D3D11_BIND_SHADER_RESOURCE;
    texDesc.CPUAccessFlags = 0;
    texDesc.MiscFlags = D3D11_RESOURCE_MISC_GENERATE_MIPS;

    // 现在texture用于新建纹理
    hr = device->CreateTexture2D(&texDesc, NULL, texture.GetAddressOf());
    if (FAILED(hr))
        return hr;

    // ******************
    // 2. 创建纹理对应的渲染目标视图
    //

    D3D11_RENDER_TARGET_VIEW_DESC rtvDesc;
    rtvDesc.Format = texDesc.Format;
    rtvDesc.ViewDimension = D3D11_RTV_DIMENSION_TEXTURE2D;
    rtvDesc.Texture2D.MipSlice = 0;

    hr = device->CreateRenderTargetView(texture.Get(), &rtvDesc, m_pOutputTextureRTV.GetAddressOf());
    if (FAILED(hr))
        return hr;

    // ******************
    // 3. 创建纹理对应的着色器资源视图
    //

    D3D11_SHADER_RESOURCE_VIEW_DESC srvDesc;
    srvDesc.Format = texDesc.Format;
    srvDesc.ViewDimension = D3D11_SRV_DIMENSION_TEXTURE2D;
    srvDesc.Texture2D.MostDetailedMip = 0;
    srvDesc.Texture2D.MipLevels = -1;    // 使用所有的mip等级

    hr = device->CreateShaderResourceView(texture.Get(), &srvDesc, m_pOutputTextureSRV.GetAddressOf());
    if (FAILED(hr))
        return hr;

    // ******************
    // 4. 创建与纹理等宽高的深度/模板缓冲区和对应的视图
    //

    texDesc.Width = texWidth;
    texDesc.Height = texHeight;
    texDesc.MipLevels = 0;
    texDesc.ArraySize = 1;
    texDesc.SampleDesc.Count = 1;
    texDesc.SampleDesc.Quality = 0;
    texDesc.Format = DXGI_FORMAT_D24_UNORM_S8_UINT;
    texDesc.Usage = D3D11_USAGE_DEFAULT;
    texDesc.BindFlags = D3D11_BIND_DEPTH_STENCIL;
    texDesc.CPUAccessFlags = 0;
    texDesc.MiscFlags = 0;

    ComPtr<ID3D11Texture2D> depthTex;
    hr = device->CreateTexture2D(&texDesc, NULL, depthTex.GetAddressOf());
    if (FAILED(hr))
        return hr;

    D3D11_DEPTH_STENCIL_VIEW_DESC dsvDesc;
    dsvDesc.Format = texDesc.Format;
    dsvDesc.Flags = 0;
    dsvDesc.ViewDimension = D3D11_DSV_DIMENSION_TEXTURE2D;
    dsvDesc.Texture2D.MipSlice = 0;

    hr = device->CreateDepthStencilView(depthTex.Get(), &dsvDesc, m_pOutputTextureDSV.GetAddressOf());
    if (FAILED(hr))
        return hr;

    // ******************
    // 5. 初始化视口
    //
    // D3D11_VIEWPORT m_OutputViewPort
    m_OutputViewPort.TopLeftX = 0.0f;
    m_OutputViewPort.TopLeftY = 0.0f;
    m_OutputViewPort.Width = static_cast<float>(texWidth);
    m_OutputViewPort.Height = static_cast<float>(texHeight);
    m_OutputViewPort.MinDepth = 0.0f;
    m_OutputViewPort.MaxDepth = 1.0f;

    return S_OK;
}

void TextureRender::Begin(ID3D11DeviceContext* deviceContext, const float backgroundColor[4])
{
    // 缓存RenderToTexture之前的渲染目标和深度模板视图
    deviceContext->OMGetRenderTargets(1, m_pCacheRTV.GetAddressOf(), m_pCacheDSV.GetAddressOf());
    // 缓存视口
    unsigned int num_Viewports = 1;
    deviceContext->RSGetViewports(&num_Viewports, &m_CacheViewPort); // D3D11_VIEWPORT m_CacheViewPort


    // 清空缓冲区
    deviceContext->ClearRenderTargetView(m_pOutputTextureRTV.Get(), backgroundColor);
    deviceContext->ClearDepthStencilView(m_pOutputTextureDSV.Get(), D3D11_CLEAR_DEPTH | D3D11_CLEAR_STENCIL, 1.0f, 0);
    // 设置渲染目标和深度模板视图
    deviceContext->OMSetRenderTargets(1, m_pOutputTextureRTV.GetAddressOf(), m_pOutputTextureDSV.Get());
    // 设置视口
    deviceContext->RSSetViewports(1, &m_OutputViewPort);
}

void TextureRender::End(ID3D11DeviceContext* deviceContext)
{
    // 恢复默认设定的染目标和深度模板视图
    deviceContext->RSSetViewports(1, &m_CacheViewPort);
    deviceContext->OMSetRenderTargets(1, m_pCacheRTV.GetAddressOf(), m_pCacheDSV.Get());

    // 若之前有指定需要mipmap链，则生成
    if (m_GenerateMips)
    {
        deviceContext->GenerateMips(m_pOutputTextureSRV.Get());
    }

    // 清空临时缓存的渲染目标视图和深度模板视图
    m_pCacheDSV.Reset();
    m_pCacheRTV.Reset();
}

ID3D11ShaderResourceView* TextureRender::GetOutputTexture()
{
    return m_pOutputTextureSRV.Get();  // 返回RenderToTexture的SRV
}

/****************************************************************************************************************/
m_pMinimapRender = std::make_unique<TextureRender>(); // std::unique_ptr<TextureRender> m_pMinimapRender
HR(m_pMinimapRender->InitResource(m_pd3dDevice.Get(), 400, 400, true));

m_pMinimapRender->Begin(m_pd3dImmediateContext.Get(), Colors::Black);
DrawScene();  // 绘制场景到RenderTarget上
m_pMinimapRender->End(m_pd3dImmediateContext.Get());

ID3D11ShaderResourceView * TextureResult = m_pMinimapRender->GetOutputTexture(); // 获取RenderToTexture的纹理



RenderTargetPool创建RT

RHICreateTargetableShaderResource2D(unsigned int,unsigned int,unsigned char,unsigned int,ETextureCreateFlags,ETextureCreateFlags,bool,bool,FRHIResourceCreateInfo &,TRefCountPtr<FRHITexture2D> &,TRefCountPtr<FRHITexture2D> &,unsigned int) RHIUtilities.h:664
FRenderTargetPool::FindFreeElementInternal(FRHICommandList &,const FPooledRenderTargetDesc &,const wchar_t *,bool,bool) RenderTargetPool.cpp:416
FRenderTargetPool::FindFreeElement(FRHICommandList &,const FPooledRenderTargetDesc &,TRefCountPtr<IPooledRenderTarget> &,const wchar_t *,ERenderTargetTransience,bool) RenderTargetPool.cpp:695
FSystemTextures::InitializeCommonTextures(FRHICommandListImmediate &) SystemTextures.cpp:46
FSystemTextures::InitializeTextures(FRHICommandListImmediate &,Type) SystemTextures.h:34
FRendererModule::InitializeSystemTextures(FRHICommandListImmediate &) Renderer.cpp:101
FSlateRHIRenderer::DrawWindow_RenderThread(FRHICommandListImmediate &,FViewportInfo &,FSlateWindowElementList &,const FSlateDrawWindowCommandParams &) SlateRHIRenderer.cpp:705
<lambda_5572aad9e16943e81269070aa3e3a76b>::operator()(FRHICommandListImmediate &) SlateRHIRenderer.cpp:1321
EnqueueUniqueRenderCommand<`FSlateRHIRenderer::DrawWindows_Private'::`42'::SlateDrawWindowsCommandName,<lambda_5572aad9e16943e81269070aa3e3a76b> >(<lambda_5572aad9e16943e81269070aa3e3a76b> &&) RenderingThread.h:244
FSlateRHIRenderer::DrawWindows_Private(FSlateDrawBuffer &) SlateRHIRenderer.cpp:1318
FSlateRHIRenderer::DrawWindows(FSlateDrawBuffer &) SlateRHIRenderer.cpp:1190
FSlateApplication::PrivateDrawWindows(TSharedPtr<SWindow,0>) SlateApplication.cpp:1295
FSlateApplication::DrawWindows() SlateApplication.cpp:1017
FSlateApplication::TickAndDrawWidgets(float) SlateApplication.cpp:1566
FSlateApplication::Tick(ESlateTickType) SlateApplication.cpp:1423
UGameEngine::CreateGameWindow() GameEngine.cpp:642
UGameEngine::Init(IEngineLoop *) GameEngine.cpp:1137
FEngineLoop::Init() LaunchEngineLoop.cpp:3952
EngineInit() Launch.cpp:52
GuardedMain(const wchar_t *) Launch.cpp:153
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff64b1f7a1a
__scrt_common_main_seh() 0x00007ff64b1f79f9
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



特效创建RT

FD3D11DynamicRHI::CreateD3D11Texture2D<FD3D11BaseTexture2D>(unsigned int,unsigned int,unsigned int,bool,bool,unsigned char,unsigned int,unsigned int,ETextureCreateFlags,FRHIResourceCreateInfo &) D3D11Texture.cpp:561
FD3D11DynamicRHI::RHICreateTexture2D(unsigned int,unsigned int,unsigned char,unsigned int,unsigned int,ETextureCreateFlags,ERHIAccess,FRHIResourceCreateInfo &) D3D11Texture.cpp:1223
FD3D11DynamicRHI::RHICreateTexture2D_RenderThread(FRHICommandListImmediate &,unsigned int,unsigned int,unsigned char,unsigned int,unsigned int,ETextureCreateFlags,ERHIAccess,FRHIResourceCreateInfo &) D3D11Texture.cpp:1237
RHICreateTargetableShaderResource2D(unsigned int,unsigned int,unsigned char,unsigned int,ETextureCreateFlags,ETextureCreateFlags,bool,bool,FRHIResourceCreateInfo &,TRefCountPtr<FRHITexture2D> &,TRefCountPtr<FRHITexture2D> &,unsigned int) RHIUtilities.h:677
FParticleStateTextures::InitRHI() ParticleGpuSimulation.cpp:251
FRenderResource::InitResource() RenderResource.cpp:102
<lambda_a5c1fb86cab753c7ea09dd43d275a40a>::operator()(FRHICommandList &) ParticleGpuSimulation.cpp:393
EnqueueUniqueRenderCommand<`FParticleSimulationResources::Init'::`2'::FInitParticleSimulationResourcesCommandName,<lambda_a5c1fb86cab753c7ea09dd43d275a40a> >(FParticleSimulationResources::<lambda_a5c1fb86cab753c7ea09dd43d275a40a> &&) RenderingThread.h:244
FFXSystem::InitGPUResources() ParticleGpuSimulation.cpp:4404
FFXSystem::InitGPUSimulation() ParticleGpuSimulation.cpp:4378
FFXSystem::FFXSystem(Type,EShaderPlatform,FGPUSortManager *) FXSystem.cpp:201
FFXSystemInterface::Create(Type,EShaderPlatform) FXSystem.cpp:37
UWorld::CreateFXSystem() World.cpp:7315
FScene::FScene(UWorld *,bool,bool,bool,Type) RendererScene.cpp:1125
FRendererModule::AllocateScene(UWorld *,bool,bool,Type) RendererScene.cpp:4460
UWorld::InitWorld(InitializationValues) World.cpp:1455
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:12985
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UGameInstance::StartGameInstance() GameInstance.cpp:580
UGameEngine::Start() GameEngine.cpp:1166
FEngineLoop::Init() LaunchEngineLoop.cpp:3989
EngineInit() Launch.cpp:52
GuardedMain(const wchar_t *) Launch.cpp:153
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff64b1f7a1a
__scrt_common_main_seh() 0x00007ff64b1f79f9
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



从RenderTargetPool创建SceneColor的RT

FD3D11DynamicRHI::CreateD3D11Texture2D<FD3D11BaseTexture2D>(unsigned int,unsigned int,unsigned int,bool,bool,unsigned char,unsigned int,unsigned int,ETextureCreateFlags,FRHIResourceCreateInfo &) D3D11Texture.cpp:563
FD3D11DynamicRHI::RHICreateTexture2D(unsigned int,unsigned int,unsigned char,unsigned int,unsigned int,ETextureCreateFlags,ERHIAccess,FRHIResourceCreateInfo &) D3D11Texture.cpp:1223
FD3D11DynamicRHI::RHICreateTexture2D_RenderThread(FRHICommandListImmediate &,unsigned int,unsigned int,unsigned char,unsigned int,unsigned int,ETextureCreateFlags,ERHIAccess,FRHIResourceCreateInfo &) D3D11Texture.cpp:1237
RHICreateTargetableShaderResource2D(unsigned int,unsigned int,unsigned char,unsigned int,ETextureCreateFlags,ETextureCreateFlags,bool,bool,FRHIResourceCreateInfo &,TRefCountPtr<FRHITexture2D> &,TRefCountPtr<FRHITexture2D> &,unsigned int) RHIUtilities.h:677
FRenderTargetPool::FindFreeElementInternal(FRHICommandList &,const FPooledRenderTargetDesc &,const wchar_t *,bool,bool) RenderTargetPool.cpp:416
FRenderTargetPool::FindFreeElement(FRHICommandList &,const FPooledRenderTargetDesc &,TRefCountPtr<IPooledRenderTarget> &,const wchar_t *,ERenderTargetTransience,bool) RenderTargetPool.cpp:695
FSceneRenderTargets::AllocSceneColor(FRHICommandList &) SceneRenderTargets.cpp:983
FDeferredShadingSceneRenderer::Render(FRHICommandListImmediate &) DeferredShadingRenderer.cpp:1919
RenderViewFamily_RenderThread(FRHICommandListImmediate &,FSceneRenderer *) SceneRendering.cpp:3616
<lambda_73be3b292d373df226bf787512bb165a>::operator()(FRHICommandListImmediate &) SceneRendering.cpp:3887
EnqueueUniqueRenderCommand<`FRendererModule::BeginRenderingViewFamily'::`35'::FDrawSceneCommandName,<lambda_73be3b292d373df226bf787512bb165a> >(<lambda_73be3b292d373df226bf787512bb165a> &&) RenderingThread.h:244
FRendererModule::BeginRenderingViewFamily(FCanvas *,FSceneViewFamily *) SceneRendering.cpp:3881
UGameViewportClient::Draw(FViewport *,FCanvas *) GameViewportClient.cpp:1630
FViewport::Draw(bool) UnrealClient.cpp:1557
UGameEngine::RedrawViewports(bool) GameEngine.cpp:702
UGameEngine::Tick(float,bool) GameEngine.cpp:1908
FEngineLoop::Tick() LaunchEngineLoop.cpp:4830
EngineTick() Launch.cpp:62
GuardedMain(const wchar_t *) Launch.cpp:171
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff64b1f7a1a
__scrt_common_main_seh() 0x00007ff64b1f79f9
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



从RenderTargetPool创建GBuffer的RT

FD3D11DynamicRHI::CreateD3D11Texture2D<FD3D11BaseTexture2D>(unsigned int,unsigned int,unsigned int,bool,bool,unsigned char,unsigned int,unsigned int,ETextureCreateFlags,FRHIResourceCreateInfo &) D3D11Texture.cpp:563
FD3D11DynamicRHI::RHICreateTexture2D(unsigned int,unsigned int,unsigned char,unsigned int,unsigned int,ETextureCreateFlags,ERHIAccess,FRHIResourceCreateInfo &) D3D11Texture.cpp:1223
FD3D11DynamicRHI::RHICreateTexture2D_RenderThread(FRHICommandListImmediate &,unsigned int,unsigned int,unsigned char,unsigned int,unsigned int,ETextureCreateFlags,ERHIAccess,FRHIResourceCreateInfo &) D3D11Texture.cpp:1237
RHICreateTargetableShaderResource2D(unsigned int,unsigned int,unsigned char,unsigned int,ETextureCreateFlags,ETextureCreateFlags,bool,bool,FRHIResourceCreateInfo &,TRefCountPtr<FRHITexture2D> &,TRefCountPtr<FRHITexture2D> &,unsigned int) RHIUtilities.h:677
FRenderTargetPool::FindFreeElementInternal(FRHICommandList &,const FPooledRenderTargetDesc &,const wchar_t *,bool,bool) RenderTargetPool.cpp:416
FRenderTargetPool::FindFreeElement(FRHICommandList &,const FPooledRenderTargetDesc &,TRefCountPtr<IPooledRenderTarget> &,const wchar_t *,ERenderTargetTransience,bool) RenderTargetPool.cpp:695
FSceneRenderTargets::AllocGBufferTargets(FRHICommandList &,ETextureCreateFlags) SceneRenderTargets.cpp:1103
FSceneRenderTargets::AllocGBufferTargets(FRHICommandList &) SceneRenderTargets.cpp:1079
FDeferredShadingSceneRenderer::Render(FRHICommandListImmediate &) DeferredShadingRenderer.cpp:1753
RenderViewFamily_RenderThread(FRHICommandListImmediate &,FSceneRenderer *) SceneRendering.cpp:3616
<lambda_73be3b292d373df226bf787512bb165a>::operator()(FRHICommandListImmediate &) SceneRendering.cpp:3887
EnqueueUniqueRenderCommand<`FRendererModule::BeginRenderingViewFamily'::`35'::FDrawSceneCommandName,<lambda_73be3b292d373df226bf787512bb165a> >(<lambda_73be3b292d373df226bf787512bb165a> &&) RenderingThread.h:244
FRendererModule::BeginRenderingViewFamily(FCanvas *,FSceneViewFamily *) SceneRendering.cpp:3881
UGameViewportClient::Draw(FViewport *,FCanvas *) GameViewportClient.cpp:1630
FViewport::Draw(bool) UnrealClient.cpp:1557
UGameEngine::RedrawViewports(bool) GameEngine.cpp:702
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:13104
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UEngine::TickWorldTravel(FWorldContext &,float) UnrealEngine.cpp:12501
UGameEngine::Tick(float,bool) GameEngine.cpp:1783
FEngineLoop::Tick() LaunchEngineLoop.cpp:4830
EngineTick() Launch.cpp:62
GuardedMain(const wchar_t *) Launch.cpp:171
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff64b1f7a1a
__scrt_common_main_seh() 0x00007ff64b1f79f9
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



VertexBuffer

D3D11下多个VertexBuffer用法

// ******************
//    5________ 6
//    /|      /|
//   /_|_____/ |
//  1|4|_ _ 2|_|7
//   | /     | /
//   |/______|/
//  0       3
// ******************

// 新建顶点Position缓冲区
XMFLOAT3 vertices_positon[] =
{
    XMFLOAT3(-1.0f, -1.0f, -1.0f),
    XMFLOAT3(-1.0f, 1.0f, -1.0f),
    XMFLOAT3(1.0f, 1.0f, -1.0f),
    XMFLOAT3(1.0f, -1.0f, -1.0f),
    XMFLOAT3(-1.0f, -1.0f, 1.0f),
    XMFLOAT3(-1.0f, 1.0f, 1.0f),
    XMFLOAT3(1.0f, 1.0f, 1.0f),
    XMFLOAT3(1.0f, -1.0f, 1.0f)
};
// 设置顶点缓冲区描述
D3D11_BUFFER_DESC vbd1;
ZeroMemory(&vbd1, sizeof(vbd1));
vbd1.Usage = D3D11_USAGE_IMMUTABLE;
vbd1.ByteWidth = sizeof(vertices_positon);
vbd1.BindFlags = D3D11_BIND_VERTEX_BUFFER;
vbd1.CPUAccessFlags = 0;

D3D11_SUBRESOURCE_DATA InitData;
ZeroMemory(&InitData, sizeof(InitData));
InitData.pSysMem = vertices_positon;
HR(m_pd3dDevice->CreateBuffer(&vbd1, &InitData, m_pVertexPositionBuffer.GetAddressOf()));

// 新建顶点Color缓冲区
XMFLOAT4 vertices_color[] =
{
    XMFLOAT4(0.0f, 0.0f, 0.0f, 1.0f),
    XMFLOAT4(1.0f, 0.0f, 0.0f, 1.0f),
    XMFLOAT4(1.0f, 1.0f, 0.0f, 1.0f),
    XMFLOAT4(0.0f, 1.0f, 0.0f, 1.0f),
    XMFLOAT4(0.0f, 0.0f, 1.0f, 1.0f),
    XMFLOAT4(1.0f, 0.0f, 1.0f, 1.0f),
    XMFLOAT4(1.0f, 1.0f, 1.0f, 1.0f),
    XMFLOAT4(0.0f, 1.0f, 1.0f, 1.0f)
};
// 设置顶点缓冲区描述
D3D11_BUFFER_DESC vbd2;
ZeroMemory(&vbd2, sizeof(vbd2));
vbd2.Usage = D3D11_USAGE_IMMUTABLE;
vbd2.ByteWidth = sizeof(vertices_color);
vbd2.BindFlags = D3D11_BIND_VERTEX_BUFFER;
vbd2.CPUAccessFlags = 0;

D3D11_SUBRESOURCE_DATA InitData;
ZeroMemory(&InitData, sizeof(InitData));
InitData.pSysMem = vertices_color;
HR(m_pd3dDevice->CreateBuffer(&vbd2, &InitData, m_pVertexColorBuffer.GetAddressOf()));

// 设置顶点Position缓冲区和Color缓冲区
struct MeshDataInput
{
    std::vector<ID3D11Buffer*> pVertexBuffers;
    std::vector<uint32_t> strides;
    std::vector<uint32_t> offsets;
};

MeshDataInput input;
input.pVertexBuffers = {
    m_pVertexPositionBuffer.Get(),  // ComPtr<ID3D11Buffer> m_pVertexPositionBuffer;  // POSITION顶点位置Buffer
    m_pVertexColorBuffer.Get(),   // ComPtr<ID3D11Buffer> m_pVertexColorBuffer;   // COLOR颜色Buffer
};
input.strides = { 12, 16 };
input.offsets = { 0, 0};

deviceContext->IASetVertexBuffers(0, (uint32_t)input.pVertexBuffers.size(), input.pVertexBuffers.data(), input.strides.data(), input.offsets.data());

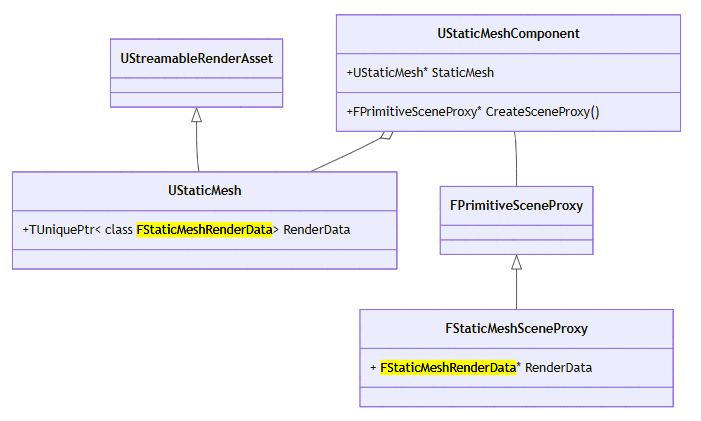

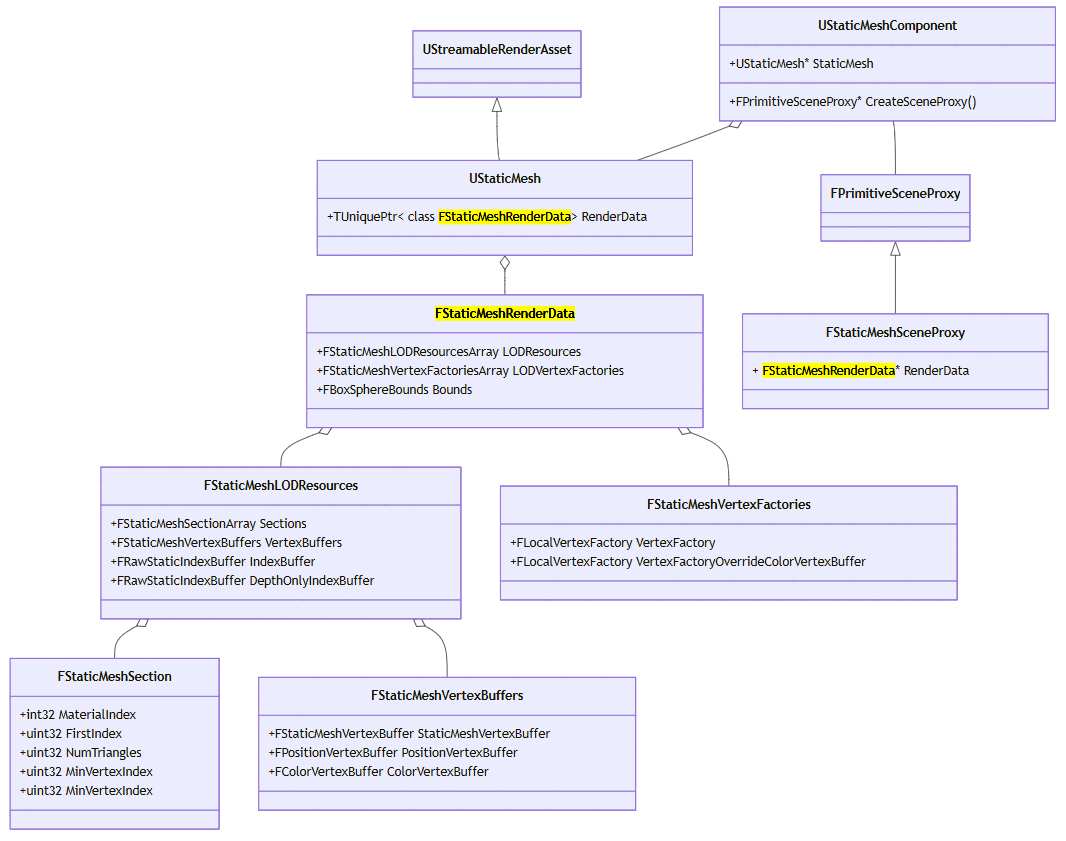

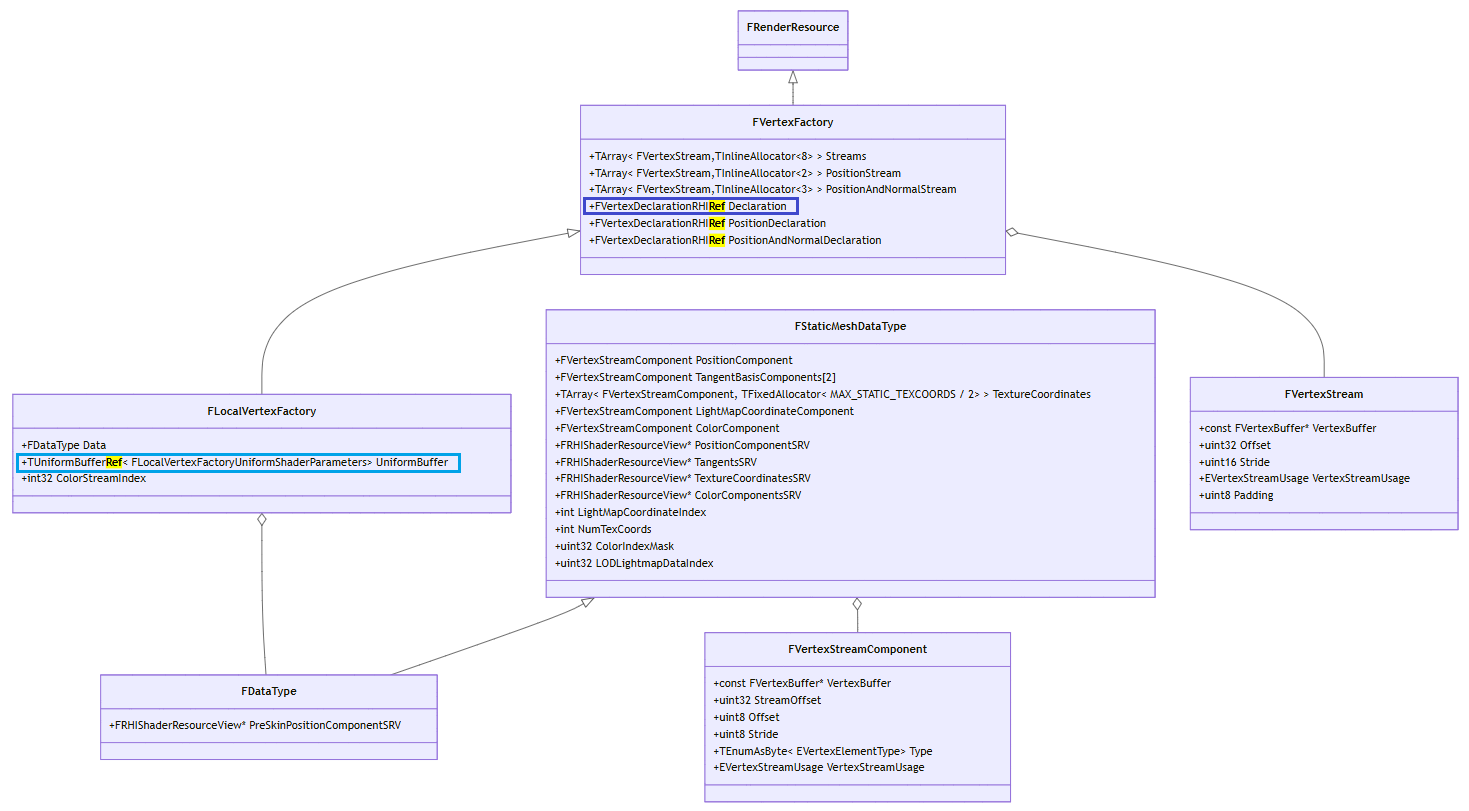

StaticMesh类关系图



StaticMesh创建VertexBuffer

FD3D11DynamicRHI::RHICreateVertexBuffer(unsigned int,unsigned int,ERHIAccess,FRHIResourceCreateInfo &) D3D11VertexBuffer.cpp:119
FD3D11DynamicRHI::CreateVertexBuffer_RenderThread(FRHICommandListImmediate &,unsigned int,unsigned int,ERHIAccess,FRHIResourceCreateInfo &) D3D11VertexBuffer.cpp:129
FStaticMeshVertexBuffer::CreateTangentsRHIBuffer_Internal<1>() StaticMeshVertexBuffer.cpp:280
FStaticMeshVertexBuffer::CreateTangentsRHIBuffer_RenderThread() StaticMeshVertexBuffer.cpp:292
FStaticMeshVertexBuffer::InitRHI() StaticMeshVertexBuffer.cpp:363
FRenderResource::InitResource() RenderResource.cpp:102
FStaticMeshVertexBuffer::InitResource() StaticMeshVertexBuffer.cpp:393
EnqueueUniqueRenderCommand<`BeginInitResource'::`2'::InitCommandName,<lambda_b5723c02a85a82cd772e604c4f4548bf> >(<lambda_b5723c02a85a82cd772e604c4f4548bf> &&) RenderingThread.h:244
BeginInitResource(FRenderResource *) RenderResource.cpp:155
FStaticMeshLODResources::InitResources(UStaticMesh *) StaticMesh.cpp:1221
FStaticMeshRenderData::InitResources(Type,UStaticMesh *) StaticMesh.cpp:1611
UStaticMesh::InitResources() StaticMesh.cpp:2766
UStaticMesh::PostLoad() StaticMesh.cpp:5056
UObject::ConditionalPostLoad() Obj.cpp:1082
UBodySetup::PostLoad() BodySetup.cpp:1145
UObject::ConditionalPostLoad() Obj.cpp:1082
EndLoad(FUObjectSerializeContext *) UObjectGlobals.cpp:1647
<lambda_331d34f2fc994df37d1cf9ee9119237a>::operator()() UObjectGlobals.cpp:1255
LoadPackageInternal(UPackage *,const wchar_t *,unsigned int,FLinkerLoad *,FArchive *,const FLinkerInstancingContext *) UObjectGlobals.cpp:1360
LoadPackage(UPackage *,const wchar_t *,unsigned int,FArchive *,const FLinkerInstancingContext *) UObjectGlobals.cpp:1458
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:12865
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UEngine::TickWorldTravel(FWorldContext &,float) UnrealEngine.cpp:12501
UGameEngine::Tick(float,bool) GameEngine.cpp:1783
FEngineLoop::Tick() LaunchEngineLoop.cpp:4830
EngineTick() Launch.cpp:62
GuardedMain(const wchar_t *) Launch.cpp:171
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff71c367a2a
__scrt_common_main_seh() 0x00007ff71c367a09
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



StaticMesh BeginDestroy销毁

FStaticMeshVertexBuffer::ReleaseRHI() StaticMeshVertexBuffer.cpp:385
FRenderResource::ReleaseResource() RenderResource.cpp:119
FStaticMeshVertexBuffer::ReleaseResource() StaticMeshVertexBuffer.cpp:400
EnqueueUniqueRenderCommand<`BeginReleaseResource'::`2'::ReleaseCommandName,<lambda_aec70190632b98f970ea922a5c9418a4> >(<lambda_aec70190632b98f970ea922a5c9418a4> &&) RenderingThread.h:244
BeginReleaseResource(FRenderResource *) RenderResource.cpp:246
FStaticMeshLODResources::ReleaseResources() StaticMesh.cpp:1317
FStaticMeshRenderData::ReleaseResources() StaticMesh.cpp:1657
UStaticMesh::ReleaseResources() StaticMesh.cpp:3076
UStaticMesh::BeginDestroy() StaticMesh.cpp:3494
UObject::ConditionalBeginDestroy() Obj.cpp:963
UnhashUnreachableObjects(bool,float) GarbageCollection.cpp:2105
CollectGarbageInternal(EObjectFlags,bool) GarbageCollection.cpp:2043
CollectGarbage(EObjectFlags,bool) GarbageCollection.cpp:2150
UEngine::TrimMemory() UnrealEngine.cpp:13138
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:12771
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UEngine::TickWorldTravel(FWorldContext &,float) UnrealEngine.cpp:12501
UGameEngine::Tick(float,bool) GameEngine.cpp:1783
FEngineLoop::Tick() LaunchEngineLoop.cpp:4830
EngineTick() Launch.cpp:62
GuardedMain(const wchar_t *) Launch.cpp:171
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff7b1fe7a1a
__scrt_common_main_seh() 0x00007ff7b1fe79f9
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



SkeletalMesh类关系图



SkeletalMesh创建VertexBuffer

FD3D11DynamicRHI::RHICreateVertexBuffer(unsigned int,unsigned int,ERHIAccess,FRHIResourceCreateInfo &) D3D11VertexBuffer.cpp:27
FD3D11DynamicRHI::CreateVertexBuffer_RenderThread(FRHICommandListImmediate &,unsigned int,unsigned int,ERHIAccess,FRHIResourceCreateInfo &) D3D11VertexBuffer.cpp:129
FPositionVertexBuffer::CreateRHIBuffer_Internal<1>() PositionVertexBuffer.cpp:202
FPositionVertexBuffer::CreateRHIBuffer_RenderThread() PositionVertexBuffer.cpp:214
FPositionVertexBuffer::InitRHI() PositionVertexBuffer.cpp:247
FRenderResource::InitResource() RenderResource.cpp:102
EnqueueUniqueRenderCommand<`BeginInitResource'::`2'::InitCommandName,<lambda_b5723c02a85a82cd772e604c4f4548bf> >(<lambda_b5723c02a85a82cd772e604c4f4548bf> &&) RenderingThread.h:244
BeginInitResource(FRenderResource *) RenderResource.cpp:155
FSkeletalMeshLODRenderData::InitResources(bool,int,TArray<UMorphTarget *,TSizedDefaultAllocator<32> > &,USkeletalMesh *) SkeletalMeshLODRenderData.cpp:124
FSkeletalMeshRenderData::InitResources(bool,TArray<UMorphTarget *,TSizedDefaultAllocator<32> > &,USkeletalMesh *) SkeletalMeshRenderData.cpp:497
USkeletalMesh::InitResources() SkeletalMesh.cpp:861
USkeletalMesh::PostLoad() SkeletalMesh.cpp:2588
UObject::ConditionalPostLoad() Obj.cpp:1082
EndLoad(FUObjectSerializeContext *) UObjectGlobals.cpp:1647
<lambda_331d34f2fc994df37d1cf9ee9119237a>::operator()() UObjectGlobals.cpp:1255
LoadPackageInternal(UPackage *,const wchar_t *,unsigned int,FLinkerLoad *,FArchive *,const FLinkerInstancingContext *) UObjectGlobals.cpp:1360
LoadPackage(UPackage *,const wchar_t *,unsigned int,FArchive *,const FLinkerInstancingContext *) UObjectGlobals.cpp:1458
ResolveName(UObject *&,FString &,bool,bool,unsigned int,const FLinkerInstancingContext *) UObjectGlobals.cpp:787
StaticLoadObjectInternal(UClass *,UObject *,const wchar_t *,const wchar_t *,unsigned int,UPackageMap *,bool,const FLinkerInstancingContext *) UObjectGlobals.cpp:848
StaticLoadObject(UClass *,UObject *,const wchar_t *,const wchar_t *,unsigned int,UPackageMap *,bool,const FLinkerInstancingContext *) UObjectGlobals.cpp:924
StaticLoadClass(UClass *,UObject *,const wchar_t *,const wchar_t *,unsigned int,UPackageMap *) UObjectGlobals.cpp:957
ConstructorHelpersInternal::FindOrLoadClass(FString &,UClass *) ConstructorHelpers.h:87
ConstructorHelpers::FClassFinder<APawn>::FClassFinder<APawn>(const wchar_t *) ConstructorHelpers.h:188
AMyTest1GameMode::AMyTest1GameMode() MyTest1GameMode.cpp:10
InternalConstructor<AMyTest1GameMode>(const FObjectInitializer &) Class.h:3307
UClass::CreateDefaultObject() Class.cpp:3707
UObjectLoadAllCompiledInDefaultProperties() UObjectBase.cpp:907
ProcessNewlyLoadedUObjects(FName,bool) UObjectBase.cpp:996
TBaseStaticDelegateInstance<void __cdecl(FName,bool),FDefaultDelegateUserPolicy>::ExecuteIfSafe(FName,bool) DelegateInstancesImpl.h:729
TMulticastDelegate<void __cdecl(FName,bool),FDefaultDelegateUserPolicy>::Broadcast(FName,bool) DelegateSignatureImpl.inl:955
FModuleManager::LoadModuleWithFailureReason(FName,EModuleLoadResult &) ModuleManager.cpp:516
FModuleDescriptor::LoadModulesForPhase(Type,const TArray<FModuleDescriptor,TSizedDefaultAllocator<32> > &,TMap<FName,enum EModuleLoadResult,FDefaultSetAllocator,TDefaultMapHashableKeyFuncs<FName,enum EModuleLoadResult,0> > &) ModuleDescriptor.cpp:560
FProjectManager::LoadModulesForProject(Type) ProjectManager.cpp:60
FEngineLoop::LoadStartupModules() LaunchEngineLoop.cpp:3815
FEngineLoop::PreInitPostStartupScreen(const wchar_t *) LaunchEngineLoop.cpp:3198
FEngineLoop::PreInit(const wchar_t *) LaunchEngineLoop.cpp:3591
EnginePreInit(const wchar_t *) Launch.cpp:42
GuardedMain(const wchar_t *) Launch.cpp:127
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff64b1f7a1a
__scrt_common_main_seh() 0x00007ff64b1f79f9
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



SkeletalMesh BeginDestroy销毁

UE4Editor-RenderCore-Win64-Debug.dll!FVertexBuffer::ReleaseRHI() Line 509    C++
UE4Editor-Engine-Win64-Debug.dll!FPositionVertexBuffer::ReleaseRHI() Line 272    C++
UE4Editor-RenderCore-Win64-Debug.dll!FRenderResource::ReleaseResource() Line 120    C++
UE4Editor-RenderCore-Win64-Debug.dll!EnqueueUniqueRenderCommand<`BeginReleaseResource'::`2'::ReleaseCommandName,<lambda_aec70190632b98f970ea922a5c9418a4>>(BeginReleaseResource::__l2::<lambda_aec70190632b98f970ea922a5c9418a4> && Lambda={...}) Line 245    C++
UE4Editor-RenderCore-Win64-Debug.dll!BeginReleaseResource(FRenderResource * Resource=0x00000272156eb2c8) Line 251    C++
UE4Editor-Engine-Win64-Debug.dll!FSkeletalMeshLODRenderData::ReleaseResources() Line 256    C++
UE4Editor-Engine-Win64-Debug.dll!FSkeletalMeshRenderData::ReleaseResources() Line 519    C++
UE4Editor-Engine-Win64-Debug.dll!USkeletalMesh::ReleaseResources() Line 885    C++
UE4Editor-Engine-Win64-Debug.dll!USkeletalMesh::BeginDestroy() Line 1402    C++
UE4Editor-CoreUObject-Win64-Debug.dll!UObject::ConditionalBeginDestroy() Line 996    C++
UE4Editor-CoreUObject-Win64-Debug.dll!UnhashUnreachableObjects(bool bUseTimeLimit=false, float TimeLimit=0.00200000009) Line 2108    C++
UE4Editor-CoreUObject-Win64-Debug.dll!IncrementalPurgeGarbage(bool bUseTimeLimit=false, float TimeLimit=0.00200000009) Line 1485    C++
UE4Editor-CoreUObject-Win64-Debug.dll!StaticExit() Line 4528    C++
UE4Editor-CoreUObject-Win64-Debug.dll!TBaseStaticDelegateInstance<void __cdecl(void),FDefaultDelegateUserPolicy>::ExecuteIfSafe() Line 731    C++
UE4Editor-Win64-Debug.exe!TMulticastDelegate<void __cdecl(void),FDefaultDelegateUserPolicy>::Broadcast() Line 955    C++
UE4Editor-Win64-Debug.exe!FEngineLoop::AppPreExit() Line 5719    C++
UE4Editor-Win64-Debug.exe!FEngineLoop::Exit() Line 4184    C++
UE4Editor-Win64-Debug.exe!EngineExit() Line 74    C++
UE4Editor-Win64-Debug.exe!GuardedMain(const wchar_t * CmdLine=0x0000027195372f80) Line 182    C++
UE4Editor-Win64-Debug.exe!WinMain(HINSTANCE__ * hInInstance=0x00007ff699450000, HINSTANCE__ * hPrevInstance=0x0000000000000000, char * __formal=0x0000027191074e46, int nCmdShow=10) Line 257    C++
[Inline Frame] UE4Editor-Win64-Debug.exe!invoke_main() Line 102    C++
UE4Editor-Win64-Debug.exe!__scrt_common_main_seh() Line 288    C++
kernel32.dll!BaseThreadInitThunk()    Unknown
ntdll.dll!RtlUserThreadStart()    Unknown



FSkeletalMeshObjectGPUSkin创建VertexBuffer

UE4Editor-Engine-Win64-Debug.dll!FPositionVertexBuffer::InitRHI() Line 250    C++
UE4Editor-RenderCore-Win64-Debug.dll!FRenderResource::InitResource() Line 102    C++
UE4Editor-RenderCore-Win64-Debug.dll!EnqueueUniqueRenderCommand<`BeginInitResource'::`2'::InitCommandName,<lambda_b5723c02a85a82cd772e604c4f4548bf>>(BeginInitResource::__l2::<lambda_b5723c02a85a82cd772e604c4f4548bf> && Lambda={...}) Line 245    C++
UE4Editor-RenderCore-Win64-Debug.dll!BeginInitResource(FRenderResource * Resource=0x000001ccb2892ef0) Line 160    C++
UE4Editor-Engine-Win64-Debug.dll!FSkeletalMeshObjectGPUSkin::FSkeletalMeshObjectLOD::InitResources(unsigned int VertexOffsetUsage=0, const FSkeletalMeshObject::FSkelMeshObjectLODInfo & MeshLODInfo={...}, FSkelMeshComponentLODInfo * CompLODInfo=0x000001ccb28e9440, ERHIFeatureLevel::Type InFeatureLevel=SM5) Line 1775    C++
UE4Editor-Engine-Win64-Debug.dll!FSkeletalMeshObjectGPUSkin::InitResources(USkinnedMeshComponent * InMeshComponent=0x000001cd16c8eb00) Line 194    C++
UE4Editor-Engine-Win64-Debug.dll!FSkeletalMeshObjectGPUSkin::FSkeletalMeshObjectGPUSkin(USkinnedMeshComponent * InMeshComponent=0x000001cd16c8eb00, FSkeletalMeshRenderData * InSkelMeshRenderData=0x000001cd1594a440, ERHIFeatureLevel::Type InFeatureLevel=SM5) Line 158    C++
UE4Editor-Engine-Win64-Debug.dll!USkinnedMeshComponent::CreateRenderState_Concurrent(FRegisterComponentContext * Context=0x000000867d377d18) Line 560    C++
UE4Editor-Engine-Win64-Debug.dll!UActorComponent::ExecuteRegisterEvents(FRegisterComponentContext * Context=0x000000867d377d18) Line 1533    C++
UE4Editor-Engine-Win64-Debug.dll!UActorComponent::RegisterComponentWithWorld(UWorld * InWorld=0x000001cc918d8100, FRegisterComponentContext * Context=0x000000867d377d18) Line 1223    C++
UE4Editor-Engine-Win64-Debug.dll!AActor::IncrementalRegisterComponents(int NumComponentsToRegister=2147483647, FRegisterComponentContext * Context=0x000000867d377d18) Line 4582    C++
UE4Editor-Engine-Win64-Debug.dll!ULevel::IncrementalUpdateComponents(int NumComponentsToUpdate=0, bool bRerunConstructionScripts=true, FRegisterComponentContext * Context=0x000000867d377d18) Line 1094    C++
UE4Editor-Engine-Win64-Debug.dll!ULevel::UpdateLevelComponents(bool bRerunConstructionScripts=true, FRegisterComponentContext * Context=0x000000867d377d18) Line 971    C++
UE4Editor-Engine-Win64-Debug.dll!UWorld::UpdateWorldComponents(bool bRerunConstructionScripts=true, bool bCurrentLevelOnly=true, FRegisterComponentContext * Context=0x000000867d377d18) Line 1963    C++
UE4Editor-Engine-Win64-Debug.dll!UWorld::InitializeActorsForPlay(const FURL & InURL={...}, bool bResetTime=true, FRegisterComponentContext * Context=0x000000867d377d18) Line 4202    C++
UE4Editor-Engine-Win64-Debug.dll!UEngine::LoadMap(FWorldContext & WorldContext={...}, FURL URL={...}, UPendingNetGame * Pending=0x0000000000000000, FString & Error={...}) Line 13058    C++
UE4Editor-Engine-Win64-Debug.dll!UEngine::Browse(FWorldContext & WorldContext={...}, FURL URL={...}, FString & Error={...}) Line 12303    C++
UE4Editor-Engine-Win64-Debug.dll!UGameInstance::StartGameInstance() Line 580    C++
UE4Editor-Engine-Win64-Debug.dll!UGameEngine::Start() Line 1167    C++
UE4Editor-Win64-Debug.exe!FEngineLoop::Init() Line 3989    C++
UE4Editor-Win64-Debug.exe!EngineInit() Line 52    C++
UE4Editor-Win64-Debug.exe!GuardedMain(const wchar_t * CmdLine=0x000001cc90742f80) Line 153    C++
UE4Editor-Win64-Debug.exe!WinMain(HINSTANCE__ * hInInstance=0x00007ff699450000, HINSTANCE__ * hPrevInstance=0x0000000000000000, char * __formal=0x000001cc8c3a4e46, int nCmdShow=10) Line 257    C++
[Inline Frame] UE4Editor-Win64-Debug.exe!invoke_main() Line 102    C++
UE4Editor-Win64-Debug.exe!__scrt_common_main_seh() Line 288    C++
kernel32.dll!BaseThreadInitThunk()    Unknown
ntdll.dll!RtlUserThreadStart()    Unknown



FSkeletalMeshObjectGPUSkin销毁VertexBuffer

FVertexBuffer::ReleaseRHI() RenderResource.h:510
FPositionVertexBuffer::ReleaseRHI() PositionVertexBuffer.cpp:271
FRenderResource::ReleaseResource() RenderResource.cpp:119
EnqueueUniqueRenderCommand<`BeginReleaseResource'::`2'::ReleaseCommandName,<lambda_aec70190632b98f970ea922a5c9418a4> >(<lambda_aec70190632b98f970ea922a5c9418a4> &&) RenderingThread.h:244
BeginReleaseResource(FRenderResource *) RenderResource.cpp:246
FSkeletalMeshObjectGPUSkin::FSkeletalMeshObjectLOD::ReleaseResources() SkeletalRenderGPUSkin.cpp:1795
FSkeletalMeshObjectGPUSkin::ReleaseResources() SkeletalRenderGPUSkin.cpp:209
USkinnedMeshComponent::DestroyRenderState_Concurrent() SkinnedMeshComponent.cpp:627
UActorComponent::ExecuteUnregisterEvents() ActorComponent.cpp:1548
UActorComponent::UnregisterComponent() ActorComponent.cpp:1300
AActor::UnregisterAllComponents(bool) Actor.cpp:4498
UWorld::DestroyActor(AActor *,bool,bool) LevelActor.cpp:807
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:12709
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UEngine::TickWorldTravel(FWorldContext &,float) UnrealEngine.cpp:12501
UGameEngine::Tick(float,bool) GameEngine.cpp:1783
FEngineLoop::Tick() LaunchEngineLoop.cpp:4830
EngineTick() Launch.cpp:62
GuardedMain(const wchar_t *) Launch.cpp:171
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff7b1fe7a1a
__scrt_common_main_seh() 0x00007ff7b1fe79f9
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



IndexBuffer

D3D11下IndexBuffer用法

// ******************
// 索引数组
//
// 设置立方体顶点
//    5________ 6
//    /|      /|
//   /_|_____/ |
//  1|4|_ _ 2|_|7
//   | /     | /
//   |/______|/
//  0       3
DWORD indices[] = {  // 立方体顶点索引
    // 正面
    0, 1, 2,
    2, 3, 0,
    // 左面
    4, 5, 1,
    1, 0, 4,
    // 顶面
    1, 5, 6,
    6, 2, 1,
    // 背面
    7, 6, 5,
    5, 4, 7,
    // 右面
    3, 2, 6,
    6, 7, 3,
    // 底面
    4, 0, 3,
    3, 7, 4
};
// 设置索引缓冲区描述
D3D11_BUFFER_DESC ibd;
ZeroMemory(&ibd, sizeof(ibd));
ibd.Usage = D3D11_USAGE_IMMUTABLE;
ibd.ByteWidth = sizeof(indices);
ibd.BindFlags = D3D11_BIND_INDEX_BUFFER;
ibd.CPUAccessFlags = 0;
// 新建索引缓冲区
D3D11_SUBRESOURCE_DATA InitData;
ZeroMemory(&InitData, sizeof(InitData));
InitData.pSysMem = indices;
HR(m_pd3dDevice->CreateBuffer(&ibd, &InitData, pIndexBuffer.GetAddressOf())); // ComPtr<ID3D11Buffer> pIndexBuffer;

// 设置IndexBuffer发起DrawCall
m_pd3dDevice->IASetIndexBuffer(pIndexBuffer, DXGI_FORMAT_R16_UINT, 0);
m_pd3dDevice->DrawIndexed(sizeof(indices)/sizeof(DWORD), 0, 0);



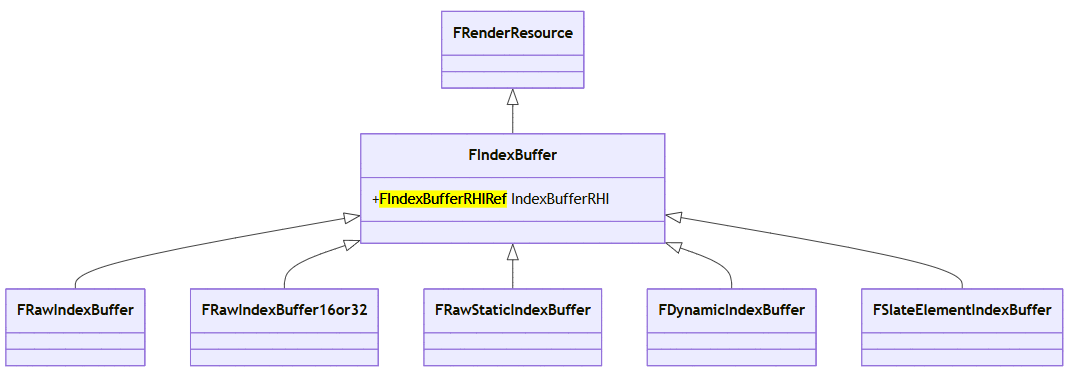

StaticMesh创建

FD3D11DynamicRHI::RHICreateIndexBuffer(unsigned int,unsigned int,unsigned int,ERHIAccess,FRHIResourceCreateInfo &) D3D11IndexBuffer.cpp:24
FD3D11DynamicRHI::CreateIndexBuffer_RenderThread(FRHICommandListImmediate &,unsigned int,unsigned int,unsigned int,ERHIAccess,FRHIResourceCreateInfo &) D3D11IndexBuffer.cpp:94
FRawStaticIndexBuffer::CreateRHIBuffer_Internal<1>() RawIndexBuffer.cpp:336
FRawStaticIndexBuffer::CreateRHIBuffer_RenderThread() RawIndexBuffer.cpp:348
FRawStaticIndexBuffer::InitRHI() RawIndexBuffer.cpp:374
FRenderResource::InitResource() RenderResource.cpp:102
EnqueueUniqueRenderCommand<`BeginInitResource'::`2'::InitCommandName,<lambda_b5723c02a85a82cd772e604c4f4548bf> >(<lambda_b5723c02a85a82cd772e604c4f4548bf> &&) RenderingThread.h:244
BeginInitResource(FRenderResource *) RenderResource.cpp:155
FStaticMeshLODResources::InitResources(UStaticMesh *) StaticMesh.cpp:1230
FStaticMeshRenderData::InitResources(Type,UStaticMesh *) StaticMesh.cpp:1611
UStaticMesh::InitResources() StaticMesh.cpp:2766
UStaticMesh::PostLoad() StaticMesh.cpp:5056
UObject::ConditionalPostLoad() Obj.cpp:1082
UBodySetup::PostLoad() BodySetup.cpp:1145
UObject::ConditionalPostLoad() Obj.cpp:1082
EndLoad(FUObjectSerializeContext *) UObjectGlobals.cpp:1647
<lambda_331d34f2fc994df37d1cf9ee9119237a>::operator()() UObjectGlobals.cpp:1255
LoadPackageInternal(UPackage *,const wchar_t *,unsigned int,FLinkerLoad *,FArchive *,const FLinkerInstancingContext *) UObjectGlobals.cpp:1360
LoadPackage(UPackage *,const wchar_t *,unsigned int,FArchive *,const FLinkerInstancingContext *) UObjectGlobals.cpp:1458
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:12865
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UEngine::TickWorldTravel(FWorldContext &,float) UnrealEngine.cpp:12501
UGameEngine::Tick(float,bool) GameEngine.cpp:1783
FEngineLoop::Tick() LaunchEngineLoop.cpp:4830
EngineTick() Launch.cpp:62
GuardedMain(const wchar_t *) Launch.cpp:171
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff71c367a2a
__scrt_common_main_seh() 0x00007ff71c367a09
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



BeginDestroy销毁

FIndexBuffer::ReleaseRHI() RenderResource.h:617
FRenderResource::ReleaseResource() RenderResource.cpp:119
EnqueueUniqueRenderCommand<`BeginReleaseResource'::`2'::ReleaseCommandName,<lambda_aec70190632b98f970ea922a5c9418a4> >(<lambda_aec70190632b98f970ea922a5c9418a4> &&) RenderingThread.h:244
BeginReleaseResource(FRenderResource *) RenderResource.cpp:246
FStaticMeshLODResources::ReleaseResources() StaticMesh.cpp:1315
FStaticMeshRenderData::ReleaseResources() StaticMesh.cpp:1657
UStaticMesh::ReleaseResources() StaticMesh.cpp:3076
UStaticMesh::BeginDestroy() StaticMesh.cpp:3494
UObject::ConditionalBeginDestroy() Obj.cpp:963
UnhashUnreachableObjects(bool,float) GarbageCollection.cpp:2105
CollectGarbageInternal(EObjectFlags,bool) GarbageCollection.cpp:2043
CollectGarbage(EObjectFlags,bool) GarbageCollection.cpp:2150
UEngine::TrimMemory() UnrealEngine.cpp:13138
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:12771
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UEngine::TickWorldTravel(FWorldContext &,float) UnrealEngine.cpp:12501
UGameEngine::Tick(float,bool) GameEngine.cpp:1783
FEngineLoop::Tick() LaunchEngineLoop.cpp:4830
EngineTick() Launch.cpp:62
GuardedMain(const wchar_t *) Launch.cpp:171
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff7b1fe7a1a
__scrt_common_main_seh() 0x00007ff7b1fe79f9
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



UniformBuffer

D3D11下UniformBuffer用法

struct CBChangesEveryDrawing
{
    DirectX::XMMATRIX world;
    DirectX::XMMATRIX worldInvTranspose;
};

struct CBChangesEveryFrame
{
    DirectX::XMMATRIX view;
    DirectX::XMFLOAT4 eyePos;
};

struct CBChangesRarely
{
    DirectionalLight dirLight[10];
    PointLight pointLight[10];
    SpotLight spotLight[10];
    Material material;
    int numDirLight;
    int numPointLight;
    int numSpotLight;
    float pad;        // 打包保证16字节对齐
};

bool InitResource()
{
    // ... ...
    // 设置常量缓冲区描述
    D3D11_BUFFER_DESC cbd;
    ZeroMemory(&cbd, sizeof(cbd));
    cbd.Usage = D3D11_USAGE_DYNAMIC;
    cbd.BindFlags = D3D11_BIND_CONSTANT_BUFFER;
    cbd.CPUAccessFlags = D3D11_CPU_ACCESS_WRITE;
    // 新建用于VS和PS的常量缓冲区
    cbd.ByteWidth = sizeof(CBChangesEveryDrawing);
    HR(m_pd3dDevice->CreateBuffer(&cbd, nullptr, m_pConstantBuffers[0].GetAddressOf()));  // ComPtr<ID3D11Buffer> m_pConstantBuffers[0]
    cbd.ByteWidth = sizeof(CBChangesEveryFrame);
    HR(m_pd3dDevice->CreateBuffer(&cbd, nullptr, m_pConstantBuffers[1].GetAddressOf()));  // ComPtr<ID3D11Buffer> m_pConstantBuffers[1]
    cbd.ByteWidth = sizeof(CBChangesRarely);
    HR(m_pd3dDevice->CreateBuffer(&cbd, nullptr, m_pConstantBuffers[2].GetAddressOf()));  // ComPtr<ID3D11Buffer> m_pConstantBuffers[2]


    // 更新不容易被修改的常量缓冲区资源
    D3D11_MAPPED_SUBRESOURCE mappedData;

    HR(m_pd3dImmediateContext->Map(m_pConstantBuffers[2].Get(), 0, D3D11_MAP_WRITE_DISCARD, 0, &mappedData));
    memcpy_s(mappedData.pData, sizeof(CBChangesRarely), &m_CBRarely, sizeof(CBChangesRarely));
    m_pd3dImmediateContext->Unmap(m_pConstantBuffers[2].Get(), 0);

    // 预先绑定各自所需的缓冲区，其中每帧更新的缓冲区需要绑定到两个缓冲区上
    m_pd3dImmediateContext->VSSetConstantBuffers(0, 1, m_pConstantBuffers[0].GetAddressOf());
    m_pd3dImmediateContext->VSSetConstantBuffers(1, 1, m_pConstantBuffers[1].GetAddressOf());

    m_pd3dImmediateContext->PSSetConstantBuffers(1, 1, m_pConstantBuffers[1].GetAddressOf());
    m_pd3dImmediateContext->PSSetConstantBuffers(2, 1, m_pConstantBuffers[2].GetAddressOf());

    return true;
}


void UpdateScene(float dt)
{
    // ... ...
    D3D11_MAPPED_SUBRESOURCE mappedData;
    HR(m_pd3dImmediateContext->Map(m_pConstantBuffers[1].Get(), 0, D3D11_MAP_WRITE_DISCARD, 0, &mappedData));
    memcpy_s(mappedData.pData, sizeof(CBChangesEveryFrame), &m_CBFrame, sizeof(CBChangesEveryFrame));
    m_pd3dImmediateContext->Unmap(m_pConstantBuffers[1].Get(), 0);
}



创建

FD3D11DynamicRHI::RHICreateUniformBuffer(const void *,const FRHIUniformBufferLayout &,EUniformBufferUsage,EUniformBufferValidation) D3D11UniformBuffer.cpp:176
TUniformBufferRef<FLocalVertexFactoryUniformShaderParameters>::CreateUniformBufferImmediate(const FLocalVertexFactoryUniformShaderParameters &,EUniformBufferUsage,EUniformBufferValidation) ShaderParameterMacros.h:115
CreateLocalVFUniformBuffer(const FLocalVertexFactory *,unsigned int,FColorVertexBuffer *,int,int) LocalVertexFactory.cpp:98
FLocalVertexFactory::InitRHI() LocalVertexFactory.cpp:393
FRenderResource::InitResource() RenderResource.cpp:102
<lambda_365cb4744e50d1171ec01a60fe05292d>::operator()(FRHICommandListImmediate &) StaticMesh.cpp:876
EnqueueUniqueRenderCommand<`FStaticMeshVertexFactories::InitVertexFactory'::`2'::InitStaticMeshVertexFactoryName,<lambda_365cb4744e50d1171ec01a60fe05292d> >(<lambda_365cb4744e50d1171ec01a60fe05292d> &&) RenderingThread.h:244
FStaticMeshVertexFactories::InitVertexFactory(const FStaticMeshLODResources &,FLocalVertexFactory &,unsigned int,const UStaticMesh *,bool) StaticMesh.cpp:852
FStaticMeshVertexFactories::InitResources(const FStaticMeshLODResources &,unsigned int,const UStaticMesh *) StaticMesh.cpp:882
FStaticMeshRenderData::InitResources(Type,UStaticMesh *) StaticMesh.cpp:1612
UStaticMesh::InitResources() StaticMesh.cpp:2766
UStaticMesh::PostLoad() StaticMesh.cpp:5056
UObject::ConditionalPostLoad() Obj.cpp:1082
UBodySetup::PostLoad() BodySetup.cpp:1145
UObject::ConditionalPostLoad() Obj.cpp:1082
EndLoad(FUObjectSerializeContext *) UObjectGlobals.cpp:1647
<lambda_331d34f2fc994df37d1cf9ee9119237a>::operator()() UObjectGlobals.cpp:1255
LoadPackageInternal(UPackage *,const wchar_t *,unsigned int,FLinkerLoad *,FArchive *,const FLinkerInstancingContext *) UObjectGlobals.cpp:1360
LoadPackage(UPackage *,const wchar_t *,unsigned int,FArchive *,const FLinkerInstancingContext *) UObjectGlobals.cpp:1458
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:12865
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UEngine::TickWorldTravel(FWorldContext &,float) UnrealEngine.cpp:12501
UGameEngine::Tick(float,bool) GameEngine.cpp:1783
FEngineLoop::Tick() LaunchEngineLoop.cpp:4830
EngineTick() Launch.cpp:62
GuardedMain(const wchar_t *) Launch.cpp:171
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff71c367a2a
__scrt_common_main_seh() 0x00007ff71c367a09
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



创建

FD3D11DynamicRHI::RHICreateUniformBuffer(const void *,const FRHIUniformBufferLayout &,EUniformBufferUsage,EUniformBufferValidation) D3D11UniformBuffer.cpp:197
TUniformBufferRef<FLocalVertexFactoryUniformShaderParameters>::CreateUniformBufferImmediate(const FLocalVertexFactoryUniformShaderParameters &,EUniformBufferUsage,EUniformBufferValidation) ShaderParameterMacros.h:115
CreateLocalVFUniformBuffer(const FLocalVertexFactory *,unsigned int,FColorVertexBuffer *,int,int) LocalVertexFactory.cpp:98
FGPUSkinPassthroughVertexFactory::SetData(const FLocalVertexFactory::FDataType &) SkeletalRenderGPUSkin.cpp:1346
TGPUSkinVertexFactory<0>::CopyDataTypeForPassthroughFactory(FGPUSkinPassthroughVertexFactory *) GPUSkinVertexFactory.cpp:426
<lambda_6ace177de4d39f0f176b25996cd7d151>::operator()(FRHICommandList &) SkeletalRenderGPUSkin.cpp:1386
EnqueueUniqueRenderCommand<`CreatePassthroughVertexFactory<TGPUSkinVertexFactory<0> >'::`2'::InitPassthroughGPUSkinVertexFactoryName,<lambda_6ace177de4d39f0f176b25996cd7d151> >(CreatePassthroughVertexFactory::__l2::<lambda_6ace177de4d39f0f176b25996cd7d151> &&) RenderingThread.h:244
CreatePassthroughVertexFactory<TGPUSkinVertexFactory<0> >(Type,TArray<TUniquePtr<FGPUSkinPassthroughVertexFactory,TDefaultDelete<FGPUSkinPassthroughVertexFactory> >,TSizedDefaultAllocator<32> > &,TGPUSkinVertexFactory<0> *) SkeletalRenderGPUSkin.cpp:1383
FSkeletalMeshObjectGPUSkin::FVertexFactoryData::InitVertexFactories(const FSkeletalMeshObjectGPUSkin::FVertexFactoryBuffers &,const TArray<FSkelMeshRenderSection,TSizedDefaultAllocator<32> > &,Type) SkeletalRenderGPUSkin.cpp:1547
FSkeletalMeshObjectGPUSkin::FSkeletalMeshObjectLOD::InitResources(unsigned int,const FSkeletalMeshObject::FSkelMeshObjectLODInfo &,FSkelMeshComponentLODInfo *,Type) SkeletalRenderGPUSkin.cpp:1783
FSkeletalMeshObjectGPUSkin::InitResources(USkinnedMeshComponent *) SkeletalRenderGPUSkin.cpp:191
FSkeletalMeshObjectGPUSkin::FSkeletalMeshObjectGPUSkin(USkinnedMeshComponent *,FSkeletalMeshRenderData *,Type) SkeletalRenderGPUSkin.cpp:158
USkinnedMeshComponent::CreateRenderState_Concurrent(FRegisterComponentContext *) SkinnedMeshComponent.cpp:560
UActorComponent::ExecuteRegisterEvents(FRegisterComponentContext *) ActorComponent.cpp:1532
UActorComponent::RegisterComponentWithWorld(UWorld *,FRegisterComponentContext *) ActorComponent.cpp:1220
AActor::IncrementalRegisterComponents(int,FRegisterComponentContext *) Actor.cpp:4578
ULevel::IncrementalUpdateComponents(int,bool,FRegisterComponentContext *) Level.cpp:1094
ULevel::UpdateLevelComponents(bool,FRegisterComponentContext *) Level.cpp:970
UWorld::UpdateWorldComponents(bool,bool,FRegisterComponentContext *) World.cpp:1962
UWorld::InitializeActorsForPlay(const FURL &,bool,FRegisterComponentContext *) World.cpp:4199
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:13057
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UGameInstance::StartGameInstance() GameInstance.cpp:580
UGameEngine::Start() GameEngine.cpp:1166
FEngineLoop::Init() LaunchEngineLoop.cpp:3989
EngineInit() Launch.cpp:52
GuardedMain(const wchar_t *) Launch.cpp:153
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff64b1f7a1a
__scrt_common_main_seh() 0x00007ff64b1f79f9
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



创建

FD3D11DynamicRHI::RHICreateUniformBuffer(const void *,const FRHIUniformBufferLayout &,EUniformBufferUsage,EUniformBufferValidation) D3D11UniformBuffer.cpp:176
TUniformBufferRef<FPrimitiveUniformShaderParameters>::CreateUniformBufferImmediate(const FPrimitiveUniformShaderParameters &,EUniformBufferUsage,EUniformBufferValidation) ShaderParameterMacros.h:115
FPrimitiveSceneProxy::UpdateUniformBuffer() PrimitiveSceneProxy.cpp:389
FPrimitiveSceneProxy::SetTransform(const FMatrix &,const FBoxSphereBounds &,const FBoxSphereBounds &,FVector) PrimitiveSceneProxy.cpp:418
<lambda_1c1e2958891bd343154e60d67e022f6f>::operator()(FRHICommandListImmediate &) RendererScene.cpp:1299
EnqueueUniqueRenderCommand<`FScene::AddPrimitive'::`2'::AddPrimitiveCommandName,<lambda_1c1e2958891bd343154e60d67e022f6f> >(<lambda_1c1e2958891bd343154e60d67e022f6f> &&) RenderingThread.h:244
FScene::AddPrimitive(UPrimitiveComponent *) RendererScene.cpp:1294
UPrimitiveComponent::CreateRenderState_Concurrent(FRegisterComponentContext *) PrimitiveComponent.cpp:565
UActorComponent::ExecuteRegisterEvents(FRegisterComponentContext *) ActorComponent.cpp:1532
UActorComponent::RegisterComponentWithWorld(UWorld *,FRegisterComponentContext *) ActorComponent.cpp:1220
UWorld::UpdateWorldComponents(bool,bool,FRegisterComponentContext *) World.cpp:1930
UWorld::InitializeNewWorld(InitializationValues) World.cpp:1749
UWorld::CreateWorld(Type,bool,FName,UPackage *,bool,Type) World.cpp:1831
UGameInstance::InitializeStandalone(FName,UPackage *) GameInstance.cpp:153
UGameEngine::Init(IEngineLoop *) GameEngine.cpp:1099
FEngineLoop::Init() LaunchEngineLoop.cpp:3952
EngineInit() Launch.cpp:52
GuardedMain(const wchar_t *) Launch.cpp:153
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff64b1f7a1a
__scrt_common_main_seh() 0x00007ff64b1f79f9
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



更新

UpdateUniformBufferContents(ID3D11Device *,ID3D11DeviceContext *,FD3D11UniformBuffer *,const void *,unsigned int) D3D11UniformBuffer.cpp:276
FD3D11DynamicRHI::RHIUpdateUniformBuffer(FRHIUniformBuffer *,const void *) D3D11UniformBuffer.cpp:300
FPrimitiveSceneProxy::UpdateUniformBuffer() PrimitiveSceneProxy.cpp:385
FPrimitiveSceneProxy::SetTransform(const FMatrix &,const FBoxSphereBounds &,const FBoxSphereBounds &,FVector) PrimitiveSceneProxy.cpp:418
FScene::UpdateAllPrimitiveSceneInfos(FRHICommandListImmediate &,bool) RendererScene.cpp:4150
FDeferredShadingSceneRenderer::Render(FRHICommandListImmediate &) DeferredShadingRenderer.cpp:1300
RenderViewFamily_RenderThread(FRHICommandListImmediate &,FSceneRenderer *) SceneRendering.cpp:3616
<lambda_73be3b292d373df226bf787512bb165a>::operator()(FRHICommandListImmediate &) SceneRendering.cpp:3887
EnqueueUniqueRenderCommand<`FRendererModule::BeginRenderingViewFamily'::`35'::FDrawSceneCommandName,<lambda_73be3b292d373df226bf787512bb165a> >(<lambda_73be3b292d373df226bf787512bb165a> &&) RenderingThread.h:244
FRendererModule::BeginRenderingViewFamily(FCanvas *,FSceneViewFamily *) SceneRendering.cpp:3881
UGameViewportClient::Draw(FViewport *,FCanvas *) GameViewportClient.cpp:1630
FViewport::Draw(bool) UnrealClient.cpp:1557
UGameEngine::RedrawViewports(bool) GameEngine.cpp:702
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:13104
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UGameInstance::StartGameInstance() GameInstance.cpp:580
UGameEngine::Start() GameEngine.cpp:1166
FEngineLoop::Init() LaunchEngineLoop.cpp:3989
EngineInit() Launch.cpp:52
GuardedMain(const wchar_t *) Launch.cpp:153
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff64b1f7a1a
__scrt_common_main_seh() 0x00007ff64b1f79f9
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



 销毁

TUniformBuffer<FLandscapeUniformShaderParameters>::ReleaseDynamicRHI() UniformBuffer.h:80
FRenderResource::ReleaseResource() RenderResource.cpp:120
FLandscapeComponentSceneProxy::~FLandscapeComponentSceneProxy() LandscapeRender.cpp:1686
FLandscapeComponentSceneProxy::`scalar deleting destructor'(unsigned int) 0x00007fffddf35e20
FScene::UpdateAllPrimitiveSceneInfos(FRHICommandListImmediate &,bool) RendererScene.cpp:4248
<lambda_8a41acb050614d83e592284e74be1a26>::operator()(FRHICommandListImmediate &) RendererScene.cpp:3319
EnqueueUniqueRenderCommand<`FScene::Release'::`2'::FReleaseCommandName,<lambda_8a41acb050614d83e592284e74be1a26> >(<lambda_8a41acb050614d83e592284e74be1a26> &&) RenderingThread.h:244
FScene::Release() RendererScene.cpp:3315
UWorld::FinishDestroy() World.cpp:939
UObject::ConditionalFinishDestroy() Obj.cpp:1020
IncrementalDestroyGarbage(bool,float) GarbageCollection.cpp:1570
IncrementalPurgeGarbage(bool,float) GarbageCollection.cpp:1495
CollectGarbageInternal(EObjectFlags,bool) GarbageCollection.cpp:2054
CollectGarbage(EObjectFlags,bool) GarbageCollection.cpp:2150
UEngine::TrimMemory() UnrealEngine.cpp:13138
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:12771
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UEngine::TickWorldTravel(FWorldContext &,float) UnrealEngine.cpp:12501
UGameEngine::Tick(float,bool) GameEngine.cpp:1783
FEngineLoop::Tick() LaunchEngineLoop.cpp:4830
EngineTick() Launch.cpp:62
GuardedMain(const wchar_t *) Launch.cpp:171
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff7b1fe7a1a
__scrt_common_main_seh() 0x00007ff7b1fe79f9
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



TUniformBufferRef<TBufferStruct> UniformBufferRHI的销毁，都是直接调用SafeRelease()将自己置空

UniformBufferRHI.SafeRelease();



VertexShader

D3D11下VertexShader用法

const D3D11_INPUT_ELEMENT_DESC inputLayout[3] = {
    { "POSITION", 0, DXGI_FORMAT_R32G32B32_FLOAT, 0, 0, D3D11_INPUT_PER_VERTEX_DATA, 0 },
    { "NORMAL", 0, DXGI_FORMAT_R32G32B32_FLOAT, 1, 0, D3D11_INPUT_PER_VERTEX_DATA, 0 },
    { "TEXCOORD", 0, DXGI_FORMAT_R32G32_FLOAT, 2, 0, D3D11_INPUT_PER_VERTEX_DATA, 0 }
};
ComPtr<ID3DBlob> vsBlob;
HR(CreateShaderFromFile(L"HLSL\\Triangle_VS.cso", L"HLSL\\Triangle_VS.hlsl", "VS", "vs_5_0", vsBlob.ReleaseAndGetAddressOf()));
HR(deviceContext->CreateVertexShader(vsBlob->GetBufferPointer(), vsBlob->GetBufferSize(), nullptr, vertexShader.GetAddressOf()));  // 创建顶点着色器 ComPtr<ID3D11VertexShader> vertexShader
HR(deviceContext->CreateInputLayout(inputLayout, ARRAYSIZE(inputLayout),vsBlob->GetBufferPointer(), vsBlob->GetBufferSize(), vertexLayout.GetAddressOf())); // 创建并绑定顶点布局  //ComPtr<ID3D11InputLayout> vertexLayout

// 设置图元类型，设定输入布局
deviceContext->IASetPrimitiveTopology(D3D11_PRIMITIVE_TOPOLOGY_TRIANGLELIST);
deviceContext->IASetInputLayout(vertexLayout.Get());
// 将顶点着色器绑定到渲染管线
deviceContext->VSSetShader(vertexShader.Get(), nullptr, 0);



创建

FD3D11DynamicRHI::RHICreateVertexShader(TArrayView<unsigned char const ,int>,const FSHAHash &) D3D11Shaders.cpp:191
FD3D11DynamicRHI::CreateVertexShader_RenderThread(FRHICommandListImmediate &,TArrayView<unsigned char const ,int>,const FSHAHash &) D3D11Shaders.cpp:218
FShaderMapResource_InlineCode::CreateRHIShader(int) ShaderResource.cpp:418
FShaderMapResource::CreateShader(int) ShaderResource.cpp:369
FShaderMapResource::GetShader(int) Shader.h:242
FMinimalBoundShaderStateInput::AsBoundShaderState() MeshPassProcessor.h:144
FGraphicsMinimalPipelineStateInitializer::AsGraphicsPipelineStateInitializer() MeshPassProcessor.h:254
FMeshDrawCommand::SubmitDraw(const FMeshDrawCommand &__restrict,const Experimental::TRobinHoodHashSet<FGraphicsMinimalPipelineStateInitializer,DefaultKeyFuncs<FGraphicsMinimalPipelineStateInitializer,0>,TSizedDefaultAllocator<32> > &,FRHIVertexBuffer *,int,unsigned int,FRHICommandList &,FMeshDrawCommandStateCache &__restrict) MeshPassProcessor.cpp:1139
SubmitMeshDrawCommandsRange(const TArray<FVisibleMeshDrawCommand,TMemStackAllocator<0> > &,const Experimental::TRobinHoodHashSet<FGraphicsMinimalPipelineStateInitializer,DefaultKeyFuncs<FGraphicsMinimalPipelineStateInitializer,0>,TSizedDefaultAllocator<32> > &,FRHIVertexBuffer *,int,bool,int,int,unsigned int,FRHICommandList &) MeshPassProcessor.cpp:1256
FParallelMeshDrawCommandPass::DispatchDraw(FParallelCommandListSet *,FRHICommandList &) MeshDrawCommands.cpp:1345
<lambda_e8a3056aa5d093dacc699207dd432975>::operator()(FRHICommandList &) BasePassRendering.cpp:1200
TRDGLambdaPass<FOpaqueBasePassParameters,<lambda_e8a3056aa5d093dacc699207dd432975> >::ExecuteImpl(FRHIComputeCommandList &) RenderGraphPass.h:424
FRDGPass::Execute(FRHIComputeCommandList &) RenderGraphPass.cpp:302
FRDGBuilder::ExecutePass(FRDGPass *) RenderGraphBuilder.cpp:1591
FRDGBuilder::Execute() RenderGraphBuilder.cpp:1257
FDeferredShadingSceneRenderer::Render(FRHICommandListImmediate &) DeferredShadingRenderer.cpp:2612
RenderViewFamily_RenderThread(FRHICommandListImmediate &,FSceneRenderer *) SceneRendering.cpp:3616
<lambda_73be3b292d373df226bf787512bb165a>::operator()(FRHICommandListImmediate &) SceneRendering.cpp:3887
EnqueueUniqueRenderCommand<`FRendererModule::BeginRenderingViewFamily'::`35'::FDrawSceneCommandName,<lambda_73be3b292d373df226bf787512bb165a> >(<lambda_73be3b292d373df226bf787512bb165a> &&) RenderingThread.h:244
FRendererModule::BeginRenderingViewFamily(FCanvas *,FSceneViewFamily *) SceneRendering.cpp:3881
UGameViewportClient::Draw(FViewport *,FCanvas *) GameViewportClient.cpp:1630
FViewport::Draw(bool) UnrealClient.cpp:1557
UGameEngine::RedrawViewports(bool) GameEngine.cpp:702
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:13104
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UGameInstance::StartGameInstance() GameInstance.cpp:580
UGameEngine::Start() GameEngine.cpp:1166
FEngineLoop::Init() LaunchEngineLoop.cpp:3989
EngineInit() Launch.cpp:52
GuardedMain(const wchar_t *) Launch.cpp:153
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff7d7397a3a
__scrt_common_main_seh() 0x00007ff7d7397a19
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



创建2

FD3D11DynamicRHI::RHICreateVertexShader(TArrayView<unsigned char const ,int>,const FSHAHash &) D3D11Shaders.cpp:191
FD3D11DynamicRHI::CreateVertexShader_RenderThread(FRHICommandListImmediate &,TArrayView<unsigned char const ,int>,const FSHAHash &) D3D11Shaders.cpp:218
FShaderMapResource_InlineCode::CreateRHIShader(int) ShaderResource.cpp:418
FShaderMapResource::CreateShader(int) ShaderResource.cpp:369
FShaderMapResource::GetShader(int) Shader.h:242
TShaderRefBase<FOcclusionQueryVS,FShaderMapPointerTable>::GetRHIShaderBase(EShaderFrequency) Shader.h:886
BeginOcclusionTests(FRHICommandListImmediate &,TArrayView<FViewInfo,int>,Type,const TArray<FViewOcclusionQueries,TInlineAllocator<1,TMemStackAllocator<0> > > &,unsigned int) SceneOcclusion.cpp:1204
<lambda_c2fed0f97485c798522737d96c81424a>::operator()(FRHICommandListImmediate &) SceneOcclusion.cpp:1381
TRDGLambdaPass<FRenderTargetParameters,<lambda_c2fed0f97485c798522737d96c81424a> >::ExecuteImpl(FRHIComputeCommandList &) RenderGraphPass.h:424
FRDGPass::Execute(FRHIComputeCommandList &) RenderGraphPass.cpp:302
FRDGBuilder::ExecutePass(FRDGPass *) RenderGraphBuilder.cpp:1591
FRDGBuilder::Execute() RenderGraphBuilder.cpp:1257
FDeferredShadingSceneRenderer::Render(FRHICommandListImmediate &) DeferredShadingRenderer.cpp:2612
RenderViewFamily_RenderThread(FRHICommandListImmediate &,FSceneRenderer *) SceneRendering.cpp:3616
<lambda_73be3b292d373df226bf787512bb165a>::operator()(FRHICommandListImmediate &) SceneRendering.cpp:3887
EnqueueUniqueRenderCommand<`FRendererModule::BeginRenderingViewFamily'::`35'::FDrawSceneCommandName,<lambda_73be3b292d373df226bf787512bb165a> >(<lambda_73be3b292d373df226bf787512bb165a> &&) RenderingThread.h:244
FRendererModule::BeginRenderingViewFamily(FCanvas *,FSceneViewFamily *) SceneRendering.cpp:3881
UGameViewportClient::Draw(FViewport *,FCanvas *) GameViewportClient.cpp:1630
FViewport::Draw(bool) UnrealClient.cpp:1557
UGameEngine::RedrawViewports(bool) GameEngine.cpp:702
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:13104
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UGameInstance::StartGameInstance() GameInstance.cpp:580
UGameEngine::Start() GameEngine.cpp:1166
FEngineLoop::Init() LaunchEngineLoop.cpp:3989
EngineInit() Launch.cpp:52
GuardedMain(const wchar_t *) Launch.cpp:153
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff7d7397a3a
__scrt_common_main_seh() 0x00007ff7d7397a19
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



创建3

FD3D11DynamicRHI::RHICreateVertexShader(TArrayView<unsigned char const ,int>,const FSHAHash &) D3D11Shaders.cpp:191
FD3D11DynamicRHI::CreateVertexShader_RenderThread(FRHICommandListImmediate &,TArrayView<unsigned char const ,int>,const FSHAHash &) D3D11Shaders.cpp:218
FShaderMapResource_InlineCode::CreateRHIShader(int) ShaderResource.cpp:418
FShaderMapResource::CreateShader(int) ShaderResource.cpp:369
FShaderMapResource::GetShader(int) Shader.h:242
TShaderRefBase<FSimpleElementVS,FShaderMapPointerTable>::GetRHIShaderBase(EShaderFrequency) Shader.h:886
FBatchedElements::PrepareShaders(FRHICommandList &,FGraphicsPipelineStateInitializer &,Type,ESimpleElementBlendMode,const FMatrix &,bool,FBatchedElementParameters *,const FTexture *,bool,float,const FDepthFieldGlowInfo *,const FSceneView *) BatchedElements.cpp:543
FBatchedElements::Draw(FRHICommandList &,const FMeshPassProcessorRenderState &,Type,bool,const FSceneView &,bool,float,Type) BatchedElements.cpp:1161
FCanvasBatchedElementRenderItem::Render_RenderThread(FRHICommandListImmediate &,FMeshPassProcessorRenderState &,const FCanvas *) Canvas.cpp:399
FCanvas::Flush_RenderThread(FRHICommandListImmediate &,bool,bool) Canvas.cpp:721
FDebugCanvasDrawer::DrawRenderThread(FRHICommandListImmediate &,const void *) DebugCanvas.cpp:310
FSlateRHIRenderingPolicy::DrawElements(FRHICommandListImmediate &,FSlateBackBuffer &,TRefCountPtr<FRHITexture2D> &,TRefCountPtr<FRHITexture2D> &,TRefCountPtr<FRHITexture2D> &,int,const TArray<FSlateRenderBatch,TSizedDefaultAllocator<32> > &,const FSlateRenderingParams &) SlateRHIRenderingPolicy.cpp:1216
FSlateRHIRenderer::DrawWindow_RenderThread(FRHICommandListImmediate &,FViewportInfo &,FSlateWindowElementList &,const FSlateDrawWindowCommandParams &) SlateRHIRenderer.cpp:895
<lambda_5572aad9e16943e81269070aa3e3a76b>::operator()(FRHICommandListImmediate &) SlateRHIRenderer.cpp:1321
EnqueueUniqueRenderCommand<`FSlateRHIRenderer::DrawWindows_Private'::`42'::SlateDrawWindowsCommandName,<lambda_5572aad9e16943e81269070aa3e3a76b> >(<lambda_5572aad9e16943e81269070aa3e3a76b> &&) RenderingThread.h:244
FSlateRHIRenderer::DrawWindows_Private(FSlateDrawBuffer &) SlateRHIRenderer.cpp:1318
FSlateRHIRenderer::DrawWindows(FSlateDrawBuffer &) SlateRHIRenderer.cpp:1190
FSlateApplication::PrivateDrawWindows(TSharedPtr<SWindow,0>) SlateApplication.cpp:1295
FSlateApplication::DrawWindows() SlateApplication.cpp:1017
FSlateApplication::TickAndDrawWidgets(float) SlateApplication.cpp:1566
FSlateApplication::Tick(ESlateTickType) SlateApplication.cpp:1423
FEngineLoop::Tick() LaunchEngineLoop.cpp:4944
EngineTick() Launch.cpp:62
GuardedMain(const wchar_t *) Launch.cpp:171
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff7d7397a3a
__scrt_common_main_seh() 0x00007ff7d7397a19
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



销毁

FShaderMapResource::ReleaseShaders() ShaderResource.cpp:329
FShaderMapResource::ReleaseRHI() ShaderResource.cpp:348
FRenderResource::ReleaseResource() RenderResource.cpp:119
EnqueueUniqueRenderCommand<`BeginReleaseResource'::`2'::ReleaseCommandName,<lambda_aec70190632b98f970ea922a5c9418a4> >(<lambda_aec70190632b98f970ea922a5c9418a4> &&) RenderingThread.h:244
BeginReleaseResource(FRenderResource *) RenderResource.cpp:246
FShaderMapResource::Release() ShaderResource.cpp:314
FShaderMapBase::~FShaderMapBase() ShaderMap.cpp:46
FMaterialShaderMap::~FMaterialShaderMap() MaterialShader.cpp:2365
FMaterialShaderMap::`scalar deleting destructor'(unsigned int) 0x00007fffd7a85ab4
FPendingCleanupObjects::~FPendingCleanupObjects() RenderingThread.cpp:1353
FlushRenderingCommands(bool) RenderingThread.cpp:1290
UMaterialInstance::ClearAllCachedCookedPlatformData() MaterialInstance.cpp:3259
UMaterialInstance::FinishDestroy() MaterialInstance.cpp:3621
UObject::ConditionalFinishDestroy() Obj.cpp:1020
IncrementalDestroyGarbage(bool,float) GarbageCollection.cpp:1570
IncrementalPurgeGarbage(bool,float) GarbageCollection.cpp:1495
CollectGarbageInternal(EObjectFlags,bool) GarbageCollection.cpp:2054
CollectGarbage(EObjectFlags,bool) GarbageCollection.cpp:2150
UEngine::TrimMemory() UnrealEngine.cpp:13138
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:12771
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UEngine::TickWorldTravel(FWorldContext &,float) UnrealEngine.cpp:12501
UGameEngine::Tick(float,bool) GameEngine.cpp:1783
FEngineLoop::Tick() LaunchEngineLoop.cpp:4830
EngineTick() Launch.cpp:62
GuardedMain(const wchar_t *) Launch.cpp:171
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff6ebf47a2a
__scrt_common_main_seh() 0x00007ff6ebf47a09
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



销毁

FRHIResource::Release() RHIResources.h:52
FShaderMapResource::ReleaseShaders() ShaderResource.cpp:329
FShaderMapResource::ReleaseRHI() ShaderResource.cpp:348
FRenderResource::ReleaseResource() RenderResource.cpp:119
EnqueueUniqueRenderCommand<`BeginReleaseResource'::`2'::ReleaseCommandName,<lambda_aec70190632b98f970ea922a5c9418a4> >(<lambda_aec70190632b98f970ea922a5c9418a4> &&) RenderingThread.h:244
BeginReleaseResource(FRenderResource *) RenderResource.cpp:246
FShaderMapResource::Release() ShaderResource.cpp:314
FMinimalBoundShaderStateInput::~FMinimalBoundShaderStateInput() 0x00007fffcc906a11
Experimental::RobinHoodHashTable_Private::TRobinHoodHashTable<FGraphicsMinimalPipelineStateInitializer,FGraphicsMinimalPipelineStateId::FRefCountedGraphicsMinimalPipelineState,TDefaultMapHashableKeyFuncs<FGraphicsMinimalPipelineStateInitializer,FGraphicsMinimalPipelineStateId::FRefCountedGraphicsMinimalPipelineState,0>,TSizedDefaultAllocator<32> >::FData::Deallocate(unsigned int) RobinHoodHashTable.h:338
Experimental::RobinHoodHashTable_Private::TRobinHoodHashTable<FGraphicsMinimalPipelineStateInitializer,FGraphicsMinimalPipelineStateId::FRefCountedGraphicsMinimalPipelineState,TDefaultMapHashableKeyFuncs<FGraphicsMinimalPipelineStateInitializer,FGraphicsMinimalPipelineStateId::FRefCountedGraphicsMinimalPipelineState,0>,TSizedDefaultAllocator<32> >::RemoveByElementId(FHashElementId) RobinHoodHashTable.h:920
FGraphicsMinimalPipelineStateId::RemovePersistentId(FGraphicsMinimalPipelineStateId) MeshPassProcessor.cpp:398
FPrimitiveSceneInfo::RemoveCachedMeshDrawCommands() PrimitiveSceneInfo.cpp:466
FPrimitiveSceneInfo::RemoveStaticMeshes() PrimitiveSceneInfo.cpp:840
FPrimitiveSceneInfo::RemoveFromScene(bool) PrimitiveSceneInfo.cpp:896
FScene::UpdateAllPrimitiveSceneInfos(FRHICommandListImmediate &,bool) RendererScene.cpp:3890
<lambda_8a41acb050614d83e592284e74be1a26>::operator()(FRHICommandListImmediate &) RendererScene.cpp:3319
EnqueueUniqueRenderCommand<`FScene::Release'::`2'::FReleaseCommandName,<lambda_8a41acb050614d83e592284e74be1a26> >(<lambda_8a41acb050614d83e592284e74be1a26> &&) RenderingThread.h:244
FScene::Release() RendererScene.cpp:3315
UWorld::FinishDestroy() World.cpp:939
UObject::ConditionalFinishDestroy() Obj.cpp:1020
IncrementalDestroyGarbage(bool,float) GarbageCollection.cpp:1570
IncrementalPurgeGarbage(bool,float) GarbageCollection.cpp:1495
CollectGarbageInternal(EObjectFlags,bool) GarbageCollection.cpp:2054
CollectGarbage(EObjectFlags,bool) GarbageCollection.cpp:2150
UEngine::TrimMemory() UnrealEngine.cpp:13138
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:12771
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UEngine::TickWorldTravel(FWorldContext &,float) UnrealEngine.cpp:12501
UGameEngine::Tick(float,bool) GameEngine.cpp:1783
FEngineLoop::Tick() LaunchEngineLoop.cpp:4830
EngineTick() Launch.cpp:62
GuardedMain(const wchar_t *) Launch.cpp:171
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff7b1fe7a1a
__scrt_common_main_seh() 0x00007ff7b1fe79f9
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



PixelShader

D3D11下PixelShader用法

// 创建像素着色器
ComPtr<ID3DBlob> psBlob;
HR(CreateShaderFromFile(L"HLSL\\Triangle_PS.cso", L"HLSL\\Triangle_PS.hlsl", "PS", "ps_5_0", psBlob.ReleaseAndGetAddressOf()));
HR(deviceContext->CreatePixelShader(psBlob->GetBufferPointer(), psBlob->GetBufferSize(), nullptr, pixelShader.GetAddressOf())); // ComPtr<ID3D11PixelShader> pixelShader

// 将着色器绑定到渲染管线
deviceContext->PSSetShader(pixelShader.Get(), nullptr, 0);



创建

FD3D11DynamicRHI::RHICreatePixelShader(TArrayView<unsigned char const ,int>,const FSHAHash &) D3D11Shaders.cpp:315
FD3D11DynamicRHI::CreatePixelShader_RenderThread(FRHICommandListImmediate &,TArrayView<unsigned char const ,int>,const FSHAHash &) D3D11Shaders.cpp:338
FShaderMapResource_InlineCode::CreateRHIShader(int) ShaderResource.cpp:419
FShaderMapResource::CreateShader(int) ShaderResource.cpp:369
FShaderMapResource::GetShader(int) Shader.h:242
FMinimalBoundShaderStateInput::AsBoundShaderState() MeshPassProcessor.h:144
FGraphicsMinimalPipelineStateInitializer::AsGraphicsPipelineStateInitializer() MeshPassProcessor.h:254
FMeshDrawCommand::SubmitDraw(const FMeshDrawCommand &__restrict,const Experimental::TRobinHoodHashSet<FGraphicsMinimalPipelineStateInitializer,DefaultKeyFuncs<FGraphicsMinimalPipelineStateInitializer,0>,TSizedDefaultAllocator<32> > &,FRHIVertexBuffer *,int,unsigned int,FRHICommandList &,FMeshDrawCommandStateCache &__restrict) MeshPassProcessor.cpp:1139
SubmitMeshDrawCommandsRange(const TArray<FVisibleMeshDrawCommand,TMemStackAllocator<0> > &,const Experimental::TRobinHoodHashSet<FGraphicsMinimalPipelineStateInitializer,DefaultKeyFuncs<FGraphicsMinimalPipelineStateInitializer,0>,TSizedDefaultAllocator<32> > &,FRHIVertexBuffer *,int,bool,int,int,unsigned int,FRHICommandList &) MeshPassProcessor.cpp:1256
FParallelMeshDrawCommandPass::DispatchDraw(FParallelCommandListSet *,FRHICommandList &) MeshDrawCommands.cpp:1345
FDeferredShadingSceneRenderer::RenderPrePassView(FRHICommandList &,const FViewInfo &) DepthRendering.cpp:254
FDeferredShadingSceneRenderer::RenderPrePass(FRHICommandListImmediate &,TFunctionRef<void __cdecl(void)>) DepthRendering.cpp:676
FDeferredShadingSceneRenderer::Render(FRHICommandListImmediate &) DeferredShadingRenderer.cpp:1702
RenderViewFamily_RenderThread(FRHICommandListImmediate &,FSceneRenderer *) SceneRendering.cpp:3616
<lambda_73be3b292d373df226bf787512bb165a>::operator()(FRHICommandListImmediate &) SceneRendering.cpp:3887
EnqueueUniqueRenderCommand<`FRendererModule::BeginRenderingViewFamily'::`35'::FDrawSceneCommandName,<lambda_73be3b292d373df226bf787512bb165a> >(<lambda_73be3b292d373df226bf787512bb165a> &&) RenderingThread.h:244
FRendererModule::BeginRenderingViewFamily(FCanvas *,FSceneViewFamily *) SceneRendering.cpp:3881
UGameViewportClient::Draw(FViewport *,FCanvas *) GameViewportClient.cpp:1630
FViewport::Draw(bool) UnrealClient.cpp:1557
UGameEngine::RedrawViewports(bool) GameEngine.cpp:702
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:13104
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UGameInstance::StartGameInstance() GameInstance.cpp:580
UGameEngine::Start() GameEngine.cpp:1166
FEngineLoop::Init() LaunchEngineLoop.cpp:3989
EngineInit() Launch.cpp:52
GuardedMain(const wchar_t *) Launch.cpp:153
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff71c367a2a
__scrt_common_main_seh() 0x00007ff71c367a09
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1

创建2

FD3D11DynamicRHI::RHICreatePixelShader(TArrayView<unsigned char const ,int>,const FSHAHash &) D3D11Shaders.cpp:315
FD3D11DynamicRHI::CreatePixelShader_RenderThread(FRHICommandListImmediate &,TArrayView<unsigned char const ,int>,const FSHAHash &) D3D11Shaders.cpp:338
FShaderMapResource_InlineCode::CreateRHIShader(int) ShaderResource.cpp:419
FShaderMapResource::CreateShader(int) ShaderResource.cpp:369
FShaderMapResource::GetShader(int) Shader.h:242
FMinimalBoundShaderStateInput::AsBoundShaderState() MeshPassProcessor.h:144
FGraphicsMinimalPipelineStateInitializer::AsGraphicsPipelineStateInitializer() MeshPassProcessor.h:254
FMeshDrawCommand::SubmitDraw(const FMeshDrawCommand &__restrict,const Experimental::TRobinHoodHashSet<FGraphicsMinimalPipelineStateInitializer,DefaultKeyFuncs<FGraphicsMinimalPipelineStateInitializer,0>,TSizedDefaultAllocator<32> > &,FRHIVertexBuffer *,int,unsigned int,FRHICommandList &,FMeshDrawCommandStateCache &__restrict) MeshPassProcessor.cpp:1139
SubmitMeshDrawCommandsRange(const TArray<FVisibleMeshDrawCommand,TMemStackAllocator<0> > &,const Experimental::TRobinHoodHashSet<FGraphicsMinimalPipelineStateInitializer,DefaultKeyFuncs<FGraphicsMinimalPipelineStateInitializer,0>,TSizedDefaultAllocator<32> > &,FRHIVertexBuffer *,int,bool,int,int,unsigned int,FRHICommandList &) MeshPassProcessor.cpp:1256
FParallelMeshDrawCommandPass::DispatchDraw(FParallelCommandListSet *,FRHICommandList &) MeshDrawCommands.cpp:1345
<lambda_e8a3056aa5d093dacc699207dd432975>::operator()(FRHICommandList &) BasePassRendering.cpp:1200
TRDGLambdaPass<FOpaqueBasePassParameters,<lambda_e8a3056aa5d093dacc699207dd432975> >::ExecuteImpl(FRHIComputeCommandList &) RenderGraphPass.h:424
FRDGPass::Execute(FRHIComputeCommandList &) RenderGraphPass.cpp:302
FRDGBuilder::ExecutePass(FRDGPass *) RenderGraphBuilder.cpp:1591
FRDGBuilder::Execute() RenderGraphBuilder.cpp:1257
FDeferredShadingSceneRenderer::Render(FRHICommandListImmediate &) DeferredShadingRenderer.cpp:2612
RenderViewFamily_RenderThread(FRHICommandListImmediate &,FSceneRenderer *) SceneRendering.cpp:3616
<lambda_73be3b292d373df226bf787512bb165a>::operator()(FRHICommandListImmediate &) SceneRendering.cpp:3887
EnqueueUniqueRenderCommand<`FRendererModule::BeginRenderingViewFamily'::`35'::FDrawSceneCommandName,<lambda_73be3b292d373df226bf787512bb165a> >(<lambda_73be3b292d373df226bf787512bb165a> &&) RenderingThread.h:244
FRendererModule::BeginRenderingViewFamily(FCanvas *,FSceneViewFamily *) SceneRendering.cpp:3881
UGameViewportClient::Draw(FViewport *,FCanvas *) GameViewportClient.cpp:1630
FViewport::Draw(bool) UnrealClient.cpp:1557
UGameEngine::RedrawViewports(bool) GameEngine.cpp:702
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:13104
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UGameInstance::StartGameInstance() GameInstance.cpp:580
UGameEngine::Start() GameEngine.cpp:1166
FEngineLoop::Init() LaunchEngineLoop.cpp:3989
EngineInit() Launch.cpp:52
GuardedMain(const wchar_t *) Launch.cpp:153
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff7d7397a3a
__scrt_common_main_seh() 0x00007ff7d7397a19
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



创建3

FD3D11DynamicRHI::RHICreatePixelShader(TArrayView<unsigned char const ,int>,const FSHAHash &) D3D11Shaders.cpp:315
FD3D11DynamicRHI::CreatePixelShader_RenderThread(FRHICommandListImmediate &,TArrayView<unsigned char const ,int>,const FSHAHash &) D3D11Shaders.cpp:338
FShaderMapResource_InlineCode::CreateRHIShader(int) ShaderResource.cpp:419
FShaderMapResource::CreateShader(int) ShaderResource.cpp:369
FShaderMapResource::GetShader(int) Shader.h:242
TShaderRefBase<FDeferredLightPS,FShaderMapPointerTable>::GetRHIShaderBase(EShaderFrequency) Shader.h:886
FDeferredShadingSceneRenderer::RenderLight(FRHICommandList &,const FLightSceneInfo *,FRHITexture *,FRHITexture *,const FHairStrandsVisibilityViews *,bool,bool) LightRendering.cpp:2290
<lambda_dc8ad83445c50dce47468eac67fa9769>::operator()(FRHICommandList &) LightRendering.cpp:2416
TRDGLambdaPass<FRenderLightParameters,<lambda_dc8ad83445c50dce47468eac67fa9769> >::ExecuteImpl(FRHIComputeCommandList &) RenderGraphPass.h:424
FRDGPass::Execute(FRHIComputeCommandList &) RenderGraphPass.cpp:302
FRDGBuilder::ExecutePass(FRDGPass *) RenderGraphBuilder.cpp:1591
FRDGBuilder::Execute() RenderGraphBuilder.cpp:1257
FDeferredShadingSceneRenderer::Render(FRHICommandListImmediate &) DeferredShadingRenderer.cpp:2612
RenderViewFamily_RenderThread(FRHICommandListImmediate &,FSceneRenderer *) SceneRendering.cpp:3616
<lambda_73be3b292d373df226bf787512bb165a>::operator()(FRHICommandListImmediate &) SceneRendering.cpp:3887
EnqueueUniqueRenderCommand<`FRendererModule::BeginRenderingViewFamily'::`35'::FDrawSceneCommandName,<lambda_73be3b292d373df226bf787512bb165a> >(<lambda_73be3b292d373df226bf787512bb165a> &&) RenderingThread.h:244
FRendererModule::BeginRenderingViewFamily(FCanvas *,FSceneViewFamily *) SceneRendering.cpp:3881
UGameViewportClient::Draw(FViewport *,FCanvas *) GameViewportClient.cpp:1630
FViewport::Draw(bool) UnrealClient.cpp:1557
UGameEngine::RedrawViewports(bool) GameEngine.cpp:702
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:13104
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UGameInstance::StartGameInstance() GameInstance.cpp:580
UGameEngine::Start() GameEngine.cpp:1166
FEngineLoop::Init() LaunchEngineLoop.cpp:3989
EngineInit() Launch.cpp:52
GuardedMain(const wchar_t *) Launch.cpp:153
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff7d7397a3a
__scrt_common_main_seh() 0x00007ff7d7397a19
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



创建4

FD3D11DynamicRHI::RHICreatePixelShader(TArrayView<unsigned char const ,int>,const FSHAHash &) D3D11Shaders.cpp:315
FD3D11DynamicRHI::CreatePixelShader_RenderThread(FRHICommandListImmediate &,TArrayView<unsigned char const ,int>,const FSHAHash &) D3D11Shaders.cpp:338
FShaderMapResource_InlineCode::CreateRHIShader(int) ShaderResource.cpp:419
FShaderMapResource::CreateShader(int) ShaderResource.cpp:369
FShaderMapResource::GetShader(int) Shader.h:242
TShaderRefBase<FShader,FShaderMapPointerTable>::GetRHIShaderBase(EShaderFrequency) Shader.h:886
SetScreenPassPipelineState(FRHICommandList &,const FScreenPassPipelineState &) ScreenPass.cpp:80
DrawScreenPass<<lambda_3b149f0b65650a717c16ce456f545061> >(FRHICommandListImmediate &,const FViewInfo &,const FScreenPassTextureViewport &,const FScreenPassTextureViewport &,const FScreenPassPipelineState &,EScreenPassDrawFlags,<lambda_3b149f0b65650a717c16ce456f545061>) ScreenPass.h:325
<lambda_c0eccb52b803befd0db977a96ba73b4d>::operator()(FRHICommandListImmediate &) ScreenPass.h:491
TRDGLambdaPass<`anonymous namespace'::FFilterPS::FParameters,<lambda_c0eccb52b803befd0db977a96ba73b4d> >::ExecuteImpl(FRHIComputeCommandList &) RenderGraphPass.h:424
FRDGPass::Execute(FRHIComputeCommandList &) RenderGraphPass.cpp:302
FRDGBuilder::ExecutePass(FRDGPass *) RenderGraphBuilder.cpp:1591
FRDGBuilder::Execute() RenderGraphBuilder.cpp:1257
FDeferredShadingSceneRenderer::Render(FRHICommandListImmediate &) DeferredShadingRenderer.cpp:2612
RenderViewFamily_RenderThread(FRHICommandListImmediate &,FSceneRenderer *) SceneRendering.cpp:3616
<lambda_73be3b292d373df226bf787512bb165a>::operator()(FRHICommandListImmediate &) SceneRendering.cpp:3887
EnqueueUniqueRenderCommand<`FRendererModule::BeginRenderingViewFamily'::`35'::FDrawSceneCommandName,<lambda_73be3b292d373df226bf787512bb165a> >(<lambda_73be3b292d373df226bf787512bb165a> &&) RenderingThread.h:244
FRendererModule::BeginRenderingViewFamily(FCanvas *,FSceneViewFamily *) SceneRendering.cpp:3881
UGameViewportClient::Draw(FViewport *,FCanvas *) GameViewportClient.cpp:1630
FViewport::Draw(bool) UnrealClient.cpp:1557
UGameEngine::RedrawViewports(bool) GameEngine.cpp:702
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:13104
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UGameInstance::StartGameInstance() GameInstance.cpp:580
UGameEngine::Start() GameEngine.cpp:1166
FEngineLoop::Init() LaunchEngineLoop.cpp:3989
EngineInit() Launch.cpp:52
GuardedMain(const wchar_t *) Launch.cpp:153
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff7d7397a3a
__scrt_common_main_seh() 0x00007ff7d7397a19
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



创建5

FD3D11DynamicRHI::RHICreatePixelShader(TArrayView<unsigned char const ,int>,const FSHAHash &) D3D11Shaders.cpp:315
FD3D11DynamicRHI::CreatePixelShader_RenderThread(FRHICommandListImmediate &,TArrayView<unsigned char const ,int>,const FSHAHash &) D3D11Shaders.cpp:338
FShaderMapResource_InlineCode::CreateRHIShader(int) ShaderResource.cpp:419
FShaderMapResource::CreateShader(int) ShaderResource.cpp:369
FShaderMapResource::GetShader(int) Shader.h:242
TShaderRefBase<FSimpleElementGammaAlphaOnlyPS,FShaderMapPointerTable>::GetRHIShaderBase(EShaderFrequency) Shader.h:886
FBatchedElements::PrepareShaders(FRHICommandList &,FGraphicsPipelineStateInitializer &,Type,ESimpleElementBlendMode,const FMatrix &,bool,FBatchedElementParameters *,const FTexture *,bool,float,const FDepthFieldGlowInfo *,const FSceneView *) BatchedElements.cpp:651
FBatchedElements::Draw(FRHICommandList &,const FMeshPassProcessorRenderState &,Type,bool,const FSceneView &,bool,float,Type) BatchedElements.cpp:1161
FCanvasBatchedElementRenderItem::Render_RenderThread(FRHICommandListImmediate &,FMeshPassProcessorRenderState &,const FCanvas *) Canvas.cpp:399
FCanvas::Flush_RenderThread(FRHICommandListImmediate &,bool,bool) Canvas.cpp:721
FDebugCanvasDrawer::DrawRenderThread(FRHICommandListImmediate &,const void *) DebugCanvas.cpp:310
FSlateRHIRenderingPolicy::DrawElements(FRHICommandListImmediate &,FSlateBackBuffer &,TRefCountPtr<FRHITexture2D> &,TRefCountPtr<FRHITexture2D> &,TRefCountPtr<FRHITexture2D> &,int,const TArray<FSlateRenderBatch,TSizedDefaultAllocator<32> > &,const FSlateRenderingParams &) SlateRHIRenderingPolicy.cpp:1216
FSlateRHIRenderer::DrawWindow_RenderThread(FRHICommandListImmediate &,FViewportInfo &,FSlateWindowElementList &,const FSlateDrawWindowCommandParams &) SlateRHIRenderer.cpp:895
<lambda_5572aad9e16943e81269070aa3e3a76b>::operator()(FRHICommandListImmediate &) SlateRHIRenderer.cpp:1321
EnqueueUniqueRenderCommand<`FSlateRHIRenderer::DrawWindows_Private'::`42'::SlateDrawWindowsCommandName,<lambda_5572aad9e16943e81269070aa3e3a76b> >(<lambda_5572aad9e16943e81269070aa3e3a76b> &&) RenderingThread.h:244
FSlateRHIRenderer::DrawWindows_Private(FSlateDrawBuffer &) SlateRHIRenderer.cpp:1318
FSlateRHIRenderer::DrawWindows(FSlateDrawBuffer &) SlateRHIRenderer.cpp:1190
FSlateApplication::PrivateDrawWindows(TSharedPtr<SWindow,0>) SlateApplication.cpp:1295
FSlateApplication::DrawWindows() SlateApplication.cpp:1017
FSlateApplication::TickAndDrawWidgets(float) SlateApplication.cpp:1566
FSlateApplication::Tick(ESlateTickType) SlateApplication.cpp:1423
FEngineLoop::Tick() LaunchEngineLoop.cpp:4944
EngineTick() Launch.cpp:62
GuardedMain(const wchar_t *) Launch.cpp:171
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff7d7397a3a
__scrt_common_main_seh() 0x00007ff7d7397a19
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



销毁

FShaderMapResource::ReleaseShaders() ShaderResource.cpp:329
FShaderMapResource::ReleaseRHI() ShaderResource.cpp:348
FRenderResource::ReleaseResource() RenderResource.cpp:119
EnqueueUniqueRenderCommand<`BeginReleaseResource'::`2'::ReleaseCommandName,<lambda_aec70190632b98f970ea922a5c9418a4> >(<lambda_aec70190632b98f970ea922a5c9418a4> &&) RenderingThread.h:244
BeginReleaseResource(FRenderResource *) RenderResource.cpp:246
FShaderMapResource::Release() ShaderResource.cpp:314
FShaderMapBase::~FShaderMapBase() ShaderMap.cpp:46
FMaterialShaderMap::~FMaterialShaderMap() MaterialShader.cpp:2365
FMaterialShaderMap::`scalar deleting destructor'(unsigned int) 0x00007fffd7a85ab4
FPendingCleanupObjects::~FPendingCleanupObjects() RenderingThread.cpp:1353
FlushRenderingCommands(bool) RenderingThread.cpp:1290
UMaterialInstance::ClearAllCachedCookedPlatformData() MaterialInstance.cpp:3259
UMaterialInstance::FinishDestroy() MaterialInstance.cpp:3621
UObject::ConditionalFinishDestroy() Obj.cpp:1020
IncrementalDestroyGarbage(bool,float) GarbageCollection.cpp:1570
IncrementalPurgeGarbage(bool,float) GarbageCollection.cpp:1495
CollectGarbageInternal(EObjectFlags,bool) GarbageCollection.cpp:2054
CollectGarbage(EObjectFlags,bool) GarbageCollection.cpp:2150
UEngine::TrimMemory() UnrealEngine.cpp:13138
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:12771
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UEngine::TickWorldTravel(FWorldContext &,float) UnrealEngine.cpp:12501
UGameEngine::Tick(float,bool) GameEngine.cpp:1783
FEngineLoop::Tick() LaunchEngineLoop.cpp:4830
EngineTick() Launch.cpp:62
GuardedMain(const wchar_t *) Launch.cpp:171
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff6ebf47a2a
__scrt_common_main_seh() 0x00007ff6ebf47a09
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1

 销毁2

FRHIResource::Release() RHIResources.h:52
FShaderMapResource::ReleaseShaders() ShaderResource.cpp:329
FShaderMapResource::ReleaseRHI() ShaderResource.cpp:348
FRenderResource::ReleaseResource() RenderResource.cpp:119
EnqueueUniqueRenderCommand<`BeginReleaseResource'::`2'::ReleaseCommandName,<lambda_aec70190632b98f970ea922a5c9418a4> >(<lambda_aec70190632b98f970ea922a5c9418a4> &&) RenderingThread.h:244
BeginReleaseResource(FRenderResource *) RenderResource.cpp:246
FShaderMapResource::Release() ShaderResource.cpp:314
FMinimalBoundShaderStateInput::~FMinimalBoundShaderStateInput() 0x00007fffcc906a11
Experimental::RobinHoodHashTable_Private::TRobinHoodHashTable<FGraphicsMinimalPipelineStateInitializer,FGraphicsMinimalPipelineStateId::FRefCountedGraphicsMinimalPipelineState,TDefaultMapHashableKeyFuncs<FGraphicsMinimalPipelineStateInitializer,FGraphicsMinimalPipelineStateId::FRefCountedGraphicsMinimalPipelineState,0>,TSizedDefaultAllocator<32> >::FData::Deallocate(unsigned int) RobinHoodHashTable.h:338
Experimental::RobinHoodHashTable_Private::TRobinHoodHashTable<FGraphicsMinimalPipelineStateInitializer,FGraphicsMinimalPipelineStateId::FRefCountedGraphicsMinimalPipelineState,TDefaultMapHashableKeyFuncs<FGraphicsMinimalPipelineStateInitializer,FGraphicsMinimalPipelineStateId::FRefCountedGraphicsMinimalPipelineState,0>,TSizedDefaultAllocator<32> >::RemoveByElementId(FHashElementId) RobinHoodHashTable.h:920
FGraphicsMinimalPipelineStateId::RemovePersistentId(FGraphicsMinimalPipelineStateId) MeshPassProcessor.cpp:398
FPrimitiveSceneInfo::RemoveCachedMeshDrawCommands() PrimitiveSceneInfo.cpp:466
FPrimitiveSceneInfo::RemoveStaticMeshes() PrimitiveSceneInfo.cpp:840
FPrimitiveSceneInfo::RemoveFromScene(bool) PrimitiveSceneInfo.cpp:896
FScene::UpdateAllPrimitiveSceneInfos(FRHICommandListImmediate &,bool) RendererScene.cpp:3890
<lambda_8a41acb050614d83e592284e74be1a26>::operator()(FRHICommandListImmediate &) RendererScene.cpp:3319
EnqueueUniqueRenderCommand<`FScene::Release'::`2'::FReleaseCommandName,<lambda_8a41acb050614d83e592284e74be1a26> >(<lambda_8a41acb050614d83e592284e74be1a26> &&) RenderingThread.h:244
FScene::Release() RendererScene.cpp:3315
UWorld::FinishDestroy() World.cpp:939
UObject::ConditionalFinishDestroy() Obj.cpp:1020
IncrementalDestroyGarbage(bool,float) GarbageCollection.cpp:1570
IncrementalPurgeGarbage(bool,float) GarbageCollection.cpp:1495
CollectGarbageInternal(EObjectFlags,bool) GarbageCollection.cpp:2054
CollectGarbage(EObjectFlags,bool) GarbageCollection.cpp:2150
UEngine::TrimMemory() UnrealEngine.cpp:13138
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:12771
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UEngine::TickWorldTravel(FWorldContext &,float) UnrealEngine.cpp:12501
UGameEngine::Tick(float,bool) GameEngine.cpp:1783
FEngineLoop::Tick() LaunchEngineLoop.cpp:4830
EngineTick() Launch.cpp:62
GuardedMain(const wchar_t *) Launch.cpp:171
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff7b1fe7a1a
__scrt_common_main_seh() 0x00007ff7b1fe79f9
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



ComputeShader

D3D11下ComputeShader用法

ComPtr<ID3DBlob> blob;
HR(CreateShaderFromFile(L"HLSL\\TextureMul_R32G32B32A32_CS.cso", L"HLSL\\TextureMul_R32G32B32A32_CS.hlsl", "CS", "cs_5_0", blob.GetAddressOf()));
HR(m_pd3dDevice->CreateComputeShader(blob->GetBufferPointer(), blob->GetBufferSize(), nullptr, computeShader.GetAddressOf()));// ComPtr<ID3D11ComputeShader> computeShader;

m_pd3dImmediateContext->CSSetShader(computeShader.Get(), nullptr, 0);



创建1

FRHIComputeShader::FRHIComputeShader() RHIResources.h:529
FD3D11ComputeShader::FD3D11ComputeShader() 0x00007fffbd26c7a1
FD3D11DynamicRHI::RHICreateComputeShader(TArrayView<unsigned char const ,int>,const FSHAHash &) D3D11Shaders.cpp:345
FD3D11DynamicRHI::CreateComputeShader_RenderThread(FRHICommandListImmediate &,TArrayView<unsigned char const ,int>,const FSHAHash &) D3D11Shaders.cpp:368
FShaderMapResource_InlineCode::CreateRHIShader(int) ShaderResource.cpp:423
FShaderMapResource::CreateShader(int) ShaderResource.cpp:369
FShaderMapResource::GetShader(int) Shader.h:242
TShaderRefBase<FMoveWholeIndirectionTextureCS,FShaderMapPointerTable>::GetRHIShaderBase(EShaderFrequency) Shader.h:886
FComputeShaderUtils::Dispatch<FMoveWholeIndirectionTextureCS>(FRHIComputeCommandList &,const TShaderRefBase<FMoveWholeIndirectionTextureCS,FShaderMapPointerTable> &,const FMoveWholeIndirectionTextureCS::FParameters &,FIntVector) RenderGraphUtils.h:248
FPrecomputedVolumetricLightmapData::AddToSceneData(FPrecomputedVolumetricLightmapData *) PrecomputedVolumetricLightmap.cpp:465
FVolumetricLightmapSceneData::AddLevelVolume(const FPrecomputedVolumetricLightmap *,EShadingPath,bool) RendererScene.cpp:2314
<lambda_ed53812d8d83ad18beea96b6a7185d0b>::operator()(FRHICommandListImmediate &) RendererScene.cpp:2407
EnqueueUniqueRenderCommand<`FScene::AddPrecomputedVolumetricLightmap'::`2'::AddVolumeCommandName,<lambda_ed53812d8d83ad18beea96b6a7185d0b> >(<lambda_ed53812d8d83ad18beea96b6a7185d0b> &&) RenderingThread.h:244
FScene::AddPrecomputedVolumetricLightmap(const FPrecomputedVolumetricLightmap *,bool) RendererScene.cpp:2394
FPrecomputedVolumetricLightmap::AddToScene(FSceneInterface *,UMapBuildDataRegistry *,FGuid,bool) PrecomputedVolumetricLightmap.cpp:713
ULevel::InitializeRenderingResources() Level.cpp:1957
UWorld::InitWorld(InitializationValues) World.cpp:1649
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:12985
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UGameInstance::StartGameInstance() GameInstance.cpp:580
UGameEngine::Start() GameEngine.cpp:1166
FEngineLoop::Init() LaunchEngineLoop.cpp:3989
EngineInit() Launch.cpp:52
GuardedMain(const wchar_t *) Launch.cpp:153
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff7ff657a2a
__scrt_common_main_seh() 0x00007ff7ff657a09
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



创建2

FD3D11DynamicRHI::RHICreateComputeShader(TArrayView<unsigned char const ,int>,const FSHAHash &) D3D11Shaders.cpp:345
FD3D11DynamicRHI::CreateComputeShader_RenderThread(FRHICommandListImmediate &,TArrayView<unsigned char const ,int>,const FSHAHash &) D3D11Shaders.cpp:368
FShaderMapResource_InlineCode::CreateRHIShader(int) ShaderResource.cpp:423
FShaderMapResource::CreateShader(int) ShaderResource.cpp:369
FShaderMapResource::GetShader(int) Shader.h:242
TShaderRefBase<FHairLUTCS,FShaderMapPointerTable>::GetRHIShaderBase(EShaderFrequency) Shader.h:886
FComputeShaderUtils::Dispatch<FHairLUTCS>(FRHIComputeCommandList &,const TShaderRefBase<FHairLUTCS,FShaderMapPointerTable> &,const FHairLUTCS::FParameters &,FIntVector) RenderGraphUtils.h:248
TRDGLambdaPass<FHairLUTCS::FParameters,<lambda_8db8aeda54fe0981d1ef671ffeaa02b4> >::ExecuteImpl(FRHIComputeCommandList &) RenderGraphPass.h:424
FRDGPass::Execute(FRHIComputeCommandList &) RenderGraphPass.cpp:302
FRDGBuilder::ExecutePass(FRDGPass *) RenderGraphBuilder.cpp:1591
FRDGBuilder::Execute() RenderGraphBuilder.cpp:1257
UpdateHairLUT(const FViewInfo &) HairStrandsLUT.cpp:387
FViewInfo::SetupUniformBufferParameters(FSceneRenderTargets &,const FViewMatrices &,const FViewMatrices &,FBox *,int,FViewUniformShaderParameters &) SceneRendering.cpp:1754
FViewInfo::InitRHIResources() SceneRendering.cpp:1788
FDeferredShadingSceneRenderer::InitViews(FRHICommandListImmediate &,Type,FILCUpdatePrimTaskData &) SceneVisibility.cpp:4370
FDeferredShadingSceneRenderer::Render(FRHICommandListImmediate &) DeferredShadingRenderer.cpp:1412
RenderViewFamily_RenderThread(FRHICommandListImmediate &,FSceneRenderer *) SceneRendering.cpp:3616
<lambda_73be3b292d373df226bf787512bb165a>::operator()(FRHICommandListImmediate &) SceneRendering.cpp:3887
EnqueueUniqueRenderCommand<`FRendererModule::BeginRenderingViewFamily'::`35'::FDrawSceneCommandName,<lambda_73be3b292d373df226bf787512bb165a> >(<lambda_73be3b292d373df226bf787512bb165a> &&) RenderingThread.h:244
FRendererModule::BeginRenderingViewFamily(FCanvas *,FSceneViewFamily *) SceneRendering.cpp:3881
UGameViewportClient::Draw(FViewport *,FCanvas *) GameViewportClient.cpp:1630
FViewport::Draw(bool) UnrealClient.cpp:1557
UGameEngine::RedrawViewports(bool) GameEngine.cpp:702
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:13104
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UGameInstance::StartGameInstance() GameInstance.cpp:580
UGameEngine::Start() GameEngine.cpp:1166
FEngineLoop::Init() LaunchEngineLoop.cpp:3989
EngineInit() Launch.cpp:52
GuardedMain(const wchar_t *) Launch.cpp:153
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff7d7397a3a
__scrt_common_main_seh() 0x00007ff7d7397a19
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



创建3

FD3D11DynamicRHI::RHICreateComputeShader(TArrayView<unsigned char const ,int>,const FSHAHash &) D3D11Shaders.cpp:345
FD3D11DynamicRHI::CreateComputeShader_RenderThread(FRHICommandListImmediate &,TArrayView<unsigned char const ,int>,const FSHAHash &) D3D11Shaders.cpp:368
FShaderMapResource_InlineCode::CreateRHIShader(int) ShaderResource.cpp:423
FShaderMapResource::CreateShader(int) ShaderResource.cpp:369
FShaderMapResource::GetShader(int) Shader.h:242
TShaderRefBase<FHZBBuildCS,FShaderMapPointerTable>::GetRHIShaderBase(EShaderFrequency) Shader.h:886
FComputeShaderUtils::Dispatch<FHZBBuildCS>(FRHIComputeCommandList &,const TShaderRefBase<FHZBBuildCS,FShaderMapPointerTable> &,const FHZBBuildCS::FParameters &,FIntVector) RenderGraphUtils.h:248
TRDGLambdaPass<FHZBBuildCS::FParameters,<lambda_281e9284882fe49acc40e8071c1eb605> >::ExecuteImpl(FRHIComputeCommandList &) RenderGraphPass.h:424
FRDGPass::Execute(FRHIComputeCommandList &) RenderGraphPass.cpp:302
FRDGBuilder::ExecutePass(FRDGPass *) RenderGraphBuilder.cpp:1591
FRDGBuilder::Execute() RenderGraphBuilder.cpp:1257
FDeferredShadingSceneRenderer::Render(FRHICommandListImmediate &) DeferredShadingRenderer.cpp:2612
RenderViewFamily_RenderThread(FRHICommandListImmediate &,FSceneRenderer *) SceneRendering.cpp:3616
<lambda_73be3b292d373df226bf787512bb165a>::operator()(FRHICommandListImmediate &) SceneRendering.cpp:3887
EnqueueUniqueRenderCommand<`FRendererModule::BeginRenderingViewFamily'::`35'::FDrawSceneCommandName,<lambda_73be3b292d373df226bf787512bb165a> >(<lambda_73be3b292d373df226bf787512bb165a> &&) RenderingThread.h:244
FRendererModule::BeginRenderingViewFamily(FCanvas *,FSceneViewFamily *) SceneRendering.cpp:3881
UGameViewportClient::Draw(FViewport *,FCanvas *) GameViewportClient.cpp:1630
FViewport::Draw(bool) UnrealClient.cpp:1557
UGameEngine::RedrawViewports(bool) GameEngine.cpp:702
UGameEngine::Tick(float,bool) GameEngine.cpp:1908
FEngineLoop::Tick() LaunchEngineLoop.cpp:4830
EngineTick() Launch.cpp:62
GuardedMain(const wchar_t *) Launch.cpp:171
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff7d7397a3a
__scrt_common_main_seh() 0x00007ff7d7397a19
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



BoundShaderState

FBoundShaderStateInput、FMinimalBoundShaderStateInput

/*** UnrealEngine\Engine\Source\Runtime\RHI\Public\RHIResources.h ***/
struct FBoundShaderStateInput
{
    inline FBoundShaderStateInput() {}

    inline FBoundShaderStateInput
    (
        FRHIVertexDeclaration* InVertexDeclarationRHI
        , FRHIVertexShader* InVertexShaderRHI
#if PLATFORM_SUPPORTS_TESSELLATION_SHADERS
        , FRHIHullShader* InHullShaderRHI
        , FRHIDomainShader* InDomainShaderRHI
#endif
        , FRHIPixelShader* InPixelShaderRHI
#if PLATFORM_SUPPORTS_GEOMETRY_SHADERS
        , FRHIGeometryShader* InGeometryShaderRHI
#endif
    )
        : VertexDeclarationRHI(InVertexDeclarationRHI)
        , VertexShaderRHI(InVertexShaderRHI)
#if PLATFORM_SUPPORTS_TESSELLATION_SHADERS
        , HullShaderRHI(InHullShaderRHI)
        , DomainShaderRHI(InDomainShaderRHI)
#endif
        , PixelShaderRHI(InPixelShaderRHI)
#if PLATFORM_SUPPORTS_GEOMETRY_SHADERS
        , GeometryShaderRHI(InGeometryShaderRHI)
#endif
    {
    }

    void AddRefResources()
    {
        check(VertexDeclarationRHI);
        VertexDeclarationRHI->AddRef();

        check(VertexShaderRHI);
        VertexShaderRHI->AddRef();

        if (HullShaderRHI)
        {
            HullShaderRHI->AddRef();
        }

        if (DomainShaderRHI)
        {
            DomainShaderRHI->AddRef();
        }

        if (PixelShaderRHI)
        {
            PixelShaderRHI->AddRef();
        }

        if (GeometryShaderRHI)
        {
            GeometryShaderRHI->AddRef();
        }
    }

    void ReleaseResources()
    {
        check(VertexDeclarationRHI);
        VertexDeclarationRHI->Release();

        check(VertexShaderRHI);
        VertexShaderRHI->Release();

        if (HullShaderRHI)
        {
            HullShaderRHI->Release();
        }

        if (DomainShaderRHI)
        {
            DomainShaderRHI->Release();
        }

        if (PixelShaderRHI)
        {
            PixelShaderRHI->Release();
        }

        if (GeometryShaderRHI)
        {
            GeometryShaderRHI->Release();
        }
    }

    FRHIVertexDeclaration* VertexDeclarationRHI = nullptr;
    FRHIVertexShader* VertexShaderRHI = nullptr;
    FRHIHullShader* HullShaderRHI = nullptr;
    FRHIDomainShader* DomainShaderRHI = nullptr;
    FRHIPixelShader* PixelShaderRHI = nullptr;
    FRHIGeometryShader* GeometryShaderRHI = nullptr;
};

/*** UnrealEngine\Engine\Source\Runtime\Renderer\Public\MeshPassProcessor.h ***/
struct FMinimalBoundShaderStateInput
{
    inline FMinimalBoundShaderStateInput() {}

    FBoundShaderStateInput AsBoundShaderState() const
    {
        return FBoundShaderStateInput(VertexDeclarationRHI
            , VertexShaderResource ? static_cast<FRHIVertexShader*>(VertexShaderResource->GetShader(VertexShaderIndex)) : nullptr
#if PLATFORM_SUPPORTS_TESSELLATION_SHADERS
            , HullShaderResource ? static_cast<FRHIHullShader*>(HullShaderResource->GetShader(HullShaderIndex)) : nullptr
            , DomainShaderResource ? static_cast<FRHIDomainShader*>(DomainShaderResource->GetShader(DomainShaderIndex)) : nullptr
#endif
            , PixelShaderResource ? static_cast<FRHIPixelShader*>(PixelShaderResource->GetShader(PixelShaderIndex)) : nullptr
#if PLATFORM_SUPPORTS_GEOMETRY_SHADERS
            , GeometryShaderResource ? static_cast<FRHIGeometryShader*>(GeometryShaderResource->GetShader(GeometryShaderIndex)) : nullptr
#endif
        );
    }

    void LazilyInitShaders() const
    {
        AsBoundShaderState(); // querying shaders will initialize on demand
    }

    bool NeedsShaderInitialisation() const
    {
        if (VertexShaderResource && !VertexShaderResource->HasShader(VertexShaderIndex))
        {
            return true;
        }
        if (HullShaderResource && !HullShaderResource->HasShader(HullShaderIndex))
        {
            return true;
        }
        if (DomainShaderResource && !DomainShaderResource->HasShader(DomainShaderIndex))
        {
            return true;
        }
        if (PixelShaderResource && !PixelShaderResource->HasShader(PixelShaderIndex))
        {
            return true;
        }
        if (GeometryShaderResource && !GeometryShaderResource->HasShader(GeometryShaderIndex))
        {
            return true;
        }
        return false;
    }

    FRHIVertexDeclaration* VertexDeclarationRHI = nullptr;
    TRefCountPtr<FShaderMapResource> VertexShaderResource;
    TRefCountPtr<FShaderMapResource> HullShaderResource;
    TRefCountPtr<FShaderMapResource> DomainShaderResource;
    TRefCountPtr<FShaderMapResource> PixelShaderResource;
    TRefCountPtr<FShaderMapResource> GeometryShaderResource;
    int32 VertexShaderIndex = INDEX_NONE;
    int32 HullShaderIndex = INDEX_NONE;
    int32 DomainShaderIndex = INDEX_NONE;
    int32 PixelShaderIndex = INDEX_NONE;
    int32 GeometryShaderIndex = INDEX_NONE;
};



FGraphicsPipelineStateInitializer、FGraphicsMinimalPipelineStateInitializer

/*** UnrealEngine\Engine\Source\Runtime\RHI\Public\RHIResources.h ***/
class FGraphicsPipelineStateInitializer
{
public:
    // Can't use TEnumByte<EPixelFormat> as it changes the struct to be non trivially constructible, breaking memset
    using TRenderTargetFormats        = TStaticArray<uint8/*EPixelFormat*/, MaxSimultaneousRenderTargets>;  // MaxSimultaneousRenderTargets为8
    using TRenderTargetFlags        = TStaticArray<uint32/*ETextureCreateFlags*/, MaxSimultaneousRenderTargets>; // MaxSimultaneousRenderTargets为8

    FGraphicsPipelineStateInitializer()
        : BlendState(nullptr)
        , RasterizerState(nullptr)
        , DepthStencilState(nullptr)
        , RenderTargetsEnabled(0)
        , RenderTargetFormats(PF_Unknown)
        , RenderTargetFlags(0)
        , DepthStencilTargetFormat(PF_Unknown)
        , DepthStencilTargetFlag(0)
        , DepthTargetLoadAction(ERenderTargetLoadAction::ENoAction)
        , DepthTargetStoreAction(ERenderTargetStoreAction::ENoAction)
        , StencilTargetLoadAction(ERenderTargetLoadAction::ENoAction)
        , StencilTargetStoreAction(ERenderTargetStoreAction::ENoAction)
        , NumSamples(0)
        , SubpassHint(ESubpassHint::None)
        , SubpassIndex(0)
        , bDepthBounds(false)
        , MultiViewCount(0)
        , bHasFragmentDensityAttachment(false)
        , ShadingRate(EVRSShadingRate::VRSSR_1x1)
        , Flags(0)
    {
#if PLATFORM_WINDOWS
        static_assert(sizeof(TRenderTargetFormats::ElementType) == sizeof(uint8/*EPixelFormat*/), "Change TRenderTargetFormats's uint8 to EPixelFormat's size!");
        static_assert(sizeof(TRenderTargetFlags::ElementType) == sizeof(uint32/*ETextureCreateFlags*/), "Change TRenderTargetFlags's uint32 to ETextureCreateFlags's size!");
#endif
        static_assert(PF_MAX < MAX_uint8, "TRenderTargetFormats assumes EPixelFormat can fit in a uint8!");
    }

    FGraphicsPipelineStateInitializer(
        FBoundShaderStateInput        InBoundShaderState,
        FRHIBlendState*                InBlendState,
        FRHIRasterizerState*        InRasterizerState,
        FRHIDepthStencilState*        InDepthStencilState,
        FImmutableSamplerState        InImmutableSamplerState,
        EPrimitiveType                InPrimitiveType,
        uint32                        InRenderTargetsEnabled,
        const TRenderTargetFormats&    InRenderTargetFormats,
        const TRenderTargetFlags&    InRenderTargetFlags,
        EPixelFormat                InDepthStencilTargetFormat,
        ETextureCreateFlags            InDepthStencilTargetFlag,
        ERenderTargetLoadAction        InDepthTargetLoadAction,
        ERenderTargetStoreAction    InDepthTargetStoreAction,
        ERenderTargetLoadAction        InStencilTargetLoadAction,
        ERenderTargetStoreAction    InStencilTargetStoreAction,
        FExclusiveDepthStencil        InDepthStencilAccess,
        uint32                        InNumSamples,
        ESubpassHint                InSubpassHint,
        uint8                        InSubpassIndex,
        uint16                        InFlags,
        bool                        bInDepthBounds,
        uint8                        InMultiViewCount,
        bool                        bInHasFragmentDensityAttachment,
        EVRSShadingRate                InShadingRate)
        : BoundShaderState(InBoundShaderState)
        , BlendState(InBlendState)
        , RasterizerState(InRasterizerState)
        , DepthStencilState(InDepthStencilState)
        , ImmutableSamplerState(InImmutableSamplerState)
        , PrimitiveType(InPrimitiveType)
        , RenderTargetsEnabled(InRenderTargetsEnabled)
        , RenderTargetFormats(InRenderTargetFormats)
        , RenderTargetFlags(InRenderTargetFlags)
        , DepthStencilTargetFormat(InDepthStencilTargetFormat)
        , DepthStencilTargetFlag(InDepthStencilTargetFlag)
        , DepthTargetLoadAction(InDepthTargetLoadAction)
        , DepthTargetStoreAction(InDepthTargetStoreAction)
        , StencilTargetLoadAction(InStencilTargetLoadAction)
        , StencilTargetStoreAction(InStencilTargetStoreAction)
        , DepthStencilAccess(InDepthStencilAccess)
        , NumSamples(InNumSamples)
        , SubpassHint(InSubpassHint)
        , SubpassIndex(InSubpassIndex)
        , bDepthBounds(bInDepthBounds)
        , MultiViewCount(InMultiViewCount)
        , bHasFragmentDensityAttachment(bInHasFragmentDensityAttachment)
        , ShadingRate(InShadingRate)
        , Flags(InFlags)
    {
    }

    bool operator==(const FGraphicsPipelineStateInitializer& rhs) const
    {
        if (BoundShaderState.VertexDeclarationRHI != rhs.BoundShaderState.VertexDeclarationRHI ||
            BoundShaderState.VertexShaderRHI != rhs.BoundShaderState.VertexShaderRHI ||
            BoundShaderState.PixelShaderRHI != rhs.BoundShaderState.PixelShaderRHI ||
#if PLATFORM_SUPPORTS_GEOMETRY_SHADERS
            BoundShaderState.GeometryShaderRHI != rhs.BoundShaderState.GeometryShaderRHI ||
#endif
#if PLATFORM_SUPPORTS_TESSELLATION_SHADERS
            BoundShaderState.DomainShaderRHI != rhs.BoundShaderState.DomainShaderRHI ||
            BoundShaderState.HullShaderRHI != rhs.BoundShaderState.HullShaderRHI ||
#endif
            BlendState != rhs.BlendState ||
            RasterizerState != rhs.RasterizerState ||
            DepthStencilState != rhs.DepthStencilState ||
            ImmutableSamplerState != rhs.ImmutableSamplerState ||
            PrimitiveType != rhs.PrimitiveType ||
            bDepthBounds != rhs.bDepthBounds ||
            MultiViewCount != rhs.MultiViewCount ||
            ShadingRate != rhs.ShadingRate ||
            bHasFragmentDensityAttachment != rhs.bHasFragmentDensityAttachment ||
            RenderTargetsEnabled != rhs.RenderTargetsEnabled ||
            RenderTargetFormats != rhs.RenderTargetFormats ||
            RenderTargetFlags != rhs.RenderTargetFlags ||
            DepthStencilTargetFormat != rhs.DepthStencilTargetFormat ||
            DepthStencilTargetFlag != rhs.DepthStencilTargetFlag ||
            DepthTargetLoadAction != rhs.DepthTargetLoadAction ||
            DepthTargetStoreAction != rhs.DepthTargetStoreAction ||
            StencilTargetLoadAction != rhs.StencilTargetLoadAction ||
            StencilTargetStoreAction != rhs.StencilTargetStoreAction ||
            DepthStencilAccess != rhs.DepthStencilAccess ||
            NumSamples != rhs.NumSamples ||
            SubpassHint != rhs.SubpassHint ||
            SubpassIndex != rhs.SubpassIndex)
        {
            return false;
        }

        return true;
    }

    uint32 ComputeNumValidRenderTargets() const
    {
        // Get the count of valid render targets (ignore those at the end of the array with PF_Unknown)
        if (RenderTargetsEnabled > 0)
        {
            int32 LastValidTarget = -1;
            for (int32 i = (int32)RenderTargetsEnabled - 1; i >= 0; i--)
            {
                if (RenderTargetFormats[i] != PF_Unknown)
                {
                    LastValidTarget = i;
                    break;
                }
            }
            return uint32(LastValidTarget + 1);
        }
        return RenderTargetsEnabled;
    }

    FBoundShaderStateInput            BoundShaderState;
    FRHIBlendState*                    BlendState;
    FRHIRasterizerState*            RasterizerState;
    FRHIDepthStencilState*            DepthStencilState;
    FImmutableSamplerState            ImmutableSamplerState;

    EPrimitiveType                    PrimitiveType;
    uint32                            RenderTargetsEnabled;
    TRenderTargetFormats            RenderTargetFormats;
    TRenderTargetFlags                RenderTargetFlags;
    EPixelFormat                    DepthStencilTargetFormat;
    uint32                            DepthStencilTargetFlag;
    ERenderTargetLoadAction            DepthTargetLoadAction;
    ERenderTargetStoreAction        DepthTargetStoreAction;
    ERenderTargetLoadAction            StencilTargetLoadAction;
    ERenderTargetStoreAction        StencilTargetStoreAction;
    FExclusiveDepthStencil            DepthStencilAccess;
    uint16                            NumSamples;
    ESubpassHint                    SubpassHint;
    uint8                            SubpassIndex;
    bool                            bDepthBounds;
    uint8                            MultiViewCount;
    bool                            bHasFragmentDensityAttachment;
    EVRSShadingRate                    ShadingRate;

    // Note: these flags do NOT affect compilation of this PSO.
    // The resulting object is invariant with respect to whatever is set here, they are
    // behavior hints.
    // They do not participate in equality comparisons or hashing.
    union
    {
        struct
        {
            uint16                    Reserved            : 15;
            uint16                    bFromPSOFileCache    : 1;
        };
        uint16                        Flags;
    };
};


/*** UnrealEngine\Engine\Source\Runtime\Renderer\Public\MeshPassProcessor.h ***/
/**
 * Pipeline state without render target state
 * Useful for mesh passes where the render target state is not changing between draws.
 * Note: the size of this class affects rendering mesh pass traversal performance.
 */
class FGraphicsMinimalPipelineStateInitializer
{
public:
    // Can't use TEnumByte<EPixelFormat> as it changes the struct to be non trivially constructible, breaking memset
    using TRenderTargetFormats = TStaticArray<uint8/*EPixelFormat*/, MaxSimultaneousRenderTargets>;  // MaxSimultaneousRenderTargets为8
    using TRenderTargetFlags = TStaticArray<uint32/*ETextureCreateFlags*/, MaxSimultaneousRenderTargets>;  // MaxSimultaneousRenderTargets为8

    FGraphicsMinimalPipelineStateInitializer()
        : BlendState(nullptr)
        , RasterizerState(nullptr)
        , DepthStencilState(nullptr)
        , PrimitiveType(PT_Num)
    {
        static_assert(sizeof(EPixelFormat) != sizeof(uint8), "Change TRenderTargetFormats's uint8 to EPixelFormat");
        static_assert(PF_MAX < MAX_uint8, "TRenderTargetFormats assumes EPixelFormat can fit in a uint8!");
    }

    FGraphicsMinimalPipelineStateInitializer(
        FMinimalBoundShaderStateInput    InBoundShaderState,
        FRHIBlendState*                    InBlendState,
        FRHIRasterizerState*            InRasterizerState,
        FRHIDepthStencilState*            InDepthStencilState,
        FImmutableSamplerState            InImmutableSamplerState,
        EPrimitiveType                    InPrimitiveType
    )
        : BoundShaderState(InBoundShaderState)
        , BlendState(InBlendState)
        , RasterizerState(InRasterizerState)
        , DepthStencilState(InDepthStencilState)
        , ImmutableSamplerState(InImmutableSamplerState)
        , PrimitiveType(InPrimitiveType)
    {
    }

    FGraphicsMinimalPipelineStateInitializer(const FGraphicsMinimalPipelineStateInitializer& InMinimalState)
        : BoundShaderState(InMinimalState.BoundShaderState)
        , BlendState(InMinimalState.BlendState)
        , RasterizerState(InMinimalState.RasterizerState)
        , DepthStencilState(InMinimalState.DepthStencilState)
        , ImmutableSamplerState(InMinimalState.ImmutableSamplerState)
        , bDepthBounds(InMinimalState.bDepthBounds)
        , DrawShadingRate(InMinimalState.DrawShadingRate)
        , PrimitiveType(InMinimalState.PrimitiveType)
    {
    }

    FGraphicsPipelineStateInitializer AsGraphicsPipelineStateInitializer() const
    {
        return FGraphicsPipelineStateInitializer
        (    BoundShaderState.AsBoundShaderState()
            , BlendState
            , RasterizerState
            , DepthStencilState
            , ImmutableSamplerState
            , PrimitiveType
            , 0
            , FGraphicsPipelineStateInitializer::TRenderTargetFormats(PF_Unknown)
            , FGraphicsPipelineStateInitializer::TRenderTargetFlags(0)
            , PF_Unknown
            , TexCreate_None
            , ERenderTargetLoadAction::ENoAction
            , ERenderTargetStoreAction::ENoAction
            , ERenderTargetLoadAction::ENoAction
            , ERenderTargetStoreAction::ENoAction
            , FExclusiveDepthStencil::DepthNop
            , 0
            , ESubpassHint::None
            , 0
            , 0
            , bDepthBounds
            , MultiViewCount
            , bHasFragmentDensityAttachment
            , DrawShadingRate
        );
    }

    inline bool operator==(const FGraphicsMinimalPipelineStateInitializer& rhs) const
    {
        if (BoundShaderState.VertexDeclarationRHI != rhs.BoundShaderState.VertexDeclarationRHI ||
            BoundShaderState.VertexShaderResource != rhs.BoundShaderState.VertexShaderResource ||
            BoundShaderState.PixelShaderResource != rhs.BoundShaderState.PixelShaderResource ||
            BoundShaderState.VertexShaderIndex != rhs.BoundShaderState.VertexShaderIndex ||
            BoundShaderState.PixelShaderIndex != rhs.BoundShaderState.PixelShaderIndex ||
#if PLATFORM_SUPPORTS_GEOMETRY_SHADERS
            BoundShaderState.GeometryShaderResource != rhs.BoundShaderState.GeometryShaderResource ||
            BoundShaderState.GeometryShaderIndex != rhs.BoundShaderState.GeometryShaderIndex ||
#endif
#if PLATFORM_SUPPORTS_TESSELLATION_SHADERS
            BoundShaderState.DomainShaderResource != rhs.BoundShaderState.DomainShaderResource ||
            BoundShaderState.HullShaderResource != rhs.BoundShaderState.HullShaderResource ||
            BoundShaderState.DomainShaderIndex != rhs.BoundShaderState.DomainShaderIndex ||
            BoundShaderState.HullShaderIndex != rhs.BoundShaderState.HullShaderIndex ||
#endif
            BlendState != rhs.BlendState ||
            RasterizerState != rhs.RasterizerState ||
            DepthStencilState != rhs.DepthStencilState ||
            ImmutableSamplerState != rhs.ImmutableSamplerState ||
            bDepthBounds != rhs.bDepthBounds ||
            MultiViewCount != rhs.MultiViewCount ||
            bHasFragmentDensityAttachment != rhs.bHasFragmentDensityAttachment ||
            DrawShadingRate != rhs.DrawShadingRate ||
            PrimitiveType != rhs.PrimitiveType)
        {
            return false;
        }

        return true;
    }

    inline bool operator!=(const FGraphicsMinimalPipelineStateInitializer& rhs) const
    {
        return !(*this == rhs);
    }

    inline friend uint32 GetTypeHash(const FGraphicsMinimalPipelineStateInitializer& Initializer)
    {
        //add and initialize any leftover padding within the struct to avoid unstable key
        struct FHashKey
        {
            uint32 VertexDeclaration;
            uint32 VertexShader;
            uint32 PixelShader;
            uint32 RasterizerState;
        } HashKey;
        HashKey.VertexDeclaration = PointerHash(Initializer.BoundShaderState.VertexDeclarationRHI);
        HashKey.VertexShader = GetTypeHash(Initializer.BoundShaderState.VertexShaderIndex);
        HashKey.PixelShader = GetTypeHash(Initializer.BoundShaderState.PixelShaderIndex);
        HashKey.RasterizerState = PointerHash(Initializer.RasterizerState);

        return uint32(CityHash64((const char*)&HashKey, sizeof(FHashKey)));
    }

#define COMPARE_FIELD_BEGIN(Field) \
        if (Field != rhs.Field) \
        { return Field COMPARE_OP rhs.Field; }

#define COMPARE_FIELD(Field) \
        else if (Field != rhs.Field) \
        { return Field COMPARE_OP rhs.Field; }

#define COMPARE_FIELD_END \
        else { return false; }

    bool operator<(const FGraphicsMinimalPipelineStateInitializer& rhs) const
    {
#define COMPARE_OP <

        COMPARE_FIELD_BEGIN(BoundShaderState.VertexDeclarationRHI)
            COMPARE_FIELD(BoundShaderState.VertexShaderIndex)
            COMPARE_FIELD(BoundShaderState.PixelShaderIndex)
            COMPARE_FIELD(BoundShaderState.VertexShaderResource)
            COMPARE_FIELD(BoundShaderState.PixelShaderResource)
#if PLATFORM_SUPPORTS_GEOMETRY_SHADERS
            COMPARE_FIELD(BoundShaderState.GeometryShaderIndex)
            COMPARE_FIELD(BoundShaderState.GeometryShaderResource)
#endif
#if PLATFORM_SUPPORTS_TESSELLATION_SHADERS
            COMPARE_FIELD(BoundShaderState.DomainShaderIndex)
            COMPARE_FIELD(BoundShaderState.HullShaderIndex)
            COMPARE_FIELD(BoundShaderState.DomainShaderResource)
            COMPARE_FIELD(BoundShaderState.HullShaderResource)
#endif
            COMPARE_FIELD(BlendState)
            COMPARE_FIELD(RasterizerState)
            COMPARE_FIELD(DepthStencilState)
            COMPARE_FIELD(bDepthBounds)
            COMPARE_FIELD(MultiViewCount)
            COMPARE_FIELD(bHasFragmentDensityAttachment)
            COMPARE_FIELD(DrawShadingRate)
            COMPARE_FIELD(PrimitiveType)
        COMPARE_FIELD_END;

#undef COMPARE_OP
    }

    bool operator>(const FGraphicsMinimalPipelineStateInitializer& rhs) const
    {
#define COMPARE_OP >

        COMPARE_FIELD_BEGIN(BoundShaderState.VertexDeclarationRHI)
            COMPARE_FIELD(BoundShaderState.VertexShaderIndex)
            COMPARE_FIELD(BoundShaderState.PixelShaderIndex)
            COMPARE_FIELD(BoundShaderState.VertexShaderResource)
            COMPARE_FIELD(BoundShaderState.PixelShaderResource)
#if PLATFORM_SUPPORTS_GEOMETRY_SHADERS
            COMPARE_FIELD(BoundShaderState.GeometryShaderIndex)
            COMPARE_FIELD(BoundShaderState.GeometryShaderResource)
#endif
#if PLATFORM_SUPPORTS_TESSELLATION_SHADERS
            COMPARE_FIELD(BoundShaderState.DomainShaderIndex)
            COMPARE_FIELD(BoundShaderState.HullShaderIndex)
            COMPARE_FIELD(BoundShaderState.DomainShaderResource)
            COMPARE_FIELD(BoundShaderState.HullShaderResource)
#endif
            COMPARE_FIELD(BlendState)
            COMPARE_FIELD(RasterizerState)
            COMPARE_FIELD(DepthStencilState)
            COMPARE_FIELD(bDepthBounds)
            COMPARE_FIELD(MultiViewCount)
            COMPARE_FIELD(bHasFragmentDensityAttachment)
            COMPARE_FIELD(DrawShadingRate)
            COMPARE_FIELD(PrimitiveType)
            COMPARE_FIELD_END;

#undef COMPARE_OP
    }

#undef COMPARE_FIELD_BEGIN
#undef COMPARE_FIELD
#undef COMPARE_FIELD_END

    // TODO: [PSO API] - As we migrate reuse existing API objects, but eventually we can move to the direct initializers.
    // When we do that work, move this to RHI.h as its more appropriate there, but here for now since dependent typdefs are here.
    FMinimalBoundShaderStateInput    BoundShaderState;
    FRHIBlendState*                    BlendState;
    FRHIRasterizerState*            RasterizerState;
    FRHIDepthStencilState*            DepthStencilState;
    FImmutableSamplerState            ImmutableSamplerState;

    // Note: FGraphicsMinimalPipelineStateInitializer is 8-byte aligned and can't have any implicit padding,
    // as it is sometimes hashed and compared as raw bytes. Explicit padding is therefore required between
    // all data members and at the end of the structure.
    bool                            bDepthBounds = false;
    uint8                            MultiViewCount = 0;
    bool                            bHasFragmentDensityAttachment = false;
    EVRSShadingRate                    DrawShadingRate  = EVRSShadingRate::VRSSR_1x1;

    EPrimitiveType            PrimitiveType;
};



创建

// 在FD3D11BoundShaderState构造函数中利用FRHIVertexDeclaration和FRHIVertexShader信息，并调用ID3D11Device::CreateInputLayout方法创建一个输入布局
// 同时也保存ID3D11VertexShader、ID3D11PixelShader、ID3D11HullShader、ID3D11DomainShader和ID3D11GeometryShader到FD3D11BoundShaderState对象中
FD3D11DynamicRHI::RHICreateBoundShaderState(FRHIVertexDeclaration *,FRHIVertexShader *,FRHIHullShader *,FRHIDomainShader *,FRHIPixelShader *,FRHIGeometryShader *) D3D11Shaders.cpp:492
IRHICommandContextPSOFallback::RHISetGraphicsPipelineState(FRHIGraphicsPipelineState *,bool) RHIContext.h:729
FD3D11DynamicRHI::RHISetGraphicsPipelineState(FRHIGraphicsPipelineState *,bool) D3D11Commands.cpp:193
FRHICommandList::SetGraphicsPipelineState(FGraphicsPipelineState *,const FBoundShaderStateInput &,bool) RHICommandList.h:3207
SetGraphicsPipelineState(FRHICommandList &,const FGraphicsPipelineStateInitializer &,EApplyRendertargetOption,bool) PipelineStateCache.cpp:347
FMeshDrawCommand::SubmitDraw(const FMeshDrawCommand &__restrict,const Experimental::TRobinHoodHashSet<FGraphicsMinimalPipelineStateInitializer,DefaultKeyFuncs<FGraphicsMinimalPipelineStateInitializer,0>,TSizedDefaultAllocator<32> > &,FRHIVertexBuffer *,int,unsigned int,FRHICommandList &,FMeshDrawCommandStateCache &__restrict) MeshPassProcessor.cpp:1141
SubmitMeshDrawCommandsRange(const TArray<FVisibleMeshDrawCommand,TMemStackAllocator<0> > &,const Experimental::TRobinHoodHashSet<FGraphicsMinimalPipelineStateInitializer,DefaultKeyFuncs<FGraphicsMinimalPipelineStateInitializer,0>,TSizedDefaultAllocator<32> > &,FRHIVertexBuffer *,int,bool,int,int,unsigned int,FRHICommandList &) MeshPassProcessor.cpp:1256
FParallelMeshDrawCommandPass::DispatchDraw(FParallelCommandListSet *,FRHICommandList &) MeshDrawCommands.cpp:1345
FDeferredShadingSceneRenderer::RenderPrePassView(FRHICommandList &,const FViewInfo &) DepthRendering.cpp:254
FDeferredShadingSceneRenderer::RenderPrePass(FRHICommandListImmediate &,TFunctionRef<void __cdecl(void)>) DepthRendering.cpp:676
FDeferredShadingSceneRenderer::Render(FRHICommandListImmediate &) DeferredShadingRenderer.cpp:1702
RenderViewFamily_RenderThread(FRHICommandListImmediate &,FSceneRenderer *) SceneRendering.cpp:3616
<lambda_73be3b292d373df226bf787512bb165a>::operator()(FRHICommandListImmediate &) SceneRendering.cpp:3887
EnqueueUniqueRenderCommand<`FRendererModule::BeginRenderingViewFamily'::`35'::FDrawSceneCommandName,<lambda_73be3b292d373df226bf787512bb165a> >(<lambda_73be3b292d373df226bf787512bb165a> &&) RenderingThread.h:244
FRendererModule::BeginRenderingViewFamily(FCanvas *,FSceneViewFamily *) SceneRendering.cpp:3881
UGameViewportClient::Draw(FViewport *,FCanvas *) GameViewportClient.cpp:1630
FViewport::Draw(bool) UnrealClient.cpp:1557
UGameEngine::RedrawViewports(bool) GameEngine.cpp:702
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:13104
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UGameInstance::StartGameInstance() GameInstance.cpp:580
UGameEngine::Start() GameEngine.cpp:1166
FEngineLoop::Init() LaunchEngineLoop.cpp:3989
EngineInit() Launch.cpp:52
GuardedMain(const wchar_t *) Launch.cpp:153
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff71c367a2a
__scrt_common_main_seh() 0x00007ff71c367a09
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



VertexDeclaration

从VertexFactory --》VertexDeclaration

class FD3D11VertexDeclaration : public FRHIVertexDeclaration
{
public:
    /** Elements of the vertex declaration. */
    FD3D11VertexElements VertexElements; // typedef TArray<D3D11_INPUT_ELEMENT_DESC,TFixedAllocator<MaxVertexElementCount> > FD3D11VertexElements;   // MaxVertexElementCount为16

    uint16 StreamStrides[MaxVertexElementCount];  //

    /** Initialization constructor. */
    explicit FD3D11VertexDeclaration(const FD3D11VertexElements& InElements, const uint16* InStrides)
        : VertexElements(InElements)
    {
        FMemory::Memcpy(StreamStrides, InStrides, sizeof(StreamStrides));
    }
};

注1：FD3D11VertexElements VertexElements用于创建输入布局

注2：uint16 StreamStrides[MaxVertexElementCount]是各顶点缓冲区的Stride偏移，会透传给FBoundShaderStateInput BoundShaderState的StreamStrides成员变量



D3D11多顶点缓冲区输入

在输入装配阶段中提供了16个输入槽（Slot），这意味着我们最多可以同时绑定16个顶点缓冲区作为输入。

现在假定着色器需要使用的顶点结构为：

索引	顶点位置	顶点法向量	顶点UV
0	P1	N1	T0
1	P2	N2	T1
2	P3	N3	T2

示意图：

D3D11示例代码：

//////////////////////////////////////////////////////////////////////////////////////////////////////////////////
struct MeshDataInput
{
    std::vector<ID3D11Buffer*> pVertexBuffers;
    ID3D11Buffer* pIndexBuffer;
    std::vector<uint32_t> strides;
    std::vector<uint32_t> offsets;
    uint32_t indexCount;
};

MeshDataInput input;
input.pVertexBuffers = {
    meshData.pVertices.Get(),  // ComPtr<ID3D11Buffer> pVertices;  // POSITION顶点位置Buffer
    meshData.pNormals.Get(),   // ComPtr<ID3D11Buffer> pNormals;   // NORMAL法线Buffer
    meshData.pTexcoords.Get()  // ComPtr<ID3D11Buffer> pTexcoords; // TEXCOORD纹理坐标Buffer
};
input.strides = { 12, 12, 8 };
input.offsets = { 0, 0, 0 };

input.pIndexBuffer = meshData.pIndices.Get();  // Indices顶点数组
input.indexCount = meshData.IndexCount;   // Indices顶点索引数目

// 设置顶点缓冲区
deviceContext->IASetVertexBuffers(0, (uint32_t)input.pVertexBuffers.size(), input.pVertexBuffers.data(), input.strides.data(), input.offsets.data());

//////////////////////////////////////////////////////////////////////////////////////////////////////////////////
const D3D11_INPUT_ELEMENT_DESC inputLayout[3] = {
    { "POSITION", 0, DXGI_FORMAT_R32G32B32_FLOAT, 0, 0, D3D11_INPUT_PER_VERTEX_DATA, 0 },
    { "NORMAL", 0, DXGI_FORMAT_R32G32B32_FLOAT, 1, 0, D3D11_INPUT_PER_VERTEX_DATA, 0 },
    { "TEXCOORD", 0, DXGI_FORMAT_R32G32_FLOAT, 2, 0, D3D11_INPUT_PER_VERTEX_DATA, 0 }
};
ComPtr<ID3DBlob> vsBlob;
HR(CreateShaderFromFile(L"HLSL\\Triangle_VS.cso", L"HLSL\\Triangle_VS.hlsl", "VS", "vs_5_0", vsBlob.ReleaseAndGetAddressOf()));
HR(deviceContext->CreateVertexShader(vsBlob->GetBufferPointer(), vsBlob->GetBufferSize(), nullptr, vertexShader.GetAddressOf()));  // 创建顶点着色器
HR(deviceContext->CreateInputLayout(inputLayout, ARRAYSIZE(inputLayout),vsBlob->GetBufferPointer(), vsBlob->GetBufferSize(), vertexLayout.GetAddressOf())); // 创建并绑定顶点布局  //ComPtr<ID3D11InputLayout> vertexLayout

// 创建像素着色器
ComPtr<ID3DBlob> psBlob;
HR(CreateShaderFromFile(L"HLSL\\Triangle_PS.cso", L"HLSL\\Triangle_PS.hlsl", "PS", "ps_5_0", psBlob.ReleaseAndGetAddressOf()));
HR(deviceContext->CreatePixelShader(psBlob->GetBufferPointer(), psBlob->GetBufferSize(), nullptr, pixelShader.GetAddressOf()));

// 设置图元类型，设定输入布局
deviceContext->IASetPrimitiveTopology(D3D11_PRIMITIVE_TOPOLOGY_TRIANGLELIST);
deviceContext->IASetInputLayout(vertexLayout.Get());
// 将着色器绑定到渲染管线
deviceContext->VSSetShader(vertexShader.Get(), nullptr, 0);
deviceContext->PSSetShader(pixelShader.Get(), nullptr, 0);

//////////////////////////////////////////////////////////////////////////////////////////////////////////////////
// 设置IndexBuffer发起DrawCall
deviceContext->IASetIndexBuffer(input.pIndexBuffer, input.indexCount > 65535 ? DXGI_FORMAT_R32_UINT : DXGI_FORMAT_R16_UINT, 0);
deviceContext->DrawIndexed(input.indexCount, 0, 0);



VertexDeclaration的D3D11_INPUT_ELEMENT_DESC VertexElements[16]和VertexShader一起创建出输入布局（InputLayout）

typedef struct D3D11_INPUT_ELEMENT_DESC
{
   LPCSTR SemanticName;    // 语义名
   UINT SemanticIndex;     // 语义名对应的索引值
   DXGI_FORMAT Format;     // DXGI数据格式
   UINT InputSlot;         // 输入槽(0-15)
   UINT AlignedByteOffset; // 对齐的字节偏移量
   D3D11_INPUT_CLASSIFICATION InputSlotClass;  // 输入槽类别(此时为顶点)
   UINT InstanceDataStepRate;  // 忽略(0)
}     D3D11_INPUT_ELEMENT_DESC;

const D3D11_INPUT_ELEMENT_DESC inputLayout[3] = {
   { "POSITION", 0, DXGI_FORMAT_R32G32B32_FLOAT, 0, 0, D3D11_INPUT_PER_VERTEX_DATA, 0 },
   { "NORMAL", 0, DXGI_FORMAT_R32G32B32_FLOAT, 1, 0, D3D11_INPUT_PER_VERTEX_DATA, 0 },
   { "TEXCOORD", 0, DXGI_FORMAT_R32G32_FLOAT, 2, 0, D3D11_INPUT_PER_VERTEX_DATA, 0 }
};

HRESULT ID3D11Device::CreateInputLayout(
    const D3D11_INPUT_ELEMENT_DESC *pInputElementDescs, // [In]输入布局描述
    UINT NumElements,                                   // [In]上述数组元素个数
    const void *pShaderBytecodeWithInputSignature,      // [In]顶点着色器字节码
    SIZE_T BytecodeLength,                              // [In]顶点着色器字节码长度
    ID3D11InputLayout **ppInputLayout);



具体实现见GetOrCreateVertexDeclaration函数：

/** UnrealEngine\Engine\Source\Runtime\RHI\Private\PipelineStateCache.cpp **/
FRHIVertexDeclaration*    PipelineStateCache::GetOrCreateVertexDeclaration(const FVertexDeclarationElementList& Elements)
{
    // Actual locking/contention time should be close to unmeasurable
    FScopeLock ScopeLock(&GVertexDeclarationLock);
    uint32 Key = FCrc::MemCrc_DEPRECATED(Elements.GetData(), Elements.Num() * sizeof(FVertexElement));
    FRHIVertexDeclaration** Found = GVertexDeclarationCache.Find(Key);
    if (Found)
    {
        return *Found;
    }

    FVertexDeclarationRHIRef NewDeclaration = RHICreateVertexDeclaration(Elements);

    // Add an extra reference so we don't have TRefCountPtr in the maps
    NewDeclaration->AddRef();
    GVertexDeclarationCache.Add(Key, NewDeclaration);
    return NewDeclaration;
}



创建

FD3D11DynamicRHI::RHICreateVertexDeclaration(const TArray<FVertexElement,TFixedAllocator<16> > &) D3D11VertexDeclaration.cpp:119
PipelineStateCache::GetOrCreateVertexDeclaration(const TArray<FVertexElement,TFixedAllocator<16> > &) PipelineStateCache.cpp:1568
FVertexFactory::InitDeclaration(const TArray<FVertexElement,TFixedAllocator<16> > &,EVertexInputStreamType) VertexFactory.cpp:309
<lambda_1315dd09074554c3a40ed326552fe4f0>::operator()(EVertexInputStreamType,bool) LocalVertexFactory.cpp:299
FLocalVertexFactory::InitRHI() LocalVertexFactory.cpp:302
FRenderResource::InitResource() RenderResource.cpp:102
<lambda_365cb4744e50d1171ec01a60fe05292d>::operator()(FRHICommandListImmediate &) StaticMesh.cpp:876
EnqueueUniqueRenderCommand<`FStaticMeshVertexFactories::InitVertexFactory'::`2'::InitStaticMeshVertexFactoryName,<lambda_365cb4744e50d1171ec01a60fe05292d> >(<lambda_365cb4744e50d1171ec01a60fe05292d> &&) RenderingThread.h:244
FStaticMeshVertexFactories::InitVertexFactory(const FStaticMeshLODResources &,FLocalVertexFactory &,unsigned int,const UStaticMesh *,bool) StaticMesh.cpp:852
FStaticMeshVertexFactories::InitResources(const FStaticMeshLODResources &,unsigned int,const UStaticMesh *) StaticMesh.cpp:882
FStaticMeshRenderData::InitResources(Type,UStaticMesh *) StaticMesh.cpp:1612
UStaticMesh::InitResources() StaticMesh.cpp:2766
UStaticMesh::PostLoad() StaticMesh.cpp:5056
UObject::ConditionalPostLoad() Obj.cpp:1082
UBodySetup::PostLoad() BodySetup.cpp:1145
UObject::ConditionalPostLoad() Obj.cpp:1082
EndLoad(FUObjectSerializeContext *) UObjectGlobals.cpp:1647
<lambda_331d34f2fc994df37d1cf9ee9119237a>::operator()() UObjectGlobals.cpp:1255
LoadPackageInternal(UPackage *,const wchar_t *,unsigned int,FLinkerLoad *,FArchive *,const FLinkerInstancingContext *) UObjectGlobals.cpp:1360
LoadPackage(UPackage *,const wchar_t *,unsigned int,FArchive *,const FLinkerInstancingContext *) UObjectGlobals.cpp:1458
ResolveName(UObject *&,FString &,bool,bool,unsigned int,const FLinkerInstancingContext *) UObjectGlobals.cpp:787
StaticLoadObjectInternal(UClass *,UObject *,const wchar_t *,const wchar_t *,unsigned int,UPackageMap *,bool,const FLinkerInstancingContext *) UObjectGlobals.cpp:848
StaticLoadObject(UClass *,UObject *,const wchar_t *,const wchar_t *,unsigned int,UPackageMap *,bool,const FLinkerInstancingContext *) UObjectGlobals.cpp:924
ConstructorHelpersInternal::FindOrLoadObject<UStaticMesh>(FString &,unsigned int) ConstructorHelpers.h:36
ConstructorHelpers::FObjectFinder<UStaticMesh>::FObjectFinder<UStaticMesh>(const wchar_t *,unsigned int) ConstructorHelpers.h:109
UCameraComponent::UCameraComponent(const FObjectInitializer &) CameraComponent.cpp:36
UCameraComponent::__DefaultConstructor(const FObjectInitializer &) CameraComponent.h:23
InternalConstructor<UCameraComponent>(const FObjectInitializer &) Class.h:3307
UClass::CreateDefaultObject() Class.cpp:3707
FObjectInitializer::CreateDefaultSubobject(UObject *,FName,UClass *,UClass *,bool,bool) UObjectGlobals.cpp:3775
UObject::CreateDefaultSubobject(FName,UClass *,UClass *,bool,bool) Obj.cpp:114
ACameraActor::ACameraActor(const FObjectInitializer &) CameraActor.cpp:23
ACameraActor::__DefaultConstructor(const FObjectInitializer &) CameraActor.h:20
InternalConstructor<ACameraActor>(const FObjectInitializer &) Class.h:3307
UClass::CreateDefaultObject() Class.cpp:3707
UObjectLoadAllCompiledInDefaultProperties() UObjectBase.cpp:898
ProcessNewlyLoadedUObjects(FName,bool) UObjectBase.cpp:996
FEngineLoop::PreInitPostStartupScreen(const wchar_t *) LaunchEngineLoop.cpp:3015
FEngineLoop::PreInit(const wchar_t *) LaunchEngineLoop.cpp:3591
EnginePreInit(const wchar_t *) Launch.cpp:42
GuardedMain(const wchar_t *) Launch.cpp:127
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff797387a2a
__scrt_common_main_seh() 0x00007ff797387a09
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



VertexDeclaration2

FD3D11DynamicRHI::RHICreateVertexDeclaration(const TArray<FVertexElement,TFixedAllocator<16> > &) D3D11VertexDeclaration.cpp:119
PipelineStateCache::GetOrCreateVertexDeclaration(const TArray<FVertexElement,TFixedAllocator<16> > &) PipelineStateCache.cpp:1568
FVertexFactory::InitDeclaration(const TArray<FVertexElement,TFixedAllocator<16> > &,EVertexInputStreamType) VertexFactory.cpp:318
TGPUSkinVertexFactory<0>::InitRHI() GPUSkinVertexFactory.cpp:542
FRenderResource::InitResource() RenderResource.cpp:102
<lambda_59a7953239106d4c85f6b8eff539d7cf>::operator()(FRHICommandList &) SkeletalRenderGPUSkin.cpp:1332
EnqueueUniqueRenderCommand<`CreateVertexFactory<FGPUBaseSkinVertexFactory,TGPUSkinVertexFactory<0> >'::`2'::InitGPUSkinVertexFactoryName,<lambda_59a7953239106d4c85f6b8eff539d7cf> >(CreateVertexFactory::__l2::<lambda_59a7953239106d4c85f6b8eff539d7cf> &&) RenderingThread.h:244
CreateVertexFactory<FGPUBaseSkinVertexFactory,TGPUSkinVertexFactory<0> >(TArray<TUniquePtr<FGPUBaseSkinVertexFactory,TDefaultDelete<FGPUBaseSkinVertexFactory> >,TSizedDefaultAllocator<32> > &,const FSkeletalMeshObjectGPUSkin::FVertexFactoryBuffers &,Type) SkeletalRenderGPUSkin.cpp:1326
FSkeletalMeshObjectGPUSkin::FVertexFactoryData::InitVertexFactories(const FSkeletalMeshObjectGPUSkin::FVertexFactoryBuffers &,const TArray<FSkelMeshRenderSection,TSizedDefaultAllocator<32> > &,Type) SkeletalRenderGPUSkin.cpp:1545
FSkeletalMeshObjectGPUSkin::FSkeletalMeshObjectLOD::InitResources(unsigned int,const FSkeletalMeshObject::FSkelMeshObjectLODInfo &,FSkelMeshComponentLODInfo *,Type) SkeletalRenderGPUSkin.cpp:1783
FSkeletalMeshObjectGPUSkin::InitResources(USkinnedMeshComponent *) SkeletalRenderGPUSkin.cpp:191
FSkeletalMeshObjectGPUSkin::FSkeletalMeshObjectGPUSkin(USkinnedMeshComponent *,FSkeletalMeshRenderData *,Type) SkeletalRenderGPUSkin.cpp:158
USkinnedMeshComponent::CreateRenderState_Concurrent(FRegisterComponentContext *) SkinnedMeshComponent.cpp:560
UActorComponent::ExecuteRegisterEvents(FRegisterComponentContext *) ActorComponent.cpp:1532
UActorComponent::RegisterComponentWithWorld(UWorld *,FRegisterComponentContext *) ActorComponent.cpp:1220
AActor::IncrementalRegisterComponents(int,FRegisterComponentContext *) Actor.cpp:4578
ULevel::IncrementalUpdateComponents(int,bool,FRegisterComponentContext *) Level.cpp:1094
ULevel::UpdateLevelComponents(bool,FRegisterComponentContext *) Level.cpp:970
UWorld::UpdateWorldComponents(bool,bool,FRegisterComponentContext *) World.cpp:1962
UWorld::InitializeActorsForPlay(const FURL &,bool,FRegisterComponentContext *) World.cpp:4199
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:13057
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UGameInstance::StartGameInstance() GameInstance.cpp:580
UGameEngine::Start() GameEngine.cpp:1166
FEngineLoop::Init() LaunchEngineLoop.cpp:3989
EngineInit() Launch.cpp:52
GuardedMain(const wchar_t *) Launch.cpp:153
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff797387a2a
__scrt_common_main_seh() 0x00007ff797387a09
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



其他（销毁）

Material销毁

FRenderResource::ReleaseResource() RenderResource.cpp:123
FMaterialRenderProxy::ReleaseResource() MaterialShared.cpp:2713
<lambda_e6cc8b865f9ca1b211810ce543fae1b8>::operator()(FRHICommandListImmediate &) Material.cpp:4609
EnqueueUniqueRenderCommand<`UMaterial::BeginDestroy'::`9'::BeginDestroyCommandName,<lambda_e6cc8b865f9ca1b211810ce543fae1b8> >(<lambda_e6cc8b865f9ca1b211810ce543fae1b8> &&) RenderingThread.h:244
UMaterial::BeginDestroy() Material.cpp:4605
UObject::ConditionalBeginDestroy() Obj.cpp:963
UnhashUnreachableObjects(bool,float) GarbageCollection.cpp:2105
CollectGarbageInternal(EObjectFlags,bool) GarbageCollection.cpp:2043
CollectGarbage(EObjectFlags,bool) GarbageCollection.cpp:2150
UEngine::TrimMemory() UnrealEngine.cpp:13138
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:12771
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UEngine::TickWorldTravel(FWorldContext &,float) UnrealEngine.cpp:12501
UGameEngine::Tick(float,bool) GameEngine.cpp:1783
FEngineLoop::Tick() LaunchEngineLoop.cpp:4830
EngineTick() Launch.cpp:62
GuardedMain(const wchar_t *) Launch.cpp:171
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff7b1fe7a1a
__scrt_common_main_seh() 0x00007ff7b1fe79f9
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



MaterialInstance销毁

FRenderResource::ReleaseResource() RenderResource.cpp:119
FMaterialRenderProxy::ReleaseResource() MaterialShared.cpp:2713
<lambda_2fba706c712bcc395dad67e370838ab1>::operator()(FRHICommandListImmediate &) MaterialInstance.cpp:3591
EnqueueUniqueRenderCommand<`UMaterialInstance::BeginDestroy'::`9'::BeginDestroyCommandName,<lambda_2fba706c712bcc395dad67e370838ab1> >(<lambda_2fba706c712bcc395dad67e370838ab1> &&) RenderingThread.h:244
UMaterialInstance::BeginDestroy() MaterialInstance.cpp:3587
UObject::ConditionalBeginDestroy() Obj.cpp:963
UnhashUnreachableObjects(bool,float) GarbageCollection.cpp:2105
CollectGarbageInternal(EObjectFlags,bool) GarbageCollection.cpp:2043
CollectGarbage(EObjectFlags,bool) GarbageCollection.cpp:2150
UEngine::TrimMemory() UnrealEngine.cpp:13138
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:12771
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UEngine::TickWorldTravel(FWorldContext &,float) UnrealEngine.cpp:12501
UGameEngine::Tick(float,bool) GameEngine.cpp:1783
FEngineLoop::Tick() LaunchEngineLoop.cpp:4830
EngineTick() Launch.cpp:62
GuardedMain(const wchar_t *) Launch.cpp:171
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff7b1fe7a1a
__scrt_common_main_seh() 0x00007ff7b1fe79f9
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



 MapBuildDataRegistry销毁

FPrecomputedVolumetricLightmapData::ReleaseRHI() PrecomputedVolumetricLightmap.cpp:303
FRenderResource::ReleaseResource() RenderResource.cpp:119
EnqueueUniqueRenderCommand<`BeginReleaseResource'::`2'::ReleaseCommandName,<lambda_aec70190632b98f970ea922a5c9418a4> >(<lambda_aec70190632b98f970ea922a5c9418a4> &&) RenderingThread.h:244
BeginReleaseResource(FRenderResource *) RenderResource.cpp:246
UMapBuildDataRegistry::ReleaseResources(const TSet<FGuid,DefaultKeyFuncs<FGuid,0>,FDefaultSetAllocator> *) MapBuildData.cpp:912
UMapBuildDataRegistry::BeginDestroy() MapBuildData.cpp:492
UObject::ConditionalBeginDestroy() Obj.cpp:963
UnhashUnreachableObjects(bool,float) GarbageCollection.cpp:2105
CollectGarbageInternal(EObjectFlags,bool) GarbageCollection.cpp:2043
CollectGarbage(EObjectFlags,bool) GarbageCollection.cpp:2150
UEngine::TrimMemory() UnrealEngine.cpp:13138
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:12771
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UEngine::TickWorldTravel(FWorldContext &,float) UnrealEngine.cpp:12501
UGameEngine::Tick(float,bool) GameEngine.cpp:1783
FEngineLoop::Tick() LaunchEngineLoop.cpp:4830
EngineTick() Launch.cpp:62
GuardedMain(const wchar_t *) Launch.cpp:171
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff7b1fe7a1a
__scrt_common_main_seh() 0x00007ff7b1fe79f9
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



LightComponent销毁

BeginReleaseResource(FRenderResource *) RenderResource.cpp:251
ULightComponent::BeginDestroy() LightComponent.cpp:785
UObject::ConditionalBeginDestroy() Obj.cpp:963
UnhashUnreachableObjects(bool,float) GarbageCollection.cpp:2105
CollectGarbageInternal(EObjectFlags,bool) GarbageCollection.cpp:2043
CollectGarbage(EObjectFlags,bool) GarbageCollection.cpp:2150
UEngine::TrimMemory() UnrealEngine.cpp:13138
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:12771
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UEngine::TickWorldTravel(FWorldContext &,float) UnrealEngine.cpp:12501
UGameEngine::Tick(float,bool) GameEngine.cpp:1783
FEngineLoop::Tick() LaunchEngineLoop.cpp:4830
EngineTick() Launch.cpp:62
GuardedMain(const wchar_t *) Launch.cpp:171
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff7b1fe7a1a
__scrt_common_main_seh() 0x00007ff7b1fe79f9
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



FLightSceneInfo销毁

FLightSceneInfo::ReleaseRHI() LightSceneInfo.cpp:271
FRenderResource::ReleaseResource() RenderResource.cpp:119
FLightSceneInfo::~FLightSceneInfo() LightSceneInfo.cpp:73
FLightSceneInfo::`scalar deleting destructor'(unsigned int) 0x00007fffcd071e7c
FScene::RemoveLightSceneInfo_RenderThread(FLightSceneInfo *) RendererScene.cpp:2832
<lambda_4694209b136cda5099744ac7c3788731>::operator()(FRHICommandListImmediate &) RendererScene.cpp:2855
EnqueueUniqueRenderCommand<`FScene::RemoveLight'::`5'::FRemoveLightCommandName,<lambda_4694209b136cda5099744ac7c3788731> >(<lambda_4694209b136cda5099744ac7c3788731> &&) RenderingThread.h:244
FScene::RemoveLight(ULightComponent *) RendererScene.cpp:2851
ULightComponent::DestroyRenderState_Concurrent() LightComponent.cpp:851
UActorComponent::ExecuteUnregisterEvents() ActorComponent.cpp:1548
UActorComponent::UnregisterComponent() ActorComponent.cpp:1300
AActor::UnregisterAllComponents(bool) Actor.cpp:4498
ULevel::ClearLevelComponents() Level.cpp:894
UWorld::ClearWorldComponents() World.cpp:1898
UWorld::CleanupWorldInternal(bool,bool,UWorld *) World.cpp:4428
UWorld::CleanupWorld(bool,bool,UWorld *) World.cpp:4366
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:12727
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UEngine::TickWorldTravel(FWorldContext &,float) UnrealEngine.cpp:12501
UGameEngine::Tick(float,bool) GameEngine.cpp:1783
FEngineLoop::Tick() LaunchEngineLoop.cpp:4830
EngineTick() Launch.cpp:62
GuardedMain(const wchar_t *) Launch.cpp:171
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff7b1fe7a1a
__scrt_common_main_seh() 0x00007ff7b1fe79f9
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



AtmosphereFogComponent销毁

FRenderResource::ReleaseResource() RenderResource.cpp:119
<lambda_19d2675f03c79a689d48b066db712619>::operator()(FRHICommandListImmediate &) AtmosphericFogComponent.cpp:254
EnqueueUniqueRenderCommand<`UAtmosphericFogComponent::ReleaseResource'::`5'::ReleaseAtmosphericFogTransmittanceTextureCommandName,<lambda_19d2675f03c79a689d48b066db712619> >(<lambda_19d2675f03c79a689d48b066db712619> &&) RenderingThread.h:244
UAtmosphericFogComponent::ReleaseResource() AtmosphericFogComponent.cpp:247
UAtmosphericFogComponent::BeginDestroy() AtmosphericFogComponent.cpp:237
UObject::ConditionalBeginDestroy() Obj.cpp:963
UnhashUnreachableObjects(bool,float) GarbageCollection.cpp:2105
CollectGarbageInternal(EObjectFlags,bool) GarbageCollection.cpp:2043
CollectGarbage(EObjectFlags,bool) GarbageCollection.cpp:2150
UEngine::TrimMemory() UnrealEngine.cpp:13138
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:12771
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UEngine::TickWorldTravel(FWorldContext &,float) UnrealEngine.cpp:12501
UGameEngine::Tick(float,bool) GameEngine.cpp:1783
FEngineLoop::Tick() LaunchEngineLoop.cpp:4830
EngineTick() Launch.cpp:62
GuardedMain(const wchar_t *) Launch.cpp:171
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff7b1fe7a1a
__scrt_common_main_seh() 0x00007ff7b1fe79f9
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



DrawCall

D3D11发起DrawCall

// 设置图元类型
deviceContext->IASetPrimitiveTopology(D3D11_PRIMITIVE_TOPOLOGY_TRIANGLELIST);

// 设置索引缓冲区(IndexBuffer)
deviceContext->IASetIndexBuffer(pIndexBuffer.Get(), DXGI_FORMAT_R32_UINT, 0);  // ComPtr<ID3D11Buffer> pIndexBuffer;
// 发起DrawCall
deviceContext->DrawIndexed(indexCount, 0, 0); // uint32_t indexCount  // index索引的个数



发起DrawCall1

FD3D11DynamicRHI::RHIDrawIndexedPrimitive(FRHIIndexBuffer *,int,unsigned int,unsigned int,unsigned int,unsigned int,unsigned int) D3D11Commands.cpp:1764
FRHICommandList::DrawIndexedPrimitive(FRHIIndexBuffer *,int,unsigned int,unsigned int,unsigned int,unsigned int,unsigned int) RHICommandList.h:3085
FOcclusionQueryBatcher::Flush(FRHICommandList &) SceneOcclusion.cpp:370
BeginOcclusionTests(FRHICommandListImmediate &,TArrayView<FViewInfo,int>,Type,const TArray<FViewOcclusionQueries,TInlineAllocator<1,TMemStackAllocator<0> > > &,unsigned int) SceneOcclusion.cpp:1300
<lambda_c2fed0f97485c798522737d96c81424a>::operator()(FRHICommandListImmediate &) SceneOcclusion.cpp:1381
TRDGLambdaPass<FRenderTargetParameters,<lambda_c2fed0f97485c798522737d96c81424a> >::ExecuteImpl(FRHIComputeCommandList &) RenderGraphPass.h:424
FRDGPass::Execute(FRHIComputeCommandList &) RenderGraphPass.cpp:302
FRDGBuilder::ExecutePass(FRDGPass *) RenderGraphBuilder.cpp:1591
FRDGBuilder::Execute() RenderGraphBuilder.cpp:1257
FDeferredShadingSceneRenderer::Render(FRHICommandListImmediate &) DeferredShadingRenderer.cpp:2612
RenderViewFamily_RenderThread(FRHICommandListImmediate &,FSceneRenderer *) SceneRendering.cpp:3616
<lambda_73be3b292d373df226bf787512bb165a>::operator()(FRHICommandListImmediate &) SceneRendering.cpp:3887
EnqueueUniqueRenderCommand<`FRendererModule::BeginRenderingViewFamily'::`35'::FDrawSceneCommandName,<lambda_73be3b292d373df226bf787512bb165a> >(<lambda_73be3b292d373df226bf787512bb165a> &&) RenderingThread.h:244
FRendererModule::BeginRenderingViewFamily(FCanvas *,FSceneViewFamily *) SceneRendering.cpp:3881
UGameViewportClient::Draw(FViewport *,FCanvas *) GameViewportClient.cpp:1630
FViewport::Draw(bool) UnrealClient.cpp:1557
UGameEngine::RedrawViewports(bool) GameEngine.cpp:702
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:13104
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UGameInstance::StartGameInstance() GameInstance.cpp:580
UGameEngine::Start() GameEngine.cpp:1166
FEngineLoop::Init() LaunchEngineLoop.cpp:3989
EngineInit() Launch.cpp:52
GuardedMain(const wchar_t *) Launch.cpp:153
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff616ff7a1a
__scrt_common_main_seh() 0x00007ff616ff79f9
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



发起DrawCall2

FD3D11DynamicRHI::RHIDrawIndexedPrimitive(FRHIIndexBuffer *,int,unsigned int,unsigned int,unsigned int,unsigned int,unsigned int) D3D11Commands.cpp:1764
FRHICommandList::DrawIndexedPrimitive(FRHIIndexBuffer *,int,unsigned int,unsigned int,unsigned int,unsigned int,unsigned int) RHICommandList.h:3085
FMeshDrawCommand::SubmitDraw(const FMeshDrawCommand &__restrict,const Experimental::TRobinHoodHashSet<FGraphicsMinimalPipelineStateInitializer,DefaultKeyFuncs<FGraphicsMinimalPipelineStateInitializer,0>,TSizedDefaultAllocator<32> > &,FRHIVertexBuffer *,int,unsigned int,FRHICommandList &,FMeshDrawCommandStateCache &__restrict) MeshPassProcessor.cpp:1173
SubmitMeshDrawCommandsRange(const TArray<FVisibleMeshDrawCommand,TMemStackAllocator<0> > &,const Experimental::TRobinHoodHashSet<FGraphicsMinimalPipelineStateInitializer,DefaultKeyFuncs<FGraphicsMinimalPipelineStateInitializer,0>,TSizedDefaultAllocator<32> > &,FRHIVertexBuffer *,int,bool,int,int,unsigned int,FRHICommandList &) MeshPassProcessor.cpp:1256
FParallelMeshDrawCommandPass::DispatchDraw(FParallelCommandListSet *,FRHICommandList &) MeshDrawCommands.cpp:1345
FProjectedShadowInfo::RenderDepthInner(FRHICommandListImmediate &,FSceneRenderer *,TFunctionRef<void __cdecl(FRHICommandList &,bool)>,bool) ShadowDepthRendering.cpp:1215
FProjectedShadowInfo::RenderDepth(FRHICommandListImmediate &,FSceneRenderer *,TFunctionRef<void __cdecl(FRHICommandList &,bool)>,bool) ShadowDepthRendering.cpp:1310
FSceneRenderer::RenderShadowDepthMapAtlases(FRHICommandListImmediate &) ShadowDepthRendering.cpp:1561
FSceneRenderer::RenderShadowDepthMaps(FRHICommandListImmediate &) ShadowDepthRendering.cpp:1596
TRDGLambdaPass<FEmptyShaderParameters,<lambda_eb152669f71926859a99dd6c6dc64438> >::ExecuteImpl(FRHIComputeCommandList &) RenderGraphPass.h:424
FRDGPass::Execute(FRHIComputeCommandList &) RenderGraphPass.cpp:302
FRDGBuilder::ExecutePass(FRDGPass *) RenderGraphBuilder.cpp:1591
FRDGBuilder::Execute() RenderGraphBuilder.cpp:1257
FDeferredShadingSceneRenderer::Render(FRHICommandListImmediate &) DeferredShadingRenderer.cpp:2612
RenderViewFamily_RenderThread(FRHICommandListImmediate &,FSceneRenderer *) SceneRendering.cpp:3616
<lambda_73be3b292d373df226bf787512bb165a>::operator()(FRHICommandListImmediate &) SceneRendering.cpp:3887
EnqueueUniqueRenderCommand<`FRendererModule::BeginRenderingViewFamily'::`35'::FDrawSceneCommandName,<lambda_73be3b292d373df226bf787512bb165a> >(<lambda_73be3b292d373df226bf787512bb165a> &&) RenderingThread.h:244
FRendererModule::BeginRenderingViewFamily(FCanvas *,FSceneViewFamily *) SceneRendering.cpp:3881
UGameViewportClient::Draw(FViewport *,FCanvas *) GameViewportClient.cpp:1630
FViewport::Draw(bool) UnrealClient.cpp:1557
UGameEngine::RedrawViewports(bool) GameEngine.cpp:702
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:13104
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UGameInstance::StartGameInstance() GameInstance.cpp:580
UGameEngine::Start() GameEngine.cpp:1166
FEngineLoop::Init() LaunchEngineLoop.cpp:3989
EngineInit() Launch.cpp:52
GuardedMain(const wchar_t *) Launch.cpp:153
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff616ff7a1a
__scrt_common_main_seh() 0x00007ff616ff79f9
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1



发起DrawCall3

FD3D11DynamicRHI::RHIDrawIndexedPrimitive(FRHIIndexBuffer *,int,unsigned int,unsigned int,unsigned int,unsigned int,unsigned int) D3D11Commands.cpp:1731
FRHICommandList::DrawIndexedPrimitive(FRHIIndexBuffer *,int,unsigned int,unsigned int,unsigned int,unsigned int,unsigned int) RHICommandList.h:3085
FMeshDrawCommand::SubmitDraw(const FMeshDrawCommand &__restrict,const Experimental::TRobinHoodHashSet<FGraphicsMinimalPipelineStateInitializer,DefaultKeyFuncs<FGraphicsMinimalPipelineStateInitializer,0>,TSizedDefaultAllocator<32> > &,FRHIVertexBuffer *,int,unsigned int,FRHICommandList &,FMeshDrawCommandStateCache &__restrict) MeshPassProcessor.cpp:1173
SubmitMeshDrawCommandsRange(const TArray<FVisibleMeshDrawCommand,TMemStackAllocator<0> > &,const Experimental::TRobinHoodHashSet<FGraphicsMinimalPipelineStateInitializer,DefaultKeyFuncs<FGraphicsMinimalPipelineStateInitializer,0>,TSizedDefaultAllocator<32> > &,FRHIVertexBuffer *,int,bool,int,int,unsigned int,FRHICommandList &) MeshPassProcessor.cpp:1256
FParallelMeshDrawCommandPass::DispatchDraw(FParallelCommandListSet *,FRHICommandList &) MeshDrawCommands.cpp:1345
FDeferredShadingSceneRenderer::RenderPrePassView(FRHICommandList &,const FViewInfo &) DepthRendering.cpp:254
FDeferredShadingSceneRenderer::RenderPrePass(FRHICommandListImmediate &,TFunctionRef<void __cdecl(void)>) DepthRendering.cpp:676
FDeferredShadingSceneRenderer::Render(FRHICommandListImmediate &) DeferredShadingRenderer.cpp:1702
RenderViewFamily_RenderThread(FRHICommandListImmediate &,FSceneRenderer *) SceneRendering.cpp:3616
<lambda_73be3b292d373df226bf787512bb165a>::operator()(FRHICommandListImmediate &) SceneRendering.cpp:3887
EnqueueUniqueRenderCommand<`FRendererModule::BeginRenderingViewFamily'::`35'::FDrawSceneCommandName,<lambda_73be3b292d373df226bf787512bb165a> >(<lambda_73be3b292d373df226bf787512bb165a> &&) RenderingThread.h:244
FRendererModule::BeginRenderingViewFamily(FCanvas *,FSceneViewFamily *) SceneRendering.cpp:3881
UGameViewportClient::Draw(FViewport *,FCanvas *) GameViewportClient.cpp:1630
FViewport::Draw(bool) UnrealClient.cpp:1557
UGameEngine::RedrawViewports(bool) GameEngine.cpp:702
UEngine::LoadMap(FWorldContext &,FURL,UPendingNetGame *,FString &) UnrealEngine.cpp:13104
UEngine::Browse(FWorldContext &,FURL,FString &) UnrealEngine.cpp:12303
UGameInstance::StartGameInstance() GameInstance.cpp:580
UGameEngine::Start() GameEngine.cpp:1166
FEngineLoop::Init() LaunchEngineLoop.cpp:3989
EngineInit() Launch.cpp:52
GuardedMain(const wchar_t *) Launch.cpp:153
WinMain(HINSTANCE__ *,HINSTANCE__ *,char *,int) LaunchWindows.cpp:257
[Inlined] invoke_main() 0x00007ff616ff7a1a
__scrt_common_main_seh() 0x00007ff616ff79f9
<unknown> 0x00007ff893da7614
<unknown> 0x00007ff8956e26a1
