UE4之PVD调试

PhysX在编译时必须开启PX_SUPPORT_PVD宏（PhysX的Debug、Profiler版本的库会开启该宏），才能支持 PVD 的调试。

游戏缺省会使用localhost，端口为5425，连接超时时间为100ms来与Physx Visual Debugger工具建立连接。

如果要修改PVD的端口号，只能修改pvd.exe的31150000（为5425的16进制小端序）数值，如下：

引擎连接PVD的逻辑在：UnrealEngine\Engine\Source\Runtime\PhysicsCore\Private\PhysXSupportCore.cpp的void PvdConnect(FString Host, bool bVisualization)函数中。

注意

1. 在使用PVD之前，必须先启动Physx Visual Debugger工具。

2. 不可同时运行多个PVD进程（打开任务管理器进行确认）

通过命令行参数连接Physx Visual Debugger工具

UE4Editor.exe "%GameDir%\MyGame.uproject" TestMap_Main -game -pvd // 单机启动TestMap_Main地图，并自动连接本机正在运行的PhysX Visual Debugger

通过控制台命令连接Physx Visual Debugger工具

pvd CONNECT // 连接本机正在运行的PVD 注：调用void PvdConnect(FString Host, bool bVisualization)函数

pvd CONNECT 10.46.80.77 // 连接ip为10.46.80.77上正在运行的PVD 注：缺省端口为5425，连接超时时间为100ms

pvd CONNECT NODEBUG 10.46.80.77 // 连接ip为10.46.80.77上正在运行的PVD，仅用于profile和meomry，不绘制注：缺省端口为5425，连接超时时间为100ms

pvd DISCONNECT // 断开与PVD的连接

Physx Visual Debugger主界面

注：使用左手系（Left-Handed），与虚幻引擎保证画面一致

线框模式：

绘制出Velocity（速度）

在Physx Visual Debugger中不同rigid（刚体）的颜色

注：PVD 的 Cloth 可视化只对 legacy PxCloth 有效（已废弃的 PxCloth）；而NvCloth 完全没有 PVD 集成，且其对象不在 PxScene 中，所以在PVD中看不到

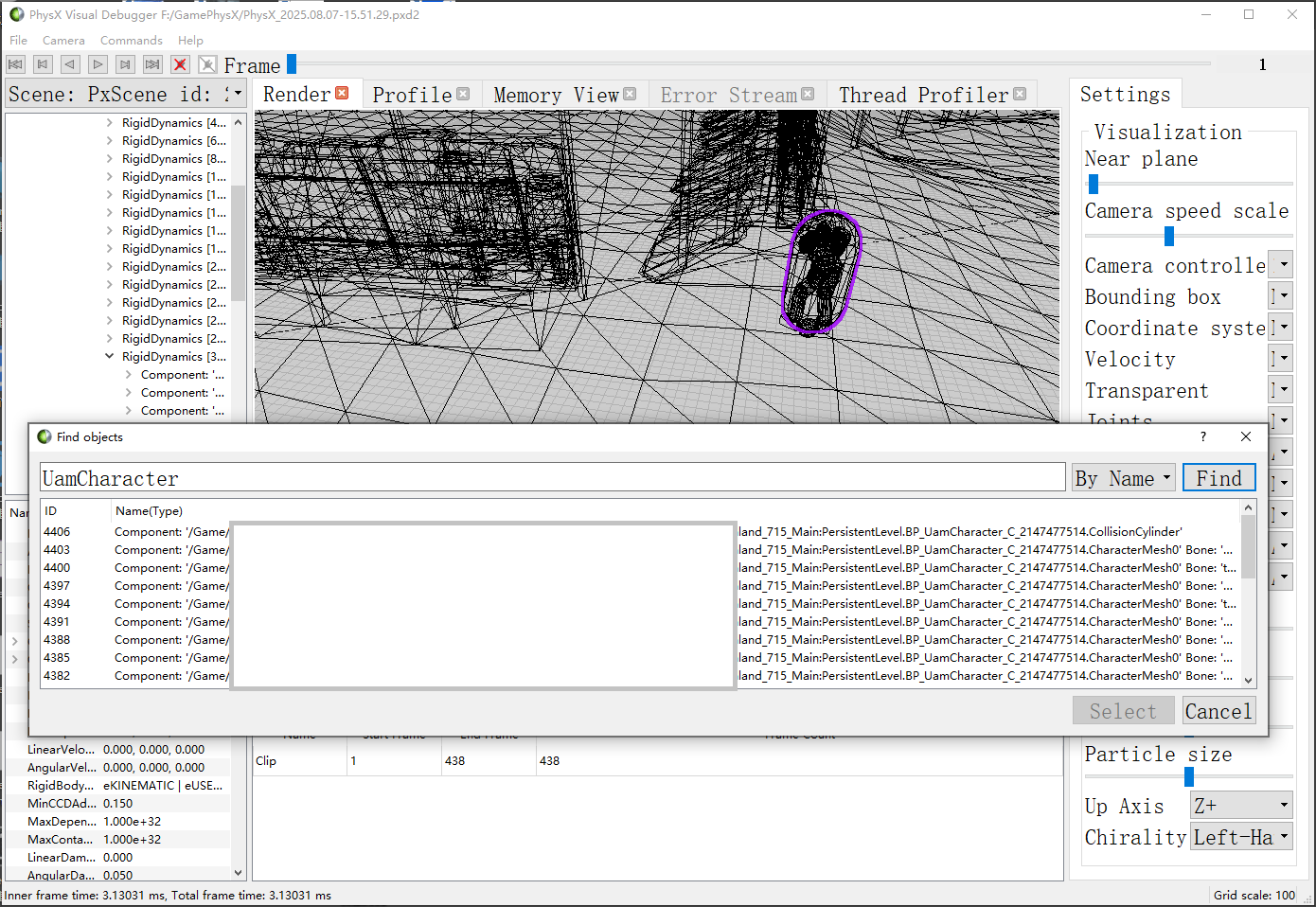

使用菜单Commands -- Find Objects来搜索目标对象

例如搜索名字中带有：UamCharacter字样的对象

在Physx Visual Debugger中实时查看游戏的物理

在编辑器Preview模式下所有物体都会创建物理对象

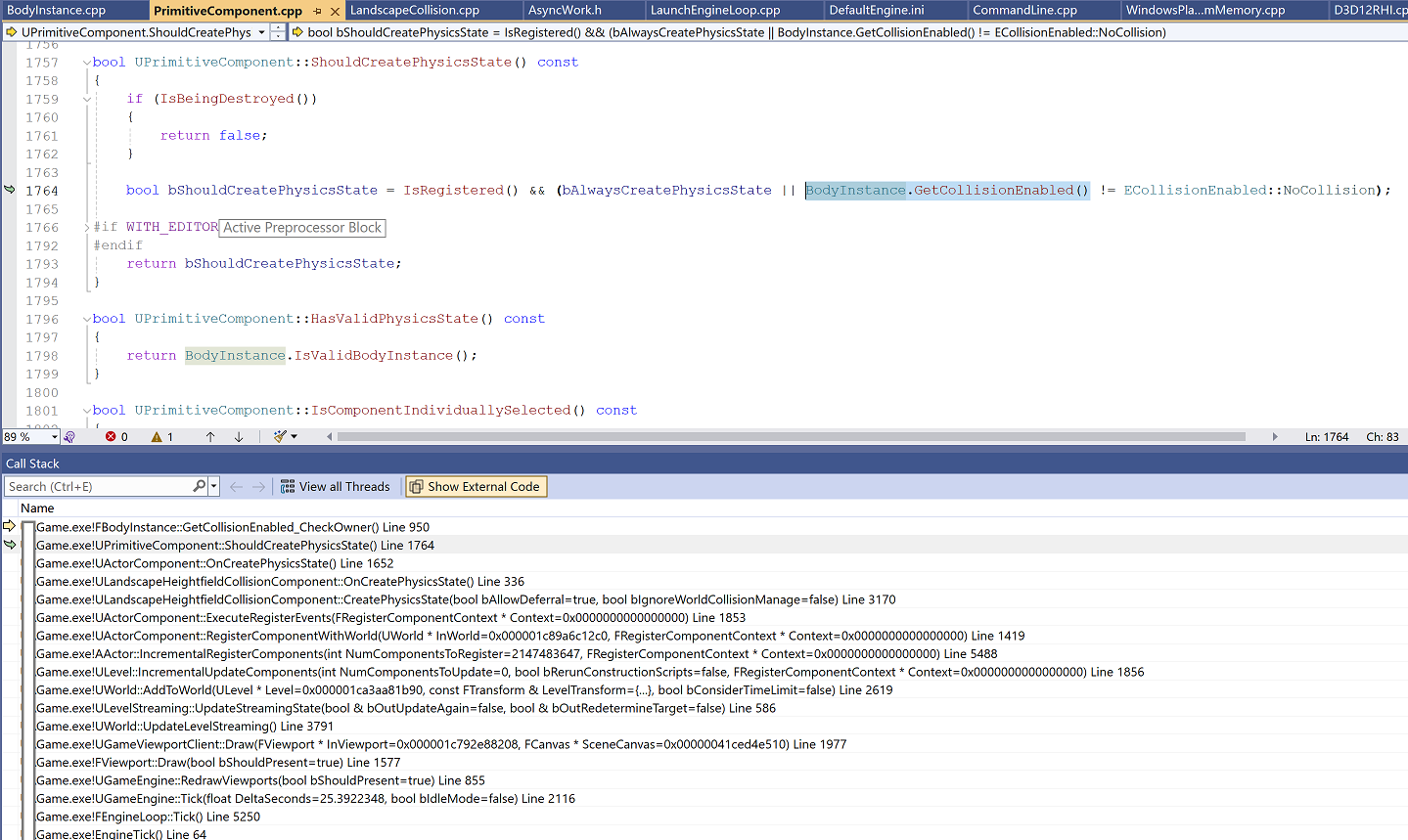

>    UE4Editor-Engine-Win64-Debug.dll!UPrimitiveComponent::ShouldCreatePhysicsState() Line 1409    C++
     UE4Editor-Engine-Win64-Debug.dll!UActorComponent::CreatePhysicsState(bool bAllowDeferral=true) Line 1462    C++
     UE4Editor-Engine-Win64-Debug.dll!UActorComponent::ExecuteRegisterEvents(FRegisterComponentContext * Context=0x0000000000000000) Line 1537    C++
     UE4Editor-Engine-Win64-Debug.dll!UActorComponent::RegisterComponentWithWorld(UWorld * InWorld=0x0000024082b9b580, FRegisterComponentContext * Context=0x0000000000000000) Line 1223    C++
     UE4Editor-Engine-Win64-Debug.dll!AActor::IncrementalRegisterComponents(int NumComponentsToRegister=2147483647, FRegisterComponentContext * Context=0x0000000000000000) Line 4582    C++
     UE4Editor-Engine-Win64-Debug.dll!ULevel::IncrementalUpdateComponents(int NumComponentsToUpdate=0, bool bRerunConstructionScripts=true, FRegisterComponentContext * Context=0x0000000000000000) Line 1094    C++
     UE4Editor-Engine-Win64-Debug.dll!ULevel::UpdateLevelComponents(bool bRerunConstructionScripts=true, FRegisterComponentContext * Context=0x0000000000000000) Line 971    C++
     UE4Editor-Engine-Win64-Debug.dll!UWorld::UpdateWorldComponents(bool bRerunConstructionScripts=true, bool bCurrentLevelOnly=true, FRegisterComponentContext * Context=0x0000000000000000) Line 1963    C++
     UE4Editor-UnrealEd-Win64-Debug.dll!UEditorEngine::Map_Load(const wchar_t * Str=0x00000241c3ab9fb2, FOutputDevice & Ar={...}) Line 2771    C++
     UE4Editor-UnrealEd-Win64-Debug.dll!UEditorEngine::HandleMapCommand(const wchar_t * Str=0x00000241c3ab9fb2, FOutputDevice & Ar={...}, UWorld * InWorld=0x0000000000000000) Line 6148    C++
     UE4Editor-UnrealEd-Win64-Debug.dll!UEditorEngine::Exec(UWorld * InWorld=0x0000000000000000, const wchar_t * Stream=0x00000241c3aba080, FOutputDevice & Ar={...}) Line 5705    C++
     UE4Editor-UnrealEd-Win64-Debug.dll!UUnrealEdEngine::Exec(UWorld * InWorld=0x0000000000000000, const wchar_t * Stream=0x00000241c3aba080, FOutputDevice & Ar={...}) Line 697    C++
     UE4Editor-UnrealEd-Win64-Debug.dll!FEditorFileUtils::LoadMap(const FString & InFilename={...}, bool LoadAsTemplate=false, const bool bShowProgress=true) Line 2554    C++

注1：在编辑器Preview模式下，打开地图时，World的bEnableTraceCollsion为true，ECollisionEnabled::NoCollision的物体也会创建物理对象

注2：PIE下，InitWorld时传入缺省的InitializationValues()参数，使得World的bEnableTraceCollsion为false，但由于此时存在2个World（Preview World和PIE World），在PVD中依然会显示ECollisionEnabled::NoCollision的物体

注3：Standalone下，打开地图时，InitWorld时传入缺省的InitializationValues()参数，使得World的bEnableTraceCollsion为false，ECollisionEnabled::NoCollision的物体不会创建物理对象

Landscape没有Owner，缺省无法通过ECollisionEnabled::NoCollision来关闭物理的创建：

注意2

因此，要在Standalone模式下，使用PhysX Visual Debugger工具来查看对象的物理。

或者，在编辑器中打开的空场景，并PIE运行，然后open切换到目标地图，就可以用PhysX Visual Debugger工具来查看目标地图的物理了。

PhysX中函数的耗时情况

PhysX内存统计

PhysX中线程执行情况

对上图的后面时间段进行放大：

注意3

Physx Visual Debugger工具非常不稳定，容易发生崩溃。

在使用时，建议工具栏上点击Disconnect按钮停止采集，保存到pxd2文件后，再查看场景中的对象和性能相关的数据。

写pxd2文件

/** UnrealEngine\Engine\Source\Runtime\PhysicsCore\Private\PhysXSupportCore.cpp */
void PvdConnect(FString Host, bool bVisualization)
{
    int32    Port = 5425;         // TCP port to connect to, where PVD is listening

    uint32    Timeout = 1000;          // timeout in milliseconds to wait for PVD to respond, consoles and remote PCs need a higher timeout.

    PxPvdInstrumentationFlags ConnectionFlags = bVisualization ? PxPvdInstrumentationFlag::eALL : (PxPvdInstrumentationFlag::ePROFILE | PxPvdInstrumentationFlag::eMEMORY);

    PxPvdTransport* transport = nullptr;
    if (Host == FString(TEXT("localfile")))
    {
        FString PhysXProfilingPath = FPaths::ProfilingDir() + TEXT("PhysXProfiling");
        if (!IFileManager::Get().DirectoryExists(*PhysXProfilingPath))
        {
            IFileManager::Get().MakeDirectory(*PhysXProfilingPath, true);
        }

        FString PvdToSave = FString::Printf(TEXT("%s/PhysX_%s.pxd2"), *PhysXProfilingPath, *FDateTime::Now().ToString());
        transport = PxDefaultPvdFileTransportCreate(TCHAR_TO_ANSI(*PvdToSave));
    }
    else
    {
        transport = PxDefaultPvdSocketTransportCreate(TCHAR_TO_ANSI(*Host), Port, Timeout);
    }

    if (transport != nullptr)
    {
        GPhysXVisualDebugger->disconnect();    //make sure we're disconnected first
        GPhysXVisualDebugger->connect(*transport, ConnectionFlags);
    }

    // per scene properties (e.g. PxPvdSceneFlag::eTRANSMIT_CONSTRAINTS) are
    // set on the PxPvdSceneClient in PhysScene.cpp, FPhysScene::InitPhysScene
}
#endif // WITH_PHYSX

pvd CONNECT localfile // 写pvd文件注：dev包有效 test包写出的pxd2文件大小为0KB

pvd CONNECT NODEBUG localfile // 写pvd文件，仅用于profile和meomry，不绘制

pvd DISCONNECT // 断开与PVD的连接

PVD打开.pxd2文件提示： “the file is corrupted”

原因1：该.pxd2文件被其他进程占用着

原因2：使用老的pvd软件（如：3.2018.04.23896843），可下载3.2021.01.29532135版本来使用

PVD打开.pxd2文件发生崩溃

==============================================================================
