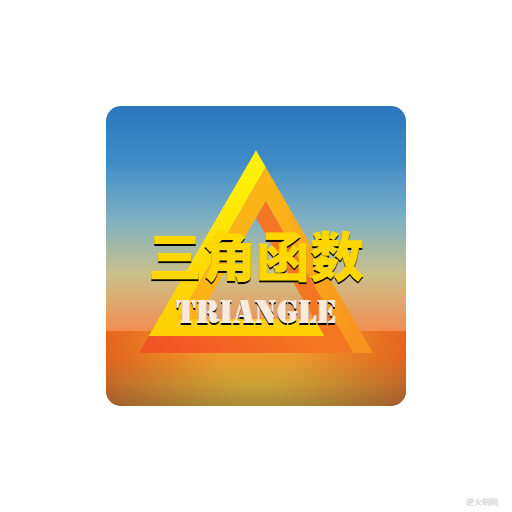

【成图】

120*120的png图标

大小图:

【代码】

<!DOCTYPE html>
<html lang="utf-8">
<meta http-equiv="Content-Type" content="text/html; charset=utf-8"/>
<head>
     <title>三角函数图标 Draft1</title>
     <style type="text/css">
     .centerlize{
        margin:0 auto;
        width:1200px;
     }
     </style>
     </head>

     <body onload="init();">
        <div class="centerlize">
            <canvas id="myCanvas" width="12px" height="12px" style="border:1px dotted black;">
                如果看到这段文字说您的浏览器尚不支持HTML5 Canvas,请更换浏览器再试.
            </canvas>
        </div>
     </body>
</html>
<script type="text/javascript">
<!--
/*****************************************************************
* 将全体代码(从<!DOCTYPE到script>)拷贝下来,粘贴到文本编辑器中,
* 另存为.html文件,再用chrome浏览器打开,就能看到实现效果。
******************************************************************/

// canvas的绘图环境
var ctx;

// 高宽
const WIDTH=512;
const HEIGHT=512;

// 舞台对象
var stage;

//-------------------------------
// 初始化
//-------------------------------
function init(){
    // 获得canvas对象
    var canvas=document.getElementById('myCanvas');
    canvas.width=WIDTH;
    canvas.height=HEIGHT;

    // 初始化canvas的绘图环境
    ctx=canvas.getContext('2d');
    ctx.translate(WIDTH/2,HEIGHT/2);// 原点平移

    // 准备
    stage=new Stage();
    stage.init();

    // 开幕
    animate();
}

// 播放动画
function animate(){
    stage.update();
    stage.paintBg(ctx);
    stage.paintFg(ctx);

    // 循环
    if(true){
        //sleep(100);
        window.requestAnimationFrame(animate);
    }
}

// 舞台类
function Stage(){
    // 初始化
    this.init=function(){

    }

    // 更新
    this.update=function(){

    }

    // 画背景
    this.paintBg=function(ctx){
        ctx.clearRect(-WIDTH/2,-HEIGHT/2,WIDTH,HEIGHT);// 清屏
    }

    // 画前景
    this.paintFg=function(ctx){
        // 底色
        //ctx.save();
        //ctx.fillStyle = "white";
        //ctx.fillRect(-WIDTH/2,-HEIGHT/2,WIDTH,HEIGHT);
        //ctx.restore();

        const R=210;//基准尺寸

        // #背景
        ctx.save();
        r=R*1.00;
        drawRoundRect(ctx,0,0,2*r,2*r,R/10);
        ctx.clip();

        var w=2*r;
        var h=w*3/4;
        var gnt=ctx.createLinearGradient(0,-r,0,r/2);
        gnt.addColorStop(0,"rgb(44,118,189)");
        gnt.addColorStop(0.25,"rgb(64,140,198)");
        gnt.addColorStop(0.5,"rgb(125,176,195)");
        gnt.addColorStop(0.75,"rgb(203,192,138)");
        gnt.addColorStop(1,"rgb(242,142,82)");
        ctx.fillStyle=gnt;
        drawRect(ctx,0,-r/4,w,h);
        ctx.fill();

        h=w*1/4;
        var gnt=ctx.createLinearGradient(0,r/2,0,r);
        gnt.addColorStop(0,"rgb(234,74,16)");
        gnt.addColorStop(0.35,"rgb(226,73,15)");
        gnt.addColorStop(0.7,"rgb(160,86,37)");
        gnt.addColorStop(1,"rgb(95,67,46)");
        ctx.fillStyle=gnt;
        drawRect(ctx,0,r*3/4,w,h);
        ctx.fill();

        var gnt=ctx.createRadialGradient(0,r*0.6,r/4,0,r/2,r*2);
        gnt.addColorStop(0,"rgba(248,237,70,0.5)");
        gnt.addColorStop(0.5,"rgba(224,111,41,0.5)");
        gnt.addColorStop(1,"rgba(93,66,47,0.5)");
        ctx.fillStyle=gnt;
        drawRect(ctx,0,r*3/4,w,h);
        ctx.fill();

        ctx.restore();

        // 绘制三角形
        ctx.save();
        var colors=[
                    ["rgb(244,118,34)","rgb(241,85,36)"],
                    ["rgb(254,209,4)","rgb(255,241,4)",],
                    ["rgb(252,179,24)","rgb(247,148,31)"],
                   ];// L的两端颜色

        const N=3;// 改变此值即可
        var r=R*0.45;
        var h=r/2;

        for(var i=0;i<N;i++){
            var theta=Math.PI*2/N*i-Math.PI/2;
            var a=createPt(r*Math.cos(theta),r*Math.sin(theta)+r/2.3);
            var alpha=Math.PI/N;

            var rad=h/2/Math.sin(alpha);
            var angle=theta+Math.PI/2-alpha;
            var b=createPt(a.x+rad*Math.cos(angle),a.y+rad*Math.sin(angle));

            rad=r*3*Math.sin(alpha);
            angle+=Math.PI/N*2;
            var c=createPt(b.x+rad*Math.cos(angle),b.y+rad*Math.sin(angle));

            rad=r*4*Math.sin(alpha)-h/2/Math.sin(alpha);
            angle+=Math.PI/N*2;
            var d=createPt(c.x+rad*Math.cos(angle),c.y+rad*Math.sin(angle));

            rad=h/2/Math.sin(alpha);
            angle+=Math.PI/N*2;
            var e=createPt(d.x+rad*Math.cos(angle),d.y+rad*Math.sin(angle));

            rad=r*3*Math.sin(alpha);
            angle+=Math.PI-Math.PI/N*2;
            var f=createPt(e.x+rad*Math.cos(angle),e.y+rad*Math.sin(angle));

            // 渐变色
            var gnt=ctx.createLinearGradient(b.x,b.y,d.x,d.y);
            gnt.addColorStop(0.4,colors[i][0]);
            gnt.addColorStop(0.9,colors[i][1]);
            ctx.fillStyle=gnt;

            // 填充绘图
            ctx.beginPath();
            ctx.moveTo(a.x,a.y);
            ctx.lineTo(b.x,b.y);
            ctx.lineTo(c.x,c.y);
            ctx.lineTo(d.x,d.y);
            ctx.lineTo(e.x,e.y);
            ctx.lineTo(f.x,f.y);
            ctx.closePath();
            ctx.fill();
        }
        ctx.restore();

        // 文字
        ctx.save();
        var text="三角函数";
        writeText(ctx,0,r*0.43,text,r*0.8+"px Noto Sans SC Black","black");
        writeText(ctx,0,r*0.40,text,r*0.8+"px Noto Sans SC Black","gold");
        var text="Triangle";
        writeText(ctx,0,r*1.13,text,r*0.45+"px Stencil Std","black");
        writeText(ctx,0,r*1.11,text,r*0.45+"px Stencil Std","rgb(248,234,221)");
        ctx.restore();

        writeText(ctx,WIDTH/2-30,HEIGHT/2-5,"逆火制图","8px consolas","lightgrey");// 版权
    }
}

/*----------------------------------------------------------
函数:用于绘制圆角矩形
ctx:绘图上下文
x:矩形中心横坐标
y:矩形中心纵坐标
width:矩形宽
height:矩形高
radius:圆角半径
----------------------------------------------------------*/
function drawRoundRect(ctx,x,y,width,height,radius){
    ctx.beginPath();
    ctx.moveTo(x-width/2+radius,y-height/2);
    ctx.lineTo(x+width/2-radius,y-height/2);
    ctx.arcTo(x+width/2,y-height/2,x+width/2,y-height/2+radius,radius);
    ctx.lineTo(x+width/2,y-height/2+radius);
    ctx.lineTo(x+width/2,y+height/2-radius);
    ctx.arcTo(x+width/2,y+height/2,x+width/2-radius,y+height/2,radius);
    ctx.lineTo(x+width/2-radius,y+height/2);
    ctx.lineTo(x-width/2+radius,y+height/2);
    ctx.arcTo(x-width/2,y+height/2,x-width/2,y+height/2-radius,radius);
    ctx.lineTo(x-width/2,y+height/2-radius);
    ctx.lineTo(x-width/2,y-height/2+radius);
    ctx.arcTo(x-width/2,y-height/2,x-width/2+radius,y-height/2,radius);
    ctx.closePath();
}

/*----------------------------------------------------------
函数:用于绘制矩形
ctx:绘图上下文
x:矩形中心横坐标
y:矩形中心纵坐标
width:矩形宽
height:矩形高
----------------------------------------------------------*/
function drawRect(ctx,x,y,width,height){
    ctx.beginPath();
    ctx.moveTo(x-width/2,y-height/2);
    ctx.lineTo(x+width/2,y-height/2);
    ctx.lineTo(x+width/2,y+height/2);
    ctx.lineTo(x-width/2,y+height/2);
    ctx.closePath();
}

/*----------------------------------------------------------
函数:用于绘制实心圆
ctx:绘图上下文
x:矩形中心横坐标
y:矩形中心纵坐标
r:圆半径
style:填充圆的方案
----------------------------------------------------------*/
function drawSolidCircle(ctx,x,y,r,style){
    ctx.fillStyle=style;
    ctx.beginPath();
    ctx.arc(x,y,r,0,Math.PI*2,false);
    ctx.closePath();
    ctx.fill();
}

/*----------------------------------------------------------
函数:创建一个二维坐标点
x:横坐标
y:纵坐标
Pt即Point
----------------------------------------------------------*/
function createPt(x,y){
    var retval={};
    retval.x=x;
    retval.y=y;
    return retval;
}

/*----------------------------------------------------------
函数:延时若干毫秒
milliseconds:毫秒数
----------------------------------------------------------*/
function sleep(milliSeconds) {
    const date = Date.now();
    let currDate = null;
    while (currDate - date < milliSeconds) {
        currDate = Date.now();
    }
}

/*----------------------------------------------------------
函数:书写文字
ctx:绘图上下文
x:横坐标
y:纵坐标
text:文字
font:字体
color:颜色
----------------------------------------------------------*/
function writeText(ctx,x,y,text,font,color){
    ctx.save();
    ctx.textBaseline="bottom";
    ctx.textAlign="center";
    ctx.font = font;
    ctx.fillStyle=color;
    ctx.fillText(text,x,y);
    ctx.restore();
}

/*-------------------------------------------------------------
想知道谁在统治你,就看你不准议论谁。
--------------------------------------------------------------*/
//-->
</script>
