cocotb lab1 DFF

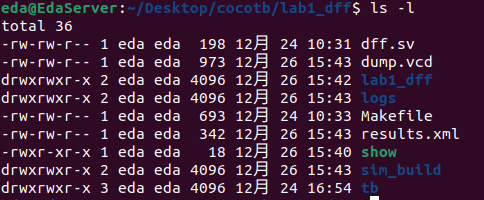

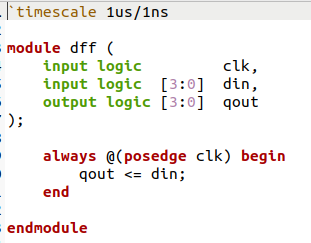

dff.v

`timescale 1us/1ns

module dff (
input logic clk,
input logic [3:0] din,
output logic [3:0] qout
);

always @(posedge clk) begin
qout <= din;
end

endmodule

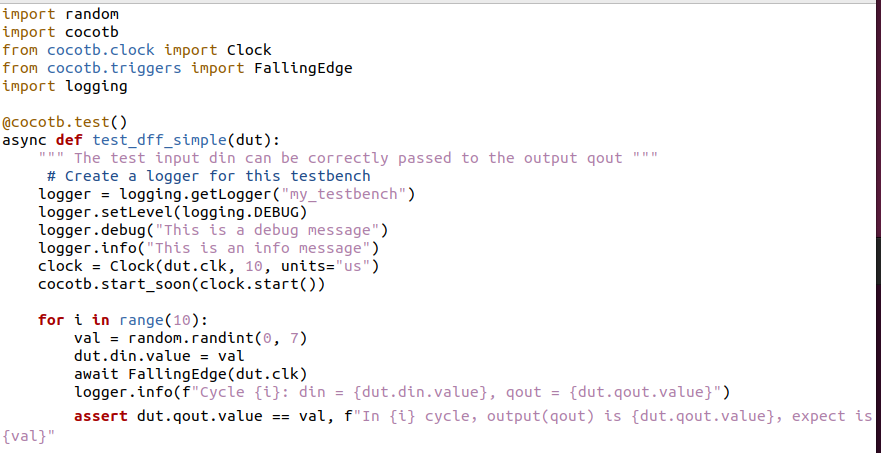

tb/test.py

import random
import cocotb
from cocotb.clock import Clock
from cocotb.triggers import FallingEdge
import logging

@cocotb.test()
async def test_dff_simple(dut):
""" The test input din can be correctly passed to the output qout """
# Create a logger for this testbench
logger = logging.getLogger("my_testbench")
logger.setLevel(logging.DEBUG)
logger.debug("This is a debug message")
logger.info("This is an info message")
clock = Clock(dut.clk, 10, units="us")
cocotb.start_soon(clock.start())

for i in range(10):
val = random.randint(0, 7)
dut.din.value = val
await FallingEdge(dut.clk)
logger.info(f"Cycle {i}: din = {dut.din.value}, qout = {dut.qout.value}")
assert dut.qout.value == val, f"In {i} cycle，output(qout) is {dut.qout.value}，expect is {val}"

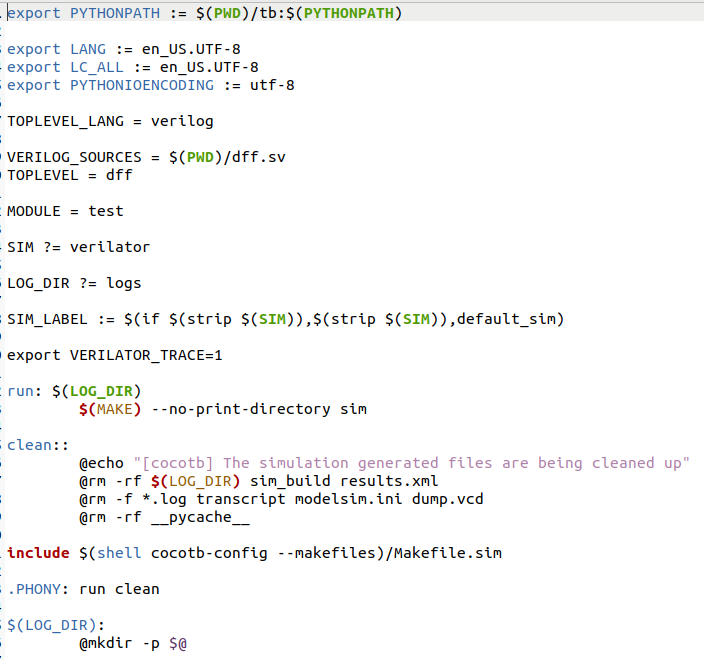

Makefile

export PYTHONPATH := $(PWD)/tb:$(PYTHONPATH)

export LANG := en_US.UTF-8
export LC_ALL := en_US.UTF-8
export PYTHONIOENCODING := utf-8

TOPLEVEL_LANG = verilog

VERILOG_SOURCES = $(PWD)/dff.sv
TOPLEVEL = dff

MODULE = test

SIM ?= verilator

LOG_DIR ?= logs

SIM_LABEL := $(if $(strip $(SIM)),$(strip $(SIM)),default_sim)

export VERILATOR_TRACE=1

run: $(LOG_DIR)
$(MAKE) --no-print-directory sim

clean::
@echo "[cocotb] The simulation generated files are being cleaned up"
@rm -rf $(LOG_DIR) sim_build results.xml
@rm -f *.log transcript modelsim.ini dump.vcd
@rm -rf __pycache__

include $(shell cocotb-config --makefiles)/Makefile.sim

.PHONY: run clean

$(LOG_DIR):
@mkdir -p $@





-----------

make

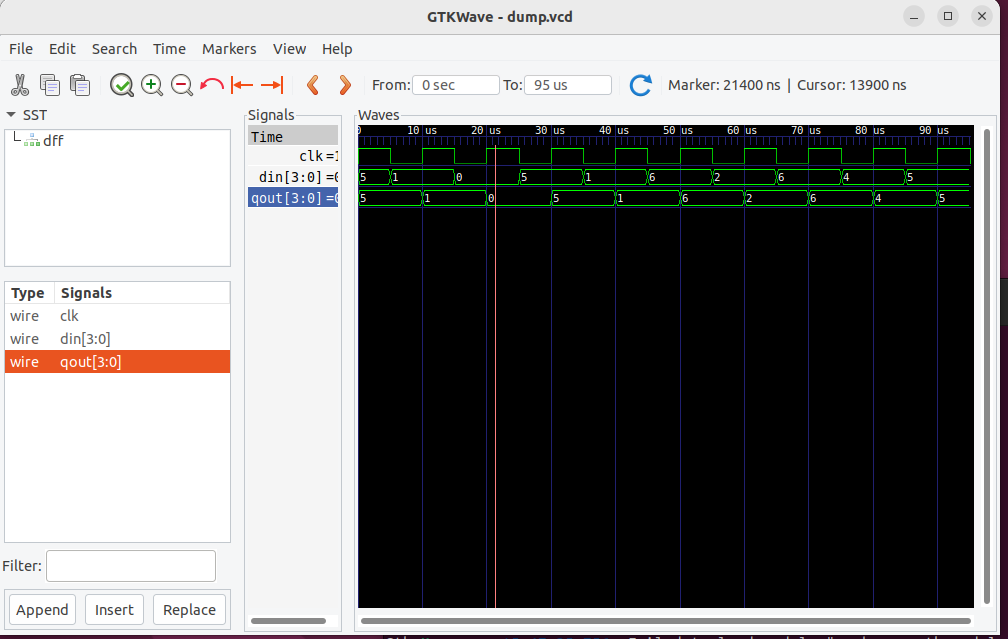

gtkwave dump.vcd
