使用ListBox实现一个对话框控件
介绍

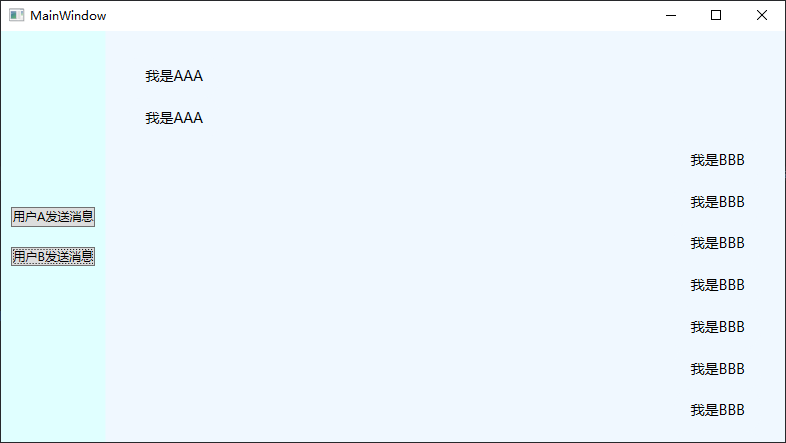

为了突出重点，本文只介绍具体的实现方法。不去过多美化控件样式了。总体实现效果大概如下图所示。双方的消息会分别显示在两侧，然后消息框会随着消息的出现自动下拉。
实现方法
大体思路是，通过编写自定义控件重写ListBox的GetContainerForItemOverride方法，根据Items中不同的消息类型创建不同的容器，将消息分别显示在两侧。
样式编写
-

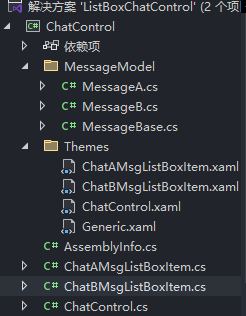

首先在WPF项目中创建一个自定义控件库，在这里面定义ListBox，以及不同消息的Container的样式。项目结构如下。（添加的MessageModel是在
GetContainerForItemOverride会用到的消息类型。）
-
创建自定义控件后，在Themes中创建对应的资源字典文件，其中编写对应控件的样式。由于过程很简单，我就直接给出这4个资源字典的内容。
ChatAMsgListBoxItem
<ResourceDictionary
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:units="clr-namespace:ChatControl">
<Style TargetType="units:ChatAMsgListBoxItem">
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="units:ChatAMsgListBoxItem">
<StackPanel MaxWidth="400" HorizontalAlignment="Left">
<Border
x:Name="MessageBorder"
Padding="16,12,16,12"
Background="AliceBlue"
CornerRadius="16,16,16,4">
<TextBlock
x:Name="MessageText"
FontSize="14"
Foreground="Black"
Text="{Binding Msg}"
TextWrapping="Wrap" />
</Border>
</StackPanel>
</ControlTemplate>
</Setter.Value>
</Setter>
</Style>
</ResourceDictionary>
ChatBMsgListBoxItem
<ResourceDictionary
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:units="clr-namespace:ChatControl">
<Style TargetType="units:ChatBMsgListBoxItem">
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="units:ChatBMsgListBoxItem">
<!-- 让这个Container在 ItemsPanel中靠右对齐 -->
<StackPanel MaxWidth="400" HorizontalAlignment="Right">
<Border
x:Name="MessageBorder"
Padding="16,12,16,12"
Background="AliceBlue"
CornerRadius="16,16,16,4">
<TextBlock
x:Name="MessageText"
FontSize="14"
Foreground="Black"
Text="{Binding Msg}"
TextWrapping="Wrap" />
</Border>
</StackPanel>
</ControlTemplate>
</Setter.Value>
</Setter>
</Style>
</ResourceDictionary>
ChatControl
<ResourceDictionary
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:units="clr-namespace:ChatControl">
<Style TargetType="units:ChatControl">
<Setter Property="Background" Value="Transparent" />
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="units:ChatControl">
<ScrollViewer Grid.Row="1" Background="AliceBlue" HorizontalScrollBarVisibility="Hidden" VerticalScrollBarVisibility="Hidden">
<ItemsPresenter Margin="24" />
</ScrollViewer>
</ControlTemplate>
</Setter.Value>
</Setter>
</Style>
</ResourceDictionary>
Generic
<ResourceDictionary
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:local="clr-namespace:ChatControl">
<ResourceDictionary.MergedDictionaries>
<ResourceDictionary Source="/ChatControl;component/Themes/ChatControl.xaml" />
<ResourceDictionary Source="/ChatControl;component/Themes/ChatAMsgListBoxItem.xaml" />
<ResourceDictionary Source="/ChatControl;component/Themes/ChatBMsgListBoxItem.xaml" />
</ResourceDictionary.MergedDictionaries>
</ResourceDictionary>
最后一定要把资源字典文件添加到Generic.xaml文件中，才能正确显示我们在当前项目中编写的自定义控件。
- 在ChatControl控件中重写，我们之前说的方法，并为其添加一个自动下滑的行为事件。这是我认为这种实现方法下最困难的一步，ListBox中的Items为ItemCollection类型，虽然其实现了INotifyCollectionChanged接口，但它是显示实现的，我们必须将其转换为INotifyCollectionChanged类型，才能订阅CollectionChanged事件，实现自动下滑。
点击查看代码
using ListBoxChatControl.MessageModel;
using System.Collections.Specialized;
using System.Net.Mail;
using System.Text;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;
namespace ChatControl
{
public class ChatControl : ListBox
{
private int _currentItemIndex;
public ChatControl()
{
DefaultStyleKeyProperty.OverrideMetadata(typeof(ChatControl), new FrameworkPropertyMetadata(typeof(ChatControl)));
_currentItemIndex = -1;
ListBoxAutoScrollBehavior.SetAutoScroll(this,true);
}
protected override DependencyObject GetContainerForItemOverride()
{
if (Items.Count > 0)
{
var currentItem = Items[Items.Count - 1];
if (currentItem is MessageA)
{
return new ChatAMsgListBoxItem();
}
else if (currentItem is MessageB)
{
return new ChatBMsgListBoxItem();
}
}
return base.GetContainerForItemOverride();
}
protected override void OnItemsChanged(NotifyCollectionChangedEventArgs e)
{
base.OnItemsChanged(e);
_currentItemIndex = -1;
}
}
public static class ListBoxAutoScrollBehavior
{
public static readonly DependencyProperty AutoScrollProperty =
DependencyProperty.RegisterAttached(
"AutoScroll",
typeof(bool),
typeof(ListBoxAutoScrollBehavior),
new PropertyMetadata(false, OnAutoScrollChanged));
public static bool GetAutoScroll(DependencyObject obj) =>
(bool)obj.GetValue(AutoScrollProperty);
public static void SetAutoScroll(DependencyObject obj, bool value) =>
obj.SetValue(AutoScrollProperty, value);
private static void OnAutoScrollChanged(DependencyObject d, DependencyPropertyChangedEventArgs e)
{
if (d is ListBox listBox)
{
if ((bool)e.NewValue)
{
var items = listBox.Items;
var ic = items as INotifyCollectionChanged;
if (ic != null)
{
//ItemCollection 显示实现INotifyCollectionChanged接口 只有转换为INotifyCollectionChanged接口才能订阅这个事件
ic.CollectionChanged += (sender, args) =>
{
if (args.Action == NotifyCollectionChangedAction.Add)
{
if (listBox.Items.Count > 0)
{
listBox.ScrollIntoView(listBox.Items[listBox.Items.Count - 1]);
}
}
};
}
}
}
}
}
}
- 在前端使用我们的自定义控件。
点击查看代码
<Window
x:Class="ListBoxChatControl.MainWindow"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:local="clr-namespace:ListBoxChatControl"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:units="clr-namespace:ChatControl;assembly=ChatControl"
Title="MainWindow"
Width="800"
Height="450"
mc:Ignorable="d">
<Window.DataContext>
<local:MainViewModel />
</Window.DataContext>
<Window.Resources>
<ResourceDictionary>
<ResourceDictionary.MergedDictionaries />
<Style TargetType="ListBoxItem">
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="ListBoxItem">
<Border>
<ContentPresenter />
</Border>
</ControlTemplate>
</Setter.Value>
</Setter>
</Style>
</ResourceDictionary>
</Window.Resources>
<Grid Background="LightCyan">
<Grid.ColumnDefinitions>
<ColumnDefinition Width="auto" />
<ColumnDefinition Width="*" />
</Grid.ColumnDefinitions>
<StackPanel
Grid.Column="0"
VerticalAlignment="Center"
Orientation="Vertical">
<Button
Margin="10"
Command="{Binding SendAMessageCommand}"
Content="用户A发送消息" />
<Button
Margin="10"
Command="{Binding SendBMessageCommand}"
Content="用户B发送消息" />
</StackPanel>
<units:ChatControl
Grid.Column="1"
ItemsSource="{Binding MsgList}"
/>
</Grid>
</Window>
