帆软-填报界面实现分页
问题描述:
在填报预览的模式下,顶部工具栏没有提供分页预览的功能。
如果没有分页预览功能的话,当数据集中的数据量大的时候会造成Java的堆栈内存溢出。
实现思路:
- 针对报表做二次开发。由帆软的官网文档可知,帆软的前端页面是支持JQuery框架的,所以我们使用JQuery来制作分页器。
- 禁用工具栏。填报预览模式下,帆软自带的工具栏中没有翻页的控件。如果使用帆软自带的工具栏,在制作分页器插件的时候比较麻烦。所以我么需要禁用帆软自带工具栏。
- 数据集。如果想要实现列表分页的功能,最少需要两个数据集:数据列表数据集、数据总量数据集。
- 数据对应。将“数据列表数据集”与“数据总量数据集”中的字段拖拽到帆软设计界面中,对应好位置。
- 二次开发。在“模板WEB属性->填报页面设置”中,添加“加载结束事件”,开始编写JS代码。
- 使用JS代码修改页面URL参数:currentPage。currentPage参数应用到数据集参数中。以SQL数据集为切入点实现分页功能。
具体实现:
1. 禁用帆软自带的工具栏。

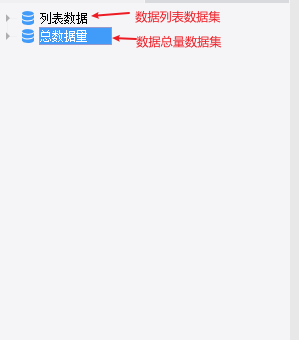

2. 定义数据集
2.1 数据列表数据集SQL:
--currentPage 参数来自与URL
select * from page_test limit ${IF(TOINTEGER(currentPage)<=1,0,(TOINTEGER(currentPage)-1)*30)},30
2.2 数据总量数据集SQL:
select count(*) from page_test

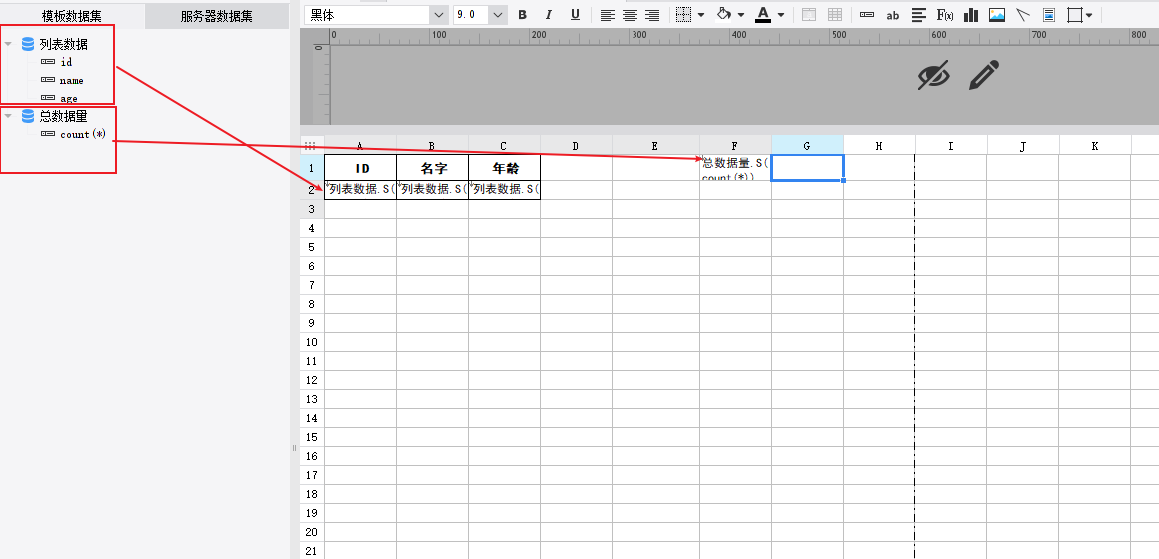

3. 数据对应
将定义好的数据集与设计器中的行列对应好。为了后面能够获取总数据量来计算分页数,将总数剧列数据添加到F1单元格中,并将F列隐藏。

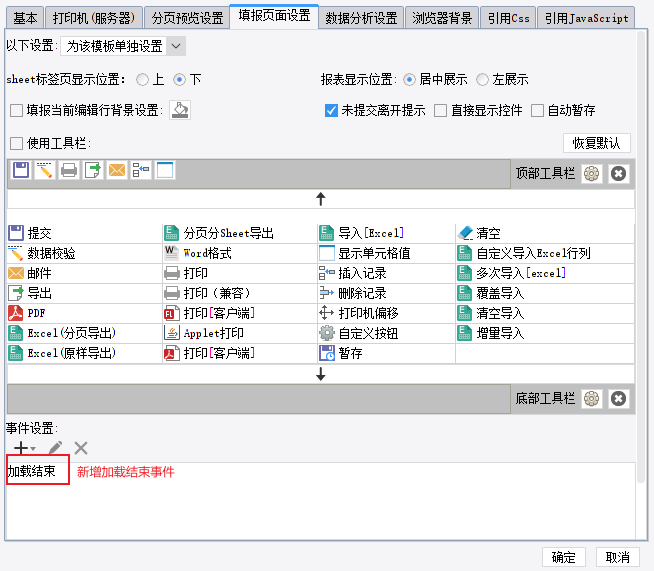

4. 二次开发
4.1 在“加载结束”事件中编写JS代码

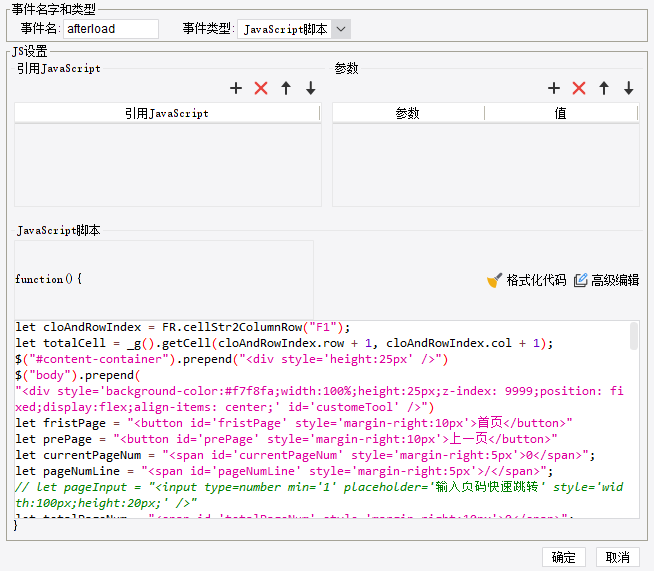

5. JS代码
let cloAndRowIndex = FR.cellStr2ColumnRow("F1"); //使用帆软提供的JS API,获取F1单元格所在的行和列。 let totalCell = _g().getCell(cloAndRowIndex.row + 1, cloAndRowIndex.col + 1); //根据行列获取单元格对象。 //在内容区域上方添加 div,用来占位 $("#content-container").prepend("<div style='height:25px' />") //在body标签中添加自定义工具栏 $("body").prepend("<div style='background-color:#f7f8fa;width:100%;height:25px;z-index: 9999;position: fixed;display:flex;align-items: center;' id='customeTool' />") //定义分页按钮 let fristPage = "<button id='fristPage' style='margin-right:10px'>首页</button>" let prePage = "<button id='prePage' style='margin-right:10px'>上一页</button>" let currentPageNum = "<span id='currentPageNum' style='margin-right:5px'>0</span>"; let pageNumLine = "<span id='pageNumLine' style='margin-right:5px'>/</span>"; // let pageInput = "<input type=number min='1' placeholder='输入页码快速跳转' style='width:100px;height:20px;' />" let totalPageNum = "<span id='totalPageNum' style='margin-right:10px'>0</span>"; let nextPage = "<button id='nextPage' style='margin-right:10px'>下一页</button>" let lastPage = "<button id='lastPage' style='margin-right:10px'>末页</button>" //将分页按钮添加到工具栏中 $("#customeTool").append(fristPage); $("#customeTool").append(prePage); $("#customeTool").append(currentPageNum); $("#customeTool").append(pageNumLine); // $("#customeTool").append(pageInput); $("#customeTool").append(totalPageNum); $("#customeTool").append(nextPage); $("#customeTool").append(lastPage); //采用闭包的方式,解析URL中的参数 let urlParams = parseUrlParams(window.location.href); // 获取currentPage参数 let currentPage = urlParams.currentPage; //给总页数赋值 let totalCellValueStr = totalCell.getValue(); //{"type":"text","value":"200000"} if (totalCellValueStr) { let totalCellValueObject = JSON.parse(totalCellValueStr); if (totalCellValueObject.value) { $("#totalPageNum").text(Math.ceil((totalCellValueObject.value * 1) / 30)); //获取URL中的参数 $("#currentPageNum").text(currentPage); if (currentPage === "1") { $("#fristPage").attr("disabled", true); $("#prePage").attr("disabled", true); } if (currentPage >= Math.ceil((totalCellValueObject.value * 1) / 30)) { $("#nextPage").attr("disabled", true); $("#lastPage").attr("disabled", true); } //为分页按钮设置点击事件 $("#nextPage").click(function (e) { let newUrl = new URL(window.location.href); newUrl.searchParams.set('currentPage', currentPage * 1 + 1); window.location.replace(newUrl.href) }); $("#lastPage").click(function (e) { let newUrl = new URL(window.location.href); newUrl.searchParams.set('currentPage', Math.ceil((totalCellValueObject.value * 1) / 30)); window.location.replace(newUrl.href) }); $("#fristPage").click(function (e) { let newUrl = new URL(window.location.href); newUrl.searchParams.set('currentPage', 1); window.location.replace(newUrl.href) }); $("#prePage").click(function (e) { let newUrl = new URL(window.location.href); newUrl.searchParams.set('currentPage', currentPage * 1 - 1); window.location.replace(newUrl.href) }); } } else { //没有获取到总页数 $("#fristPage").attr("disabled", true); $("#prePage").attr("disabled", true); $("#nextPage").attr("disabled", true); $("#lastPage").attr("disabled", true); } function parseUrlParams(url) { let params = {}, search, temp; //使用split字符"?"截取url search = url.split("?")[1]; if (search) { //使用split字符"&"分割search获取每个参数名和值 temp = search.split("&"); //遍历所有参数名和值 for (let i = 0; i < temp.length; i++) { //使用split字符"="分割参数名和值 let param = temp[i].split("="); //将参数名和值添加到params对象中 params[param[0]] = param[1]; } } return params; }
