强化学习算法（PPO算法）—机器人AI控制算法

相关：

https://github.com/google/brax/tree/main

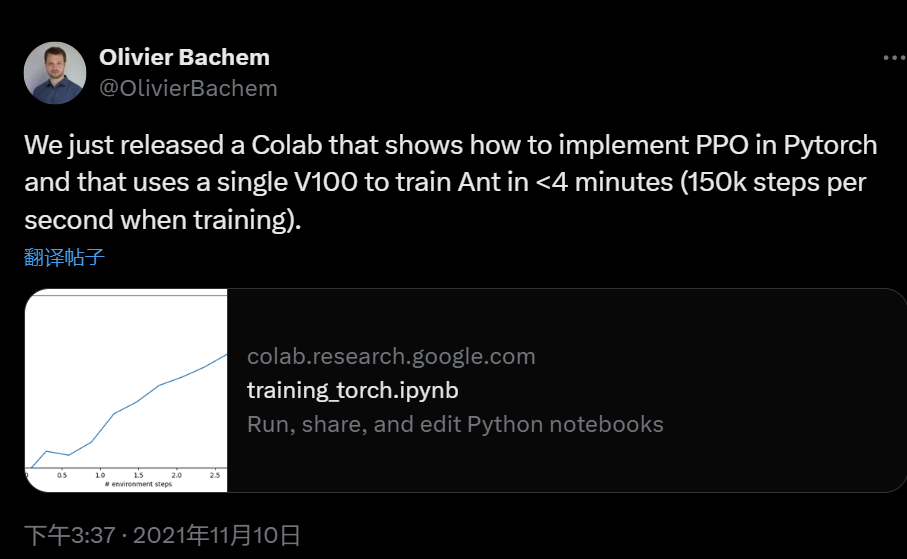

看到一个推特：

这里分享了一个网友编写的pytorch版本的PPO算法，因为我一直觉得只有工业界采用的PPO算法编写的那个水平才比较靠谱，因此个人编写的RL算法我是比较少看的，不过发现这个实现比较简练，感觉这个入门学习还是不错的，于是本文进行分享，同时给出NVIDIA公司在工业界领域所使用的PPO算法的具体实现：

https://openi.pcl.ac.cn/devilmaycry812839668/Isaac_rl_pytorch

网友实现的PPO算法（pytorch版本）地址：

https://colab.research.google.com/github/google/brax/blob/main/notebooks/training_torch.ipynb

具体为：

from brax import envs
from brax.envs.wrappers import gym as gym_wrapper
from brax.envs.wrappers import torch as torch_wrapper
from brax.io import metrics

import collections
from datetime import datetime
import functools
import math
import os
import time
from typing import Any, Callable, Dict, Optional, Sequence

import gym
import matplotlib.pyplot as plt
import numpy as np
import torch
from torch import nn
from torch import optim
import torch.nn.functional as F



class Agent(nn.Module):
  """Standard PPO Agent with GAE and observation normalization."""

  def __init__(self,
               policy_layers: Sequence[int],
               value_layers: Sequence[int],
               entropy_cost: float,
               discounting: float,
               reward_scaling: float,
               device: str):
    super(Agent, self).__init__()

    policy = []
    for w1, w2 in zip(policy_layers, policy_layers[1:]):
      policy.append(nn.Linear(w1, w2))
      policy.append(nn.SiLU())
    policy.pop()  # drop the final activation
    self.policy = nn.Sequential(*policy)

    value = []
    for w1, w2 in zip(value_layers, value_layers[1:]):
      value.append(nn.Linear(w1, w2))
      value.append(nn.SiLU())
    value.pop()  # drop the final activation
    self.value = nn.Sequential(*value)

    self.num_steps = torch.zeros((), device=device)
    self.running_mean = torch.zeros(policy_layers[0], device=device)
    self.running_variance = torch.zeros(policy_layers[0], device=device)

    self.entropy_cost = entropy_cost
    self.discounting = discounting
    self.reward_scaling = reward_scaling
    self.lambda_ = 0.95
    self.epsilon = 0.3
    self.device = device

  @torch.jit.export
  def dist_create(self, logits):
    """Normal followed by tanh.

    torch.distribution doesn't work with torch.jit, so we roll our own."""
    loc, scale = torch.split(logits, logits.shape[-1] // 2, dim=-1)
    scale = F.softplus(scale) + .001
    return loc, scale

  @torch.jit.export
  def dist_sample_no_postprocess(self, loc, scale):
    return torch.normal(loc, scale)

  @classmethod
  def dist_postprocess(cls, x):
    return torch.tanh(x)

  @torch.jit.export
  def dist_entropy(self, loc, scale):
    log_normalized = 0.5 * math.log(2 * math.pi) + torch.log(scale)
    entropy = 0.5 + log_normalized
    entropy = entropy * torch.ones_like(loc)
    dist = torch.normal(loc, scale)
    log_det_jacobian = 2 * (math.log(2) - dist - F.softplus(-2 * dist))
    entropy = entropy + log_det_jacobian
    return entropy.sum(dim=-1)

  @torch.jit.export
  def dist_log_prob(self, loc, scale, dist):
    log_unnormalized = -0.5 * ((dist - loc) / scale).square()
    log_normalized = 0.5 * math.log(2 * math.pi) + torch.log(scale)
    log_det_jacobian = 2 * (math.log(2) - dist - F.softplus(-2 * dist))
    log_prob = log_unnormalized - log_normalized - log_det_jacobian
    return log_prob.sum(dim=-1)

  @torch.jit.export
  def update_normalization(self, observation):
    self.num_steps += observation.shape[0] * observation.shape[1]
    input_to_old_mean = observation - self.running_mean
    mean_diff = torch.sum(input_to_old_mean / self.num_steps, dim=(0, 1))
    self.running_mean = self.running_mean + mean_diff
    input_to_new_mean = observation - self.running_mean
    var_diff = torch.sum(input_to_new_mean * input_to_old_mean, dim=(0, 1))
    self.running_variance = self.running_variance + var_diff

  @torch.jit.export
  def normalize(self, observation):
    variance = self.running_variance / (self.num_steps + 1.0)
    variance = torch.clip(variance, 1e-6, 1e6)
    return ((observation - self.running_mean) / variance.sqrt()).clip(-5, 5)

  @torch.jit.export
  def get_logits_action(self, observation):
    observation = self.normalize(observation)
    logits = self.policy(observation)
    loc, scale = self.dist_create(logits)
    action = self.dist_sample_no_postprocess(loc, scale)
    return logits, action

  @torch.jit.export
  def compute_gae(self, truncation, termination, reward, values,
                  bootstrap_value):
    truncation_mask = 1 - truncation
    # Append bootstrapped value to get [v1, ..., v_t+1]
    values_t_plus_1 = torch.cat(
        [values[1:], torch.unsqueeze(bootstrap_value, 0)], dim=0)
    deltas = reward + self.discounting * (
        1 - termination) * values_t_plus_1 - values
    deltas *= truncation_mask

    acc = torch.zeros_like(bootstrap_value)
    vs_minus_v_xs = torch.zeros_like(truncation_mask)

    for ti in range(truncation_mask.shape[0]):
      ti = truncation_mask.shape[0] - ti - 1
      acc = deltas[ti] + self.discounting * (
          1 - termination[ti]) * truncation_mask[ti] * self.lambda_ * acc
      vs_minus_v_xs[ti] = acc

    # Add V(x_s) to get v_s.
    vs = vs_minus_v_xs + values
    vs_t_plus_1 = torch.cat([vs[1:], torch.unsqueeze(bootstrap_value, 0)], 0)
    advantages = (reward + self.discounting *
                  (1 - termination) * vs_t_plus_1 - values) * truncation_mask
    return vs, advantages

  @torch.jit.export
  def loss(self, td: Dict[str, torch.Tensor]):
    observation = self.normalize(td['observation'])
    policy_logits = self.policy(observation[:-1])
    baseline = self.value(observation)
    baseline = torch.squeeze(baseline, dim=-1)

    # Use last baseline value (from the value function) to bootstrap.
    bootstrap_value = baseline[-1]
    baseline = baseline[:-1]
    reward = td['reward'] * self.reward_scaling
    termination = td['done'] * (1 - td['truncation'])

    loc, scale = self.dist_create(td['logits'])
    behaviour_action_log_probs = self.dist_log_prob(loc, scale, td['action'])
    loc, scale = self.dist_create(policy_logits)
    target_action_log_probs = self.dist_log_prob(loc, scale, td['action'])

    with torch.no_grad():
      vs, advantages = self.compute_gae(
          truncation=td['truncation'],
          termination=termination,
          reward=reward,
          values=baseline,
          bootstrap_value=bootstrap_value)

    rho_s = torch.exp(target_action_log_probs - behaviour_action_log_probs)
    surrogate_loss1 = rho_s * advantages
    surrogate_loss2 = rho_s.clip(1 - self.epsilon,
                                 1 + self.epsilon) * advantages
    policy_loss = -torch.mean(torch.minimum(surrogate_loss1, surrogate_loss2))

    # Value function loss
    v_error = vs - baseline
    v_loss = torch.mean(v_error * v_error) * 0.5 * 0.5

    # Entropy reward
    entropy = torch.mean(self.dist_entropy(loc, scale))
    entropy_loss = self.entropy_cost * -entropy

    return policy_loss + v_loss + entropy_loss



StepData = collections.namedtuple(
'StepData',
('observation', 'logits', 'action', 'reward', 'done', 'truncation'))


def sd_map(f: Callable[..., torch.Tensor], *sds) -> StepData:
  """Map a function over each field in StepData."""
  items = {}
  keys = sds[0]._asdict().keys()
  for k in keys:
    items[k] = f(*[sd._asdict()[k] for sd in sds])
  return StepData(**items)


def eval_unroll(agent, env, length):
  """Return number of episodes and average reward for a single unroll."""
  observation = env.reset()
  episodes = torch.zeros((), device=agent.device)
  episode_reward = torch.zeros((), device=agent.device)
  for _ in range(length):
    _, action = agent.get_logits_action(observation)
    observation, reward, done, _ = env.step(Agent.dist_postprocess(action))
    episodes += torch.sum(done)
    episode_reward += torch.sum(reward)
  return episodes, episode_reward / episodes


def train_unroll(agent, env, observation, num_unrolls, unroll_length):
  """Return step data over multple unrolls."""
  sd = StepData([], [], [], [], [], [])
  for _ in range(num_unrolls):
    one_unroll = StepData([observation], [], [], [], [], [])
    for _ in range(unroll_length):
      logits, action = agent.get_logits_action(observation)
      observation, reward, done, info = env.step(Agent.dist_postprocess(action))
      one_unroll.observation.append(observation)
      one_unroll.logits.append(logits)
      one_unroll.action.append(action)
      one_unroll.reward.append(reward)
      one_unroll.done.append(done)
      one_unroll.truncation.append(info['truncation'])
    one_unroll = sd_map(torch.stack, one_unroll)
    sd = sd_map(lambda x, y: x + [y], sd, one_unroll)
  td = sd_map(torch.stack, sd)
  return observation, td


def train(
    env_name: str = 'ant',
    num_envs: int = 2048,
    episode_length: int = 1000,
    device: str = 'cuda',
    num_timesteps: int = 30_000_000,
    eval_frequency: int = 10,
    unroll_length: int = 5,
    batch_size: int = 1024,
    num_minibatches: int = 32,
    num_update_epochs: int = 4,
    reward_scaling: float = .1,
    entropy_cost: float = 1e-2,
    discounting: float = .97,
    learning_rate: float = 3e-4,
    progress_fn: Optional[Callable[[int, Dict[str, Any]], None]] = None,
):
  """Trains a policy via PPO."""
  env = envs.create(env_name, batch_size=num_envs,
                    episode_length=episode_length,
                    backend='spring')
  env = gym_wrapper.VectorGymWrapper(env)
  # automatically convert between jax ndarrays and torch tensors:
  env = torch_wrapper.TorchWrapper(env, device=device)

  # env warmup
  env.reset()
  action = torch.zeros(env.action_space.shape).to(device)
  env.step(action)

  # create the agent
  policy_layers = [
      env.observation_space.shape[-1], 64, 64, env.action_space.shape[-1] * 2
  ]
  value_layers = [env.observation_space.shape[-1], 64, 64, 1]
  agent = Agent(policy_layers, value_layers, entropy_cost, discounting,
                reward_scaling, device)
  agent = torch.jit.script(agent.to(device))
  optimizer = optim.Adam(agent.parameters(), lr=learning_rate)

  sps = 0
  total_steps = 0
  total_loss = 0
  for eval_i in range(eval_frequency + 1):
    if progress_fn:
      t = time.time()
      with torch.no_grad():
        episode_count, episode_reward = eval_unroll(agent, env, episode_length)
      duration = time.time() - t
      # TODO: only count stats from completed episodes
      episode_avg_length = env.num_envs * episode_length / episode_count
      eval_sps = env.num_envs * episode_length / duration
      progress = {
          'eval/episode_reward': episode_reward,
          'eval/completed_episodes': episode_count,
          'eval/avg_episode_length': episode_avg_length,
          'speed/sps': sps,
          'speed/eval_sps': eval_sps,
          'losses/total_loss': total_loss,
      }
      progress_fn(total_steps, progress)

    if eval_i == eval_frequency:
      break

    observation = env.reset()
    num_steps = batch_size * num_minibatches * unroll_length
    num_epochs = num_timesteps // (num_steps * eval_frequency)
    num_unrolls = batch_size * num_minibatches // env.num_envs
    total_loss = 0
    t = time.time()
    for _ in range(num_epochs):
      observation, td = train_unroll(agent, env, observation, num_unrolls,
                                     unroll_length)

      # make unroll first
      def unroll_first(data):
        data = data.swapaxes(0, 1)
        return data.reshape([data.shape[0], -1] + list(data.shape[3:]))
      td = sd_map(unroll_first, td)

      # update normalization statistics
      agent.update_normalization(td.observation)

      for _ in range(num_update_epochs):
        # shuffle and batch the data
        with torch.no_grad():
          permutation = torch.randperm(td.observation.shape[1], device=device)
          def shuffle_batch(data):
            data = data[:, permutation]
            data = data.reshape([data.shape[0], num_minibatches, -1] +
                                list(data.shape[2:]))
            return data.swapaxes(0, 1)
          epoch_td = sd_map(shuffle_batch, td)

        for minibatch_i in range(num_minibatches):
          td_minibatch = sd_map(lambda d: d[minibatch_i], epoch_td)
          loss = agent.loss(td_minibatch._asdict())
          optimizer.zero_grad()
          loss.backward()
          optimizer.step()
          total_loss += loss

    duration = time.time() - t
    total_steps += num_epochs * num_steps
    total_loss = total_loss / (num_epochs * num_update_epochs * num_minibatches)
    sps = num_epochs * num_steps / duration



# temporary fix to cuda memory OOM
os.environ['XLA_PYTHON_CLIENT_ALLOCATOR'] = 'platform'

xdata = []
ydata = []
eval_sps = []
train_sps = []
times = [datetime.now()]

def progress(num_steps, metrics):
  times.append(datetime.now())
  xdata.append(num_steps)
  ydata.append(metrics['eval/episode_reward'].cpu())
  eval_sps.append(metrics['speed/eval_sps'])
  train_sps.append(metrics['speed/sps'])
  # clear_output(wait=True)
#   plt.xlim([0, 30_000_000])
#   plt.ylim([0, 6000])
#   plt.xlabel('# environment steps')
#   plt.ylabel('reward per episode')
#   plt.plot(xdata, ydata)
#   plt.show()

train(progress_fn=progress)

print(f'time to jit: {times[1] - times[0]}')
print(f'time to train: {times[-1] - times[1]}')
print(f'eval steps/sec: {np.mean(eval_sps)}')
print(f'train steps/sec: {np.mean(train_sps)}')

个人github博客地址：
https://devilmaycry812839668.github.io/
