(更新中)python绘图制图

turtle 库

八段数码管

import turtle
def drawGap():
    turtle.penup()
    turtle.fd(5)
def drawLine(draw): #绘制单段数码管
    drawGap()
    turtle.pendown() if draw else turtle.penup()
    turtle.fd(40)
    drawGap()
    turtle.right(90)

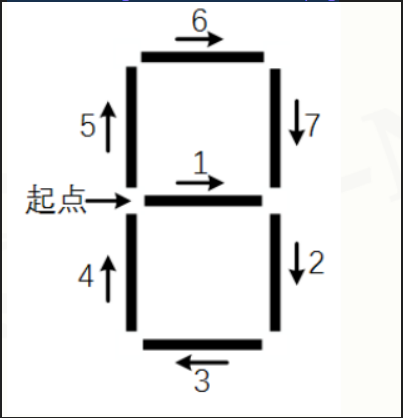

def drawDigit(digit): #根据数字绘制七段数码管
    drawLine(True) if digit in [2,3,4,5,6,8,9] else drawLine(False)
    drawLine(True) if digit in [0,1,3,4,5,6,7,8,9] else drawLine(False)
    drawLine(True) if digit in [0,2,3,5,6,8,9] else drawLine(False)
    drawLine(True) if digit in [0,2,6,8] else drawLine(False)
    turtle.left(90)
    drawLine(True) if digit in [0,4,5,6,8,9] else drawLine(False)
    drawLine(True) if digit in [0,2,3,5,6,7,8,9] else drawLine(False)
    drawLine(True) if digit in [0,1,2,3,4,7,8,9] else drawLine(False)
    turtle.left(180)
    turtle.penup()
    turtle.fd(20) #为绘制后续数字确定位置
def drawDate(date): #获得要输出的数字
    for i in date:
        drawDigit(eval(i)) #通过eval()函数将数字变为整数
def main():
    turtle.setup(800,350,200,200)
    turtle.penup()
    turtle.fd(-300)
    turtle.pensize(5)
    drawDate('20220909')
    turtle.hideturtle()
    turtle.done()
main()
