libero verilog crc16-CCITT-FALSE

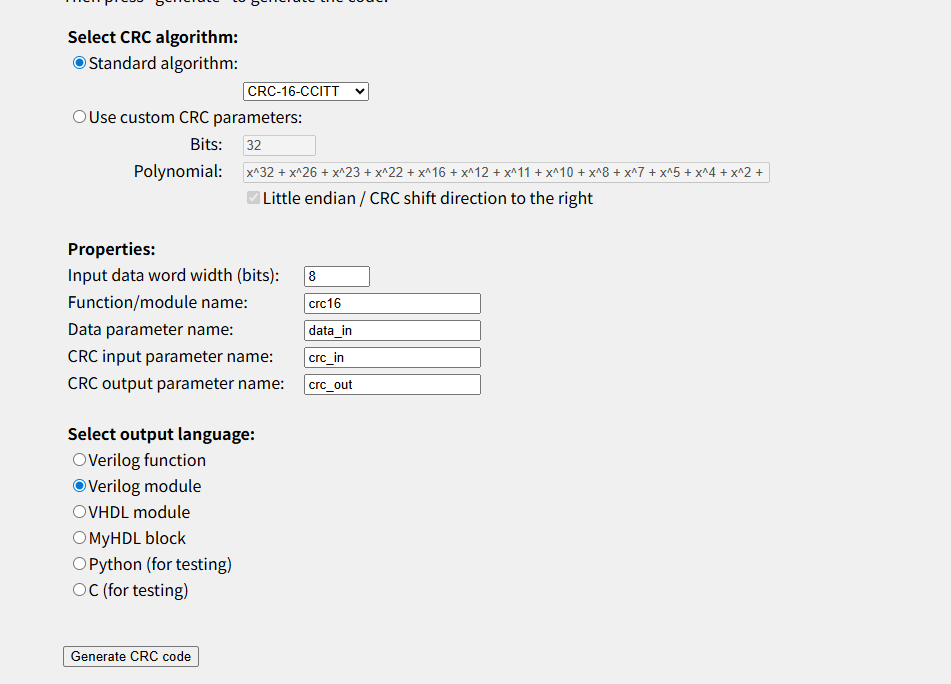

 Generator for CRC HDL code



// vim: ts=4 sw=4 expandtab

// THIS IS GENERATED VERILOG CODE.
// https://bues.ch/h/crcgen
//
// This code is Public Domain.
// Permission to use, copy, modify, and/or distribute this software for any
// purpose with or without fee is hereby granted.
//
// THE SOFTWARE IS PROVIDED "AS IS" AND THE AUTHOR DISCLAIMS ALL WARRANTIES
// WITH REGARD TO THIS SOFTWARE INCLUDING ALL IMPLIED WARRANTIES OF
// MERCHANTABILITY AND FITNESS. IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY
// SPECIAL, DIRECT, INDIRECT, OR CONSEQUENTIAL DAMAGES OR ANY DAMAGES WHATSOEVER
// RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER IN AN ACTION OF CONTRACT,
// NEGLIGENCE OR OTHER TORTIOUS ACTION, ARISING OUT OF OR IN CONNECTION WITH THE
// USE OR PERFORMANCE OF THIS SOFTWARE.

`ifndef CRC16_V_
`define CRC16_V_

// CRC polynomial coefficients: x^16 + x^12 + x^5 + 1
//                              0x1021 (hex)
// CRC width:                   16 bits
// CRC shift direction:         left (big endian)
// Input word width:            8 bits

module crc16 (
    input  [15:0] crc_in,
    input  [7:0]  data_in,
    output [15:0] crc_out
);
    assign crc_out[0] = crc_in[8] ^ crc_in[12] ^ data_in[0] ^ data_in[4];
    assign crc_out[1] = crc_in[9] ^ crc_in[13] ^ data_in[1] ^ data_in[5];
    assign crc_out[2] = crc_in[10] ^ crc_in[14] ^ data_in[2] ^ data_in[6];
    assign crc_out[3] = crc_in[11] ^ crc_in[15] ^ data_in[3] ^ data_in[7];
    assign crc_out[4] = crc_in[12] ^ data_in[4];
    assign crc_out[5] = crc_in[8] ^ crc_in[12] ^ crc_in[13] ^ data_in[0] ^ data_in[4] ^ data_in[5];
    assign crc_out[6] = crc_in[9] ^ crc_in[13] ^ crc_in[14] ^ data_in[1] ^ data_in[5] ^ data_in[6];
    assign crc_out[7] = crc_in[10] ^ crc_in[14] ^ crc_in[15] ^ data_in[2] ^ data_in[6] ^ data_in[7];
    assign crc_out[8] = crc_in[0] ^ crc_in[11] ^ crc_in[15] ^ data_in[3] ^ data_in[7];
    assign crc_out[9] = crc_in[1] ^ crc_in[12] ^ data_in[4];
    assign crc_out[10] = crc_in[2] ^ crc_in[13] ^ data_in[5];
    assign crc_out[11] = crc_in[3] ^ crc_in[14] ^ data_in[6];
    assign crc_out[12] = crc_in[4] ^ crc_in[8] ^ crc_in[12] ^ crc_in[15] ^ data_in[0] ^ data_in[4] ^ data_in[7];
    assign crc_out[13] = crc_in[5] ^ crc_in[9] ^ crc_in[13] ^ data_in[1] ^ data_in[5];
    assign crc_out[14] = crc_in[6] ^ crc_in[10] ^ crc_in[14] ^ data_in[2] ^ data_in[6];
    assign crc_out[15] = crc_in[7] ^ crc_in[11] ^ crc_in[15] ^ data_in[3] ^ data_in[7];
endmodule

`endif // CRC16_V_

测试文件

//////////////////////////////////////////////////////////////////////
// Created by Microsemi SmartDesign Wed Jan 28 10:31:43 2026
// Testbench Template
// This is a basic testbench that instantiates your design with basic
// clock and reset pins connected.  If your design has special
// clock/reset or testbench driver requirements then you should
// copy this file and modify it.
//////////////////////////////////////////////////////////////////////

///////////////////////////////////////////////////////////////////////////////////////////////////
// Company: <Name>
//
// File: crc16_tb.v
// File history:
//      <Revision number>: <Date>: <Comments>
//      <Revision number>: <Date>: <Comments>
//      <Revision number>: <Date>: <Comments>
//
// Description:
//
// <Description here>
//
// Targeted device: <Family::ProASIC3> <Die::A3P250> <Package::100 VQFP>
// Author: <Name>
//
///////////////////////////////////////////////////////////////////////////////////////////////////

`timescale 1ns/100ps

module crc16_tb;

parameter SYSCLK_PERIOD = 1;// 1000MHZ

reg SYSCLK;
reg NSYSRESET;

initial
begin
    SYSCLK = 1'b0;
    NSYSRESET = 1'b0;
end

//////////////////////////////////////////////////////////////////////
// Reset Pulse
//////////////////////////////////////////////////////////////////////
initial
begin
    #(SYSCLK_PERIOD * 10 )
        NSYSRESET = 1'b1;
end


//////////////////////////////////////////////////////////////////////
// Clock Driver
//////////////////////////////////////////////////////////////////////
always @(SYSCLK)
    #(SYSCLK_PERIOD / 2.0) SYSCLK <= !SYSCLK;


//////////////////////////////////////////////////////////////////////
// Instantiate Unit Under Test:  crc16
//////////////////////////////////////////////////////////////////////
wire [15:0] crc_value;
reg [15:0] crc_init;
crc16 crc16_0
(
    // Inputs
    .crc_in(16'hFFFF),
    .data_in(8'hA5),

    // Outputs
    .crc_out(crc_value)

);

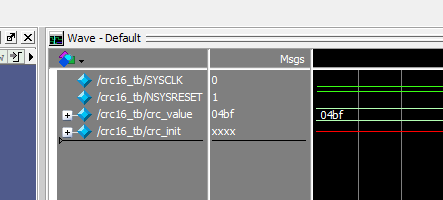

initial
begin

end

endmodule

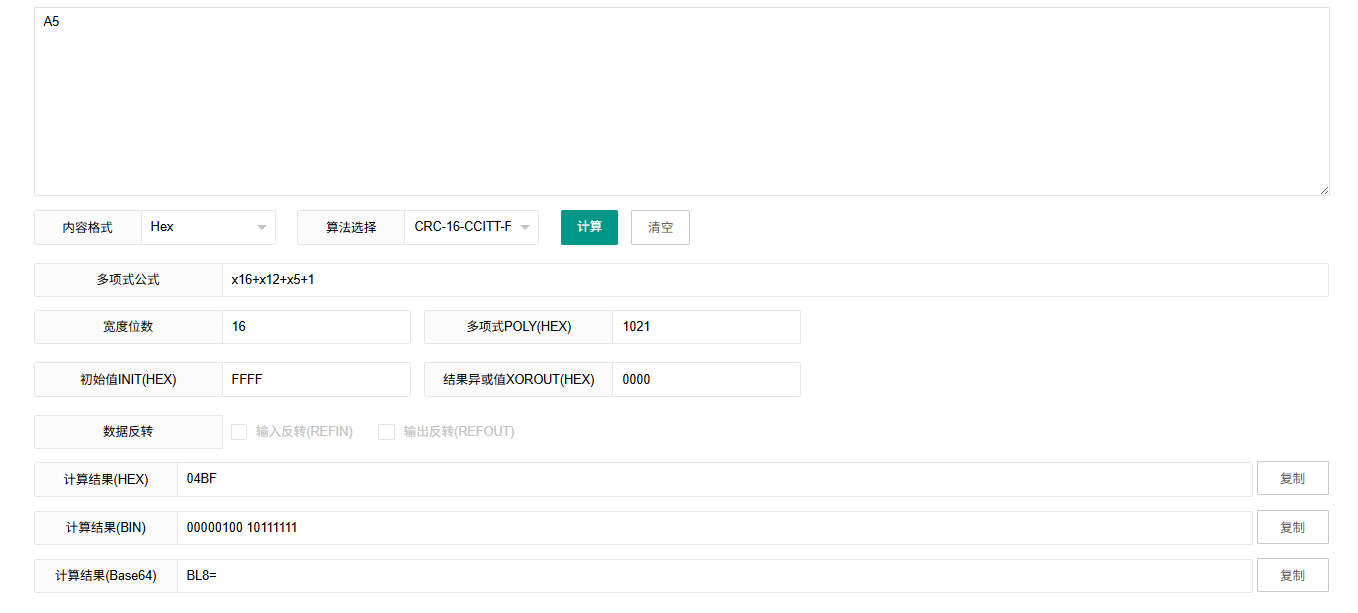

CRC-16-CCITT 生成 的 verilog  和  网页上  CRC-16-CCITT-FALSE 计算的结果一致！
