PolarFire® SoC mpfs-mmuart-interrupt 链接文件 更改为 mpfs-envm.ld 无法烧录



解决问题的办法，使用 External Tools 烧录程序到 eNVM

softconsole fpgenprog.exe 路径错误 导致 无法烧录 eNVM 程序 - 所长 - 博客园



elf 解析信息

riscv64-unknown-elf-size --format=sysv --totals --radix=16 "mpfs-mmuart-interrupt.elf"
mpfs-mmuart-interrupt.elf :
section    size        addr
.text_init 0x1660 0x20220100
.text 0x10030 0x20221760
.l2_scratchpad 0x0 0xa000000
.ram_code 0x6c 0x1001c00
.ddr_code 0x0 0x80000000
.sdata 0x30 0x8000000
.data 0xf00 0x8000030
.sbss 0xa0 0x8000f30
.bss 0x1e70 0x8000fd0
.heap 0x2000 0x8002e40
.stack 0xa000 0x8005000
.app_hart_common 0x1000 0x800f000

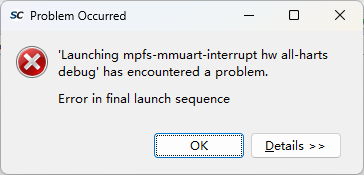

报错 ：

Error in final launch sequence
Failed to execute MI command:
load C:\\Users\\zydz\\Desktop\\PolarFire\\mpfs250t_softconsole\\mpfs-mmuart-interrupt\\LIM-Debug-IcicleKit\\mpfs-mmuart-interrupt.elf
Error message from debugger back end:
Load failed
Failed to execute MI command:
load C:\\Users\\zydz\\Desktop\\PolarFire\\mpfs250t_softconsole\\mpfs-mmuart-interrupt\\LIM-Debug-IcicleKit\\mpfs-mmuart-interrupt.elf
Error message from debugger back end:
Load failed
Load failed





OpenOCD 日志

xPack OpenOCD (Microchip SoftConsole build), x86_64 Open On-Chip Debugger 0.10.0+dev-00859-g95a8cd9b5-dirty (2020-10-21-21:19)
Licensed under GNU GPL v2
For bug reports, read
    http://openocd.org/doc/doxygen/bugs.html
MPFS
Info : only one transport option; autoselect 'jtag'
Info : Hardware thread awareness created
do_board_reset_init
Info : Listening on port 6666 for tcl connections
Info : Listening on port 4444 for telnet connections
Info : Embedded FlashPro6 (revision B) found (USB_ID=1514:200b path=\\?\hid#vid_1514&pid_200b#6&127f650a&0&0000#{4d1e55b2-f16f-11cf-88cb-001111000030})
Info : Embedded FlashPro6 (revision B) CM3 firmware version: F4.0
Info : clock speed 6000 kHz
Info : JTAG tap: mpfs.cpu tap/device found: 0x1f81a1cf (mfg: 0x0e7 (GateField), part: 0xf81a, ver: 0x1)
Warn : JTAG tap: mpfs.cpu       UNEXPECTED: 0x1f81a1cf (mfg: 0x0e7 (GateField), part: 0xf81a, ver: 0x1)
Error: JTAG tap: mpfs.cpu expected 1 of 15: 0x0f8581cf (mfg: 0x0e7 (GateField), part: 0xf858, ver: 0x0)
Error: JTAG tap: mpfs.cpu expected 2 of 15: 0x0f8781cf (mfg: 0x0e7 (GateField), part: 0xf878, ver: 0x0)
Error: JTAG tap: mpfs.cpu expected 3 of 15: 0x0f8771cf (mfg: 0x0e7 (GateField), part: 0xf877, ver: 0x0)
Error: JTAG tap: mpfs.cpu expected 4 of 15: 0x0f8181cf (mfg: 0x0e7 (GateField), part: 0xf818, ver: 0x0)
Error: JTAG tap: mpfs.cpu expected 5 of 15: 0x0f8381cf (mfg: 0x0e7 (GateField), part: 0xf838, ver: 0x0)
Error: JTAG tap: mpfs.cpu expected 6 of 15: 0x0f83c1cf (mfg: 0x0e7 (GateField), part: 0xf83c, ver: 0x0)
Error: JTAG tap: mpfs.cpu expected 7 of 15: 0x0f8191cf (mfg: 0x0e7 (GateField), part: 0xf819, ver: 0x0)
Error: JTAG tap: mpfs.cpu expected 8 of 15: 0x0f8391cf (mfg: 0x0e7 (GateField), part: 0xf839, ver: 0x0)
Error: JTAG tap: mpfs.cpu expected 9 of 15: 0x0f83d1cf (mfg: 0x0e7 (GateField), part: 0xf83d, ver: 0x0)
Error: JTAG tap: mpfs.cpu expected 10 of 1: 0x0f81a1cf (mfg: 0x0e7 (GateField), part: 0xf81a, ver: 0x0)
Error: JTAG tap: mpfs.cpu expected 11 of 1: 0x0f83a1cf (mfg: 0x0e7 (GateField), part: 0xf83a, ver: 0x0)
Error: JTAG tap: mpfs.cpu expected 12 of 1: 0x0f83e1cf (mfg: 0x0e7 (GateField), part: 0xf83e, ver: 0x0)
Error: JTAG tap: mpfs.cpu expected 13 of 1: 0x0f81b1cf (mfg: 0x0e7 (GateField), part: 0xf81b, ver: 0x0)
Error: JTAG tap: mpfs.cpu expected 14 of 1: 0x0f83b1cf (mfg: 0x0e7 (GateField), part: 0xf83b, ver: 0x0)
Error: JTAG tap: mpfs.cpu expected 15 of 1: 0x0f83f1cf (mfg: 0x0e7 (GateField), part: 0xf83f, ver: 0x0)
Error: Trying to use configured scan chain anyway...
Warn : Bypassing JTAG setup events due to errors
Info : datacount=2 progbufsize=16
Info : Disabling abstract command reads from CSRs.
Info : Core 0 could not be made part of halt group 1.
Info : Examined RISC-V core; found 5 harts
Info :  hart 0: XLEN=64, misa=0x8000000000101105
Info :  hart 1: currently disabled
Info :  hart 2: currently disabled
Info :  hart 3: currently disabled
Info :  hart 4: currently disabled
Info : datacount=2 progbufsize=16
Info : Disabling abstract command reads from CSRs.
Info : Core 1 could not be made part of halt group 1.
Info : Examined RISC-V core; found 5 harts
Info :  hart 0: currently disabled
Info :  hart 1: XLEN=64, misa=0x800000000014112d
Info :  hart 2: currently disabled
Info :  hart 3: currently disabled
Info :  hart 4: currently disabled
Info : datacount=2 progbufsize=16
Info : Disabling abstract command reads from CSRs.
Info : Core 2 could not be made part of halt group 1.
Info : Examined RISC-V core; found 5 harts
Info :  hart 0: currently disabled
Info :  hart 1: currently disabled
Info :  hart 2: XLEN=64, misa=0x800000000014112d
Info :  hart 3: currently disabled
Info :  hart 4: currently disabled
Info : datacount=2 progbufsize=16
Info : Disabling abstract command reads from CSRs.
Info : Core 3 could not be made part of halt group 1.
Info : Examined RISC-V core; found 5 harts
Info :  hart 0: currently disabled
Info :  hart 1: currently disabled
Info :  hart 2: currently disabled
Info :  hart 3: XLEN=64, misa=0x800000000014112d
Info :  hart 4: currently disabled
Info : datacount=2 progbufsize=16
Info : Disabling abstract command reads from CSRs.
Info : Core 4 could not be made part of halt group 1.
Info : Examined RISC-V core; found 5 harts
Info :  hart 0: currently disabled
Info :  hart 1: currently disabled
Info :  hart 2: currently disabled
Info :  hart 3: currently disabled
Info :  hart 4: XLEN=64, misa=0x800000000014112d
Info : Listening on port 3333 for gdb connections
Started by GNU MCU Eclipse
Info : accepting 'gdb' connection on tcp/3333
Info : New GDB Connection: 1, Target mpfs.hart0_e51, state: halted
Info : Disabling abstract command writes to CSRs.
Info : Disabling abstract command writes to CSRs.
Info : Disabling abstract command writes to CSRs.
Info : Disabling abstract command writes to CSRs.
Info : Disabling abstract command writes to CSRs.
shutdown command invoked
Info : Embedded FlashPro6 (revision B): closing the device



什么情况？？？？
