基于FPGA的一维时间序列idct变换verilog实现,包含testbench和matlab辅助验证程序

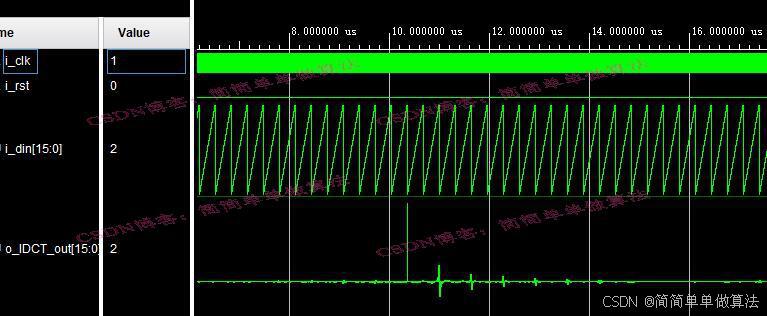

1.算法运行效果图预览

(完整程序运行后无水印)

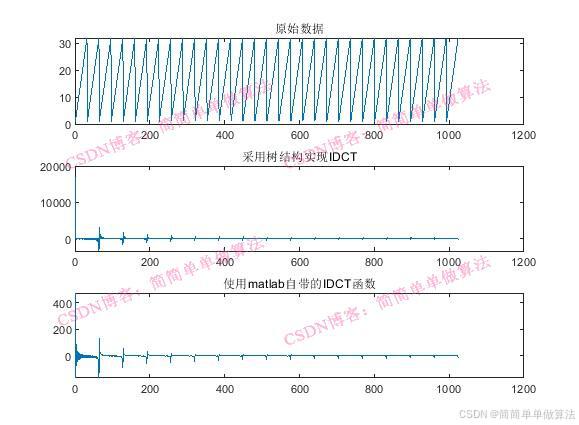

由于FPGA中的数据通常采用定点表示，在计算过程中会引入量化和舍入误差。因此，上述FPGA的测试结果，在数值较小时，和MATLAB存在一点误差。

2.算法运行软件版本

vivado2019.2

Matlab2022a

3.部分核心程序

（完整版代码包含详细中文注释和操作步骤视频）

`timescale 1ns / 1ps
//////////////////////////////////////////////////////////////////////////////////
// Company:
// Engineer:
//
// Create Date:    19:52:27 04/01/2014
// Design Name:
// Module Name:    myDD16
// Project Name:
// Target Devices:
// Tool versions:
// Description:
//
// Dependencies:
//
// Revision:
// Revision 0.01 - File Created
// Additional Comments:
//
//////////////////////////////////////////////////////////////////////////////////
module myDD16(
              x1,x2,x3,x4,x5,x6,x7,x8,x9,x10,x11,x12,x13,x14,x15,x16,
              Z1,Z2,Z3,Z4,Z5,Z6,Z7,Z8,Z9,Z10,Z11,Z12,Z13,Z14,Z15,Z16
              );

input signed[15:0] x1;
input signed[15:0] x2;
input signed[15:0] x3;
input signed[15:0] x4;
input signed[15:0] x5;
input signed[15:0] x6;
input signed[15:0] x7;
input signed[15:0] x8;
input signed[15:0] x9;
input signed[15:0] x10;
input signed[15:0] x11;
input signed[15:0] x12;
input signed[15:0] x13;
input signed[15:0] x14;
input signed[15:0] x15;
input signed[15:0] x16;
output signed[15:0]Z1;
output signed[15:0]Z2;
output signed[15:0]Z3;
output signed[15:0]Z4;
output signed[15:0]Z5;
output signed[15:0]Z6;
output signed[15:0]Z7;
output signed[15:0]Z8;
output signed[15:0]Z9;
output signed[15:0]Z10;
output signed[15:0]Z11;
output signed[15:0]Z12;
output signed[15:0]Z13;
output signed[15:0]Z14;
output signed[15:0]Z15;
output signed[15:0]Z16;


//STEP1
//STEP1
wire signed[15:0]s11_1;
wire signed[15:0]s11_2;
wire signed[15:0]s11_3;
wire signed[15:0]s11_4;
wire signed[15:0]s11_5;
wire signed[15:0]s11_6;
wire signed[15:0]s11_7;
wire signed[15:0]s11_8;

assign s11_1 = x1 + x16;
assign s11_2 = x2 + x15;
assign s11_3 = x3 + x14;
assign s11_4 = x4 + x13;
assign s11_5 = x5 + x12;
assign s11_6 = x6 + x11;
assign s11_7 = x7 + x10;
assign s11_8 = x8 + x9;

wire signed[31:0]s12t_1;
wire signed[31:0]s12t_2;
wire signed[31:0]s12t_3;
wire signed[31:0]s12t_4;
wire signed[31:0]s12t_5;
wire signed[31:0]s12t_6;
wire signed[31:0]s12t_7;
wire signed[31:0]s12t_8;
assign s12t_1 = (x1 - x16)*32610;
assign s12t_2 = (x2 - x15)*31357;
assign s12t_3 = (x3 - x14)*28899;
assign s12t_4 = (x4 - x13)*25330;
assign s12t_5 = (x5 - x12)*20788;
assign s12t_6 = (x6 - x11)*15447;
assign s12t_7 = (x7 - x10)*9512;
assign s12t_8 = (x8 - x9)*3212;


wire signed[15:0]s12_1;
wire signed[15:0]s12_2;
wire signed[15:0]s12_3;
wire signed[15:0]s12_4;
wire signed[15:0]s12_5;
wire signed[15:0]s12_6;
wire signed[15:0]s12_7;
wire signed[15:0]s12_8;
assign s12_1 = s12t_1[29:14];
assign s12_2 = s12t_2[29:14];
assign s12_3 = s12t_3[29:14];
assign s12_4 = s12t_4[29:14];
assign s12_5 = s12t_5[29:14];
assign s12_6 = s12t_6[29:14];
assign s12_7 = s12t_7[29:14];
assign s12_8 = s12t_8[29:14];


//STEP2
//STEP2
wire signed[15:0]Y1_1;
wire signed[15:0]Y1_2;
wire signed[15:0]Y1_3;
wire signed[15:0]Y1_4;
wire signed[15:0]Y1_5;
wire signed[15:0]Y1_6;
wire signed[15:0]Y1_7;
wire signed[15:0]Y1_8;
wire signed[15:0]Y2_1;
wire signed[15:0]Y2_2;
wire signed[15:0]Y2_3;
wire signed[15:0]Y2_4;
wire signed[15:0]Y2_5;
wire signed[15:0]Y2_6;
wire signed[15:0]Y2_7;
wire signed[15:0]Y2_8;
myDD8 U1(
.x1(s11_1),
.x2(s11_2),
.x3(s11_3),
.x4(s11_4),
.x5(s11_5),
.x6(s11_6),
.x7(s11_7),
.x8(s11_8),
.Z1(Y1_1),
.Z2(Y1_2),
.Z3(Y1_3),
.Z4(Y1_4),
.Z5(Y1_5),
.Z6(Y1_6),
.Z7(Y1_7),
.Z8(Y1_8)
);
myDD8 U2(
.x1(s12_1),
.x2(s12_2),
.x3(s12_3),
.x4(s12_4),
.x5(s12_5),
.x6(s12_6),
.x7(s12_7),
.x8(s12_8),
.Z1(Y2_1),
.Z2(Y2_2),
.Z3(Y2_3),
.Z4(Y2_4),
.Z5(Y2_5),
.Z6(Y2_6),
.Z7(Y2_7),
.Z8(Y2_8)
);


//Reorder
//Reorder

assign Z1=Y1_1;
assign Z3=Y1_2;
assign Z5=Y1_3;
assign Z7=Y1_4;
assign Z9=Y1_5;
assign Z11=Y1_6;
assign Z13=Y1_7;
assign Z15=Y1_8;
assign Z2={Y2_1[15],Y2_1[15:1]};
assign Z4=Y2_2-Z2;
assign Z6=Y2_3-Z4;
assign Z8=Y2_4-Z6;
assign Z10=Y2_5-Z8;
assign Z12=Y2_6-Z10;
assign Z14=Y2_7-Z12;
assign Z16=Y2_8-Z14;


endmodule
23_019m

4.算法理论概述

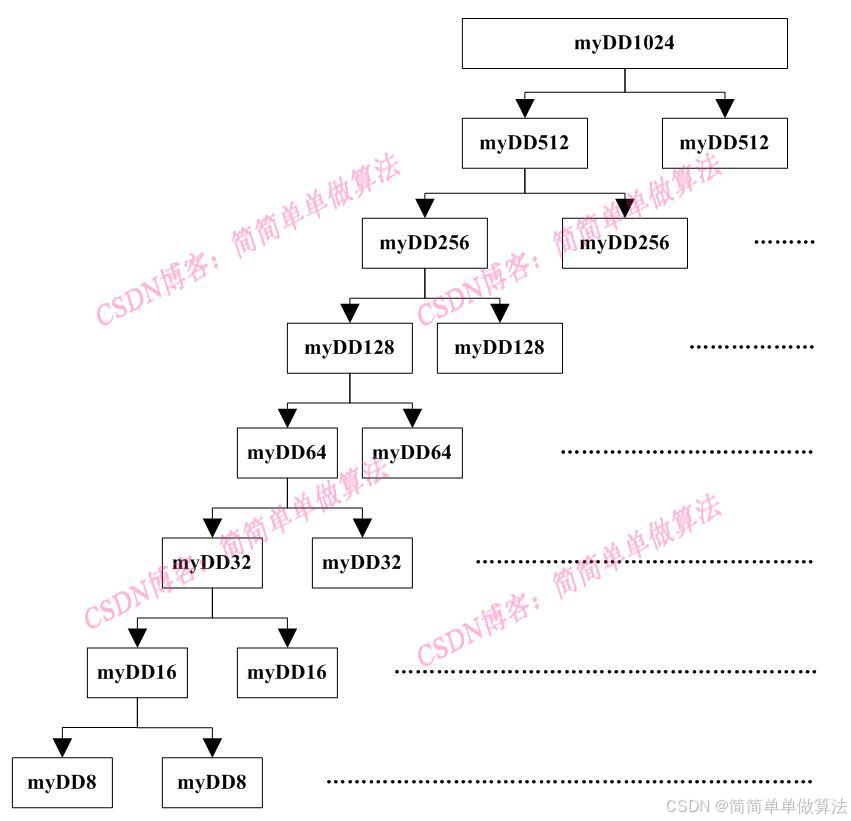

树结构实现 1024 点 IDCT 的核心思想是分治策略。将一个 1024 点的 IDCT 问题分解为两个 512 点的 IDCT 问题，每个 512 点的 IDCT 问题又可以进一步分解为两个 256 点的 IDCT 问题，以此类推，直到分解为 8 点的 IDCT 问题。

具体来说，首先对输入的1024点IDCT系数进行分组，得到两个512点IDCT的输入系数；然后对每个512点IDCT的输入系数再进行分组，得到两个256点IDCT的输入系数，以此类推，直到得到多个8点IDCT的输入系数。接着，计算所有8点IDCT的结果；再根据这些结果计算256点IDCT的结果；然后根据256点IDCT的结果计算512点IDCT的结果；最后根据512点IDCT的结果计算1024点IDCT的结果。
