edge capture register

题目如下：

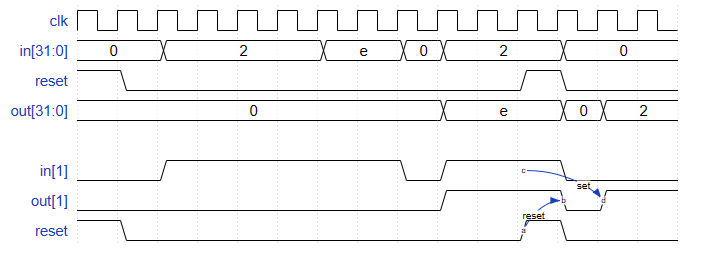

For each bit in a 32-bit vector, capture when the input signal changes from 1 in one clock cycle to 0 the next. "Capture" means that the output will remain 1 until the register is reset (synchronous reset).

代码如下：

module top_module (
    input clk,
    input reset,
    input [31:0] in,
    output [31:0] out
);
	reg [31:0] temp_in;

    always @(posedge clk) begin
        temp_in <= in;
    end

    always @(posedge clk) begin
        if(reset)begin
            out<=32'b0;
//如果复位，则输出变为0
        end
        else begin
            out<=temp_in & ~in | out;
/*temp_in & ~in这一步是检测下降沿，若有下降沿，则触发out为1；然后或逻辑，实际上
实现了保持之前的状态，因为如果之前为1，则无论是否有上升沿或者下降沿，out仍然为1，并不改变
如果out之前为0，那当然也还是不会改变。除非复位发生*/
        end
    end

endmodule

另外，将两个时序always写在一起没有关系，只不过要明白这一题的复位信号并不管辖暂存信号

module top_module (
    input clk,
    input reset,
    input [31:0] in,
    output [31:0] out
);
	reg [31:0] temp_in;

    always @(posedge clk) begin
        temp_in <= in;
        if(reset)begin
            out<=32'b0;
        end
        else begin
            out<=temp_in & ~in | out;
        end
    end

endmodule
