thermostat

题目如下：

A heating/cooling thermostat controls both a heater (during winter) and an air conditioner (during summer). Implement a circuit that will turn on and off the heater, air conditioning, and blower fan as appropriate.

代码如下：

module top_module (
    input too_cold,
    input too_hot,
    input mode,
    input fan_on,
    output heater,
    output aircon,
    output fan
);
    assign heater=(too_cold&&mode)?1'b1:1'b0;
    assign aircon=(too_hot&&!mode)?1'b1:1'b0;
    assign fan=(too_cold&&mode||too_hot&&!mode||fan_on)?1'b1:1'b0;
endmodule

评论：

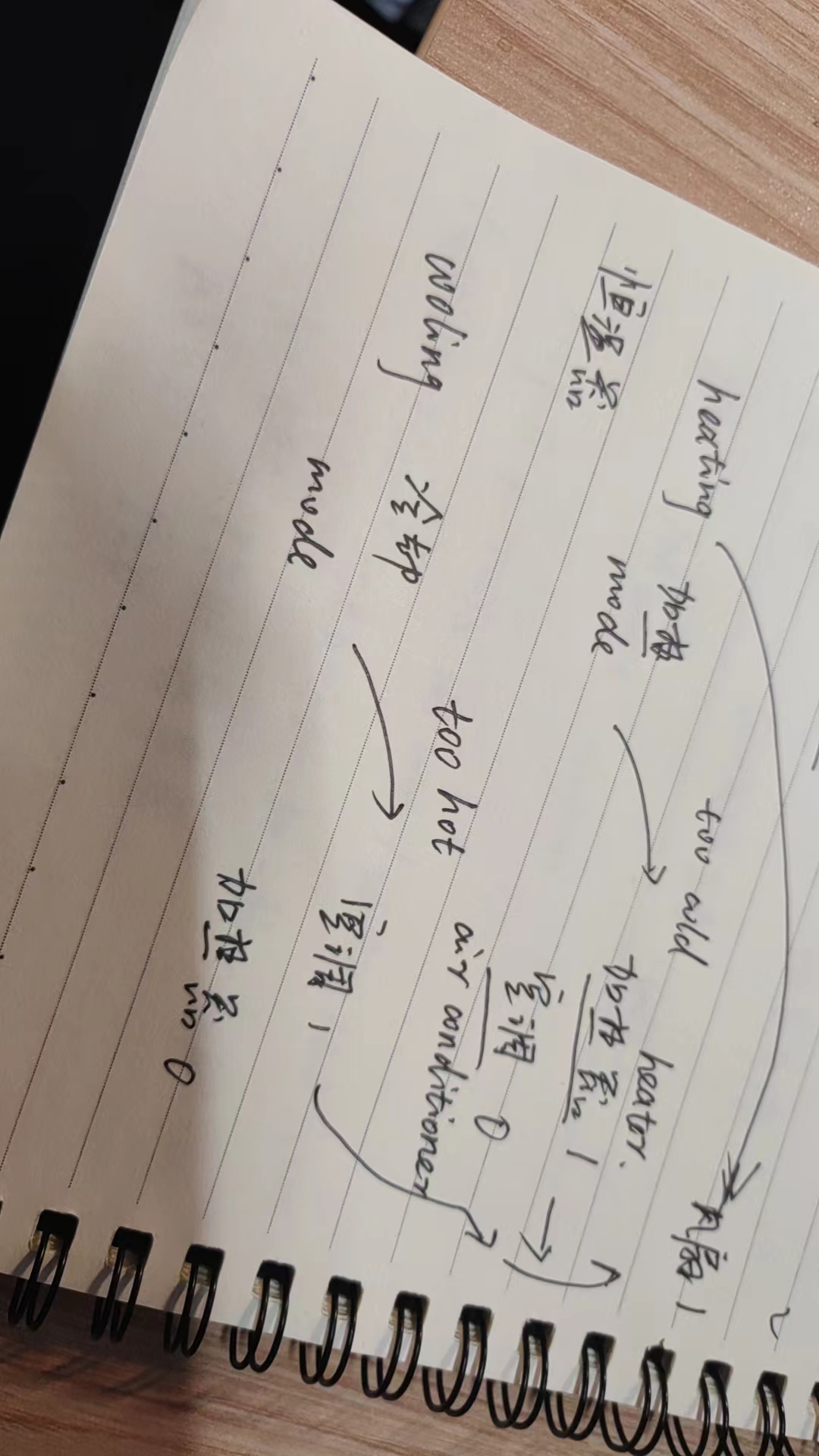

重点在于写出状态标示图（并非状态转换图），然后按情况assign即可。
