AHB RAM 验证【二】

AHB VIP及TB的框架构建

本次要验证的BRAM是一个符合AHB协议的RAM，它是一个slave。那么要验证此ram，我们就要模拟一个ahb_master_agent来对其进行验证。

ahb_agent框架搭建

1.在ahb_pkg中导入vip文件：

`ifndef LVC_AHB_PKG_SV
`define LVC_AHB_PKG_SV
package lvc_ahb_pkg;
  import uvm_pkg::*;
  `include "uvm_macros.svh"
  `include "lvc_ahb_defines.svh"
  `include "lvc_ahb_types.sv"
  `include "lvc_ahb_transaction.sv"
  `include "lvc_ahb_sequencer.sv"
  `include "lvc_ahb_driver.sv"
  `include "lvc_ahb_monitor.sv"
  `include "lvc_ahb_master_transaction.sv"
  `include "lvc_ahb_master_sequencer.sv"
  `include "lvc_ahb_master_driver.sv"
  `include "lvc_ahb_master_monitor.sv"
  `include "lvc_ahb_master_agent.sv"
endpackage
`endif // LVC_AHB_PKG_SV

2.lvc_ahb_driver & lvc_ahb_master_driver

`ifndef LVC_AHB_DRIVER_SV
`define LVC_AHB_DRIVER_SV
class lvc_ahb_driver #(type REQ = lvc_ahb_transaction, type RSP = REQ) extends uvm_driver #(REQ, RSP);
  `uvm_component_utils(lvc_ahb_driver)
  function new (string name = "lvc_ahb_driver", uvm_component parent = null);
    super.new(name, parent);
  endfunction
  function build_phase(uvm_phase phase);
    super.build_phase(phase);
  endfunction
  function connect_phase(uvm_phase phase);
    super.connect_phase(phase);
  endfunction
  task run_phase(uvm_phase phase);
    super.run_phase(phase);
    phase.raise_objection(phase);
    phase.drop_objection(phase);
  endtask
endclass
`endif // LVC_AHB_DRIVER_SV

`ifndef LVC_AHB_MASTER_DRIVER_SV
`define LVC_AHB_MASTER_DRIVER_SV
class lvc_ahb_master_driver extends lvc_ahb_driver;
  `uvm_component_utils(lvc_ahb_master_driver)
  function new (string name = "lvc_ahb_master_driver", uvm_component parent = null);
    super.new(name, parent);
  endfunction
  function build_phase(uvm_phase phase);
    super.build_phase(phase);
  endfunction
  function connect_phase(uvm_phase phase);
    super.connect_phase(phase);
  endfunction
  task run_phase(uvm_phase phase);
    super.run_phase(phase);
    phase.raise_objection(phase);
    phase.drop_objection(phase);
  endtask
endclass
`endif // LVC_AHB_MASTER_DRIVER_SV

3.lvc_ahb_sequencer & lvc_ahb_master_sequencer

`ifndef LVC_AHB_SEQUENCER_SV
`define LVC_AHB_SEQUENCER_SV
class lvc_ahb_sequencer #(type REQ = lvc_ahb_transaction, type RSP = REQ) extends uvm_sequencer #(REQ, RSP);
  `uvm_component_utils(lvc_ahb_sequencer)
  function new (string name = "lvc_ahb_sequencer", uvm_component parent = null);
    super.new(name,parent);
  endfunction
  function void build_phase(uvm_phase phase);
    super.build_phase(phase);
  endfunction
  function void connect_phase(uvm_phase phase);
    super.connect_phase(phase);
  endfunction
  task run_phase(uvm_phase phase);
    super.run_phase(phase);
  endtask
endclass
`endif // LVC_AHB_SEQUENCER_SV

`ifndef LVC_AHB_MASTER_SEQUENCER_SV
`define LVC_AHB_MASTER_SEQUENCER_SV
class lvc_ahb_master_sequencer extends lvc_ahb_sequencer;
  `uvm_component_utils(lvc_ahb_master_sequencer)
  function new (string name = "lvc_ahb_master_sequencer", uvm_component parent = null);
    super.new(name,parent);
  endfunction
  function void build_phase(uvm_phase phase);
    super.build_phase(phase);
  endfunction
  function void connect_phase(uvm_phase phase);
    super.connect_phase(phase);
  endfunction
  task run_phase(uvm_phase phase);
    super.run_phase(phase);
  endtask
endclass
`endif // LVC_AHB_MASTER_SEQUENCER_SV

4.lvc_ahb_monitor & lvc_ahb_master_monitor

`ifndef LVC_AHB_MONITOR_SV
`define LVC_AHB_MONITOR_SV
class lvc_ahb_monitor extends uvm_monitor;
  `uvm_component_utils(ahb_monitor)
  function new (string name = "lvc_ahb_monitor", uvm_component parent = null);
    super.new(name,parent);
  endfunction
  function void build_phase(uvm_phase phase);
    super.build_phase(phase);
  endfunction
  function void connect_phase(uvm_phase phase);
    super.connect_phase(phase);
  endfunction
  task run_phase(uvm_phase phase);
    super.run_phase(phase);
  endtask
endclass
`endif // LVC_AHB_MONITOR_SV

`ifndef LVC_AHB_MASTER_MONITOR_SV
`define LVC_AHB_MASTER_MONITOR_SV
class lvc_ahb_master_monitor extends lvc_ahb_monitor;
  `uvm_component_utils(lvc_ahb_master_monitor)
  function new (string name = "lvc_ahb_master_monitor", uvm_component parent = null);
    super.new(name, parent);
  endfunction
  function void build_phase(uvm_phase phase);
    super.build_phase(phase);
  endfunction
  function void connect_phase(uvm_phase phase);
    super.connect_phase(phase);
  endfunction
  task run_phase(uvm_phase phase);
    super.run_phase(phase);
  endtask
endclass
`endif // LVC_AHB_MASTER_MONITOR_SV

5.lvc_ahb_configuration及lvc_ahb_agent_configuration

`ifndef LVC_AHB_CONFIGURATION_SV
`define LVC_AHB_CONFIGURATION_SV
class lvc_ahb_configuration extends uvm_object;
  `uvm_object_utils_begin(lvc_ahb_configuration)
  `uvm_object_utils_end
  function new (string name = "lvc_ahb_configuration");
    super.new(name);
  endfunction
endclass
`endif // LVC_AHB_CONFIGURATION_SV

`ifndef LVC_AHB_AGENT_CONFIGURATION_SV
`define LVC_AHB_AGENT_CONFIGURATION_SV
class lvc_ahb_agent_configuration extends uvm_object;
  `uvm_object_utils_begin(lvc_ahb_agent_configuration)
  `uvm_object_utils_end
  function new (string name = "lvc_ahb_agent_configuration");
    super.new(name);
  endfunction
endclass
`endif // LVC_AHB_AENGT_CONFIGURATION_SV

6.lvc_ahb_transaction & lvc_ahb_master_transaction

`ifndef LVC_AHB_TRANSACTION_SV
`define LVC_AHB_TRANSACTION_SV
class lvc_ahb_transaction extends uvm_sequence_item;
  `uvm_object_utils_begin(lvc_ahb_transaction)
  `uvm_object_utils_end
  function new (string name = "lvc_ahb_transaction");
    super.new(name);
  endfunction
endclass
`endif // LVC_AHB_TRANSACTION_SV

`ifndef LVC_AHB_MASTER_TRANSACTION_SV
`define LVC_AHB_MASTER_TRANSACTION_SV
class lvc_ahb_master_transaction extends lvc_ahb_transaction;
  `uvm_object_utils_begin(lvc_ahb_master_transaction)
  `uvm_object_utils_end
  function new (string name = "lvc_ahb_master_transaction");
    super.new(name);
  endfunction
endclass
`endif // LVC_AHB_MASTER_TRANSACTION_SV

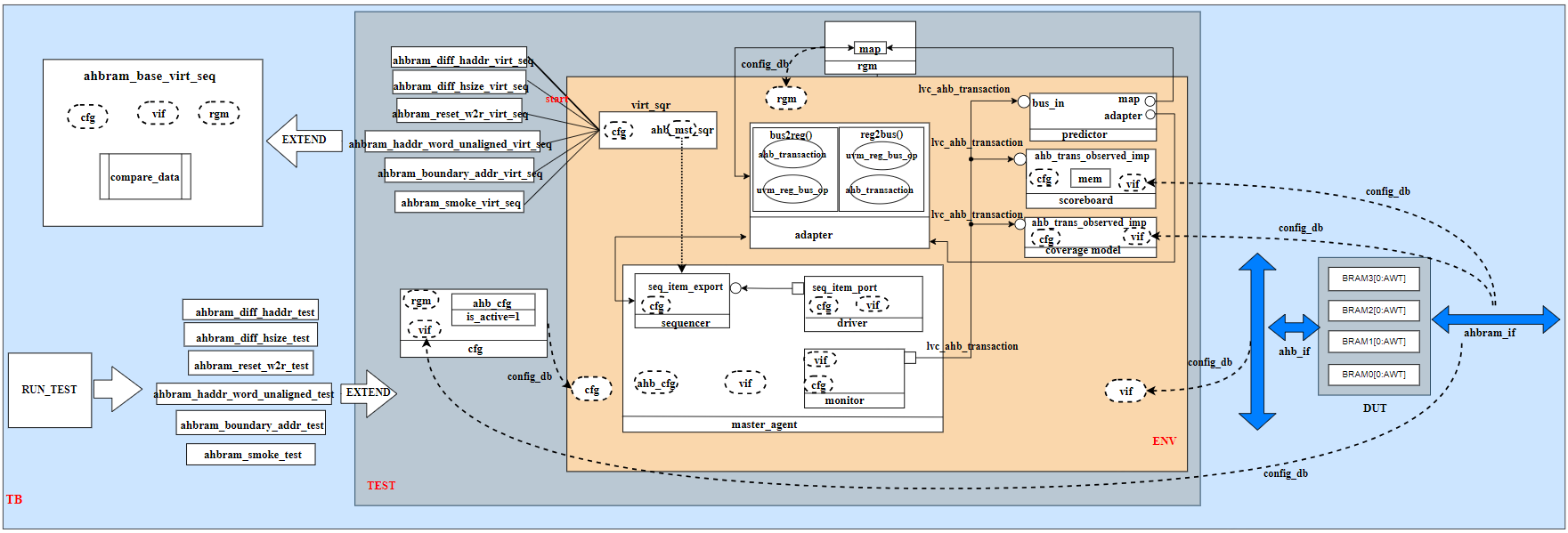

验证框图
