【Canvas与标志】明暗斜条纹美空军标志卡片

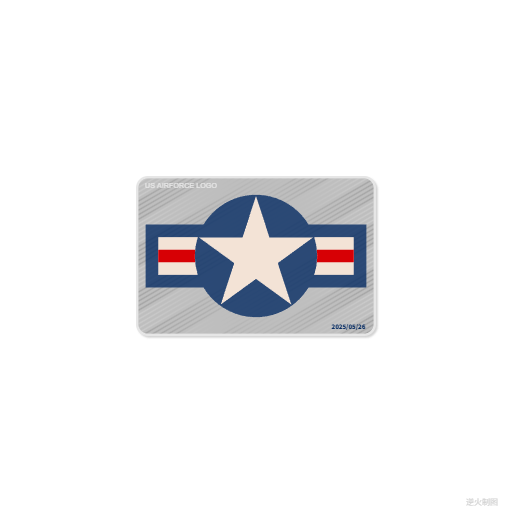

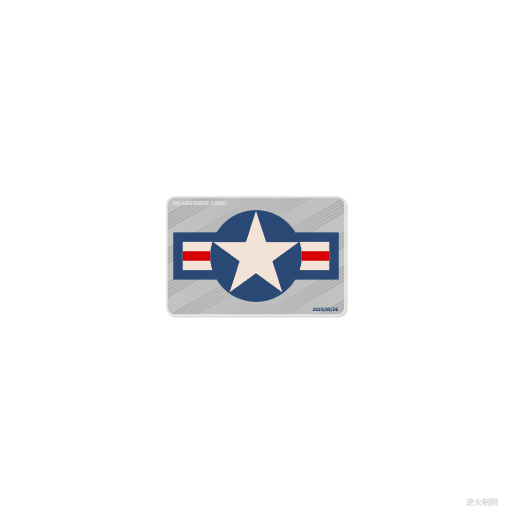

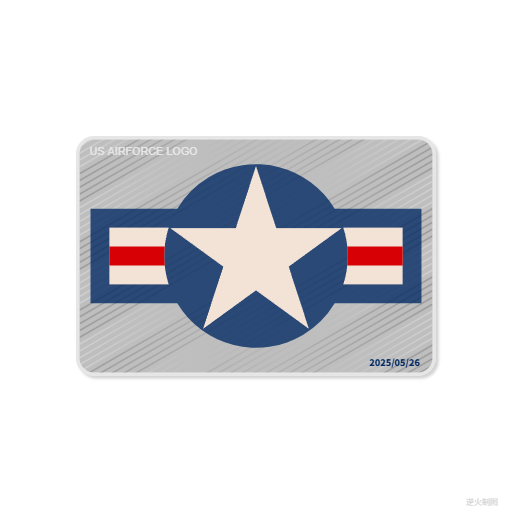

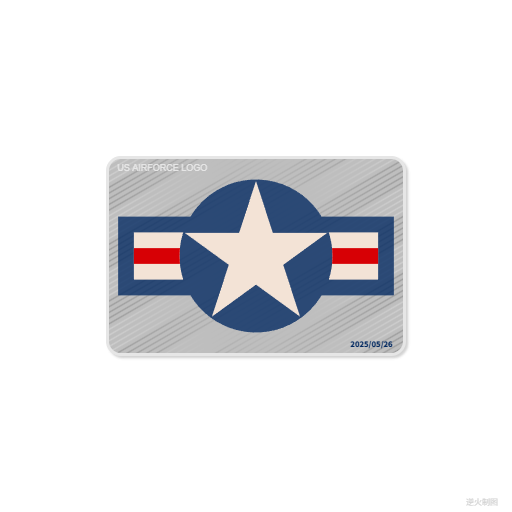

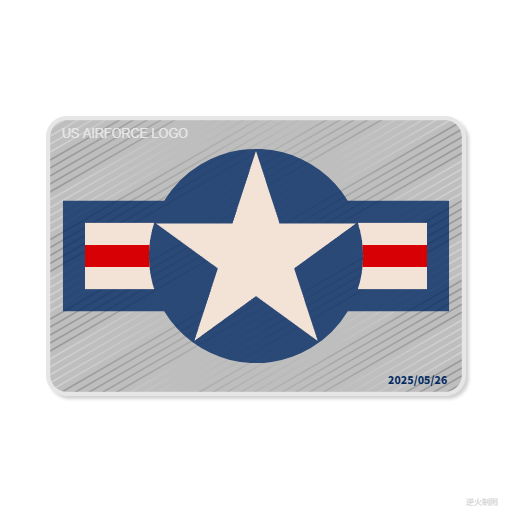

【成图】

【代码】

<!DOCTYPE html>
<html lang="utf-8">
<meta http-equiv="Content-Type" content="text/html; charset=utf-8"/>
<head>
     <title>明暗斜条纹美空军标志卡片 Draft1</title>
     <style type="text/css">
     .centerlize{
        margin:0 auto;
        width:1200px;
     }
     </style>
     </head>

     <body onload="init();">
        <div class="centerlize">
            <canvas id="myCanvas" width="12px" height="12px" style="border:1px dotted black;">
                如果看到这段文字说您的浏览器尚不支持HTML5 Canvas,请更换浏览器再试.
            </canvas>
        </div>
     </body>
</html>
<script type="text/javascript">
<!--
/*****************************************************************
* 将全体代码(从<!DOCTYPE到script>)拷贝下来,粘贴到文本编辑器中,
* 另存为.html文件,再用chrome浏览器打开,就能看到实现效果。
******************************************************************/

// canvas的绘图环境
var ctx;

// 高宽
const WIDTH=512;
const HEIGHT=512;

// 舞台对象
var stage;

//-------------------------------
// 初始化
//-------------------------------
function init(){
    // 获得canvas对象
    var canvas=document.getElementById('myCanvas');
    canvas.width=WIDTH;
    canvas.height=HEIGHT;

    // 初始化canvas的绘图环境
    ctx=canvas.getContext('2d');
    ctx.translate(WIDTH/2,HEIGHT/2);// 原点平移

    // 准备
    stage=new Stage();
    stage.init();

    // 开幕
    animate();
}

// 播放动画
function animate(){
    stage.update();
    stage.paintBg(ctx);
    stage.paintFg(ctx);

    // 循环
    if(true){
        //sleep(100);
        window.requestAnimationFrame(animate);
    }
}

// 舞台类
function Stage(){
    // 初始化
    this.init=function(){

    }

    // 更新
    this.update=function(){

    }

    // 画背景
    this.paintBg=function(ctx){
        ctx.clearRect(-WIDTH/2,-HEIGHT/2,WIDTH,HEIGHT);// 清屏
    }

    // 画前景
    this.paintFg=function(ctx){
        // 底色
        //ctx.save();
        //ctx.fillStyle = "white";
        //ctx.fillRect(-WIDTH/2,-HEIGHT/2,WIDTH,HEIGHT);
        //ctx.restore();

        const R=210;//基准尺寸

        // #1
        ctx.save();
        ctx.shadowOffsetX=R/210*3; // 阴影
        ctx.shadowOffsetY=R/210*3;
        ctx.shadowColor="lightgrey";
        ctx.shadowBlur=R/210*3;
        r=R*1.00;
        var w=2*r;
        var h=w/1.5;
        ctx.fillStyle="rgb(230,230,230)";
        drawRoundRect(ctx,0,0,w,h,R/10);
        ctx.fill();
        ctx.restore();

        // #2
        ctx.save();
        w-=R*0.04;
        h-=R*0.04;
        ctx.fillStyle="rgb(190,190,190)";
        drawRoundRect(ctx,0,0,w,h,R/10-R*0.02);
        ctx.fill();
        ctx.restore();

        // 斜纹
        ctx.save();
        drawRoundRect(ctx,0,0,w,h,R/10-R*0.02);
        ctx.clip();

        var theta=Math.PI/6;//倾角
        var N=64;//条纹根数
        var zebraWidth=(w-h*Math.tan(theta))*Math.sin(theta)+h/Math.cos(theta);// 条纹总宽度
        var yOffSet=zebraWidth/N/Math.cos(theta);

        for(var i=0;i<N;i++){
            var a=createPt(-w/2,-h/2+yOffSet*i);
            var b=createPt(w/2,-h/2+yOffSet*i-w*Math.tan(theta));

            var gnt=ctx.createLinearGradient(a.x,a.y,b.x,b.y);
            //var gnt=ctx.createLinearGradient(-w/2,0,w/2,0);
            if(i%10==0 || i%10==1 || i%10==2 || i%10==3 || i%10==4  ){
                gnt.addColorStop(0,"rgb(254,254,254)");
                gnt.addColorStop(1,"rgb(64,64,64)");
            }else{
                gnt.addColorStop(0,"rgb(64,64,64)");
                gnt.addColorStop(1,"rgb(254,254,254)");
            }

            ctx.lineWidth=R/210*0.5;
            ctx.strokeStyle=gnt;
            ctx.beginPath();
            ctx.moveTo(a.x,a.y);
            ctx.lineTo(b.x,b.y);
            ctx.stroke();
        }
        ctx.restore();

        // 标志外轮廓
        ctx.save();
        var r=R*0.51;
        var h=2*r*Math.sin(Math.PI/10)/3*5;
        var w=3.5*h;
        var theta=Math.asin(h/2/r);
        var a=createPt(r*Math.cos(theta),r*Math.sin(theta));
        var b=createPt(w/2,h/2);
        var c=createPt(w/2,-h/2);
        var d=createPt(r*Math.cos(-theta),r*Math.sin(-theta));
        var e=createPt(r*Math.cos(Math.PI+theta),r*Math.sin(Math.PI+theta));
        var f=createPt(-w/2,-h/2);
        var g=createPt(-w/2,h/2);
        var j=createPt(r*Math.cos(Math.PI-theta),r*Math.sin(Math.PI-theta));

        ctx.fillStyle = "rgba(1,40,97,0.78)";
        ctx.beginPath();
        ctx.moveTo(a.x,a.y);
        ctx.lineTo(b.x,b.y);
        ctx.lineTo(c.x,c.y);
        ctx.lineTo(d.x,d.y);
        ctx.arc(0,0,r,-theta,Math.PI+theta,true);
        ctx.lineTo(e.x,e.y);
        ctx.lineTo(f.x,f.y);
        ctx.lineTo(g.x,g.y);
        ctx.lineTo(j.x,j.y);
        ctx.arc(0,0,r,Math.PI-theta,theta,true);
        ctx.lineTo(a.x,a.y);
        ctx.closePath();
        ctx.fill();
        ctx.restore();

        // 肉带
        ctx.save();
        var r=R*0.51;
        var offset=h/5;
        h-=2*offset;
        w-=2*offset;
        var theta=Math.asin(h/2/r);

        var a=createPt(r*Math.cos(theta),r*Math.sin(theta));
        var b=createPt(w/2,h/2);
        var c=createPt(w/2,-h/2);
        var d=createPt(r*Math.cos(-theta),r*Math.sin(-theta));

        ctx.fillStyle = "rgb(243,227,214)";
        ctx.beginPath();
        ctx.moveTo(a.x,a.y);
        ctx.lineTo(b.x,b.y);
        ctx.lineTo(c.x,c.y);
        ctx.lineTo(d.x,d.y);
        ctx.arc(0,0,r,-theta,theta,false);
        ctx.fill();

        var e=createPt(r*Math.cos(Math.PI+theta),r*Math.sin(Math.PI+theta));
        var f=createPt(-w/2,-h/2);
        var g=createPt(-w/2,h/2);
        var j=createPt(r*Math.cos(Math.PI-theta),r*Math.sin(Math.PI-theta));

        ctx.fillStyle = "rgb(243,227,214)";
        ctx.beginPath();
        ctx.moveTo(e.x,e.y);
        ctx.lineTo(f.x,f.y);
        ctx.lineTo(g.x,g.y);
        ctx.lineTo(j.x,j.y);
        ctx.arc(0,0,r,Math.PI-theta,Math.PI+theta,false);
        ctx.fill();

        ctx.restore();

        // 红带
        ctx.save();
        var r=R*0.51;
        var offset=h/3;
        h-=2*offset;
        var theta=Math.asin(h/2/r);

        var a=createPt(r*Math.cos(theta),r*Math.sin(theta));
        var b=createPt(w/2,h/2);
        var c=createPt(w/2,-h/2);
        var d=createPt(r*Math.cos(-theta),r*Math.sin(-theta));

        ctx.fillStyle = "rgb(215,0,5)";
        ctx.beginPath();
        ctx.moveTo(a.x,a.y);
        ctx.lineTo(b.x,b.y);
        ctx.lineTo(c.x,c.y);
        ctx.lineTo(d.x,d.y);
        ctx.arc(0,0,r,-theta,theta,false);
        ctx.fill();

        var e=createPt(r*Math.cos(Math.PI+theta),r*Math.sin(Math.PI+theta));
        var f=createPt(-w/2,-h/2);
        var g=createPt(-w/2,h/2);
        var j=createPt(r*Math.cos(Math.PI-theta),r*Math.sin(Math.PI-theta));

        ctx.fillStyle = "rgb(215,0,5)";
        ctx.beginPath();
        ctx.moveTo(e.x,e.y);
        ctx.lineTo(f.x,f.y);
        ctx.lineTo(g.x,g.y);
        ctx.lineTo(j.x,j.y);
        ctx.arc(0,0,r,Math.PI-theta,Math.PI+theta,false);
        ctx.fill();

        ctx.restore();

        // 中间肉色五星
        ctx.save();
        var r=R*0.50;
        ctx.fillStyle = "rgb(243,227,214)";
        draw5Star(ctx,0,0,r);
        ctx.fill();
        writeText(ctx,-r*1.25,-r*1.10,"US AIRFORCE LOGO",r*0.12+"px Arial","rgb(230,230,230)");
        writeText(ctx,r*1.54,r*1.23,"2025/05/26",r*0.1+"px Noto Sans SC Black","rgb(1,40,97)");
        ctx.restore();

        writeText(ctx,WIDTH/2-30,HEIGHT/2-5,"逆火制图","8px consolas","lightgrey");// 版权
    }
}

/*--------------------------------------------------
函数:绘制正五角星
ctx:绘图上下文
x:五角星中心横坐标
y:五角星中心纵坐标
R:五角星中心到顶点的距离
---------------------------------------------------*/
function draw5Star(ctx,x,y,R){
    var r=R*Math.sin(Math.PI/10)/Math.sin(Math.PI/10*7);

    var arr=[0,0,0,0,0,0,0,0,0,0];

    // 顶五点
    for(var i=0;i<5;i++){
        var theta=i*Math.PI/5*2-Math.PI/10;
        var x1=R*Math.cos(theta)+x;
        var y1=R*Math.sin(theta)+y;
        arr[i*2]=createPt(x1,y1);
    }

    // 内五点
    for(var i=0;i<5;i++){
        var theta=i*Math.PI/5*2+Math.PI/10;
        var x1=r*Math.cos(theta)+x;
        var y1=r*Math.sin(theta)+y;
        arr[i*2+1]=createPt(x1,y1);
    }

    ctx.beginPath();
    for(var i=0;i<arr.length;i++){
        ctx.lineTo(arr[i].x,arr[i].y);
    }
    ctx.closePath();
}

/*----------------------------------------------------------
函数:用于绘制圆角矩形
ctx:绘图上下文
x:矩形中心横坐标
y:矩形中心纵坐标
width:矩形宽
height:矩形高
radius:圆角半径
----------------------------------------------------------*/
function drawRoundRect(ctx,x,y,width,height,radius){
    ctx.beginPath();
    ctx.moveTo(x-width/2+radius,y-height/2);
    ctx.lineTo(x+width/2-radius,y-height/2);
    ctx.arcTo(x+width/2,y-height/2,x+width/2,y-height/2+radius,radius);
    ctx.lineTo(x+width/2,y-height/2+radius);
    ctx.lineTo(x+width/2,y+height/2-radius);
    ctx.arcTo(x+width/2,y+height/2,x+width/2-radius,y+height/2,radius);
    ctx.lineTo(x+width/2-radius,y+height/2);
    ctx.lineTo(x-width/2+radius,y+height/2);
    ctx.arcTo(x-width/2,y+height/2,x-width/2,y+height/2-radius,radius);
    ctx.lineTo(x-width/2,y+height/2-radius);
    ctx.lineTo(x-width/2,y-height/2+radius);
    ctx.arcTo(x-width/2,y-height/2,x-width/2+radius,y-height/2,radius);
    ctx.closePath();
}

/*----------------------------------------------------------
函数:用于绘制矩形
ctx:绘图上下文
x:矩形中心横坐标
y:矩形中心纵坐标
width:矩形宽
height:矩形高
----------------------------------------------------------*/
function drawRect(ctx,x,y,width,height){
    ctx.beginPath();
    ctx.moveTo(x-width/2,y-height/2);
    ctx.lineTo(x+width/2,y-height/2);
    ctx.lineTo(x+width/2,y+height/2);
    ctx.lineTo(x-width/2,y+height/2);
    ctx.closePath();
}

/*----------------------------------------------------------
函数:用于绘制实心圆
ctx:绘图上下文
x:矩形中心横坐标
y:矩形中心纵坐标
r:圆半径
style:填充圆的方案
----------------------------------------------------------*/
function drawSolidCircle(ctx,x,y,r,style){
    ctx.fillStyle=style;
    ctx.beginPath();
    ctx.arc(x,y,r,0,Math.PI*2,false);
    ctx.closePath();
    ctx.fill();
}

/*----------------------------------------------------------
函数:创建一个二维坐标点
x:横坐标
y:纵坐标
Pt即Point
----------------------------------------------------------*/
function createPt(x,y){
    var retval={};
    retval.x=x;
    retval.y=y;
    return retval;
}

/*----------------------------------------------------------
函数:延时若干毫秒
milliseconds:毫秒数
----------------------------------------------------------*/
function sleep(milliSeconds) {
    const date = Date.now();
    let currDate = null;
    while (currDate - date < milliSeconds) {
        currDate = Date.now();
    }
}

/*----------------------------------------------------------
函数:书写文字
ctx:绘图上下文
x:横坐标
y:纵坐标
text:文字
font:字体
color:颜色
----------------------------------------------------------*/
function writeText(ctx,x,y,text,font,color){
    ctx.save();
    ctx.textBaseline="bottom";
    ctx.textAlign="center";
    ctx.font = font;
    ctx.fillStyle=color;
    ctx.fillText(text,x,y);
    ctx.restore();
}

/*-------------------------------------------------------------
普通牛马的一生

骂骂咧咧地干了很多活
灵泛机变地上了很多当
扣扣索索地花了很多钱
小心翼翼地闯了不少祸
不明不白地吃了很多亏
掏心掏肺地结了很多仇
认认真真地犯了很多错
窝窝囊囊地活了很多年
心有不甘地离开这世界
--------------------------------------------------------------*/
//-->
</script>

END
