【Canvas与绳结】三根交错回形针

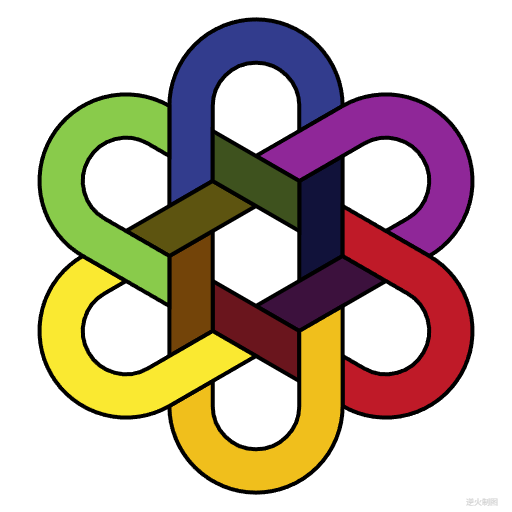

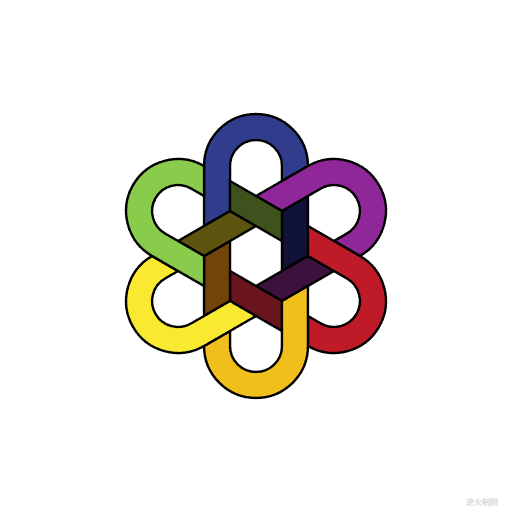

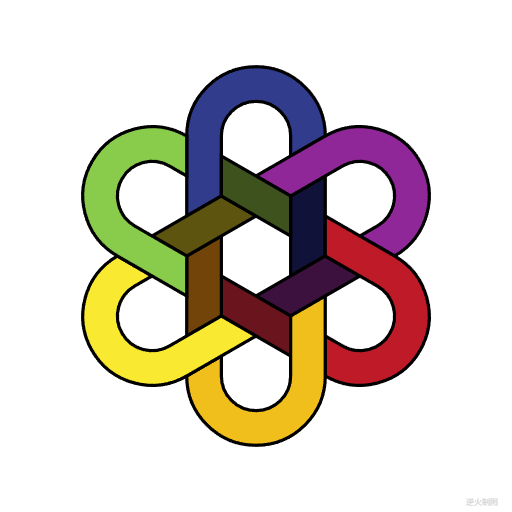

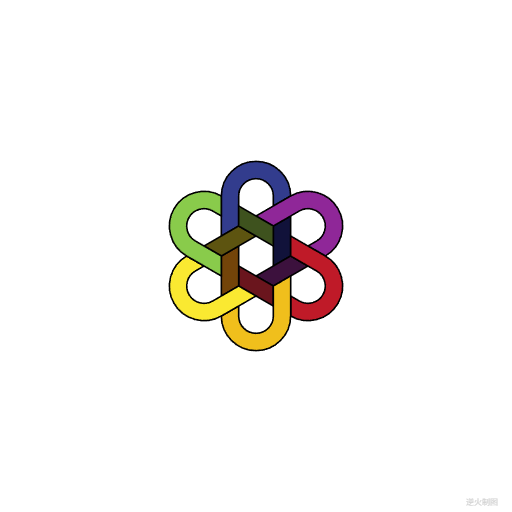

【成图】

120*120的png图标:

【代码】

<!DOCTYPE html>
<html lang="utf-8">
<meta http-equiv="Content-Type" content="text/html; charset=utf-8"/>
<head>
     <title>三根交错回形针 Draft2</title>
     <style type="text/css">
     .centerlize{
        margin:0 auto;
        width:1200px;
     }
     </style>
     </head>

     <body onload="init();">
        <div class="centerlize">
            <canvas id="myCanvas" width="12px" height="12px" style="border:1px dotted black;">
                如果看到这段文字说您的浏览器尚不支持HTML5 Canvas,请更换浏览器再试.
            </canvas>
        </div>
     </body>
</html>
<script type="text/javascript">
<!--
/*****************************************************************
* 将全体代码(从<!DOCTYPE到script>)拷贝下来,粘贴到文本编辑器中,
* 另存为.html文件,再用chrome浏览器打开,就能看到实现效果。
******************************************************************/

// canvas的绘图环境
var ctx;

// 高宽
const WIDTH=512;
const HEIGHT=512;

// 舞台对象
var stage;

//-------------------------------
// 初始化
//-------------------------------
function init(){
    // 获得canvas对象
    var canvas=document.getElementById('myCanvas');
    canvas.width=WIDTH;
    canvas.height=HEIGHT;

    // 初始化canvas的绘图环境
    ctx=canvas.getContext('2d');
    ctx.translate(WIDTH/2,HEIGHT/2);// 原点平移

    // 准备
    stage=new Stage();
    stage.init();

    // 开幕
    animate();
}

// 播放动画
function animate(){
    stage.update();
    stage.paintBg(ctx);
    stage.paintFg(ctx);

    // 循环
    if(true){
        //sleep(100);
        window.requestAnimationFrame(animate);
    }
}

// 舞台类
function Stage(){
    // 初始化
    this.init=function(){

    }

    // 更新
    this.update=function(){

    }

    // 画背景
    this.paintBg=function(ctx){
        ctx.clearRect(-WIDTH/2,-HEIGHT/2,WIDTH,HEIGHT);// 清屏
    }

    // 画前景
    this.paintFg=function(ctx){
        // 底色
        //ctx.save();
        //ctx.fillStyle = "black";
        //ctx.fillRect(-WIDTH/2,-HEIGHT/2,WIDTH,HEIGHT);
        //ctx.restore();

        const R=50;//基准尺寸

        var colors=[["rgb(17,18,58)","rgb(50,60,141)"],
            ["rgb(60,17,61)","rgb(143,39,152)"],
            ["rgb(106,21,29)","rgb(191,26,40)"],
            ["rgb(115,68,9)","rgb(240,191,28)"],
            ["rgb(93,84,16)","rgb(250,233,49)"],
            ["rgb(62,82,30)","rgb(137,203,75)"],
            ["rgb(25,75,46)","rgb(38,181,109)"],
            ["rgb(14,71,90)","rgb(41,159,217)"],
            ];

        // #1 外圈
        ctx.save();
        var r=R*1.00;
        var N=6;
        var part=Math.PI/3;

        for(var i=0;i<N;i++){
            var theta=i*part+Math.PI/6;

            var a=createPt2(0,0,r,theta);
            var b=createPt2(a.x,a.y,r,theta-Math.PI/3);
            var c=createPt2(b.x,b.y,2*r,theta-Math.PI/3*2);
            var d=createPt2(c.x,c.y,1*r,theta+Math.PI/3*2);

            // 平四
            ctx.lineWidth=R/50*4;
            ctx.strokeStyle="black";
            ctx.fillStyle=colors[i][0];
            ctx.beginPath();
            ctx.moveTo(a.x,a.y);
            ctx.lineTo(b.x,b.y);
            ctx.lineTo(c.x,c.y);
            ctx.lineTo(d.x,d.y);
            ctx.lineTo(a.x,a.y);
            ctx.closePath();
            ctx.fill();
            ctx.stroke();

            var e=createPt2(0,0,2*r,theta+Math.PI);
            var f=createPt2(e.x,e.y,2*r,theta+Math.PI+Math.PI/3);
            var g=createPt2(f.x,f.y,Math.sqrt(3)*r,theta-Math.PI/6);
            var h=createPt2(f.x,f.y,2*Math.sqrt(3)*r,theta-Math.PI/6);
            var ii=createPt2(h.x,h.y,r,theta+Math.PI/3*2);

            var j=createPt2(ii.x,ii.y,r/2,theta-Math.PI/3*2);
            var k=createPt2(j.x,j.y,r*Math.sqrt(3)/2,theta+Math.PI/3+Math.PI/2);
            var l=createPt2(j.x,j.y,r*Math.sqrt(3),theta+Math.PI/3+Math.PI/2);
            var m=createPt2(ii.x,ii.y,r*Math.sqrt(3),theta+Math.PI/3+Math.PI/2);
            var n=createPt2(m.x,m.y,r,theta+Math.PI/3);
            var o=createPt2(n.x,n.y,r,theta+Math.PI/3*2);

            // 外环
            ctx.strokeStyle="black";
            ctx.fillStyle=colors[i][1];
            ctx.beginPath();
            ctx.moveTo(f.x,f.y);
            ctx.arc(g.x,g.y,Math.sqrt(3)*r,theta-Math.PI/6*7,theta-Math.PI/6,false);
            ctx.lineTo(ii.x,ii.y);
            ctx.lineTo(j.x,j.y);
            ctx.arc(k.x,k.y,Math.sqrt(3)*r/2,theta-Math.PI/6,theta-Math.PI/6*7,true);
            ctx.lineTo(m.x,m.y);
            ctx.lineTo(n.x,n.y);
            ctx.lineTo(o.x,o.y);
            ctx.closePath();
            ctx.fill();
            ctx.stroke();
        }

        ctx.restore();

        writeText(ctx,WIDTH/2-30,HEIGHT/2-5,"逆火制图","8px consolas","lightgrey");// 版权
    }
}

/*----------------------------------------------------------
函数:用于绘制矩形
ctx:绘图上下文
x:矩形中心横坐标
y:矩形中心纵坐标
width:矩形宽
height:矩形高
----------------------------------------------------------*/
function drawRect(ctx,x,y,width,height){
    ctx.beginPath();
    ctx.moveTo(x-width/2,y-height/2);
    ctx.lineTo(x+width/2,y-height/2);
    ctx.lineTo(x+width/2,y+height/2);
    ctx.lineTo(x-width/2,y+height/2);
    ctx.closePath();
}

/*----------------------------------------------------------
函数:用于绘制实心圆
ctx:绘图上下文
x:矩形中心横坐标
y:矩形中心纵坐标
r:圆半径
style:填充圆的方案
----------------------------------------------------------*/
function drawSolidCircle(ctx,x,y,r,style){
    ctx.fillStyle=style;
    ctx.beginPath();
    ctx.arc(x,y,r,0,Math.PI*2,false);
    ctx.closePath();
    ctx.fill();
}

/*----------------------------------------------------------
函数:创建一个二维坐标点
baseX:基准点横坐标
baseY:基准点纵坐标
radius:当前点到基准点的距离(辐长)
theta:当前点到基准点的角度(辐角)
Pt即Point
----------------------------------------------------------*/
function createPt2(baseX,baseY,radius,theta){
    var pt={};
    pt.x=baseX+radius*Math.cos(theta);
    pt.y=baseY+radius*Math.sin(theta);
    return pt;
}

/*----------------------------------------------------------
函数:创建一个二维坐标点
x:横坐标
y:纵坐标
Pt即Point
----------------------------------------------------------*/
function createPt(x,y){
    var retval={};
    retval.x=x;
    retval.y=y;
    return retval;
}

/*----------------------------------------------------------
函数:延时若干毫秒
milliseconds:毫秒数
----------------------------------------------------------*/
function sleep(milliSeconds) {
    const date = Date.now();
    let currDate = null;
    while (currDate - date < milliSeconds) {
        currDate = Date.now();
    }
}

/*----------------------------------------------------------
函数:书写文字
ctx:绘图上下文
x:横坐标
y:纵坐标
text:文字
font:字体
color:颜色
----------------------------------------------------------*/
function writeText(ctx,x,y,text,font,color){
    ctx.save();
    ctx.textBaseline="bottom";
    ctx.textAlign="center";
    ctx.font = font;
    ctx.fillStyle=color;
    ctx.fillText(text,x,y);
    ctx.restore();
}

/*-------------------------------------------------------------
一个人的沉默是思考,一群人的沉默是冷漠,所有人的沉默是黑暗。
--------------------------------------------------------------*/
//-->
</script>

END
