【Canvas与五星】六种五角星画法

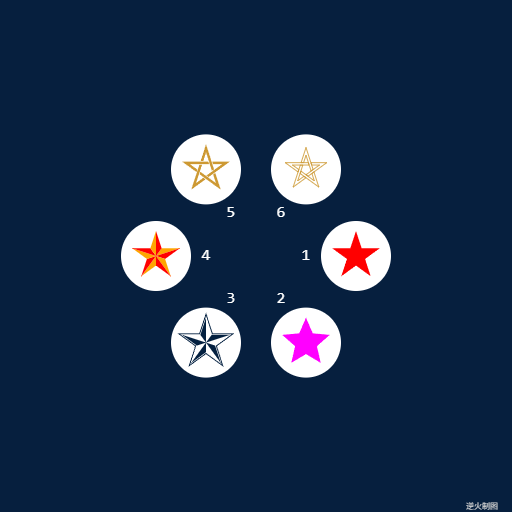

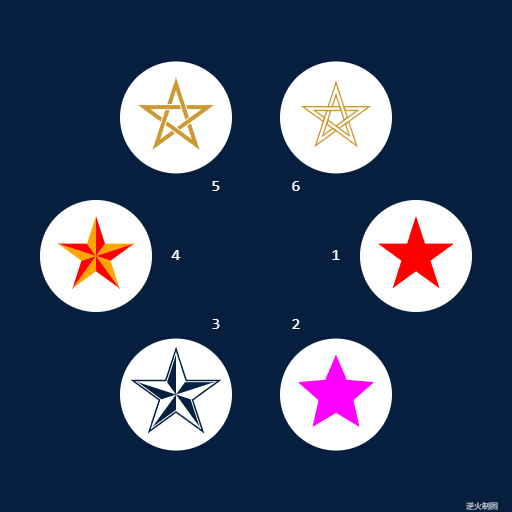

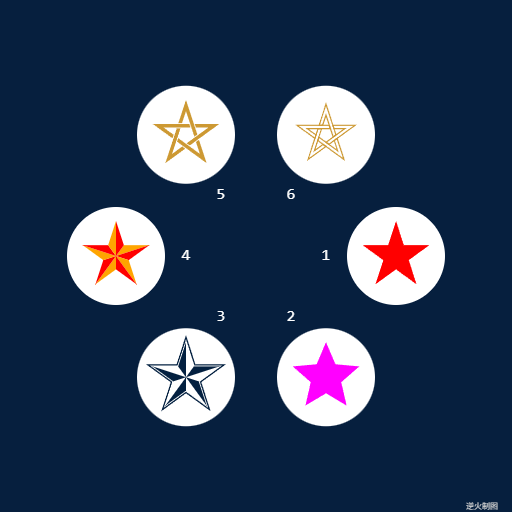

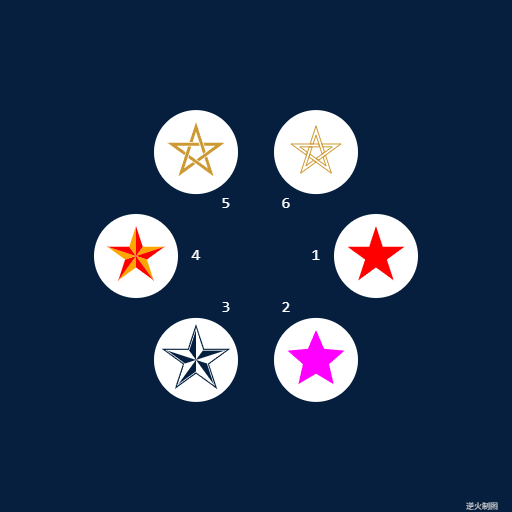

【成图】

【代码】

<!DOCTYPE html>
<html lang="utf-8">
<meta http-equiv="Content-Type" content="text/html; charset=utf-8"/>
<head>
     <title>六种五角星画法 Draft5</title>
     <style type="text/css">
     .centerlize{
        margin:0 auto;
        width:1200px;
     }
     </style>
     </head>

     <body onload="init();">
        <div class="centerlize">
            <canvas id="myCanvas" width="12px" height="12px" style="border:1px dotted black;">
                如果看到这段文字说您的浏览器尚不支持HTML5 Canvas,请更换浏览器再试.
            </canvas>
        </div>
     </body>
</html>
<script type="text/javascript">
<!--
/*****************************************************************
* 将全体代码(从<!DOCTYPE到script>)拷贝下来,粘贴到文本编辑器中,
* 另存为.html文件,再用chrome浏览器打开,就能看到实现效果。
******************************************************************/

// canvas的绘图环境
var ctx;

// 高宽
const WIDTH=512;
const HEIGHT=512;

// 舞台对象
var stage;

//-------------------------------
// 初始化
//-------------------------------
function init(){
    // 获得canvas对象
    var canvas=document.getElementById('myCanvas');
    canvas.width=WIDTH;
    canvas.height=HEIGHT;

    // 初始化canvas的绘图环境
    ctx=canvas.getContext('2d');
    ctx.translate(WIDTH/2,HEIGHT/2);// 原点平移

    // 准备
    stage=new Stage();
    stage.init();

    // 开幕
    animate();
}

// 播放动画
function animate(){
    stage.update();
    stage.paintBg(ctx);
    stage.paintFg(ctx);

    // 循环
    if(true){
        //sleep(100);
        window.requestAnimationFrame(animate);
    }
}

// 舞台类
function Stage(){
    // 初始化
    this.init=function(){

    }

    // 更新
    this.update=function(){

    }

    // 画背景
    this.paintBg=function(ctx){
        ctx.clearRect(-WIDTH/2,-HEIGHT/2,WIDTH,HEIGHT);// 清屏
    }

    // 画前景
    this.paintFg=function(ctx){
        // 底色
        ctx.save();
        ctx.fillStyle = "rgb(6,31,62)";
        ctx.fillRect(-WIDTH/2,-HEIGHT/2,WIDTH,HEIGHT);
        ctx.restore();

        const R=180;//基准尺寸

        // 准备五个定点
        ctx.save();
        var r=R*1.00;
        var center=createPt(0,0);// 中心点

        var N=6;// 角数
        var part=Math.PI*2/N;// 每次偏转角
        var arr=[];// 放五个定点的数组

        for(var i=0;i<N;i++){
            var theta=part*i;
            var p=createPt2(center.x,center.y,r,theta);
            drawSolidCircle(ctx,p.x,p.y,r*0.35,"white");
            arr.push(p);
        }
        ctx.restore();

        // 1.普通正五角星
        ctx.save();
        radius=r*0.25;
        var p=arr[0];
        writeText(ctx,p.x/2,p.y/2,"1","16px consolas","white");
        ctx.fillStyle="red";
        draw5Star(ctx,p.x,p.y,radius);
        ctx.fill();
        ctx.restore();

        // 2.胖正五角星
        ctx.save();
        radius=r*0.25;
        var p=arr[1];
        writeText(ctx,p.x/2,p.y/2,"2","16px consolas","white");
        ctx.fillStyle="magenta";
        drawFat5Star(ctx,p.x,p.y,radius,1.2);
        ctx.fill();
        ctx.restore();

        // 3.半五角星
        ctx.save();
        radius=r*0.30;
        var p=arr[2];
        writeText(ctx,p.x/2,p.y/2,"3","16px consolas","white");

        ctx.fillStyle="rgb(3,32,64)";
        draw5Star(ctx,p.x,p.y,radius);
        ctx.fill();

        radius=r*0.27;
        ctx.fillStyle="white";
        draw5Star(ctx,p.x,p.y,radius);
        ctx.fill();

        radius=r*0.25;
        drawHalf5Star(ctx,p.x,p.y,radius,"rgb(3,32,64)");
        ctx.restore();

        // 4.双色五角星
        ctx.save();
        radius=r*0.25;
        var p=arr[3];
        writeText(ctx,p.x/2,p.y/2,"4","16px consolas","white");
        draw2Color5Star(ctx,p.x,p.y,radius,"orange","red");
        ctx.restore();

        // 5.压边五角星
        ctx.save();
        radius=r*0.25;
        var p=arr[4];
        writeText(ctx,p.x/2,p.y/2,"5","16px consolas","white");
        drawBlank5Star(ctx,p.x,p.y,radius,radius/10,radius/40,"rgb(205,153,51)");
        ctx.restore();

        // 6.夹边五角星
        ctx.save();
        radius=r*0.25;
        var p=arr[5];
        writeText(ctx,p.x/2,p.y/2,"6","16px consolas","white");
        drawSide5Star(ctx,p.x,p.y,radius/3,radius/10,radius/30,"rgb(205,153,51)");
        ctx.restore();

        writeText(ctx,WIDTH/2-30,HEIGHT/2-5,"逆火制图","8px consolas","lightgrey");// 版权
    }
}

/*--------------------------------------------------
函数:绘制标准正五角星轮廓,可描边,可填充
ctx:绘图上下文
x:五角星中心横坐标
y:五角星中心纵坐标
R:五角星中心到顶点的距离
---------------------------------------------------*/
function draw5Star(ctx,x,y,R){
    var r=R*Math.sin(Math.PI/10)/Math.sin(Math.PI/10*7);

    var arr=[0,0,0,0,0,0,0,0,0,0];

    // 顶五点
    for(var i=0;i<5;i++){
        var theta=i*Math.PI/5*2-Math.PI/10;
        var x1=R*Math.cos(theta)+x;
        var y1=R*Math.sin(theta)+y;
        arr[i*2]=createPt(x1,y1);
    }

    // 内五点
    for(var i=0;i<5;i++){
        var theta=i*Math.PI/5*2+Math.PI/10;
        var x1=r*Math.cos(theta)+x;
        var y1=r*Math.sin(theta)+y;
        arr[i*2+1]=createPt(x1,y1);
    }

    ctx.beginPath();
    for(var i=0;i<arr.length;i++){
        ctx.lineTo(arr[i].x,arr[i].y);
    }
    ctx.closePath();
}

/*--------------------------------------------------
函数:绘制胖正五角星轮廓,可描边,可填充
ctx:绘图上下文
x:五角星中心横坐标
y:五角星中心纵坐标
R:五角星中心到顶点的距离
ratio:r与R的比例,大于一显胖,小于显瘦
---------------------------------------------------*/
function drawFat5Star(ctx,x,y,R,ratio){
    var r=R*Math.sin(Math.PI/10)/Math.sin(Math.PI/10*7)*ratio;

    var arr=[0,0,0,0,0,0,0,0,0,0];

    // 顶五点
    for(var i=0;i<5;i++){
        var theta=i*Math.PI/5*2-Math.PI/10;
        var x1=R*Math.cos(theta)+x;
        var y1=R*Math.sin(theta)+y;
        arr[i*2]=createPt(x1,y1);
    }

    // 内五点
    for(var i=0;i<5;i++){
        var theta=i*Math.PI/5*2+Math.PI/10;
        var x1=r*Math.cos(theta)+x;
        var y1=r*Math.sin(theta)+y;
        arr[i*2+1]=createPt(x1,y1);
    }

    ctx.beginPath();
    for(var i=0;i<arr.length;i++){
        ctx.lineTo(arr[i].x,arr[i].y);
    }
    ctx.closePath();
}

/*--------------------------------------------------
函数:绘制半正五角星,仅适合填充,常与正五角星配合使用
ctx:绘图上下文
x:五角星中心横坐标
y:五角星中心纵坐标
R:五角星中心到顶点的距离
fillColor:填充色
---------------------------------------------------*/
function drawHalf5Star(ctx,x,y,R,fillColor){
    ctx.save();
    var r=R*1.00;// 半径
    var center=createPt(x,y);// 中心点
    var N=5;// 角数
    var part=Math.PI*2/5;// 每次偏转角


    for(var i=0;i<N;i++){
        var theta=part*i-Math.PI/10;
        var a=createPt2(center.x,center.y,r,theta);
        var b=createPt2(a.x,a.y,r*Math.sin(Math.PI/5)/Math.sin(Math.PI/10*7),theta+Math.PI/10*9);
        var c=createPt(center.x,center.y);
        var d=createPt2(a.x,a.y,r*Math.sin(Math.PI/5)/Math.sin(Math.PI/10*7),theta-Math.PI/10*9);
        ctx.fillStyle=fillColor;
        ctx.beginPath();
        ctx.lineTo(a.x,a.y);
        ctx.lineTo(c.x,c.y);
        ctx.lineTo(d.x,d.y);
        ctx.closePath();
        ctx.fill();
    }

    ctx.restore();
}

/*--------------------------------------------------
函数:绘制双色正五角星
ctx:绘图上下文
x:五角星中心横坐标
y:五角星中心纵坐标
R:五角星中心到顶点的距离
fillColor1:填充色
fillColor2:填充色
---------------------------------------------------*/
function draw2Color5Star(ctx,x,y,R,fillColor1,fillColor2){
    ctx.save();
    var r=R*1.00;// 半径
    var center=createPt(x,y);// 中心点
    var N=5;// 角数
    var part=Math.PI*2/5;// 每次偏转角

    for(var i=0;i<N;i++){
        var theta=part*i-Math.PI/10;
        var a=createPt2(center.x,center.y,r,theta);
        var b=createPt2(a.x,a.y,r*Math.sin(Math.PI/5)/Math.sin(Math.PI/10*7),theta+Math.PI/10*9);
        var c=createPt(center.x,center.y);
        var d=createPt2(a.x,a.y,r*Math.sin(Math.PI/5)/Math.sin(Math.PI/10*7),theta-Math.PI/10*9);
        ctx.fillStyle=fillColor1;
        ctx.beginPath()
        ctx.lineTo(a.x,a.y);
        ctx.lineTo(c.x,c.y);
        ctx.lineTo(d.x,d.y);
        ctx.closePath();
        ctx.fill();

        ctx.fillStyle=fillColor2;
        ctx.beginPath()
        ctx.lineTo(a.x,a.y);
        ctx.lineTo(c.x,c.y);
        ctx.lineTo(b.x,b.y);
        ctx.closePath();
        ctx.fill();
    }

    ctx.restore();
}

/*--------------------------------------------------
函数:绘制压边正五角星
ctx:绘图上下文
x:五角星中心横坐标
y:五角星中心纵坐标
R(radius):五角星中心到顶点的距离
T(Thickness):边的厚度
G(Gap):边的间距
---------------------------------------------------*/
function drawBlank5Star(ctx,x,y,R,T,G,fillColor){
    const N=5;

    for(var i=0;i<N;i++){
        var theta=i*Math.PI/5*2-Math.PI/10;
        var a=createPt2(x,y,R,theta);
        var b=createPt2(a.x,a.y,R*Math.sin(Math.PI/10*6)/Math.sin(Math.PI/10*3)-(G+T)/Math.cos(Math.PI/10),theta+Math.PI*9/10);
        var c=createPt2(b.x,b.y,T/Math.cos(Math.PI/10),theta+Math.PI*13/10);
        var d=createPt2(a.x,a.y,T/Math.sin(Math.PI/10),theta+Math.PI);
        var r=R*Math.sin(Math.PI/10)/Math.sin(Math.PI/10*7);// 内部正五边形半径
        var e=createPt2(d.x,d.y,(R-T/Math.sin(Math.PI/10)-1*r*Math.sin(Math.PI/10*3))/Math.cos(Math.PI/10)-G/Math.cos(Math.PI/10),theta+Math.PI*11/10);
        var f=createPt2(e.x,e.y,T/Math.cos(Math.PI/10),theta+Math.PI*3/2);

        ctx.fillStyle=fillColor;
        ctx.beginPath();
        ctx.lineTo(a.x,a.y);
        ctx.lineTo(b.x,b.y);
        ctx.lineTo(c.x,c.y);
        ctx.lineTo(d.x,d.y);
        ctx.lineTo(e.x,e.y);
        ctx.lineTo(f.x,f.y);
        ctx.closePath();
        ctx.fill();
    }
}

/*--------------------------------------------------
函数:绘制夹边正五角星
ctx:绘图上下文
x:五角星中心横坐标
y:五角星中心纵坐标
R(radius):五角星中心到顶点的距离
T(Thickness):边的厚度
lineWidth:线宽
strokeColor:描边颜色
---------------------------------------------------*/
function drawSide5Star(ctx,x,y,R,T,lineWidth,strokeColor){
    const N=5;// 角个数
    const W=T;// 条宽
    ctx.lineWidth=lineWidth;
    ctx.strokeStyle=strokeColor;

    for(var i=0;i<N;i++){
        var theta=Math.PI*2/N*i-Math.PI/10*3;
        var a=createPt(x+R*Math.cos(theta),y+R*Math.sin(theta));

        var r=R*Math.sin(Math.PI/10*2)/Math.sin(Math.PI/10);
        var angle=theta+Math.PI/10*3;
        var b=createPt(a.x+r*Math.cos(angle),a.y+r*Math.sin(angle));

        r=R*Math.sin(Math.PI/10*6)/Math.sin(Math.PI/10)-W/Math.sin(Math.PI/10*4);
        angle=theta+Math.PI/10*11;
        var c=createPt(b.x+r*Math.cos(angle),b.y+r*Math.sin(angle));

        r=W;
        angle=theta+Math.PI/10*15;
        var d=createPt(c.x+r*Math.cos(angle),c.y+r*Math.sin(angle));

        r=R*Math.sin(Math.PI/10*6)/Math.sin(Math.PI/10)-W/Math.sin(Math.PI/10*4)-W*Math.sin(Math.PI/10*3)/Math.sin(Math.PI/10);
        angle=theta+Math.PI/10;
        var e=createPt(d.x+r*Math.cos(angle),d.y+r*Math.sin(angle));

        r=R*Math.sin(Math.PI/10*2)/Math.sin(Math.PI/10)-W*Math.sin(Math.PI/10*3)/Math.sin(Math.PI/10)-W*2*Math.tan(Math.PI/10);
        angle=theta-Math.PI/10*7;
        var f=createPt(e.x+r*Math.cos(angle),e.y+r*Math.sin(angle));

        // 连线
        ctx.beginPath();
        ctx.moveTo(a.x,a.y);
        ctx.lineTo(b.x,b.y);
        ctx.lineTo(c.x,c.y);
        ctx.lineTo(d.x,d.y);
        ctx.lineTo(e.x,e.y);
        ctx.lineTo(f.x,f.y);
        ctx.closePath();
        ctx.stroke();
    }
}

/*----------------------------------------------------------
函数:用于绘制矩形
ctx:绘图上下文
x:矩形中心横坐标
y:矩形中心纵坐标
width:矩形宽
height:矩形高
----------------------------------------------------------*/
function drawRect(ctx,x,y,width,height){
    ctx.beginPath();
    ctx.moveTo(x-width/2,y-height/2);
    ctx.lineTo(x+width/2,y-height/2);
    ctx.lineTo(x+width/2,y+height/2);
    ctx.lineTo(x-width/2,y+height/2);
    ctx.closePath();
}

/*----------------------------------------------------------
函数:用于绘制实心圆
ctx:绘图上下文
x:矩形中心横坐标
y:矩形中心纵坐标
r:圆半径
style:填充圆的方案
----------------------------------------------------------*/
function drawSolidCircle(ctx,x,y,r,style){
    ctx.fillStyle=style;
    ctx.beginPath();
    ctx.arc(x,y,r,0,Math.PI*2,false);
    ctx.closePath();
    ctx.fill();
}

/*----------------------------------------------------------
函数:创建一个二维坐标点
baseX:基准点横坐标
baseY:基准点纵坐标
radius:当前点到基准点的距离
theta:当前点到基准点的角度
Pt即Point
----------------------------------------------------------*/
function createPt2(baseX,baseY,radius,theta){
    var retval={};
    retval.x=baseX+radius*Math.cos(theta);
    retval.y=baseY+radius*Math.sin(theta);
    return retval;
}

/*----------------------------------------------------------
函数:创建一个二维坐标点
x:横坐标
y:纵坐标
Pt即Point
----------------------------------------------------------*/
function createPt(x,y){
    var retval={};
    retval.x=x;
    retval.y=y;
    return retval;
}

/*----------------------------------------------------------
函数:延时若干毫秒
milliseconds:毫秒数
----------------------------------------------------------*/
function sleep(milliSeconds) {
    const date = Date.now();
    let currDate = null;
    while (currDate - date < milliSeconds) {
        currDate = Date.now();
    }
}

/*----------------------------------------------------------
函数:书写文字
ctx:绘图上下文
x:横坐标
y:纵坐标
text:文字
font:字体
color:颜色
----------------------------------------------------------*/
function writeText(ctx,x,y,text,font,color){
    ctx.save();
    ctx.textBaseline="middle";
    ctx.textAlign="center";
    ctx.font = font;
    ctx.fillStyle=color;
    ctx.fillText(text,x,y);
    ctx.restore();
}

/*-------------------------------------------------------------
星光不问赶路人,时光不负有心人;
你的努力,终奖璀璨成诗。
--------------------------------------------------------------*/
//-->
</script>



END
