【Canvas技法】顺逆时针写环形字

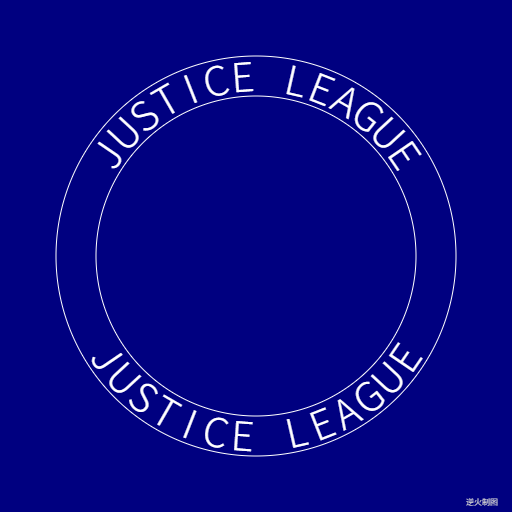

【成图】

1

【代码】

<!DOCTYPE html>
<html lang="utf-8">
<meta http-equiv="Content-Type" content="text/html; charset=utf-8"/>
<head>
     <title>顺逆时针写环形字 Draft2</title>
     <style type="text/css">
     .centerlize{
        margin:0 auto;
        width:1200px;
     }
     </style>
     </head>

     <body onload="init();">
        <div class="centerlize">
            <canvas id="myCanvas" width="12px" height="12px" style="border:1px dotted black;">
                如果看到这段文字说您的浏览器尚不支持HTML5 Canvas,请更换浏览器再试.
            </canvas>
        </div>
     </body>
</html>
<script type="text/javascript">
<!--
/*****************************************************************
* 将全体代码(从<!DOCTYPE到script>)拷贝下来,粘贴到文本编辑器中,
* 另存为.html文件,再用chrome浏览器打开,就能看到实现效果。
******************************************************************/

// canvas的绘图环境
var ctx;

// 高宽
const WIDTH=512;
const HEIGHT=512;

// 舞台对象
var stage;

//-------------------------------
// 初始化
//-------------------------------
function init(){
    // 获得canvas对象
    var canvas=document.getElementById('myCanvas');
    canvas.width=WIDTH;
    canvas.height=HEIGHT;

    // 初始化canvas的绘图环境
    ctx=canvas.getContext('2d');
    ctx.translate(WIDTH/2,HEIGHT/2);// 原点平移

    // 准备
    stage=new Stage();
    stage.init();

    // 开幕
    animate();
}

// 播放动画
function animate(){
    stage.update();
    stage.paintBg(ctx);
    stage.paintFg(ctx);

    // 循环
    if(true){
        //sleep(100);
        window.requestAnimationFrame(animate);
    }
}

// 舞台类
function Stage(){
    // 初始化
    this.init=function(){

    }

    // 更新
    this.update=function(){

    }

    // 画背景
    this.paintBg=function(ctx){
        ctx.clearRect(-WIDTH/2,-HEIGHT/2,WIDTH,HEIGHT);// 清屏
    }

    // 画前景
    this.paintFg=function(ctx){
        // 底色
        ctx.save();
        ctx.fillStyle = "navy";
        ctx.fillRect(-WIDTH/2,-HEIGHT/2,WIDTH,HEIGHT);
        ctx.restore();

        const R=200;//基准尺寸
        var ct=createPt(0,0);// ct=center

        // #1
        ctx.save();
        var r=R*1.00;

        ctx.strokeStyle="white";
        ctx.beginPath();
        ctx.arc(ct.x,ct.y,r,0,Math.PI*2,false);// 辅助线圆1
        ctx.stroke();

        ctx.strokeStyle="white";
        ctx.beginPath();
        ctx.arc(ct.x,ct.y,r*0.8,0,Math.PI*2,false);// 辅助线圆2
        ctx.stroke();

        loopText(ctx,ct.x,ct.y,r*0.80,-Math.PI/2,getRadian(60),"JUSTICE LEAGUE",r*0.2,"white","Noto Sans SC Light",false);// 顺时针
        loopText(ctx,ct.x,ct.y,r*1.00,Math.PI/2,getRadian(60),"JUSTICE LEAGUE",r*0.2,"white","Noto Sans SC Light",true);// 逆时针
        ctx.restore();

        writeText(ctx,WIDTH/2-30,HEIGHT/2-5,"逆火制图","8px consolas","lightgrey");// 版权
    }
}

/*------------------------------------------------------------------------
写出环形文字的函数
ctx:绘图上下文
x:环中心点横坐标
y:环中心点纵坐标
r:环半径
centerAngle:文字中心角度
fanAngle:左右辐角
text:文字
textSize:文字大小
textColor:文字颜色
textFont:文字字体
clockwise: 顺逆时针 false=顺时针,true=逆时针
------------------------------------------------------------------------*/
function loopText(ctx,x,y,r,centerAngle,fanAngle,text,textSize,textColor,textFont,clockwise){
    var arr=text.split("");
    var n=arr.length;
    var part=2*fanAngle/n;
    for(var i=0;i<arr.length;i++){
        var theta;
        if (clockwise==false){
            theta=centerAngle-fanAngle+part/2+i*part;// 顺时针的情况
        }else{
            theta=centerAngle+fanAngle-part/2-i*part;// 逆时针的情况
        }

        var p=createPt2(x,y,r,theta);
        ctx.save();
        ctx.translate(p.x,p.y);
        if(clockwise==false){
            ctx.rotate(theta+Math.PI/2);
        }else{
            ctx.rotate(theta-Math.PI/2);
        }
        writeText(ctx,0,0,arr[i],textSize+"px "+textFont,textColor)
        ctx.restore();
    }
}

/*----------------------------------------------------------
基础函数:用于从角度取得弧度,便于微调
degree:角度值,如30,60,90
返回值:弧度值,如PI/6,PI/3,PI/2
----------------------------------------------------------*/
function getRadian(degree){
    return degree/180*Math.PI;
}

/*----------------------------------------------------------
基础函数:用于取得两点间距离
p1:起点
p1:终点
----------------------------------------------------------*/
function getDistance(p1,p2){
    return Math.sqrt((p1.x-p2.x)*(p1.x-p2.x)+(p1.y-p2.y)*(p1.y-p2.y));
}

/*----------------------------------------------------------
基础函数:用于绘制矩形
ctx:绘图上下文
x:矩形中心横坐标
y:矩形中心纵坐标
width:矩形宽
height:矩形高
----------------------------------------------------------*/
function drawRect(ctx,x,y,width,height){
    ctx.beginPath();
    ctx.moveTo(x-width/2,y-height/2);
    ctx.lineTo(x+width/2,y-height/2);
    ctx.lineTo(x+width/2,y+height/2);
    ctx.lineTo(x-width/2,y+height/2);
    ctx.closePath();
}

/*----------------------------------------------------------
基础函数:用于绘制实心圆
ctx:绘图上下文
x:矩形中心横坐标
y:矩形中心纵坐标
r:圆半径
style:填充圆的方案
----------------------------------------------------------*/
function drawSolidCircle(ctx,x,y,r,style){
    ctx.fillStyle=style;
    ctx.beginPath();
    ctx.arc(x,y,r,0,Math.PI*2,false);
    ctx.closePath();
    ctx.fill();
}

/*----------------------------------------------------------
基础函数:创建一个二维坐标点
base:基准点,入参必需有x和y两参数
radius:当前点到基准点的距离
theta:当前点到基准点的角度
Pt即Point
----------------------------------------------------------*/
function createPt3(base,radius,theta){
    var retval={};
    retval.x=base.x+radius*Math.cos(theta);
    retval.y=base.y+radius*Math.sin(theta);
    return retval;
}

/*----------------------------------------------------------
基础函数:创建一个二维坐标点
baseX:基准点横坐标
baseY:基准点纵坐标
radius:当前点到基准点的距离
theta:当前点到基准点的角度
Pt即Point
----------------------------------------------------------*/
function createPt2(baseX,baseY,radius,theta){
    var retval={};
    retval.x=baseX+radius*Math.cos(theta);
    retval.y=baseY+radius*Math.sin(theta);
    return retval;
}

/*----------------------------------------------------------
基础函数:创建一个二维坐标点
x:横坐标
y:纵坐标
Pt即Point
----------------------------------------------------------*/
function createPt(x,y){
    var retval={};
    retval.x=x;
    retval.y=y;
    return retval;
}

/*----------------------------------------------------------
基础函数:延时若干毫秒
milliseconds:毫秒数
----------------------------------------------------------*/
function sleep(milliSeconds) {
    const date = Date.now();
    let currDate = null;
    while (currDate - date < milliSeconds) {
        currDate = Date.now();
    }
}

/*----------------------------------------------------------
基础函数:书写文字
ctx:绘图上下文
x:横坐标
y:纵坐标
text:文字
font:字体
color:颜色
----------------------------------------------------------*/
function writeText(ctx,x,y,text,font,color){
    ctx.save();
    ctx.textBaseline="bottom";
    ctx.textAlign="center";
    ctx.font = font;
    ctx.fillStyle=color;
    ctx.fillText(text,x,y);
    ctx.restore();
}

/*-------------------------------------------------------------
常遇春暴毙的原因是什么?

我们村里以前也有个男人,十分强壮,干完农活后把头直接扎凉水里降温,
然后就死了。

血管扩张的时候突然用凉水,几乎是必然造成血管急速缩窄,一定会出问题的。
--------------------------------------------------------------*/
//-->
</script>

END
