【Canvas与logo】红圈黑底安布雷拉伞矩形胸牌

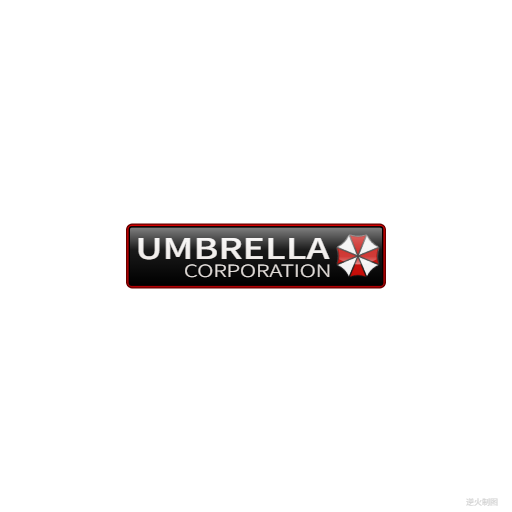

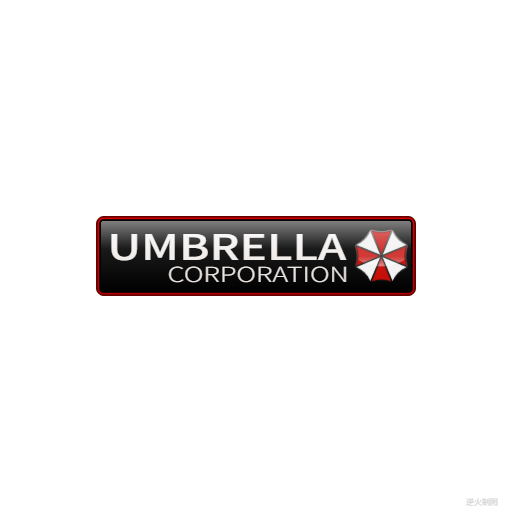

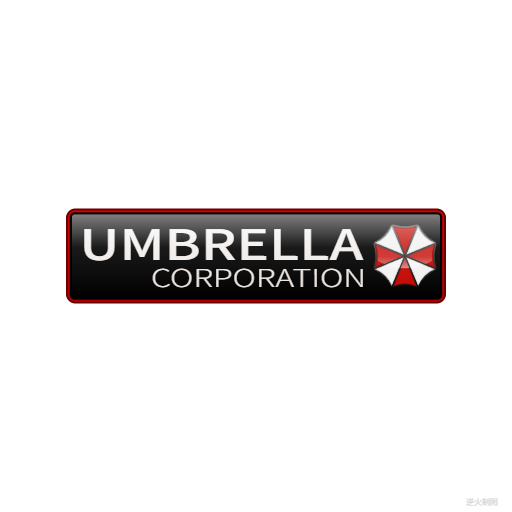

【成图】

1

2

3

4

5

【代码】

<!DOCTYPE html>
<html lang="utf-8">
<meta http-equiv="Content-Type" content="text/html; charset=utf-8"/>
<head>
     <title>红圈黑底安布雷拉伞矩形胸牌 Draft2</title>
     <style type="text/css">
     .centerlize{
        margin:0 auto;
        width:1200px;
     }
     </style>
     </head>

     <body onload="init();">
        <div class="centerlize">
            <canvas id="myCanvas" width="12px" height="12px" style="border:1px dotted black;">
                如果看到这段文字说您的浏览器尚不支持HTML5 Canvas,请更换浏览器再试.
            </canvas>
        </div>
     </body>
</html>
<script type="text/javascript">
<!--
/*****************************************************************
* 将全体代码(从<!DOCTYPE到script>)拷贝下来,粘贴到文本编辑器中,
* 另存为.html文件,再用chrome浏览器打开,就能看到实现效果。
******************************************************************/

// canvas的绘图环境
var ctx;

// 高宽
const WIDTH=512;
const HEIGHT=512;

// 舞台对象
var stage;

//-------------------------------
// 初始化
//-------------------------------
function init(){
    // 获得canvas对象
    var canvas=document.getElementById('myCanvas');
    canvas.width=WIDTH;
    canvas.height=HEIGHT;

    // 初始化canvas的绘图环境
    ctx=canvas.getContext('2d');
    ctx.translate(WIDTH/2,HEIGHT/2);// 原点平移

    // 准备
    stage=new Stage();
    stage.init();

    // 开幕
    animate();
}

// 播放动画
function animate(){
    stage.update();
    stage.paintBg(ctx);
    stage.paintFg(ctx);

    // 循环
    if(true){
        //sleep(100);
        window.requestAnimationFrame(animate);
    }
}

// 舞台类
function Stage(){
    // 初始化
    this.init=function(){

    }

    // 更新
    this.update=function(){

    }

    // 画背景
    this.paintBg=function(ctx){
        ctx.clearRect(-WIDTH/2,-HEIGHT/2,WIDTH,HEIGHT);// 清屏
    }

    // 画前景
    this.paintFg=function(ctx){
        // 底色
        //ctx.save();
        //ctx.fillStyle = "white";
        //ctx.fillRect(-WIDTH/2,-HEIGHT/2,WIDTH,HEIGHT);
        //ctx.restore();

        const R=220;//基准尺寸
        var ct=createPt(0,0);// ct=center

        // #1 灰边
        ctx.save();
        var r=R*1.00;
        var w=2*r;
        var h=w*0.25;
        ctx.fillStyle="rgb(104,0,0)";
        drawRoundRect(ctx,ct.x,ct.y,w,h,h/10);
        ctx.fill();
        ctx.restore();

        // #2 外圈
        ctx.save();
        w-=r*0.02;
        h-=r*0.02;
        var top=createPt2(ct.x,ct.y,h/2,-Math.PI/2);
        var bottom=createPt2(ct.x,ct.y,h/2,Math.PI/2);
        var gnt=ctx.createLinearGradient(top.x,top.y,bottom.x,bottom.y);
        gnt.addColorStop(0,"rgb(213,0,0)");
        gnt.addColorStop(1,"rgb(176,0,2)");
        ctx.fillStyle=gnt;
        drawRoundRect(ctx,ct.x,ct.y,w,h,h/10-r*0.01);
        ctx.fill();
        ctx.restore();

        // #3 黑底
        ctx.save();
        w-=r*0.02;
        h-=r*0.02;
        var top=createPt2(ct.x,ct.y,h/2,-Math.PI/2);
        var bottom=createPt2(ct.x,ct.y,h/2,Math.PI/2);
        var gnt=ctx.createLinearGradient(top.x,top.y,bottom.x,bottom.y);
        gnt.addColorStop(0,"rgb(250,250,250)");
        gnt.addColorStop(1,"rgb(230,222,217)");
        ctx.fillStyle="black";
        drawRoundRect(ctx,ct.x,ct.y,w,h,h/10-r*0.02);
        ctx.fill();
        ctx.restore();

        // #4 伞logo
        ctx.save();
        var center=createPt2(ct.x,ct.y,w/2*0.8,0);
        var r=h*0.4;
        drawUmbrellaIcon(ctx,center.x,center.y,r);
        ctx.restore();

        // #5 文字
        ctx.save();
        var r=R*1.00;
        ctx.scale(1.3,1);
        writeText(ctx,ct.x-r*0.14,ct.y+r*0.05,"UMBRELLA",r*0.22+"px Noto Sans SC Medium",gnt);
        writeText(ctx,ct.x+r*0.01,ct.y+r*0.18,"CORPORATION",r*0.13+"px Noto Sans SC Light",gnt);
        ctx.restore();

        // #6 玻璃光
        ctx.save();
        w-=r*0.02;
        h-=r*0.02;
        drawRoundRect(ctx,ct.x,ct.y,w,h,h*0.04);
        ctx.clip();

        var top=createPt2(ct.x,ct.y,h/2,-Math.PI/2);
        var bottom=createPt2(ct.x,ct.y,h/2,Math.PI/2);
        var gnt=ctx.createLinearGradient(top.x,top.y,bottom.x,bottom.y);
        gnt.addColorStop(0,"rgba(255,255,255,0.5)");
        gnt.addColorStop(0.1,"rgba(255,255,255,0.4)");
        gnt.addColorStop(0.2,"rgba(255,255,255,0.3)");
        gnt.addColorStop(0.3,"rgba(255,255,255,0.2)");
        gnt.addColorStop(0.4,"rgba(255,255,255,0.1)");
        gnt.addColorStop(1,"rgba(255,255,255,0.0)");
        ctx.fillStyle=gnt;
        drawRect(ctx,ct.x,ct.y,w,h);
        ctx.fill();
        ctx.restore();


        writeText(ctx,WIDTH/2-30,HEIGHT/2-5,"逆火制图","8px consolas","lightgrey");// 版权
    }
}

/*----------------------------------------------------------
函数:用于绘制安布雷拉完整图标,依赖drawAmbrella函数
ctx:绘图上下文
x:轮廓中心横坐标
y:轮廓中心纵坐标
R:伞中心到尖端半径
----------------------------------------------------------*/
function drawUmbrellaIcon(ctx,x,y,R){
    const ct=createPt(x,y);// ct=CENTER
    const initAngle=Math.PI/8;

    //#1 背景
    ctx.save();
    var r=R*1.00;
    var top=createPt2(ct.x,ct.y,r,-Math.PI/2);
    var bottom=createPt2(ct.x,ct.y,r,Math.PI/2);
    var gnt=ctx.createLinearGradient(top.x,top.y,bottom.x,bottom.y);
    gnt.addColorStop(0,"rgb(104,104,104)");
    gnt.addColorStop(1,"rgb(2,2,2)");
    ctx.fillStyle=gnt;// 边框
    drawAmbrella(ctx,ct.x,ct.y,r,initAngle,r/10);
    ctx.fill();
    ctx.restore();

    //#2 外八瓣
    ctx.save();
    var r=R*0.94;
    var rin=r/20;
    var rout=r*0.95;
    for(var i=0;i<8;i++){
        var theta=i*Math.PI/4;
        var a=createPt2(ct.x,ct.y,rin,theta);
        var b=createPt2(a.x,a.y,rout,theta+Math.PI/8);
        var c=createPt2(a.x,a.y,rout,theta-Math.PI/8);
        var d=createPt2(a.x,a.y,rout*2*Math.cos(Math.PI/8),theta);

        ctx.fillStyle=(i%2==0)?"rgb(141,5,0)":"rgb(202,202,202)";
        ctx.beginPath();
        ctx.moveTo(a.x,a.y);
        ctx.lineTo(b.x,b.y);
        ctx.arc(d.x,d.y,rout,theta+Math.PI-Math.PI/8,theta+Math.PI+Math.PI/8,false);
        ctx.closePath();
        ctx.fill();
    }
    ctx.restore();

    //#3 内八瓣
    ctx.save();
    var r=R*0.90;
    var rin=r/8;
    var rout=r*0.86;
    for(var i=0;i<8;i++){
        var theta=i*Math.PI/4;
        var a=createPt2(ct.x,ct.y,rin,theta);
        var b=createPt2(a.x,a.y,rout,theta+Math.PI/8);
        var c=createPt2(a.x,a.y,rout,theta-Math.PI/8);
        var d=createPt2(a.x,a.y,rout*0.8,theta);

        ctx.fillStyle=(i%2==0)?"rgb(196,5,0)":"rgb(242,242,242)";
        ctx.beginPath();
        ctx.moveTo(a.x,a.y);
        ctx.lineTo(b.x,b.y);
        ctx.quadraticCurveTo(d.x,d.y,c.x,c.y);
        ctx.closePath();
        ctx.fill();
    }
    ctx.restore();

    //#4 玻璃光
    ctx.save();
    var r=R*0.91;
    drawAmbrella(ctx,ct.x,ct.y,r,initAngle,r/10);
    ctx.clip();

    var r=R*1.00;
    var top=createPt2(ct.x,ct.y,r,-Math.PI/2);
    var left=createPt2(ct.x,ct.y,r,Math.PI);
    var right=createPt2(ct.x,ct.y,r,0);
    var bottom=createPt2(ct.x,ct.y,r*0.7,Math.PI/2);
    var gnt=ctx.createLinearGradient(0,top.y,0,bottom.y);
    gnt.addColorStop(0,"rgba(255,255,255,0.0)");
    gnt.addColorStop(0.6,"rgba(255,255,255,0.15)");
    gnt.addColorStop(0.8,"rgba(255,255,255,0.5)");
    gnt.addColorStop(0.9,"rgba(255,255,255,0.7)");
    gnt.addColorStop(1,"rgba(255,255,255,0.9)");
    ctx.fillStyle=gnt;
    ctx.beginPath();
    ctx.moveTo(left.x,top.y);
    ctx.lineTo(right.x,top.y);
    ctx.lineTo(right.x,right.y);
    ctx.quadraticCurveTo(bottom.x,bottom.y,left.x,left.y);
    ctx.closePath();
    ctx.fill();
    ctx.restore();

    //#5 消除间隔玻璃光的小棍
    ctx.save();
    var r=R*0.94;
    var top=createPt2(ct.x,ct.y,r,-Math.PI/2);
    var bottom=createPt2(ct.x,ct.y,r,Math.PI/2);
    var gnt=ctx.createLinearGradient(top.x,top.y,bottom.x,bottom.y);
    gnt.addColorStop(0,"rgb(104,104,104)");
    gnt.addColorStop(1,"rgb(2,2,2)");
    for(var i=0;i<4;i++){// 分瓣线
        var theta=Math.PI/4*i+Math.PI/8;
        var a=createPt2(ct.x,ct.y,r,theta);
        var b=createPt2(ct.x,ct.y,r,theta+Math.PI);

        ctx.lineWidth=r*0.03;
        ctx.strokeStyle=gnt;
        ctx.beginPath();
        ctx.lineTo(a.x,a.y);
        ctx.lineTo(b.x,b.y);
        ctx.stroke();
    }
    ctx.restore();
}

/*----------------------------------------------------------
函数:用于绘制安布雷拉伞外轮廓
ctx:绘图上下文
x:轮廓中心横坐标
y:轮廓中心纵坐标
R:伞中心到尖端半径
initAngle:初始角度
round:圆角半径
----------------------------------------------------------*/
function drawAmbrella(ctx,x,y,R,initAngle,round){
    var ct=createPt(x,y);// ct=center

    var arr=[];// 放端点的数组
    for(var i=0;i<8;i++){
        var theta=Math.PI/4*i+initAngle;
        var a=createPt2(ct.x,ct.y,R,theta);// 当前角
        var b=createPt2(ct.x,ct.y,R,theta+Math.PI/4);// 下一角
        var c=createPt(0,0);// 以ab为对称轴,ct的镜像点,即圆弧的圆心
        c.x=a.x+b.x-ct.x;
        c.y=a.y+b.y-ct.y;

        var startAngle=theta-Math.PI/4*3;// 起始角
        var endAngle=theta-Math.PI;// 结束角
        var unit={"o":c,r:R,"startAngle":startAngle,"endAngle":endAngle,};
        arr.push(unit);
    }

    var biasAngle=round/R;// 圆角半径占据的偏移角

    ctx.beginPath();
    for(var i=0;i<arr.length;i++){
        var unit=arr[i];
        ctx.arc(unit.o.x,unit.o.y,unit.r,unit.startAngle-biasAngle,unit.endAngle+biasAngle,true);// 画圆弧

        var a=createPt2(unit.o.x,unit.o.y,unit.r,unit.endAngle+biasAngle);// 贝塞尔曲线起点
        var b=createPt2(unit.o.x,unit.o.y,unit.r,unit.endAngle);// 贝塞尔曲线终点
        var nextUnitIdx=(i+1)%(arr.length);
        var nextUnit=arr[nextUnitIdx];// 得到下一个顶点
        var c=createPt2(nextUnit.o.x,nextUnit.o.y,nextUnit.r,nextUnit.startAngle-biasAngle);// 贝塞尔曲线控制点

        ctx.quadraticCurveTo(b.x,b.y,c.x,c.y);// 用贝塞尔曲线光滑连接圆弧
    }
    ctx.closePath();
}

/*----------------------------------------------------------
函数:用于绘制圆角矩形
ctx:绘图上下文
x:矩形中心横坐标
y:矩形中心纵坐标
width:矩形宽
height:矩形高
radius:圆角半径
----------------------------------------------------------*/
function drawRoundRect(ctx,x,y,width,height,radius){
    ctx.beginPath();
    ctx.moveTo(x-width/2+radius,y-height/2);
    ctx.lineTo(x+width/2-radius,y-height/2);
    ctx.arcTo(x+width/2,y-height/2,x+width/2,y-height/2+radius,radius);
    ctx.lineTo(x+width/2,y-height/2+radius);
    ctx.lineTo(x+width/2,y+height/2-radius);
    ctx.arcTo(x+width/2,y+height/2,x+width/2-radius,y+height/2,radius);
    ctx.lineTo(x+width/2-radius,y+height/2);
    ctx.lineTo(x-width/2+radius,y+height/2);
    ctx.arcTo(x-width/2,y+height/2,x-width/2,y+height/2-radius,radius);
    ctx.lineTo(x-width/2,y+height/2-radius);
    ctx.lineTo(x-width/2,y-height/2+radius);
    ctx.arcTo(x-width/2,y-height/2,x-width/2+radius,y-height/2,radius);
    ctx.closePath();
}

/*----------------------------------------------------------
函数:用于绘制矩形
ctx:绘图上下文
x:矩形中心横坐标
y:矩形中心纵坐标
width:矩形宽
height:矩形高
----------------------------------------------------------*/
function drawRect(ctx,x,y,width,height){
    ctx.beginPath();
    ctx.moveTo(x-width/2,y-height/2);
    ctx.lineTo(x+width/2,y-height/2);
    ctx.lineTo(x+width/2,y+height/2);
    ctx.lineTo(x-width/2,y+height/2);
    ctx.closePath();
}

/*----------------------------------------------------------
函数:用于绘制实心圆
ctx:绘图上下文
x:矩形中心横坐标
y:矩形中心纵坐标
r:圆半径
style:填充圆的方案
----------------------------------------------------------*/
function drawSolidCircle(ctx,x,y,r,style){
    ctx.fillStyle=style;
    ctx.beginPath();
    ctx.arc(x,y,r,0,Math.PI*2,false);
    ctx.closePath();
    ctx.fill();
}

/*----------------------------------------------------------
函数:创建一个二维坐标点
baseX:基准点横坐标
baseY:基准点纵坐标
radius:当前点到基准点的距离
theta:当前点到基准点的角度
Pt即Point
----------------------------------------------------------*/
function createPt2(baseX,baseY,radius,theta){
    var retval={};
    retval.x=baseX+radius*Math.cos(theta);
    retval.y=baseY+radius*Math.sin(theta);
    return retval;
}

/*----------------------------------------------------------
函数:创建一个二维坐标点
x:横坐标
y:纵坐标
Pt即Point
----------------------------------------------------------*/
function createPt(x,y){
    var retval={};
    retval.x=x;
    retval.y=y;
    return retval;
}

/*----------------------------------------------------------
函数:延时若干毫秒
milliseconds:毫秒数
----------------------------------------------------------*/
function sleep(milliSeconds) {
    const date = Date.now();
    let currDate = null;
    while (currDate - date < milliSeconds) {
        currDate = Date.now();
    }
}

/*----------------------------------------------------------
函数:书写文字
ctx:绘图上下文
x:横坐标
y:纵坐标
text:文字
font:字体
color:颜色
----------------------------------------------------------*/
function writeText(ctx,x,y,text,font,color){
    ctx.save();
    ctx.textBaseline="bottom";
    ctx.textAlign="center";
    ctx.font = font;
    ctx.fillStyle=color;
    ctx.fillText(text,x,y);
    ctx.restore();
}

/*-------------------------------------------------------------
难懂之处,只能想通,不能讲通。

人生八句宽心话

第一句:
来时,干干净净,去时,两手空空。既然生死之时,都没有附属物。又何必把钱财物质看重?轻松生活,快乐度日,才是此生最好的收获。


第二句:
对的人,永远都在你身边。无论时光怎么变迁,无论你遭遇了何事,轻易离开我们的,其实都是错的人,不是三观不合,就是道路不同,不用过于放在心里,对的人,其实一直都在!


第三句:
开心,是最好的活法!人这一生,其实贵在开心,很多东西,生不带来死不带去,唯有我们开心的活着,珍惜身边的人,过好每一天,才算是不负人生,不负自己!


第四句:
逆境,只有一种作用,那就是淬炼你!
千锤百炼,不断打磨,才能遇见更好的你。所以,当我们面对逆境,不要抱怨,从容前行,放平心态,相信一切都会熬过去!第五句:
人生最大的愚蠢,就是无视自己的身体,用健康换取身外之物。身体垮了,健康没了,再用钱财治病。得不偿失,何必如此。不如好好爱惜自己的身体,有点小钱,衣食无忧就行。


第六句:
欲望可以有,但你不能贪。有欲望其实很正常,人或多或少,都有点自己想要的东西。但我们要让欲望合理化,不高过度,超过自己的能力太多,否则,只会累坏了自己!


第七句:
两年学说话,一生学闭嘴,智者语迟,愚者话多,人贵在知而不言,懂得沉默。看透不说透,看穿别揭穿,管住嘴巴,避免话多惹祸。


第八句:
过去的事,封存不提;现在的事,用力做好;以后的事,顺其自然。别和天争,争不过天,别和人斗,斗出冲突。学会看淡看轻看开,顺其自然,一切随缘,属于你的,一定会来!
--------------------------------------------------------------*/
//-->
</script>
