维特imu

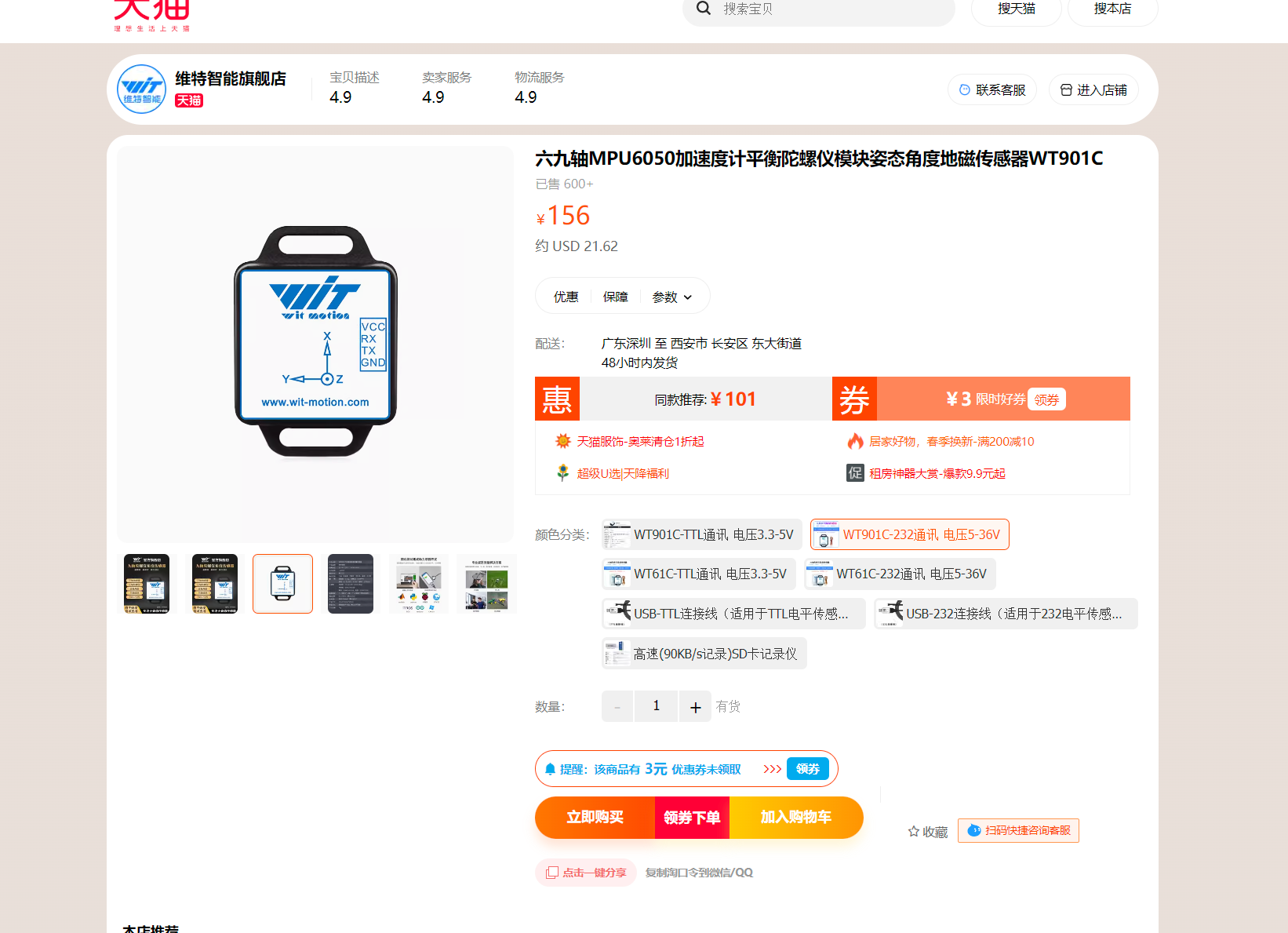

https://detail.tmall.com/item.htm?abbucket=11&id=598197117280&ns=1&skuId=4537254155950&spm=a21n57.1.item.8.5099523ce0QsSo





https://wit-motion.yuque.com/wumwnr/ltst03/out9g0

 485直接当串口

默认9600波特率



#include "REG.h"
#include "wit_c_sdk.h"

/*
Test on MEGA 2560. use HW-97 module connect WT901C485 sensor

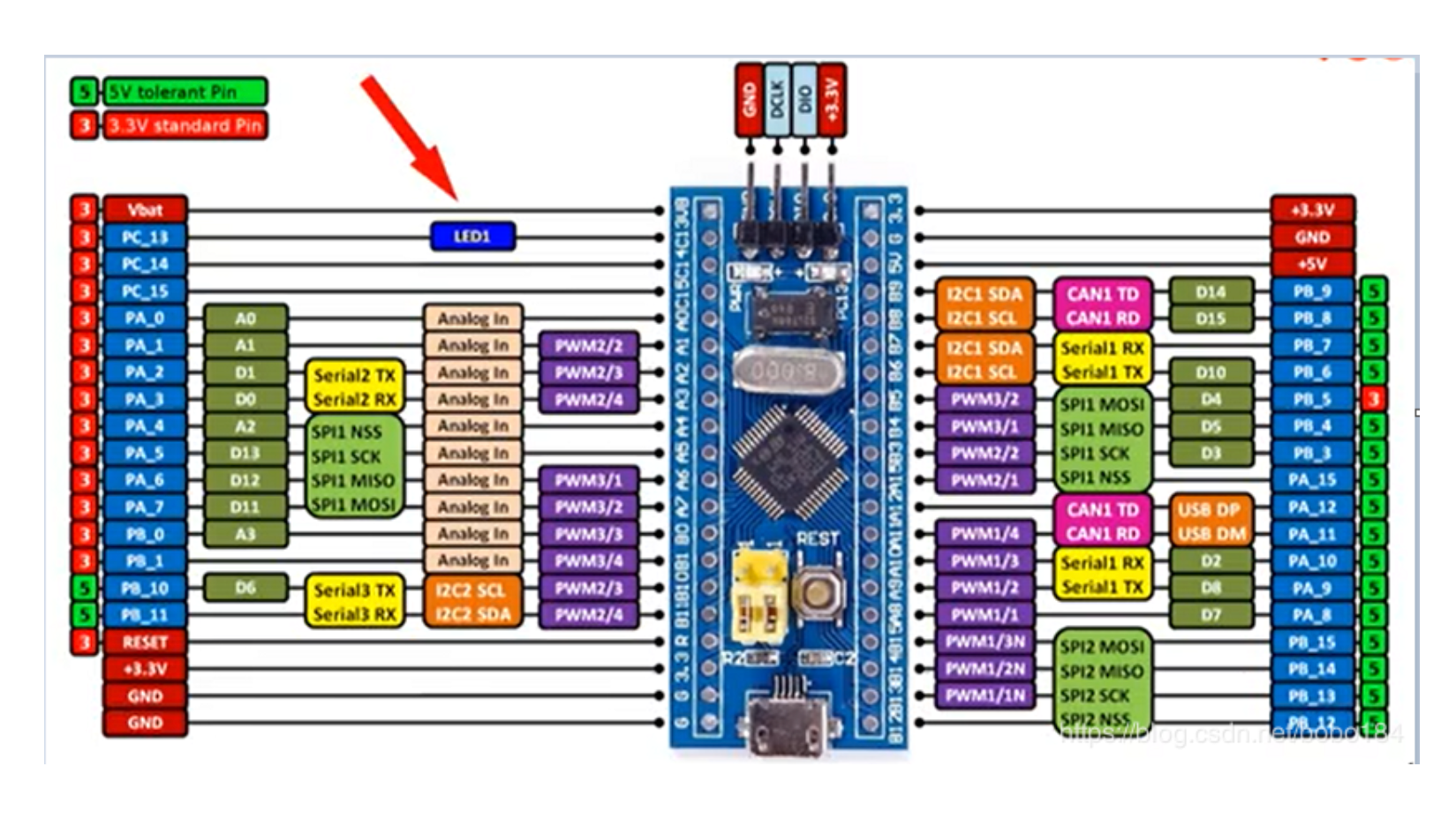

wiring:

   5V/3.3V  <--------------------------->  VCC

     TX1    <----->      -stm32 serial2 -  PA3
     RX1    <----->      -STM32 serial2 -  PA2
                        GND   <----->   GND
*/

#define ACC_UPDATE		0x01
#define GYRO_UPDATE		0x02
#define ANGLE_UPDATE	0x04
#define MAG_UPDATE		0x08
#define READ_UPDATE		0x80
static volatile char s_cDataUpdate = 0, s_cCmd = 0xff;

static void CmdProcess(void);
static void RS485_IO_Init(void);
static void AutoScanSensor(void);
static void SensorUartSend(uint8_t *p_data, uint32_t uiSize);
static void CopeSensorData(uint32_t uiReg, uint32_t uiRegNum);
static void Delayms(uint16_t ucMs);

const uint32_t c_uiBaud[8] = { 9600, 4800, 9600, 19200, 38400, 57600, 115200, 230400};

void setup() {
  // put your setup code here, to run once:
	Serial.begin(115200);
	RS485_IO_Init();
	WitInit(WIT_PROTOCOL_MODBUS, 0x50);
	WitSerialWriteRegister(SensorUartSend);
	WitRegisterCallBack(CopeSensorData);
  WitDelayMsRegister(Delayms);
	Serial.print("\r\n********************** wit-motion modbus example  ************************\r\n");
	AutoScanSensor();
}
int i;
float fAcc[3], fGyro[3], fAngle[3];
void loop() {
	WitReadReg(AX, 12);
	delay(50);
    while (Serial2.available())
    {
      WitSerialDataIn(Serial2.read());
    }
    while (Serial.available())
    {
      CopeCmdData(Serial.read());
    }
		CmdProcess();
		if(s_cDataUpdate)
		{
			for(i = 0; i < 3; i++)
			{
				fAcc[i] = sReg[AX+i] / 32768.0f * 16.0f;
				fGyro[i] = sReg[GX+i] / 32768.0f * 2000.0f;
				fAngle[i] = sReg[Roll+i] / 32768.0f * 180.0f;
			}
			if(s_cDataUpdate & ACC_UPDATE)
			{
				Serial.print("acc:");
				Serial.print(fAcc[0], 3);
				Serial.print(" ");
				Serial.print(fAcc[1], 3);
				Serial.print(" ");
				Serial.print(fAcc[2], 3);
				Serial.print("\r\n");
				s_cDataUpdate &= ~ACC_UPDATE;
			}
			if(s_cDataUpdate & GYRO_UPDATE)
			{
				Serial.print("gyro:");
				Serial.print(fGyro[0], 1);
				Serial.print(" ");
				Serial.print(fGyro[1], 1);
				Serial.print(" ");
				Serial.print(fGyro[2], 1);
				Serial.print("\r\n");
				s_cDataUpdate &= ~GYRO_UPDATE;
			}
			if(s_cDataUpdate & ANGLE_UPDATE)
			{
				Serial.print("angle:");
				Serial.print(fAngle[0], 3);
				Serial.print(" ");
				Serial.print(fAngle[1], 3);
				Serial.print(" ");
				Serial.print(fAngle[2], 3);
				Serial.print("\r\n");
				s_cDataUpdate &= ~ANGLE_UPDATE;
			}
			if(s_cDataUpdate & MAG_UPDATE)
			{
				Serial.print("mag:");
				Serial.print(sReg[HX]);
				Serial.print(" ");
				Serial.print(sReg[HY]);
				Serial.print(" ");
				Serial.print(sReg[HZ]);
				Serial.print("\r\n");
				s_cDataUpdate &= ~MAG_UPDATE;
			}
      s_cDataUpdate = 0;
		}
}

// 主函数结束

void CopeCmdData(unsigned char ucData)
{
	static unsigned char s_ucData[50], s_ucRxCnt = 0;

	s_ucData[s_ucRxCnt++] = ucData;
	if(s_ucRxCnt<3)return;										//Less than three data returned
	if(s_ucRxCnt >= 50) s_ucRxCnt = 0;
	if(s_ucRxCnt >= 3)
	{
		if((s_ucData[1] == '\r') && (s_ucData[2] == '\n'))
		{
			s_cCmd = s_ucData[0];
			memset(s_ucData,0,50);
			s_ucRxCnt = 0;
		}
		else
		{
			s_ucData[0] = s_ucData[1];
			s_ucData[1] = s_ucData[2];
			s_ucRxCnt = 2;

		}
	}
}
static void ShowHelp(void)
{
	Serial.print("\r\n************************	 WIT_SDK_DEMO	************************");
	Serial.print("\r\n************************          HELP           ************************\r\n");
	Serial.print("UART SEND:a\\r\\n   Acceleration calibration.\r\n");
	Serial.print("UART SEND:m\\r\\n   Magnetic field calibration,After calibration send:   e\\r\\n   to indicate the end\r\n");
	Serial.print("UART SEND:U\\r\\n   Bandwidth increase.\r\n");
	Serial.print("UART SEND:u\\r\\n   Bandwidth reduction.\r\n");
	Serial.print("UART SEND:B\\r\\n   Baud rate increased to 115200.\r\n");
	Serial.print("UART SEND:b\\r\\n   Baud rate reduction to 9600.\r\n");
	Serial.print("UART SEND:h\\r\\n   help.\r\n");
	Serial.print("******************************************************************************\r\n");
}

static void CmdProcess(void)
{
	switch(s_cCmd)
	{
		case 'a':	if(WitStartAccCali() != WIT_HAL_OK) Serial.print("\r\nSet AccCali Error\r\n");
			break;
		case 'm':	if(WitStartMagCali() != WIT_HAL_OK) Serial.print("\r\nSet MagCali Error\r\n");
			break;
		case 'e':	if(WitStopMagCali() != WIT_HAL_OK) Serial.print("\r\nSet MagCali Error\r\n");
			break;
		case 'u':	if(WitSetBandwidth(BANDWIDTH_5HZ) != WIT_HAL_OK) Serial.print("\r\nSet Bandwidth Error\r\n");
			break;
		case 'U':	if(WitSetBandwidth(BANDWIDTH_256HZ) != WIT_HAL_OK) Serial.print("\r\nSet Bandwidth Error\r\n");
			break;
		case 'B':	if(WitSetUartBaud(WIT_BAUD_115200) != WIT_HAL_OK) Serial.print("\r\nSet Baud Error\r\n");
              else
              {
                 Serial2.begin(c_uiBaud[WIT_BAUD_115200]);
                 Serial.print(" 115200 Baud rate modified successfully\r\n");
              }
			break;
		case 'b':	if(WitSetUartBaud(WIT_BAUD_9600) != WIT_HAL_OK) Serial.print("\r\nSet Baud Error\r\n");
              else
              {
                Serial2.begin(c_uiBaud[WIT_BAUD_9600]);
                Serial.print(" 9600 Baud rate modified successfully\r\n");
              }
			break;
		case 'h':	ShowHelp();
			break;
		default :return;
	}
	s_cCmd = 0xff;
}
static void RS485_IO_Init(void)
{
  pinMode(21, OUTPUT);
}

static void SensorUartSend(uint8_t *p_data, uint32_t uiSize)
{
  digitalWrite(21, HIGH);
  Serial2.write(p_data, uiSize);
  Serial2.flush();
  digitalWrite(21, LOW);
}

static void Delayms(uint16_t ucMs)
{
  delay(ucMs);
}

static void CopeSensorData(uint32_t uiReg, uint32_t uiRegNum)
{
	int i;
    for(i = 0; i < uiRegNum; i++)
    {
        switch(uiReg)
        {
            case AZ:
				s_cDataUpdate |= ACC_UPDATE;
            break;
            case GZ:
				s_cDataUpdate |= GYRO_UPDATE;
            break;
            case HZ:
				s_cDataUpdate |= MAG_UPDATE;
            break;
            case Yaw:
				s_cDataUpdate |= ANGLE_UPDATE;
            break;
            default:
				s_cDataUpdate |= READ_UPDATE;
			break;
        }
		uiReg++;
    }
}

static void AutoScanSensor(void)
{
	int i, iRetry;

	for(i = 0; i < sizeof(c_uiBaud)/sizeof(c_uiBaud[0]); i++)
	{
		Serial2.begin(c_uiBaud[i]);
    Serial2.flush();
		iRetry = 2;
		s_cDataUpdate = 0;
		do
		{
			WitReadReg(AX, 3);
			delay(200);
			while (Serial2.available())
			{
				WitSerialDataIn(Serial2.read());
			}
			if(s_cDataUpdate != 0)
			{
				Serial.print(c_uiBaud[i]);
				Serial.print(" baud find sensor\r\n\r\n");
				ShowHelp();
				return ;
			}
			iRetry--;
		}while(iRetry);
	}
	Serial.print("can not find sensor\r\n");
	Serial.print("please check your connection\r\n");
}
