python校验码

最后两位是生成的校验码，前面是原码





# -*- coding: utf-8 -*-

#activate py37_tfgpu1131_keras215_opencv341

from binascii import *
#   安装pip3 install --no-cache-dir -U crcmod
import crcmod

#生成CRC16-MODBUS校验码
def crc16Add(read):
    crc16 = crcmod.mkCrcFun(0x18005, rev=True, initCrc=0xFFFF, xorOut=0x0000)
    data = read.replace(" ", "") #消除空格
    readcrcout = hex(crc16(unhexlify(data))).upper()
    str_list = list(readcrcout)
    # print(str_list)
    if len(str_list) == 5:
        str_list.insert(2, '0')  # 位数不足补0，因为一般最少是5个
    crc_data = "".join(str_list) #用""把数组的每一位结合起来  组成新的字符串
    # print(crc_data)
    read = read.strip() + ' ' + crc_data[4:] + ' ' + crc_data[2:4] #把源代码和crc校验码连接起来
    # print('CRC16校验:', crc_data[4:] + ' ' + crc_data[2:4])
    print(read)
    return read

if __name__ == '__main__':
    crc16Add("78 34 01 00 29 BC FD 00 00 00 00 00 00 14 00 01 00 01 02 01 01 0C 00 00 30 00 31 00 32 00 33 00 34 00 35")
    #78 34 01 00 29 BC FD 00 00 00 00 00 00 14 00 01 00 01 02 01 01 0C 00 00 30 00 31 00 32 00 33 00 34 00 35 B8 83

    crc16Add("78 34 01 00 29 BC FD 00 00 00 00 00 00 14 00 01 00 01 02 06 01 0C 00 CE D2 B0 AE D6 D0 BA BD C8 ED BC FE")
    #78 34 01 00 29 BC FD 00 00 00 00 00 00 14 00 01 00 01 02 06 01 0C 00 CE D2 B0 AE D6 D0 BA BD C8 ED BC FE 45 8C

　　

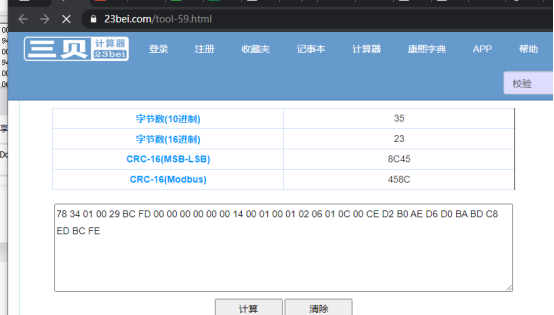

https://www.23bei.com/tool-59.html   CRC-16(Modbus)

78开始  校验位结束
