camke(1)配置Opencv



首先装好opencv。

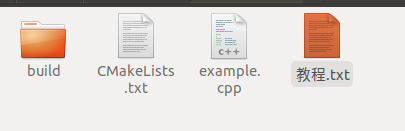

然后创建工程





 CMakeLists.txt



# cmake needs this line
cmake_minimum_required(VERSION 3.1)

# Define project name
project(opencv_example_project)

# Find OpenCV, you may need to set OpenCV_DIR variable
# to the absolute path to the directory containing OpenCVConfig.cmake file
# via the command line or GUI
find_package(OpenCV REQUIRED)

# If the package has been found, several variables will
# be set, you can find the full list with descriptions
# in the OpenCVConfig.cmake file.
# Print some message showing some of them
message(STATUS "OpenCV library status:")
message(STATUS "    config: ${OpenCV_DIR}")
message(STATUS "    version: ${OpenCV_VERSION}")
message(STATUS "    libraries: ${OpenCV_LIBS}")
message(STATUS "    include path: ${OpenCV_INCLUDE_DIRS}")

# Declare the executable target built from your sources
add_executable(opencv_example example.cpp)

# Link your application with OpenCV libraries
target_link_libraries(opencv_example PRIVATE ${OpenCV_LIBS})

　　

example.cpp

#include "opencv2/core.hpp"
#include "opencv2/imgproc.hpp"
#include "opencv2/highgui.hpp"
#include "opencv2/videoio.hpp"
#include <iostream>

using namespace cv;
using namespace std;

void drawText(Mat & image);

int main()
{
    cout << "Built with OpenCV " << CV_VERSION << endl;
    Mat image;
    VideoCapture capture;
    capture.open(0);
    if(capture.isOpened())
    {
        cout << "Capture is opened" << endl;
        for(;;)
        {
            capture >> image;
            if(image.empty())
                break;
            drawText(image);
            imshow("Sample", image);
            if(waitKey(10) >= 0)
                break;
        }
    }
    else
    {
        cout << "No capture" << endl;
        image = Mat::zeros(480, 640, CV_8UC1);
        drawText(image);
        imshow("Sample", image);
        waitKey(0);
    }
    return 0;
}

void drawText(Mat & image)
{
    putText(image, "Hello OpenCV",
            Point(20, 50),
            FONT_HERSHEY_COMPLEX, 1, // font face and scale
            Scalar(255, 255, 255), // white
            1, LINE_AA); // line thickness and type
}

　　



编译过程

mkdir build
cd build
cmake ..
make
./opencv_example
