UE5--008--Move-Jump-Look-Walk（Enhanced Input System）

1. MyThirdPersonChar蓝图

1.1 MyThirdPersonChar.h

// Fill out your copyright notice in the Description page of Project Settings.

#pragma once

#include "CoreMinimal.h"
#include "Camera/CameraComponent.h"
#include "GameFramework/SpringArmComponent.h"
#include "GameFramework/Character.h"
#include "InputActionValue.h"
#include "MyThirdPersonChar.generated.h"

UCLASS()
class C002MYBLANKPROJ_API AMyThirdPersonChar : public ACharacter
{
    GENERATED_BODY()

    // Arm for Camera
    UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Category = MyTPS_Cam, meta = (AllowPrivateAccess = "true"))
    class USpringArmComponent* CameraBoom;

    // Follow camera
    UPROPERTY(VisibleAnywhere, BlueprintReadOnly, Category = MyTPS_Cam, meta = (AllowPrivateAccess = "true"))
    class UCameraComponent* FollowCamera;

public:

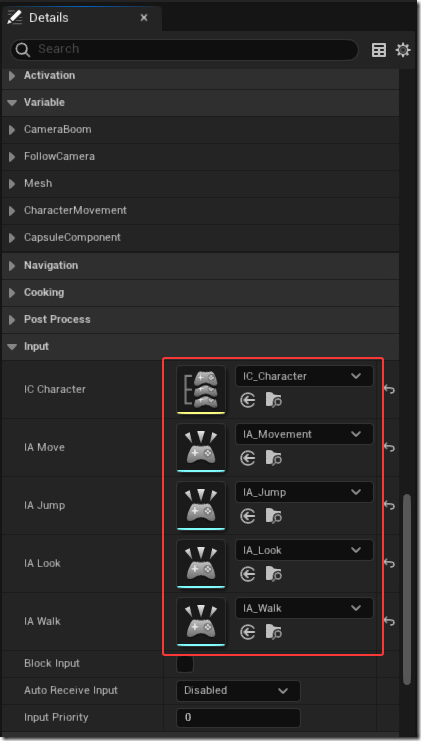

    UPROPERTY(EditAnywhere, Category = Input)
    class UInputMappingContext* IC_Character;

    UPROPERTY(EditAnywhere, Category = Input)
    class UInputAction* IA_Move;

    UPROPERTY(EditAnywhere, Category = Input)
    class UInputAction* IA_Jump;

    UPROPERTY(EditAnywhere, Category = Input)
    class UInputAction* IA_Look;

    UPROPERTY(EditAnywhere, Category = Input)
    class UInputAction* IA_Walk;

public:
    // Sets default values for this character's properties
    AMyThirdPersonChar();

protected:
    // Called when the game starts or when spawned
    virtual void BeginPlay() override;

    virtual void SetupPlayerInputComponent(class UInputComponent* PlayerInputComponent) override;

    void Move(const FInputActionValue& Value);

    void Look(const FInputActionValue& Value);

    void BeginWalking();

    void StopWalking();

public:
    // Called every frame
    virtual void Tick(float DeltaTime) override;


};

1.2 MyThirdPersonChar.cpp

// Fill out your copyright notice in the Description page of Project Settings.


#include "MyThirdPersonChar.h"
#include "Components/CapsuleComponent.h"
#include "GameFramework/CharacterMovementComponent.h"
#include "EnhancedInputComponent.h"
#include "EnhancedInputSubsystems.h"
#include "InputMappingContext.h"
#include "InputAction.h"
#include "Kismet/KismetMathLibrary.h"
#include "GameFramework/Controller.h"


// Sets default values
AMyThirdPersonChar::AMyThirdPersonChar()
{
    // Set this character to call Tick() every frame.  You can turn this off to improve performance if you don't need it.
    PrimaryActorTick.bCanEverTick = true;
    //
    // Set size for collision capsule
    GetCapsuleComponent()->InitCapsuleSize(42.f, 96.0f);
    // Don't rotate when the controller rotates. Let that just affect the camera.
    bUseControllerRotationPitch = false;
    bUseControllerRotationYaw = false;
    bUseControllerRotationRoll = false;
    // Configure character movement
    GetCharacterMovement()->bOrientRotationToMovement = true;
    // Create a camera boom (pulls in towards the player if there is a collision)
    CameraBoom = CreateDefaultSubobject<USpringArmComponent>(TEXT("CameraBoom"));
    CameraBoom->SetupAttachment(RootComponent);
    CameraBoom->TargetArmLength = 300.0f;
    CameraBoom->bUsePawnControlRotation = true;
    // Create a camera that will follow the character
    FollowCamera = CreateDefaultSubobject<UCameraComponent>(TEXT("FollowCamera"));
    FollowCamera->SetupAttachment(CameraBoom, USpringArmComponent::SocketName);
    FollowCamera->bUsePawnControlRotation = false;

}

// Called when the game starts or when spawned
void AMyThirdPersonChar::BeginPlay()
{
    Super::BeginPlay();

}

// Called every frame
void AMyThirdPersonChar::Tick(float DeltaTime)
{
    Super::Tick(DeltaTime);

}

// Called to bind functionality to input
void AMyThirdPersonChar::SetupPlayerInputComponent(UInputComponent* PlayerInputComponent)
{
    Super::SetupPlayerInputComponent(PlayerInputComponent);
    //
    UEnhancedInputComponent* EnhancedPlayerInputComponent = Cast<UEnhancedInputComponent>(PlayerInputComponent);
    if (EnhancedPlayerInputComponent != nullptr)
    {
        APlayerController* PlayerController = Cast<APlayerController>(GetController());
        UEnhancedInputLocalPlayerSubsystem* EnhancedSubsystem = ULocalPlayer::GetSubsystem<UEnhancedInputLocalPlayerSubsystem>(PlayerController->GetLocalPlayer());
        EnhancedSubsystem->AddMappingContext(IC_Character, 1);
    }
    //
    if (EnhancedPlayerInputComponent != nullptr)
    {
        APlayerController* PlayerController = Cast<APlayerController>(GetController());
        if (PlayerController != nullptr)
        {
            EnhancedPlayerInputComponent->BindAction(IA_Move, ETriggerEvent::Triggered, this, &AMyThirdPersonChar::Move);

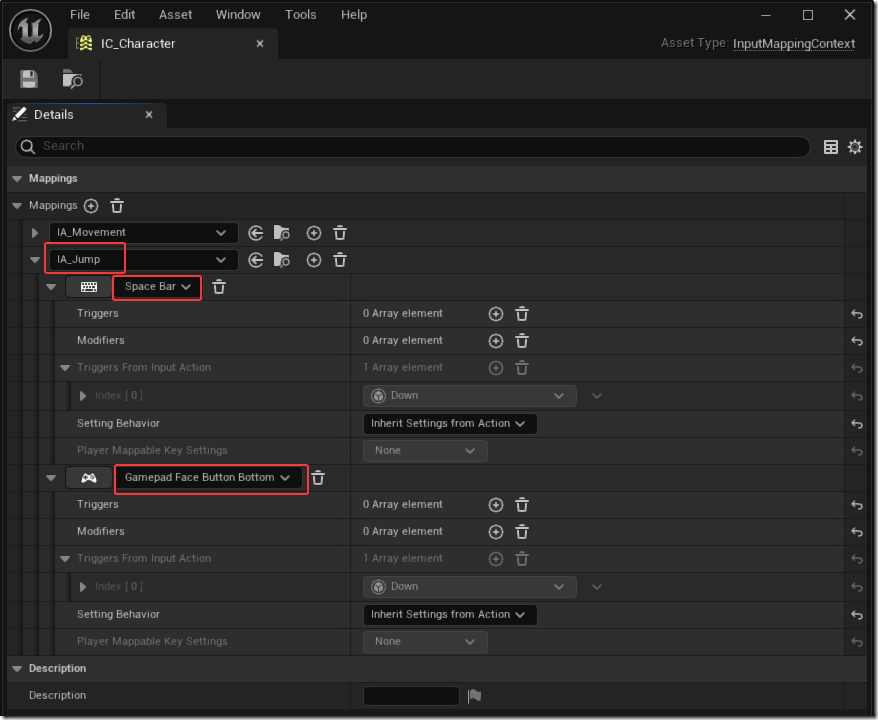

            EnhancedPlayerInputComponent->BindAction(IA_Jump, ETriggerEvent::Started, this, &ACharacter::Jump);

            EnhancedPlayerInputComponent->BindAction(IA_Jump, ETriggerEvent::Completed, this, &ACharacter::StopJumping);

            EnhancedPlayerInputComponent->BindAction(IA_Look, ETriggerEvent::Triggered, this, &AMyThirdPersonChar::Look);

            EnhancedPlayerInputComponent->BindAction(IA_Walk, ETriggerEvent::Started, this,    &AMyThirdPersonChar::BeginWalking);

            EnhancedPlayerInputComponent->BindAction(IA_Walk, ETriggerEvent::Completed, this, &AMyThirdPersonChar::StopWalking);
        }
    }
}

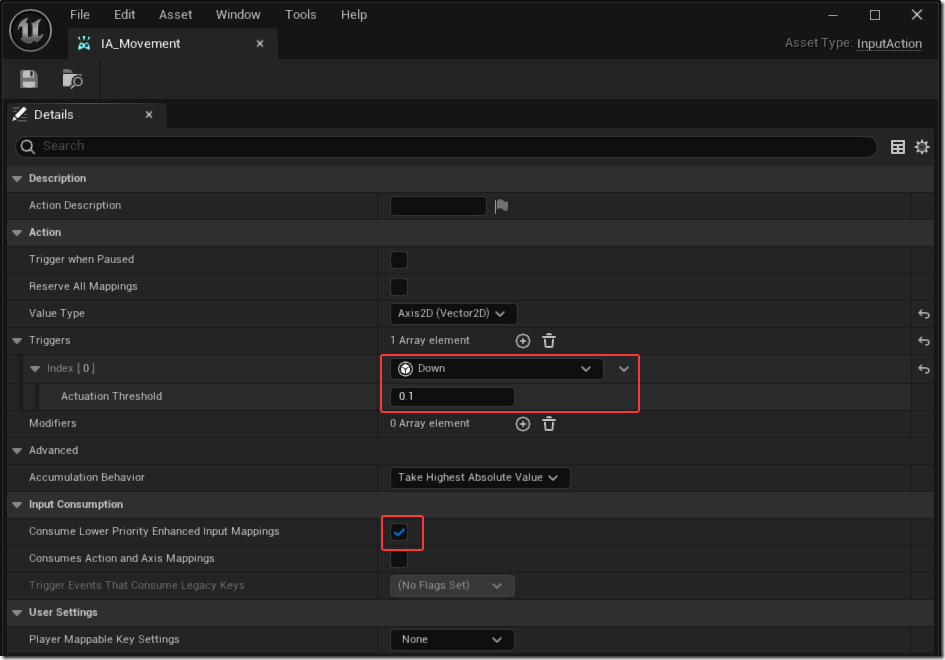

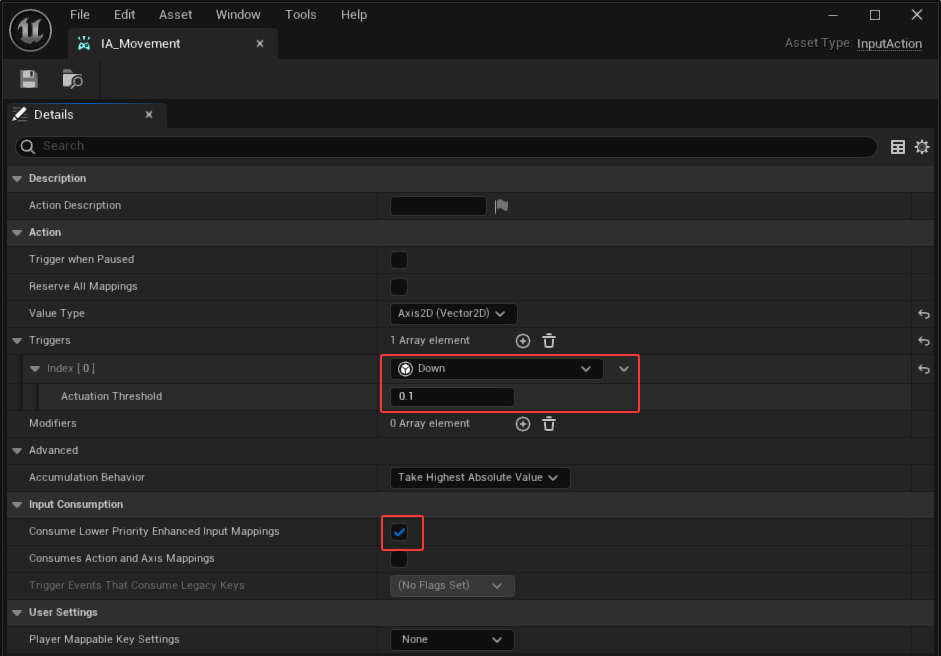

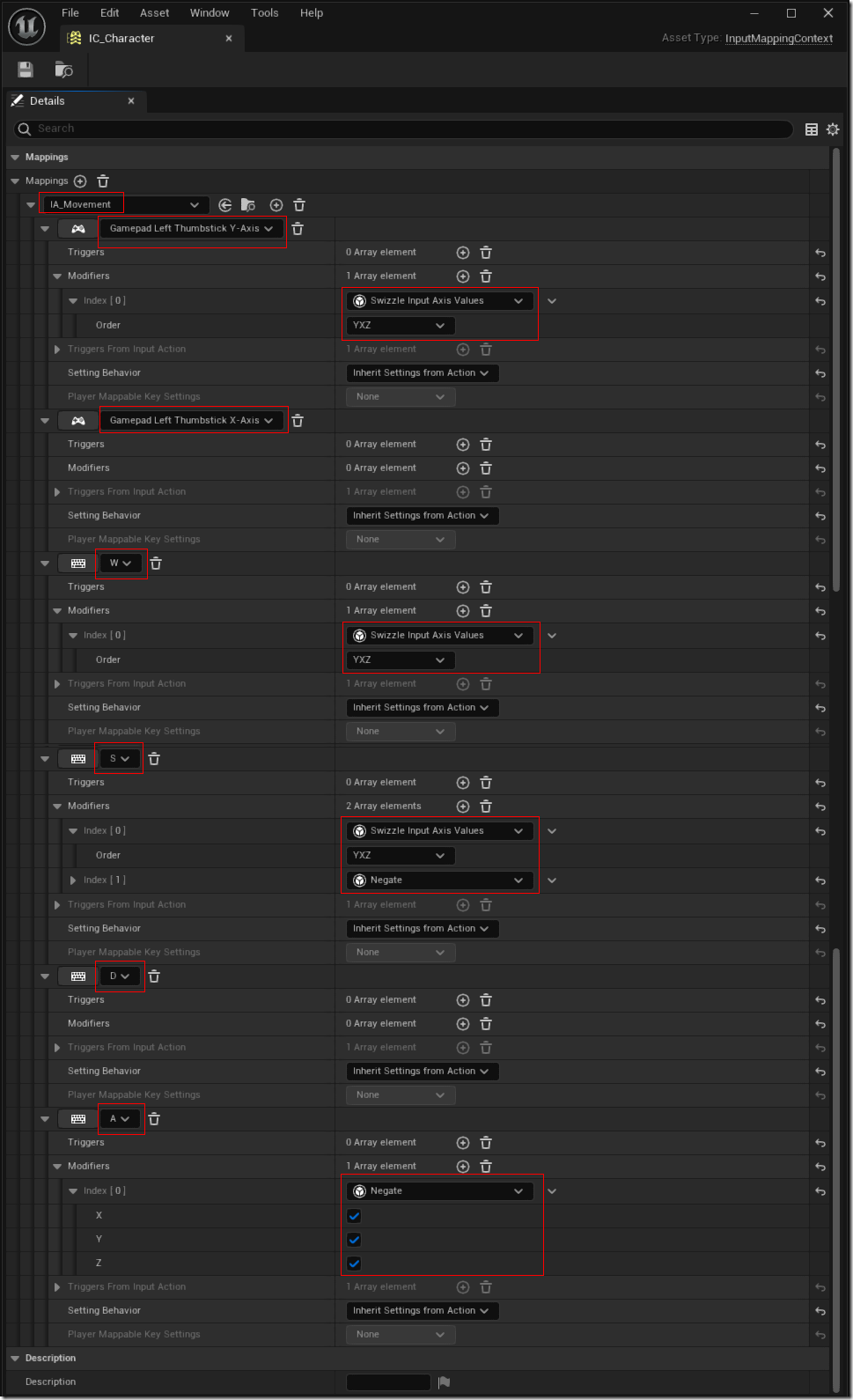

void AMyThirdPersonChar::Move(const FInputActionValue& Value)
{
    FVector2D InputValue = Value.Get<FVector2D>();
    if (Controller != nullptr && (InputValue.X != 0.0f || InputValue.Y != 0.0f)) {
        const FRotator YawRotation(0, Controller->GetControlRotation().Yaw, 0);
        if (InputValue.X != 0.0f)
        {
            const FVector RightDirection = UKismetMathLibrary::GetRightVector(YawRotation);
            AddMovementInput(RightDirection, InputValue.X);
        }
        if (InputValue.Y != 0.0f)
        {
            const FVector ForwardDirection = YawRotation.Vector();
            AddMovementInput(ForwardDirection, InputValue.Y);
        }
    }
}

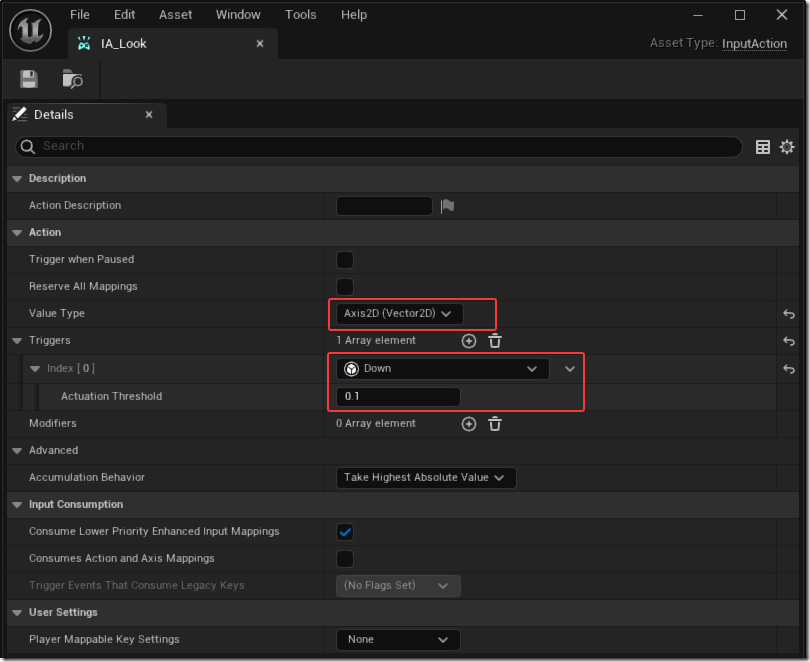

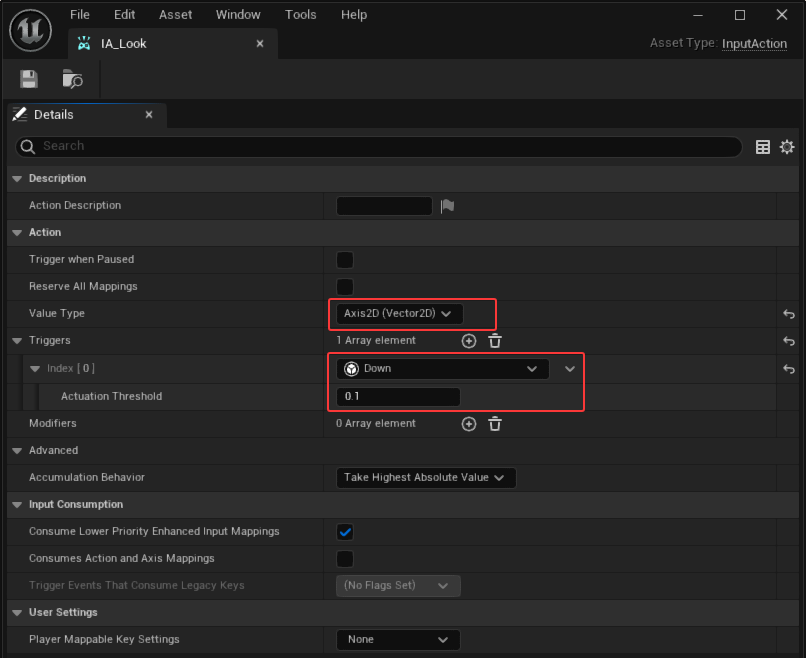

void AMyThirdPersonChar::Look(const FInputActionValue& Value)
{
    FVector2D InputValue = Value.Get<FVector2D>();
    if (InputValue.X != 0.0f)
    {
        AddControllerYawInput(InputValue.X);
    }
    if (InputValue.Y != 0.0f)
    {
        AddControllerPitchInput(InputValue.Y);
    }
}

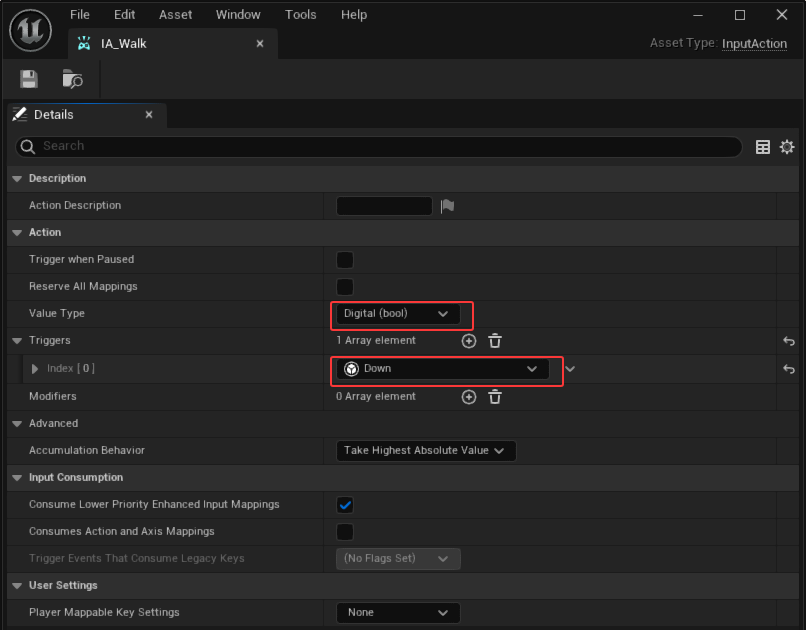

void AMyThirdPersonChar::BeginWalking()
{
    GetCharacterMovement()->MaxWalkSpeed *= 0.4f;
}

void AMyThirdPersonChar::StopWalking()
{
    GetCharacterMovement()->MaxWalkSpeed /= 0.4f;
}
