Lesion Insertion文献阅读

肝脏病灶的插入

2015年Lesion insertion in the projection domain: Methods and initial results
来源：https://www.ncbi.nlm.nih.gov/pmc/articles/PMC4654739/

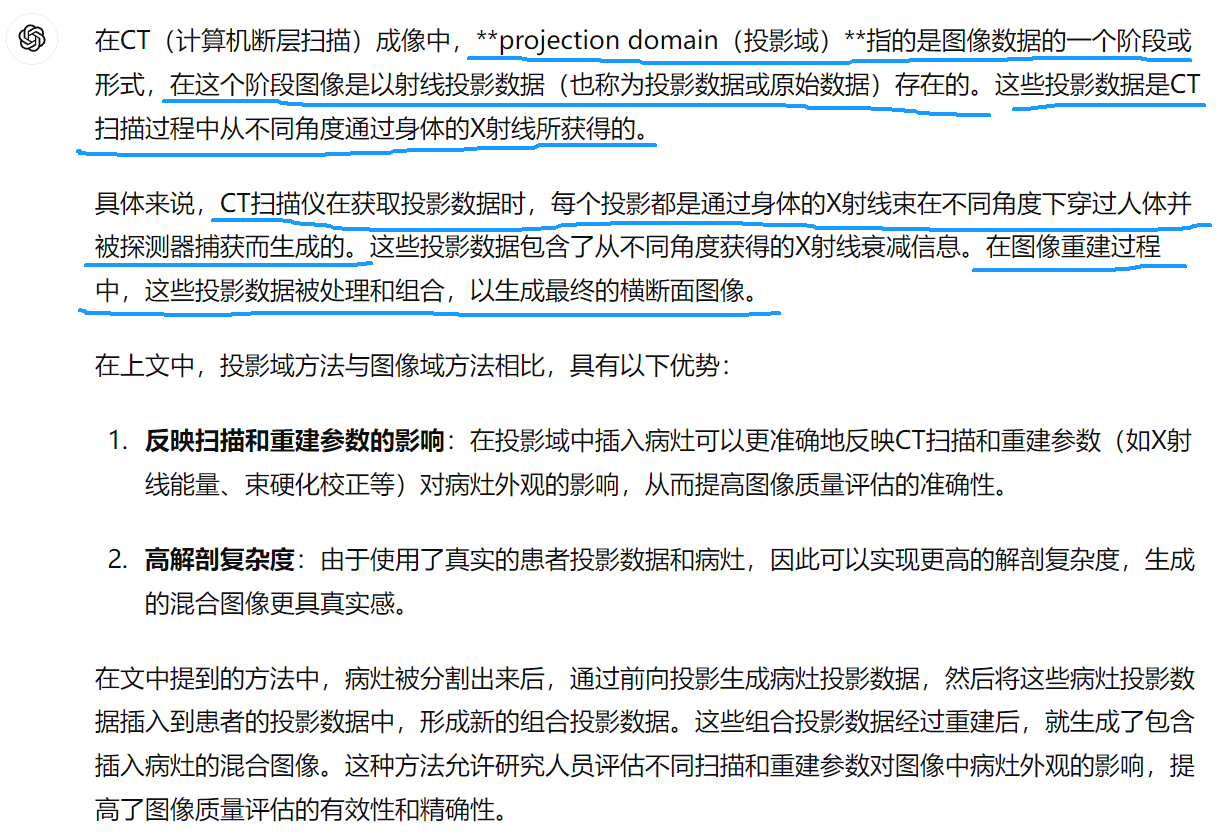

• projection domain


• 将分割出的肝脏病灶，重新插回同一病人的不同位置
  All inserted locations had realistic appearance and blended naturally into the liver background.

  • Liver lesions were segmented and inserted back into the same patients at a different location
  • (a)–(f) show the original liver lesions
  • (g)–(l) show the inserted liver lesions
• 不同扫描条件下肝脏病灶的结果（全图＋放大图）
  Projection-domain lesion insertion method can reflect the impact of reconstruction parameters on the lesion appearance.

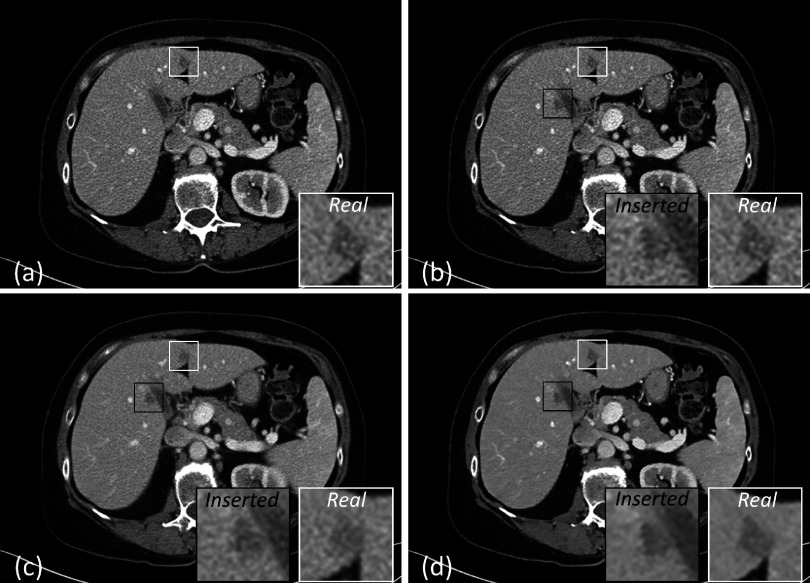

  • (a) The patient image reconstructed with a FBP B40f kernel and 2 mm slice thickness
  • (b) The hybrid image reconstructed with a FBP B40f kernel and 2 mm slice thickness
  • (c) The hybrid image reconstructed with a FBP B40f kernel and 5 mm slice thickness
  • (d) The hybrid image reconstructed with a SAFIRE I40f kernel (strength of 5) and 2 mm slice thickness

2016年Validation of a Projection-domain Insertion of Liver Lesions into CT Images
来源：https://www.ncbi.nlm.nih.gov/pmc/articles/PMC5026898/

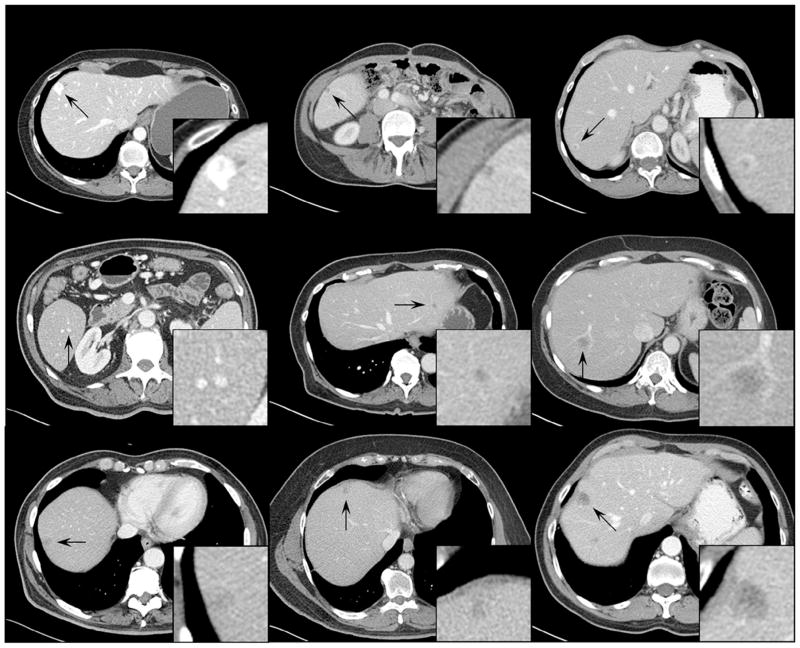

• inserted lesions that received a score of ≥7 (ie, probably real)

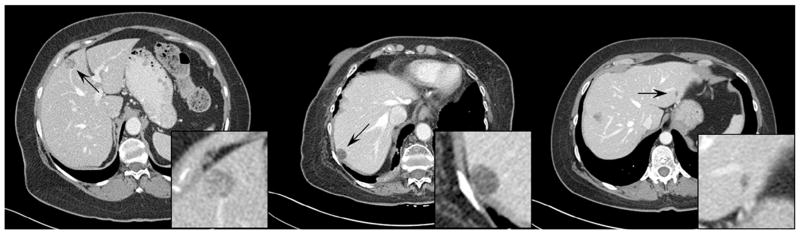

• inserted lesions that received a score of ≤3 (ie, probably inserted)


手术探针的插入

2022年Framework of metal insertion in the projection domain for image quality optimization in interventional computed tomography
来源：https://pubmed.ncbi.nlm.nih.gov/35721310/

• metal insertion

• insertion results（插入不同数量的探针）

  • 第一行是一个case。第一张：包含真实的三个探针；第二张：包含真实的四个探针；根据前两张：第三张在第一张上面插入了一个探针。
  • 第二行是一个case。第一张：包含真实的一个探针；第二张：包含真实的四个探针；根据前两张：第三张在第一张上面插入了三个探针。
• insertion results（在不同域插入探针）

  • 从左到右：图像域插入探针（没有伪影），投影域插入探针，两者的为彩图

肺结节的插入

2021年Deep-learning lesion and noise insertion for virtual clinical trial in Chest CT
来源：https://www.ncbi.nlm.nih.gov/pmc/articles/PMC8982986/

• insertion results（两个测试case的五个连续的层面）
  The mean SSIM of the small region-of-interest (~12mm width) centered at the inserted nodules was approximately 0.94.

  • CNN：the proposed lesion-insertion convolutional neural network (CNN)
  • Reference：standard projection-domain insertion

2017年Techniques for virtual lung nodule insertion: volumetric and morphometric comparison of projection-based and image-based methods for quantitative CT
来源：https://www.ncbi.nlm.nih.gov/pmc/articles/PMC5693368/

• 整体流程

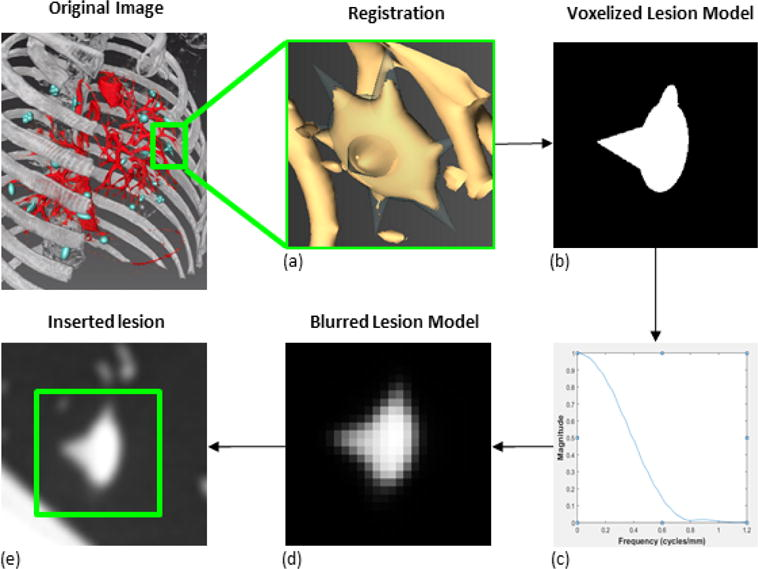

  • Schematic showing the steps to virtual nodule insertion for Techniques A (projection-based) and B (image-based)
  • (a) Co-registration, (b) voxelization, (c) acquire system MTF, (d) blurred lesion model, (e) lesion insertion.

2017年Evaluation of a projection-domain lung nodule insertion technique in thoracic computed tomography
来源：https://www.ncbi.nlm.nih.gov/pmc/articles/PMC5374359/

• 不同形态大小的肺结节

• 医生去打分


2017年A virtual clinical trial using projection-based nodule insertion to determine radiologist reader performance in lung cancer screening CT
来源：https://www.ncbi.nlm.nih.gov/pmc/articles/PMC5384330/

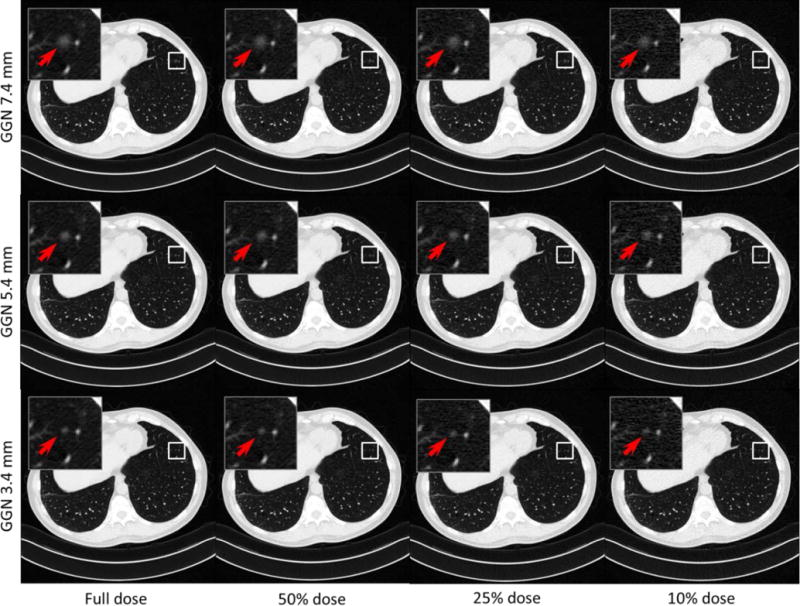

• 不同大小的肺结节＆不同剂量的CT图像


结石的插入

2017年Technical Note: Insertion of digital lesions in the projection domain for dual-source, dual-energy CT
来源：https://www.ncbi.nlm.nih.gov/pmc/articles/PMC5462480/

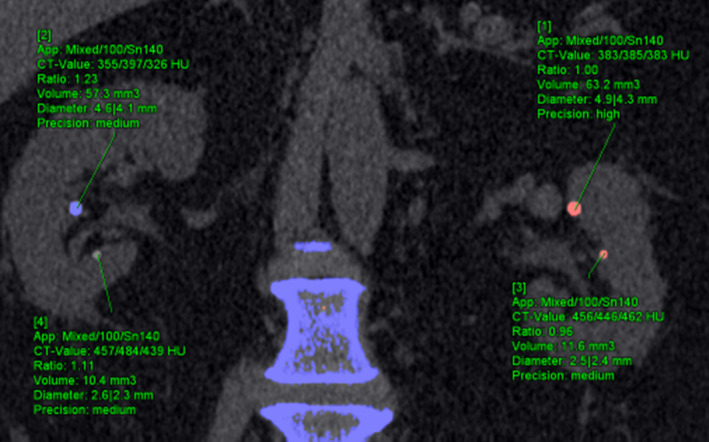

• 肾实质的冠状位插入了四个结石，不同颜色代表不同结石分类
