软件设计与体系结构大作业-基于SpringBoot的REST API设计
任务分配
｜姓名｜贡献分｜贡献｜
｜-｜-｜-｜
｜魏啸冲｜20｜后端逻辑处理、minecraft服务器对接｜
｜张夏楠｜20｜api设计，前后端api对接｜
｜李芊颖｜20｜游戏逻辑设计、测试工作｜
Minecraft披萨点单展示

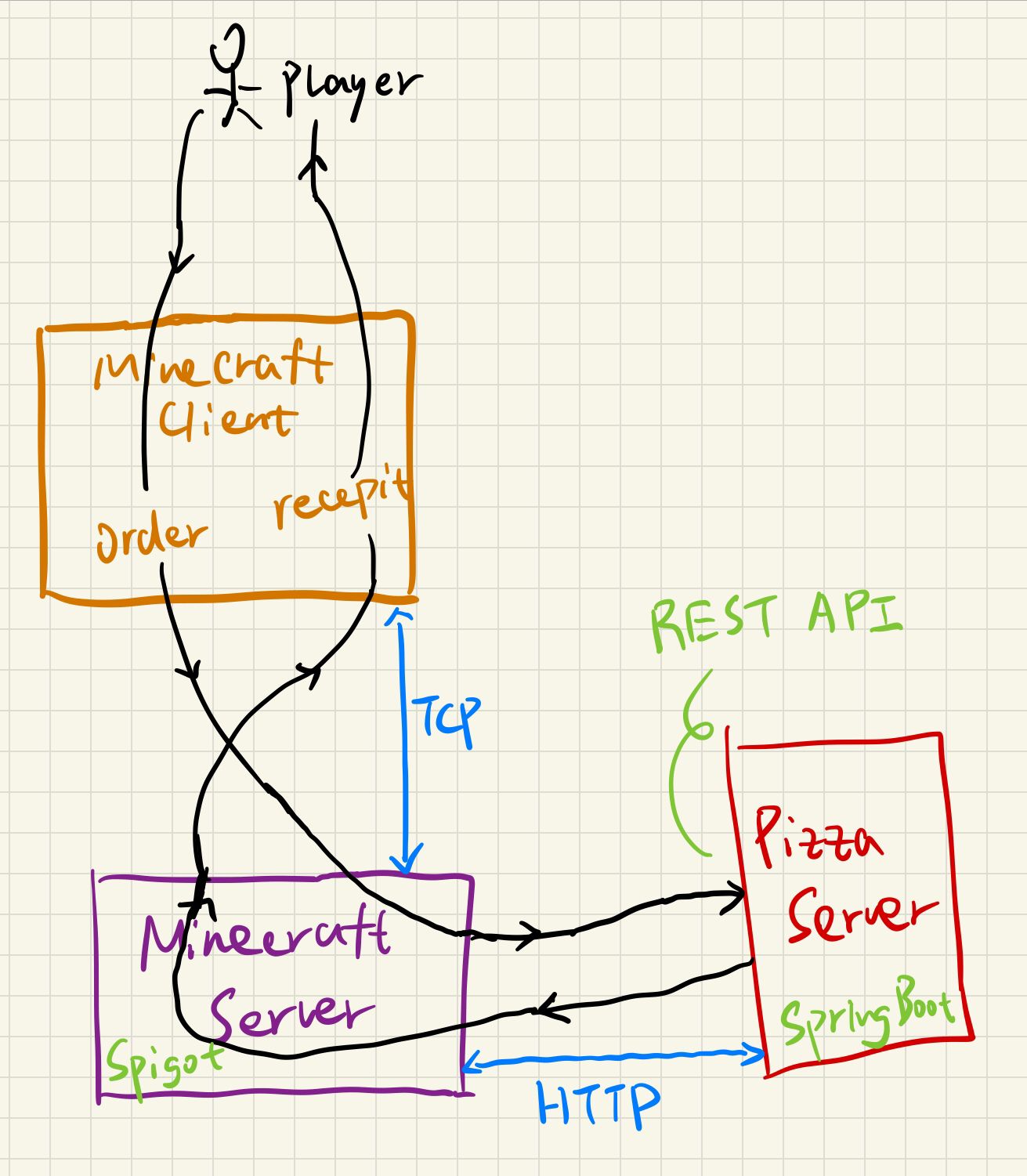

整体架构示意图：
说明：
即用户在游戏中（Minecraft Client，下简称MC）进行点单，游戏客户端通过TCP协议与游戏服务器保持连接（Minecraft Server，下简称MS），当用户点击提交订单按钮时，MC会往MS发送一个事件，这个事件由我编写的MS Spigot插件监听，并向披萨服务器（Pizza Server，下简称PS）提供的REST API发送一个HTTP请求，然后PS开始处理订单，处理完成后以json格式返回数据给MS，MS将信息整合到游戏物品小票中并发送给玩家，最后玩家在MC中看到小票中的信息。这样就模拟了整个点单过程。
其中点单部分和MS内部工作机制在前两篇报告中已经说明。
Controller层的代码：
package com.example.pizzasystem.control;
import com.example.pizzasystem.service.order.BaseOrder;
import com.example.pizzasystem.service.order.OrderHandler;
import com.example.pizzasystem.service.order.order.AmericaStylePizzaStoreOrder;
import com.example.pizzasystem.service.order.order.BeverageOrder;
import com.example.pizzasystem.service.order.order.ItalyStylePizzaStoreOrder;
import com.example.pizzasystem.service.order.order.Order;
import lombok.Data;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RestController;
import java.util.List;
/**
* @author https://github.com/anlowee
* @version 1.0
*/
@RestController
public class PizzaOrderController {
@PostMapping("/api/america/order")
public String orderPizzasAtAmericaStyleStore(
@RequestBody RequestBean requestBean) {
Order pizzaOrdersIssue = new AmericaStylePizzaStoreOrder(requestBean.getPizzas());
Order beverageOrdersIssue = new BeverageOrder(requestBean.getBeverages());
OrderHandler orderHandler = new OrderHandler();
orderHandler.setPizzaOrder(pizzaOrdersIssue);
orderHandler.setBeverageOrder(beverageOrdersIssue);
return orderHandler.handleOrder();
}
@PostMapping("/api/italy/order")
public String orderPizzasAtItalyStyleStore(
@RequestBody RequestBean requestBean
) {
Order pizzaOrdersIssue = new ItalyStylePizzaStoreOrder(requestBean.getPizzas());
Order beverageOrdersIssue = new BeverageOrder(requestBean.getBeverages());
OrderHandler orderHandler = new OrderHandler();
orderHandler.setPizzaOrder(pizzaOrdersIssue);
orderHandler.setBeverageOrder(beverageOrdersIssue);
return orderHandler.handleOrder();
}
}
@Data
class RequestBean {
private List<BaseOrder> pizzas;
private List<BaseOrder> beverages;
}
请求体示例：
{
"pizzas": [
{
"type": "Pepperoni",
"additions": [
"Large Size",
"More Cheese",
"More Cheese",
"More Pepperoni",
"High Temperature",
"Long Time",
"10 Slices",
"Dine"
]
},
{
"type": "Cheese",
"additions": [
"Large Size",
"High Temperature",
"Long Time",
"12 Slices",
"Take Out"
]
}
],
"beverages": [
{
"type": "Milk Tea",
"additions": [
"Milk",
"Mocha",
"Soy",
"Whip",
"Tall Size"
]
},
{
"type": "Coffee",
"additions": [
"Milk",
"Venti"
]
}
]
}
回复体示例：
##############RECEIPT##############
##################################
pepperoni pizza
use thick crust dough
use mozzarella cheese
use plum tomato sauce
preparing a pepperoni pizza, large size, more cheese, more cheese, more pepperoni
baking a pepperoni pizza, bake at 500C, bake for 45 minutes
cutting a pepperoni pizza, cut to 10 slices
boxing a pepperoni pizza, dine without box
cost: 14.95
##################################
cheese pizza
use thick crust dough
use mozzarella cheese
use plum tomato sauce
preparing a cheese pizza, large size
baking a cheese pizza, bake at 500C, bake for 45 minutes
cutting a cheese pizza, cut to 12 slices
boxing a cheese pizza, take out with box
cost: 8.17
##################################
milk tea
preparing a milk tea, add milk, add mocha, add soy, add whip, tall size
cost: 6.44
##################################
coffee
preparing a coffee, add milk
cost: 1.98
##################################
total cost: 31.54
视频展示：
https://www.bilibili.com/video/BV1Ry4y1z7Vf/
一键三连>_<!
白板企业评估平台
这是我们小组参与开发的另一个比赛项目，其中REST API使用的更多
整体架构：
前后端分离，后端采用三层架构并使用REST API，前端采用Vue多页面架构，前后端用json通信
API 文档：
Controller层代码展示
UserController:
package com.iamwxc.blanker.module.usermanage;
import com.iamwxc.blanker.common.response.ResponseCode;
import com.iamwxc.blanker.common.response.UnitResp;
import com.iamwxc.blanker.module.usermanage.domain.vo.UserVO;
import org.apache.commons.lang3.StringUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.ResponseEntity;
import org.springframework.security.access.annotation.Secured;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.validation.annotation.Validated;
import org.springframework.web.bind.annotation.*;
import javax.servlet.http.HttpServletRequest;
import java.util.HashMap;
import java.util.Map;
/**
* @author https://github.com/anlowee
*/
@RestController
public class UserController {
@Autowired
private UserService userService;
@Autowired
private RecaptchaService captchaService;
// @PostMapping("/api/register")
// public UnitResp register(@Validated @RequestBody UserVO newUser) {
// userService.register(newUser);
// return new UnitResp(ResponseCode.SUCCESS.getCode(), "register success", null);
// }
@PostMapping("/api/register")
public ResponseEntity<?> signup(@Validated @RequestBody UserVO newUser,
@RequestParam(name="g-recaptcha-response") String recaptchaResponse,
HttpServletRequest request){
String ip = request.getRemoteAddr();
String captchaVerifyMessage =
captchaService.verifyRecaptcha(ip, recaptchaResponse);
if (StringUtils.isNotEmpty(captchaVerifyMessage)) {
Map<String, Object> response = new HashMap<>();
response.put("message", captchaVerifyMessage);
return ResponseEntity.badRequest()
.body(response);
}
userService.register(newUser);
return ResponseEntity.ok().build();
}
@PostMapping("/api/renew")
public UnitResp renew(@RequestParam(required = true) Integer level) {
userService.renewUseTime(level);
return new UnitResp(ResponseCode.SUCCESS.getCode(), "renew successfully", null);
}
@GetMapping("/api/me")
public UnitResp getCurUserInfo() {
return new UnitResp(ResponseCode.SUCCESS.getCode(),
"current user info",
userService.getUserInfo(SecurityContextHolder.getContext().getAuthentication().getName()));
}
}
PredictController:
package com.iamwxc.blanker.module.prediction;
import com.iamwxc.blanker.common.response.ResponseCode;
import com.iamwxc.blanker.common.response.UnitResp;
import com.iamwxc.blanker.module.prediction.domain.entity.PredictionRecordEntity;
import com.iamwxc.blanker.module.prediction.domain.vo.BlankerInfoVO;
import com.iamwxc.blanker.module.prediction.domain.vo.PredictionRecordVO;
import com.iamwxc.blanker.module.prediction.domain.vo.PredictionVO;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.access.annotation.Secured;
import org.springframework.validation.annotation.Validated;
import org.springframework.web.bind.annotation.*;
import java.io.IOException;
import java.util.List;
/**
* @author https://github.com/anlowee
*/
@RestController
public class PredictController {
@Autowired
private PredictService predictService;
@PostMapping("/api/prediction")
public PredictionVO doPredict(@Validated @RequestBody BlankerInfoVO blankerInfoVO) throws IOException, InterruptedException {
return predictService.predict(blankerInfoVO);
}
@GetMapping("/api/predictions")
public UnitResp getPredictRecords() {
return new UnitResp(ResponseCode.SUCCESS.getCode(), "query ok", predictService.findAllOfCurUser());
}
@Secured("ROLE_ADMIN")
@GetMapping("/api/predictions/all")
public UnitResp getAllPredictionRecord() {
return new UnitResp(ResponseCode.SUCCESS.getCode(), "query ok", predictService.findAll());
}
@PutMapping("/api/prediction")
public UnitResp updatePredictRecords(@Validated @RequestBody PredictionRecordVO recordVO) {
predictService.updatePredictionRecord(recordVO);
return new UnitResp(ResponseCode.SUCCESS.getCode(), "update ok", null);
}
}

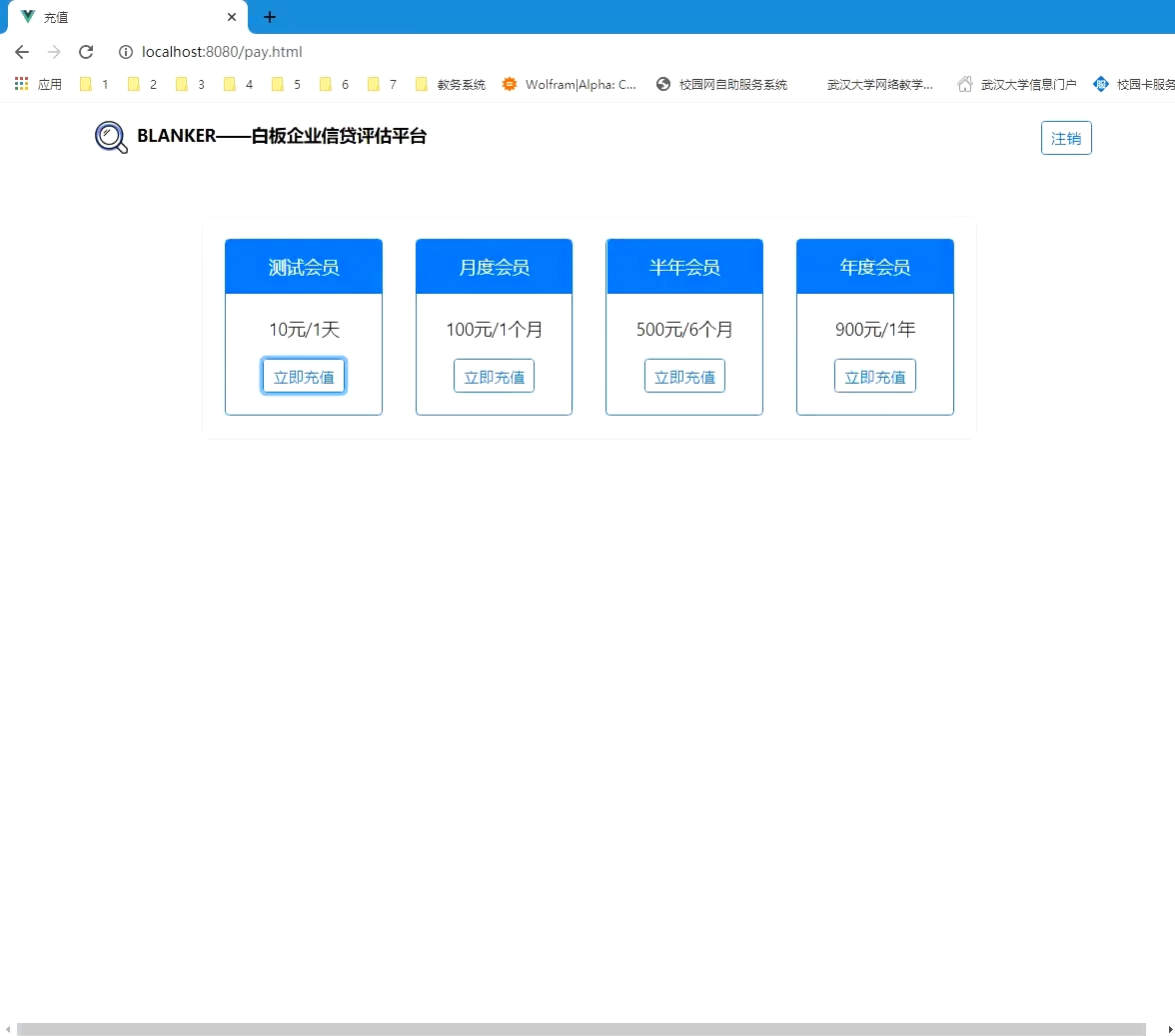

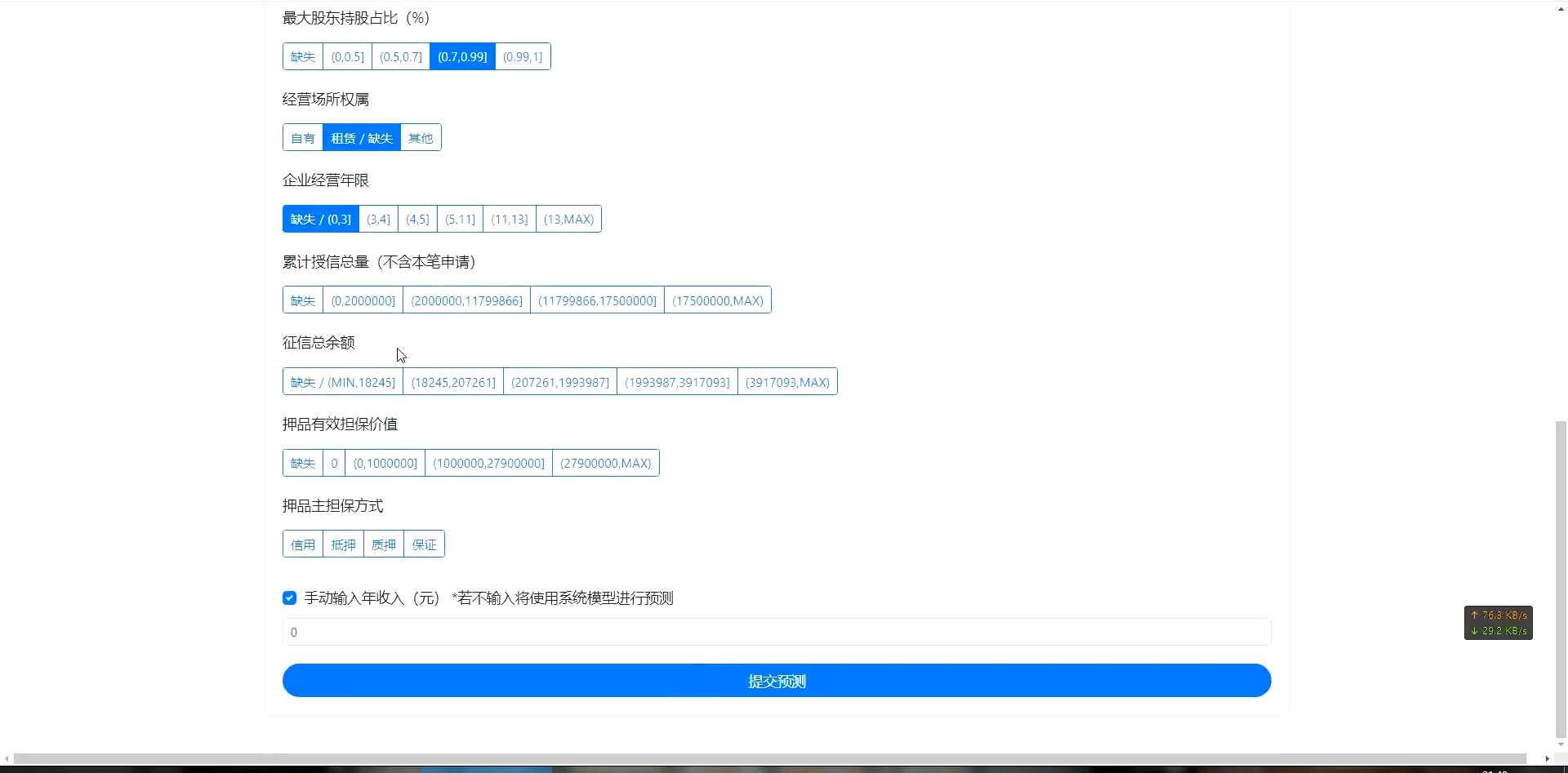

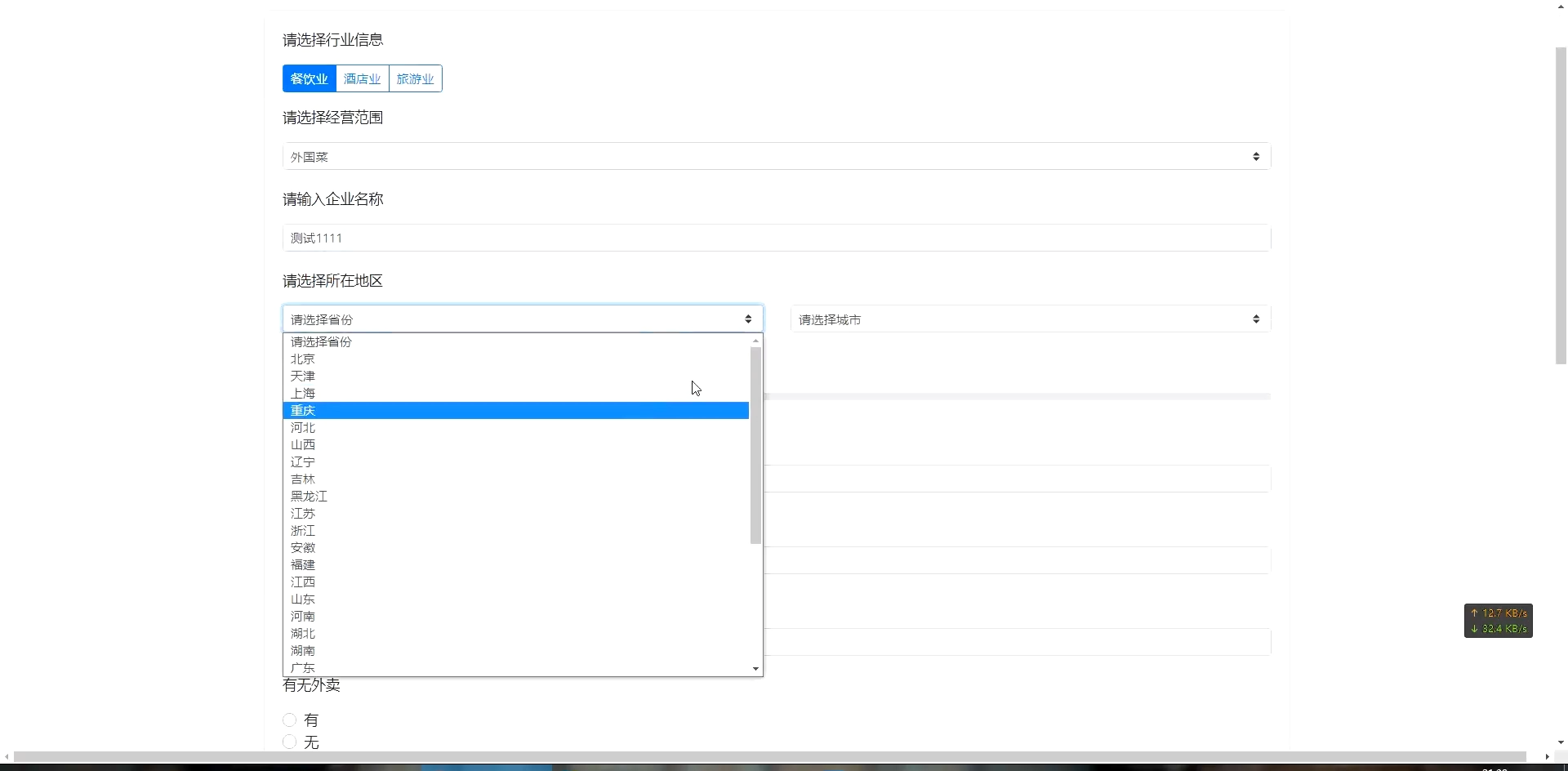

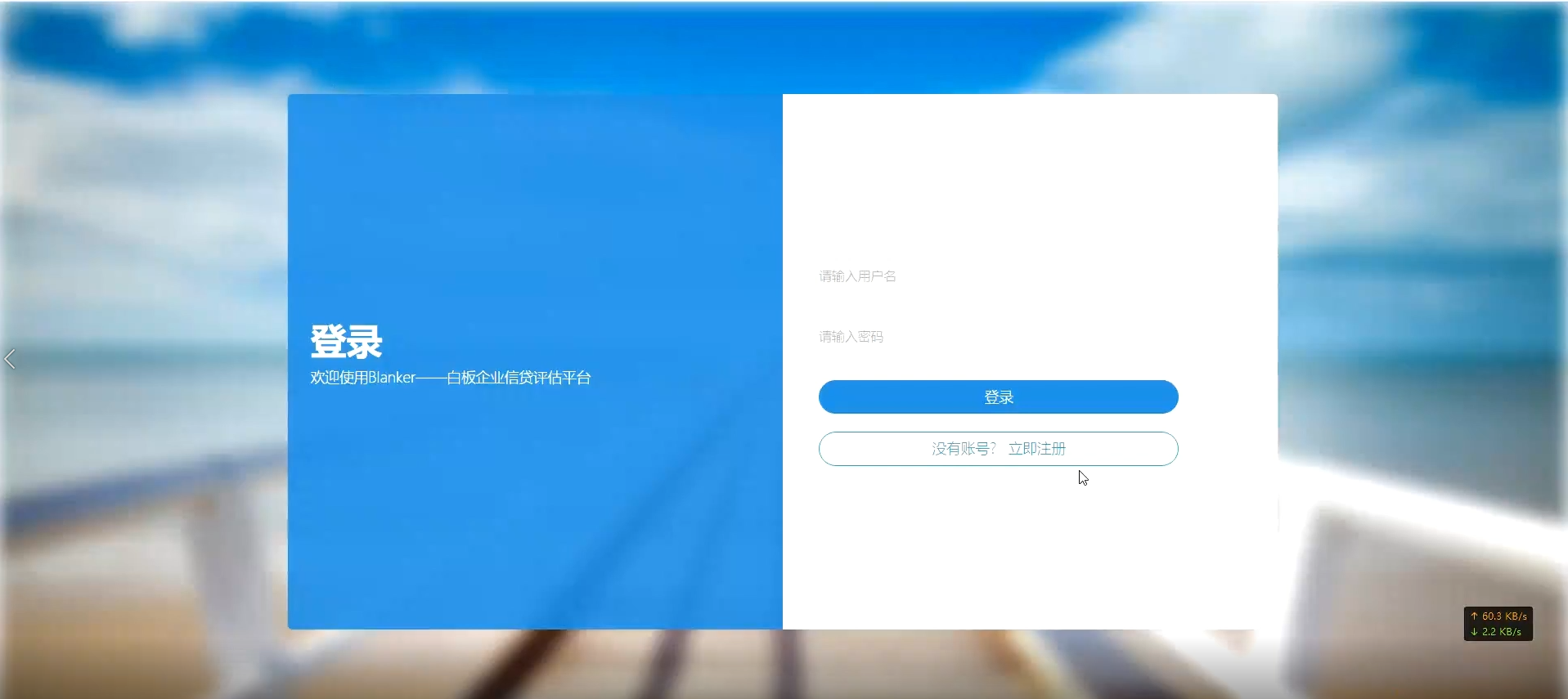

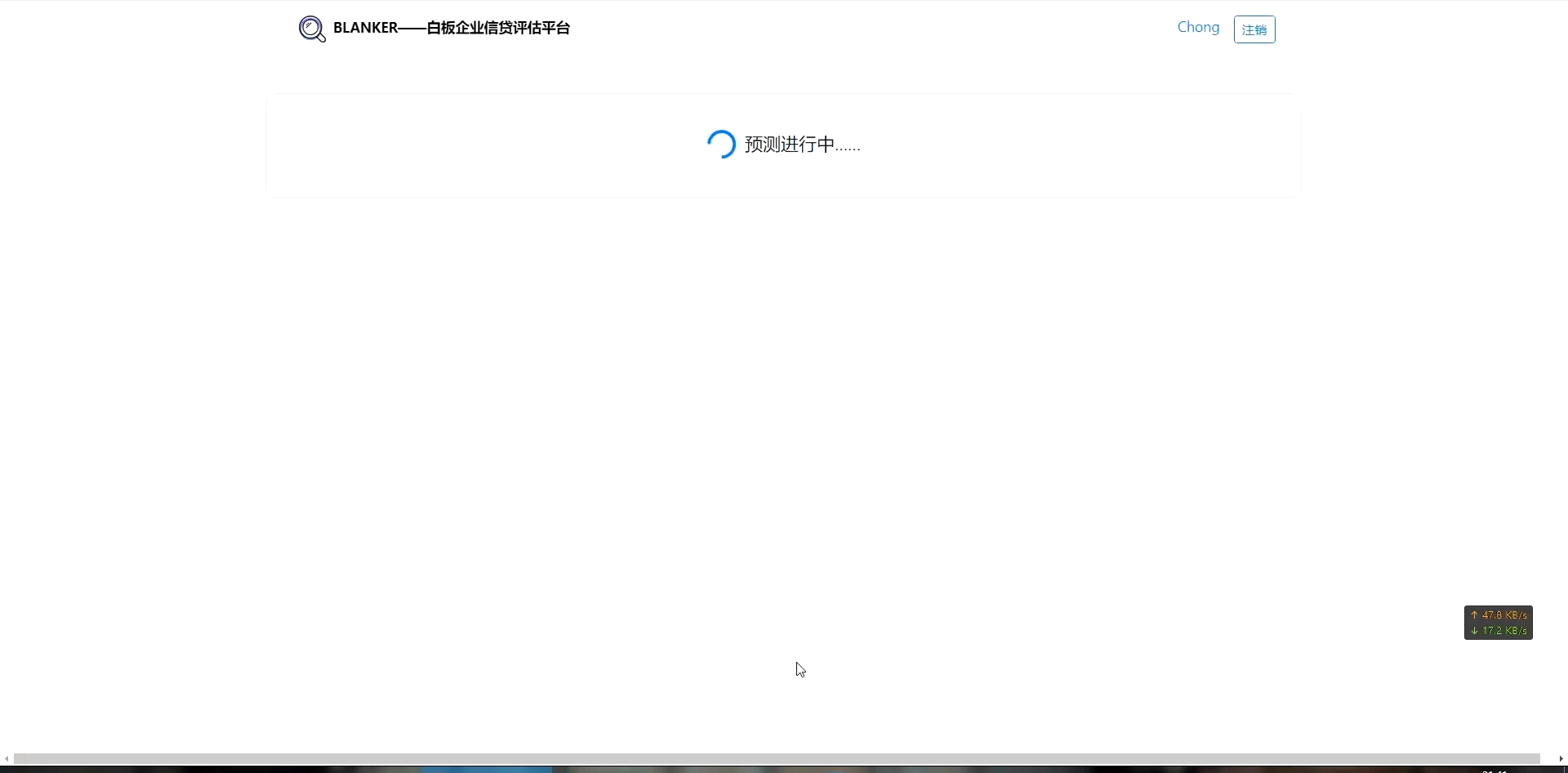

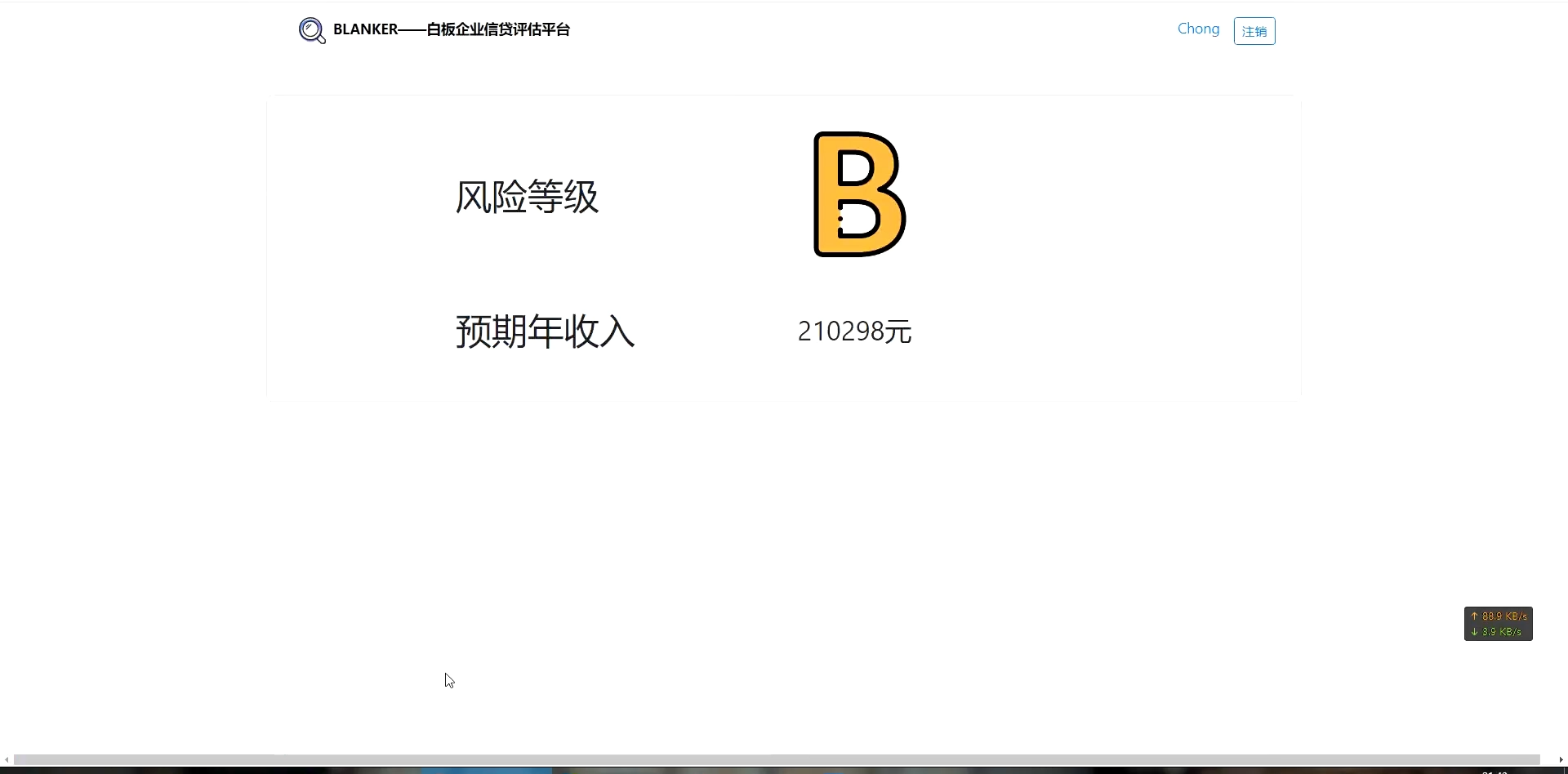

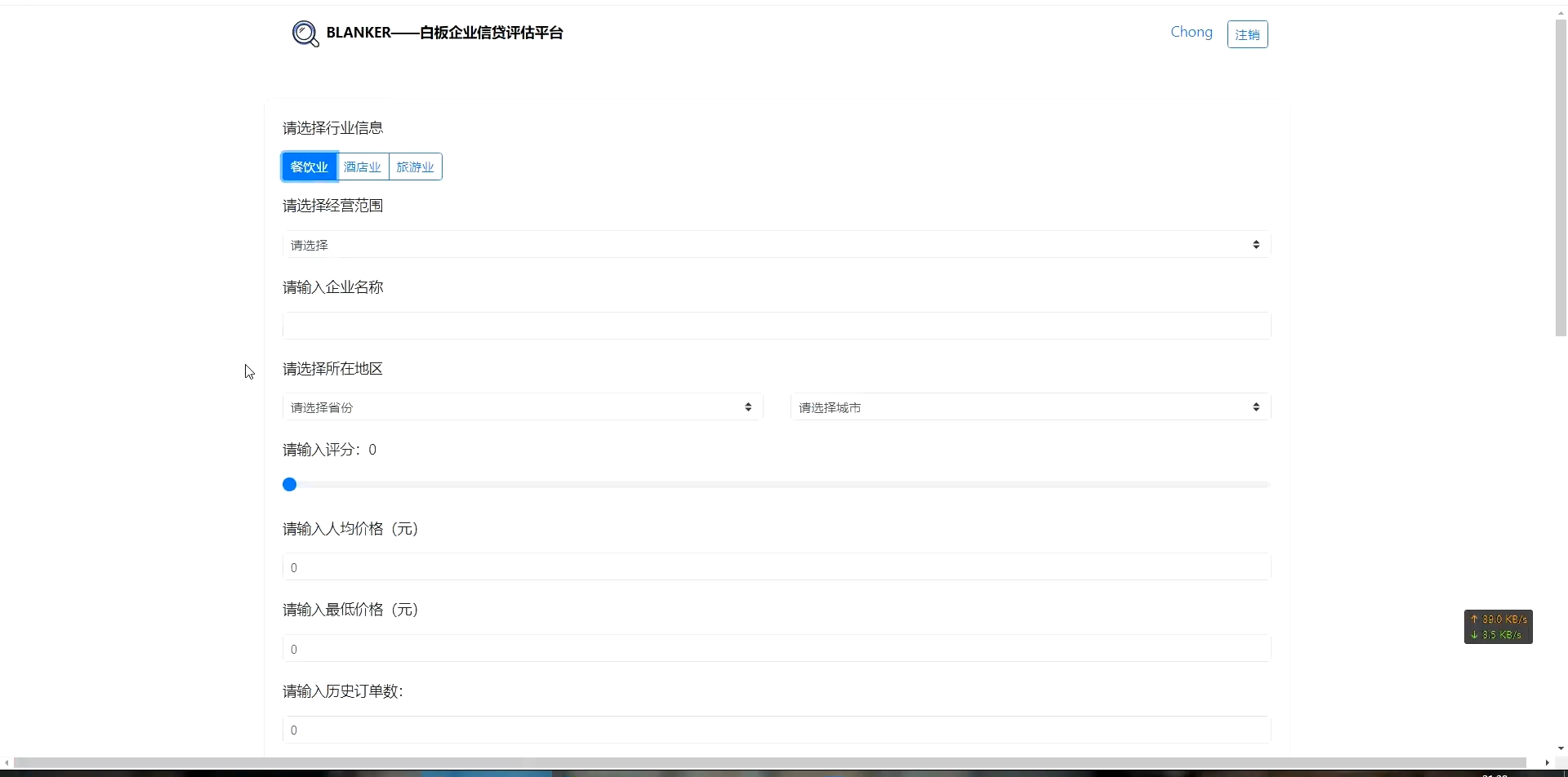

部分效果展示
