SpringBean之间的循环依赖，你头疼了吗？

循环依赖---circular dependency & circular reference

java库之间的循环依赖，即java包循环依赖，指的是当两个或多个jar文件直接或间接地相互依赖（circular dependency）。循环依赖关系可能会在应用程序的编译或运行时导致问题，并且很难解决。

类之间的循环依赖指的的A依赖B，同时，B也依赖A。spring容器中当两个或多个bean之间存在相互依赖（相互注入对方，circular reference）时，就会发生循环依赖。例如A→B同时B→A，或例如间接的A→C→B同时B→A，两种情况均会产生A与B的相互依赖。



本文讲后者，即java bean的循环依赖

程序一旦出现循环依赖，则在服务启动时，会概率性报错：Spring尝试创建bean时，它会陷入无限递归中，进而无法完成应用程序的刷新，服务启动失败。报错信息如下：

- Exception encountered during context initialization - cancelling refresh attempt: org.springframework.beans.factory.BeanCurrentlyInCreationException: Error creating bean with name 'payUserSignBizService': Bean with name 'payUserSignBizService' has been injected into other beans [payMerchantAgreementApiImpl] in its raw version as part of a circular reference, but has eventually been wrapped. This means that said other beans do not use the final version of the bean. This is often the result of over-eager type matching - consider using 'getBeanNamesOfType' with the 'allowEagerInit' flag turned off, for example.

百度翻译：-上下文初始化期间遇到异常-取消刷新尝试：org.springframework.beans.factory.BeanCurrentlyInCreationException：创建名为“payUserSignBizService”的bean时出错：名为“PayUserSignBizService”的bean已作为循环引用的一部分以其原始版本注入到其他bean[payMerchantAgreementApiImpl]中，但最终已被包装。这意味着所述其他bean不使用bean的最终版本。这通常是过度渴望类型匹配的结果——例如，考虑在关闭“allowEagleInit”标志的情况下使用“getBeanNameOfType”。

应用启动log如下（信息量大，并附加注释，折叠）：

#服务启动日志--->
...
2023-07-20 22:04:57.427 [TID:N/A] [] [main] INFO  c.c.f.a.spring.annotation.SpringValueProcessor:120 - Monitoring key: levy.public.key, beanName: levyCommunicationUtil, method: com.emax.channel.provider.modules.serviceprovider.util.LevyCommunicationUtil.setPlatPublicKey
#前面都是INFO，下面出现WARN（检测到循环依赖）
2023-07-20 22:04:58.023 [TID:N/A] [] [main] WARN  o.s.b.w.s.c.AnnotationConfigServletWebServerApplicationContext:557 - Exception encountered during context initialization - cancelling refresh attempt: org.springframework.beans.factory.BeanCurrentlyInCreationException: Error creating bean with name 'payUserSignBizService': Bean with name 'payUserSignBizService' has been injected into other beans [payMerchantAgreementApiImpl] in its raw version aspart of a circular reference, but has eventually been wrapped. This means that said other beans do not use the final version of the bean. This is often the result of over-eager type matching - consider using 'getBeanNamesOfType' with the 'allowEagerInit' flag turned off, for example.
#程序相关的各种组件开始shutdown/destroy ，如：nacos/dubbo /线程池 /hikari数据库连接
2023-07-20 22:04:58.028 [TID:N/A] [] [main] INFO  com.alibaba.nacos.client.naming:147 - com.alibaba.nacos.client.naming.beat.BeatReactor do shutdown begin
2023-07-20 22:04:58.030 [TID:N/A] [] [main] INFO  com.alibaba.nacos.client.naming:149 - com.alibaba.nacos.client.naming.beat.BeatReactor do shutdown stop
2023-07-20 22:04:58.030 [TID:N/A] [] [main] INFO  com.alibaba.nacos.client.naming:149 - com.alibaba.nacos.client.naming.core.EventDispatcher do shutdown begin
2023-07-20 22:05:01.031 [TID:N/A] [] [main] INFO  com.alibaba.nacos.client.naming:152 - com.alibaba.nacos.client.naming.core.EventDispatcher do shutdown stop
2023-07-20 22:05:01.032 [TID:N/A] [] [main] INFO  com.alibaba.nacos.client.naming:370 - com.alibaba.nacos.client.naming.core.HostReactor do shutdown begin
2023-07-20 22:05:01.032 [TID:N/A] [] [main] INFO  com.alibaba.nacos.client.naming:118 - com.alibaba.nacos.client.naming.core.PushReceiver do shutdownbegin
2023-07-20 22:05:04.033 [TID:N/A] [] [main] INFO  com.alibaba.nacos.client.naming:122 - com.alibaba.nacos.client.naming.core.PushReceiver do shutdownstop
2023-07-20 22:05:04.033 [TID:N/A] [] [main] INFO  com.alibaba.nacos.client.naming:132 - com.alibaba.nacos.client.naming.backups.FailoverReactor do shutdown begin
2023-07-20 22:05:04.033 [TID:N/A] [] [main] INFO  com.alibaba.nacos.client.naming:134 - com.alibaba.nacos.client.naming.backups.FailoverReactor do shutdown stop
2023-07-20 22:05:04.034 [TID:N/A] [] [main] INFO  com.alibaba.nacos.client.naming:374 - com.alibaba.nacos.client.naming.core.HostReactor do shutdown stop
2023-07-20 22:05:04.034 [TID:N/A] [] [main] INFO  com.alibaba.nacos.client.naming:715 - com.alibaba.nacos.client.naming.net.NamingProxy do shutdown begin
2023-07-20 22:05:04.034 [TID:N/A] [] [main] WARN  com.alibaba.nacos.client.naming:72 - [NamingHttpClientManager] Start destroying NacosRestTemplate
2023-07-20 22:05:04.035 [TID:N/A] [] [main] WARN  com.alibaba.nacos.client.naming:79 - [NamingHttpClientManager] Destruction of the end
2023-07-20 22:05:04.035 [TID:N/A] [] [main] INFO  com.alibaba.nacos.client.naming:718 - com.alibaba.nacos.client.naming.net.NamingProxy do shutdown stop
2023-07-20 22:05:04.062 [TID:N/A] [] [main] INFO  o.s.scheduling.concurrent.ThreadPoolTaskExecutor:208 - Shutting down ExecutorService
2023-07-20 22:05:04.072 [TID:N/A] [] [main] INFO  o.a.d.c.s.b.f.a.ReferenceAnnotationBeanPostProcessor:293 - org.apache.dubbo.common.bytecode.proxy17@157ff8f8 was destroying!
2023-07-20 22:05:04.072 [TID:N/A] [] [main] INFO  o.a.d.c.s.b.f.a.ReferenceAnnotationBeanPostProcessor:293 - org.apache.dubbo.common.bytecode.proxy20@4a1abba1 was destroying!
2023-07-20 22:05:04.072 [TID:N/A] [] [main] INFO  o.a.d.c.s.b.f.a.ReferenceAnnotationBeanPostProcessor:293 - org.apache.dubbo.common.bytecode.proxy26@67263db7 was destroying!
2023-07-20 22:05:04.072 [TID:N/A] [] [main] INFO  o.a.d.c.s.b.f.a.ReferenceAnnotationBeanPostProcessor:293 - org.apache.dubbo.common.bytecode.proxy27@4a2bc71f was destroying!
2023-07-20 22:05:04.073 [TID:N/A] [] [main] INFO  o.a.d.c.s.b.f.a.ReferenceAnnotationBeanPostProcessor:293 - org.apache.dubbo.common.bytecode.proxy10@20f94e9a was destroying!
2023-07-20 22:05:04.073 [TID:N/A] [] [main] INFO  o.a.d.c.s.b.f.a.ReferenceAnnotationBeanPostProcessor:293 - org.apache.dubbo.common.bytecode.proxy12@3f213e97 was destroying!
2023-07-20 22:05:04.073 [TID:N/A] [] [main] INFO  o.a.d.c.s.b.f.a.ReferenceAnnotationBeanPostProcessor:293 - org.apache.dubbo.common.bytecode.proxy18@693c7741 was destroying!
2023-07-20 22:05:04.073 [TID:N/A] [] [main] INFO  o.a.d.c.s.b.f.a.ReferenceAnnotationBeanPostProcessor:293 - org.apache.dubbo.common.bytecode.proxy2@7d3b4646 was destroying!
2023-07-20 22:05:04.073 [TID:N/A] [] [main] INFO  o.a.d.c.s.b.f.a.ReferenceAnnotationBeanPostProcessor:293 - org.apache.dubbo.common.bytecode.proxy1@175c4ae5 was destroying!
2023-07-20 22:05:04.073 [TID:N/A] [] [main] INFO  o.a.d.c.s.b.f.a.ReferenceAnnotationBeanPostProcessor:293 - org.apache.dubbo.common.bytecode.proxy14@21bf1b1f was destroying!
2023-07-20 22:05:04.073 [TID:N/A] [] [main] INFO  o.a.d.c.s.b.f.a.ReferenceAnnotationBeanPostProcessor:293 - org.apache.dubbo.common.bytecode.proxy6@2b33e616 was destroying!
2023-07-20 22:05:04.074 [TID:N/A] [] [main] INFO  o.a.d.c.s.b.f.a.ReferenceAnnotationBeanPostProcessor:293 - org.apache.dubbo.common.bytecode.proxy22@c1d9c40 was destroying!
2023-07-20 22:05:04.075 [TID:N/A] [] [main] INFO  o.a.d.c.s.b.f.a.ReferenceAnnotationBeanPostProcessor:293 - org.apache.dubbo.common.bytecode.proxy28@79e3f444 was destroying!
2023-07-20 22:05:04.075 [TID:N/A] [] [main] INFO  o.a.d.c.s.b.f.a.ReferenceAnnotationBeanPostProcessor:293 - org.apache.dubbo.common.bytecode.proxy8@205d6f84 was destroying!
2023-07-20 22:05:04.075 [TID:N/A] [] [main] INFO  o.a.d.c.s.b.f.a.ReferenceAnnotationBeanPostProcessor:293 - org.apache.dubbo.common.bytecode.proxy6@2b33e616 was destroying!
2023-07-20 22:05:04.076 [TID:N/A] [] [main] INFO  o.a.d.c.s.b.f.a.ReferenceAnnotationBeanPostProcessor:293 - org.apache.dubbo.common.bytecode.proxy25@74f54f8e was destroying!
2023-07-20 22:05:04.076 [TID:N/A] [] [main] INFO  o.a.d.c.s.b.f.a.ReferenceAnnotationBeanPostProcessor:293 - org.apache.dubbo.common.bytecode.proxy3@1252d480 was destroying!
2023-07-20 22:05:04.076 [TID:N/A] [] [main] INFO  o.a.d.c.s.b.f.a.ReferenceAnnotationBeanPostProcessor:293 - org.apache.dubbo.common.bytecode.proxy5@59b8a801 was destroying!
2023-07-20 22:05:04.076 [TID:N/A] [] [main] INFO  o.a.d.c.s.b.f.a.ReferenceAnnotationBeanPostProcessor:293 - org.apache.dubbo.common.bytecode.proxy21@1c61f9bf was destroying!
2023-07-20 22:05:04.076 [TID:N/A] [] [main] INFO  o.a.d.c.s.b.f.a.ReferenceAnnotationBeanPostProcessor:293 - org.apache.dubbo.common.bytecode.proxy8@205d6f84 was destroying!
2023-07-20 22:05:04.076 [TID:N/A] [] [main] INFO  o.a.d.c.s.b.f.a.ReferenceAnnotationBeanPostProcessor:293 - org.apache.dubbo.common.bytecode.proxy5@59b8a801 was destroying!
2023-07-20 22:05:04.110 [TID:N/A] [] [main] INFO  o.a.d.c.s.b.f.a.ReferenceAnnotationBeanPostProcessor:293 - org.apache.dubbo.common.bytecode.proxy29@173c0722 was destroying!
2023-07-20 22:05:04.110 [TID:N/A] [] [main] INFO  o.a.d.c.s.b.f.a.ReferenceAnnotationBeanPostProcessor:293 - org.apache.dubbo.common.bytecode.proxy4@12e3cf1c was destroying!
2023-07-20 22:05:04.131 [TID:N/A] [] [main] INFO  o.a.d.c.s.b.f.a.ReferenceAnnotationBeanPostProcessor:293 - org.apache.dubbo.common.bytecode.proxy30@7c1adb8a was destroying!
2023-07-20 22:05:04.131 [TID:N/A] [] [main] INFO  o.a.d.c.s.b.f.a.ReferenceAnnotationBeanPostProcessor:293 - org.apache.dubbo.common.bytecode.proxy0@72364a40 was destroying!
2023-07-20 22:05:04.178 [TID:N/A] [] [main] INFO  o.a.d.c.s.b.f.a.ReferenceAnnotationBeanPostProcessor:305 - class org.apache.dubbo.config.spring.beans.factory.annotation.ReferenceAnnotationBeanPostProcessor was destroying!
2023-07-20 22:05:04.178 [TID:N/A] [] [main] INFO  com.zaxxer.hikari.HikariDataSource:350 - HikariPool-1 - Shutdown initiated...
2023-07-20 22:05:04.201 [TID:N/A] [] [main] INFO  com.zaxxer.hikari.HikariDataSource:352 - HikariPool-1 - Shutdown completed.
2023-07-20 22:05:04.204 [TID:N/A] [] [main] INFO  org.apache.catalina.core.StandardService:173 - Stopping service [Tomcat]
2023-07-20 22:05:04.230 [TID:N/A] [] [main] INFO  o.s.b.a.l.ConditionEvaluationReportLoggingListener:142 -

Error starting ApplicationContext. To display the conditions report re-run your application with 'debug' enabled.
#停dubbo服务
2023-07-20 22:05:04.231 [TID:N/A] [] [main] INFO  o.a.d.s.b.c.e.AwaitingNonWebApplicationListener:162 -  [Dubbo] Current Spring Boot Application is about to shutdown...
#应用服务中止。显示是循环依赖所致，并打印异常详细stacktrace
2023-07-20 22:05:04.262 [TID:N/A] [] [main] ERROR org.springframework.boot.SpringApplication:858 - Application run failedorg.springframework.beans.factory.BeanCurrentlyInCreationException: Error creating bean with name 'payUserSignBizService': Bean with name 'payUserSignBizService' has been injected into other beans [payMerchantAgreementApiImpl] in its raw version as part of a circular reference, but has eventually been wrapped. This means that said other beans do not use the final version of the bean. This is often the result of over-eager type matching - consider using 'getBeanNamesOfType' with the 'allowEagerInit' flag turned off, for example.
        at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.doCreateBean(AbstractAutowireCapableBeanFactory.java:622)
        at org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory.createBean(AbstractAutowireCapableBeanFactory.java:515)
        at org.springframework.beans.factory.support.AbstractBeanFactory.lambda$doGetBean$0(AbstractBeanFactory.java:320)
        at org.springframework.beans.factory.support.DefaultSingletonBeanRegistry.getSingleton(DefaultSingletonBeanRegistry.java:222)
        at org.springframework.beans.factory.support.AbstractBeanFactory.doGetBean(AbstractBeanFactory.java:318)
        at org.springframework.beans.factory.support.AbstractBeanFactory.getBean(AbstractBeanFactory.java:199)
        at org.springframework.beans.factory.support.DefaultListableBeanFactory.preInstantiateSingletons(DefaultListableBeanFactory.java:849)
        at org.springframework.context.support.AbstractApplicationContext.finishBeanFactoryInitialization(AbstractApplicationContext.java:877)
        at org.springframework.context.support.AbstractApplicationContext.refresh(AbstractApplicationContext.java:549)
        at org.springframework.boot.web.servlet.context.ServletWebServerApplicationContext.refresh(ServletWebServerApplicationContext.java:142)
        at org.springframework.boot.SpringApplication.refresh(SpringApplication.java:775)
        at org.springframework.boot.SpringApplication.refreshContext(SpringApplication.java:397)
        at org.springframework.boot.SpringApplication.run(SpringApplication.java:316)
        at org.springframework.boot.SpringApplication.run(SpringApplication.java:1260)
        at org.springframework.boot.SpringApplication.run(SpringApplication.java:1248)
        at com.emax.channel.provider.ChannelServerApplication.main(ChannelServerApplication.java:38)
        at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
        at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
        at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
        at java.lang.reflect.Method.invoke(Method.java:498)
        at org.springframework.boot.loader.MainMethodRunner.run(MainMethodRunner.java:48)
        at org.springframework.boot.loader.Launcher.launch(Launcher.java:87)
        at org.springframework.boot.loader.Launcher.launch(Launcher.java:50)
        at org.springframework.boot.loader.JarLauncher.main(JarLauncher.java:51)
#至此，凉凉。





如何解决循环依赖？

首先要理清各类的职责，尤其是我们的分层架构中各层级的职责————相同层级不要相互调用，调用下级API。

下面是职责不清晰导致的循环依赖。解决方案是，消除同级的UserService和LoginAccountService两个服务的相互依赖，他们在调用对方的数据时，应调用其下层的方法。例如：UserService#selectUserInfo在获取LoginAccount数据时，改为调用loginAccountMapper#selectByUserId。

// -------------------------  UserService  ------------------------------------
@Service
public class UserService {
    @Resource
    private UserMapper userMapper;
    @Resource
    private LoginAccountService loginAccountService;


    public UserVO selectUserInfo(int userId) {
        User user = userMapper.selectByUserId(userId);
        if (user == null) {
            throw new ResponseException("用户不存在");
        }
        UserVO userVO = BeanMapper.map(user, UserVO.class);
        LoginAccount loginAccount= loginAccountService.selectByUserId(userId);
        if (loginAccount!=null){
            userVO.setLoginAccount(loginAccount.getLoginAccount());
        }
        return userVO;
    }

    public void validUser(int userId) {
        User user = userMapper.selectByUserId(userId);
        if (user == null) {
            throw new ResponseException("用户不存在");
        }
        if (!"NORMAL".equalsIgnoreCase(user.getStatus())) {
            throw new ResponseException("用户已禁用");
        }
    }
}

// ---------------------------  LoginAccountService ----------------------------------
@Service
public class LoginAccountService {
    @Resource
    private UserService userService;
    @Resource
    private LoginAccountMapper loginAccountMapper;

    public LoginAccount login(String loginAccount, String password) {
        // 获取登陆账号
        LoginAccount entity = loginAccountMapper.selectByAccount(loginAccount);
        if (entity == null) {
            throw new ResponseException("账号不存在");
        }
        if (!password.equals(entity.getPassword())) {
            throw new ResponseException("用户密码错误");
        }
        userService.validUser(entity.getUserId());
        return entity;

    }

    public LoginAccount selectByUserId(int userId) {
        return loginAccountMapper.selectByUserId(userId);
    }
}

当然，上面的循环依赖，单从技术层面，加@Lasy等手段是可以解决的，但正确的姿势还是应基于类的职责来重新设计你的程序。要知道职责不清晰会带来诸多问题，绝不仅仅是重复依赖的问题。



业务回调场景中的循环依赖

在我们的企业应用开发中，有一种的场景是，一个业务完成后，回调通知另一个业务，这种“回调”的业务场景在程序实现时，也可能出现循环依赖。我们正好碰到了这个比较典型的情况，跟大家分享一下。

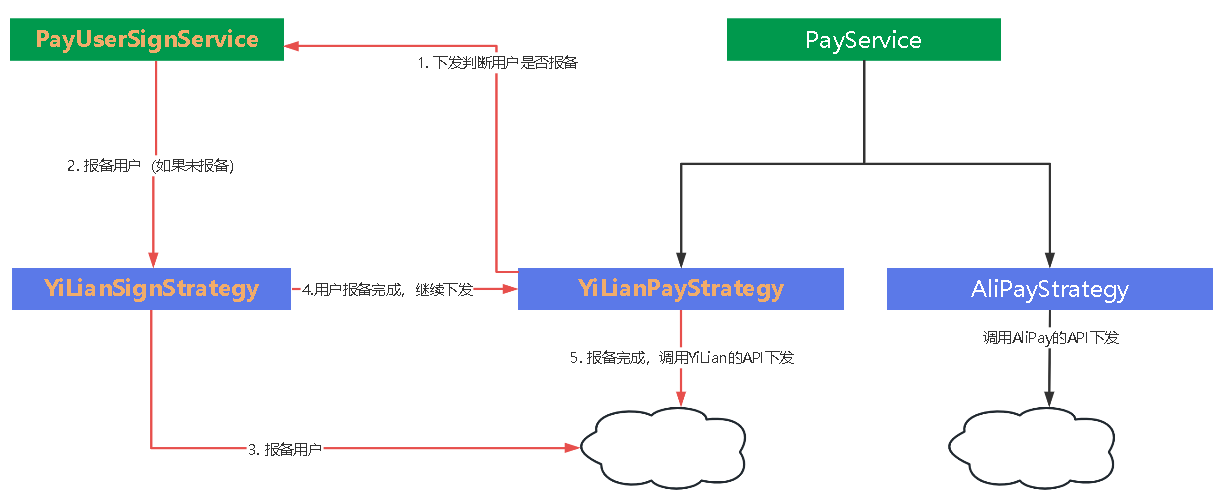

我们的中台channel服务，对接了数家银行通道。其中的一个YiLian通道有个特殊需求，在付款到个人之前需要对收款人进行报备，报备完成才可付款。见下图示意图（设计文稿），YiLianPayStrategy 注入了上层的PayUserSignService，PayUserSignService有注入YiLianSignStrategy，YiLianSignStrategy有注入YiLianPayStrategy，产生YiLianPayStrategy 与YiLianSignStrategy的相互循环依赖。



那么，如果解决“回调”业务场景下的循环依赖呢？

解决方案有二：

1. 不使用bean注入的方式，改为需要回调时才获取bean。

实现方式1）业务bean注入ApplicationContext对象，在回调代码里利用ApplicationContext#getBean来获取目标对象，然后调用目标对象的回调处理方法。

实现方式2）我们的系统里封装了一个实现了ApplicationContextAware接口的SpringContextUtils工具类，这个类提供了基于ApplicationContext#getBean的静态方法getBean。业务bean的回调代码里调用SpringContextUtils#getBean即可获取目标对象，然后调用目标对象的回调处理方法。

上面案例中，YiLianSignStrategy的回调方法利用SpringContextUtils可以改为这样

    /**
     * 封装结算人员报备成功后的相关处理逻辑
     *
     * @param batchNo 批次号
     * @param details 批次明细
     * @return
     */
    @VisibleForTesting
    public int batchUpdateQueryResult(String batchNo, List<PayUserSign> details) {
        if (CollectionUtils.isEmpty(details)) return 0;
        // 将银行返回的结果，持久化更新报备数据记录
        int count = payUserSignManager.batchUpdateQueryResult(details);
        if (count > 0 && details.stream().anyMatch(p -> PayUserSignStatusEnum.isFinalState(p.getStatus()))) {
            // 报备完成，回调支付下发业务，继续下发
            details.removeIf(p -> PayUserSignStatusEnum.SUCCESS != p.getStatus());
            if (CollectionUtils.isNotEmpty(details)) {
                ThreadPoolUtil.execute(() -> SpringContextUtils.getBean(YiLianPaymentStrategy.class).signOkCallBack(details));
            }
        }
        return count;
    }



2. 借助spring的事件监听器，通过其发布订阅模式，实现类之间的解耦。

业务bean的回调代码里，利用ApplicationContext#publishEvent发布一个应用事件；目标对象的回调处理方法添加@EventListener来接收事件通知。注意事件的发布与监听处理是同步的，需要考虑异步实现。

 上面案例中我定义了一个Holder，封装了事件的发布和订阅。

import org.springframework.context.ApplicationContext;
import org.springframework.context.ApplicationEvent;
import org.springframework.context.event.EventListener;

/**
 * 使用事件监听器来消除类之间的循环依赖
 * @author zhangguozhan
 * 2023-7-24 18:46
 */
@Slf4j
@Component
public class PayUserSignCallbackEventHolder {
    @Resource
    private ApplicationContext applicationContext;

    @Getter
    private static final class MyEvent extends ApplicationEvent {
        private final List<PayUserSignDTO> userSignList;

        /**
         * Create a new ApplicationEvent.
         *
         * @param source the object on which the event initially occurred (never {@code null})
         */
        public MyEvent(List<PayUserSignDTO> source) {
            super(source);
            this.userSignList = source;
        }
    }

    public void publish(List<PayUserSignDTO> payUserSignList) {
        applicationContext.publishEvent(new MyEvent(payUserSignList));
    }

    @EventListener(classes = MyEvent.class)
    public void consume(MyEvent event) {
        ThreadPoolUtil.getThreadPoolExecutor().execute(() -> applicationContext.getBean(YiLianPaymentStrategy.class).signOkCallBack(event.getUserSignList()));
    }

}

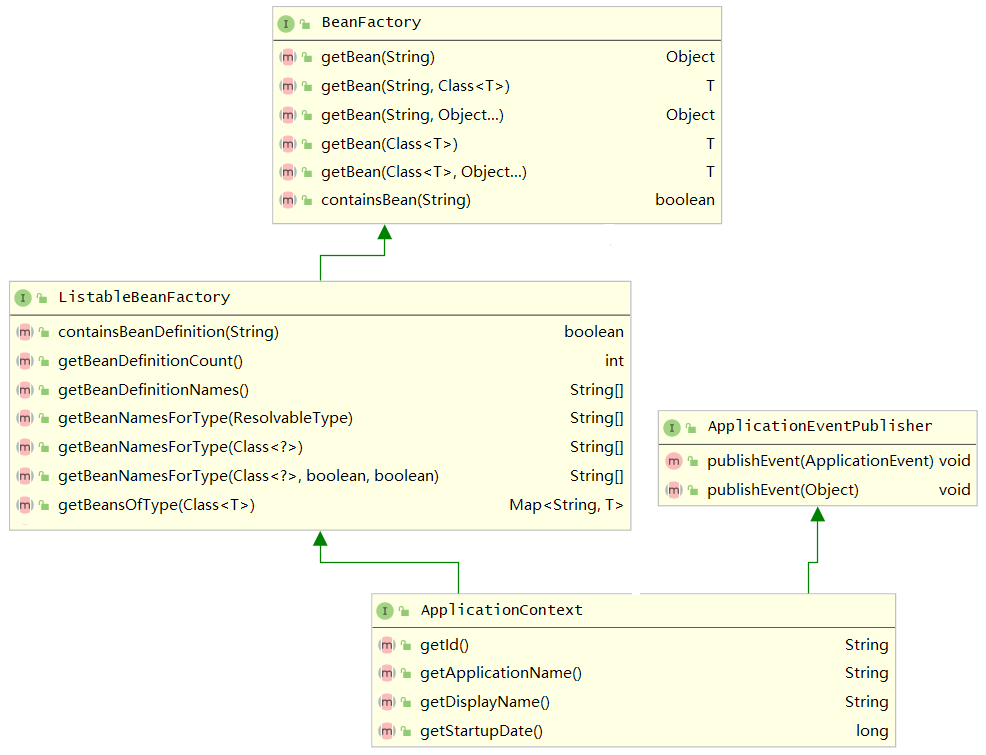

本文多次提到spring的interface ApplicationContext。我们窥豹一斑diagram。







感谢阅读！本文写作整理用时两晚近4h。
