VS2017+PCL1.8.1配置记录

1：先下载相关软件

链接：https://pan.baidu.com/s/1WfLsKe5zrWrwfxzw4X5RzA

提取码：1234

2：软件安装部分参考链接，后续步骤本文单独写了，因为一开始全程按照此链接配置有问题。（本文的安装目录设置的是E:\PCL）
PCL库安装 和 VS2017环境变量配置_童话——博客-CSDN博客_pcl库安装

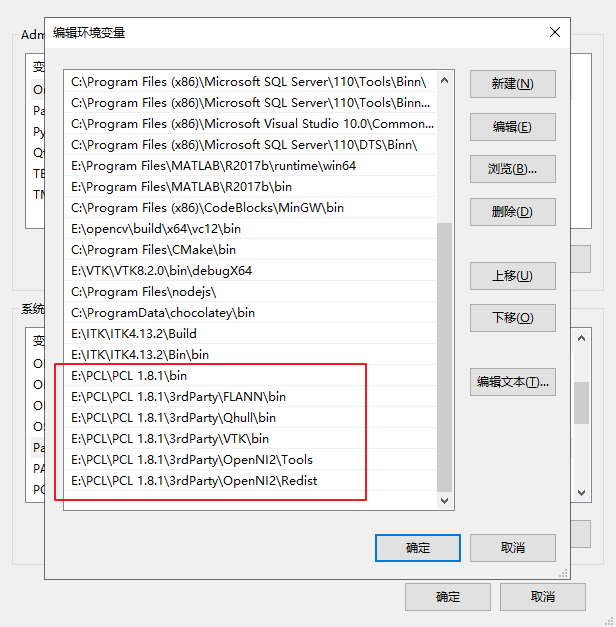

3：配置环境变量







4：配置VS2017（给上面链接补充）

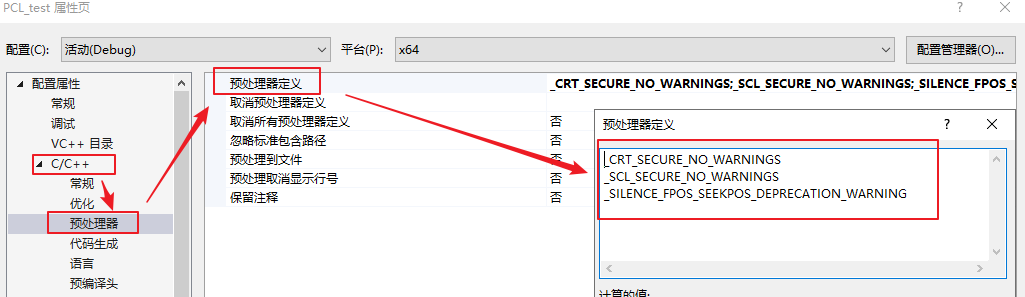

在项目的属性设置里加上这几句。

_CRT_SECURE_NO_WARNINGS
_SCL_SECURE_NO_WARNINGS
_SILENCE_FPOS_SEEKPOS_DEPRECATION_WARNING

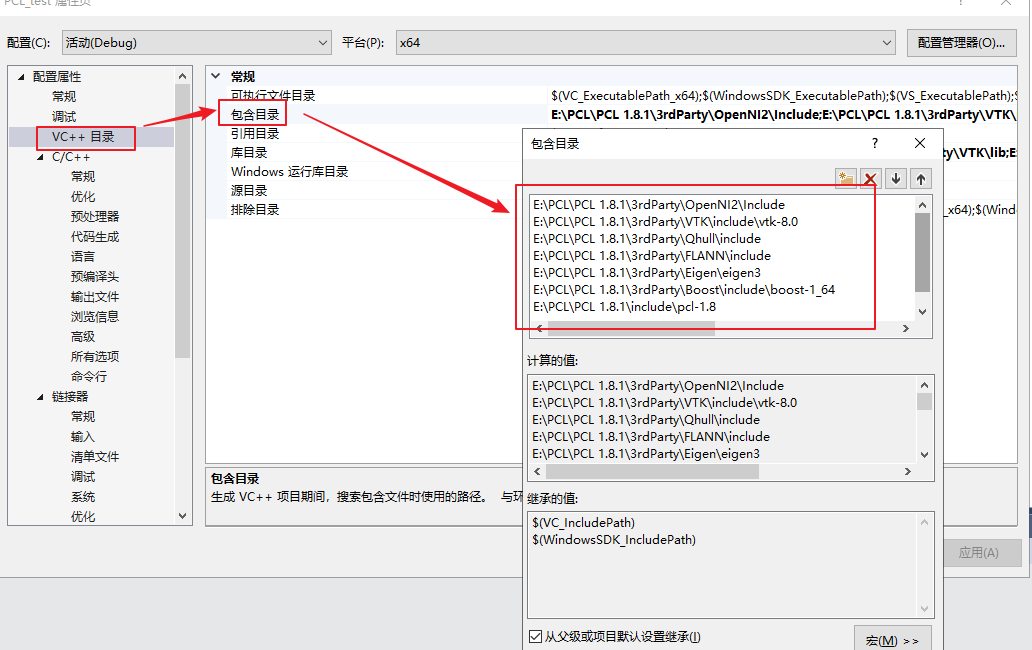

5：VC++目录-->包含目录，添加如下内容：

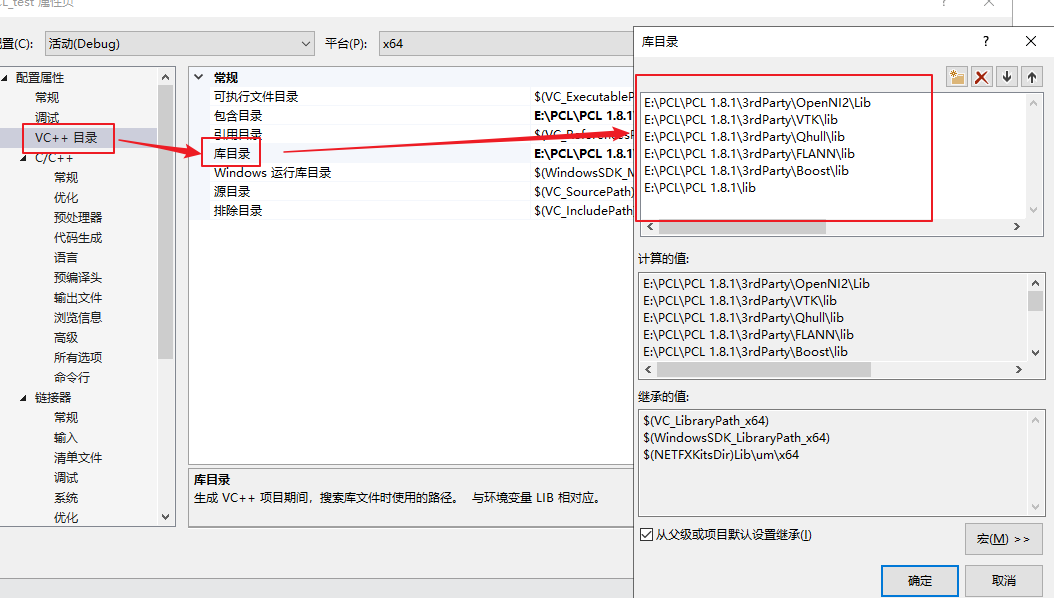

6：VC++目录-->库目录，添加如下内容：



7：链接器-->输入-->附加依赖项，添加以下内容（我用的是Debug模式）

vtknetcdf_c++-gd.lib
pcl_common_debug.lib
pcl_features_debug.lib
pcl_filters_debug.lib
pcl_io_ply_debug.lib
pcl_io_debug.lib
pcl_kdtree_debug.lib
pcl_keypoints_debug.lib
pcl_ml_debug.lib
pcl_octree_debug.lib
pcl_outofcore_debug.lib
pcl_people_debug.lib
pcl_recognition_debug.lib
pcl_registration_debug.lib
pcl_sample_consensus_debug.lib
pcl_search_debug.lib
pcl_segmentation_debug.lib
pcl_stereo_debug.lib
pcl_surface_debug.lib
pcl_tracking_debug.lib
pcl_visualization_debug.lib
libboost_atomic-vc141-mt-gd-1_64.lib
libboost_bzip2-vc141-mt-gd-1_64.lib
libboost_chrono-vc141-mt-gd-1_64.lib
libboost_container-vc141-mt-gd-1_64.lib
libboost_context-vc141-mt-gd-1_64.lib
libboost_coroutine-vc141-mt-gd-1_64.lib
libboost_date_time-vc141-mt-gd-1_64.lib
libboost_exception-vc141-mt-gd-1_64.lib
libboost_fiber-vc141-mt-gd-1_64.lib
libboost_filesystem-vc141-mt-gd-1_64.lib
libboost_graph-vc141-mt-gd-1_64.lib
libboost_graph_parallel-vc141-mt-gd-1_64.lib
libboost_iostreams-vc141-mt-gd-1_64.lib
libboost_locale-vc141-mt-gd-1_64.lib
libboost_log-vc141-mt-gd-1_64.lib
libboost_log_setup-vc141-mt-gd-1_64.lib
libboost_math_c99-vc141-mt-gd-1_64.lib
libboost_math_c99f-vc141-mt-gd-1_64.lib
libboost_math_c99l-vc141-mt-gd-1_64.lib
libboost_math_tr1-vc141-mt-gd-1_64.lib
libboost_math_tr1f-vc141-mt-gd-1_64.lib
libboost_math_tr1l-vc141-mt-gd-1_64.lib
libboost_mpi-vc141-mt-gd-1_64.lib
libboost_numpy3-vc141-mt-gd-1_64.lib
libboost_numpy-vc141-mt-gd-1_64.lib
libboost_prg_exec_monitor-vc141-mt-gd-1_64.lib
libboost_program_options-vc141-mt-gd-1_64.lib
libboost_python3-vc141-mt-gd-1_64.lib
libboost_python-vc141-mt-gd-1_64.lib
libboost_random-vc141-mt-gd-1_64.lib
libboost_regex-vc141-mt-gd-1_64.lib
libboost_serialization-vc141-mt-gd-1_64.lib
libboost_signals-vc141-mt-gd-1_64.lib
libboost_system-vc141-mt-gd-1_64.lib
libboost_test_exec_monitor-vc141-mt-gd-1_64.lib
libboost_thread-vc141-mt-gd-1_64.lib
libboost_timer-vc141-mt-gd-1_64.lib
libboost_type_erasure-vc141-mt-gd-1_64.lib
libboost_unit_test_framework-vc141-mt-gd-1_64.lib
libboost_wave-vc141-mt-gd-1_64.lib
libboost_wserialization-vc141-mt-gd-1_64.lib
libboost_zlib-vc141-mt-gd-1_64.lib
flann-gd.lib
flann_cpp-gd.lib
flann_cpp_s-gd.lib
flann_s-gd.lib
qhull_d.lib
qhullcpp_d.lib
qhullstatic_d.lib
qhullstatic_r_d.lib
qhull_p_d.lib
qhull_r_d.lib
vtkalglib-8.0-gd.lib
vtkChartsCore-8.0-gd.lib
vtkCommonColor-8.0-gd.lib
vtkCommonComputationalGeometry-8.0-gd.lib
vtkCommonCore-8.0-gd.lib
vtkCommonDataModel-8.0-gd.lib
vtkCommonExecutionModel-8.0-gd.lib
vtkCommonMath-8.0-gd.lib
vtkCommonMisc-8.0-gd.lib
vtkCommonSystem-8.0-gd.lib
vtkCommonTransforms-8.0-gd.lib
vtkDICOMParser-8.0-gd.lib
vtkDomainsChemistry-8.0-gd.lib
vtkexoIIc-8.0-gd.lib
vtkexpat-8.0-gd.lib
vtkFiltersAMR-8.0-gd.lib
vtkFiltersCore-8.0-gd.lib
vtkFiltersExtraction-8.0-gd.lib
vtkFiltersFlowPaths-8.0-gd.lib
vtkFiltersGeneral-8.0-gd.lib
vtkFiltersGeneric-8.0-gd.lib
vtkFiltersGeometry-8.0-gd.lib
vtkFiltersHybrid-8.0-gd.lib
vtkFiltersHyperTree-8.0-gd.lib
vtkFiltersImaging-8.0-gd.lib
vtkFiltersModeling-8.0-gd.lib
vtkFiltersParallel-8.0-gd.lib
vtkFiltersParallelImaging-8.0-gd.lib
vtkFiltersPoints-8.0-gd.lib
vtkFiltersProgrammable-8.0-gd.lib
vtkFiltersSelection-8.0-gd.lib
vtkFiltersSMP-8.0-gd.lib
vtkFiltersSources-8.0-gd.lib
vtkFiltersStatistics-8.0-gd.lib
vtkFiltersTexture-8.0-gd.lib
vtkFiltersTopology-8.0-gd.lib
vtkFiltersVerdict-8.0-gd.lib
vtkfreetype-8.0-gd.lib
vtkGeovisCore-8.0-gd.lib
vtkgl2ps-8.0-gd.lib
vtkhdf5-8.0-gd.lib
vtkhdf5_hl-8.0-gd.lib
vtkImagingColor-8.0-gd.lib
vtkImagingCore-8.0-gd.lib
vtkImagingFourier-8.0-gd.lib
vtkImagingGeneral-8.0-gd.lib
vtkImagingHybrid-8.0-gd.lib
vtkImagingMath-8.0-gd.lib
vtkImagingMorphological-8.0-gd.lib
vtkImagingSources-8.0-gd.lib
vtkImagingStatistics-8.0-gd.lib
vtkImagingStencil-8.0-gd.lib
vtkInfovisCore-8.0-gd.lib
vtkInfovisLayout-8.0-gd.lib
vtkInteractionImage-8.0-gd.lib
vtkInteractionStyle-8.0-gd.lib
vtkInteractionWidgets-8.0-gd.lib
vtkIOAMR-8.0-gd.lib
vtkIOCore-8.0-gd.lib
vtkIOEnSight-8.0-gd.lib
vtkIOExodus-8.0-gd.lib
vtkIOExport-8.0-gd.lib
vtkIOExportOpenGL-8.0-gd.lib
vtkIOGeometry-8.0-gd.lib
vtkIOImage-8.0-gd.lib
vtkIOImport-8.0-gd.lib
vtkIOInfovis-8.0-gd.lib
vtkIOLegacy-8.0-gd.lib
vtkIOLSDyna-8.0-gd.lib
vtkIOMINC-8.0-gd.lib
vtkIOMovie-8.0-gd.lib
vtkIONetCDF-8.0-gd.lib
vtkIOParallel-8.0-gd.lib
vtkIOParallelXML-8.0-gd.lib
vtkIOPLY-8.0-gd.lib
vtkIOSQL-8.0-gd.lib
vtkIOTecplotTable-8.0-gd.lib
vtkIOVideo-8.0-gd.lib
vtkIOXML-8.0-gd.lib
vtkIOXMLParser-8.0-gd.lib
vtkjpeg-8.0-gd.lib
vtkjsoncpp-8.0-gd.lib
vtklibharu-8.0-gd.lib
vtklibxml2-8.0-gd.lib
vtklz4-8.0-gd.lib
vtkmetaio-8.0-gd.lib
vtkNetCDF-8.0-gd.lib
vtkoggtheora-8.0-gd.lib
vtkParallelCore-8.0-gd.lib
vtkpng-8.0-gd.lib
vtkproj4-8.0-gd.lib
vtkRenderingAnnotation-8.0-gd.lib
vtkRenderingContext2D-8.0-gd.lib
vtkRenderingContextOpenGL-8.0-gd.lib
vtkRenderingCore-8.0-gd.lib
vtkRenderingFreeType-8.0-gd.lib
vtkRenderingGL2PS-8.0-gd.lib
vtkRenderingImage-8.0-gd.lib
vtkRenderingLabel-8.0-gd.lib
vtkRenderingLIC-8.0-gd.lib
vtkRenderingLOD-8.0-gd.lib
vtkRenderingOpenGL-8.0-gd.lib
vtkRenderingVolume-8.0-gd.lib
vtkRenderingVolumeOpenGL-8.0-gd.lib
vtksqlite-8.0-gd.lib
vtksys-8.0-gd.lib
vtktiff-8.0-gd.lib
vtkverdict-8.0-gd.lib
vtkViewsContext2D-8.0-gd.lib
vtkViewsCore-8.0-gd.lib
vtkViewsInfovis-8.0-gd.lib
vtkzlib-8.0-gd.lib
opengl32.lib

这里要重点提示：提取文件夹中.lib文件名总是会出现错误，下面是自己动手丰衣足食型：

例：提取D:\PCL 1.8.1\3rdParty\VTK\lib下的所有静态链接库文件名并存储至文本.txt，方法如下：
1、win+r
2、输入：cmd回车
3、输入：cd /d D:\PCL 1.8.1\3rdParty\VTK\lib 回车
4、输入：dir /b *.lib *>0.txt 回车

 注释：个人测试的时候这个生成的txt文件里有一两行不是.lib信息而是啥0.txt和cmake，要把删除掉。不然编译会出错。

8：代码测试（测试的时候自己改下点云文件路径就好，点云文件在一开的安装包文件夹里就带了）

#include<pcl/visualization/cloud_viewer.h>
#include<iostream>//标准C++库中的输入输出类相关头文件。
#include<pcl/io/io.h>
#include<pcl/io/pcd_io.h>//pcd 读写类相关的头文件。
#include<pcl/io/ply_io.h>
#include<pcl/point_types.h> //PCL中支持的点类型头文件。

int main()
{
	pcl::PointCloud<pcl::PointXYZ>::Ptr cloud(new 	pcl::PointCloud<pcl::PointXYZ>);
	char strfilepath[256] = "E:\\rabbit.pcd";
	if (-1 == pcl::io::loadPCDFile(strfilepath, *cloud)) //打开点云文件
	{
		std::cout << "error input!" << std::endl;
		return -1;
	}
	std::cout << cloud->points.size() << std::endl;
	pcl::visualization::CloudViewer viewer("Cloud Viewer");     //创建viewer对象
	viewer.showCloud(cloud);
	system("pause");
	return 0;
}

9：运行结果图



 -------------------------------------------------------------------------------------------------分割线--------------------------------------------------------------------------------------------------------------------------------------------------------

附1：其他安装教程参考链接

PCL库安装 和 VS2017环境变量配置_童话——博客-CSDN博客_pcl库安装

附2：vs在新建项目的时候，有时候包含目录和库目录还有连接器里有之前设置的配置文件（我的是opencv配置文件），编译的时候会提示找不到某文件，这时候就要删除这些多余的配置文件。

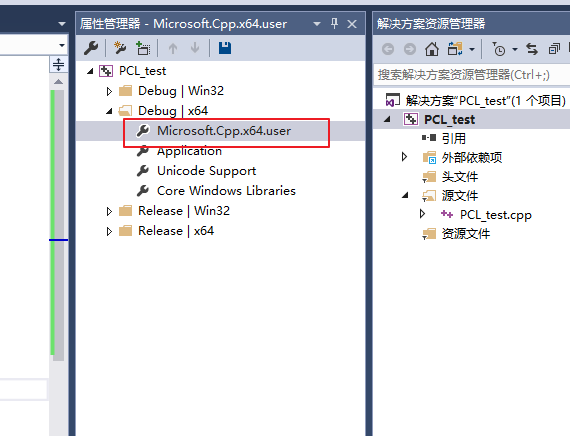

方法：试图-其他窗口-属性管理器，点进去选择框出的这一个。然后会出来一个和前面配置窗口界面一样的窗口，去对应的位置移除掉就可以。比如我发现库目录下有多余的继承文件信息，那么就去对应位置移除。

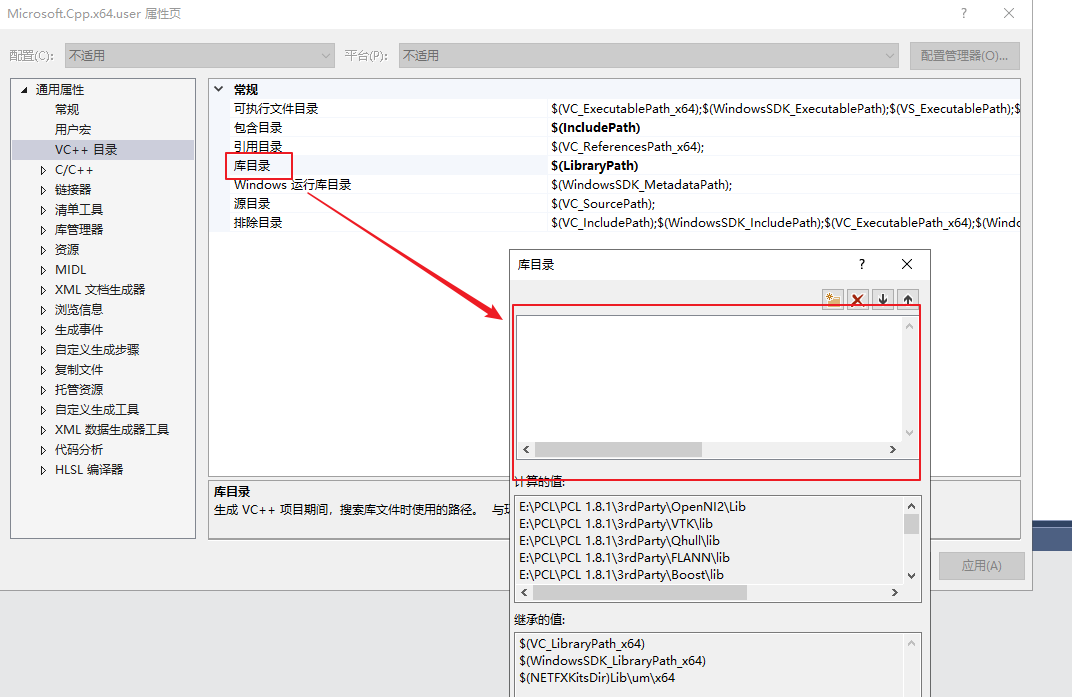

 如下图，当让我这里移除过了，所以一片空白。



 附3：VS2017中PCL项目完整代码打包

       链接：https://pan.baidu.com/s/1klk9RZgIwB0mMZTexi-rQQ

       提取码：1234
