XL9555调试

说明

XL9555是一个i2c接口扩展GPIO的芯片。

适配驱动

内核选项选上 CONFIG_GPIO_PCA953X 即可。

原理图

设备树

RK3588的设备树：

&i2c2{
	status = "okay";
	pinctrl-names = "default";
	pinctrl-0 = <&i2c2m4_xfer>;

	xl9555_ext_gpio: xl9555-ext-gpio@20{
		compatible = "nxp,pca9555";
		reg = <0x20>;
		pinctrl-names = "default";
		pinctrl-0=<&pinctrl_xl9555>;
		interrupt-parent = <&gpio1>;
		interrupts = <RK_PC4 IRQ_TYPE_LEVEL_LOW>;
		gpio-controller;
		#gpio-cells =<2>;
		status = "okay";
	};
};

其他节点调用扩展的GPIO。

vcc3v3_pcie30: vcc3v3-pcie30 {
    compatible = "regulator-fixed";
    regulator-name = "vcc3v3_pcie30";
    regulator-min-microvolt = <3300000>;
    regulator-max-microvolt = <3300000>;
    enable-active-high;
    gpios = <&xl9555_ext_gpio 7 GPIO_ACTIVE_HIGH>;
    startup-delay-us = <5000>;
    vin-supply = <&vcc12v_dcin>;
};

设置GPIO默认拉低

修改驱动 drivers/gpio/gpio-pca953x.c ：

patch

From 5a9863f30c551546709f0f62bbd352641fb5e12a Mon Sep 17 00:00:00 2001
From: yangx <yangx@qiyangtech.com>
Date: Mon, 21 Apr 2025 22:10:20 +0800
Subject: [PATCH] =?UTF-8?q?QY:=20=E4=BF=AE=E5=A4=8D=E8=AE=BE=E7=BD=AEXL955?=
 =?UTF-8?q?5=20IO=E6=89=A9=E5=B1=95=E8=8A=AF=E7=89=87=E7=9A=84=208,9,10,11?=
 =?UTF-8?q?,12,13=E8=84=9A=E9=85=8D=E7=BD=AE=E8=BE=93=E5=87=BAout=E6=97=B6?=
 =?UTF-8?q?=E8=A6=81=E9=BB=98=E8=AE=A4=E4=B8=BA1?=
MIME-Version: 1.0
Content-Type: text/plain; charset=UTF-8
Content-Transfer-Encoding: 8bit

---
 drivers/gpio/gpio-pca953x.c | 5 +++--
 1 file changed, 3 insertions(+), 2 deletions(-)

diff --git a/drivers/gpio/gpio-pca953x.c b/drivers/gpio/gpio-pca953x.c
index c21e858952f4..71ebe277fda0 100644
--- a/drivers/gpio/gpio-pca953x.c
+++ b/drivers/gpio/gpio-pca953x.c
@@ -549,10 +549,11 @@ static int pca953x_gpio_direction_output(struct gpio_chip *gc,
        /* set output level */
        if (chip->client->addr == 0x21 && (off == 8 || off ==9 || off == 10 || off == 11 || off == 12 || off == 13 )) {
        // printk("yx ---- got it \n");
-       ret = regmap_write_bits(chip->regmap, outreg, bit, 1);
+       ret = regmap_write_bits(chip->regmap, outreg, bit, bit);
        } else {
-       ret = regmap_write_bits(chip->regmap, outreg, bit, val ? bit : 0);
+               ret = regmap_write_bits(chip->regmap, outreg, bit, val ? bit : 0);
        }
+
        if (ret)
                goto exit;

--
2.25.1

固定扩展GPIO的起始号

因为是两个扩展芯片，会导致加载顺序不确定，起始GPIO号不确定，这样设置下就可以了。

patch：

From: Yangx <1046436450@qq.com>
Date: Fri, 23 May 2025 11:33:36 +0800
Subject: [PATCH] =?UTF-8?q?QY:=20=E5=9B=BA=E5=AE=9A=20=E6=89=A9=E5=B1=95gp?=
 =?UTF-8?q?io=20=E7=9A=84gpio=E8=B5=B7=E5=A7=8B=E6=95=B0?=
MIME-Version: 1.0
Content-Type: text/plain; charset=UTF-8
Content-Transfer-Encoding: 8bit

---
 drivers/gpio/gpio-pca953x.c | 10 +++++++++-
 1 file changed, 9 insertions(+), 1 deletion(-)

diff --git a/drivers/gpio/gpio-pca953x.c b/drivers/gpio/gpio-pca953x.c
index 71ebe277fda0..06649b224345 100644
--- a/drivers/gpio/gpio-pca953x.c
+++ b/drivers/gpio/gpio-pca953x.c
@@ -1120,7 +1120,15 @@ static int pca953x_probe(struct i2c_client *client)
        chip->regulator = reg;

        i2c_set_clientdata(client, chip);
-
+       // printk("yx ------- device_pca95xx_init  addr:0x%02x\n", chip->client->addr);
+       if (chip->client->addr == 0x20) {
+               chip->gpio_start = 640;
+               printk("ex in io set 640\n");
+       }
+       if (chip->client->addr == 0x21) {
+               chip->gpio_start = 656;
+               printk("ex out io set 656\n");
+       }
        pca953x_setup_gpio(chip, chip->driver_data & PCA_GPIO_MASK);

        if (NBANK(chip) > 2 || PCA_CHIP_TYPE(chip->driver_data) == PCA957X_TYPE) {
--
2.25.1

调试驱动

还是根据芯片手册使用i2c工具进行读写寄存器调试。

注意

引脚上电是默认上拉的。

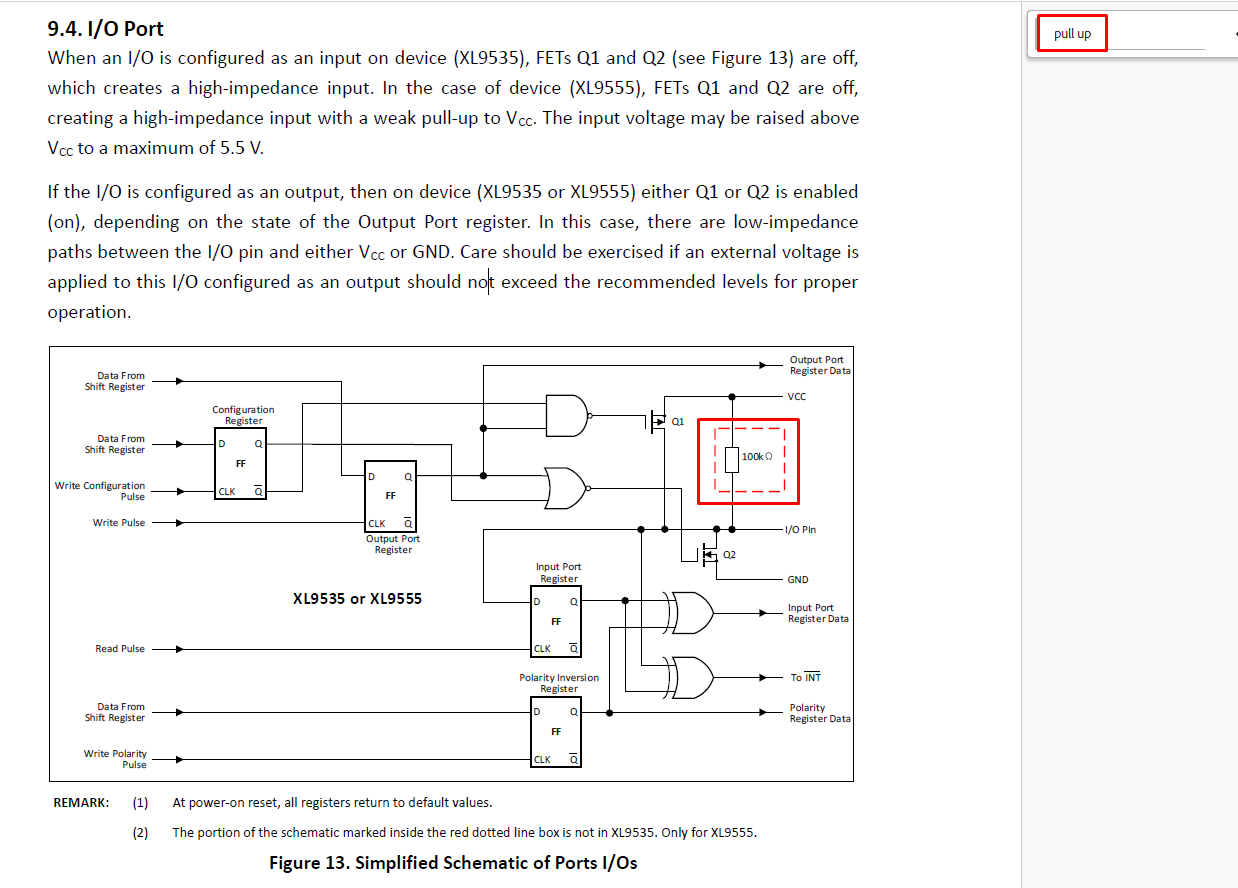

在芯片手册搜索：pull up
