xilinx demosaic ip 马赛克

​

 功能

1.  单axi-stream 接口输入（10bit raw输入），axis输出（rgb10bit输出）。



​编辑



2. 使用xilinx hls 编写。

​编辑



3. 配置寄存器有



	#pragma HLS INTERFACE s_axilite  port=height //宽
	#pragma HLS INTERFACE s_axilite  port=width  //高
	#pragma HLS INTERFACE s_axilite  port=cfa   //CFA pattern

效果

​编辑





  支持

                支持xilinx 所有系列fpga



仿真c/rtl

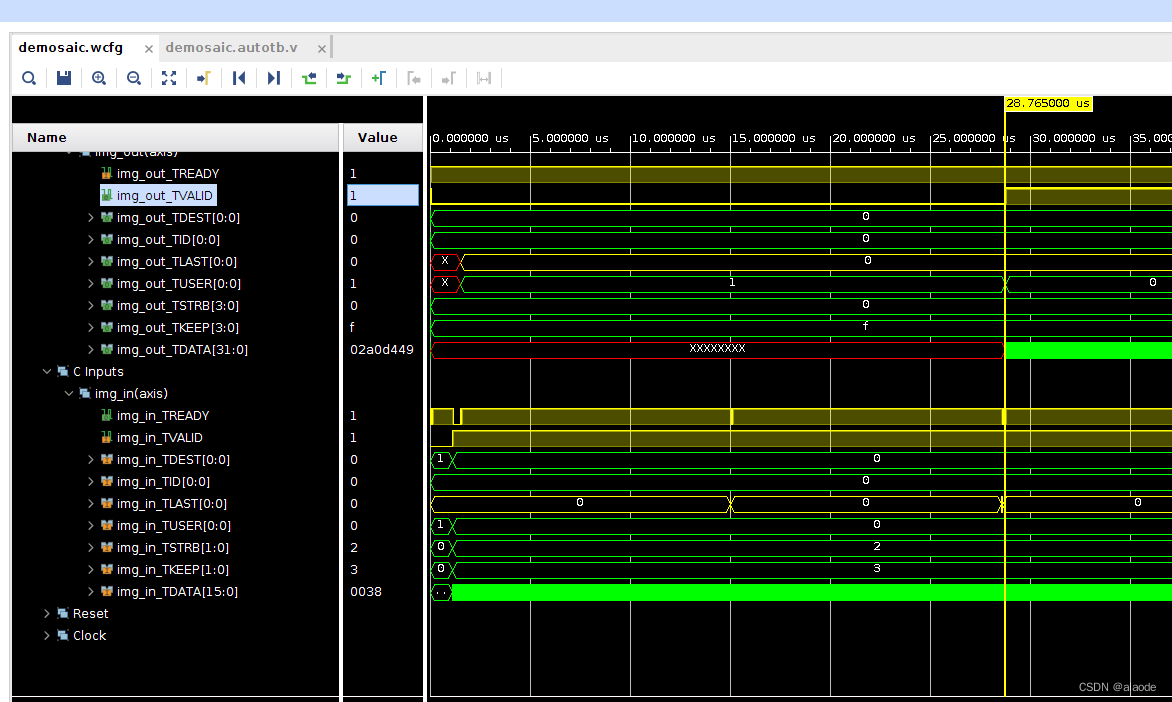

   对ip 进行仿真。是否能满足时序要求。

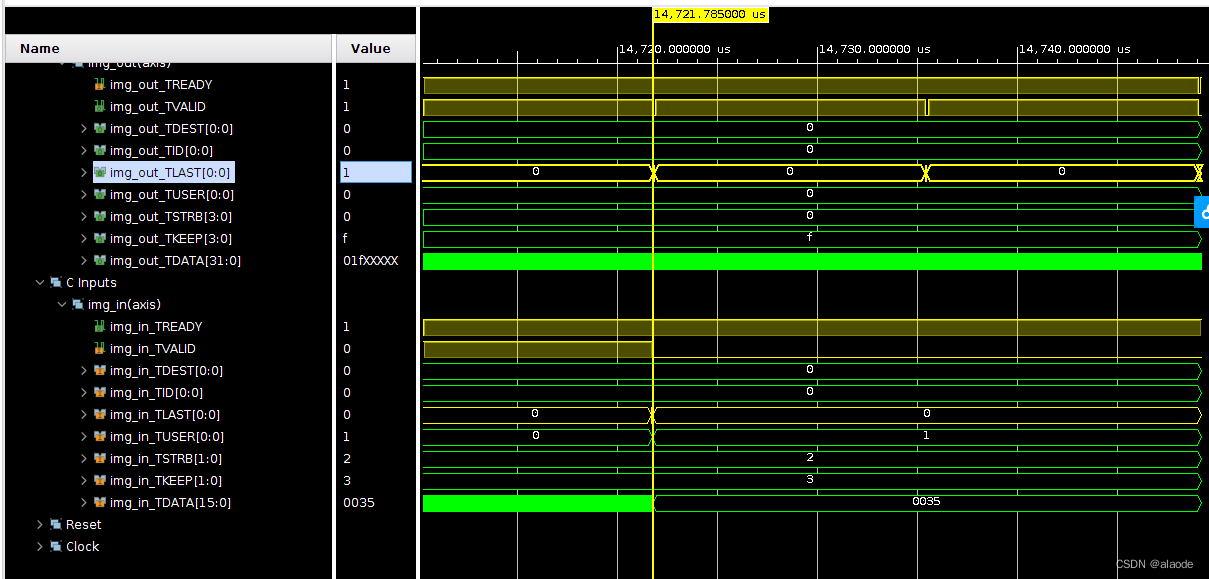

 图像开始传输​编辑



图像结束传输

​编辑

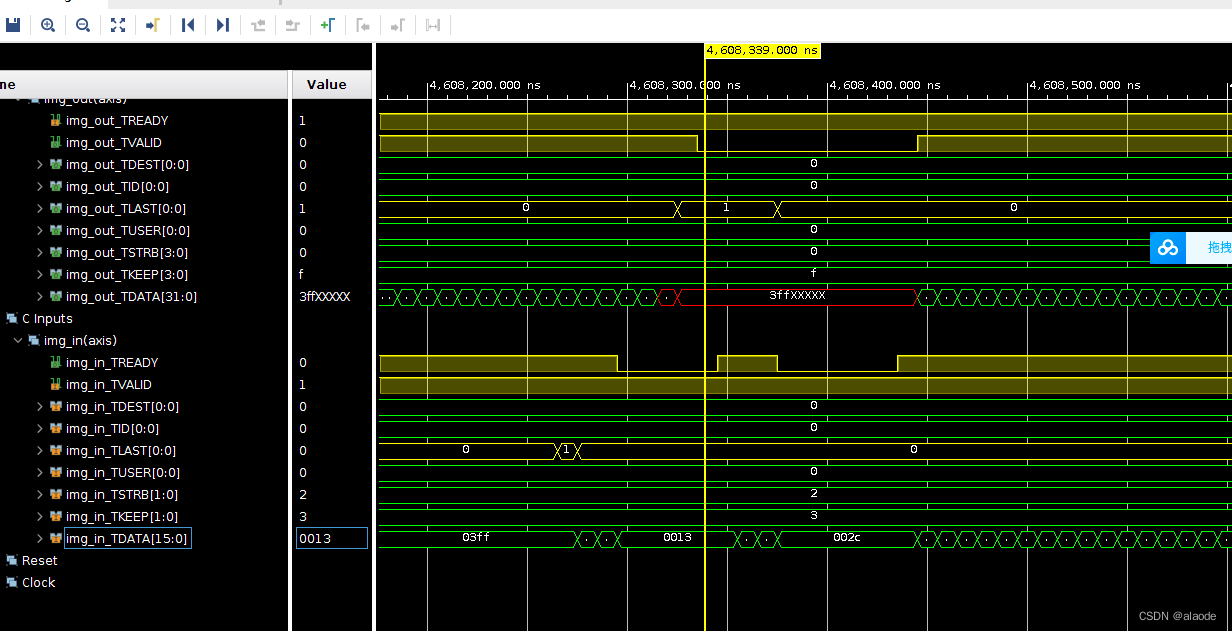

行尾

​编辑

 ip 接口

​编辑

// control
// 0x00 : Control signals
//        bit 0  - ap_start (Read/Write/COH)
//        bit 1  - ap_done (Read/COR)
//        bit 2  - ap_idle (Read)
//        bit 3  - ap_ready (Read)
//        bit 7  - auto_restart (Read/Write)
//        others - reserved
// 0x04 : Global Interrupt Enable Register
//        bit 0  - Global Interrupt Enable (Read/Write)
//        others - reserved
// 0x08 : IP Interrupt Enable Register (Read/Write)
//        bit 0  - enable ap_done interrupt (Read/Write)
//        bit 1  - enable ap_ready interrupt (Read/Write)
//        others - reserved
// 0x0c : IP Interrupt Status Register (Read/TOW)
//        bit 0  - ap_done (COR/TOW)
//        bit 1  - ap_ready (COR/TOW)
//        others - reserved
// 0x10 : Data signal of width
//        bit 31~0 - width[31:0] (Read/Write)
// 0x14 : reserved
// 0x18 : Data signal of height
//        bit 31~0 - height[31:0] (Read/Write)
// 0x1c : reserved
// 0x20 : Data signal of cfa
//        bit 31~0 - cfa[31:0] (Read/Write)
// 0x24 : reserved
// (SC = Self Clear, COR = Clear on Read, TOW = Toggle on Write, COH = Clear on Handshake)

#define XDEMOSAIC_CONTROL_ADDR_AP_CTRL     0x00
#define XDEMOSAIC_CONTROL_ADDR_GIE         0x04
#define XDEMOSAIC_CONTROL_ADDR_IER         0x08
#define XDEMOSAIC_CONTROL_ADDR_ISR         0x0c
#define XDEMOSAIC_CONTROL_ADDR_WIDTH_DATA  0x10
#define XDEMOSAIC_CONTROL_BITS_WIDTH_DATA  32
#define XDEMOSAIC_CONTROL_ADDR_HEIGHT_DATA 0x18
#define XDEMOSAIC_CONTROL_BITS_HEIGHT_DATA 32
#define XDEMOSAIC_CONTROL_ADDR_CFA_DATA    0x20
#define XDEMOSAIC_CONTROL_BITS_CFA_DATA    32

​
