黄金点第一次博客

现代软件工程课程设计——黄金点游戏





一. 课设要求

　　1. 游戏基本规则：N个同学（N通常大于10），每人写一个0~100之间的有理数(不包括0或100)，交给裁判，裁判算出所有数字的平均值，然后乘以0.618(所谓黄金分割常数），得到G值。提交的数字最靠近G（取绝对值）的同学得到N分，离G最远的同学得到－2分，其他同学得0分。

　　2. 采用单机方式实现，需要为用户提供便利的输入界面。

　　3. 该游戏每次至少可以运行10轮以上，并能够保留各轮比赛结果。

　　4. 后续在此基础上迭代开发。







二. 相关资料

　　1. 结对编程和两人合作：https://www.cnblogs.com/xinz/archive/2011/08/07/2130332.html

　　2. 创新的时机——黄金点游戏：https://www.cnblogs.com/xinz/archive/2011/08/08/2130505.html





三. 开发环境

　　系统为win10，项目拟采用 java 语言编写，集成环境为 IntelliJ IDEA。交互界面用 java swing 界面编写。



四. 思路

　　首先理解该程序的逻辑，将各个部分封装并且建立联系。其次对该程序进行编写，并且测试数据。最后添加可视化界面。



五. 程序大致流程图



六. 命令行程序代码及展示

　　1. 代码实现（c++）

　　　　1.1. 游戏大类

class Gold_point{
    public:
        Gold_point();
        ~Gold_point();
        void Show_history();  // 历史分数
        void Show_result();  // 显示结果
        void Welcome();  // 欢迎界面
        void Gaming();  // 进行游戏
        void Name_input();  // 输入姓名
        int player_num, round_num, now_round_num = 1;  // 分别为玩家人数、游戏总轮数、当前所在轮数
        double now_result = 0;  // 即时结果
        int point_choice[10000];  // 每一轮每人的分数选择
        vector<vector<int> > history_scores;  // 存储历史分数
        double now_distance[10000];  // 存储每一轮每位玩家到黄金点的距离
        vector<double> round_distance;  // 距离复用
　　　　　　 // 玩家的结构体数组
        struct Player{
            string name;
            int scores, index;  // 分数和身份id
        }player[10000];

};



 　　　　1.2. 姓名输入

void Gold_point::Name_input(){
    for(int i = 0; i < player_num; i++){
        cout << "请输入 " << i + 1 << " 号玩家的姓名：" ;
        cin >> player[i].name;
    }
}

　　　　1.3. 历史成绩

void Gold_point::Show_history(){
    for(;;){
        cout << "您想要查看历史的每轮成绩吗？Y / N：";
        char choice;
        cin >> choice;
        if(choice == 'Y' || choice == 'y'){
            cout << "您想查看第几轮的成绩？输入数字则查看指定轮成绩，输入 0 则查看全部历史成绩：";
            int tempNum;
            cin >> tempNum;
            if(tempNum == 0){
                for(int i = 0; i < history_scores.size(); i++){
                    cout << "第 " << i + 1 << " 轮的成绩是:" << endl;
                    for(int j = 0; j < player_num; j++)    cout << player[j].name << "：" << history_scores[i][j] << endl;
                }
            }else if(tempNum >= 1 && tempNum <= history_scores.size()){
                cout << "第 " << tempNum << " 轮的成绩是：" << endl;
                for(int j = 0; j < player_num; j++)    cout << player[j].name << "：" << history_scores[tempNum - 1][j] << endl;
            }else{
                cout << "输入数据有误！";
            }
            cout << "是否继续？Y / N：";
            cin >> choice;
            if(choice == 'Y' || choice == 'y')    continue;
            else    return;
        }
        return;
    }
}



　　　　1.4. 游戏主程序

void Gold_point::Show_history(){
    for(;;){
        cout << "您想要查看历史的每轮成绩吗？Y / N：";
        char choice;
        cin >> choice;
        if(choice == 'Y' || choice == 'y'){
            cout << "您想查看第几轮的成绩？输入数字则查看指定轮成绩，输入 0 则查看全部历史成绩：";
            int tempNum;
            cin >> tempNum;
            if(tempNum == 0){
                for(int i = 0; i < history_scores.size(); i++){
                    cout << "第 " << i + 1 << " 轮的成绩是:" << endl;
                    for(int j = 0; j < player_num; j++)    cout << player[j].name << "：" << history_scores[i][j] << endl;
                }
            }else if(tempNum >= 1 && tempNum <= history_scores.size()){
                cout << "第 " << tempNum << " 轮的成绩是：" << endl;
                for(int j = 0; j < player_num; j++)    cout << player[j].name << "：" << history_scores[tempNum - 1][j] << endl;
            }else{
                cout << "输入数据有误！";
            }
            cout << "是否继续？Y / N：";
            cin >> choice;
            if(choice == 'Y' || choice == 'y')    continue;
            else    return;
        }
        return;
    }
}





　　　　1.5. 完整代码

#include <bits/stdc++.h>
using namespace std;

#define gold_point 0.618

class Gold_point{
    public:
        Gold_point();
        ~Gold_point();
        void Show_history();
        void Show_result();
        void Welcome();
        void Gaming();
        void Name_input();
        int player_num, round_num, now_round_num = 1;
        double now_result = 0;
        int point_choice[10000];
        vector<vector<int> > history_scores;
        double now_distance[10000];
        vector<double> round_distance;
        struct Player{
            string name;
            int scores, index;
        }player[10000];

};

Gold_point::Gold_point(){}

Gold_point::~Gold_point(){}

void Gold_point::Welcome(){
    cout << "欢迎来到黄金点游戏！" << endl;
}

void Gold_point::Name_input(){
    for(int i = 0; i < player_num; i++){
        cout << "请输入 " << i + 1 << " 号玩家的姓名：" ;
        cin >> player[i].name;
    }
}

void Gold_point::Show_history(){
    for(;;){
        cout << "您想要查看历史的每轮成绩吗？Y / N：";
        char choice;
        cin >> choice;
        if(choice == 'Y' || choice == 'y'){
            cout << "您想查看第几轮的成绩？输入数字则查看指定轮成绩，输入 0 则查看全部历史成绩：";
            int tempNum;
            cin >> tempNum;
            if(tempNum == 0){
                for(int i = 0; i < history_scores.size(); i++){
                    cout << "第 " << i + 1 << " 轮的成绩是:" << endl;
                    for(int j = 0; j < player_num; j++)    cout << player[j].name << "：" << history_scores[i][j] << endl;
                }
            }else if(tempNum >= 1 && tempNum <= history_scores.size()){
                cout << "第 " << tempNum << " 轮的成绩是：" << endl;
                for(int j = 0; j < player_num; j++)    cout << player[j].name << "：" << history_scores[tempNum - 1][j] << endl;
            }else{
                cout << "输入数据有误！";
            }
            cout << "是否继续？Y / N：";
            cin >> choice;
            if(choice == 'Y' || choice == 'y')    continue;
            else    return;
        }
        return;
    }
}

void Gold_point::Gaming(){
    cout << "请输入游戏人数：";
    cin >> player_num;
    cout << "请输入游戏轮数：";
    cin >> round_num;
    Name_input();
    cout << player[1].scores << endl;
    while(now_round_num <= round_num){
        vector<int> round_scores(player_num, 0);
        cout << "请输入每个人的分数：" << endl;
        for(int i = 0; i < player_num; i++)    cin >> point_choice[i];
        for(int i = 0; i < player_num; i++)    now_result += point_choice[i];
        cout << "当前和为" << now_result << endl;
        now_result = (now_result / player_num) * gold_point;
        for(int i = 0; i < player_num; i++)    now_distance[i] = abs(point_choice[i] - now_result);
        for(int i = 0; i < player_num; i++)    round_distance.push_back(now_distance[i]);
        for(int i = 0; i < player_num; i++)    cout << player[i].name << "的距离是" << round_distance[i] << endl;
        double max = *max_element(round_distance.begin(), round_distance.end()), min = *min_element(round_distance.begin(), round_distance.end());
        for(int i = 0; i < player_num; i++){
            if(now_distance[i] == max)    player[i].scores += player_num, round_scores[i] = player_num;
            else if(now_distance[i] == min)    player[i].scores -= 2, round_scores[i] = -2;
            else    round_scores[i] = 0;
        }
        cout << "当前轮的成绩是：" << endl;
        for(int j = 0; j < player_num; j++)    cout << player[j].name << "：" << round_scores[j] << endl;
        history_scores.push_back(round_scores);
        Show_history();
        now_round_num++;
        round_distance.clear();
    }
}

void Gold_point::Show_result(){
    cout << "游戏结束！成绩如下：" << endl;
    for(int i = 0; i < player_num; i++){
        cout << player[i].name << "的成绩是" << player[i].scores << endl;
    }
}

int main(){
    Gold_point g;
    g.Welcome();
    g.Gaming();
    g.Show_result();
    return 0;
}

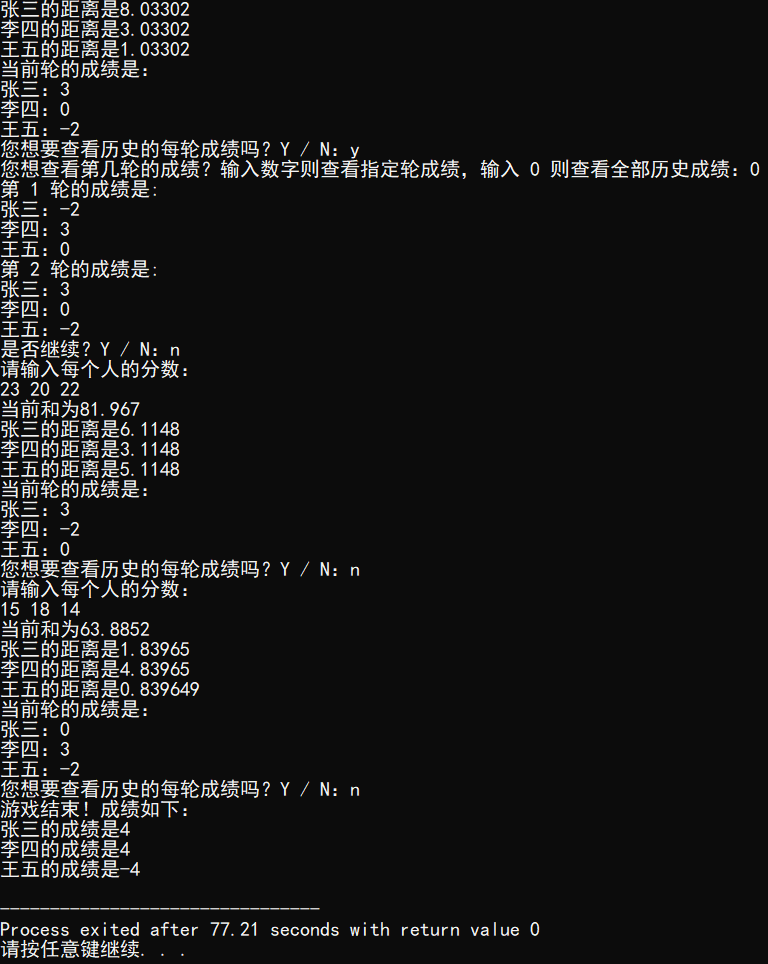

　　2. 界面展示





七. 总结

　　目前已经完成了命令行界面的开发，已基本实现所有要求功能。后续将在此基础上继续进行迭代开发。
