黄金点数（四）
week 13-14
目录
工作进展

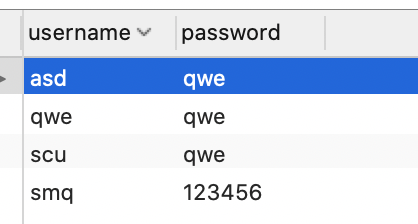

实现了用户登陆、注册功能
实现了远程游玩的功能
-
已经部署到了服务器上
-

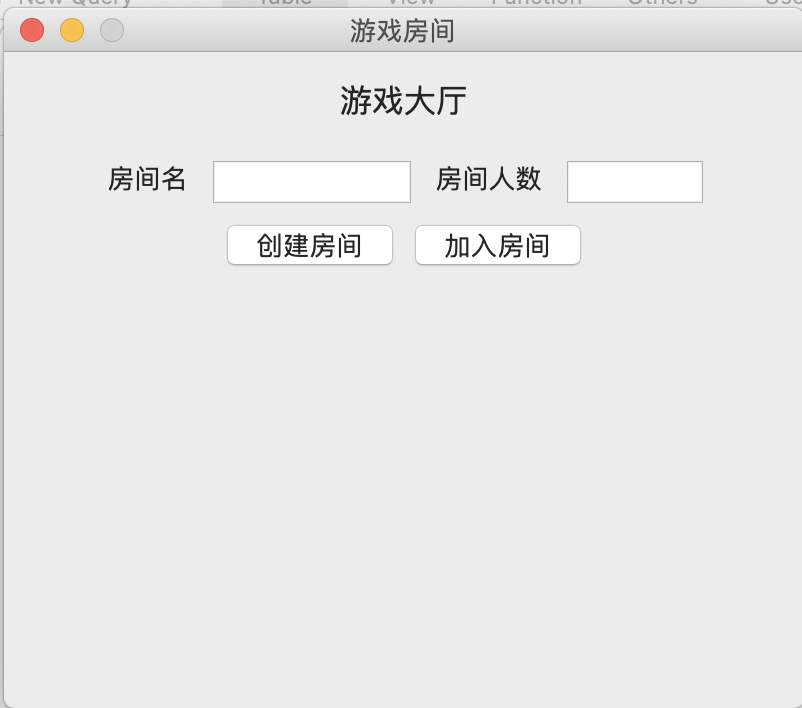

支持创建房间，可以让多个人一起远程游玩
实现方法
服务器端:
建立socket连接，为每个socket连接建立线程来处理通信
通过房间名和用户名来标识
并且可以保存每局游戏的结果
#server.py
import socket
import threading
import pymysql
from Utils import sqlUtils, sendUtils
import math
userSocket = []
roomNum = {}
roomMax = {}
sendResult = {}
Result = {}
room_Score_dict = {}
room_Input_dict = {}
roomCreator = {}
room_result = {}
room_epoch = {}
room_epochCnt = {}
room_responseCnt = {}
room_Goldenscore = {}
roomname_gameid_dict = {}
max_gameid = -1
def s_sqlInit(host = 'localhost',user = 'dataUser',password = 'scusmq61347',database = 'SE2020',charset = 'utf8'):
global conn,cursor
conn = pymysql.connect(host=host,user=user,password=password,database=database,charset=charset)
cursor = conn.cursor()
def s_sqlTest():
sql = 'select max(game_id) from goldennum'
cursor.execute(sql)
global max_gameid
max_gameid = int(cursor.fetchone()[0])
max_gameid+=1
print('max_gameid:',max_gameid)
def s_socketInit(host = 'localhost',port = 52345):
global sock
sock= socket.socket()
s_addr = (host, port)
sock.bind(s_addr)
sock.listen(60)
def conn_thread(soc):
username = ''
global roomMax,roomMax,max_gameid,room_Score_dict,room_Input_dict,room_responseCnt
while True:
data = soc.recv(1024)
jsData = eval(data)
operation = jsData['OPERATION']
if(operation=='login'):
args = (jsData['username'], jsData['password'])
sql = "select count(*) from userInfo where username = '%s'and password='%s'"%args
cursor.execute(sql)
usernum = cursor.fetchone()[0]
if(usernum==1):
username = jsData['username']
sendUtils.s_loginSuccess(soc)
else:
sendUtils.s_loginFailure(soc)
if(operation=='register'):
if(sqlUtils.uniqueUsername(conn, jsData['username'])):
sqlUtils.insertUser(conn, jsData['username'], jsData['password'])
sendUtils.s_registerSuccess(soc)
else:
sendUtils.s_registerFailure(soc)
if(operation=='username'):
sendUtils.s_sendUsername(soc,username)
if(operation=='enter'):
roomname = jsData['roomname']
if roomname not in roomNum:
sendUtils.s_enterFailure(soc)
elif roomNum[roomname]>=roomMax[roomname]:
sendUtils.s_enterFailure(soc)
else:
sendUtils.s_enterSuccess(soc,max_gameid,roomNum[roomname])
playerScore = room_Score_dict[roomname]
roomNum[roomname] += 1
playerScore[jsData['playername']] = 100
if(operation=='create'):
roomname = jsData['roomname']
maxnum = jsData['maxnum']
room_Score_dict[roomname] = {}
room_Input_dict[roomname] = {}
room_responseCnt[roomname] = 0
playerScore = room_Score_dict[roomname]
if roomname in roomMax:
sendUtils.s_createFailure(soc)
else:
roomMax[roomname] = eval(maxnum)
roomNum[roomname] = 1
playerScore[jsData['playername']] = 100
room_epoch[roomname] = jsData['epoch']
room_epochCnt[roomname] = 0
roomCreator[roomname] = jsData['playername']
sendUtils.s_createSuccess(soc,max_gameid)
roomname_gameid_dict[roomname] = max_gameid
max_gameid += 1
if(operation=='ready'):
roomname = jsData['roomname']
tmpnum = roomNum[roomname]
tmpmax = roomMax[roomname]
if(tmpnum>=tmpmax):
sendUtils.s_readyOK(soc)
else:
sendUtils.s_readyNOTOK(soc)
if(operation=='input'):
roomname = jsData['roomname']
playername = jsData['playername']
input = eval(jsData['input'])
playerInput = room_Input_dict[roomname]
playerInput[playername] = input

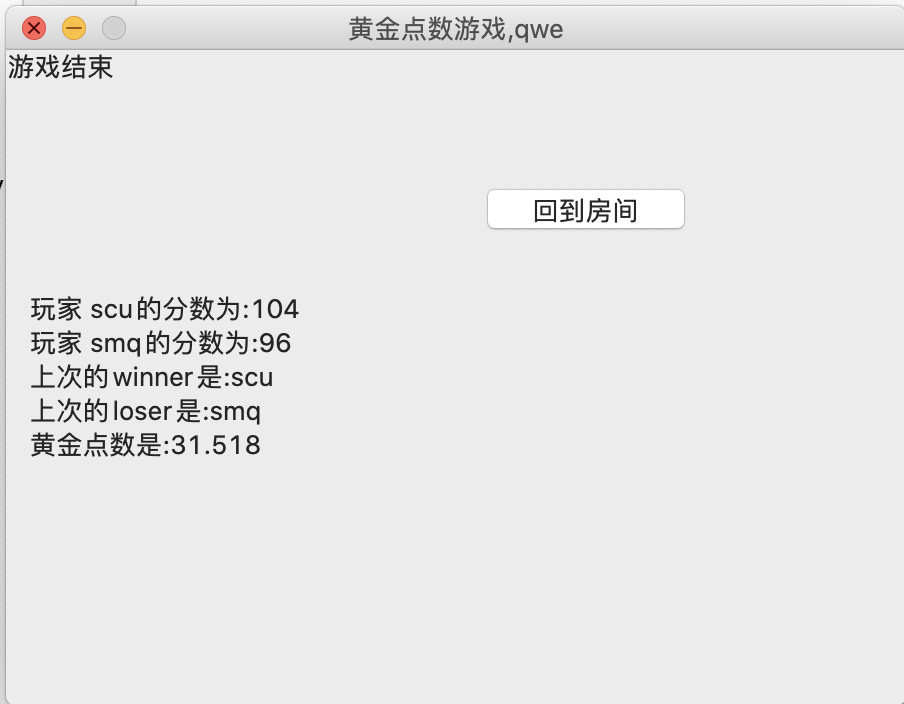

if(operation=='result'):
roomname = jsData['roomname']
playername = jsData['playername']
playerInput = room_Input_dict[roomname]
playerscore = room_Score_dict[roomname]
input_num = len(playerInput)
player_num = roomMax[roomname]
creator = roomCreator[roomname]
far_name =''
near_name = ''
dis_dict = {}
max_p = -1
min_p = 1000
golden_p = 0
result_str = ''
if creator==playername and input_num==player_num:
print('allInput:',playerInput)
for name,value in playerInput.items():
golden_p+=value
golden_p /= player_num
golden_p *=0.618
for name,value in playerInput.items():
dis_dict[name] = math.fabs(value-golden_p)
for name,dis in dis_dict.items():
if dis>max_p:
max_p = dis
far_name = name
if dis<min_p:
min_p = dis
near_name = name
playerscore[near_name] += player_num
playerscore[far_name] -= 2
for name,score in playerscore.items():
result_str += '玩家 '+name+'的分数为:'+str(score)+'\n'
result_str += '上次的winner是:' + near_name + '\n'
result_str += '上次的loser是:' + far_name + '\n'
result_str += '黄金点数是:' + str(golden_p) +'\n'
room_responseCnt[roomname] = player_num
room_result[roomname] = result_str
room_epochCnt[roomname] += 1
if room_responseCnt[roomname]>0:
result_str = room_result[roomname]
end = room_epochCnt[roomname]==room_epoch[roomname]
ok = 'OK'
sendUtils.s_result(soc,result_str,end,ok,room_Input_dict[roomname])
room_responseCnt[roomname] -= 1
if room_responseCnt[roomname]==0:
del room_Input_dict[roomname]
room_Input_dict[roomname] = {}
if room_epochCnt[roomname]==room_epoch[roomname]:
sqlUtils.insertHistory(conn,playername,playerscore[playername],roomname_gameid_dict[roomname])
else:
sendUtils.s_result(soc,None,False,'NOTOK',None)
s_socketInit()
s_sqlInit()
s_sqlTest()
while True:
c,addr = sock.accept()
print('连接地址: '+str(addr))
# Send.s_loginSuccess(c)
userSocket.append(c)
handle_thread = threading.Thread(target=conn_thread,args=(c,))
handle_thread.start()
print('ok')
客户端：
client.py
作为客户端入口，提供self.updateFrame回调函数，实现面板的切换
import wx
import socket
from Utils import guiManager as FrameManager
sock = socket.socket()
# host = '47.106.229.249'
host = 'localhost'
port = 52345
addr = (host,port)
sock.connect(addr)
def jsonParse(js):
recjs = eval(js)
if recjs['MESSAGE'] == 'SUCCESS':
return True
data = ''
def recvMsg():
while True:
try:
data = sock.recv(1024)
except:
continue
else:
jsonParse(data)
# time.sleep(0.5)
# print('in thread')
class clientApp(wx.App):
def OnInit(self):
self.manager = FrameManager.guiManager(self.updateFrame,sock)
# self.frame = loginFrame.LoginFrame(sock)
self.frame = self.manager.getFrame(0)
self.SetTopWindow(self.frame)
self.frame.Show(True)
return True
def OnExit(self):
sock.close()
def updateFrame(self, type,roomname=None,gameid=None,playername=None):
self.frame.Show(False)
self.frame = self.manager.getFrame(type,roomname,gameid,playername)
self.SetTopWindow(self.frame)
self.frame.Show(True)
if __name__ == "__main__":
# recvThread = threading.Thread(target=recvMsg,args=())
# recvThread.start()
app = clientApp()
app.MainLoop()
loginFrame.py
实现登陆界面，用wx.Boxsizer管理控件
import wx
from Utils import sendUtils
from frames import registerDialog
class LoginFrame(wx.Frame):
def __init__(self,sock,parent=None,id=-1,updateFrame = None):
super(LoginFrame, self).__init__(parent=None,title = '黄金点数游戏',size = (400,350))
self.panel = wx.Panel(self,-1)
self.sock = sock
self.updateFrame = updateFrame
# v_box_sizer = wx.BoxSizer(wx.VERTICAL)
self.bt_confirm = wx.Button(self.panel, label="登陆") # 创建按钮
self.bt_confirm.Bind(wx.EVT_BUTTON, self.OnclickSubmit)
self.bt_cancel = wx.Button(self.panel, label="注册")
self.bt_cancel.Bind(wx.EVT_BUTTON, self.OnclickRegister)
self.title = wx.StaticText(self.panel, label="登陆")
self.label_user = wx.StaticText(self.panel, label="用户名:")
self.text_user = wx.TextCtrl(self.panel, style=wx.TE_LEFT)
self.label_pwd = wx.StaticText(self.panel, label="密 码:")
self.text_password = wx.TextCtrl(self.panel, style=wx.TE_PASSWORD)
# 控件横向排列
hsizer_user = wx.BoxSizer(wx.HORIZONTAL)
hsizer_user.Add(self.label_user, proportion=0, flag=wx.ALL, border=5)
hsizer_user.Add(self.text_user, proportion=1, flag=wx.ALL, border=5) # proportion=0表示不变,proportion=1两倍宽度
hsizer_pwd = wx.BoxSizer(wx.HORIZONTAL)
hsizer_pwd.Add(self.label_pwd, proportion=0, flag=wx.ALL, border=5)
hsizer_pwd.Add(self.text_password, proportion=1, flag=wx.ALL, border=5)
hsizer_button = wx.BoxSizer(wx.HORIZONTAL)
hsizer_button.Add(self.bt_confirm, proportion=0, flag=wx.ALIGN_CENTER, border=5)
hsizer_button.Add(self.bt_cancel, proportion=1, flag=wx.ALIGN_CENTER, border=5)
# 控件纵向排列
vsizer_all = wx.BoxSizer(wx.VERTICAL)
vsizer_all.Add(self.title, proportion=0, flag=wx.BOTTOM | wx.TOP | wx.ALIGN_CENTER, border=15)
vsizer_all.Add(hsizer_user, proportion=0, flag=wx.EXPAND | wx.LEFT | wx.RIGHT, border=45)
vsizer_all.Add(hsizer_pwd, proportion=0, flag=wx.EXPAND | wx.LEFT | wx.RIGHT, border=45)
vsizer_all.Add(hsizer_button, proportion=0, flag=wx.ALIGN_CENTER, border=15)
self.panel.SetSizer(vsizer_all)
font = wx.Font(16, wx.DEFAULT, wx.FONTSTYLE_NORMAL, wx.NORMAL, underline=False)
self.title.SetFont(font)
def validUser(self,soc):
data = soc.recv(1024)
jsdata = eval(data)
print('jsdata'+str(jsdata))
if(jsdata['MESSAGE']=='success'):
return True
else:
return False
def valiRegister(self,soc):
data = soc.recv(1024)
jsdata = eval(data)
if(jsdata['MESSAGE']=='success'):
return True
else:
return False
def OnclickSubmit(self, event):
self.username = self.text_user.GetValue()
self.password = self.text_password.GetValue()
sendUtils.c_sendLogInfo(self.sock, self.username, self.password)
if(self.validUser(self.sock)):
# self.panel.Parent.Hide()
# app = roomFrame.MainApp()
# app.MainLoop()
self.updateFrame(1)
else:
message = '登陆失败，用户名或密码错误'
wx.MessageBox(message,'登陆失败')
def OnclickRegister(self, event): #注册
dlg = RegisterWindow(self.getRegisterInfo,'#0a74f7')
dlg.Show()
def getRegisterInfo(self,username,password):
self.r_username = username
self.r_password = password
sendUtils.c_sendRegisterInfo(self.sock, self.r_username, self.r_password)
print('callback'+username)
if(self.valiRegister(self.sock)):
return
else:
wx.MessageBox('注册失败','失败信息')
class RegisterWindow(registerDialog.RegisterDialog):
def __init__(self,callback_func,themeColor):
registerDialog.RegisterDialog.__init__(self, '注册', callback_func, themeColor)

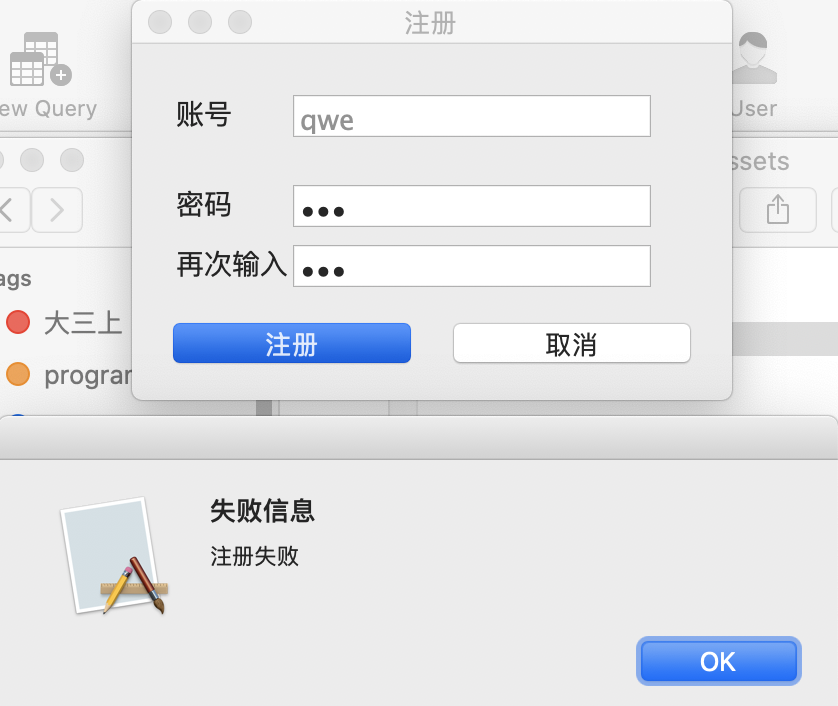

registerDialog.py
实现注册，往数据库中写入数据，并且支持注册检测
import wx
class RegisterDialog(wx.Dialog):
def __init__(self, title, func_callBack, themeColor):
wx.Dialog.__init__(self, None, -1, title, size=(300, 200))
self.func_callBack = func_callBack
self.themeColor = themeColor
self.InitUI() # 绘制Dialog的界面
def InitUI(self):
panel = wx.Panel(self)
font = wx.Font(14, wx.DEFAULT, wx.BOLD, wx.NORMAL, True)
accountLabel = wx.StaticText(panel, -1, '账号', pos=(20, 25))
accountLabel.SetFont(font)
self.accountInput = wx.TextCtrl(panel, -1, u'', pos=(80, 25), size=(180, -1))
self.accountInput.SetForegroundColour('gray')
self.accountInput.SetFont(font)
passwordLabel1 = wx.StaticText(panel, -1, '密码', pos=(20, 70))
passwordLabel1.SetFont(font)
self.passwordInput1 = wx.TextCtrl(panel, -1, u'', pos=(80, 70), size=(180, -1), style=wx.TE_PASSWORD)
self.passwordInput1.SetFont(font)
passwordLabel2 = wx.StaticText(panel, -1, '再次输入', pos=(20, 100))
passwordLabel2.SetFont(font)
self.passwordInput2 = wx.TextCtrl(panel, -1, u'', pos=(80, 100), size=(180, -1), style=wx.TE_PASSWORD)
self.passwordInput2.SetFont(font)
sureButton = wx.Button(panel, -1, u'注册', pos=(20, 130), size=(120, 40))
self.Bind(wx.EVT_BUTTON, self.sureEvent, sureButton)
cancleButton = wx.Button(panel, -1, u'取消', pos=(160, 130), size=(120, 40))
# 为【取消Button】绑定事件
self.Bind(wx.EVT_BUTTON, self.cancleEvent, cancleButton)
def sureEvent(self, event):
account = self.accountInput.GetValue()
password1 = self.passwordInput1.GetValue()
password2 = self.passwordInput2.GetValue()
if password1!=password2:
wx.MessageBox('两次输入的密码不一致','注册失败')
return
# 通过回调函数传递数值
self.func_callBack(account, password1)
self.Destroy() # 销毁隐藏Dialog
def cancleEvent(self, event):
self.Destroy() # 销毁隐藏Dialog
roomFrame.py
通过房间名创建、加入房间
import wx
from Utils import sendUtils
class RoomFrame(wx.Frame):
def __init__(self, sock,parent=None,id=-1,updateFrame = None):
wx.Frame.__init__(self, parent, -1, title="游戏房间", size=(400, 350),
style=wx.DEFAULT_FRAME_STYLE & ~(wx.RESIZE_BORDER | wx.MAXIMIZE_BOX))
self.panel = wx.Panel(self,-1)
self.sock = sock
self.updateFrame = updateFrame
self.username = self.getUsername(self.sock)
self.gameid = 0
print('self.username:',self.username)
self.initUI()
def initUI(self):
self.bt_create = wx.Button(self.panel,label="创建房间")
self.bt_create.Bind(wx.EVT_BUTTON, self.OnclickCreate)
self.bt_enter = wx.Button(self.panel,label="加入房间")
self.bt_enter.Bind(wx.EVT_BUTTON,self.OnclickEnter)
hsizer_control = wx.BoxSizer(wx.HORIZONTAL)
hsizer_control.Add(self.bt_create,proportion=0,flag=wx.ALL,border=5)
hsizer_control.Add(self.bt_enter,proportion=0,flag=wx.ALL,border=5)
self.label_name = wx.StaticText(self.panel,label="房间名")
self.text_name = wx.TextCtrl(self.panel,style=wx.TE_LEFT)
self.label_num = wx.StaticText(self.panel,label="房间人数")
self.text_num = wx.TextCtrl(self.panel,style=wx.TE_LEFT)
hsizer_input = wx.BoxSizer(wx.HORIZONTAL)
hsizer_input.Add(self.label_name,proportion=0,flag=wx.ALL,border=5)
hsizer_input.Add(self.text_name, proportion=1, flag=wx.ALL, border=5)
hsizer_input.Add(self.label_num, proportion=0, flag=wx.ALL, border=5)
hsizer_input.Add(self.text_num, proportion=1, flag=wx.ALL, border=5)
self.title = wx.StaticText(self.panel, label="游戏大厅")
font = wx.Font(16, wx.DEFAULT, wx.FONTSTYLE_NORMAL, wx.NORMAL, underline=False)
self.title.SetFont(font)
vsizer_all = wx.BoxSizer(wx.VERTICAL)
vsizer_all.Add(self.title, proportion=0, flag=wx.BOTTOM | wx.TOP | wx.ALIGN_CENTER, border=15)
vsizer_all.Add(hsizer_input, proportion=0, flag=wx.EXPAND | wx.LEFT | wx.RIGHT, border=45)
vsizer_all.Add(hsizer_control, proportion=0, flag=wx.ALIGN_CENTER, border=15)
self.panel.SetSizer(vsizer_all)
def OnclickCreate(self,event):
roomname = self.text_name.GetValue()
maxnum = self.text_num.GetValue()
sendUtils.c_createRoom(self.sock,roomname,maxnum,self.username)
if self.validCreate(self.sock):
self.updateFrame(2,roomname,self.gameid,self.username) #playerid == 0
else:
wx.MessageBox('创建房间失败，请更换房间名','创建失败')
def OnclickEnter(self,event):
roomname = self.text_name.GetValue()
sendUtils.c_enterRoom(self.sock,roomname,self.username)
if self.validEnter(self.sock):
self.updateFrame(2,roomname,self.gameid,self.username)
else:
wx.MessageBox('加入房间失败（房间不存在或人数已满）','加入失败')
def validCreate(self,soc):
data = soc.recv(1024)
jsdata = eval(data)
if(jsdata['MESSAGE']=='success'):
self.gameid = jsdata['gameid']
return True
else:
return False
def validEnter(self,soc):
data = soc.recv(1024)
jsdata = eval(data)
if(jsdata['MESSAGE']=='success'):
self.gameid = jsdata['gameid']
self.playerid = jsdata['playerid']
return True
else:
return False
def getUsername(self,soc):
sendUtils.c_getUsername(soc)
data = soc.recv(1024)
jsdata = eval(data)
return jsdata['MESSAGE']
class MainApp(wx.App):
def OnInit(self):
self.frame = RoomFrame(None)
self.frame.Show()
return True
if __name__ == "__main__":
app = MainApp()
app.MainLoop()
gameFrame.py
通过线程来等待其他玩家的输入和最终的结果
import wx
import math
import pymysql
import threading
from Utils import sendUtils
import time
from threading import Timer
class GameFrame(wx.Frame):
def __init__(self,sock,roomname=None,gameid=None,playername=None,parent=None,id=-1,updateFrame=None):
wx.Frame.__init__(self,parent=None, title='黄金点数游戏,'+roomname,size = (450,350),style=wx.DEFAULT_FRAME_STYLE & ~(wx.RESIZE_BORDER | wx.MAXIMIZE_BOX))
self.sock = sock
self.updateFrame = updateFrame
self.gameid = gameid
self.playername = playername
print('game creator:',self.playername)
self.roomname = roomname
print('playerid:',playername)
waiting_thread = threading.Thread(target=self.waiting,args=(self.sock,))
waiting_thread.start()
self.initWidgets()
self.bindEvents()
self.Show()
def initWidgets(self):
self.panel = wx.Panel(self)
self.label_waiting = wx.StaticText(self.panel,-1,label = '请等待其他玩家加入',pos=(10,70))
self.label_waitothers = wx.StaticText(self.panel, -1, label='请等待其他玩家输入', pos=(10, 70))
self.label_waitothers.Hide()
self.label_input = wx.StaticText(self.panel,-1,label = '请输入您的点数',pos=(10,70))
self.text_input = wx.TextCtrl(self.panel,-1,value='',pos=(120,70))
self.bt_input = wx.Button(self.panel,label='确定',pos = (240,70),size=(60,20))
self.hideInput()
self.text_result = wx.StaticText(self.panel,-1,label='',pos=(10,120))
self.text_wait = wx.StaticText(self.panel,-1,label='五秒后回到输入')
self.hideResult()
self.bt_return = wx.Button(self.panel,label='回到房间',pos = (240,70),size=(100,20))
self.bt_return.Bind(wx.EVT_BUTTON,self.OnclickReturn)
self.bt_return.Hide()
def OnclickInput(self,event):
point = self.text_input.GetValue()
sendUtils.c_point(self.sock,point,self.playername,self.roomname)
self.hideInput()
self.label_waitothers.Show()
result_thread = threading.Thread(target=self.getResult,args=(self.sock,))
result_thread.start()
def OnclickReturn(self,event):
self.updateFrame(1)
def bindEvents(self):
self.bt_input.Bind(wx.EVT_BUTTON,self.OnclickInput)
def showResult(self):
self.text_result.Show()
self.text_wait.Show()
def hideResult(self):
self.text_result.Hide()
self.text_wait.Hide()
def showInput(self):
self.label_input.Show()
self.text_input.Show()
self.bt_input.Show()
def hideInput(self):
self.label_input.Hide()
self.text_input.Hide()
self.bt_input.Hide()
def initData(self):
self.player_num = 0
self.golden_score = 0
self.player_group = []
self.player_input = []
self.tmpId = 0
self.maxId = -1
self.minId = -1
# self.player_group.append(Player(str(0)))
self.conn = pymysql.connect(
host = "localhost",
user = "dataUser",
password = "scusmq61347",
database = "SE2020",
charset = "utf8"
)
sql_count = 'select count(*) from goldennum'
self.cursor = self.conn.cursor()
self.cursor.execute(sql_count)
self.game_id = self.cursor.fetchone()[0]+1
self.firstGame = True
def waiting(self,soc):
while True:
time.sleep(0.05)
sendUtils.c_readyQuery(soc,self.roomname)
data = soc.recv(1024)
jsdata = eval(data)
if(jsdata['MESSAGE']=='OK'):
self.ready = True
print('ready ok')
self.label_waiting.Hide()
self.showInput()
return
def showInputAgain(self):
self.showInput()
self.hideResult()
def getResult(self,soc):
while True:
time.sleep(0.05)
sendUtils.c_resultQuery(soc,self.playername,self.roomname)
data = soc.recv(1024)
jsdata = eval(data)
if(jsdata['MESSAGE']=='OK'):
self.label_waitothers.Hide()
self.showResult()
self.text_result.SetLabel(jsdata['result'])
self.all_input = jsdata['all_input']
print(self.all_input)
end = jsdata['end']
if not end:
t = Timer(5.0,self.showInputAgain)
t.start()
else:
self.bt_return.Show()
self.text_wait.SetLabel('游戏结束')
return
if __name__ == '__main__':
app = wx.App()
frame = GameFrame(None)
app.MainLoop()
浙公网安备 33010602011771号
