基于DE10-Nano 的ADV7513的数字音频播放（I2S协议）

I2S控制模块AUDIO_IF.v实现的功能是用离散的正弦波数据创建的查找表来合成声音（生I2S格式的音频数据流）。如下是该模块的RTL视图：

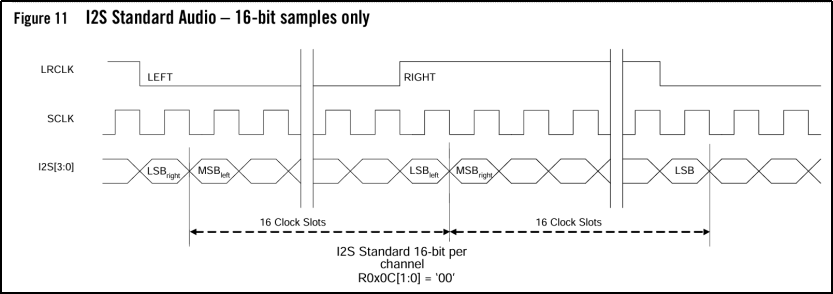

该模块采用的是I2S 标准音频时序，每通道16位，LRCLK为低电平时传输左通道，为高电平时传输右声道，数据由高位(MSB)到低位(LSB)依次进行传输：

：

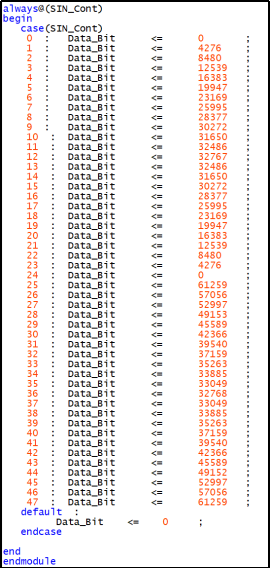

所以该模块里面设置了左右声道数据位宽16-bit。 另外离散的正弦波数据是48个。

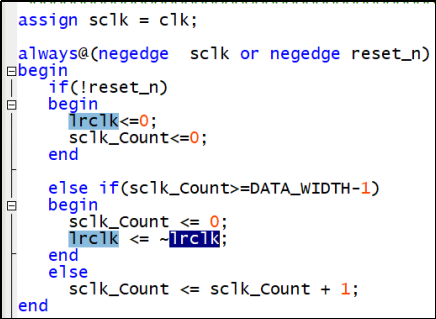

该模块系统时钟是1.536MHz，位时钟sclk也是1.536MHz。因寄存器设置0x15[7:4]=0010，ADV7513采样率为48KHz，所以lrclk经过sclk分频后也是48KHz。

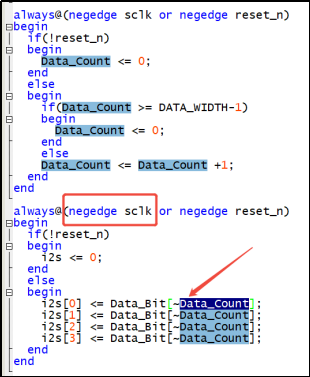

这里设置sclk下降沿时数据改变，符合寄存器x0B[6]的设置（其默认设置是0，代表在下降沿时I2S数据发生变化，上升沿时数据保持不变锁存数据）。另外，这里Data_Count取反让数据由高位(MSB)到低位(LSB)依次进行传输：

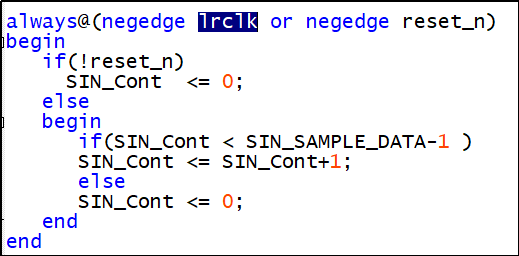

该模块在lrclk下降沿的时候给出Data_Bit，在lrclk上升沿的时候数据保持没变，所以左右声道传输的是相同的数据：







关于正弦波离散数据的获取，用户可以通过python 或者matlab生成。本文不再赘述。







源码参考：

// ============================================================================
// Copyright (c) 2012 by Terasic Technologies Inc.
// ============================================================================
//
// Permission:
//
//   Terasic grants permission to use and modify this code for use
//   in synthesis for all Terasic Development Boards and Altera Development
//   Kits made by Terasic.  Other use of this code, including the selling
//   ,duplication, or modification of any portion is strictly prohibited.
//
// Disclaimer:
//
//   This VHDL/Verilog or C/C++ source code is intended as a design reference
//   which illustrates how these types of functions can be implemented.
//   It is the user's responsibility to verify their design for
//   consistency and functionality through the use of formal
//   verification methods.  Terasic provides no warranty regarding the use
//   or functionality of this code.
//
// ============================================================================
//
//  Terasic Technologies Inc
//  9F., No.176, Sec.2, Gongdao 5th Rd, East Dist, Hsinchu City, 30070. Taiwan
//
//
//
//                     web: http://www.terasic.com/
//                     email: support@terasic.com
//
// ============================================================================

/*

Function:
    ADV7513 Video and Audio Control

I2C Configuration Requirements:
    Master Mode
    I2S, 16-bits

Clock:
    input Clock 1.536MHz (48K*Data_Width*Channel_Num)

Revision:
    1.0, 10/06/2014, Init by Nick

Compatibility:
    Quartus 14.0.2

*/




module AUDIO_IF(
    //
    reset_n,
    sclk,
    lrclk,
    i2s,
    clk
);

/*****************************************************************************
 *                           Constant Declarations                           *
 *****************************************************************************/


/*****************************************************************************
 *                             Port Declarations                             *
 *****************************************************************************/

    //
output                        sclk;
output                         lrclk;
input                         reset_n;
output    [3:0]                i2s;
input                         clk;

parameter    DATA_WIDTH                    =    16;
parameter    SIN_SAMPLE_DATA            =    48;
/*****************************************************************************
 *                 Internal wires and registers Declarations                 *
 *****************************************************************************/

reg                          lrclk;
reg     [5:0]                    sclk_Count;
reg   [5:0]                   Simple_count;
reg     [15:0]                Data_Bit;
reg     [6:0]                    Data_Count;
reg    [5:0]                   SIN_Cont;
reg    [3:0]                    i2s;
/*****************************************************************************
 *                             Sequential logic                              *
 *****************************************************************************/
assign sclk = clk;

always@(negedge  sclk or negedge reset_n)
begin
    if(!reset_n)
    begin
      lrclk<=0;
      sclk_Count<=0;
    end

    else if(sclk_Count>=DATA_WIDTH-1)
    begin
      sclk_Count <= 0;
      lrclk <= ~lrclk;
    end
    else
     sclk_Count <= sclk_Count + 1;
end

always@(negedge sclk or negedge reset_n)
begin
  if(!reset_n)
  begin
    Data_Count <= 0;
  end
  else
  begin
    if(Data_Count >= DATA_WIDTH-1)
     begin
      Data_Count <= 0;
    end
     else
     Data_Count <= Data_Count +1;
  end
end

always@(negedge sclk or negedge reset_n)
begin
  if(!reset_n)
  begin
    i2s <= 0;
  end
  else
  begin
    i2s[0] <= Data_Bit[~Data_Count];
     i2s[1] <= Data_Bit[~Data_Count];
     i2s[2] <= Data_Bit[~Data_Count];
     i2s[3] <= Data_Bit[~Data_Count];
  end
end

always@(negedge lrclk or negedge reset_n)
begin
    if(!reset_n)
      SIN_Cont    <=    0;
    else
    begin
        if(SIN_Cont < SIN_SAMPLE_DATA-1 )
        SIN_Cont    <=    SIN_Cont+1;
        else
        SIN_Cont    <=    0;
    end
end

/*****************************************************************************
 *                            Combinational logic                            *
 *****************************************************************************/
always@(SIN_Cont)
begin
    case(SIN_Cont)
    0  :   Data_Bit      <=      0       ;
    1  :   Data_Bit      <=      4276    ;
    2  :   Data_Bit      <=      8480    ;
    3  :   Data_Bit      <=      12539   ;
    4  :   Data_Bit      <=      16383   ;
    5  :   Data_Bit      <=      19947   ;
    6  :   Data_Bit      <=      23169   ;
    7  :   Data_Bit      <=      25995   ;
    8  :   Data_Bit      <=      28377   ;
    9  :   Data_Bit      <=      30272   ;
    10  :  Data_Bit      <=      31650   ;
    11  :  Data_Bit      <=      32486   ;
    12  :  Data_Bit      <=      32767   ;
    13  :  Data_Bit      <=      32486   ;
    14  :  Data_Bit      <=      31650   ;
    15  :  Data_Bit      <=      30272   ;
    16  :  Data_Bit      <=      28377   ;
    17  :  Data_Bit      <=      25995   ;
    18  :  Data_Bit      <=      23169   ;
    19  :  Data_Bit      <=      19947   ;
    20  :  Data_Bit      <=      16383   ;
    21  :  Data_Bit      <=      12539   ;
    22  :  Data_Bit      <=      8480    ;
    23  :  Data_Bit      <=      4276    ;
    24  :  Data_Bit      <=      0       ;
    25  :  Data_Bit      <=      61259   ;
    26  :  Data_Bit      <=      57056   ;
    27  :  Data_Bit      <=      52997   ;
    28  :  Data_Bit      <=      49153   ;
    29  :  Data_Bit      <=      45589   ;
    30  :  Data_Bit      <=      42366   ;
    31  :  Data_Bit      <=      39540   ;
    32  :  Data_Bit      <=      37159   ;
    33  :  Data_Bit      <=      35263   ;
    34  :  Data_Bit      <=      33885   ;
    35  :  Data_Bit      <=      33049   ;
    36  :  Data_Bit      <=      32768   ;
    37  :  Data_Bit      <=      33049   ;
    38  :  Data_Bit      <=      33885   ;
    39  :  Data_Bit      <=      35263   ;
    40  :  Data_Bit      <=      37159   ;
    41  :  Data_Bit      <=      39540   ;
    42  :  Data_Bit      <=      42366   ;
    43  :  Data_Bit      <=      45589   ;
    44  :  Data_Bit      <=      49152   ;
    45  :  Data_Bit      <=      52997   ;
    46  :  Data_Bit      <=      57056   ;
    47  :  Data_Bit      <=      61259   ;
    default    :
           Data_Bit        <=        0        ;
    endcase

end
endmodule
