verilog 模60 8421BCD 计数器

verilog 模60 8421BCD 计数器

复位信号清零，输出8位8421BCD码，模六十计数。

`timescale 1ns/1ns
module BCD_Counter
(
    input              rst_n, //reset
    input           clk,  //50MHz clock input

    output  reg                    cout,//carry output
    output  reg[7:0]           cnt
);
always@(posedge clk or negedge rst_n)
begin
    if(!rst_n)
        begin
        cnt<=1'b0;
        cout<=1'b0;
        end
    else if(cnt<8'h59)
        if(cnt[3:0]>=4'd9)
        begin
        cnt[3:0]<=1'b0;
        cnt[7:4]<=cnt[7:4]+1'b1;
        end
        else
        begin
        cnt<=cnt+1'b1;
        cout<=1'b0;
        end
    else
        begin
        cnt<=1'b0;
        cout<=1'b1;
        end
end
endmodule

testbench，产生50MHZ 的时钟信号，开始两个时钟周期后复位信号置1.

`timescale 1ns/1ns
module BCD_Counter_TB;
reg      rst_n;//reset
reg       clk; //50MHz clock input
parameter     PERIOD=20; //50MHz
//generate 50MHz clock
initial
begin
    clk=0;
    forever #(PERIOD/2)
    clk=~clk;
end
task task_reset;
begin
    rst_n=0;
    repeat(2)@(posedge clk)
        rst_n=1;
end
endtask

wire              cout;//carry output
wire     [7:0]    cnt;//data  count

BCD_Counter u_BCD_Counter
(
    .rst_n    (rst_n),
    .clk    (clk),
     //output
    .cnt    (cnt),
    .cout     (cout)
);
initial
begin
    task_reset;
end
endmodule

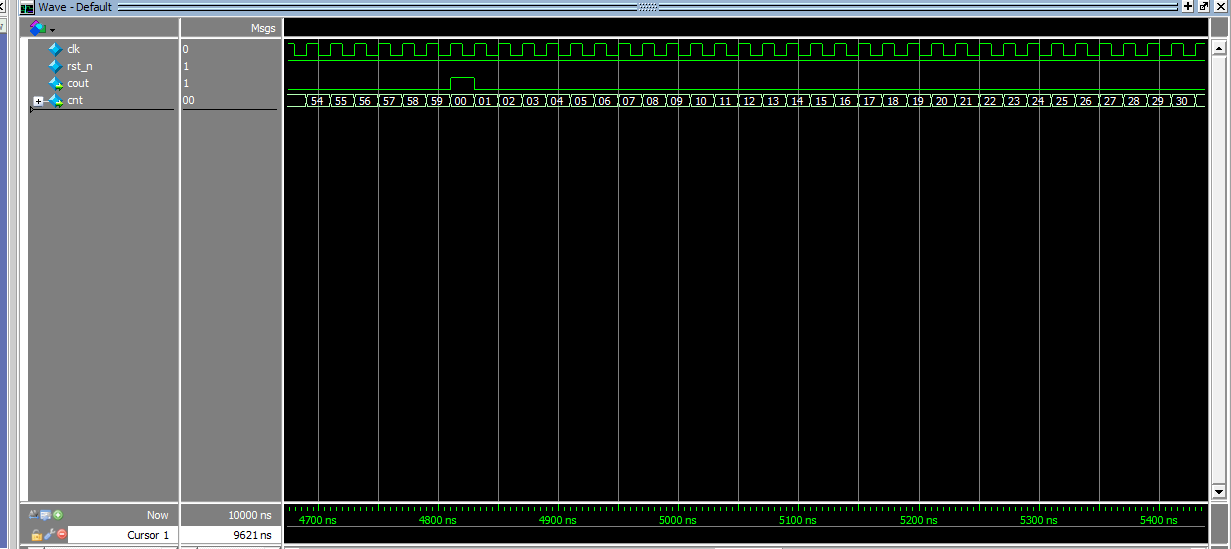

modelisim时序图
