sklearn中的决策树（1）—— 分类树¶

DecisionTreeClassifier¶

重要参数¶

Criterion: 不纯度，gini & entropy

entropy对不纯度更加敏感，即对不纯度的惩罚更强，由于这种特性，决策树的生长会更加“精细”，对高维数据很容易过拟合

实例: 红酒数据集¶

In [54]:

from sklearn import tree
from sklearn.datasets import load_wine
from sklearn.model_selection import train_test_split

In [55]:

#字典
wine = load_wine()

# 用pandas整理数据
import pandas as pd
pd.concat([pd.DataFrame(wine.data),pd.DataFrame(wine.target)],axis=1)

Out[55]:

	0	1	2	3	4	5	6	7	8	9	10	11	12	0
0	14.23	1.71	2.43	15.6	127.0	2.80	3.06	0.28	2.29	5.64	1.04	3.92	1065.0	0
1	13.20	1.78	2.14	11.2	100.0	2.65	2.76	0.26	1.28	4.38	1.05	3.40	1050.0	0
2	13.16	2.36	2.67	18.6	101.0	2.80	3.24	0.30	2.81	5.68	1.03	3.17	1185.0	0
3	14.37	1.95	2.50	16.8	113.0	3.85	3.49	0.24	2.18	7.80	0.86	3.45	1480.0	0
4	13.24	2.59	2.87	21.0	118.0	2.80	2.69	0.39	1.82	4.32	1.04	2.93	735.0	0
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
173	13.71	5.65	2.45	20.5	95.0	1.68	0.61	0.52	1.06	7.70	0.64	1.74	740.0	2
174	13.40	3.91	2.48	23.0	102.0	1.80	0.75	0.43	1.41	7.30	0.70	1.56	750.0	2
175	13.27	4.28	2.26	20.0	120.0	1.59	0.69	0.43	1.35	10.20	0.59	1.56	835.0	2
176	13.17	2.59	2.37	20.0	120.0	1.65	0.68	0.53	1.46	9.30	0.60	1.62	840.0	2
177	14.13	4.10	2.74	24.5	96.0	2.05	0.76	0.56	1.35	9.20	0.61	1.60	560.0	2

178 rows × 14 columns

In [56]:

# 查看标签
print(wine.feature_names)
print(wine.target_names)

['alcohol', 'malic_acid', 'ash', 'alcalinity_of_ash', 'magnesium', 'total_phenols', 'flavanoids', 'nonflavanoid_phenols', 'proanthocyanins', 'color_intensity', 'hue', 'od280/od315_of_diluted_wines', 'proline']
['class_0' 'class_1' 'class_2']

In [75]:

# 分出训练集和测试集
Xtrain,Xtest,Ytrain,Ytest = train_test_split(wine.data,wine.target,test_size=0.3)
print(Xtrain.shape)

(124, 13)

In [76]:

# 实例化
clf = tree.DecisionTreeClassifier(criterion='entropy')
# 训练模型
clf = clf.fit(Xtrain,Ytrain)
# 衡量精确度
score = clf.score(Xtest,Ytest)
print(score)

0.9444444444444444

In [77]:

# 画树
import graphviz
dot_data = tree.export_graphviz(clf
                                ,feature_names = wine.feature_names
                                ,class_names = ['Gin','Sherry','Vermouth']
                                ,filled=True
                               )
graph = graphviz.Source(dot_data)
graph
# 颜色越浅不纯度越高

Out[77]:

Tree 0 flavanoids <= 1.575 entropy = 1.569 samples = 124 value = [34, 49, 41] class = Sherry 1 color_intensity <= 3.725 entropy = 0.68 samples = 50 value = [0, 9, 41] class = Vermouth 0->1 True 6 alcohol <= 13.04 entropy = 0.995 samples = 74 value = [34, 40, 0] class = Sherry 0->6 False 2 entropy = 0.0 samples = 8 value = [0, 8, 0] class = Sherry 1->2 3 hue <= 0.97 entropy = 0.162 samples = 42 value = [0, 1, 41] class = Vermouth 1->3 4 entropy = 0.0 samples = 41 value = [0, 0, 41] class = Vermouth 3->4 5 entropy = 0.0 samples = 1 value = [0, 1, 0] class = Sherry 3->5 7 entropy = 0.0 samples = 37 value = [0, 37, 0] class = Sherry 6->7 8 magnesium <= 88.0 entropy = 0.406 samples = 37 value = [34, 3, 0] class = Gin 6->8 9 entropy = 0.0 samples = 3 value = [0, 3, 0] class = Sherry 8->9 10 entropy = 0.0 samples = 34 value = [34, 0, 0] class = Gin 8->10

In [79]:

# 不一定会用到全部特征，可以看到特征重要性
clf.feature_importances_
importance = [*zip(wine.feature_names,clf.feature_importances_)]
sorted(importance,key=lambda x:x[1],reverse=True)

Out[79]:

[('flavanoids', 0.4467047938462895),
 ('alcohol', 0.30132438648683235),
 ('color_intensity', 0.13972701286171754),
 ('magnesium', 0.0772032916950798),
 ('hue', 0.03504051511008071),
 ('malic_acid', 0.0),
 ('ash', 0.0),
 ('alcalinity_of_ash', 0.0),
 ('total_phenols', 0.0),
 ('nonflavanoid_phenols', 0.0),
 ('proanthocyanins', 0.0),
 ('od280/od315_of_diluted_wines', 0.0),
 ('proline', 0.0)]

每次运行结果不同，需要通过集成的方法找出最优节点

In [132]:

# random_state & splitter
clf_1 = tree.DecisionTreeClassifier(criterion="entropy"
                                  ,random_state=42
                                  ,splitter='random')
clf_1 = clf_1.fit(Xtrain,Ytrain)
score = clf_1.score(Xtest,Ytest)
print(score)

0.9444444444444444

In [143]:

dot1_data = tree.export_graphviz(clf_1
                                 ,feature_names=wine.feature_names
                                 ,class_names = ['Gin','Sherry','Vermouth']
                                 ,filled=True
                                )
graph1 = graphviz.Source(dot1_data)
graph1.render('wine_tree')
graph1

Out[143]:

Tree 0 od280/od315_of_diluted_wines <= 2.123 entropy = 1.569 samples = 124 value = [34, 49, 41] class = Sherry 1 hue <= 0.96 entropy = 0.575 samples = 44 value = [0, 6, 38] class = Vermouth 0->1 True 8 color_intensity <= 6.0 entropy = 1.184 samples = 80 value = [34, 43, 3] class = Sherry 0->8 False 2 od280/od315_of_diluted_wines <= 1.785 entropy = 0.378 samples = 41 value = [0, 3, 38] class = Vermouth 1->2 7 entropy = 0.0 samples = 3 value = [0, 3, 0] class = Sherry 1->7 3 entropy = 0.0 samples = 28 value = [0, 0, 28] class = Vermouth 2->3 4 flavanoids <= 0.973 entropy = 0.779 samples = 13 value = [0, 3, 10] class = Vermouth 2->4 5 entropy = 0.0 samples = 10 value = [0, 0, 10] class = Vermouth 4->5 6 entropy = 0.0 samples = 3 value = [0, 3, 0] class = Sherry 4->6 9 proline <= 461.506 entropy = 1.15 samples = 69 value = [23, 43, 3] class = Sherry 8->9 28 entropy = 0.0 samples = 11 value = [11, 0, 0] class = Gin 8->28 10 entropy = 0.0 samples = 20 value = [0, 20, 0] class = Sherry 9->10 11 alcohol <= 13.214 entropy = 1.271 samples = 49 value = [23, 23, 3] class = Gin 9->11 12 flavanoids <= 0.626 entropy = 0.871 samples = 27 value = [3, 22, 2] class = Sherry 11->12 21 total_phenols <= 1.753 entropy = 0.53 samples = 22 value = [20, 1, 1] class = Gin 11->21 13 entropy = 0.0 samples = 2 value = [0, 0, 2] class = Vermouth 12->13 14 proline <= 1025.703 entropy = 0.529 samples = 25 value = [3, 22, 0] class = Sherry 12->14 15 proline <= 710.714 entropy = 0.258 samples = 23 value = [1, 22, 0] class = Sherry 14->15 20 entropy = 0.0 samples = 2 value = [2, 0, 0] class = Gin 14->20 16 entropy = 0.0 samples = 19 value = [0, 19, 0] class = Sherry 15->16 17 color_intensity <= 3.53 entropy = 0.811 samples = 4 value = [1, 3, 0] class = Sherry 15->17 18 entropy = 0.0 samples = 3 value = [0, 3, 0] class = Sherry 17->18 19 entropy = 0.0 samples = 1 value = [1, 0, 0] class = Gin 17->19 22 entropy = 0.0 samples = 1 value = [0, 0, 1] class = Vermouth 21->22 23 color_intensity <= 4.101 entropy = 0.276 samples = 21 value = [20, 1, 0] class = Gin 21->23 24 proline <= 734.781 entropy = 0.918 samples = 3 value = [2, 1, 0] class = Gin 23->24 27 entropy = 0.0 samples = 18 value = [18, 0, 0] class = Gin 23->27 25 entropy = 0.0 samples = 1 value = [0, 1, 0] class = Sherry 24->25 26 entropy = 0.0 samples = 2 value = [2, 0, 0] class = Gin 24->26

剪枝参数¶

In [145]:

# 我们对训练集的拟合程度如何？
score_train = clf.score(Xtrain,Ytrain)
score_train

Out[145]:

1.0

参数1：max_dapth

超过设定深度的树枝都会被剪掉，从3开始试验

参数2：min_sample_leaf & min_sample_split

min_sample_leaf 规定节点在分之后的子节点至少有min_sample_leaf个训练样本，一般从5 开始试，设置得太小会过拟合，太大不利于学习

min_sample_split 限定每个节点至少要有这么min_sample_split个训练样本，否则该节点不被允许分支

参数3：max_features & min_impurity_decrease

超过max_features个数的特征会被舍弃

小于min_impurity_decrease的分支不会发生（建议）

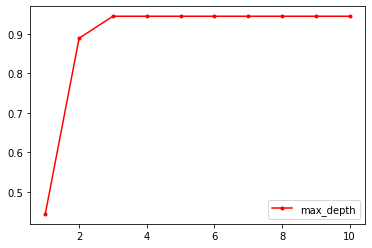

确定最优的剪枝参数——超参数曲线¶

In [153]:

import matplotlib.pyplot as plt
test = []
for i in range(10):
    clf = tree.DecisionTreeClassifier(max_depth=i+1
                                      ,criterion="gini"
                                      ,random_state=42
                                    )
    clf = clf.fit(Xtrain,Ytrain)
    score = clf.score(Xtest,Ytest)
    test.append(score)

plt.plot(range(1,11),test,'-r.',label='max_depth')
plt.legend()
plt.show()
# 所以max_depth 选择 3 就好
