Tekton实战案例-打包代码到镜像-发布到K8S集群
在k8s 集群上安装一个 nfs server
https://github.com/kubernetes-csi/csi-driver-nfs/tree/master/deploy/example/nfs-provisionerkubectl create -f https://raw.githubusercontent.com/kubernetes-csi/csi-driver-nfs/master/deploy/example/nfs-provisioner/nfs-server.yaml
curl -skSL https://raw.githubusercontent.com/kubernetes-csi/csi-driver-nfs/v4.10.0/deploy/install-driver.sh | bash -s v4.10.0 --root@k8s-master:~/tekton-and-argocd-in-practise/04-tekton-pipeline-in-practise/01-s2i-no-push# kubectl get pods
NAME READY STATUS RESTARTS AGE
nfs-server-7dd76c89c6-wxrph 1/1 Running 0 48m
root@k8s-master:~/tekton-and-argocd-in-practise/04-tekton-pipeline-in-practise/01-s2i-no-push# kubectl get pods -n kube-system
NAME READY STATUS RESTARTS AGE
csi-nfs-controller-65c49c4f4-6r6m7 5/5 Running 3 (44m ago) 46m
csi-nfs-node-lllqw 3/3 Running 1 (44m ago) 46m
csi-nfs-node-wmmrm 3/3 Running 1 (45m ago) 46m
csi-nfs-node-x72jl 3/3 Running 1 (45m ago) 46m为 NFS 配置 CSI 存储类
root@k8s-master:~# kube apply -f /tmp/nfs-csi.yaml
root@k8s-master:~# cat /tmp/nfs-csi.yaml
---
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
name: nfs-csi
provisioner: nfs.csi.k8s.io
parameters:
server: nfs-server.default.svc.cluster.local
share: /
# csi.storage.k8s.io/provisioner-secret is only needed for providing mountOptions in DeleteVolume
# csi.storage.k8s.io/provisioner-secret-name: "mount-options"
# csi.storage.k8s.io/provisioner-secret-namespace: "default"
reclaimPolicy: Delete
volumeBindingMode: Immediate
allowVolumeExpansion: true
mountOptions:
- nfsvers=4.1root@k8s-master:~/spring-boot-helloWorld# kubectl get sc
NAME PROVISIONER RECLAIMPOLICY VOLUMEBINDINGMODE ALLOWVOLUMEEXPANSION AGE
nfs-csi nfs.csi.k8s.io Delete Immediate true 7sroot@k8s-master:~/spring-boot-helloWorld# cat pvc-nfs-csi-dynamic.yaml
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: pvc-nfs-dynamic
namespace: default
spec:
accessModes:
- ReadWriteMany
resources:
requests:
storage: 10Gi
storageClassName: nfs-csi
root@k8s-master:~/spring-boot-helloWorld# kubectl apply -f pvc-nfs-csi-dynamic.yaml
root@k8s-master:~/spring-boot-helloWorld# cat maven-cache.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: maven-cache
namespace: default # 确保与PipelineRun同命名空间
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 5Gi
storageClassName: nfs-csi # 使用您已有的StorageClass
root@k8s-master:~/spring-boot-helloWorld# kubectl apply -f maven-cache.yamlroot@k8s-master:~/tekton-and-argocd-in-practise/04-tekton-pipeline-in-practise/01-s2i-no-push# cat 01-task-git-clone.yaml
apiVersion: tekton.dev/v1
kind: Task
metadata:
name: git-clone
spec:
description: Clone the code repository to the workspace.
params:
- name: url
type: string
description: git url to clone
default: ""
- name: branch
type: string
description: git branch to checkout
default: "main"
workspaces:
- name: source
description: The git repo will be cloned onto the volume backing this workspace
steps:
- name: git-clone
image: alpine/git:v2.45.2
script: git clone -b $(params.branch) -v $(params.url) $(workspaces.source.path)/source
root@k8s-master:~/tekton-and-argocd-in-practise/04-tekton-pipeline-in-practise/01-s2i-no-push# cat 02-task-source-build.yaml
apiVersion: tekton.dev/v1
kind: Task
metadata:
name: build-to-package
spec:
description: build application and package the files to image
workspaces:
- name: source
description: The git repo that cloned onto the volume backing this workspace
steps:
- name: build
image: maven:3.8.7-eclipse-temurin-11-alpine
workingDir: $(workspaces.source.path)/source
volumeMounts:
- name: m2
mountPath: /root/.m2
script: |
curl -sL https://gitee.com/mageedu/spring-boot-helloWorld/raw/main/maven/settings.xml -o /usr/share/maven/conf/settings.xml
mvn clean install
volumes:
- name: m2
persistentVolumeClaim:
claimName: maven-cache
root@k8s-master:~/tekton-and-argocd-in-practise/04-tekton-pipeline-in-practise/01-s2i-no-push# cat 03-task-build-image.yaml
apiVersion: tekton.dev/v1
kind: Task
metadata:
name: image-build
spec:
description: package the application files to image
params:
- name: dockerfile
description: The path to the dockerfile to build (relative to the context)
default: Dockerfile
- name: image-url
description: Url of image repository
- name: image-tag
description: Tag to apply to the built image
default: latest
workspaces:
- name: source
steps:
- name: build-and-push-image
#image: gcr.io/kaniko-project/executor:debug
image: gcr.io/kaniko-project/executor:v1.23.2
securityContext:
runAsUser: 0
command:
- /kaniko/executor
args:
- --dockerfile=$(params.dockerfile)
- --context=$(workspaces.source.path)/source
- --insecure
- --insecure-pull
- --skip-tls-verify
- --skip-tls-verify-pull
- --no-push
root@k8s-master:~/tekton-and-argocd-in-practise/04-tekton-pipeline-in-practise/01-s2i-no-push# cat 04-pipeline-source-to-image.yaml
apiVersion: tekton.dev/v1
kind: Pipeline
metadata:
name: source-to-image
spec:
params:
- name: git-url
- name: pathToContext
description: The path to the build context, used by Kaniko - within the workspace
default: .
- name: image-url
description: Url of image repository
- name: image-tag
description: Tag to apply to the built image
workspaces:
- name: codebase
tasks:
- name: git-clone
taskRef:
name: git-clone
params:
- name: url
value: "$(params.git-url)"
workspaces:
- name: source
workspace: codebase
- name: build-to-package
taskRef:
name: build-to-package
workspaces:
- name: source
workspace: codebase
runAfter:
- git-clone
- name: image-build
taskRef:
name: image-build
params:
- name: image-url
value: "$(params.image-url)"
- name: image-tag
value: "$(params.image-tag)"
workspaces:
- name: source
workspace: codebase
runAfter:
- build-to-package
root@k8s-master:~/tekton-and-argocd-in-practise/04-tekton-pipeline-in-practise/01-s2i-no-push# cat 05-pipelinerun-source-to-image.yaml

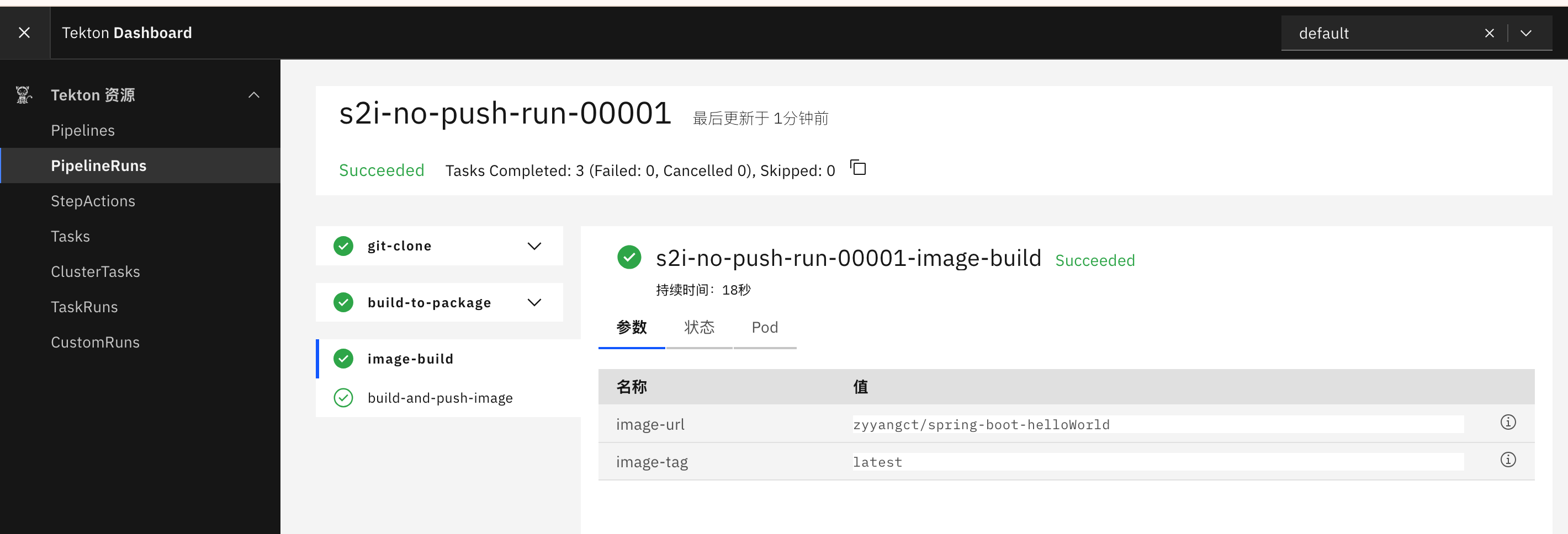

apiVersion: tekton.dev/v1
kind: PipelineRun
metadata:
name: s2i-no-push-run-00001
spec:
pipelineRef:
name: source-to-image
params:
- name: git-url
#value: https://gitee.com/mageedu/spring-boot-helloWorld.git
# 从本地仓库克隆代码，其Dockerfile中引用的Image修改为可访问的位置
value: https://gitee.com/zyyangct/spring-boot-helloWorld.git
- name: image-url
value: zyyangct/spring-boot-helloWorld
- name: image-tag
value: latest
workspaces:
- name: codebase
volumeClaimTemplate:
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 1Gi
storageClassName: nfs-csi代码地址
https://gitee.com/zyyangct/spring-boot-helloWorld
将代码打包到镜像中并上传到阿里云镜像仓库
创建镜像仓库认证
root@k8s-master:~/tekton-and-argocd-in-practise/04-tekton-pipeline-in-practise/02-s2i-push-to-dockerhub# kubectl create secret generic docker-config --from-file=/root/.docker/config.json
root@k8s-master:~/tekton-and-argocd-in-practise/04-tekton-pipeline-in-practise/02-s2i-push-to-dockerhub# kubectl get secret
NAME TYPE DATA AGE
docker-config Opaque 1 29mroot@k8s-master:~/tekton-and-argocd-in-practise/04-tekton-pipeline-in-practise/02-s2i-push-to-dockerhub# cat 01-task-git-clone.yaml
apiVersion: tekton.dev/v1
kind: Task
metadata:
name: git-clone
spec:
description: Clone the code repository to the workspace.
params:
- name: url
type: string
description: git url to clone
default: ""
- name: branch
type: string
description: git branch to checkout
default: "main"
workspaces:
- name: source
description: The git repo will be cloned onto the volume backing this workspace
steps:
- name: git-clone
image: alpine/git:v2.45.2
script: git clone -b $(params.branch) -v $(params.url) $(workspaces.source.path)/source
root@k8s-master:~/tekton-and-argocd-in-practise/04-tekton-pipeline-in-practise/02-s2i-push-to-dockerhub# cat 02-task-source-build.yaml
apiVersion: tekton.dev/v1
kind: Task
metadata:
name: build-to-package
spec:
description: build application and package the files to image
workspaces:
- name: source
description: The git repo that cloned onto the volume backing this workspace
steps:
- name: build
image: maven:3.8.7-eclipse-temurin-11-alpine
workingDir: $(workspaces.source.path)/source
volumeMounts:
- name: m2
mountPath: /root/.m2
script: |
curl -sL https://gitee.com/mageedu/spring-boot-helloWorld/raw/main/maven/settings.xml -o /usr/share/maven/conf/settings.xml
mvn clean install
volumes:
- name: m2
persistentVolumeClaim:
claimName: maven-cache
root@k8s-master:~/tekton-and-argocd-in-practise/04-tekton-pipeline-in-practise/02-s2i-push-to-dockerhub# cat 03-task-build-image.yaml
apiVersion: tekton.dev/v1
kind: Task
metadata:
name: image-build-and-push
spec:
description: package the application files to image
params:
- name: dockerfile
description: The path to the dockerfile to build (relative to the context)
default: Dockerfile
- name: image-url
description: Url of image repository
- name: image-tag
description: Tag to apply to the built image
default: latest
workspaces:
- name: source
- name: dockerconfig
# Secret resource which contains identity to image registry
mountPath: /kaniko/.docker
steps:
- name: image-build-and-push
image: gcr.io/kaniko-project/executor:debug
#image: gcr.io/kaniko-project/executor:v1.23.2
securityContext:
runAsUser: 0
env:
- name: DOCKER_CONFIG
value: /kaniko/.docker
command:
- /kaniko/executor
args:
- --dockerfile=$(params.dockerfile)
- --context=$(workspaces.source.path)/source
- --insecure
- --insecure-pull
- --skip-tls-verify
- --skip-tls-verify-pull
- --skip-push-permission-check
- --destination=$(params.image-url):$(params.image-tag)
root@k8s-master:~/tekton-and-argocd-in-practise/04-tekton-pipeline-in-practise/02-s2i-push-to-dockerhub# cat 04-pipeline-source-to-image.yaml
apiVersion: tekton.dev/v1
kind: Pipeline
metadata:
name: source-to-image
spec:
params:
- name: git-url
- name: pathToContext
description: The path to the build context, used by Kaniko - within the workspace
default: .
- name: image-url
description: Url of image repository
- name: image-tag
description: Tag to apply to the built image
workspaces:
- name: codebase
- name: docker-config
tasks:
- name: git-clone
taskRef:
name: git-clone
params:
- name: url
value: "$(params.git-url)"
workspaces:
- name: source
workspace: codebase
- name: build-to-package
taskRef:
name: build-to-package
workspaces:
- name: source
workspace: codebase
runAfter:
- git-clone
- name: image-build-and-push
taskRef:
name: image-build-and-push
params:
- name: image-url
value: "$(params.image-url)"
- name: image-tag
value: "$(params.image-tag)"
workspaces:
- name: source
workspace: codebase
- name: dockerconfig
workspace: docker-config
runAfter:
- build-to-package
root@k8s-master:~/tekton-and-argocd-in-practise/04-tekton-pipeline-in-practise/02-s2i-push-to-dockerhub# cat 05-pipelinerun-source-to-image.yaml
apiVersion: tekton.dev/v1
kind: PipelineRun
metadata:
name: s2i-image-push-run-00001
spec:
pipelineRef:
name: source-to-image
params:
- name: git-url
#value: https://gitee.com/mageedu/spring-boot-helloWorld.git
value: https://gitee.com/zyyangct/spring-boot-helloWorld.git
- name: image-url
#value: ikubernetes/spring-boot-helloworld
value: registry.cn-beijing.aliyuncs.com/yzybaseimages/tekton
- name: image-tag
value: helloWorld-v0.9.3
workspaces:
- name: codebase
volumeClaimTemplate:
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 1Gi
storageClassName: nfs-csi
- name: docker-config
secret:
secretName: docker-config
root@k8s-master:~/tekton-and-argocd-in-practise/04-tekton-pipeline-in-practise/02-s2i-push-to-dockerhub# kubectl apply -f ./
task.tekton.dev/git-clone created
task.tekton.dev/build-to-package created
task.tekton.dev/image-build-and-push created
pipeline.tekton.dev/source-to-image created
pipelinerun.tekton.dev/s2i-image-push-run-00001 created

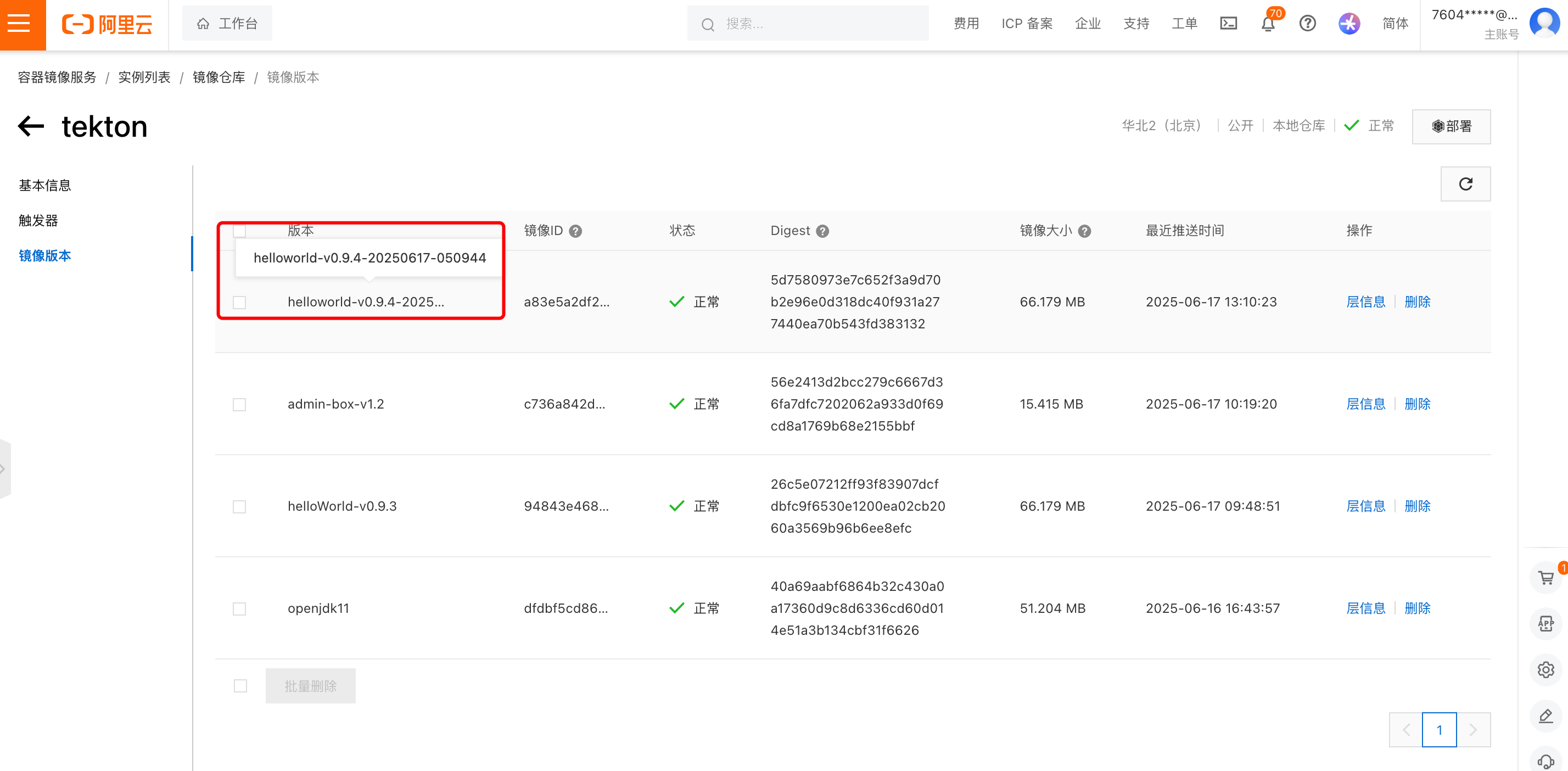

阿里云镜像仓库也有了我刚打包的镜像

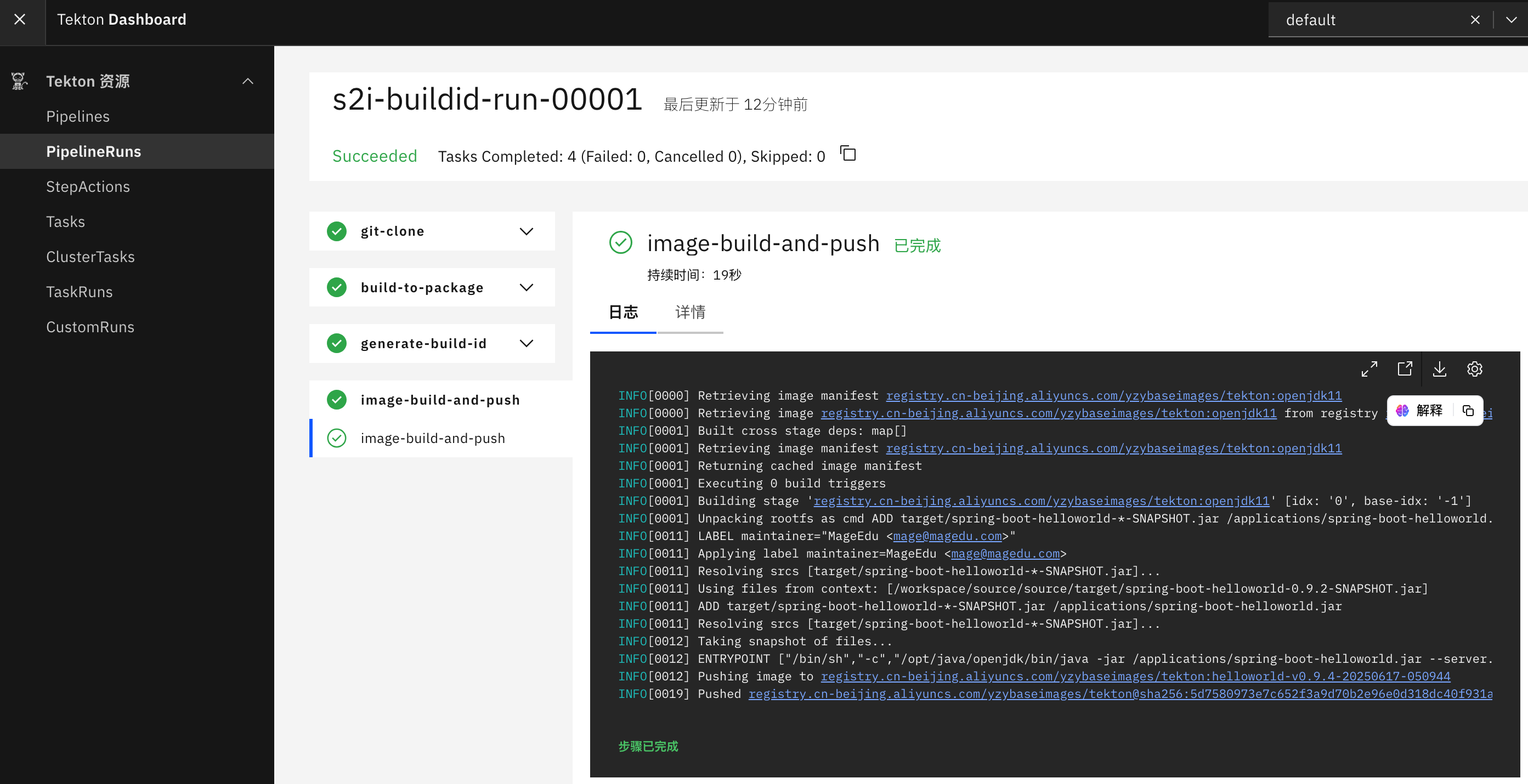

打包镜像时候添加 build-id
root@k8s-master:~/tekton-and-argocd-in-practise/04-tekton-pipeline-in-practise/03-s2i-auto-gen-build-id# cat 01-task-git-clone.yaml
apiVersion: tekton.dev/v1
kind: Task
metadata:
name: git-clone
spec:
description: Clone the code repository to the workspace.
params:
- name: url
type: string
description: git url to clone
default: ""
- name: branch
type: string
description: git branch to checkout
default: "main"
workspaces:
- name: source
description: The git repo will be cloned onto the volume backing this workspace
steps:
- name: git-clone
image: alpine/git:v2.45.2
script: git clone -b $(params.branch) -v $(params.url) $(workspaces.source.path)/source
root@k8s-master:~/tekton-and-argocd-in-practise/04-tekton-pipeline-in-practise/03-s2i-auto-gen-build-id# cat 02-task-source-build.yaml
apiVersion: tekton.dev/v1
kind: Task
metadata:
name: build-to-package
spec:
description: build application and package the files to image
workspaces:
- name: source
description: The git repo that cloned onto the volume backing this workspace
steps:
- name: build
#image: maven:3.8-openjdk-11-slim
image: maven:3.8.7-eclipse-temurin-11-alpine
workingDir: $(workspaces.source.path)/source
volumeMounts:
- name: m2
mountPath: /root/.m2
script: |
curl -sL https://gitee.com/mageedu/spring-boot-helloWorld/raw/main/maven/settings.xml -o /usr/share/maven/conf/settings.xml
mvn clean install
volumes:
- name: m2
persistentVolumeClaim:
claimName: maven-cache
root@k8s-master:~/tekton-and-argocd-in-practise/04-tekton-pipeline-in-practise/03-s2i-auto-gen-build-id# cat 03-generate-build-id.yaml
apiVersion: tekton.dev/v1
kind: Task
metadata:
name: generate-build-id
spec:
params:
- name: version
description: The version of the application
type: string
results:
- name: datetime
description: The current date and time
- name: buildId
description: The build ID
steps:
- name: generate-datetime
image: registry.cn-beijing.aliyuncs.com/yzybaseimages/tekton:admin-box-v1.2
script: |
#!/usr/bin/env bash
datetime=`date +%Y%m%d-%H%M%S`
echo -n ${datetime} | tee $(results.datetime.path)
- name: generate-buildid
image: ikubernetes/admin-box:v1.2
script: |
#!/usr/bin/env bash
buildDatetime=`cat $(results.datetime.path)`
buildId=$(params.version)-${buildDatetime}
echo -n ${buildId} | tee $(results.buildId.path)
root@k8s-master:~/tekton-and-argocd-in-practise/04-tekton-pipeline-in-practise/03-s2i-auto-gen-build-id# cat 04-task-build-image.yaml
apiVersion: tekton.dev/v1
kind: Task
metadata:
name: image-build-and-push
spec:
description: package the application files to image
params:
- name: dockerfile
description: The path to the dockerfile to build (relative to the context)
default: Dockerfile
- name: image-url
description: Url of image repository
- name: image-tag
description: Tag to apply to the built image
workspaces:
- name: source
- name: dockerconfig
mountPath: /kaniko/.docker
steps:
- name: image-build-and-push
#image: gcr.io/kaniko-project/executor:debug
image: gcr.io/kaniko-project/executor:v1.23.2
securityContext:
runAsUser: 0
env:
- name: DOCKER_CONFIG
value: /kaniko/.docker
command:
- /kaniko/executor
args:
- --dockerfile=$(params.dockerfile)
- --context=$(workspaces.source.path)/source
- --insecure
- --insecure-pull
- --skip-tls-verify
- --skip-tls-verify-pull
- --skip-push-permission-check
- --destination=$(params.image-url):$(params.image-tag)
root@k8s-master:~/tekton-and-argocd-in-practise/04-tekton-pipeline-in-practise/03-s2i-auto-gen-build-id# cat 05-pipeline-source-to-image.yaml
apiVersion: tekton.dev/v1
kind: Pipeline
metadata:
name: source-to-image
spec:
params:
- name: git-url
- name: pathToContext
description: The path to the build context, used by Kaniko - within the workspace
default: .
- name: image-url
description: Url of image repository
- name: version
description: The version of the application
type: string
default: "v0.9"
#results:
# - name: datetime
# description: The current date and time
# - name: buildId
# description: The build ID
workspaces:
- name: codebase
- name: docker-config
tasks:
- name: git-clone
taskRef:
name: git-clone
params:
- name: url
value: "$(params.git-url)"
workspaces:
- name: source
workspace: codebase
- name: build-to-package
taskRef:
name: build-to-package
workspaces:
- name: source
workspace: codebase
runAfter:
- git-clone
- name: generate-build-id
taskRef:
name: generate-build-id
params:
- name: version
value: "$(params.version)"
runAfter:
- git-clone
- name: image-build-and-push
taskRef:
name: image-build-and-push
params:
- name: image-url
value: "$(params.image-url)"
- name: image-tag
value: "$(tasks.generate-build-id.results.buildId)"
workspaces:
- name: source
workspace: codebase
- name: dockerconfig
workspace: docker-config
runAfter:
- generate-build-id
- build-to-package
root@k8s-master:~/tekton-and-argocd-in-practise/04-tekton-pipeline-in-practise/03-s2i-auto-gen-build-id# cat 06-pipelinerun-source-to-image.yaml
apiVersion: tekton.dev/v1
kind: PipelineRun
metadata:
name: s2i-buildid-run-00001
spec:
pipelineRef:
name: source-to-image
params:
- name: git-url
value: https://gitee.com/zyyangct/spring-boot-helloWorld.git
- name: image-url
value: registry.cn-beijing.aliyuncs.com/yzybaseimages/tekton
- name: version
value: helloworld-v0.9.4
workspaces:
- name: codebase
volumeClaimTemplate:
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 1Gi
storageClassName: nfs-csi
- name: docker-config
secret:
secretName: docker-configroot@k8s-master:~/tekton-and-argocd-in-practise/04-tekton-pipeline-in-practise/03-s2i-auto-gen-build-id# kubectl apply -f .
task.tekton.dev/git-clone created
task.tekton.dev/build-to-package created
task.tekton.dev/generate-build-id created
task.tekton.dev/image-build-and-push created
pipeline.tekton.dev/source-to-image created
pipelinerun.tekton.dev/s2i-buildid-run-00001 created

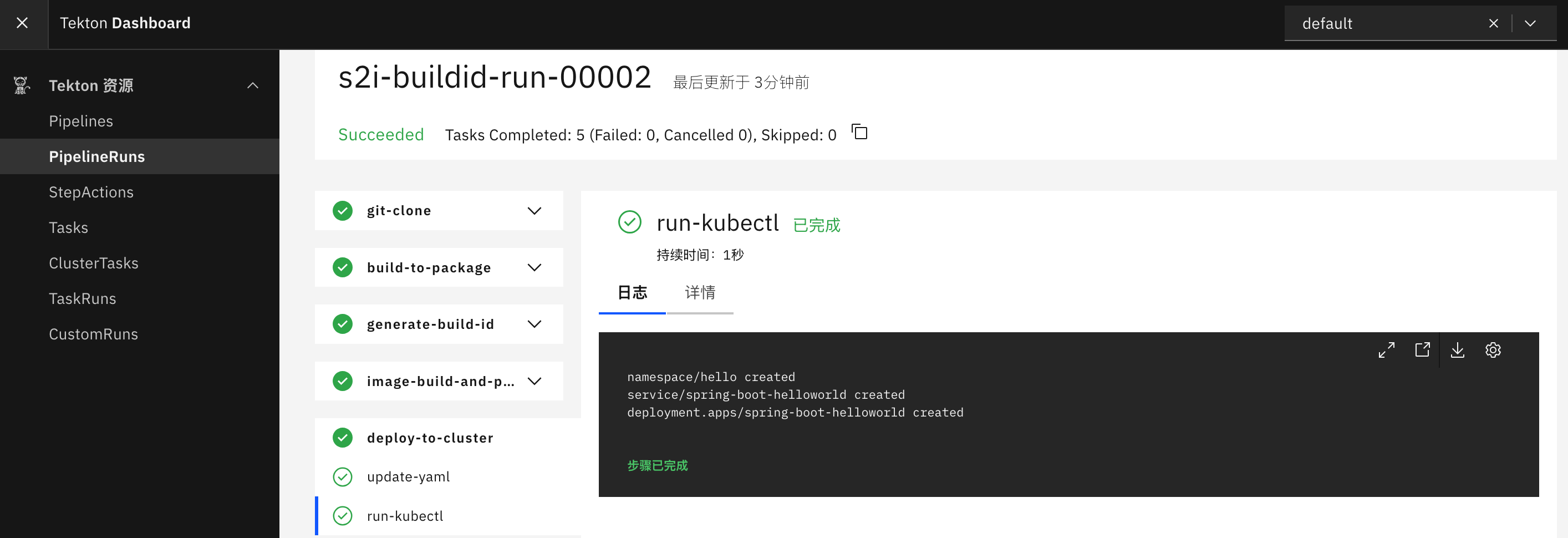

构建镜像并发布到K8S集群
root@k8s-master:~/tekton-and-argocd-in-practise/04-tekton-pipeline-in-practise/04-s2i-auto-deploy# cat 01-task-git-clone.yaml
apiVersion: tekton.dev/v1
kind: Task
metadata:
name: git-clone
spec:
description: Clone the code repository to the workspace.
params:
- name: url
type: string
description: git url to clone
default: ""
- name: branch
type: string
description: git branch to checkout
default: "main"
workspaces:
- name: source
description: The git repo will be cloned onto the volume backing this workspace
steps:
- name: git-clone
image: alpine/git:v2.45.2
script: git clone -b $(params.branch) -v $(params.url) $(workspaces.source.path)/source
root@k8s-master:~/tekton-and-argocd-in-practise/04-tekton-pipeline-in-practise/04-s2i-auto-deploy# cat 02-task-source-build.yaml
apiVersion: tekton.dev/v1
kind: Task
metadata:
name: build-to-package
spec:
description: build application and package the files to image
workspaces:
- name: source
description: The git repo that cloned onto the volume backing this workspace
steps:
- name: build
#image: maven:3.8-openjdk-11-slim
image: maven:3.8.7-eclipse-temurin-11-alpine
workingDir: $(workspaces.source.path)/source
volumeMounts:
- name: m2
mountPath: /root/.m2
script: |
curl -sL https://gitee.com/mageedu/spring-boot-helloWorld/raw/main/maven/settings.xml -o /usr/share/maven/conf/settings.xml
mvn clean install
volumes:
- name: m2
persistentVolumeClaim:
claimName: maven-cache
root@k8s-master:~/tekton-and-argocd-in-practise/04-tekton-pipeline-in-practise/04-s2i-auto-deploy# cat 03-generate-build-id.yaml
apiVersion: tekton.dev/v1
kind: Task
metadata:
name: generate-build-id
spec:
params:
- name: version
description: The version of the application
type: string
results:
- name: datetime
description: The current date and time
- name: buildId
description: The build ID
steps:
- name: generate-datetime
image: ikubernetes/admin-box:v1.2
script: |
#!/usr/bin/env bash
datetime=`date +%Y%m%d-%H%M%S`
echo -n ${datetime} | tee $(results.datetime.path)
- name: generate-buildid
image: ikubernetes/admin-box:v1.2
script: |
#!/usr/bin/env bash
buildDatetime=`cat $(results.datetime.path)`
buildId=$(params.version)-${buildDatetime}
echo -n ${buildId} | tee $(results.buildId.path)
root@k8s-master:~/tekton-and-argocd-in-practise/04-tekton-pipeline-in-practise/04-s2i-auto-deploy# cat 04-task-build-image.yaml
apiVersion: tekton.dev/v1
kind: Task
metadata:
name: image-build-and-push
spec:
description: package the application files to image
params:
- name: dockerfile
description: The path to the dockerfile to build (relative to the context)
default: Dockerfile
- name: image-url
description: Url of image repository
- name: image-tag
description: Tag to apply to the built image
workspaces:
- name: source
- name: dockerconfig
mountPath: /kaniko/.docker
steps:
- name: image-build-and-push
#image: gcr.io/kaniko-project/executor:debug
image: gcr.io/kaniko-project/executor:v1.23.2
securityContext:
runAsUser: 0
env:
- name: DOCKER_CONFIG
value: /kaniko/.docker
command:
- /kaniko/executor
args:
- --dockerfile=$(params.dockerfile)
- --context=$(workspaces.source.path)/source
- --insecure
- --insecure-pull
- --skip-tls-verify
- --skip-tls-verify-pull
- --skip-push-permission-check
- --destination=$(params.image-url):$(params.image-tag)
root@k8s-master:~/tekton-and-argocd-in-practise/04-tekton-pipeline-in-practise/04-s2i-auto-deploy# cat 05-task-deploy.yaml
apiVersion: tekton.dev/v1
kind: Task
metadata:
name: deploy-using-kubectl
spec:
workspaces:
- name: source
description: The git repo
params:
- name: deploy-config-file
description: The path to the yaml file to deploy within the git source
- name: image-url
description: Image name including repository
- name: image-tag
description: Image tag
steps:
- name: update-yaml
image: alpine:3.20
command: ["sed"]
args:
- "-i"
- "-e"
- "s@__IMAGE__@$(params.image-url):$(params.image-tag)@g"
- "$(workspaces.source.path)/source/deploy/$(params.deploy-config-file)"
- name: run-kubectl
#image: lachlanevenson/k8s-kubectl
image: bitnami/kubectl
command: ["kubectl"]
args:
- "apply"
- "-f"
- "$(workspaces.source.path)/source/deploy/$(params.deploy-config-file)"
root@k8s-master:~/tekton-and-argocd-in-practise/04-tekton-pipeline-in-practise/04-s2i-auto-deploy# cat 06-pipeline-source-to-image.yaml
apiVersion: tekton.dev/v1
kind: Pipeline
metadata:
name: source-to-image
spec:
params:
- name: git-url
- name: pathToContext
description: The path to the build context, used by Kaniko - within the workspace
default: .
- name: image-url
description: Url of image repository
- name: deploy-config-file
description: The path to the yaml file to deploy within the git source
default: all-in-one.yaml
- name: version
description: The version of the application
type: string
default: "v0.9"
#results:
# - name: datetime
# description: The current date and time
# - name: buildId
# description: The build ID
workspaces:
- name: codebase
- name: docker-config
tasks:
- name: git-clone
taskRef:
name: git-clone
params:
- name: url
value: "$(params.git-url)"
workspaces:
- name: source
workspace: codebase
- name: build-to-package
taskRef:
name: build-to-package
workspaces:
- name: source
workspace: codebase
runAfter:
- git-clone
- name: generate-build-id
taskRef:
name: generate-build-id
params:
- name: version
value: "$(params.version)"
runAfter:
- git-clone
- name: image-build-and-push
taskRef:
name: image-build-and-push
params:
- name: image-url
value: "$(params.image-url)"
- name: image-tag
value: "$(tasks.generate-build-id.results.buildId)"
workspaces:
- name: source
workspace: codebase
- name: dockerconfig
workspace: docker-config
runAfter:
- generate-build-id
- build-to-package
- name: deploy-to-cluster
taskRef:
name: deploy-using-kubectl
workspaces:
- name: source
workspace: codebase
params:
- name: deploy-config-file
value: $(params.deploy-config-file)
- name: image-url
value: $(params.image-url)
- name: image-tag
value: "$(tasks.generate-build-id.results.buildId)"
runAfter:
- image-build-and-push
root@k8s-master:~/tekton-and-argocd-in-practise/04-tekton-pipeline-in-practise/04-s2i-auto-deploy# cat 07-rbac.yaml
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: helloworld-admin
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: helloworld-admin
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: cluster-admin
subjects:
- kind: ServiceAccount
name: helloworld-admin
namespace: default
root@k8s-master:~/tekton-and-argocd-in-practise/04-tekton-pipeline-in-practise/04-s2i-auto-deploy# cat 08-pipelinerun-source-to-image.yaml
apiVersion: tekton.dev/v1
kind: PipelineRun
metadata:
name: s2i-buildid-run-00002
spec:
pipelineRef:
name: source-to-image
taskRunSpecs:
- pipelineTaskName: deploy-to-cluster
serviceAccountName: helloworld-admin
params:
- name: git-url
value: https://gitee.com/zyyangct/spring-boot-helloWorld.git
- name: image-url
value: registry.cn-beijing.aliyuncs.com/yzybaseimages/tekton
- name: version
value: v0.9
workspaces:
- name: codebase
volumeClaimTemplate:
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 1Gi
storageClassName: nfs-csi
- name: docker-config
secret:
secretName: docker-configroot@k8s-master:~/tekton-and-argocd-in-practise/04-tekton-pipeline-in-practise/04-s2i-auto-deploy# kubectl apply -f .
task.tekton.dev/git-clone configured
task.tekton.dev/build-to-package configured
task.tekton.dev/generate-build-id configured
task.tekton.dev/image-build-and-push configured
task.tekton.dev/deploy-using-kubectl created
pipeline.tekton.dev/source-to-image configured
serviceaccount/helloworld-admin created
clusterrolebinding.rbac.authorization.k8s.io/helloworld-admin created
pipelinerun.tekton.dev/s2i-buildid-run-00002 created
验证
root@k8s-master:~/tekton-and-argocd-in-practise/04-tekton-pipeline-in-practise/04-s2i-auto-deploy# kubectl get pods -n hello
NAME READY STATUS RESTARTS AGE
spring-boot-helloworld-5947fdd9d7-56hz9 1/1 Running 0 48s
root@k8s-master:~/tekton-and-argocd-in-practise/04-tekton-pipeline-in-practise/04-s2i-auto-deploy# kubectl get svc -n hello
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
spring-boot-helloworld NodePort 10.101.44.176 <none> 80:30162/TCP 58s
浙公网安备 33010602011771号
