实验2：Open vSwitch虚拟交换机实践

实验2：Open vSwitch虚拟交换机实践

一、实验要求

1.基本要求

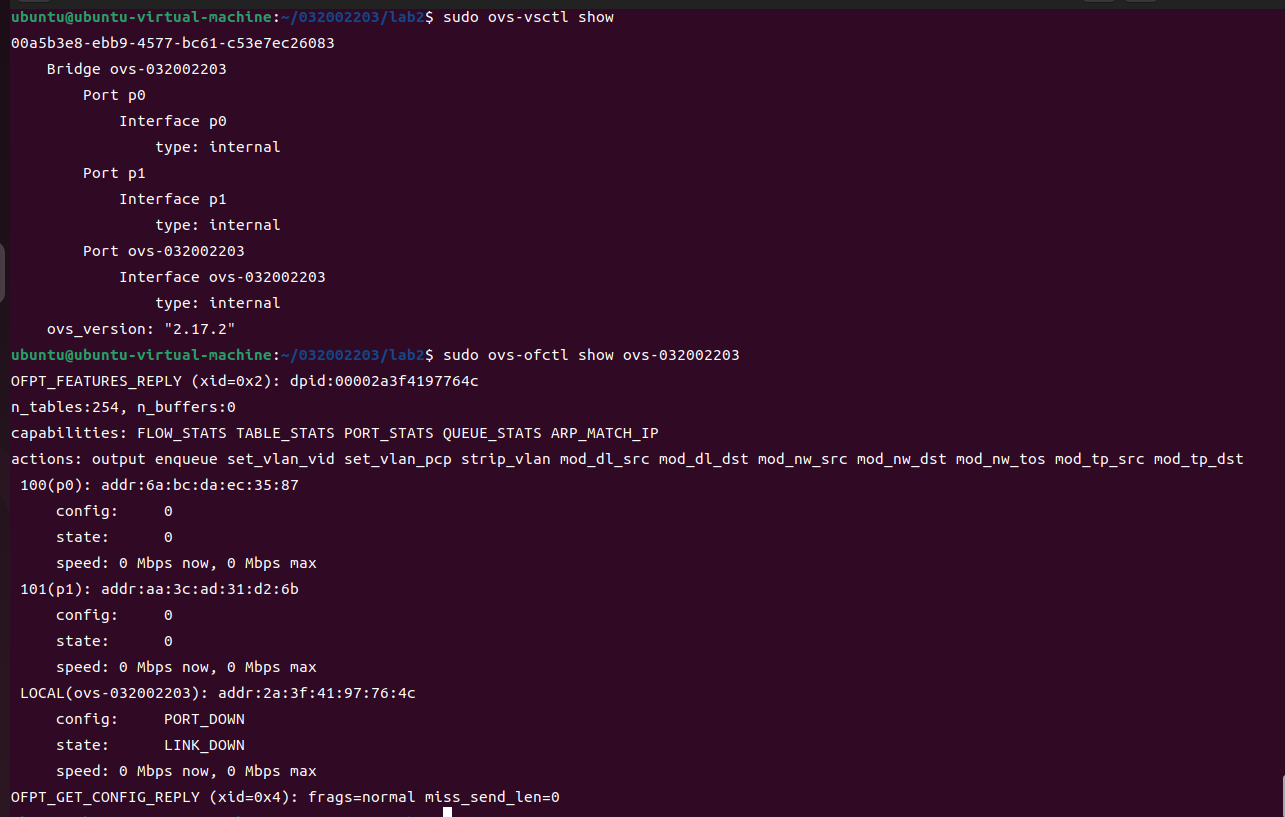

（1）执行ovs-vsctl show命令

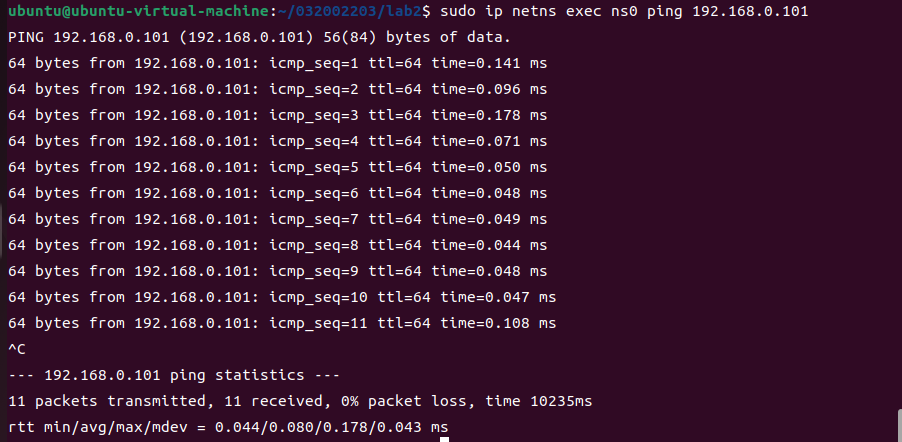

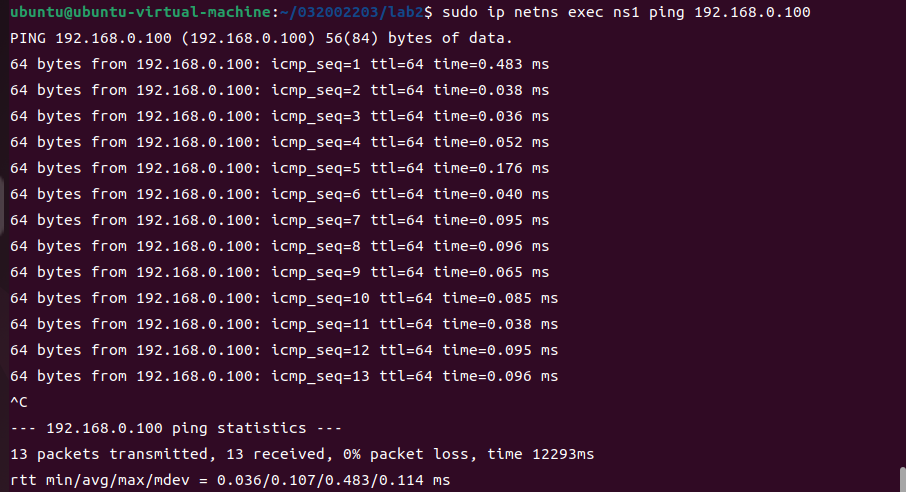

（2）p0和p1连通性测试的执行结果

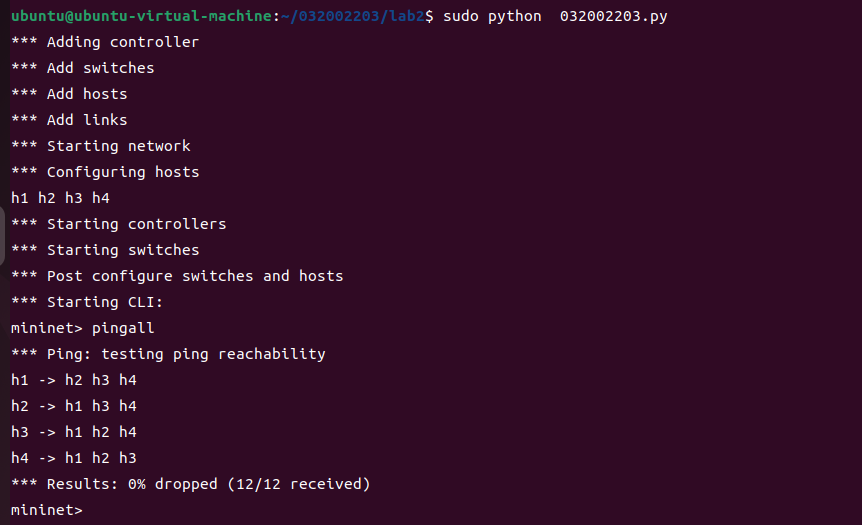

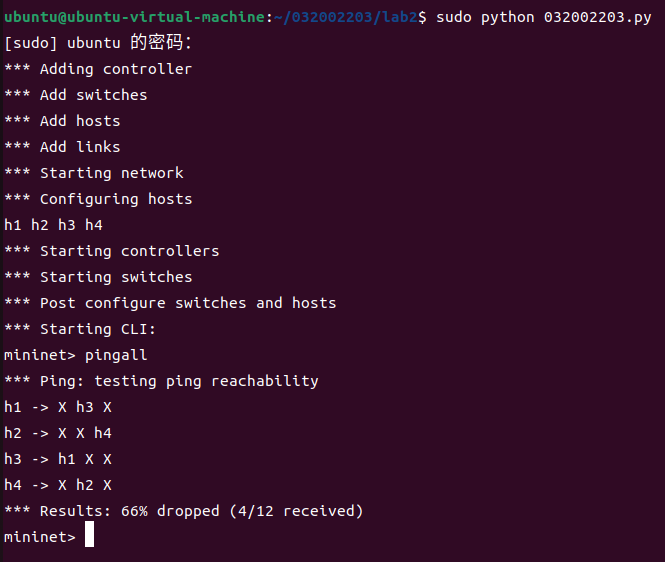

（3）开启Mininet CLI并执行pingall命令

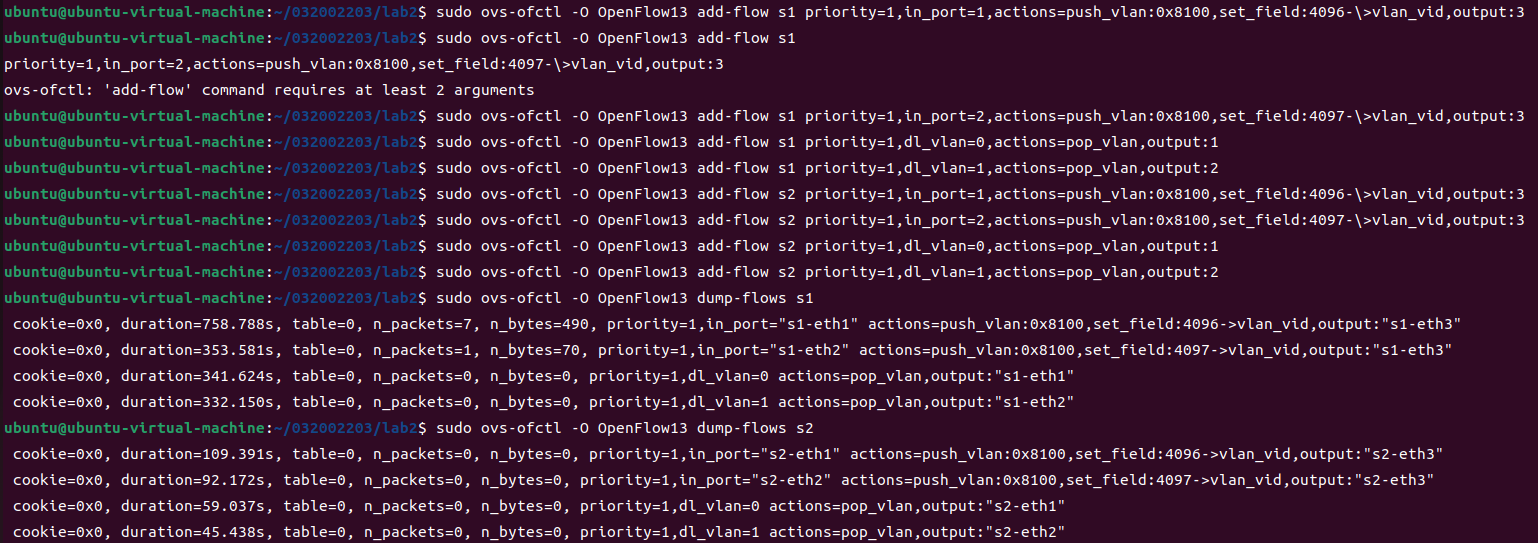

（4）上述目录下查看OVS流表的命令结果

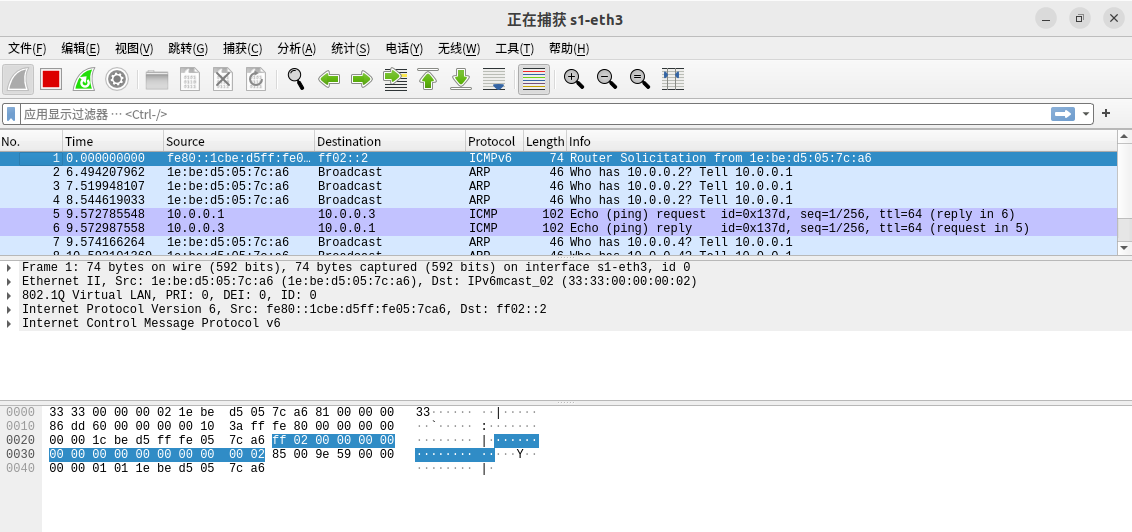

（5）wireshark抓包

2.进阶要求

（1）代码

#!/usr/bin/env python

from mininet.net import Mininet
from mininet.node import Controller, RemoteController, OVSController
from mininet.node import CPULimitedHost, Host, Node
from mininet.node import OVSKernelSwitch, UserSwitch
from mininet.node import IVSSwitch
from mininet.cli import CLI
from mininet.log import setLogLevel, info
from mininet.link import TCLink, Intf
from subprocess import call

def myNetwork():

    net = Mininet( topo=None,
                   build=False,
                   ipBase='10.0.0.0/8')

    info( '*** Adding controller\n' )
    c0=net.addController(name='c0',
                      controller=Controller,
                      protocol='tcp',
                      port=6633)

    info( '*** Add switches\n')
    s1 = net.addSwitch('s1', cls=OVSKernelSwitch)
    s2 = net.addSwitch('s2', cls=OVSKernelSwitch)

    info( '*** Add hosts\n')
    h1 = net.addHost('h1', cls=Host, ip='10.0.0.1', defaultRoute=None)
    h2 = net.addHost('h2', cls=Host, ip='10.0.0.2', defaultRoute=None)
    h3 = net.addHost('h3', cls=Host, ip='10.0.0.3', defaultRoute=None)
    h4 = net.addHost('h4', cls=Host, ip='10.0.0.4', defaultRoute=None)

    info( '*** Add links\n')
    net.addLink(h1, s1,1,1)
    net.addLink(s1, h2,2,1)
    net.addLink(s1, s2,3,3)
    net.addLink(s2, h3,1,1)
    net.addLink(s2, h4,2,1)

    info( '*** Starting network\n')
    net.build()
    info( '*** Starting controllers\n')
    for controller in net.controllers:
        controller.start()

    info( '*** Starting switches\n')
    net.get('s1').start([c0])
    net.get('s2').start([c0])

    info( '*** Post configure switches and hosts\n')
    //关键部分，添加流表
    s1.cmd('sudo ovs-ofctl -O OpenFlow13 add-flow s1 priority=1,in_port=1,actions=push_vlan:0x8100,set_field:4096-\>vlan_vid,output:3')
    s1.cmd('sudo ovs-ofctl -O OpenFlow13 add-flow s1 priority=1,in_port=2,actions=push_vlan:0x8100,set_field:4097-\>vlan_vid,output:3')
    s1.cmd('sudo ovs-ofctl -O OpenFlow13 add-flow s1 priority=1,dl_vlan=0,actions=pop_vlan,output:1')
    s1.cmd('sudo ovs-ofctl -O OpenFlow13 add-flow s1 priority=1,dl_vlan=1,actions=pop_vlan,output:2')
    s2.cmd('sudo ovs-ofctl -O OpenFlow13 add-flow s2 priority=1,in_port=1,actions=push_vlan:0x8100,set_field:4096-\>vlan_vid,output:3')
    s2.cmd('sudo ovs-ofctl -O OpenFlow13 add-flow s2 priority=1,in_port=2,actions=push_vlan:0x8100,set_field:4097-\>vlan_vid,output:3')
    s2.cmd('sudo ovs-ofctl -O OpenFlow13 add-flow s2 priority=1,dl_vlan=0,actions=pop_vlan,output:1')
    s2.cmd('sudo ovs-ofctl -O OpenFlow13 add-flow s2 priority=1,dl_vlan=1,actions=pop_vlan,output:2')

    CLI(net)
    net.stop()

if __name__ == '__main__':
    setLogLevel( 'info' )
    myNetwork()

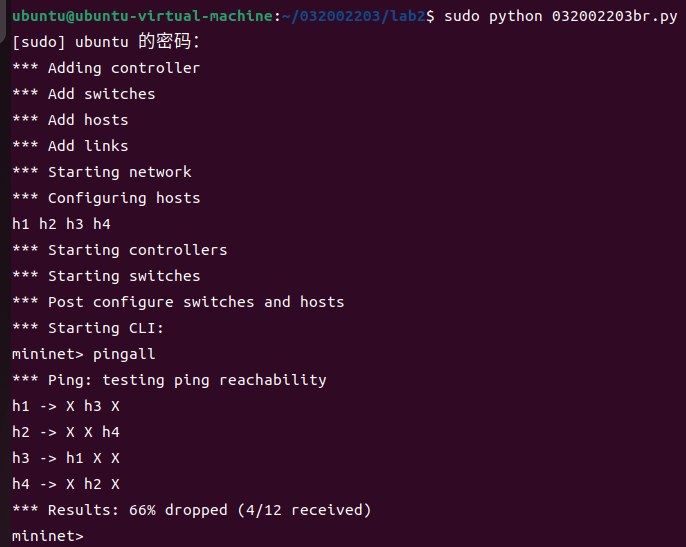

（2）执行结果

二、个人总结

本次实验难度不是很大，跟着实验指导书就差不多能一步一步做下来，而其中遇到的最大的问题，就是在添加流表时出现”ovs-ofctl: s1 is not a bridge or a socket”的错误，后来查资料发现在添加流表的同时，要在另一个终端运行mininet的python文件。同样，在运行sudo wireshark时也要在另一个终端运行mininet的python文件，然后输入pingall指令才能正确抓包。
通过本次实验，学会了对Open vSwitch进行基本操作，通过命令行终端使用OVS命令操作Open vSwitch交换机，管理流表；通过Mininet的Python代码运行OVS命令，控制网络拓扑中的Open vSwitch交换机。
