prometheus+grafana黑盒监控

安装blackbox_exporter

tar -xf blackbox_exporter-0.26.0.linux-amd64.tar.gz -C /usr/local/
mv /usr/local/blackbox_exporter-0.26.0.linux-amd64 /usr/local/blackbox_exporter

# 配置开机自启
cat  /usr/lib/systemd/system/blackbox_exporter.service
[Unit]
Description=blackbox_exporter
Documentation=https://prometheus.io/
After=network.target
[Service]
Type=simple
ExecStart=/usr/local/blackbox_exporter/blackbox_exporter  --config.file /usr/local/blackbox_exporter/blackbox.yml
Restart=on-failure
[Install]
WantedBy=multi-user.target

systemctl daemon-reload
systemctl enable blackbox_exporter.service
systemctl start    blackbox_exporter.service
systemctl status  blackbox_exporter.service

prometheus配置

vim /data/prometheus/prometheus.yml
  - job_name: "blackbox_http"
    scrape_interval: 15s
    scrape_timeout: 5s
    metrics_path: /probe
    params:
      module: [http_2xx]
    file_sd_configs:
      - files:
        - /data/prometheus/target/http.yml
    relabel_configs:
      - source_labels: [__address__]
        target_label: __param_target
      - source_labels: [__param_target]
        target_label: instance
      - target_label: __address__
        replacement: 10.0.0.63:9115
  - job_name: 'blackbox_port'
    scrape_interval: 15s
    scrape_timeout: 5s
    metrics_path: /probe
    params:
      module: [tcp_connect]
    file_sd_configs:
      - files:
        - /data/prometheus/target/port.yml
    relabel_configs:
      - source_labels: [__address__]
        target_label: __param_target
      - source_labels: [__param_target]
        target_label: instance
      - target_label: __address__
        replacement: 10.0.0.63:9115


cat /data/prometheus/target/http.yml
- targets: [http://eladmin.zqfstack.com]
  labels:
    module: 'http_2xx'
    env: 'prod'
    project: 'eladmin'
    name: 'eladmin_backend'
- targets: [http://eladmin-docker.zqfstack.com]
  labels:
    module: 'http_2xx'
    env: 'prod'
    project: 'eladmin'
    name: 'eladmin_docker_backend'
- targets: [https://ruoyi.zqfstack.com]
  labels:
    module: 'http_2xx'
    env: 'prod'
    project: 'ruoyi'
    name: 'ruoyi_backend'
- targets: [http://ruoyi-docker.zqfstack.com]
  labels:
    module: 'http_2xx'
    env: 'prod'
    project: 'ruoyi'
    name: 'ruoyi_docker_backend'

cat /data/prometheus/target/port.yml
- targets: ['10.0.0.60:53']
  labels:
    module: 'udp'
    env: 'prod'
    project: 'ops'
    name: 'ops_dnsmasq'

注意：如果https的证书是自签名证书，则需要设置跳过TLS认证。比如：

cat /usr/local/blackbox_exporter/blackbox.yml |head -n 10
modules:
  http_2xx:
    prober: http
    http:
      preferred_ip_protocol: "ip4"
      tls_config:
        insecure_skip_verify: true   # 跳过TLS认证

热加载prometheus：

curl -X POST http://localhost:9090/-/reload

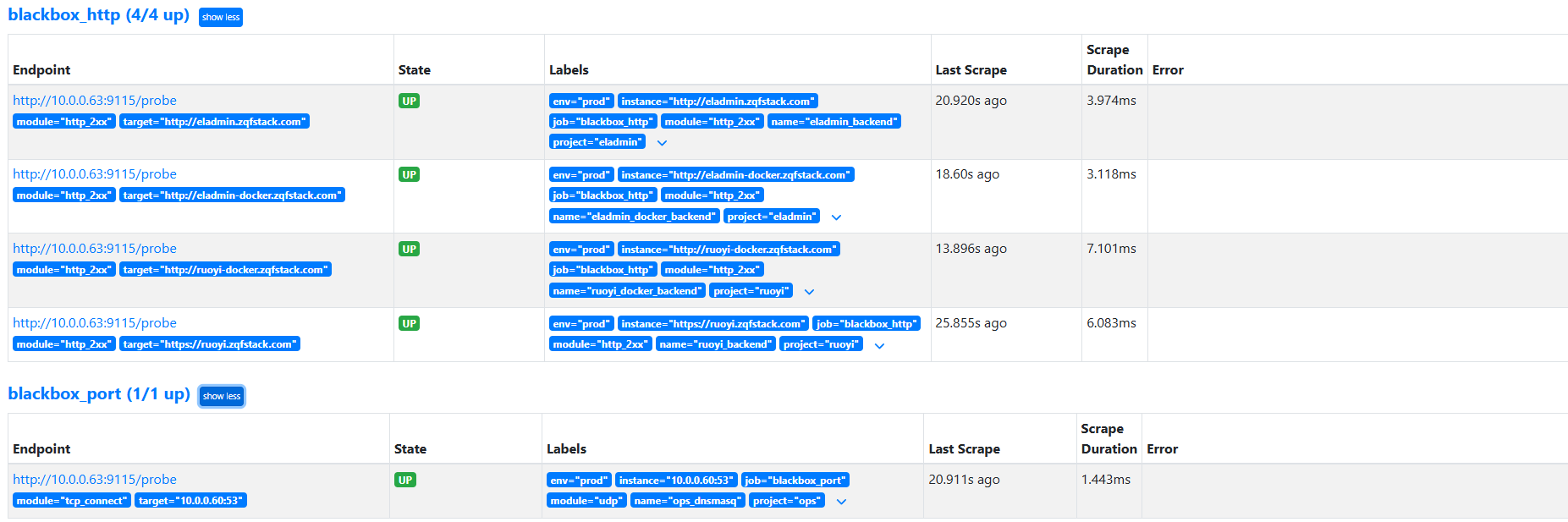

查看是否正常

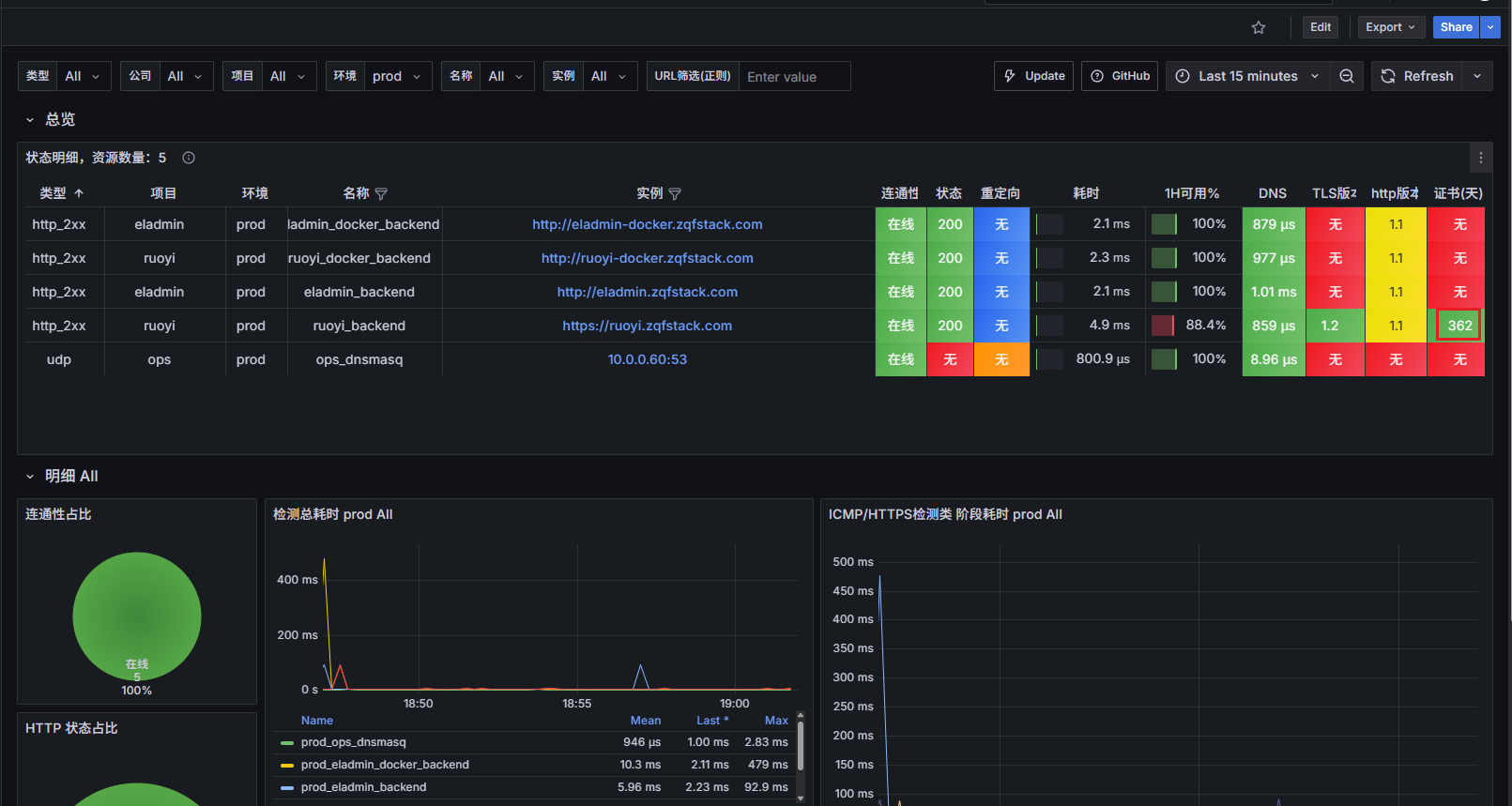

配置grafana模版

导入面板：9965
