软件开发与创新——结对编程
AAS
目录
——结对编程实现自动出计算题并改错的小程序
结对编程说明
-
成员：Oto_G(后简称为G)、Canon Curry(后简称为C)
-
G主要负责后端搭建，C主要负责前端搭建
-
开始时间2021.4.21 13:00 完成时间2021.4.24 16:00
-
下面将对结对编程主要编写者进行 斜体 标注
程序架构说明
- 使用前后端分离技术开发
- 数据库使用MySQL
- 后端使用SpringBoot框架开发
- 前端使用Quasar框架开发
代码规范说明
-
数据库
- 数据库内字段对大小写敏感
- 数据库名全大写
- 表名格式：t_<小驼峰>
- 视图格式：v_<小驼峰>
- 字段名格式：小驼峰
-
后端
- 包名前缀：com.aas.*
- 类名：大驼峰
- 变量名、方法名：小驼峰
-
前端
- 视图名：大驼峰
- 变量名、函数名：小驼峰
程序详细解读
后端
SpringBoot
Model(JavaBean) G
-
Question
定义了问题类的成员变量，与数据库表内字段匹配，主要包括ID、问题、正确答案、用户提交的答案
@Data
@NoArgsConstructor
public class Question implements Serializable{
private Long questionId;
private Date createTime;
private Integer firstNumber;
private String firstOperator;
private Integer secondNumber;
private String secondOperator;
private Integer thirdNumber;
private Double answer;
private String stringQuestion;
private Date submissionTime;
private String submissionAnswer;
private Integer isRight;
}
-
CalendarInfo
定义了当日做题信息类，其中主要包括ID、日期、完成数、最后提交时间
package com.aas.model;
import lombok.Data;
import lombok.NoArgsConstructor;
import java.io.Serializable;
import java.sql.Date;
@Data
@NoArgsConstructor
public class CalendarInfo implements Serializable {
private Long calendarId;
private Date date;
private Integer completed;
private java.util.Date latestSaveTime;
}
-
Page
定义了分页类，其中包括当前页、页面元素数量、总个数、总页数等成员变量
@Data
@NoArgsConstructor
public class Page<T> {
private Integer currentPage = 1;
private Integer pageSize = 10;
private Integer totalNum;
private Boolean isMore;
private Integer totalPage;
private Integer startIndex;
private List<T> items;
public Page(Integer currentPage, Integer pageSize, Integer totalNum){
this.currentPage = currentPage;
this.pageSize = pageSize;
this.totalNum = totalNum;
this.totalPage = (this.totalNum + this.pageSize - 1) / this.pageSize;
this.startIndex = (this.currentPage - 1) * this.pageSize;
this.isMore = this.currentPage < this.totalPage;
}
}
Util
-
NumberUtils G
-
isInt(double)
用来判断一个double类型变量是否为整数，如为整数返回真
-
public class NumberUtils {
public static boolean isInt(double a)
{
double b = a;
int b1 = (int)a;
if(b % b1 == 0)
return true;
else
return false;
}
}
-
QuestionUtils
-
generateQuestion(Date) C
用来生成问题，通过随机数的方式生成三个数字与两个运算符，同时计算正确答案，如果不为整数就再次生成问题
-
answerByQuestion(Question) G
用来给出产生的问题的正确答案
-
translateQuestion(Question) G
用来对question内的字段进行拼接，形成适合阅读的题目格式
-
public class QuestionUtils {
public static void answerByQuestion(Question question){
Double ans = 0.0;
int operatorOne = Integer.parseInt(question.getFirstOperator());
int operatorTwo = Integer.parseInt(question.getSecondOperator());
if(operatorOne >= operatorTwo){
switch (operatorOne){
case 1:
ans = question.getFirstNumber() + question.getSecondNumber() + 0.0;
break;
case 2:
ans = question.getFirstNumber() - question.getSecondNumber() + 0.0;
break;
case 3:
ans = question.getFirstNumber() * question.getSecondNumber() + 0.0;
break;
case 4:
ans = question.getFirstNumber() / Double.valueOf(question.getSecondNumber());
break;
}
switch (operatorTwo){
case 1:
ans = ans + question.getThirdNumber();
break;
case 2:
ans = ans - question.getThirdNumber();
break;
case 3:
ans = ans * question.getThirdNumber();
break;
case 4:
ans = ans / Double.valueOf(question.getThirdNumber());
break;
}
}
else{
switch (operatorTwo){
case 1:
ans = question.getSecondNumber() + question.getThirdNumber() + 0.0;
break;
case 2:
ans = question.getSecondNumber() - question.getThirdNumber() + 0.0;
break;
case 3:
ans = question.getSecondNumber() * question.getThirdNumber() + 0.0;
break;
case 4:
ans = question.getSecondNumber() / Double.valueOf(question.getThirdNumber());
break;
}
switch (operatorOne){
case 1:
ans = question.getFirstNumber() + ans;
break;
case 2:
ans = question.getFirstNumber() - ans;
break;
case 3:
ans = question.getFirstNumber() * ans;
break;
case 4:
ans = question.getFirstNumber() / ans;
break;
}
}
question.setAnswer(ans);
}
public static void translateQuestion(Question question){
StringBuilder trueQuestion = new StringBuilder();
trueQuestion.append(question.getFirstNumber()).append(" ");
switch (Integer.parseInt(question.getFirstOperator())){
case 1:
trueQuestion.append("+").append(" ");
break;
case 2:
trueQuestion.append("-").append(" ");
break;
case 3:
trueQuestion.append("*").append(" ");
break;
case 4:
trueQuestion.append("/").append(" ");
break;
}
trueQuestion.append(question.getSecondNumber()).append(" ");
switch (Integer.parseInt(question.getSecondOperator())){
case 1:
trueQuestion.append("+").append(" ");
break;
case 2:
trueQuestion.append("-").append(" ");
break;
case 3:
trueQuestion.append("*").append(" ");
break;
case 4:
trueQuestion.append("/").append(" ");
break;
}
trueQuestion.append(question.getThirdNumber()).append(" ");
trueQuestion.append("=");
question.setStringQuestion(trueQuestion.toString());
}
public static Question generateQuestion(Date createDate){
Random random = new Random();
Question question = new Question();
question.setCreateTime(createDate);
for(;;){
question.setFirstNumber(random.nextInt(100));
question.setSecondNumber(random.nextInt(100));
question.setThirdNumber(random.nextInt(100));
question.setFirstOperator(String.valueOf(random.nextInt(4)+1));
question.setSecondOperator(String.valueOf(random.nextInt(4)+1));
if(Integer.parseInt(question.getFirstOperator()) == 4 && question.getSecondNumber() == 0){
continue;
}
if(Integer.parseInt(question.getSecondOperator()) == 4 && question.getThirdNumber() == 0){
continue;
}
answerByQuestion(question);
if(question.getAnswer() >= 0 && question.getAnswer() <= 100 && NumberUtils.isInt(question.getAnswer())){
break;
}
}
translateQuestion(question);
return question;
}
}
Repository
-
CalendarInfoRepository C
-
findAllCalendar()
返回数据库内所有日程
-
countCalendar()
返回数据库内日程总数，分页需要调用此方法
-
addCalendar(CalendarInfo)
添加日程进入数据库
-
searchCalendarByDate(Date)
通过日期寻找数据库内日程
-
updateCalendar(CalendarInfo)
更新数据库内日程信息
-
@Component
public interface CalendarInfoRepository {
public List<CalendarInfo> findAllCalendar();
public Integer countCalendar();
public void addCalendar(CalendarInfo calendarInfo);
public CalendarInfo searchCalendarByDate(Date date);
public void updateCalendar(CalendarInfo calendarInfo);
}
-
QuestionRepository G
-
addQuestion(Question)
添加问题至数据库
-
countQuestionsBySubmissionDate(Date)
获取用户提交答卷后的答题数
-
countQuestionsByCreateDate(Date)
获取已经生成的题目数
-
searchQuestionByDate(Date)
获取指定日期的所有题目
-
updateSubmissionAnswer(Question)
更新用户回答
-
updateCheckedQuestion(Question)
更新答题是否正确
-
countQuestionsBySubmissionAnswer(Date)
获取用户已答题数
-
searchAnswerByDate(Date)
获取答案和对错情况
-
@Component
public interface QuestionRepository {
public void addQuestion(Question question);
public Integer countQuestionsBySubmissionDate(Date date);
public Integer countQuestionsByCreateDate(Date date);
public List<Question> searchQuestionByDate(Date date);
public void updateSubmissionAnswer(Question question);
public void updateCheckedQuestion(Question question);
public Integer countQuestionsBySubmissionAnswer(Date date);
public List<Question> searchAnswerByDate(Date date);
}
Controller
-
QuestionHandler G
-
@GetMapping askQuestion()
通过传入当前页和每页内容数，调用数据库获取对应数量的题目并返回前端
@GetMapping("/ask/{currentPage}/{pageSize}") @Transactional public Page<Question> askQuestion(@PathVariable("currentPage") Integer currentPage,@PathVariable("pageSize") Integer pageSize, HttpServletResponse response){ Date nowDate = new Date(System.currentTimeMillis()); Integer createCount = questionRepository.countQuestionsByCreateDate(nowDate); Integer hasSubmissionCount = questionRepository.countQuestionsBySubmissionDate(nowDate); if(currentPage * pageSize > 300){ response.setStatus(HttpServletResponse.SC_BAD_REQUEST); return null; } if(hasSubmissionCount > 0){ response.setStatus(HttpServletResponse.SC_NO_CONTENT); return null; } if(createCount == 300 || createCount >= currentPage * pageSize){ response.setStatus(HttpServletResponse.SC_OK); } else { response.setStatus(HttpServletResponse.SC_CREATED); int needToCreate = currentPage * pageSize - createCount; for (int i = 0; i < needToCreate; i++) { questionRepository.addQuestion(QuestionUtils.generateQuestion(nowDate)); } } PageHelper.startPage(currentPage, pageSize); List<Question> questionList = questionRepository.searchQuestionByDate(nowDate); for(Question question : questionList){ if(question.getSubmissionAnswer().equals("-1")) question.setSubmissionAnswer(null); } Page<Question> questionPage = new Page<>(currentPage, pageSize, questionRepository.countQuestionsByCreateDate(nowDate)); questionPage.setItems(questionList); return questionPage; }-
@GetMapping showAnswer()
通过传入当前页和每页内容数，调用数据库获取答案并返回前端
@GetMapping("/answer/{currentPage}/{pageSize}") public Page<Question> showAnswer(@PathVariable("currentPage") Integer currentPage,@PathVariable("pageSize") Integer pageSize, HttpServletResponse response){ Date nowDate = new Date(System.currentTimeMillis()); Integer countSubmission = questionRepository.countQuestionsBySubmissionDate(nowDate); if(countSubmission == 0){ response.setStatus(HttpServletResponse.SC_NO_CONTENT); return null; } PageHelper.startPage(currentPage, pageSize); List<Question> questionList = questionRepository.searchAnswerByDate(nowDate); for(Question question : questionList){ if(question.getSubmissionAnswer().equals("-1")) question.setSubmissionAnswer(null); } Page<Question> questionPage = new Page<>(currentPage, pageSize, questionRepository.countQuestionsByCreateDate(nowDate)); questionPage.setItems(questionList); return questionPage; }-
@PostMapping saveSubmissionAnswer()
通过传入json格式用户回答答案，将用户回答答案更新至数据库
@PostMapping("/save") @Transactional public void saveSubmissionAnswer(@RequestBody List<Question> questionList, HttpServletResponse response){ for (Question question : questionList) { if(question.getSubmissionAnswer() == null) question.setSubmissionAnswer("-1"); questionRepository.updateSubmissionAnswer(question); } }-
@GetMapping checkSubmissionAnswer()
对数据库内用户提交答案进行验证对错并更新进数据库
@GetMapping("/check") public void checkSubmissionAnswer(HttpServletResponse response){ Date nowDate = new Date(System.currentTimeMillis()); List<Question> questionList = questionRepository.searchAnswerByDate(nowDate); for(Question question : questionList){ question.setSubmissionTime(nowDate); if(Integer.parseInt(question.getSubmissionAnswer()) == question.getAnswer()){ question.setIsRight(1); } else{ question.setIsRight(0); } questionRepository.updateCheckedQuestion(question); } } -
-
CalendarInfoHandler C
-
@GetMapping originalStart()
如六十天结束，调用改方法向数据库内新增六十天日程
@GetMapping("/original") @Transactional public void originalStart(){ CalendarInfo calendarInfo = new CalendarInfo(); calendarInfo.setCompleted(0); Calendar c = Calendar.getInstance(); Date date; for(int i = 0;i < 60;i++){ c.add(Calendar.DATE,1); date = new Date(c.getTimeInMillis()); if(calendarInfoRepository.searchCalendarByDate(date) == null) { calendarInfo.setDate(date); calendarInfoRepository.addCalendar(calendarInfo); } } }-
@GetMapping askCalendar()
通过传入当前页和每页内容数，调用数据库获取对应数量的日程并返回前端
@GetMapping("/ask/{currentPage}/{pageSize}") @Transactional public Page<CalendarInfo> askCalendar(@PathVariable("currentPage") Integer currentPage,@PathVariable("pageSize") Integer pageSize, HttpServletResponse response){ PageHelper.startPage(currentPage,pageSize); List<CalendarInfo> calendarInfoList = calendarInfoRepository.findAllCalendar(); Page<CalendarInfo> calendarInfoPage = new Page<>(currentPage,pageSize,calendarInfoRepository.countCalendar()); calendarInfoPage.setItems(calendarInfoList); return calendarInfoPage; }-
@GetMapping askNowDate()
返回java.sql.Date格式日期
@GetMapping("/nowDate") @Transactional public Date askNowDate(){ return new Date(System.currentTimeMillis()); }-
GetMapping freshCalendarInfo()
根据用户当前答题数刷新数据库内字段
@GetMapping("/fresh") @Transactional public void freshCalendarInfo(){ Date nowDate = new Date(System.currentTimeMillis()); java.util.Date preciseDate = new java.util.Date(); CalendarInfo calendarInfo = calendarInfoRepository.searchCalendarByDate(nowDate); calendarInfo.setLatestSaveTime(preciseDate); calendarInfo.setCompleted(questionRepository.countQuestionsBySubmissionAnswer(nowDate)); calendarInfoRepository.updateCalendar(calendarInfo); } -
前端
Quasar
quasar.variables.scss G
界面的颜色设置
Vue文件
-
MainLayout.vue C
主要是界面上方框架的设置。
<template>
<q-layout view="hHh lpR fFf">
<q-header elevated class="bg-primary text-white">
<q-toolbar>
<q-toolbar-title>
AAS
<q-badge outline color="white" align="middle" label="Beta" />
</q-toolbar-title>
</q-toolbar>
</q-header>
<q-page-container>
<router-view />
</q-page-container>
</q-layout>
</template>
<script>
export default {
data () {
return {
}
}
}
</script>
-
index.vue G

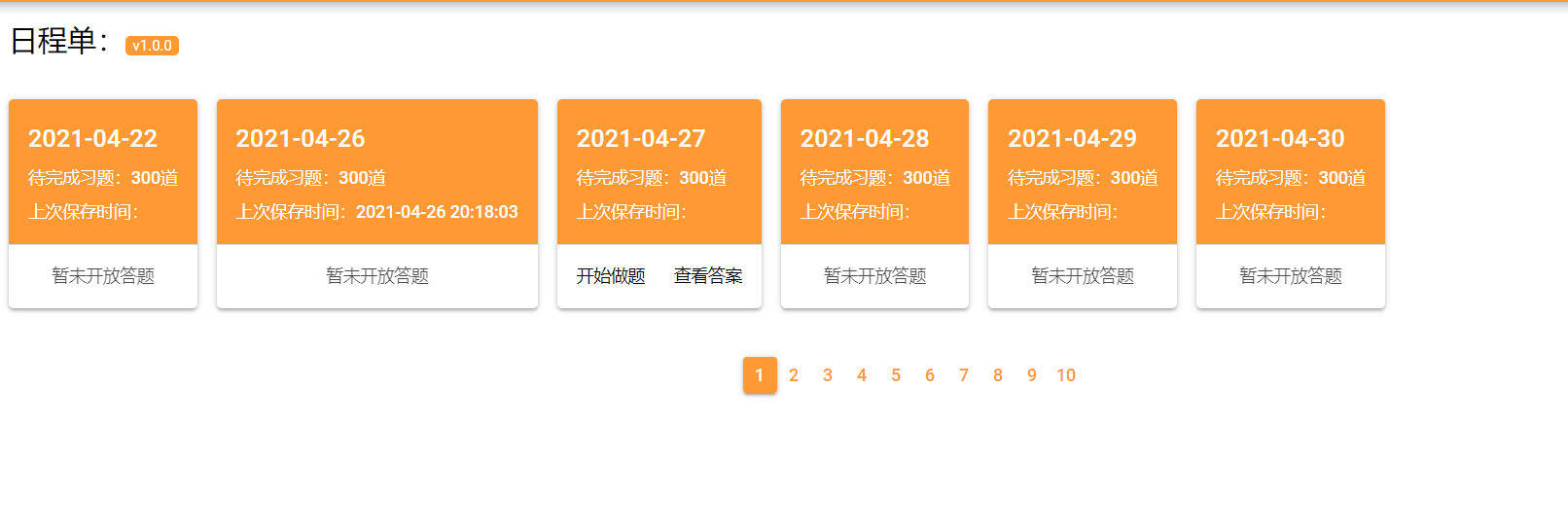

是主界面的设置（日程单界面），用户可以通过这个界面看到自己的做题进度。通过对calendarInfo变量的循环生成日程卡片。此外，开始做题和查看答案两个按钮通过router链接到了question.vue和answer.vue页面。我们还通过设置formatTime函数将数据库中DataTime类型的时间转化成了正常的时间形式。
<template>
<div>
<div class="q-pa-md text-h5 ">
日程单：<q-badge color="primary">v1.0.0</q-badge>
</div>
<div class="q-pa-md row items-start q-gutter-md">
<q-card v-for="calendarInfo in calendarList" :key="calendarInfo.calendarId" class="my-card">
<q-card-section class="bg-primary text-white">
<div class="text-h6">{{ calendarInfo.date }}</div>
<div class="text-subtitle2" style="padding-top: 6px">待完成习题：{{ 300 - calendarInfo.completed }}道</div>
<div class="text-subtitle2" style="padding-top: 6px">上次保存时间：{{formatTime(calendarInfo.latestSaveTime)}}</div>
</q-card-section>
<q-separator />
<q-card-actions v-if="calendarInfo.date === nowDate" align="right">
<q-btn flat @click="startQuestion">开始做题</q-btn>
<q-btn flat @click="startAnswer">查看答案</q-btn>
</q-card-actions>
<q-card-actions v-else align="center">
<q-btn disable flat>暂未开放答题</q-btn>
</q-card-actions>
</q-card>
</div>
<div class="q-pa-lg flex flex-center">
<q-pagination
v-model="current"
:max="maxPage"
@input="getWorkInfo"
>
</q-pagination>
</div>
</div>
</template>
<script>
import axios from "axios";
export default {
name: 'PageIndex',
data(){
return {
nowDate: null,
current: 1,
pageSize: 6,
maxPage: 0,
calendarList: null,
}
},
methods:{
getWorkInfo(currentPage){
axios.get('http://127.0.0.1:9092/calendar/ask' + '/' + currentPage + '/' + this.pageSize).then((response) => {
this.calendarList = response.data.items;
this.current = response.data.currentPage;
this.maxPage = response.data.totalPage;
})
},
getLocalDate(){
axios.get("http://127.0.0.1:9092/calendar/nowDate").then((response) => {
this.nowDate = response.data;
})
},
startQuestion(){
this.$store.commit('showcase/updateData', true)
this.$router.push({path: '/question'});
},
startAnswer(){
this.$router.push({path: '/answer'});
},
formatTime(originalDate){
if(originalDate == null){
return null;
}
let date = new Date(originalDate);
let Y = date.getFullYear() + '-';
let M = (date.getMonth()+1 < 10 ? '0'+(date.getMonth()+1) : date.getMonth()+1) + '-';
let D = (date.getDate() < 10 ? '0'+date.getDate() : date.getDate()) + ' ';
let h = (date.getHours() < 10 ? '0'+date.getHours() : date.getHours()) + ':';
let m = (date.getMinutes() < 10 ? '0'+date.getMinutes() : date.getMinutes()) + ':';
let s = (date.getSeconds() < 10 ? '0'+date.getSeconds() : date.getSeconds());
let strDate = Y+M+D+h+m+s;
return strDate;
}
},
mounted() {
if(!this.$store.state.showcase.data){
alert("您已提交，不能继续答题！")
}
},
created() {
this.getWorkInfo(1);
this.getLocalDate();
}
}
</script>
-

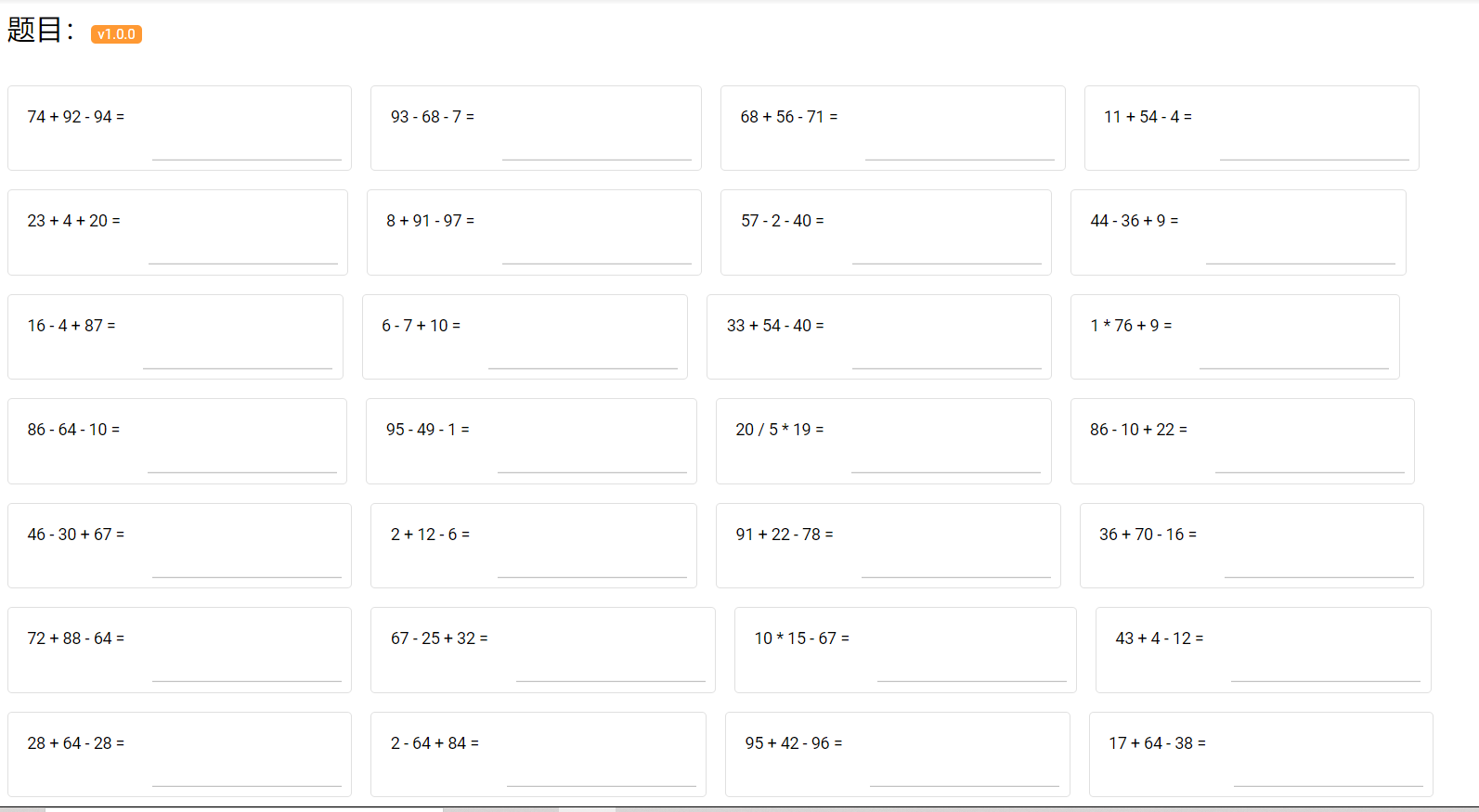

question.vue C
是做题界面的设置，有个小妙思就是我们的题目并不是在点击按钮时就直接生成300道，而是先生成30道，再用户点击后面页码的时候生成下一页的30道，这样可以有效的减少冗余。这里题目的生成和上面index.vue里日程卡一样是通过对question的遍历循环生成的。此外，还设置了悬浮的提交和返回按钮，若用户已提交，再在index.vue点界面击开始答题，则会后端会返回Null,界面通过askQuestion（）函数检测到，则跳回index.vue，并提出提示框。
<template>
<div>
<q-layout view="hHh lpR fFf">
<div class="q-pa-md text-h5 ">
题目：<q-badge color="primary">v1.0.0</q-badge>
</div>
<div class="q-pa-md row items-start q-gutter-md">
<q-card v-for="question in questions" :key="question.questionId" class="my-card" flat bordered>
<q-card-section horizontal>
<q-card-section>
{{ question.stringQuestion }}
</q-card-section>
<q-card-actions>
<q-input v-model="question.submissionAnswer"/>
</q-card-actions>
</q-card-section>
</q-card>
<div class="q-pa-lg flex flex-center">
<q-pagination
v-model="current"
:max="maxPage"
@mousedown="saveSubmissionAnswer"
@input="askQuestion"
>
</q-pagination>
</div>
</div>
<div>
<q-page-sticky position="top-right" :offset="fabPos">
<q-fab flat color="amber" icon="keyboard_arrow_down" label="提交" direction="down" v-touch-pan.prevent.mouse="moveFab">
<q-fab-action flat label-position="right" color="primary" @click="saveSubmissionAnswer" icon="mail" label="暂存" />
<q-fab-action flat label-position="right" color="warning" @click="checkAnswer" icon="alarm" label="提交" />
</q-fab>
</q-page-sticky>
<q-page-sticky position="bottom-right" :offset=[47,20]>
<q-fab flat color="amber" icon="keyboard_arrow_left" @click="backHome" label="返回">
</q-fab>
</q-page-sticky>
</div>
</q-layout>
</div>
</template>
<script>
import axios from "axios";
axios.defaults.headers.post['Content-Type'] = 'application/json';
export default {
name: 'question',
data(){
return {
problem: 'aas',
text: null,
pageSize: 30,
questions: null,
current: 1,
maxPage: 10,
fab: true,
fabPos: [ 47, 60 ],
draggingFab: false,
}
},
methods:{
askQuestion(currentPage){
axios.get('http://127.0.0.1:9092/question/ask' + '/' + currentPage + '/' + this.pageSize).then((response) => {
if(response.status == 204){
this.$store.commit('showcase/updateData', false)
this.$router.push({path: '/index'});
}
else {
this.$store.commit('showcase/updateData', true)
this.questions = response.data.items;
this.current = response.data.currentPage;
this.maxPage = 300 / this.pageSize;
}
})
},
updateCalendarInfo(){
axios.get('http://127.0.0.1:9092/calendar/fresh').then((response) => {
})
},
moveFab (ev) {
this.draggingFab = ev.isFirst !== true && ev.isFinal !== true
this.fabPos = [
this.fabPos[0] - ev.delta.x,
this.fabPos[1] + ev.delta.y
]
},
checkAnswer(){
this.saveSubmissionAnswer();
axios.get('http://127.0.0.1:9092/question/check');
this.updateCalendarInfo();
this.$router.push({path: '/index'});
},
saveSubmissionAnswer() {
if (this.questions != null) {
axios.post('http://127.0.0.1:9092/question/save', JSON.stringify(this.questions)).then((response) => {})
}
this.updateCalendarInfo();
},
backHome() {
this.$router.push({path: '/index'});
this.updateCalendarInfo();
}
},
mounted() {
if(!this.$store.state.showcase.data3){
alert("您还未做完！")
}
},
created() {
this.askQuestion(1);
}
}
</script>
-

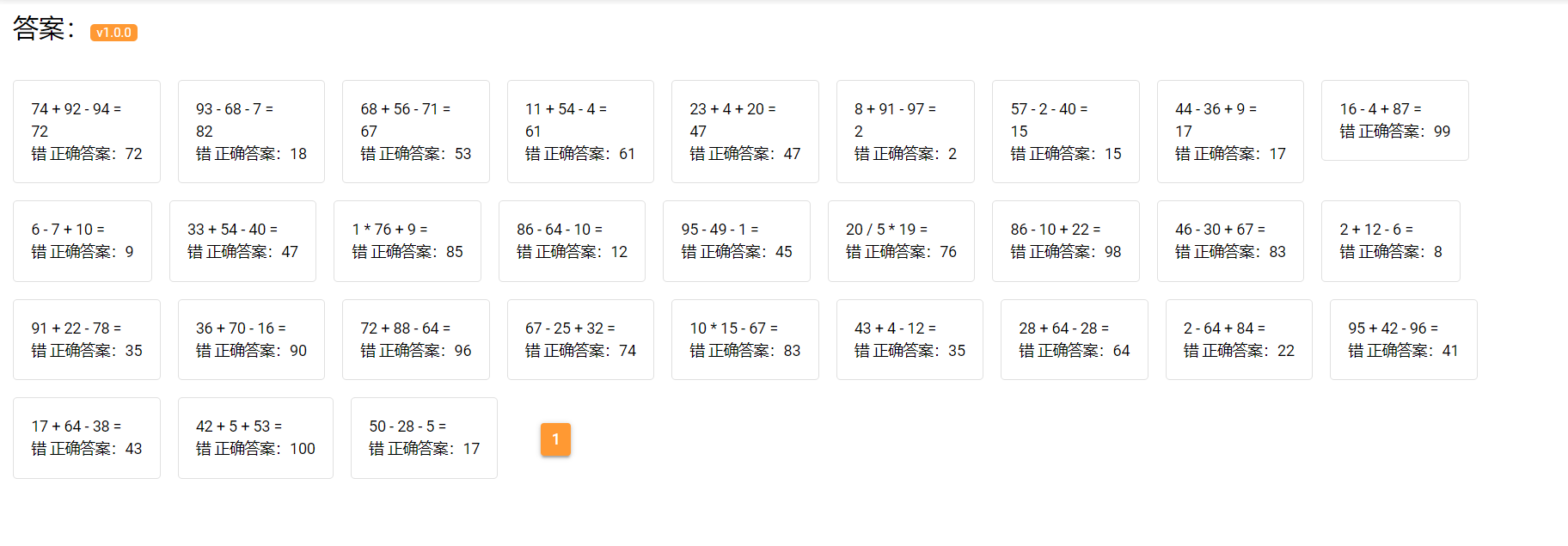

answer.vue C
是查看答案界面的设置，和question.vue界面中题目的设置一样，我们设置了用户做了一页就显示了一页的答案，主要是想到有同学会想不做完就看答案，这样就可以起到督促的作用。还有答案的生成也是一样通过循环生成的卡片。然后通过if语句对数据库中isRight变量的检测判断对错。
<template>
<div>
<q-layout view="hHh lpR fFf">
<div class="q-pa-md text-h5 ">
答案：<q-badge color="primary">v1.0.0</q-badge>
</div>
<div class="q-pa-md row items-start q-gutter-md">
<q-card v-for="question in questions" :key="question.questionId" class="my-card" flat bordered>
<q-card-section horizontal>
<q-card-section>
{{ question.stringQuestion}}
<div v-if="question.submissionAnswer == null">
</div>
<div v-else>
{{question.submissionAnswer}}
</div>
<div v-if="question.isRight == 1">
对 正确答案：{{question.answer}}
</div>
<div v-else>
错 正确答案：{{question.answer}}
</div>
</q-card-section>
</q-card-section>
</q-card>
<div class="q-pa-lg flex flex-center">
<q-pagination
v-model="current"
:max="maxPage"
@mousedown="saveSubmissionAnswer"
@input="askQuestion"
>
</q-pagination>
</div>
</div>
<div>
<q-page-sticky position="bottom-right" :offset=[47,20]>
<q-fab flat color="amber" icon="keyboard_arrow_left" @click="backHome" label="返回">
</q-fab>
</q-page-sticky>
</div>
</q-layout>
</div>
</template>
<script>
import axios from "axios";
axios.defaults.headers.post['Content-Type'] = 'application/json';
import { matClear } from '@quasar/extras/material-icons'
export default {
name: 'question',
data(){
return {
problem: 'aas',
text: null,
pageSize: 30,
questions: null,
current: 1,
maxPage: 10,
fab: true,
fabPos: [ 47, 60 ],
draggingFab: false,
}
},
methods:{
askQuestion(currentPage){
axios.get('http://127.0.0.1:9092/question/answer' + '/' + currentPage + '/' + this.pageSize).then((response) => {
if(response.status == 204) {
this.$router.push({path: '/index'});
}
else {
this.questions = response.data.items;
this.current = response.data.currentPage;
this.maxPage = response.data.totalPage;
}
})
},
onClick(){
},
saveSubmissionAnswer() {
if (this.questions != null) {
axios.post('http://127.0.0.1:9092/question/save', JSON.stringify(this.questions)).then((response) => {})
}
},
backHome() {
this.$router.push({path: '/index'});
}
},
mounted() {
},
created() {
this.askQuestion(1);
}
}
</script>
js文件
-
routes.js G
主要是对vue界面的配置。
const routes = [ { path: '/', component: () => import('layouts/MainLayout.vue'), redirect: 'index', children: [ { path: 'index', component: () => import('pages/Index.vue') }, { path:'question', component: () => import('pages/question.vue') }, { path:'answer', component: () => import('pages/answer.vue') } ] }, // Always leave this as last one, // but you can also remove it { path: '/error', component: () => import('pages/Error404.vue') }, ] export default routes -

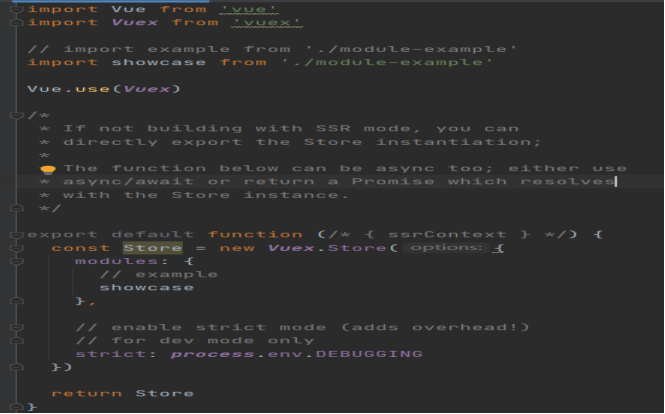

index.js(store/index.js) G
对Vue全局变量的配置。
import Vue from 'vue'
import Vuex from 'vuex'
// import example from './module-example'
import showcase from './module-example'
Vue.use(Vuex)
/*
* If not building with SSR mode, you can
* directly export the Store instantiation;
*
* The function below can be async too; either use
* async/await or return a Promise which resolves
* with the Store instance.
*/
export default function (/* { ssrContext } */) {
const Store = new Vuex.Store({
modules: {
// example
showcase
},
// enable strict mode (adds overhead!)
// for dev mode only
strict: process.env.DEBUGGING
})
return Store
}
-

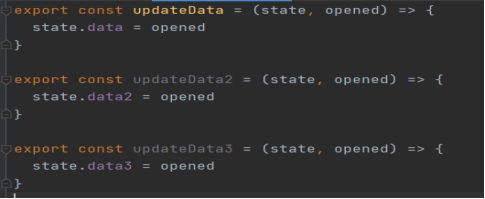

VueX G
设置了三个全局变量（data,data2,data3）,用来记录做题的状态，控制提示框的弹出。
export const updateData = (state, opened) => { state.data = opened } export const updateData2 = (state, opened) => { state.data2 = opened } export const updateData3 = (state, opened) => { state.data3 = opened }
遇到的问题与解决
问题主要是出现在前端，也和我们两个人主要学习了后端代码，没有怎么学习前端代码有关。
1、json传数组，后端一直收不到数据。
解决方法：修改axios请求头。
2、全局变量VueX的设置
解决方法：我们主要是去网上查阅了quasar框架的中文文档，了解到在quasar中他设置好的框架里就有了编写Vuex全局变量的文件，然后在依据他上面的编写方式修改了我们自己的变量。
小结
G：
这次结对编程的题目十分清晰，有很大的自由发挥空间，我和C通过一起协商，提出了以WEB的形式呈现这个程序，同时在结对编程中，也感受到了其带来的好处，如我在写代码时疏忽输错了变量，或是代码不知如何写时，结对的伙伴能够及时的予以纠错和帮助，提高了开发效率，同时在结对编程中还能互相学习对方的编程思路，提高编程能力，所以我认为这次结对编程是十分成功的！
C：
这次结对编程的题目还是比较简单的。我原先是想用c语言写的，主要是因为c语言写比较简单，也不用怎么编写界面。但G说服了我，了解到用spring boot+quasar前后端框架编程的方式来写的话可以起到练兵的目的，我们也还有一个相似的大创项目。主要来说，这次的结对编程还是比较成功的。
浙公网安备 33010602011771号
