[ISPW]Module Change Cycle Path

Module Change Cycle Path

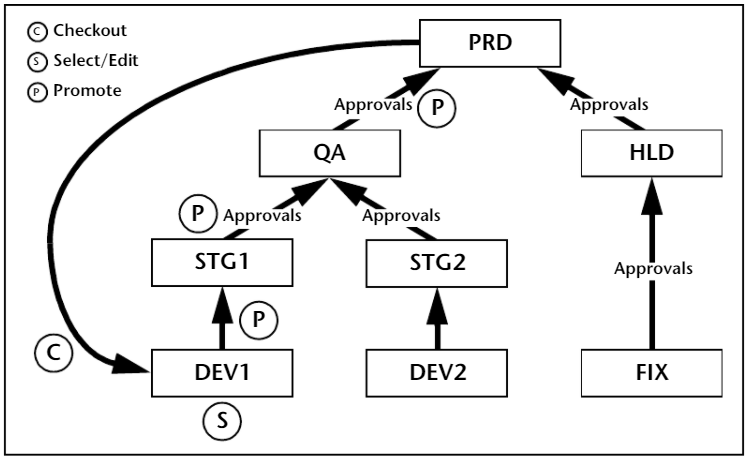

As illustrated in the following figure, the module will travel from:

  1. PRD to DEV1
  2. DEV1 to STG1
  3. STG1 to QA
  4. QA to PRD.

Module Change Cycle Path





C, S, and P Operations

  • C (Checkout) copies the module from PRD to DEV1.
  • S (Select) edits the module at the DEV1 level.
  • P (Promote) promotes the module through DEV1, STG1, and QA to PRD.

Start With the Container List

From the ISPW Main Menu, select Option P to go to the Container List. From the Container List, type S to Select the Assignment, which in this example is PLAY000022, “Change Cycle Example 2”.

Task List Screen for PLAY000022

In this example, the Task List (Task List Screen for PLAY000022) already contains a number of components in various levels.

Task List Screen for PLAY000022

 1  ASSIGNMENT        PLAY000022: CHANGE CYCLE EXAMPLE 2        Row     1 of    11 2  Command ===>                                                  Scroll ===> CSR
 3                                                                        More --> 4  +----------------------------------------------------------------------------+ 5  | Select(/) Add Approve Close Join Reset Show/Hide Work ++/--                | 6  +----------------------------------------------------------------------------+ 7      Type Name     Lev  Op A User     Appl Date MM DD Time  Status
 8      ____ ________ ____ __ _ ________ ____ __________ _____ __________________
 9  __  AMAC GDSMRL17 QA   P    USER17   PLAY 2013-03-07 09:0010  __  AMAC RELEAS17 QA   P    USER17   PLAY 2013-03-07 09:0011  __  ASM  QKQ17    QA   G    USER17   PLAY 2013-03-07 09:0012  __  COB  TPROG01  DEV1               PLAY
13  __  COB  TPROG59  DEV1 G    USER01   PLAY 2007-07-24 21:2814  __  COPY TCPYA01  DEV1               PLAY
15  __  COPY TCPYA02  DEV1 S    CLIVE    PLAY 2002-11-25 04:4616  __  COPY TCPYB01  DEV1               PLAY
17  __  COPY TCPYB02  DEV1               PLAY
18  __  COPY TCPYZ01  DEV1               PLAY
19  __  JOB  TJOB01   DEV1               PLAY
20 -------------------------------- Bottom of List -------------------------------

The Task List shows that work is already in progress on several of these modules. They are at various levels in the change cycle (DEV1, QA) and have been updated by various users, such as USER17, USER01, and CLIVE.

原文:

Module Change Cycle Path - Documentation for BMC Compuware ISPW 18.02 - BMC Documentation
