OTA过程分析

1：硬件初始化

2：初始化设备：路由，Z3设备

3：初始化发送回调函数：messageSentCallbacks

4：端点初始化

  端点号，PROFILEID,设备ID，设备版本，

  簇的初始化：端点包含的簇的属性，服务端还是客户端，簇的初始化函数，属性属性变化函数

EmberAfGenericClusterFunction emberAfFuncArrayOtaBootloadClusterClient[] = { (EmberAfGenericClusterFunction)emberAfOtaBootloadClusterClientInitCallback,(EmberAfGenericClusterFunction)emberAfOtaBootloadClusterClientDefaultResponseCallback};

初始化函数只是初始化，现在并没有调用簇的初始化函数，属性只是分配空间，还没有赋值

5：emberAfInit

   初始化属性值，然后把NV里的值装到属性里

   初始化插件

　#define EMBER_AF_GENERATED_PLUGIN_INIT_FUNCTION_CALLS \

emberAfPluginBulbPwmDriverInitCallback(); \

emberAfPluginCountersInitCallback(); \

emberAfPluginEepromInitCallback(); \

emberAfPluginElectricalMeasurementServerInitCallback(); \

emberAfPluginLedDimPwmInitCallback(); \

emberAfPluginPowerMeterCs5463InitCallback(); \

emberAfPluginReportingInitCallback(); \



     调用簇的初始化函数

网络初始化

 EM_AF_NETWORK_INIT();



//========

网络状态起来的时候调用。

#define\

void emberAfPluginElectricalMeasurementServerStackStatusCallback(EmberStatus status); \
void emberAfPluginManufacturingLibraryOtaStackStatusCallback(EmberStatus status); \
void emberAfPluginMeteringServerStackStatusCallback(EmberStatus status); \
void emberAfPluginNetworkSteeringStackStatusCallback(EmberStatus status); \
void emberAfPluginOtaClientStackStatusCallback(EmberStatus status); \
void emberAfPluginReportingStackStatusCallback(EmberStatus status); \



6：

void emberAfPluginOtaClientStackStatusCallback(EmberStatus status)
{

enum BootloadState{
BOOTLOAD_STATE_NONE,
BOOTLOAD_STATE_DELAY,
BOOTLOAD_STATE_DISCOVER_SERVER,
BOOTLOAD_STATE_GET_SERVER_EUI,
BOOTLOAD_STATE_OBTAIN_LINK_KEY,
BOOTLOAD_STATE_QUERY_NEXT_IMAGE,
BOOTLOAD_STATE_DOWNLOAD,
BOOTLOAD_STATE_VERIFY_IMAGE,
BOOTLOAD_STATE_WAITING_FOR_UPGRADE_MESSAGE,
BOOTLOAD_STATE_COUNTDOWN_TO_UPGRADE,
BOOTLOAD_STATE_UPGRADE_VIA_OUT_OF_BAND,
};
typedef uint8_t BootloadState;



//升级状态，对应簇的属性ID:0x0006
static PGM uint8_t bootloadStateToExternalState[] = {
OTA_UPGRADE_STATUS_NORMAL,
OTA_UPGRADE_STATUS_NORMAL,
OTA_UPGRADE_STATUS_NORMAL,
OTA_UPGRADE_STATUS_NORMAL,
OTA_UPGRADE_STATUS_NORMAL,
OTA_UPGRADE_STATUS_NORMAL,
OTA_UPGRADE_STATUS_DOWNLOAD_IN_PROGRESS,
OTA_UPGRADE_STATUS_DOWNLOAD_COMPLETE,
OTA_UPGRADE_STATUS_WAIT,
OTA_UPGRADE_STATUS_COUNTDOWN,
OTA_UPGRADE_STATUS_WAIT_TO_UPGRADE_VIA_OUT_OF_BAND,
};

recordUpgradeStatus(BOOTLOAD_STATE_DELAY);  //
currentBootloadState=BOOTLOAD_STATE_DELAY;

emberAfScheduleClientTickExtended(myEndpoint,
ZCL_OTA_BOOTLOAD_CLUSTER_ID,
randomDelaySeconds * MILLISECOND_TICKS_PER_SECOND,
pollControl,
sleepControl);

{ 0x1, 0x19, true, EMBER_AF_LONG_POLL, EMBER_AF_OK_TO_SLEEP, &emberAfOtaBootloadClusterClientTickCallbackControl1}, \
}

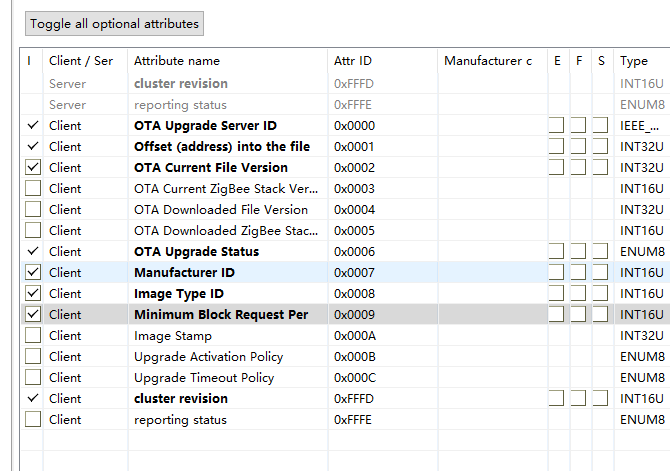

7：有几个属性必须得设定
