Trace、Debug和TraceSource与调试及日志设计
1：Trace与Debug类的特性：
用法基本相同，只是Debug是在Debug本版本下使用，在Release版本下不会生成代码，而Trace在默认情况下是打开的，也就是说在Debug版本和Release版本下都会生成代码。
2：什么是Listeners
Listenters属性，它是TraceListenerCollection类型（TraceSource类和TraceListener类），给类 属性控制跟踪信息输出的方向，可以是控制台（add(TextWriterTraceListener(new Console.Out))），文件(add(TextWriterTraceListener(new IO.File.CreateText(“output.txt”))等。Listenters集合中的成员包括 TextWriterTraceListener，DefaultTraceListener，EventLogTraceListener，WebPageTraceListener 等。而TextWriterTraceListener的子类又有ConsoleTraceListener， DelimitedListTraceListener，XmlWriterTraceListener，EventSchemaTraceListener。
Example：
TextWriterTraceListener tr1 = new TextWriterTraceListener(System.Console.Out);
Debug.Listeners.Add(tr1);
TextWriterTraceListener tr2 = new TextWriterTraceListener(System.IO.File.CreateText("output.txt"));
Debug.Listeners.Add(tr2);
EventLogTraceListener tr3 = new EventLogTraceListener();
Debug.Listeners.Add(tr3);
TextWriter m_tracer = File.CreateText(@ "D:\trace.txt ");
System.Diagnostics.TextWriterTraceListener objTraceListener = new TextWriterTraceListener(m_tracer);
Trace.Listeners.Add (objTraceListener);
System.Diagnostics.TextWriterTraceListener objTraceListener = new TextWriterTraceListener(m_tracer);
Trace.Listeners.Add (objTraceListener);

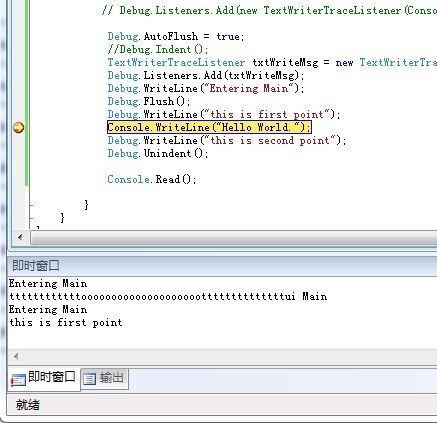

3：中断模式的调试
4：跟踪开关
除了指定Listener外，要控制消息是否被输出，还需要指定跟踪开关。跟踪开关用于启用、禁用和筛选跟踪输出。
Framework 中提供了三种类型的跟踪开关：BooleanSwitch 类、TraceSwitch 类和 SourceSwitch 类。BooleanSwitch是最简单的跟踪开关，可以指定是否输出消息。TraceSwitch 和 SourceSwitch 类用于为特定的跟踪级别启用跟踪开关，以便显示为该级别及其下的所有级别指定的 Trace 或 TraceSource 消息。
4.1：使用BooleanSwitch开关
Example:
bool someBizCondition = true;
BooleanSwitch bs = new BooleanSwitch("DataMessageSwitch", "DataMessageSwitch des");
bs.Enabled = true;
Debug.WriteLineIf(someBizCondition, "log....");
Debug.Flush();
bs.Enabled设置为true或者false，并不会使程序自动决定是否输出信息。
如果不使用代码方式，而是使用配置文件的方式，是在 <configuration> 标记之后，但在 </configuration> 标记之前添加相应的 XML 来配置您的开关。如下：
<system.diagnostics>
<switches>
<add name="DataMessagesSwitch" value="1" />
</switches>
</system.diagnostics>
注意其中的：DataMessagesSwitch4.2：使用TraceSwitch开关
TraceSwitch类可以通过使用跟踪开关来筛选消息，通过Level属性来获取或设置开关级别。0、1、2、3 和 4 分别对应于 Off、Error、Warning、Info 和 Verbose。任何大于 4 的数字都会被当作 Verbose，任何小于零的数字都会被当作 Off。
Example：
TextWriterTraceListener tr = new TextWriterTraceListener(System.IO.File.CreateText("output.txt"));
Debug.Listeners.Add(tr);
bool someBizCondition = true;
TraceSwitch ts = new TraceSwitch("mySwitch", "in the Config file");
ts.Level = TraceLevel.Verbose;
Debug.WriteLineIf(ts.TraceError && someBizCondition, "Error!!!");
Debug.WriteLineIf(ts.TraceWarning && someBizCondition, "Warning!!!");
Debug.WriteLineIf(ts.TraceInfo && someBizCondition, "Info!!!");
Debug.WriteLineIf(ts.TraceVerbose && someBizCondition, "Verbose!!!");
Debug.Flush();
使用XML来配置，如下：
<system.diagnostics>
<switches>
<add name="mySwitch" value="1" />
</switches>
</system.diagnostics>
5：使用TraceSource代替Trace和Debug
从FRAMEWORK2.0开始，就不建议使用Trace和Debug了，而改而用TraceSouce。TraceSource 旨在用作增强的跟踪系统，并且可代替较旧的 Trace 和 Debug 跟踪类的静态方法使用。熟悉的 Trace 和 Debug 类仍然存在，不过建议的做法是使用 TraceSource 类进行跟踪。
Exapmle:private static TraceSource mySource = new TraceSource("TraceSourceApp");
static void Main(string[] args)
{
mySource.Switch = new SourceSwitch("sourceSwitch", "Error");
mySource.Listeners.Remove("Default");
TextWriterTraceListener textListener = new TextWriterTraceListener("myListener.log");
textListener.TraceOutputOptions = TraceOptions.DateTime | TraceOptions.Callstack;
textListener.Filter = new EventTypeFilter(SourceLevels.Error);
mySource.Listeners.Add(textListener);
ConsoleTraceListener console = new ConsoleTraceListener(false);
console.Filter = new EventTypeFilter(SourceLevels.Information);
console.Name = "console";
mySource.Listeners.Add(console);
Activity1();
// Set the filter settings for the
// console trace listener.
mySource.Listeners["console"].Filter = new EventTypeFilter(SourceLevels.Critical);
Activity2();
// Allow the trace source to send messages to
// listeners for all event types.
mySource.Switch.Level = SourceLevels.All;
// Change the filter settings for the console trace listener.
mySource.Listeners["console"].Filter = new EventTypeFilter(SourceLevels.Information);
Activity3();
mySource.Close();
return;
}
static void Activity1()
{
mySource.TraceEvent(TraceEventType.Error, 1, "Error message.");
mySource.TraceEvent(TraceEventType.Warning, 2, "Warning message.");
}
static void Activity2()
{
mySource.TraceEvent(TraceEventType.Critical, 3, "Critical message.");
mySource.TraceInformation("Informational message.");
}
static void Activity3()
{
mySource.TraceEvent(TraceEventType.Error, 4, "Error message.");
mySource.TraceInformation("Informational message.");
}
以上代码，如果使用配置文件的方式实现，如下：
<system.diagnostics>
<sources>
<source name="TraceSourceApp" switchName="sourceSwitch" switchType="System.Diagnostics.SourceSwitch">
<listeners>
<add name="console" type="System.Diagnostics.ConsoleTraceListener">
<filter type="System.Diagnostics.EventTypeFilter" initializeData="Warning"/>
</add>
<add name="myListener" type="System.Diagnostics.TextWriterTraceListener" initializeData="myListener.log"
traceOutputOptions="Callstack">
<filter type="System.Diagnostics.EventTypeFilter" initializeData="Error"></filter>
</add>
<remove name="Default"/>
</listeners>
</source>
</sources>
<switches>
<add name="sourceSwitch" value="Warning"/>
</switches>
</system.diagnostics>
配置文件实现的对应代码部分为：
private static TraceSource mySource = new TraceSource("TraceSourceApp");
static void Main(string[] args)
{
Activity1();
Activity2();
Activity3();
mySource.Close();
return;
}
static void Activity1()
{
mySource.TraceEvent(TraceEventType.Error, 1, "Error message.");
mySource.TraceEvent(TraceEventType.Warning, 2, "Warning message.");
}
static void Activity2()
{
mySource.TraceEvent(TraceEventType.Critical, 3, "Critical message.");
mySource.TraceInformation("Informational message.");
}
static void Activity3()
{
mySource.TraceEvent(TraceEventType.Error, 4, "Error message.");
mySource.TraceInformation("Informational message.");

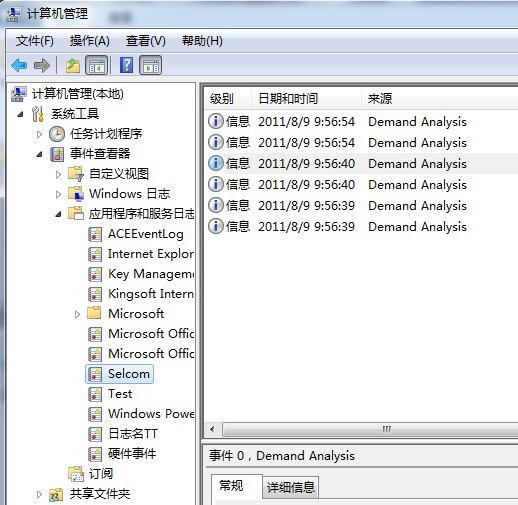

}6：日志写入事件查看器
EventLog elApplication = new EventLog();
elApplication.Log = "Selcom";
elApplication.Source = "Demand Analysis";
EventLogTraceListener elTraceListener = new EventLogTraceListener();
elTraceListener.EventLog = elApplication;
Trace.Listeners.RemoveAt(0);
Trace.Listeners.Add(elTraceListener);
Trace.WriteLine("应用程序启动！");
Trace.WriteLine("应用程序的其他事件记录");
#region 默认在“应用程序”导航下面
EventLogTraceListener myTraceListener = new EventLogTraceListener("myEventLogSource");
Trace.Listeners.Add(myTraceListener);
Trace.WriteLine("Test output");
#endregion
7：设计一个日志系统
有了以上的知识之后，我们就可以来设计一个应用程序的日志系统（是的，我们不在需要LOG4NET）。我们来假设这个日志系统最基础的功能：
1、以日期来创建日志名，以免历史日志全部写入一个文件中去；
2、可以配置想要输出的日志类别，如Warning或者Error等；
3、可以配置想要的日志内容：如StackTrace或者错误信息等；
Example:
using System;
using System.Configuration;
using System.Collections.Generic;
using System.Data.SqlClient;
using System.Diagnostics;
using System.IO;
using System.Text;
using System.Runtime.CompilerServices;
using System.Web;
namespace LogExample
{
/// <summary>
/// 日志类
/// </summary>
public sealed class Logger
{
#region Member Variables
/// <summary>
/// 用于Trace的组织输出的类别名称
/// </summary>
private const string trace_sql = "\r\n***********************TRACE_SQL {0}*****************************\r\nTRACE_SQL";
/// <summary>
/// 用于Trace的组织输出的类别名称
/// </summary>
private const string trace_exception = "\r\n***********************TRACE_EXCEPTION {0}***********************";
/// <summary>
/// 当前日志的日期
/// </summary>
private static DateTime CurrentLogFileDate = DateTime.Now;
/// <summary>
/// 日志对象
/// </summary>
private static TextWriterTraceListener twtl;
/// <summary>
/// 日志根目录
/// </summary>
private const string log_root_directory = @"D:\log";
/// <summary>
/// 日志子目录
/// </summary>
private static string log_subdir;
/// <summary>
/// " {0} = {1}"
/// </summary>
private const string FORMAT_TRACE_PARAM = " {0} = {1}";
/// <summary>
/// 1 仅控制台输出
/// 2 仅日志输出
/// 3 控制台+日志输出
/// </summary>
private static readonly int flag = 2; //可以修改成从配置文件读取
#endregion
#region Constructor
static Logger()
{
System.Diagnostics.Trace.AutoFlush = true;
switch (flag)
{
case 1:
System.Diagnostics.Trace.Listeners.Add(new ConsoleTraceListener());
break;
case 2:
System.Diagnostics.Trace.Listeners.Add(TWTL);
break;
case 3:
System.Diagnostics.Trace.Listeners.Add(new ConsoleTraceListener());
System.Diagnostics.Trace.Listeners.Add(TWTL);
break;
}
}
#endregion
#region Method
#region trace
/// <summary>
/// 异步错误日志
/// </summary>
/// <param name="value"></param>
public static void Trace(Exception ex)
{
new AsyncLogException(BeginTraceError).BeginInvoke(ex, null, null);
}
/// <summary>
/// 异步SQL日志
/// </summary>
/// <param name="cmd"></param>
public static void Trace(SqlCommand cmd)
{
new AsyncLogSqlCommand(BeginTraceSqlCommand).BeginInvoke(cmd, null, null);
}
/// <summary>
/// 异步SQL日志
/// </summary>
/// <param name="sql"></param>
/// <param name="parameter"></param>
public static void Trace(string sql, params SqlParameter[] parameter)
{
new AsyncLogSql(BeginTraceSql).BeginInvoke(sql, parameter, null, null);
}
#endregion
#region delegate
private delegate void AsyncLogException(Exception ex);
private delegate void AsyncLogSqlCommand(SqlCommand cmd);
private delegate void AsyncLogSql(string sql, params SqlParameter[] parameter);
private static void BeginTraceError(Exception ex)
{
if (null != ex)
{
//检测日志日期
StrategyLog();
//输出日志头
System.Diagnostics.Trace.WriteLine(string.Format(trace_exception, DateTime.Now));
while (null != ex)
{
System.Diagnostics.Trace.WriteLine(string.Format("{0} {1}\r\n{2}\r\nSource:{3}", ex.GetType().Name, ex.Message, ex.StackTrace, ex.Source));
ex = ex.InnerException;
}
}
}
private static void BeginTraceSqlCommand(SqlCommand cmd)
{
if (null != cmd)
{
SqlParameter[] parameter = new SqlParameter[cmd.Parameters.Count];
cmd.Parameters.CopyTo(parameter, 0);
BeginTraceSql(cmd.CommandText, parameter);
}
}
private static void BeginTraceSql(string sql, params SqlParameter[] parameter)
{
if (!string.IsNullOrEmpty(sql))
{
//检测日志日期
StrategyLog();
System.Diagnostics.Trace.WriteLine(sql, string.Format(trace_sql, DateTime.Now));
if (parameter != null)
{
foreach (SqlParameter param in parameter)
{
System.Diagnostics.Trace.WriteLine(string.Format(FORMAT_TRACE_PARAM, param.ParameterName, param.Value));
}
}
}
}
#endregion
#region helper
/// <summary>
/// 根据日志策略生成日志
/// </summary>
private static void StrategyLog()
{
//判断日志日期
if (DateTime.Compare(DateTime.Now.Date, CurrentLogFileDate.Date) != 0)
{
DateTime currentDate = DateTime.Now.Date;
//生成子目录
BuiderDir(currentDate);
//更新当前日志日期
CurrentLogFileDate = currentDate;
System.Diagnostics.Trace.Flush();
//更改输出
if (twtl != null)
System.Diagnostics.Trace.Listeners.Remove(twtl);
System.Diagnostics.Trace.Listeners.Add(TWTL);
}
}
/// <summary>
/// 根据年月生成子目录
/// </summary>
/// <param name="currentDate"></param>
private static void BuiderDir(DateTime currentDate)
{
int year = currentDate.Year;
int month = currentDate.Month;
//年/月
string subdir = string.Concat(year, '\\', month);
string path = Path.Combine(log_root_directory, subdir);
if (!Directory.Exists(path))
{
Directory.CreateDirectory(path);
}
log_subdir = subdir;
}
#endregion
#endregion
#region Properties
/// <summary>
/// 日志文件路径
/// </summary>
/// <returns></returns>
private static string GetLogFullPath
{
get
{
return string.Concat(log_root_directory, '\\', string.Concat(log_subdir, @"\log", CurrentLogFileDate.ToShortDateString(), ".txt"));
}
}
/// <summary>
/// 跟踪输出日志文件
/// </summary>
private static TextWriterTraceListener TWTL
{
get
{
if (twtl == null)
{
if (string.IsNullOrEmpty(log_subdir))
BuiderDir(DateTime.Now);
else
{
string logPath = GetLogFullPath;
if (!Directory.Exists(Path.GetDirectoryName(logPath)))
BuiderDir(DateTime.Now);
}
twtl = new TextWriterTraceListener(GetLogFullPath);
}
return twtl;
}
}
#endregion
}
}
using System.Configuration;
using System.Collections.Generic;
using System.Data.SqlClient;
using System.Diagnostics;
using System.IO;
using System.Text;
using System.Runtime.CompilerServices;
using System.Web;
namespace LogExample
{
/// <summary>
/// 日志类
/// </summary>
public sealed class Logger
{
#region Member Variables
/// <summary>
/// 用于Trace的组织输出的类别名称
/// </summary>
private const string trace_sql = "\r\n***********************TRACE_SQL {0}*****************************\r\nTRACE_SQL";
/// <summary>
/// 用于Trace的组织输出的类别名称
/// </summary>
private const string trace_exception = "\r\n***********************TRACE_EXCEPTION {0}***********************";
/// <summary>
/// 当前日志的日期
/// </summary>
private static DateTime CurrentLogFileDate = DateTime.Now;
/// <summary>
/// 日志对象
/// </summary>
private static TextWriterTraceListener twtl;
/// <summary>
/// 日志根目录
/// </summary>
private const string log_root_directory = @"D:\log";
/// <summary>
/// 日志子目录
/// </summary>
private static string log_subdir;
/// <summary>
/// " {0} = {1}"
/// </summary>
private const string FORMAT_TRACE_PARAM = " {0} = {1}";
/// <summary>
/// 1 仅控制台输出
/// 2 仅日志输出
/// 3 控制台+日志输出
/// </summary>
private static readonly int flag = 2; //可以修改成从配置文件读取
#endregion
#region Constructor
static Logger()
{
System.Diagnostics.Trace.AutoFlush = true;
switch (flag)
{
case 1:
System.Diagnostics.Trace.Listeners.Add(new ConsoleTraceListener());
break;
case 2:
System.Diagnostics.Trace.Listeners.Add(TWTL);
break;
case 3:
System.Diagnostics.Trace.Listeners.Add(new ConsoleTraceListener());
System.Diagnostics.Trace.Listeners.Add(TWTL);
break;
}
}
#endregion
#region Method
#region trace
/// <summary>
/// 异步错误日志
/// </summary>
/// <param name="value"></param>
public static void Trace(Exception ex)
{
new AsyncLogException(BeginTraceError).BeginInvoke(ex, null, null);
}
/// <summary>
/// 异步SQL日志
/// </summary>
/// <param name="cmd"></param>
public static void Trace(SqlCommand cmd)
{
new AsyncLogSqlCommand(BeginTraceSqlCommand).BeginInvoke(cmd, null, null);
}
/// <summary>
/// 异步SQL日志
/// </summary>
/// <param name="sql"></param>
/// <param name="parameter"></param>
public static void Trace(string sql, params SqlParameter[] parameter)
{
new AsyncLogSql(BeginTraceSql).BeginInvoke(sql, parameter, null, null);
}
#endregion
#region delegate
private delegate void AsyncLogException(Exception ex);
private delegate void AsyncLogSqlCommand(SqlCommand cmd);
private delegate void AsyncLogSql(string sql, params SqlParameter[] parameter);
private static void BeginTraceError(Exception ex)
{
if (null != ex)
{
//检测日志日期
StrategyLog();
//输出日志头
System.Diagnostics.Trace.WriteLine(string.Format(trace_exception, DateTime.Now));
while (null != ex)
{
System.Diagnostics.Trace.WriteLine(string.Format("{0} {1}\r\n{2}\r\nSource:{3}", ex.GetType().Name, ex.Message, ex.StackTrace, ex.Source));
ex = ex.InnerException;
}
}
}
private static void BeginTraceSqlCommand(SqlCommand cmd)
{
if (null != cmd)
{
SqlParameter[] parameter = new SqlParameter[cmd.Parameters.Count];
cmd.Parameters.CopyTo(parameter, 0);
BeginTraceSql(cmd.CommandText, parameter);
}
}
private static void BeginTraceSql(string sql, params SqlParameter[] parameter)
{
if (!string.IsNullOrEmpty(sql))
{
//检测日志日期
StrategyLog();
System.Diagnostics.Trace.WriteLine(sql, string.Format(trace_sql, DateTime.Now));
if (parameter != null)
{
foreach (SqlParameter param in parameter)
{
System.Diagnostics.Trace.WriteLine(string.Format(FORMAT_TRACE_PARAM, param.ParameterName, param.Value));
}
}
}
}
#endregion
#region helper
/// <summary>
/// 根据日志策略生成日志
/// </summary>
private static void StrategyLog()
{
//判断日志日期
if (DateTime.Compare(DateTime.Now.Date, CurrentLogFileDate.Date) != 0)
{
DateTime currentDate = DateTime.Now.Date;
//生成子目录
BuiderDir(currentDate);
//更新当前日志日期
CurrentLogFileDate = currentDate;
System.Diagnostics.Trace.Flush();
//更改输出
if (twtl != null)
System.Diagnostics.Trace.Listeners.Remove(twtl);
System.Diagnostics.Trace.Listeners.Add(TWTL);
}
}
/// <summary>
/// 根据年月生成子目录
/// </summary>
/// <param name="currentDate"></param>
private static void BuiderDir(DateTime currentDate)
{
int year = currentDate.Year;
int month = currentDate.Month;
//年/月
string subdir = string.Concat(year, '\\', month);
string path = Path.Combine(log_root_directory, subdir);
if (!Directory.Exists(path))
{
Directory.CreateDirectory(path);
}
log_subdir = subdir;
}
#endregion
#endregion
#region Properties
/// <summary>
/// 日志文件路径
/// </summary>
/// <returns></returns>
private static string GetLogFullPath
{
get
{
return string.Concat(log_root_directory, '\\', string.Concat(log_subdir, @"\log", CurrentLogFileDate.ToShortDateString(), ".txt"));
}
}
/// <summary>
/// 跟踪输出日志文件
/// </summary>
private static TextWriterTraceListener TWTL
{
get
{
if (twtl == null)
{
if (string.IsNullOrEmpty(log_subdir))
BuiderDir(DateTime.Now);
else
{
string logPath = GetLogFullPath;
if (!Directory.Exists(Path.GetDirectoryName(logPath)))
BuiderDir(DateTime.Now);
}
twtl = new TextWriterTraceListener(GetLogFullPath);
}
return twtl;
}
}
#endregion
}
}
使用：
using System.Collections.Generic;
using System;
using System.Data.SqlClient;
namespace LogExample
{
public class Program
{
static void Main(string[] args)
{
//错误记录
IList<string> list = null;
try
{
Console.WriteLine(list.Count);
}
catch (Exception ex)
{
Logger.Trace(ex);
}
Console.ReadLine();
//数据库记录
using (SqlConnection con = new SqlConnection("Data Source=zhouyz;Initial Catalog=Northwind;User ID=sa;Password=sa;"))
{
con.Open();
SqlCommand sqlCmd = new SqlCommand("SELECT * FROM Customers WHERE CompanyName = @CompanyName", con);
sqlCmd.Parameters.Add(new SqlParameter("@CompanyName", "tt"));
Logger.Trace(sqlCmd);
SqlDataReader sdr = sqlCmd.ExecuteReader();
while (sdr.Read())
{
Console.Write(sdr.GetName(1));
Console.Write(" : ");
Console.WriteLine(sdr[1]);
}
sdr.Close();
}
Console.ReadLine();
}
}
}
using System;
using System.Data.SqlClient;
namespace LogExample
{
public class Program
{
static void Main(string[] args)
{
//错误记录
IList<string> list = null;
try
{
Console.WriteLine(list.Count);
}
catch (Exception ex)
{
Logger.Trace(ex);
}
Console.ReadLine();
//数据库记录
using (SqlConnection con = new SqlConnection("Data Source=zhouyz;Initial Catalog=Northwind;User ID=sa;Password=sa;"))
{
con.Open();
SqlCommand sqlCmd = new SqlCommand("SELECT * FROM Customers WHERE CompanyName = @CompanyName", con);
sqlCmd.Parameters.Add(new SqlParameter("@CompanyName", "tt"));
Logger.Trace(sqlCmd);
SqlDataReader sdr = sqlCmd.ExecuteReader();
while (sdr.Read())
{
Console.Write(sdr.GetName(1));
Console.Write(" : ");
Console.WriteLine(sdr[1]);
}
sdr.Close();
}
Console.ReadLine();
}
}
}
浙公网安备 33010602011771号
