前言：

1、知识点总结：

① 字符串操作，正则表达式的训练及应用。

② 类与对象的设计，继承与多态，接口，内部类，抽象类

2、题量：不多

3、难度分析：

题目集8：难在7-1 电信计费系列1-座机计费：①理解题目的意思②理解类间关系③正则表达式

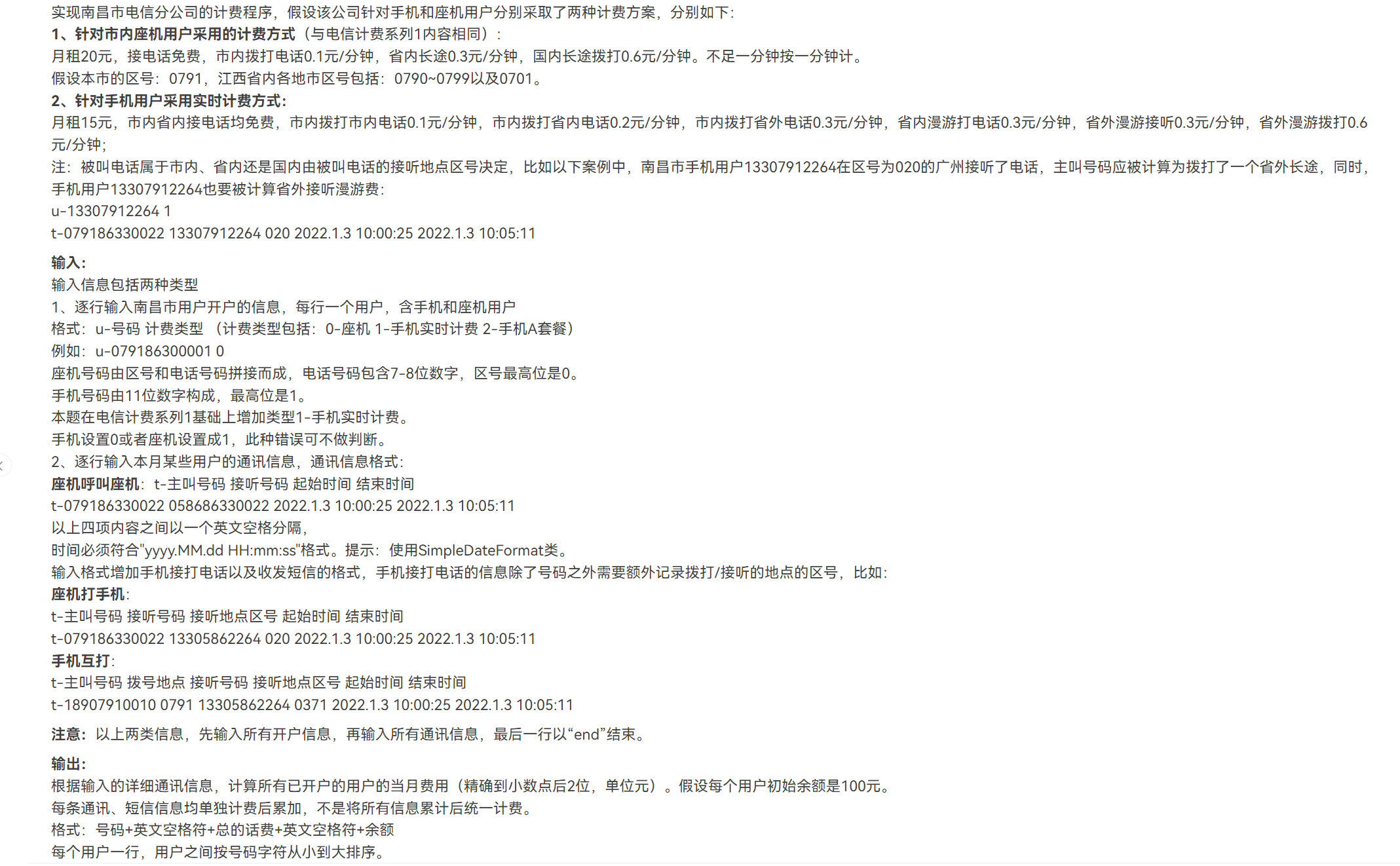

题目集9：难在7-1 电信计费系列2-手机+座机计费混合拨打

题目集10：相比前两个题目集较为简单

---



---



源码设计与分析：

---



一、212016/71-题目集08——7-1 电信计费系列1-座机计费

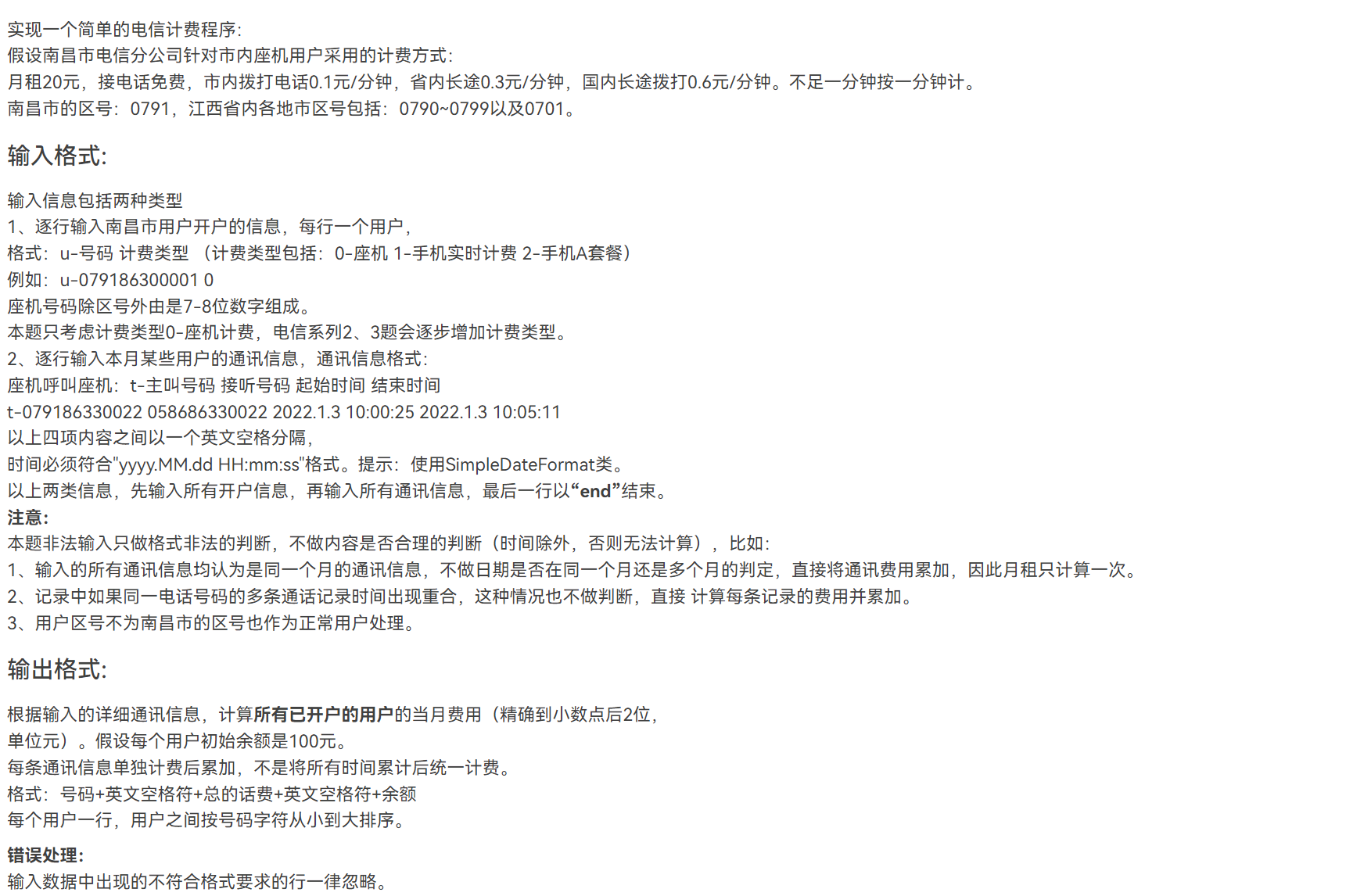

　　1.题目（如下图）







　　2.源码设计与分析：

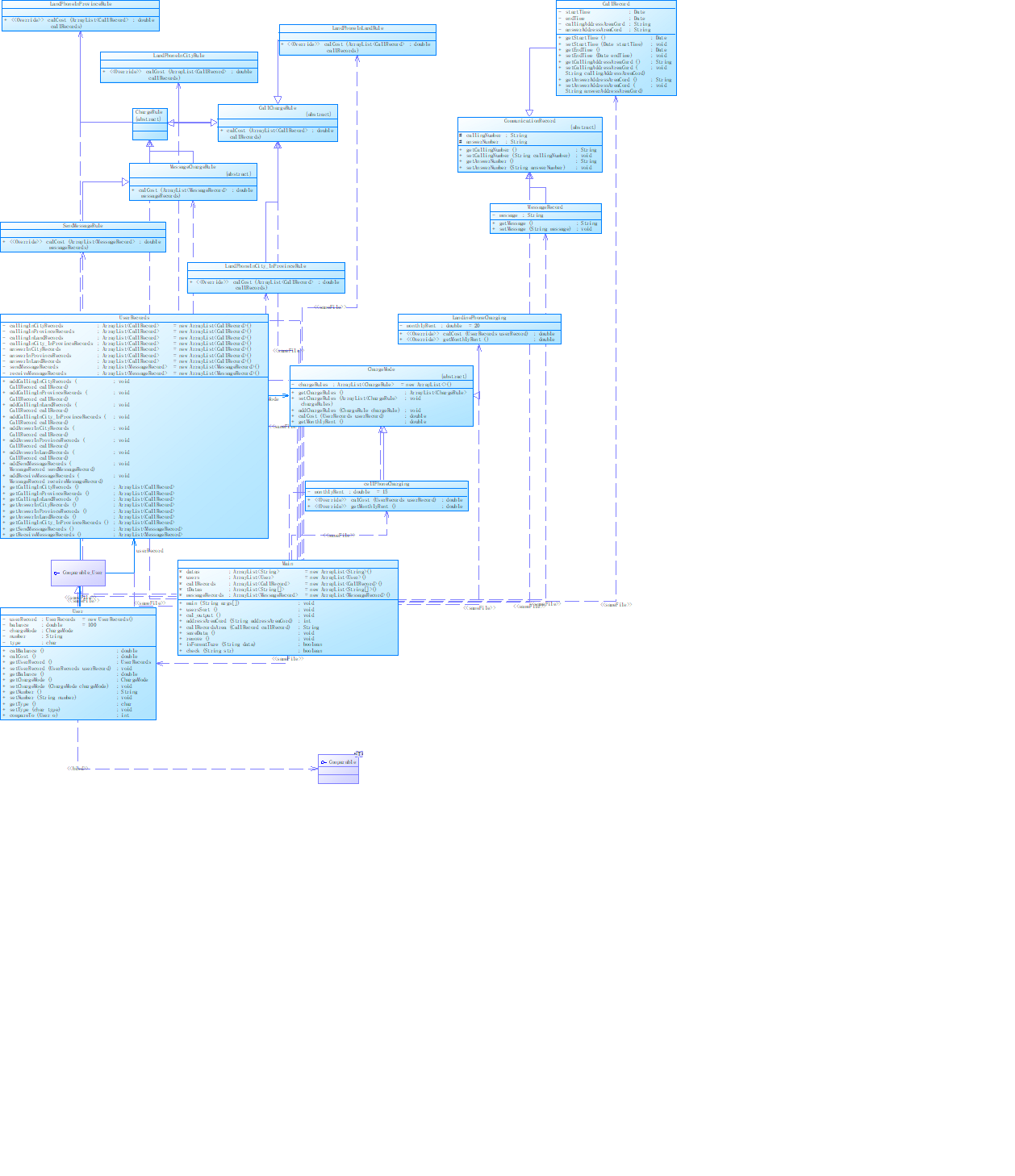

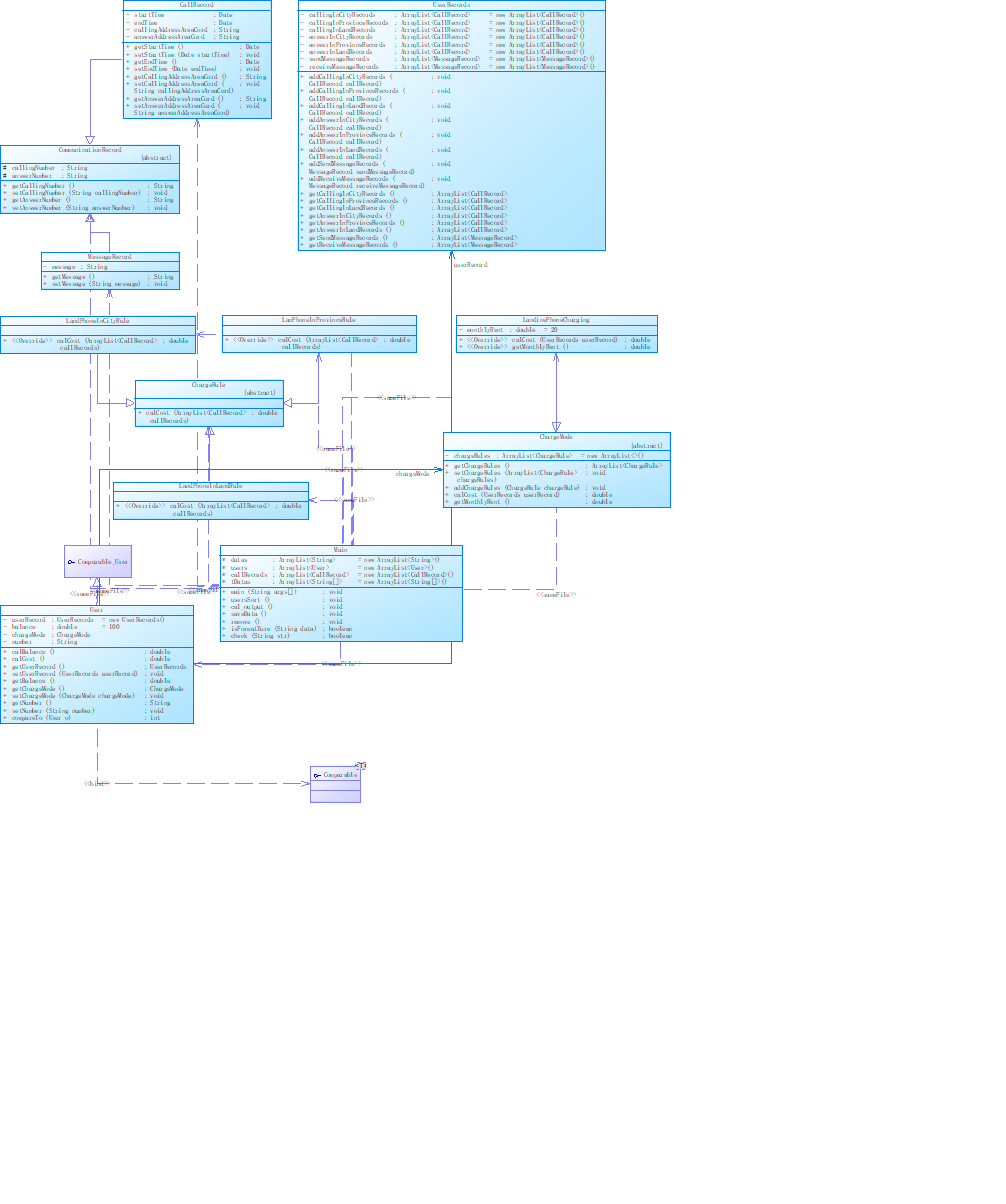

　本题肯定是要先理解清楚题目的意思，再去理解题目所给的类图，然后根据类图写好所需的类，之后在主类里写好方法

正则表达式：

String regex = "u-([0-9]){11,12} 0|t-[0-9]{11,12} [0-9]{10,12}( [0-9]{4}.([1-9]|10|11|12).([0-9]|[1-3][0-9]) ([0-9]|[0-2][0-9]):([0-5][0-9]):([0-5][0-9]))+|end";





　　3.源码

import java.text.DateFormatSymbols;
import java.text.ParseException;
import java.util.ArrayList;
import java.util.Collections;
import java.util.Comparator;
import java.util.Date;
import java.util.Scanner;
import java.util.regex.Matcher;
import java.util.regex.Pattern;
import java.text.SimpleDateFormat;

public class Main {
    static ArrayList<String> datas = new ArrayList<String>();
    static ArrayList<User> users = new ArrayList<User>();
    static ArrayList<CallRecord> callRecords = new ArrayList<CallRecord>();
    static ArrayList<String[]> tDatas = new ArrayList<String[]>();

    public static void main(String[] args)  throws ParseException{
        // TODO Auto-generated method stub
        Scanner in = new Scanner(System.in);
        String data;
        while(true) {
            data = in.nextLine();
            if(data.equals("end")) break;
            datas.add(data);
        }
        remove();
        saveData();
        usersSort();
        cal_output();
    }

    //用户按号码排序
    public static void usersSort() {
        Collections.sort(users);

    }

    public static void cal_output() {
        for(int i = 0;i<users.size();i++) {
            System.out.print(users.get(i).getNumber()+" ");
            System.out.printf("%.1f %.1f\n",users.get(i).calCost(),users.get(i).calBalance());
        }

    }

    //判断是否什么地区打电话
    public static String callRecordsArea(CallRecord callRecord) {
        String cord = callRecord.getAnswerAddressAreaCord();
        if(cord.equals("0791")) {
            return "lnCity";
        }else if((cord.charAt(0)=='0'&&cord.charAt(1)=='7'&&cord.charAt(2)=='9'&&cord.charAt(3)>='0'&&cord.charAt(3)<='9')||(cord.equals("0701")) ) {
            return "lnProvince";
        }else {
            return "lnLand";
        }
    }

    public static void saveData() throws ParseException {
        SimpleDateFormat sd = new SimpleDateFormat("yyyy.MM.dd HH:mm:ss");
        String data =new String();
        for(int i = 0;i<datas.size();i++) {
            data = datas.get(i);
            if(data.charAt(0)=='u') {
                Pattern pattern = Pattern.compile("[0-9]{10,12}");
                Matcher matcher = pattern.matcher(data);
                while (matcher.find()){
                    users.add(new User());
                    users.get(users.size()-1).setNumber(matcher.group(0));
                }
            }else if(data.charAt(0)=='t') {
                tDatas.add(new String[4]);
                Pattern pattern1 = Pattern.compile("[0-9]{10,12}");
                Matcher matcher1 = pattern1.matcher(data);
                Pattern pattern2 = Pattern.compile("\\d{1,4}\\.\\d(\\d)?\\.\\d(\\d)?\\ \\d(\\d)?\\:\\d(\\d)?\\:\\d(\\d)?");
                Matcher matcher2 = pattern2.matcher(data);
                int num = 0;
                while (matcher1.find()){
                    tDatas.get(tDatas.size()-1)[num] = matcher1.group(0);
                    num++;
                }
                while (matcher2.find()){
                    tDatas.get(tDatas.size()-1)[num] = matcher2.group(0);
                    num++;
                }
            }
        }

        for(int i = 0;i<tDatas.size();i++) {
            callRecords.add(new CallRecord());
            callRecords.get(i).setCallingNumber(tDatas.get(i)[0]);
            callRecords.get(i).setAnswerNumber(tDatas.get(i)[1]);
            callRecords.get(i).setStartTime(sd.parse(tDatas.get(i)[2]));
            callRecords.get(i).setEndTime(sd.parse(tDatas.get(i)[3]));
            callRecords.get(i).setCallingAddressAreaCord(tDatas.get(i)[0].substring(0, 4));
            callRecords.get(i).setAnswerAddressAreaCord(tDatas.get(i)[1].substring(0, 4));
            if(callRecords.get(i).getStartTime().getTime()-callRecords.get(i).getEndTime().getTime()>0) {
                callRecords.remove(callRecords.size()-1);
                tDatas.remove(i);i--;continue;
            }
        }

        for(int i = 0;i<users.size();i++) {
            for(int j = 0;j<callRecords.size();j++) {
                if(users.get(i).getNumber().equals(callRecords.get(j).getCallingNumber())) {
                    if( callRecords.get(j).getAnswerAddressAreaCord().equals("0791") ) {
                        users.get(i).getUserRecord().addCallinglnCityRecords(callRecords.get(j));
                    }else if( (callRecords.get(j).getAnswerAddressAreaCord().charAt(0)=='0'&&callRecords.get(j).getAnswerAddressAreaCord().charAt(1)=='7'&&callRecords.get(j).getAnswerAddressAreaCord().charAt(2)=='9'&&callRecords.get(j).getAnswerAddressAreaCord().charAt(3)>='0'&&callRecords.get(j).getAnswerAddressAreaCord().charAt(3)<='9')||(callRecords.get(j).getAnswerAddressAreaCord().equals("0701"))) {
                        users.get(i).getUserRecord().addCallinglnProvinceRecords(callRecords.get(j));
                    }else {
                        users.get(i).getUserRecord().addCallinglnLandRecords(callRecords.get(j));
                    }
                }
            }
        }

    }

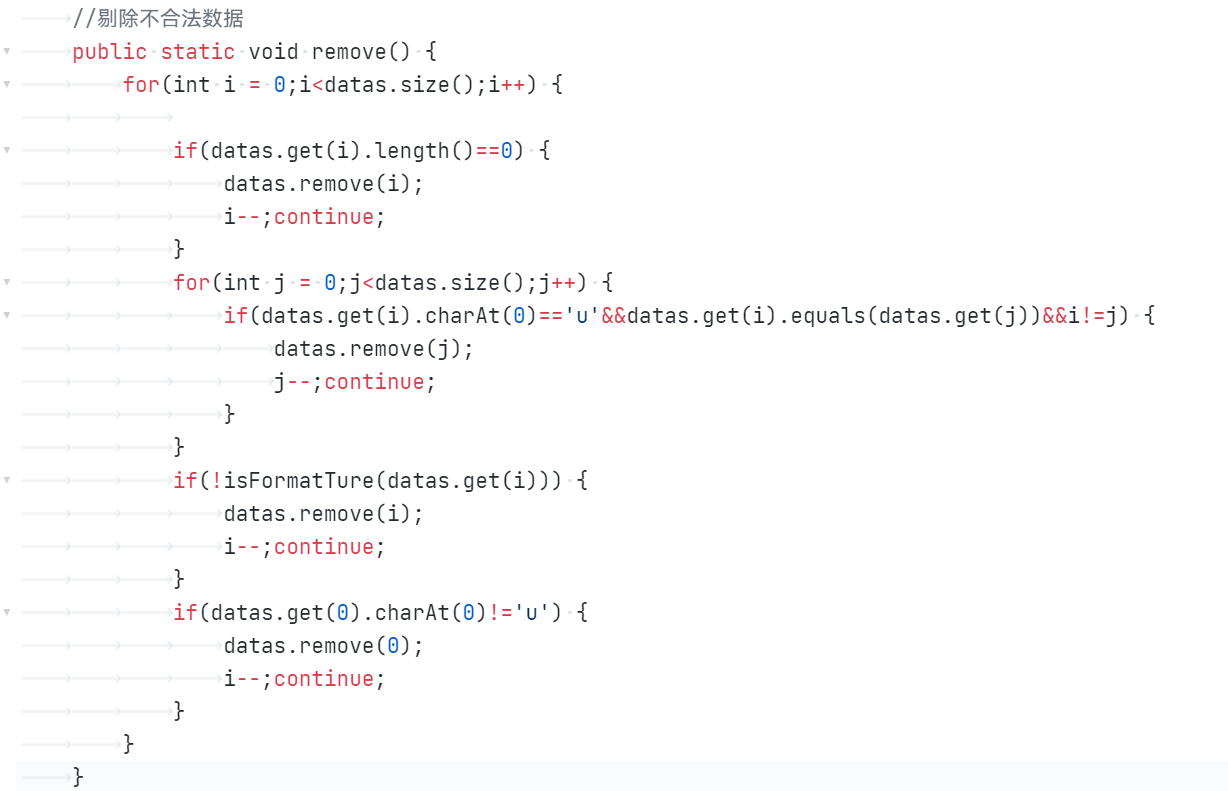

    //剔除不合法数据
    public static void remove() {
        for(int i = 0;i<datas.size();i++) {

            if(datas.get(i).length()==0) {
                datas.remove(i);
                i--;continue;
            }
            for(int j = 0;j<datas.size();j++) {
                if(datas.get(i).charAt(0)=='u'&&datas.get(i).equals(datas.get(j))&&i!=j) {
                    datas.remove(j);
                    j--;continue;
                }
            }
            if(!isFormatTure(datas.get(i))) {
                datas.remove(i);
                i--;continue;
            }
            if(datas.get(0).charAt(0)!='u') {
                datas.remove(0);
                i--;continue;
            }
        }
    }
    //判断输入格式是否合法
    public static boolean isFormatTure(String data) {
        String regex = "u-([0-9]){11,12} 0|t-[0-9]{11,12} [0-9]{10,12}( [0-9]{4}.([1-9]|10|11|12).([0-9]|[1-3][0-9]) ([0-9]|[0-2][0-9]):([0-5][0-9]):([0-5][0-9]))+|end";
        boolean isFormatTure1 = data.matches(regex);
        boolean isFormatTure2 = true;
        if(data.charAt(0)=='t') {
            Pattern pattern = Pattern.compile("\\d{1,4}\\.\\d(\\d)?\\.\\d(\\d)?\\ \\d(\\d)?\\:\\d(\\d)?\\:\\d(\\d)?");
            Matcher matcher = pattern.matcher(data);
            while (matcher.find()){
                isFormatTure2 = check(matcher.group(0));
                if(isFormatTure2==false) break;
            }
        }
        return isFormatTure1&&isFormatTure2;
    }

    public static boolean check (String str) {
        SimpleDateFormat sd=new SimpleDateFormat("yyyy.MM.dd HH:mm:ss");//括号内为日期格式，y代表年份，M代表年份中的月份（为避免与小时中的分钟数m冲突，此处用M），d代表月份中的天数
        try {
            sd.setLenient(false);//此处指定日期/时间解析是否不严格，在true是不严格，false时为严格
            sd.parse(str);//从给定字符串的开始解析文本，以生成一个日期
        }
        catch (Exception e) {
            return false;
        }
        return true;
    }

}
//图一
class User implements Comparable<User>{
    private UserRecords userRecord = new UserRecords();
    private double balance = 100;
    private ChargeMode chargeMode;
    private String number;

    public double calBalance() {
        return balance-calCost()-chargeMode.getMonthlyRent();
    }
    public double calCost() {
        chargeMode = new LandinePhoneCharging();

        return chargeMode.calCost(userRecord);
    }

    public UserRecords getUserRecord() {
        return userRecord;
    }
    public void setUserRecord(UserRecords userRecord) {
        this.userRecord = userRecord;
    }
    public double getBalance() {
        return balance;
    }
    public ChargeMode getChargeMode() {
        return chargeMode;
    }
    public void setChargeMode(ChargeMode chargeMode) {
        this.chargeMode = chargeMode;
    }
    public String getNumber() {
        return number;
    }
    public void setNumber(String number) {
        this.number = number;
    }

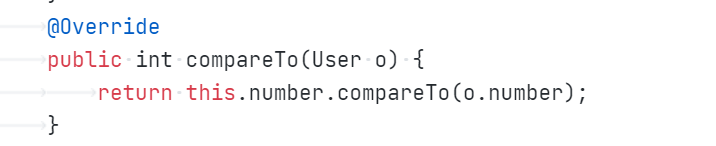

    @Override
    public int compareTo(User o) {
        return this.number.compareTo(o.number);
    }

}

class UserRecords{
    private ArrayList<CallRecord> callinglnCityRecords = new ArrayList<CallRecord>();
    private ArrayList<CallRecord> callinglnProvinceRecords = new ArrayList<CallRecord>();
    private ArrayList<CallRecord> callinglnLandRecords = new ArrayList<CallRecord>();
    private ArrayList<CallRecord> answerlnCityRecords = new ArrayList<CallRecord>();
    private ArrayList<CallRecord> answerlnProvinceRecords = new ArrayList<CallRecord>();
    private ArrayList<CallRecord> answerlnLandRecords = new ArrayList<CallRecord>();
    private ArrayList<MessageRecord> sendMessageRecords = new ArrayList<MessageRecord>();
    private ArrayList<MessageRecord> receiveMessageRecords = new ArrayList<MessageRecord>();

    public void addCallinglnCityRecords(CallRecord callRecord) {
        callinglnCityRecords.add(callRecord);
    }
    public void addCallinglnProvinceRecords(CallRecord callRecord) {
        callinglnProvinceRecords.add(callRecord);
    }
    public void addCallinglnLandRecords(CallRecord callRecord) {
        callinglnLandRecords.add(callRecord);
    }
    public void addAnswerlnCityRecords(CallRecord callRecord) {
        answerlnCityRecords.add(callRecord);
    }
    public void addAnswerlnProvinceRecords(CallRecord callRecord) {
        answerlnProvinceRecords.add(callRecord);
    }
    public void addAnswerlnLandRecords(CallRecord callRecord) {
        answerlnLandRecords.add(callRecord);
    }
    public void addSendMessageRecords(MessageRecord sendMessageRecord) {
        sendMessageRecords.add(sendMessageRecord);
    }
    public void addReceiveMessageRecords(MessageRecord receiveMessageRecord) {
        receiveMessageRecords.add(receiveMessageRecord);
    }

    public ArrayList<CallRecord> getCallinglnCityRecords() {
        return callinglnCityRecords;
    }
    public ArrayList<CallRecord> getCallinglnProvinceRecords() {
        return callinglnProvinceRecords;
    }
    public ArrayList<CallRecord> getCallinglnLandRecords() {
        return callinglnLandRecords;
    }
    public ArrayList<CallRecord> getAnswerlnCityRecords() {
        return answerlnCityRecords;
    }
    public ArrayList<CallRecord> getAnswerlnProvinceRecords() {
        return answerlnProvinceRecords;
    }
    public ArrayList<CallRecord> getAnswerlnLandRecords() {
        return answerlnLandRecords;
    }
    public ArrayList<MessageRecord> getSendMessageRecords() {
        return sendMessageRecords;
    }
    public ArrayList<MessageRecord> getReceiveMessageRecords() {
        return receiveMessageRecords;
    }

}

abstract class ChargeMode{
    private ArrayList<ChargeRule> chargeRules = new ArrayList<>();

    public ArrayList<ChargeRule> getChargeRules() {
        return chargeRules;
    }

    public void setChargeRules(ArrayList<ChargeRule> chargeRules) {
        this.chargeRules = chargeRules;
    }

    public void addChargeRules(ChargeRule chargeRule) {
        chargeRules.add(chargeRule);
    }
    public abstract double calCost(UserRecords userRecord);

    public abstract double getMonthlyRent();
}

class LandinePhoneCharging extends ChargeMode{
    private double monthlyRent = 20;

    @Override
    public double calCost(UserRecords userRecord) {
        addChargeRules(new LandPhonelnCityRule());
        addChargeRules(new LanPhonelnProvinceRule());
        addChargeRules(new LandPhonelnLandRule());
        return
        getChargeRules().get(0).calCost(userRecord.getCallinglnCityRecords())+
        getChargeRules().get(1).calCost(userRecord.getCallinglnProvinceRecords())+
        getChargeRules().get(2).calCost(userRecord.getCallinglnLandRecords());


    }

    @Override
    public double getMonthlyRent() {
        return monthlyRent;
    }

}

//图二
abstract class CommunicationRecord{
    protected String callingNumber;
    protected String answerNumber;

    public String getCallingNumber() {
        return callingNumber;
    }
    public void setCallingNumber(String callingNumber) {
        this.callingNumber = callingNumber;
    }
    public String getAnswerNumber() {
        return answerNumber;
    }
    public void setAnswerNumber(String answerNumber) {
        this.answerNumber = answerNumber;
    }
}

class CallRecord extends CommunicationRecord{
    private Date startTime;
    private Date endTime;
    private String callingAddressAreaCord;
    private String answerAddressAreaCord;

    public Date getStartTime() {
        return startTime;
    }
    public void setStartTime(Date startTime) {
        this.startTime = startTime;
    }
    public Date getEndTime() {
        return endTime;
    }
    public void setEndTime(Date endTime) {
        this.endTime = endTime;
    }
    public String getCallingAddressAreaCord() {
        return callingAddressAreaCord;
    }
    public void setCallingAddressAreaCord(String callingAddressAreaCord) {
        this.callingAddressAreaCord = callingAddressAreaCord;
    }
    public String getAnswerAddressAreaCord() {
        return answerAddressAreaCord;
    }
    public void setAnswerAddressAreaCord(String answerAddressAreaCord) {
        this.answerAddressAreaCord = answerAddressAreaCord;
    }
}

class MessageRecord extends CommunicationRecord{
    private String message;

    public String getMessage() {
        return message;
    }

    public void setMessage(String message) {
        this.message = message;
    }
}

//图三
abstract class ChargeRule{
    public abstract double calCost(ArrayList<CallRecord> callRecords) ;
}

//abstract class CallChargeRule extends ChargeRule{
//
//
//}

class LandPhonelnCityRule extends ChargeRule{

    @Override
    public double calCost(ArrayList<CallRecord> callRecords) {
        if(callRecords.size()==0) return 0;
        double minute = 0;
        double cost = 0;
        for(int i = 0;i<callRecords.size();i++) {
            minute = (callRecords.get(i).getEndTime().getTime()-callRecords.get(i).getStartTime().getTime())/60000.0;
            cost += 0.1*(int)minute;
            if(Math.abs(minute-(int)minute)>=10e-6) {
                cost += 0.1;
            }
        }
        return cost;
    }
}

class LanPhonelnProvinceRule extends ChargeRule{
    @Override
    public double calCost(ArrayList<CallRecord> callRecords) {
        if(callRecords.size()==0) return 0;
        double minute = 0;
        double cost = 0;
        for(int i = 0;i<callRecords.size();i++) {
            minute = (callRecords.get(i).getEndTime().getTime()-callRecords.get(i).getStartTime().getTime())/60000.0;
            cost += 0.3*(int)minute;
            if(Math.abs(minute-(int)minute)>=10e-6) {
                cost += 0.3;
            }
        }
        return cost;
    }

}

class LandPhonelnLandRule extends ChargeRule{
    @Override
    public double calCost(ArrayList<CallRecord> callRecords) {
        if(callRecords.size()==0) return 0;
        double minute = 0;
        double cost = 0;
        for(int i = 0;i<callRecords.size();i++) {
            minute = (callRecords.get(i).getEndTime().getTime()-callRecords.get(i).getStartTime().getTime())/60000.0;
                cost += 0.6*(int)minute;
                if(Math.abs(minute-(int)minute)>=10e-6) {
                    cost += 0.6;
                }
        }
        return cost;
    }

}



　　4.类图







　　5.踩坑心得

　　　　①

　　　　　　具体操作：



　　　　　　可以用一个接口

　　　　



　　　　　　复写的方法

　　　　



　　　　　　主类操作：

　　　　　　



　　　　②

　　　　　　

　　　　　　具体操作：

　　　　



　　5.改进建议：提取和储存用户通话记录的算法还有待改进



---



二、212016/71-题目集09——7-1 电信计费系列2-手机+座机计费

 　　1.题目（如下图）



　　2.源码设计与分析：在上一个题目集的基础上添加手机用户，考虑接电话和市外，省外漫游的情况

　　正则表达式：

　　　　String regex = "u-([0-9]){10,12} (0|1)|u-1([0-9]){10} (1|3)|t-[0-9]{11,12}( [0-9]{3,4})? [0-9]{10,12}( [0-9]{3,4})?( [0-9]{4}.([1-9]|10|11|12).([0-9]|[1-3][0-9]) ([0-9]|[0-2][0-9]):([0-5][0-9]):([0-5][0-9])){2}|m-1[0-9]{10} 1[0-9]{10} ([0-9]|[a-zA-Z]|\\ |\\,|\\.)+|end";



　　3.源码



 　　

import java.text.DateFormatSymbols;
import java.text.ParseException;
import java.util.ArrayList;
import java.util.Collections;
import java.util.Comparator;
import java.util.Date;
import java.util.Scanner;
import java.util.regex.Matcher;
import java.util.regex.Pattern;
import java.text.SimpleDateFormat;

public class Main {
    static ArrayList<String> datas = new ArrayList<String>();
    static ArrayList<User> users = new ArrayList<User>();
    static ArrayList<CallRecord> callRecords = new ArrayList<CallRecord>();
    static ArrayList<String[]> tDatas = new ArrayList<String[]>();
    static ArrayList<MessageRecord> messageRecords = new ArrayList<MessageRecord>();



    public static void main(String[] args)  throws ParseException{
        // TODO Auto-generated method stub
        Scanner in = new Scanner(System.in);
        String data;
        while(true) {
            data = in.nextLine();
            if(data.equals("end")) break;
            datas.add(data);
        }
        remove();
        saveData();
        usersSort();
        cal_output();
    }

    //用户按号码排序
    public static void usersSort() {
        Collections.sort(users);
    }

    public static void cal_output() {
        for(int i = 0;i<users.size();i++) {
            System.out.print(users.get(i).getNumber()+" ");
            System.out.printf("%.1f %.1f\n",users.get(i).calCost(),users.get(i).calBalance());
        }
    }

    //判断地址码是在市内，省内，还是省外
    public static int addressAreaCord(String addressAreaCord) {
        if(addressAreaCord.equals("0791")) {
            return 0;
        }else if((addressAreaCord.charAt(0)=='0'&&addressAreaCord.charAt(1)=='7'&&addressAreaCord.charAt(2)=='9'&&addressAreaCord.charAt(3)>='0'&&addressAreaCord.charAt(3)<='9')||(addressAreaCord.equals("0701")) ) {
            return 1;
        }else {
            return 2;
        }
    }

    //判断电话记录的类型
    public static String callRecordsArea(CallRecord callRecord) {
        String cord = callRecord.getAnswerAddressAreaCord();
        if(cord.equals("0791")) {
            return "lnCity";
        }else if((cord.charAt(0)=='0'&&cord.charAt(1)=='7'&&cord.charAt(2)=='9'&&cord.charAt(3)>='0'&&cord.charAt(3)<='9')||(cord.equals("0701")) ) {
            return "lnProvince";
        }else {
            return "lnLand";
        }
    }

    public static void saveData() throws ParseException {
        SimpleDateFormat sd = new SimpleDateFormat("yyyy.MM.dd HH:mm:ss");
        String data =new String();
        for(int i = 0;i<datas.size();i++) {
            data = datas.get(i);
            if(data.charAt(0)=='u') {
                Pattern pattern = Pattern.compile("[0-9]{10,12}");
                Matcher matcher = pattern.matcher(data);
                while (matcher.find()){
                    users.add(new User());
                    users.get(users.size()-1).setNumber(matcher.group(0));
                    users.get(users.size()-1).setType(data.charAt(data.length()-1));

                }
            }else if(data.charAt(0)=='t') {
                tDatas.add(new String[4]);
                Pattern pattern1 = Pattern.compile("[0-9]{10,12}( [0-9]{3,4} )?");
                Matcher matcher1 = pattern1.matcher(data);
                Pattern pattern2 = Pattern.compile("\\d{1,4}.\\d(\\d)?.\\d(\\d)? \\d(\\d)?:\\d(\\d)?:\\d(\\d)?");
                Matcher matcher2 = pattern2.matcher(data);
                int num = 0;
                while (matcher1.find()){
                    tDatas.get(tDatas.size()-1)[num] = matcher1.group(0);
                    num++;
                }
                while (matcher2.find()){
                    tDatas.get(tDatas.size()-1)[num] = matcher2.group(0);
                    num++;
                }
            }else if(data.charAt(0)=='m') {
                messageRecords.add(new MessageRecord());
                Pattern pattern1 = Pattern.compile("1[0-9]{10}");
                Matcher matcher1 = pattern1.matcher(data);

                int num = 0;
                while (matcher1.find()){
                    if(num == 0) {
                        messageRecords.get(messageRecords.size()-1).setCallingNumber(matcher1.group(0));
                    }else if(num == 1) {
                        messageRecords.get(messageRecords.size()-1).setAnswerNumber(matcher1.group(0));
                    }
                    num++;
                }
                messageRecords.get(messageRecords.size()-1).setMessage(data.substring(27));

            }
        }

        for(int i = 0;i<tDatas.size();i++) {
            callRecords.add(new CallRecord());

            callRecords.get(i).setStartTime(sd.parse(tDatas.get(i)[2]));
            callRecords.get(i).setEndTime(sd.parse(tDatas.get(i)[3]));
            if(tDatas.get(i)[0].length()<=12) {
                callRecords.get(i).setCallingNumber(tDatas.get(i)[0]);
                callRecords.get(i).setCallingAddressAreaCord(tDatas.get(i)[0].substring(0, 4));
            }else {
                callRecords.get(i).setCallingNumber(tDatas.get(i)[0].substring(0, tDatas.get(i)[0].indexOf(' ')));
                callRecords.get(i).setCallingAddressAreaCord(tDatas.get(i)[0].substring(tDatas.get(i)[0].indexOf(' ')+1, tDatas.get(i)[0].lastIndexOf(' ')));
            }
            if(tDatas.get(i)[1].length()<=12) {
                callRecords.get(i).setAnswerNumber(tDatas.get(i)[1]);
                callRecords.get(i).setAnswerAddressAreaCord(tDatas.get(i)[1].substring(0, 4));
            }else {
                callRecords.get(i).setAnswerNumber(tDatas.get(i)[1].substring(0, tDatas.get(i)[1].indexOf(' ')));
                callRecords.get(i).setAnswerAddressAreaCord(tDatas.get(i)[1].substring(tDatas.get(i)[1].indexOf(' ')+1, tDatas.get(i)[1].lastIndexOf(' ')));
            }
            if(callRecords.get(i).getStartTime().getTime()-callRecords.get(i).getEndTime().getTime()>0) {
                callRecords.remove(callRecords.size()-1);
                tDatas.remove(i);i--;continue;
            }
        }

        for(int i = 0;i<users.size();i++) {
            for(int j = 0;j<callRecords.size();j++) {
                if(users.get(i).getNumber().equals(callRecords.get(j).getCallingNumber())&&users.get(i).getType()=='0') {
                    if( callRecords.get(j).getAnswerAddressAreaCord().equals("0791") ) {
                        users.get(i).getUserRecord().addCallinglnCityRecords(callRecords.get(j));
                    }else if( (callRecords.get(j).getAnswerAddressAreaCord().charAt(0)=='0'&&callRecords.get(j).getAnswerAddressAreaCord().charAt(1)=='7'&&callRecords.get(j).getAnswerAddressAreaCord().charAt(2)=='9'&&callRecords.get(j).getAnswerAddressAreaCord().charAt(3)>='0'&&callRecords.get(j).getAnswerAddressAreaCord().charAt(3)<='9')||(callRecords.get(j).getAnswerAddressAreaCord().equals("0701"))) {
                        users.get(i).getUserRecord().addCallinglnProvinceRecords(callRecords.get(j));
                    }else {
                        users.get(i).getUserRecord().addCallinglnLandRecords(callRecords.get(j));
                    }
                }
                if(users.get(i).getNumber().equals(callRecords.get(j).getCallingNumber())&&users.get(i).getType()=='1') {
                    if(  addressAreaCord(callRecords.get(j).getCallingAddressAreaCord())==0&& addressAreaCord(callRecords.get(j).getAnswerAddressAreaCord())==0 ) {
                        users.get(i).getUserRecord().addCallinglnCityRecords(callRecords.get(j));
                    }else if(  addressAreaCord(callRecords.get(j).getCallingAddressAreaCord())==0&& addressAreaCord(callRecords.get(j).getAnswerAddressAreaCord())==1 ) {
                        users.get(i).getUserRecord().addCallinglnCity_lnProvinceRecords(callRecords.get(j));
                    }else if(  addressAreaCord(callRecords.get(j).getCallingAddressAreaCord())==0&& addressAreaCord(callRecords.get(j).getAnswerAddressAreaCord())==2 ) {
                        users.get(i).getUserRecord().addCallinglnProvinceRecords(callRecords.get(j));
                    }else if(  addressAreaCord(callRecords.get(j).getCallingAddressAreaCord())==1) {
                        users.get(i).getUserRecord().addCallinglnProvinceRecords(callRecords.get(j));
                    }else if(  addressAreaCord(callRecords.get(j).getCallingAddressAreaCord())==2) {
                        users.get(i).getUserRecord().addCallinglnLandRecords(callRecords.get(j));
                    }
                }
                if(users.get(i).getNumber().equals(callRecords.get(j).getAnswerNumber())&&users.get(i).getType()=='1') {
                    if( addressAreaCord(callRecords.get(j).getAnswerAddressAreaCord())==2) {
                        users.get(i).getUserRecord().addAnswerlnLandRecords(callRecords.get(j));
                    }
                }
            }
        }
        for(int i = 0;i<users.size();i++) {
            for(int j = 0;j<messageRecords.size();j++) {
                if(users.get(i).getNumber().equals(messageRecords.get(j).getCallingNumber())&&users.get(i).getType()=='3') {
                    users.get(i).getUserRecord().addSendMessageRecords(messageRecords.get(j));
                }
            }
        }

    }
    //剔除不合法数据
    public static void remove() {
        for(int i = 0;i<datas.size();i++) {

            if(datas.get(i).length()==0) {
                datas.remove(i);
                i--;continue;
            }
            for(int j = 0;j<datas.size();j++) {
                if(datas.get(i).charAt(0)=='u'&&datas.get(i).equals(datas.get(j))&&i!=j) {
                    datas.remove(j);
                    j--;continue;
                }
            }
            if(!isFormatTure(datas.get(i))) {
                datas.remove(i);
                i--;continue;
            }
            if(datas.get(0).charAt(0)!='u') {
                datas.remove(0);
                i--;continue;
            }
        }
    }
    //判断输入格式是否合法
    public static boolean isFormatTure(String data) {
        String regex = "u-([0-9]){10,12} (0|1)|u-1([0-9]){10} (1|3)|t-[0-9]{11,12}( [0-9]{3,4})? [0-9]{10,12}( [0-9]{3,4})?( [0-9]{4}.([1-9]|10|11|12).([0-9]|[1-3][0-9]) ([0-9]|[0-2][0-9]):([0-5][0-9]):([0-5][0-9])){2}|m-1[0-9]{10} 1[0-9]{10} ([0-9]|[a-zA-Z]|\\ |\\,|\\.)+|end";
        boolean isFormatTure1 = data.matches(regex);
        boolean isFormatTure2 = true;
        if(data.charAt(0)=='t') {
            Pattern pattern = Pattern.compile("\\d{1,4}.\\d(\\d)?.\\d(\\d)? \\d(\\d)?:\\d(\\d)?:\\d(\\d)?");
            Matcher matcher = pattern.matcher(data);
            while (matcher.find()){
                isFormatTure2 = check(matcher.group(0));
                if(isFormatTure2==false) break;
            }
        }
        return isFormatTure1&&isFormatTure2;
    }

    public static boolean check (String str) {
        SimpleDateFormat sd=new SimpleDateFormat("yyyy.MM.dd HH:mm:ss");//括号内为日期格式，y代表年份，M代表年份中的月份（为避免与小时中的分钟数m冲突，此处用M），d代表月份中的天数
        try {
            sd.setLenient(false);//此处指定日期/时间解析是否不严格，在true是不严格，false时为严格
            sd.parse(str);//从给定字符串的开始解析文本，以生成一个日期
        }
        catch (Exception e) {
            return false;
        }
        return true;
    }

}
//图一
class User implements Comparable<User>{
    private UserRecords userRecord = new UserRecords();
    private double balance = 100;
    private ChargeMode chargeMode;
    private String number;
    private char type;

    public double calBalance() {
        if(this.type=='3') {
            return balance-calCost();
        }else {
            return balance-calCost()-chargeMode.getMonthlyRent();
        }
    }
    public double calCost() {
        if(this.type=='0') {
            chargeMode = new LandinePhoneCharging();
        }else {
            chargeMode = new cellPhoneCharging();
        }
        return chargeMode.calCost(userRecord);
    }
    public UserRecords getUserRecord() {
        return userRecord;
    }
    public void setUserRecord(UserRecords userRecord) {
        this.userRecord = userRecord;
    }
    public double getBalance() {
        return balance;
    }
    public ChargeMode getChargeMode() {
        return chargeMode;
    }
    public void setChargeMode(ChargeMode chargeMode) {
        this.chargeMode = chargeMode;
    }
    public String getNumber() {
        return number;
    }
    public void setNumber(String number) {
        this.number = number;
    }
    public char getType() {
        return type;
    }
    public void setType(char type) {
        this.type = type;
    }
    @Override
    public int compareTo(User o) {
        return this.number.compareTo(o.number);
    }

}

class UserRecords{
    private ArrayList<CallRecord> callinglnCityRecords = new ArrayList<CallRecord>();
    private ArrayList<CallRecord> callinglnProvinceRecords = new ArrayList<CallRecord>();
    private ArrayList<CallRecord> callinglnLandRecords = new ArrayList<CallRecord>();
    private ArrayList<CallRecord> callinglnCity_lnProvinceRecords = new ArrayList<CallRecord>();
    private ArrayList<CallRecord> answerlnCityRecords = new ArrayList<CallRecord>();
    private ArrayList<CallRecord> answerlnProvinceRecords = new ArrayList<CallRecord>();
    private ArrayList<CallRecord> answerlnLandRecords = new ArrayList<CallRecord>();
    private ArrayList<MessageRecord> sendMessageRecords = new ArrayList<MessageRecord>();
    private ArrayList<MessageRecord> receiveMessageRecords = new ArrayList<MessageRecord>();

    public void addCallinglnCityRecords(CallRecord callRecord) {
        callinglnCityRecords.add(callRecord);
    }
    public void addCallinglnProvinceRecords(CallRecord callRecord) {
        callinglnProvinceRecords.add(callRecord);
    }
    public void addCallinglnLandRecords(CallRecord callRecord) {
        callinglnLandRecords.add(callRecord);
    }
    public void addCallinglnCity_lnProvinceRecords(CallRecord callRecord) {
        callinglnCity_lnProvinceRecords.add(callRecord);
    }
    public void addAnswerlnCityRecords(CallRecord callRecord) {
        answerlnCityRecords.add(callRecord);
    }
    public void addAnswerlnProvinceRecords(CallRecord callRecord) {
        answerlnProvinceRecords.add(callRecord);
    }
    public void addAnswerlnLandRecords(CallRecord callRecord) {
        answerlnLandRecords.add(callRecord);
    }
    public void addSendMessageRecords(MessageRecord sendMessageRecord) {
        sendMessageRecords.add(sendMessageRecord);
    }
    public void addReceiveMessageRecords(MessageRecord receiveMessageRecord) {
        receiveMessageRecords.add(receiveMessageRecord);
    }

    public ArrayList<CallRecord> getCallinglnCityRecords() {
        return callinglnCityRecords;
    }
    public ArrayList<CallRecord> getCallinglnProvinceRecords() {
        return callinglnProvinceRecords;
    }
    public ArrayList<CallRecord> getCallinglnLandRecords() {
        return callinglnLandRecords;
    }
    public ArrayList<CallRecord> getAnswerlnCityRecords() {
        return answerlnCityRecords;
    }
    public ArrayList<CallRecord> getAnswerlnProvinceRecords() {
        return answerlnProvinceRecords;
    }
    public ArrayList<CallRecord> getAnswerlnLandRecords() {
        return answerlnLandRecords;
    }

    public ArrayList<CallRecord> getCallinglnCity_lnProvinceRecords() {
        return callinglnCity_lnProvinceRecords;
    }
    public ArrayList<MessageRecord> getSendMessageRecords() {
        return sendMessageRecords;
    }
    public ArrayList<MessageRecord> getReceiveMessageRecords() {
        return receiveMessageRecords;
    }

}

abstract class ChargeMode{
    private ArrayList<ChargeRule> chargeRules = new ArrayList<>();

    public ArrayList<ChargeRule> getChargeRules() {
        return chargeRules;
    }

    public void setChargeRules(ArrayList<ChargeRule> chargeRules) {
        this.chargeRules = chargeRules;
    }

    public void addChargeRules(ChargeRule chargeRule) {
        chargeRules.add(chargeRule);
    }
    public abstract double calCost(UserRecords userRecord);

    public abstract double getMonthlyRent();
}

class LandinePhoneCharging extends ChargeMode{
    private double monthlyRent = 20;

    @Override
    public double calCost(UserRecords userRecord) {
        addChargeRules(new LandPhonelnCityRule());
        addChargeRules(new LandPhonelnProvinceRule());
        addChargeRules(new LandPhonelnLandRule());
        return
        ((LandPhonelnCityRule) getChargeRules().get(0)).calCost(userRecord.getCallinglnCityRecords())+
        ((LandPhonelnProvinceRule) getChargeRules().get(1)).calCost(userRecord.getCallinglnProvinceRecords())+
        ((LandPhonelnLandRule) getChargeRules().get(2)).calCost(userRecord.getCallinglnLandRecords());
    }

    @Override
    public double getMonthlyRent() {
        return monthlyRent;
    }
}

class cellPhoneCharging extends ChargeMode{
    private double monthlyRent = 15;

    @Override
    public double calCost(UserRecords userRecord) {
        addChargeRules(new LandPhonelnCityRule());
        addChargeRules(new LandPhonelnProvinceRule());
        addChargeRules(new LandPhonelnLandRule());
        addChargeRules(new LandPhonelnCity_lnProvinceRule());
        addChargeRules(new SendMessageRule());
        return
        ((LandPhonelnCityRule) getChargeRules().get(0)).calCost(userRecord.getCallinglnCityRecords())+
        ((LandPhonelnProvinceRule) getChargeRules().get(1)).calCost(userRecord.getCallinglnProvinceRecords())+
        ((LandPhonelnProvinceRule) getChargeRules().get(1)).calCost(userRecord.getAnswerlnLandRecords())+
        ((LandPhonelnLandRule) getChargeRules().get(2)).calCost(userRecord.getCallinglnLandRecords())+
        ((LandPhonelnCity_lnProvinceRule) getChargeRules().get(3)).calCost(userRecord.getCallinglnCity_lnProvinceRecords())+
        ((SendMessageRule) getChargeRules().get(4)).calCost(userRecord.getSendMessageRecords());
    }

    @Override
    public double getMonthlyRent() {
        return monthlyRent;
    }

}

//图二
abstract class CommunicationRecord{
    protected String callingNumber;
    protected String answerNumber;

    public String getCallingNumber() {
        return callingNumber;
    }
    public void setCallingNumber(String callingNumber) {
        this.callingNumber = callingNumber;
    }
    public String getAnswerNumber() {
        return answerNumber;
    }
    public void setAnswerNumber(String answerNumber) {
        this.answerNumber = answerNumber;
    }
}

class CallRecord extends CommunicationRecord{
    private Date startTime;
    private Date endTime;
    private String callingAddressAreaCord;
    private String answerAddressAreaCord;

    public Date getStartTime() {
        return startTime;
    }
    public void setStartTime(Date startTime) {
        this.startTime = startTime;
    }
    public Date getEndTime() {
        return endTime;
    }
    public void setEndTime(Date endTime) {
        this.endTime = endTime;
    }
    public String getCallingAddressAreaCord() {
        return callingAddressAreaCord;
    }
    public void setCallingAddressAreaCord(String callingAddressAreaCord) {
        this.callingAddressAreaCord = callingAddressAreaCord;
    }
    public String getAnswerAddressAreaCord() {
        return answerAddressAreaCord;
    }
    public void setAnswerAddressAreaCord(String answerAddressAreaCord) {
        this.answerAddressAreaCord = answerAddressAreaCord;
    }
}

class MessageRecord extends CommunicationRecord{
    private String message;

    public String getMessage() {
        return message;
    }

    public void setMessage(String message) {
        this.message = message;
    }
}

//图三
abstract class ChargeRule{

}

abstract class MessageChargeRule extends ChargeRule{
    public abstract double calCost(ArrayList<MessageRecord> messageRecords) ;
}

class SendMessageRule extends MessageChargeRule{
    @Override
    public double calCost(ArrayList<MessageRecord> messageRecords) {
        if(messageRecords.size()==0) return 0;

        double cost = 0;
        int messageNum = 0;
        for(int i = 0;i<messageRecords.size();i++) {
            int length = 0;
            length = messageRecords.get(i).getMessage().length();
            messageNum += length/10;
            if(length%10!=0) {
                messageNum += 1;
            }
        }
        if(messageNum<=3) {
            cost += 0.1*messageNum;
        }else if(messageNum>3&&messageNum<=5) {
            cost += 0.1*3+0.2*(messageNum-3);
        }else {
            cost += 0.1*3+0.2*2+0.3*(messageNum-5);
        }
        return cost;
    }
}

abstract class CallChargeRule extends ChargeRule{
    public abstract double calCost(ArrayList<CallRecord> callRecords) ;
}

class LandPhonelnCityRule extends CallChargeRule{

    @Override
    public double calCost(ArrayList<CallRecord> callRecords) {
        if(callRecords.size()==0) return 0;
        double minute = 0;
        double cost = 0;
        for(int i = 0;i<callRecords.size();i++) {
            minute = (callRecords.get(i).getEndTime().getTime()-callRecords.get(i).getStartTime().getTime())/60000.0;
            cost += 0.1*(int)minute;
            if(Math.abs(minute-(int)minute)>=10e-6) {
                cost += 0.1;
            }
        }
        return cost;
    }
}

class LandPhonelnProvinceRule extends CallChargeRule{
    @Override
    public double calCost(ArrayList<CallRecord> callRecords) {
        if(callRecords.size()==0) return 0;
        double minute = 0;
        double cost = 0;
        for(int i = 0;i<callRecords.size();i++) {
            minute = (callRecords.get(i).getEndTime().getTime()-callRecords.get(i).getStartTime().getTime())/60000.0;
            cost += 0.3*(int)minute;
            if(Math.abs(minute-(int)minute)>=10e-6) {
                cost += 0.3;
            }
        }
        return cost;
    }

}

class LandPhonelnLandRule extends CallChargeRule{
    @Override
    public double calCost(ArrayList<CallRecord> callRecords) {
        if(callRecords.size()==0) return 0;
        double minute = 0;
        double cost = 0;
        for(int i = 0;i<callRecords.size();i++) {
            minute = (callRecords.get(i).getEndTime().getTime()-callRecords.get(i).getStartTime().getTime())/60000.0;
                cost += 0.6*(int)minute;
                if(Math.abs(minute-(int)minute)>=10e-6) {
                    cost += 0.6;
                }
        }
        return cost;
    }

}

class LandPhonelnCity_lnProvinceRule extends CallChargeRule{
    @Override
    public double calCost(ArrayList<CallRecord> callRecords) {
        if(callRecords.size()==0) return 0;
        double minute = 0;
        double cost = 0;
        for(int i = 0;i<callRecords.size();i++) {
            minute = (callRecords.get(i).getEndTime().getTime()-callRecords.get(i).getStartTime().getTime())/60000.0;
                cost += 0.2*(int)minute;
                if(Math.abs(minute-(int)minute)>=10e-6) {
                    cost += 0.2;
                }
        }
        return cost;
    }

}

　　4.类图

　　



　　5.踩坑心得



　　　　



　　6.改进建议：无



---

---





总结:



学会了什么：



1.通过对本阶段综合性总结，我对Java的基础语法（选择、函数、字符字符串相关操作、循环、方法、数组）有了更深层次的理解



2.对类与对象的设计原则有了更深层次的理解，了解了继承原则和多态特性，抽象类和接口，并能在实际编程加以应用



3.了解了什么是接口、抽象类，并能熟练应用



还需要改进加强的地方：



1.考虑问题不够全面



2.主函数不能做到完全解耦



3.算法不够精确不够简单
